Product Type	Exhaust Fan
Brand	NuTone
Model	Roomside AERN110DCSL
Dimensions (L x W x H)	27.5 x 27.5 x 15 cm
Weight	2.5 kg
Power	120 V, 60 Hz
Power Consumption	30 W
Airflow	110 CFM (approx. 187 m³/h)
Noise Level	1.5 zones (low)
Housing Material	Galvanized Steel
Color	White
Installation	Ceiling or wall
Recommended Use	Bathroom, up to 10 m²
Functions	Air extraction, anti-condensation
Control	Separate wall switch
Maintenance	Clean blades and housing with a damp cloth
Safety	Disconnect before any maintenance
Spare Parts	Available from the manufacturer
Repairability	Repairability index not communicated
Warranty	1 year

Frequently Asked Questions - Roomside AERN110DCSL NuTone

How to install the Roomside AERN110DCSL fan?

Installation should be performed by a qualified electrician. Ensure the circuit is off. Fix the housing to the ceiling or wall, connect the wiring according to the diagram in the manual, then install the grille.

What is the airflow of this fan?

The airflow is 110 CFM (approx. 187 m³/h), suitable for a medium-sized bathroom.

Is the fan noisy?

The noise level is very low, rated 1.5 zones. It is designed to be discreet.

How to clean the fan?

Unplug the power. Clean the blades and housing with a damp cloth. Do not use abrasive products.

Can I use this fan in a kitchen?

No, this model is designed for bathrooms. It is not suitable for kitchens due to grease.

How to resolve abnormal noise?

Check that the blades are not obstructed and that the fan is properly fixed. If the noise persists, contact customer service.

Where can I find spare parts?

Spare parts are available from NuTone or authorized dealers. Provide the model AERN110DCSL.

What is the power consumption?

The consumption is 30 W during operation.

Does the fan have integrated lighting?

No, this model does not include lighting. It is a simple fan without light.

How to contact NuTone support?

You can contact customer service via the official website or by phone. The contact details are in the manual.

USER MANUAL Roomside AERN110DCSL NuTone

Roomside / Flex™ Series Humidity Sensing Fan READ AND SAVE THESE INSTRUCTIONS

For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan-NuTone.com 800-558-1711. In Canada - Broan-NuTone.ca 800-567-3855.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting of gases through the fl ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. For installation in fl at ceilings only. Do not mount this product in a wall.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. DO NOT TOUCH THE HUMIDITY-SENSING CIRCUIT BOARD. Electrostatic discharge may damage the circuit board.
5. Please read specification label on product for further information and requirements.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller).

SENSOR CLEANING

The humidity sensor is mounted in the control housing. The sensor will operate most reliably when cleaned occasionally as follows:

1. Disconnect power at service entrance.
2. Remove the grille. Use a dry dustcloth, clean toothbrush, or lightly vacuum to clean sensor and grille. DO NOT USE ABRASIVE CLOTH, STEEL WOOL PADS, OR SCOURING POWDERS.
3. DO NOT USE cleaning sprays, solvents, or water on or near the sensor!

OPERATION

The humidity sensor and fan can be operated separately. Use an on/off switch or a 2-function wall control.

Flex™ Humidity Sensing Fan ONLY: Do not use a speed control to operate the humidity sensor or the fan.

SENSOR OPERATION

This humidity-sensing fan uses a sophisticated humidity sensor that responds to: (a) rapid to moderate increases in humidity or (b) humidity above a set-point. The humidity sensor may occasionally turn the fan ON when environmental conditions change.

MANUAL ON WITH TIMED OFF

This humidity sensing fan has an additional operation feature. For odor or vapor control, the fan can be energized by cycling the power switch. Once the fan has been energized in this manner, it will remain on for the set timer period.

To manually energize the fan:

1. If fan power switch is already ON, proceed to Step 2; otherwise, turn power switch ON for more than 1 second.
2. Turn fan power switch OFF for less than 1 second.
3. Turn fan power switch back ON and fan will turn ON.

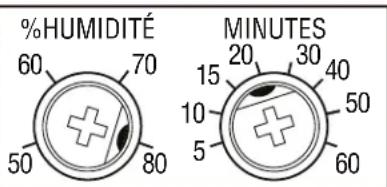

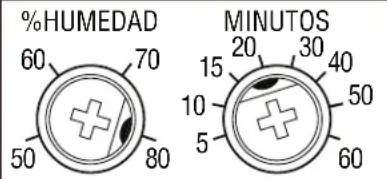

%HUMIDITYMINUTES

Factory settings shown.

% HUMIDITY ADJUSTMENT

%HUMIDITY has been factory set at 80% for most shower applications. If fan is not responding to changing humidity conditions, adjust toward 50%. If fan is responding too often to changing humidity conditions, adjust toward 80%. If fan is still responding too often at 80%, contact Broan Technical Support.

To adjust the %HUMIDITY:

1. Turn power off at electrical service panel.
2. Use a small screwdriver to carefully rotate %HUMIDITY control to desired level.
3. Turn power on.
4. Repeat above steps if necessary.

MINUTES ADJUSTMENT (TIMER)

This humidity-sensing fan has a timer that controls how long the fan remains on after (a) rise in humidity and (b) humidity level are both below the user-adjustable %HUMIDITY setting, or after being energized by cycling power switch.

To adjust the timer:

1. Disconnect power at electrical service panel.
2. Use a small screwdriver to carefully rotate MINUTES control to increase or decrease time.
3. Turn power on.
4. Repeat above steps if necessary.

IMPORTANT - The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow.

OPTION - To mount housing anywhere between ceiling framing: Use optional Hanger Bar Kit (sold separately from local distributors or website). Follow mounting instructions included with kit.

ALL INSTALLATIONS

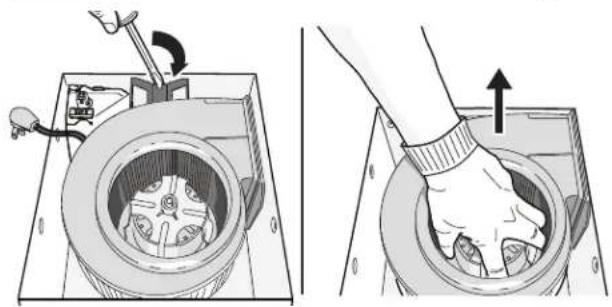

1 Remove all packing material, unplug and remove blower from fan housing.

2 Remove wiring panel from fan housing (if already installed).

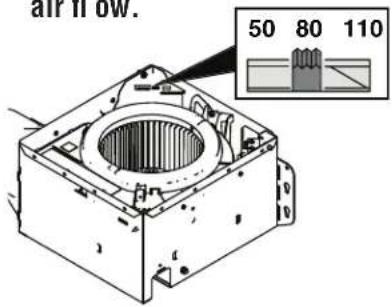

1. The models only: Select 50, 80 or 110 CFM based on your room size and desired air flow.


4 Some models only: A pair of fl anges may be attached to housing if desired or required.

Snap both fl ange pieces under rolled-over edge of housing (all four sides).

For Retrofi t Installation - Skip to Page 3.

NEW INSTALLATION

5 Attach damper/duct connector to fan housing.

Push connector through opening from inside of housing.

Engage tabs and secure with screw from parts bag.

6 Mount housing to ceiling structure.

Make sure bottom of housing will be fl ush with fi nished ceiling.

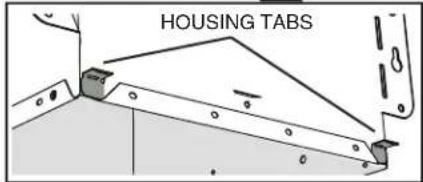

For proper location using 1/2 " ceiling material: Bend out housing tabs (on outside of housing) to fit against bottom of joist.

Secure housing through mounting ears with appropriate fasteners. If mounting housing to I-joist, use wood blocking as shown.

7 Connect 4-in. round duct.

8 Connect wiring.

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring

diagrams for connection details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

9 Install housing mask.

Place mask into housing opening to prevent drywall spr and constr damaging

10 Finish ceiling. Then continue with Step 11.

RETROFIT INSTALLATION

5 Remove old fan and prepare ceiling.

Enlarge ceiling opening

(if necessary) to 9 ^3/4 "

parallel to joist) by 10½"

(perpendicular to joist).

(Some models have a

cut-out template on side of carton or on grille packaging materials.)

Existing fan housings are typically attached to the structure:

- with screws, nails, or staples, which must be removed.

- with hangers or rails which are fastened to joists and must be removed along with housing.

A pry bar may be needed to remove the old housing.

Leave ductwork and wiring in place.

6 Fold mounting ears fl at against housing.

7 Connect wiring.

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagrams for connection details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

8 Mount fan to ceiling structure.

Mount housing to ceiling structure with appropriate fasteners in locations shown.

9

Connect 4-in. round duct.

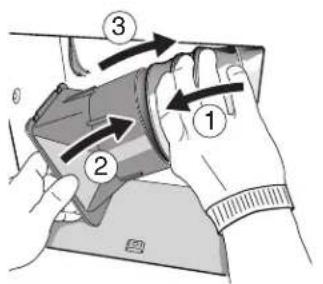

① Pull existing ducting through housing discharge opening and ② tape ducting to duct connector. ③ Push connector/ducting back through opening. Engage tabs and ④ secure with screw from parts bag.

Continue with Step 11.

ALL INSTALLATIONS

11

Install blower.

Re-install blower removed in Step 1. Secure blower with 2 screws from parts bag. Plug blower into black receptacle.

Flex™ Humidity Sensing Fan ONLY: Plug 5-wire plug into controller module.

12

Install grille.

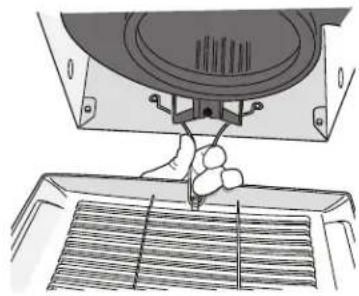

Plug in sensor wires. Squeeze grille springs and insert into slots in blower. Push grille up against ceiling.

Depending upon model - your grille may look different.

If grille spring becomes dislodged from grille - snap it back into place as shown.

WIRING DIAGRAMS

WIRING OPTION #1

• When switch is ON, fan will operate automatically, based on room humidity conditions.
• Turn fan ON immediately for the set timer period (to control odors), by cycling switch.

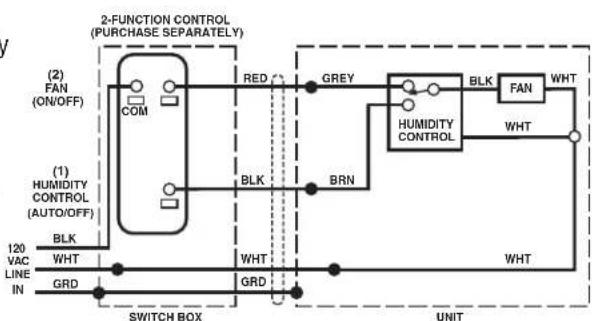

WIRING OPTION #2

• When first switch (1) is ON, fan will operate automatically based on room humidity conditions.
• Turn fan ON immediately (to control odors) by using second switch (2).
