11,0 C ( ) Incorporado 18NOTE: Reviewing the section on will help you solve some common problems by yourself.If you cannot solve the problems by yourself, please ask for help from a professional technician.The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.Troubleshooting Tips SAFETY INFORMATION

USING YOUR DISHWASHER

MAINTENANCE AND CLEANING

INSTALLATION INSTRUCTION Power ConnectionWater Supply And DrainConnection Of Drain HosesBuilt-In Installation (for the integrated model)Positioning The Appliance

ENSAFETY INFORMATION WARNING When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as:

working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. staff kitchen areas in shops, offices and other This appliance can be used by children aged from 8 years and above and persons with reduced physical (For IEC60335-1)

ENPackaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance . Children should be supervised to ensure that they do not play with the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Earthing Instructions

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

ENDo not modify the plug provided with the appliance if it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Warning: Knives and other utensils with sharp

points must be loaded in the basket with their points facing down or placed in a horizontal position. Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that there are no detergent residues after completion of the wash cycle. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.

EN6 For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction. The maximum number of place settings to be washed is 14. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.

ENDisposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

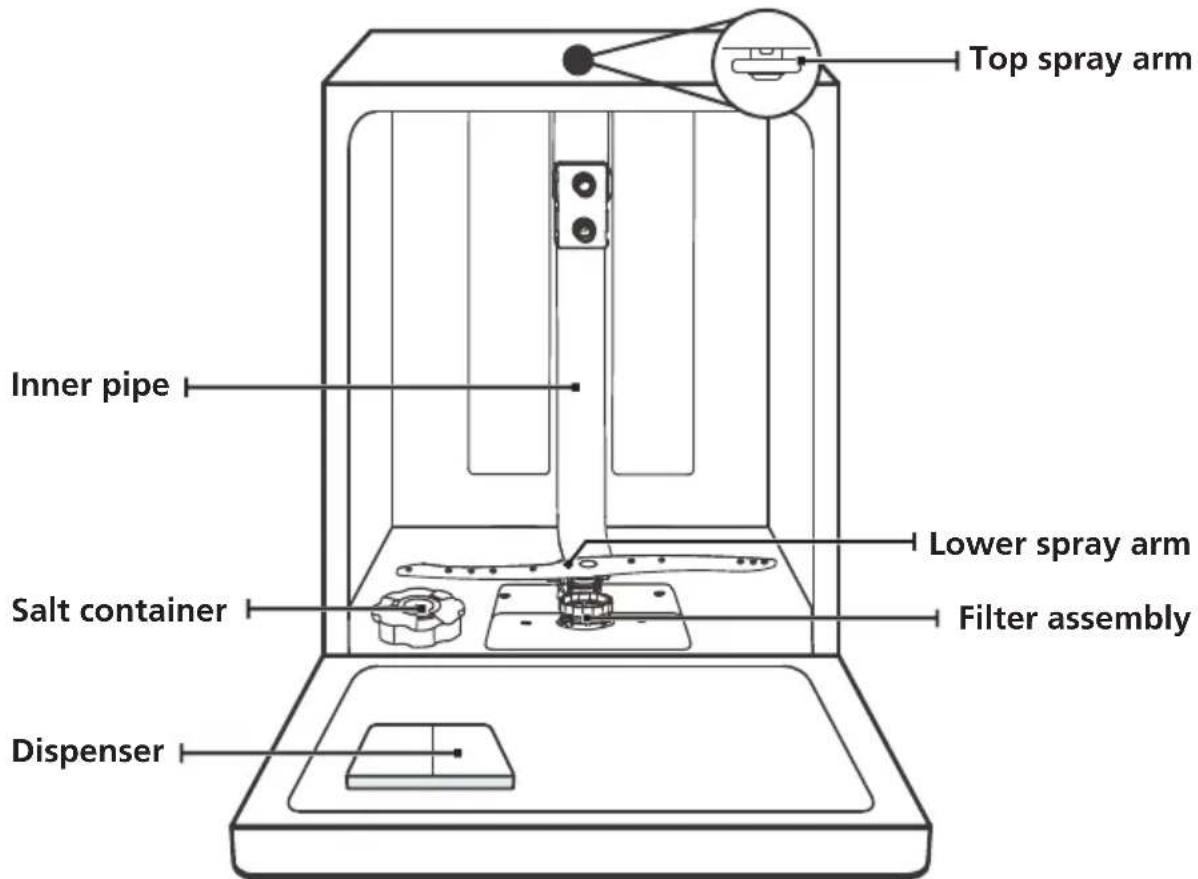

ENCutlery rack PRODUCT OVERVIEW To get the best performance from your dishwasher, read all operating instructions before using it for the first time. DispenserSalt containerFilter assemblyLower spray armInner pipe IMPORTANT:

Pictures are only for reference, different models may be different. NOTE: Lower basketUpper basketUpper spray armCup rackTop spray arm

ENLoading The Salt Into The Softener Only use salt specifically designed for dishwashers use!Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt before running a cycle.This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. WARNING Always use salt intended for dishwasher use.The salt container is located beneath the lower basket and should be filled as explained in the following:Please check the section 1 “Water Softener” of PART Ⅱ: Special Version, If you need to set the water softener . Please check the section 1 “Water Softener” of PART Ⅱ: Special Version, If you need to set the water softener . If your model does not have any water softener, you may skip this section. NOTE:

USING YOUR DISHWASHER

Before using your dishwasher :Inside Outside1. Set the water softener 2. Loading the salt Into the softener3. Loading the basket4. Fill the dispenserdetergent

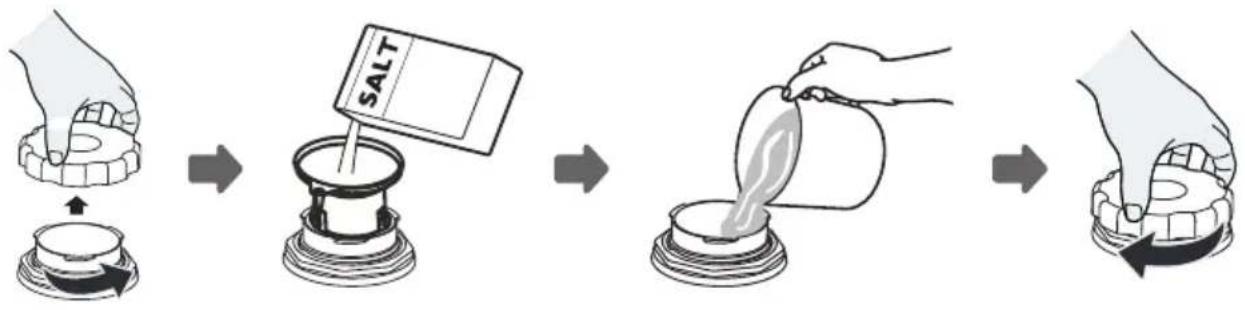

1. Remove the lower basket and unscrew the reservoir cap.

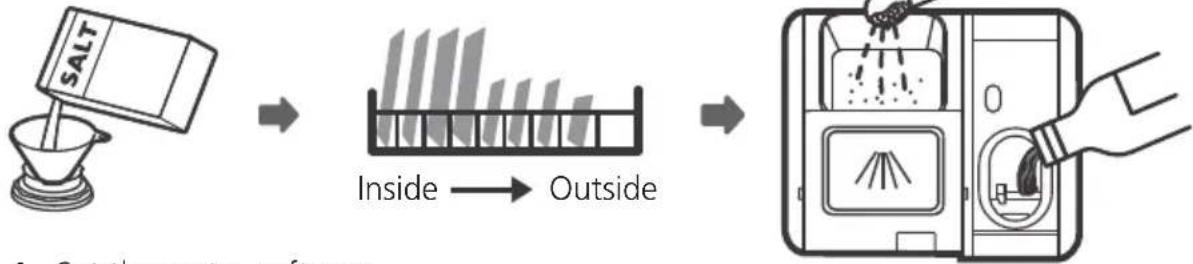

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. turn off NOTE: The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some ), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. If salt has spilled, run a soak or quick program to remove it. models Please follow the steps below for adding dishwasher salt:

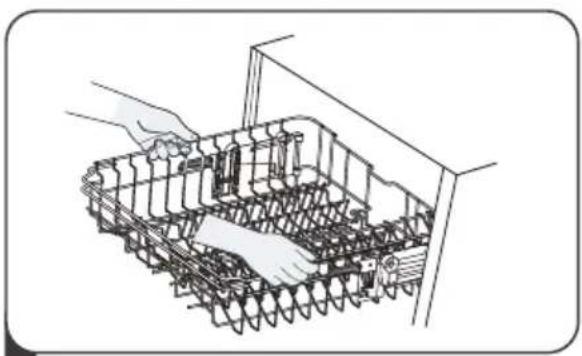

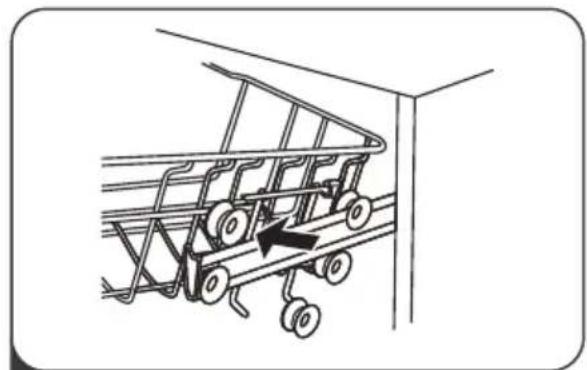

EN11 Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.To adjust the height of the upper rack, follow these steps:

Pull out the upper basket.

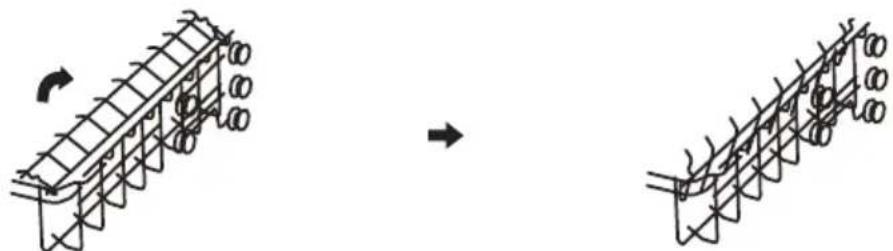

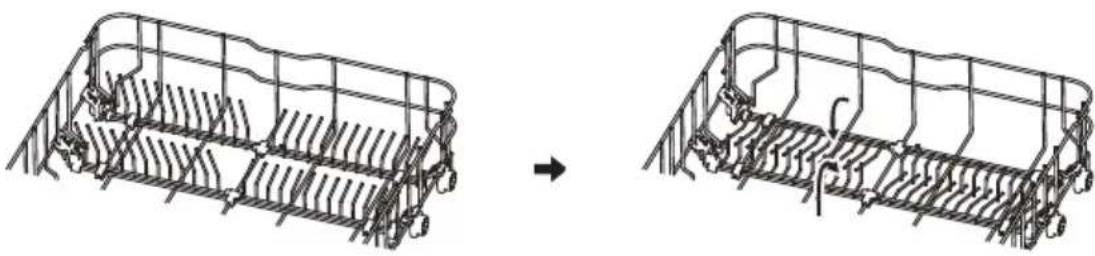

EN12 Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards

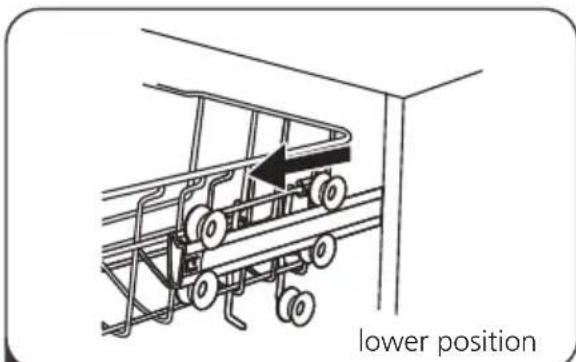

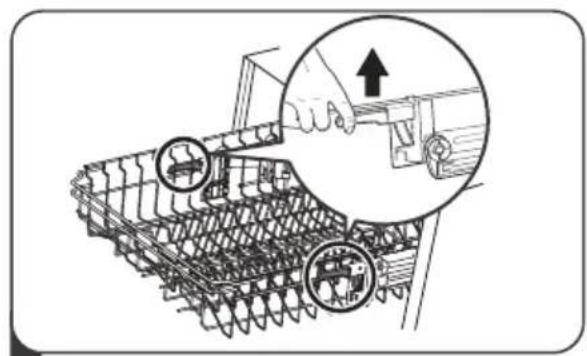

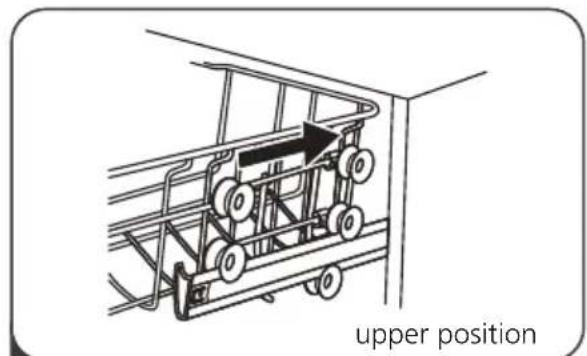

To raise the the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle. upper basket just lift ,

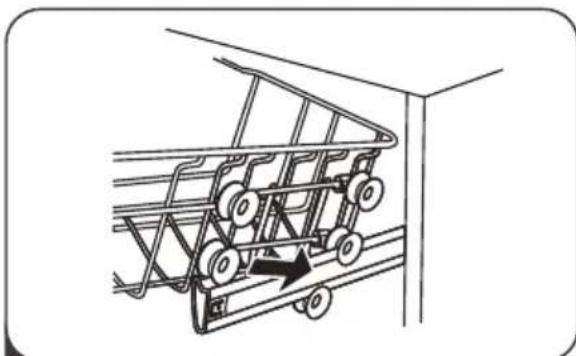

To lower the lift the adjust handles on each side to release the basket and lower it to the lower position. upper basket, Type 2:

MAINTENANCE AND CLEANING

External Care The door and the door sealClean the door seals regularly with a soft damp cloth to remove food deposits.When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.The control panelIf cleaning is required, the control panel should be wiped with a soft damp cloth only.To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. WARNING Internal Care Filtering system NOTE: Pictures are only for reference, different models of the filtering system and spray arms may be different. The filtering system in the base of the wash cabinet retains coarse debris from thewashing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

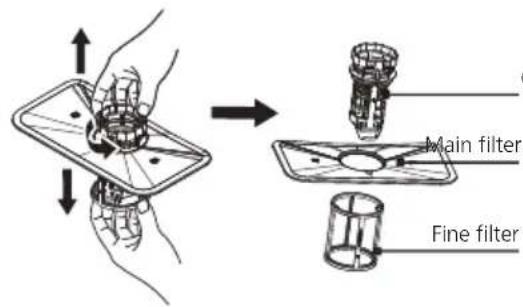

EN1 2 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

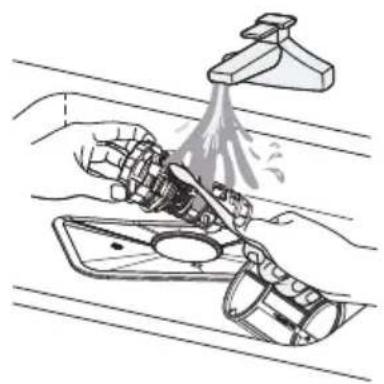

Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. WARNING Main filter Main filter Coarse filterCoarse filterFine filter

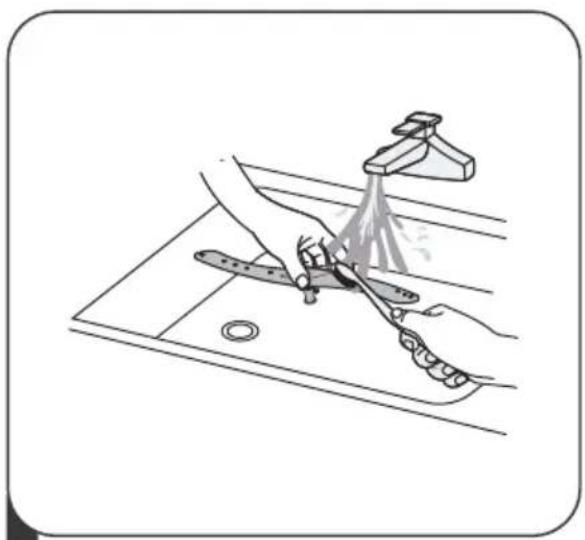

EN15 Spray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

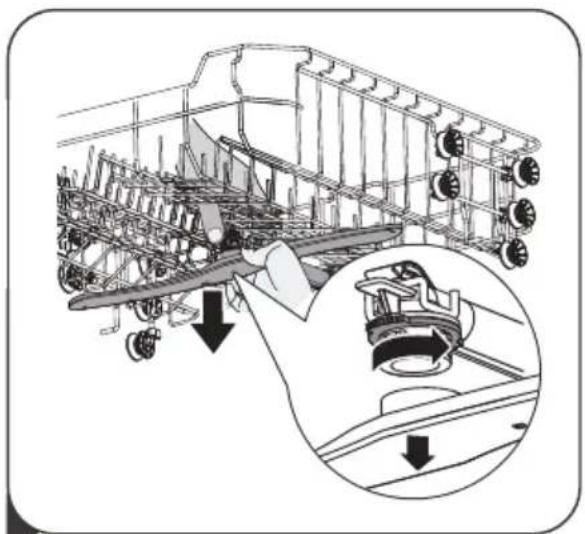

To remove the lower spray arm, pull out the spray arm upward.

To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

EN16 Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

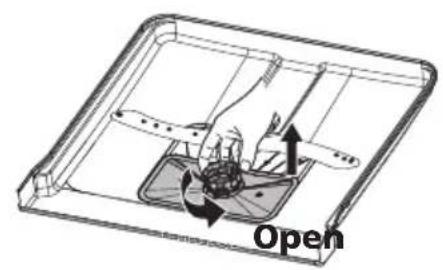

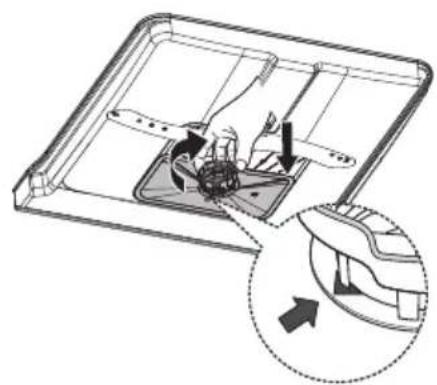

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.for a while Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. When not in use for a long time It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

EN17 INSTALLATION INSTRUCTION Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.Electrical requirementsElectrical connectionEnsure that proper earthing exists before use About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. The installation of the pipes and electrical equipments should be done by professionals. Attention WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. ENWater Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.safety supply hoseordinary supply hose About the safety supply hose The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose 1. Pull safety supply hoses out from storage compartment located at rear of dishwasher.2. the screws of the safety supply hose to the faucet with thread 3/4inch.3. Turn water fully on before starting the dishwasher. the Tighten the WARNING A hose that attaches to can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged. a tap How to disconnect the safety supply hose

1. Turn off the water.2. Unscrew the safety supply hose from the faucet.

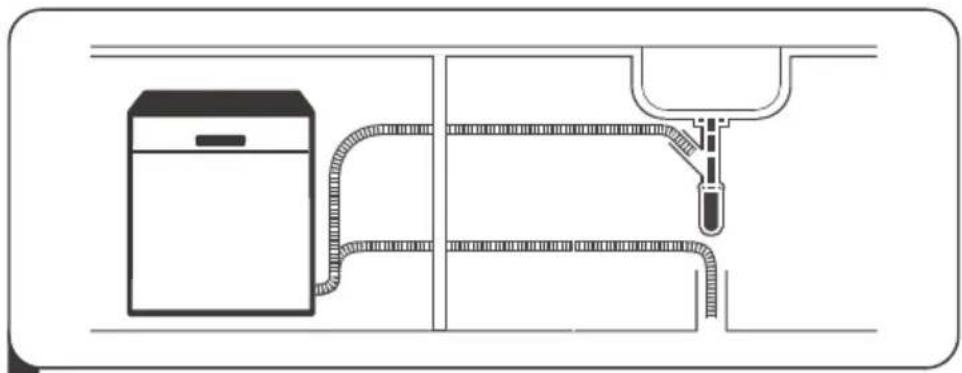

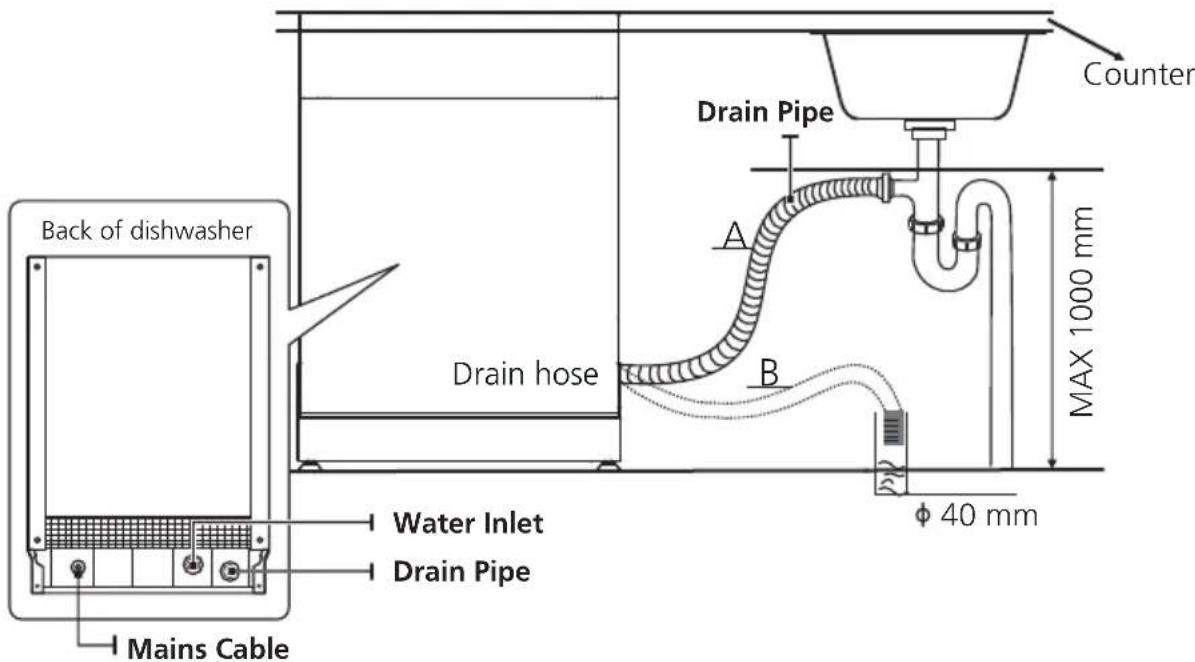

ENConnection Of Drain Hoses Please securely fix the drain hose in either position A or position B

MAX 1000 mm CounterDrain hoseInsert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it. Extension hose Water outlet How to drain excess water from hoses Syphon connection If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. the hose It will be necessary to drain excess water from into a bowl or suitable container that is held outside and lower than the sink. Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.The waste connection must be at a height less than (maximum) from the bottom of the .1000 mmdishwasherIf you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced. Back of dishwasherWater InletDrain PipeMains Cable40 mmDrain Pipe

EN20 Positioning The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.In any case, the appliance should not be inclined more than 2°

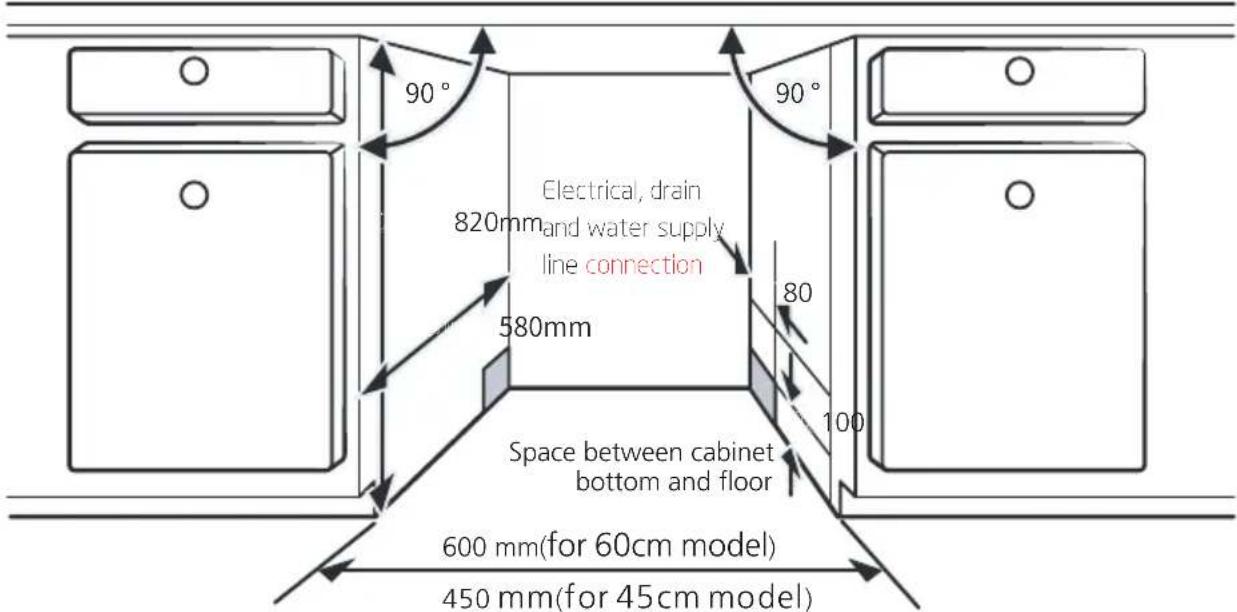

Built-In Installation (for the integrated model) Step 1. Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain and power .Illustrations of cabinet dimensions and installation position of the dishwasher.1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet. the hose socket 90 ° 90 ° 580mm580mm820mm820mm100100Electrical, drain and water supply line connectionElectrical, drain and water supply line connectionSpace between cabinet bottom and floorSpace between cabinet bottom and floor600 mm(for 60cm model) 450 mm(for 45cm model)

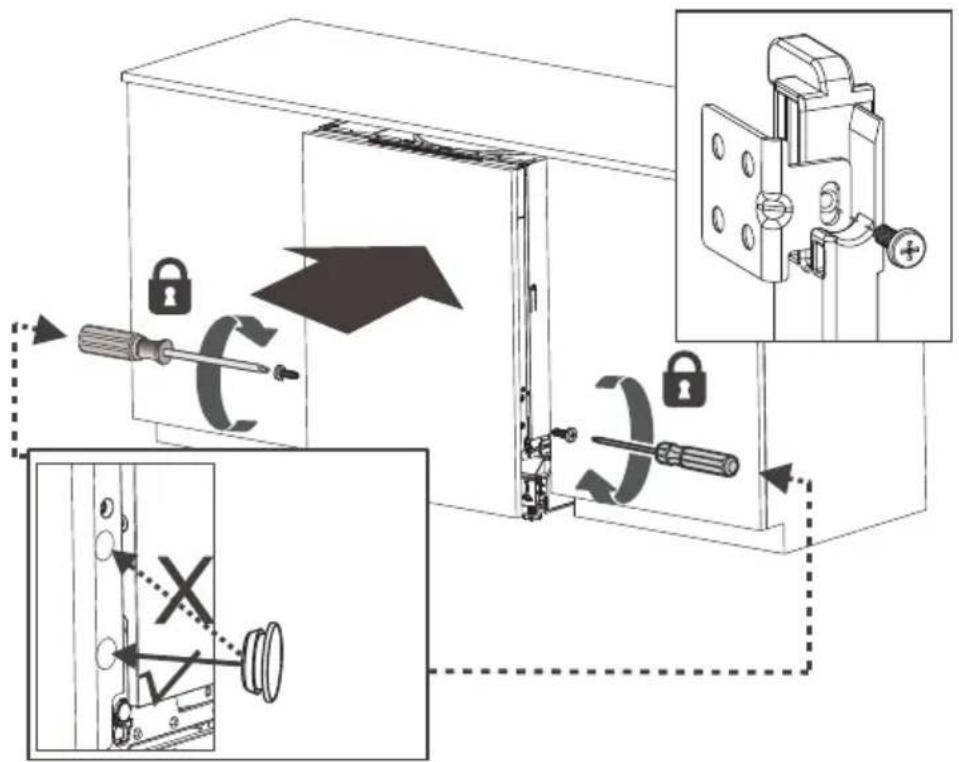

ENStep 2. Aesthetic panel's dimensions and installation

2. If dishwasher is at the corner of the cabinet,

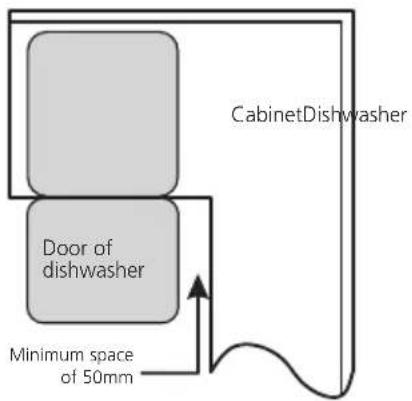

there should be some space when the door is opened. installed CabinetDishwasherDoor of dishwasherMinimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

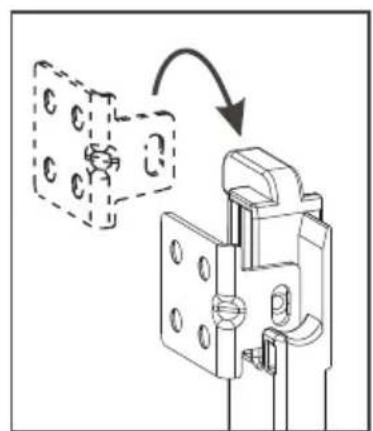

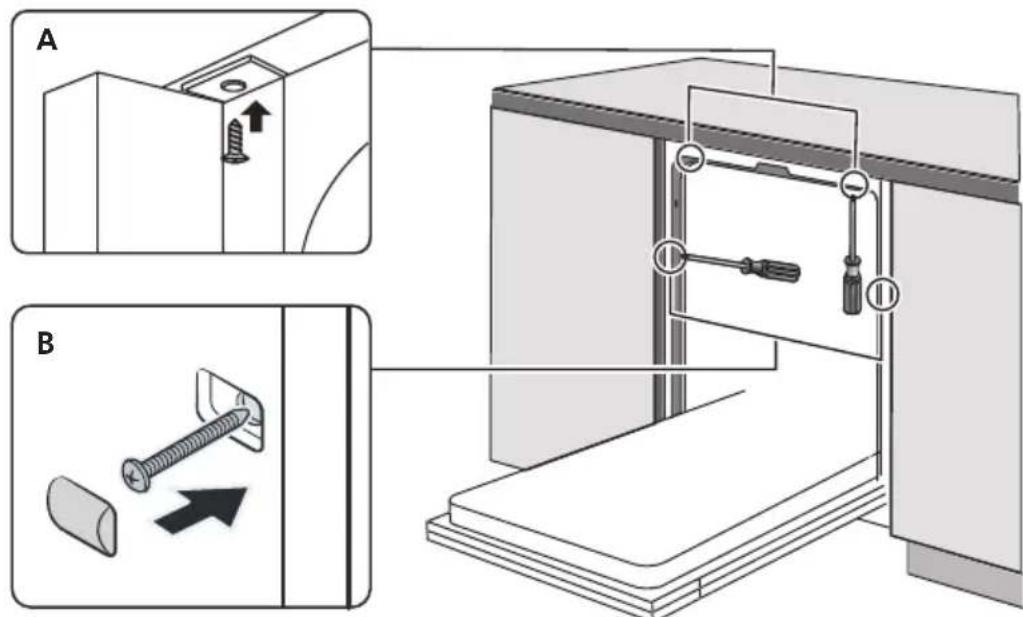

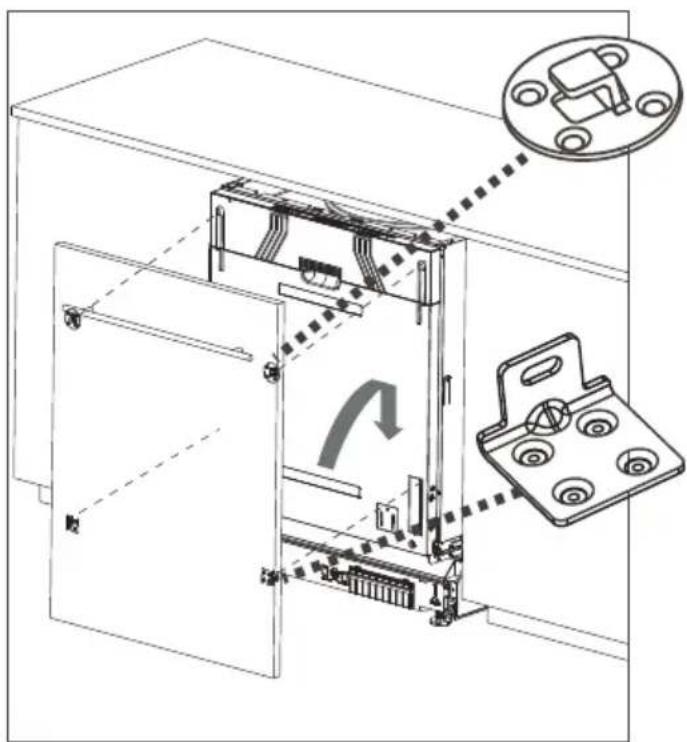

Follow the specific installation instruction for attaching the aesthetical door panel. Follow the specific installation instruction for attaching the aesthetical door panel. Install the hook on the aesthetic panel(see figure 4A) and put the hook into the slot of the outer door of dishwasher(see figure 4B). After positioning the panel, it should be fixed by two screws from two lower installation holes(see figure 4C). After tightening the screws, two rubber plugs should be plugged into the holes to avoid finger clamping.

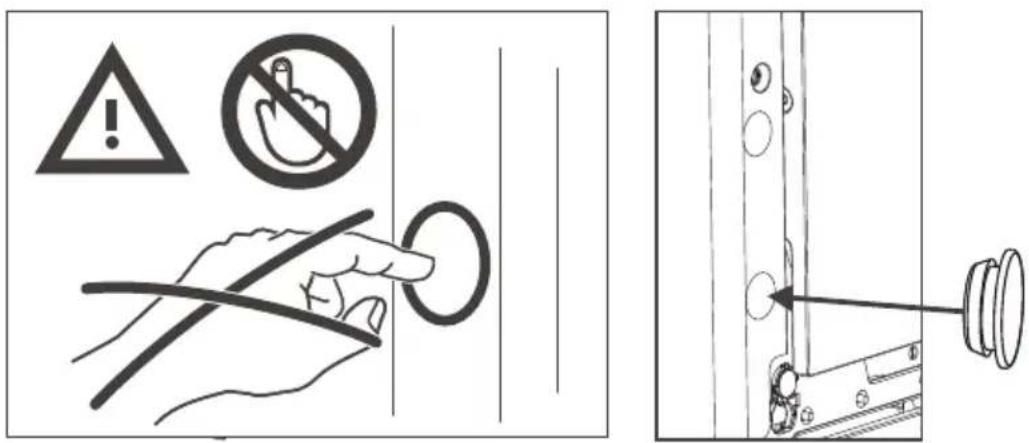

EN22 After tightening the screws, two rubber plugs should be plugged into the holes to avoid finger clamping. In any cases, please DO NOT insert the fingers into the side holes on dishwasher door, since that may cause serious hazard. Please DO NOT leave the installation hole open after installation to avoid any potential hurt to children.

1. Affix the condensation strip under the work surface of cabinet. Please ensure the

condensation strip is flush with edge of work surface. (Step 2)

2. Connect the inlet hose to the cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into .

6. Level the dishwasher. The rear foot can be adjusted from the front of the

dishwasher by turning the Philips screw in the middle of the base of dishwasher use Philips screw . To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 5 to Step 6)

7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 9)

8. The dishwasher must be secured in place. There are two ways to do this:

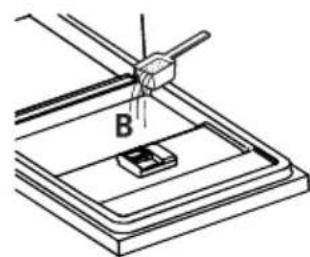

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with B. Marble or granite work top: Fix the side with . the cabinet a driver the screws. screws Please refer to the specific installation steps in the installation drawings. Please refer to the installation steps in the installation drawings. specific

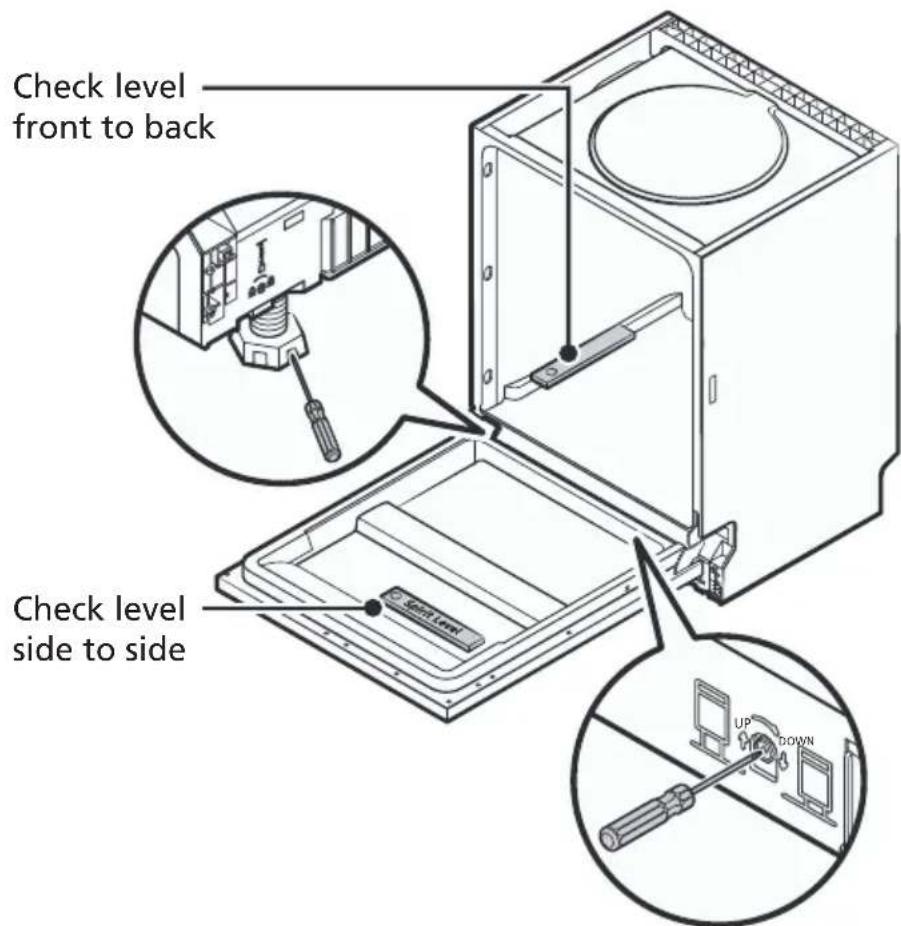

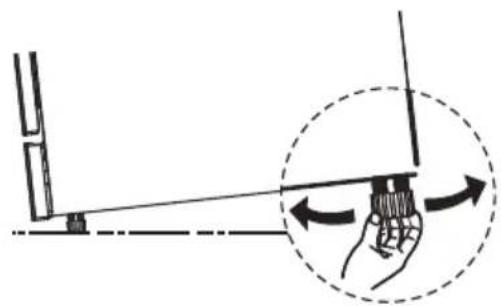

ENUP DOWN Check level front to back Check level side to side Step 4. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling individually. When level the dishwasher, please pay attention not to let the dishwasher tip over. feet

The maximum adjustment height of the feet is 50 mm. NOTE:

EN25 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't startFuse blown, or the circuit break tripped.Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.Power supply is notturned on.Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.Check that the water supply is connected properly and the water is turned on.Door of dishwasher not properly closed.Make sure to close the door properly and latch it.Water not pumped form dishwasherTwisted or trapped drain hose.Filter clogged.Kitchen sink clogged.Check the drain hose.Check .the filter systemCheck the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining ,you may need a plumber rather than a serviceman for dishwashers.Foam in the tub Wrong detergent.Water pressure is lowUse only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.liter

EN26 Spilled .rinse aid Always wipe up spills immediately. rinse aid Stained tub interior Detergent with colourant may have been used. Make sure that the detergent has no colourant. White film on inside surface Hard water minerals. To clean the interior, use with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds. the damp soft cloth There are rust stains on cutlery The affected items are not corrosion resistant. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. The lid of the softer is loose. Check the softener lid is secure. Problem Possible Causes What To Do Avoid washing items that are not corrosion resistant in the dishwasher. Knocking noise in the dishwasher A spray arm is knocking against an item in a basket Interrupt the program and rearrange the items which are obstructing the spray arm. Rattling noise in the dishwasher Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. The dishes are not clean The dishes were not loaded correctly. See PART Ⅱ “Preparing And Loading Dishes”. The program was not powerful enough. Select a more intensive program.

EN27 Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean. Problem Possible Causes What To Do The dishes are not clean. White spots appear on dishes and glasses. Check water softener settings or fill status of salt container. Black or grey marks on dishes Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Hard water area can cause limescale deposits. Improper loading Use gloves if detergent residue can be found on dishes to avoid skin irritations. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. Detergent left in dispenser Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't drying

ENProblem Wrong program has been selected.With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.Use of cutlery with a low-quality coating.Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. Possible Causes What To Do

The dishes aren't drying Seven years after placing the last unit of the model on the market: Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software. Ten years after placing the last unit of the model on the market: Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids. Availability Of Spare Parts WARNING Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

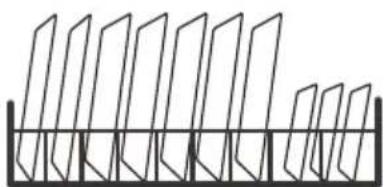

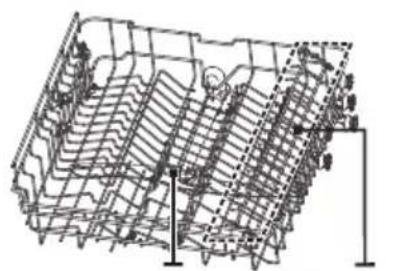

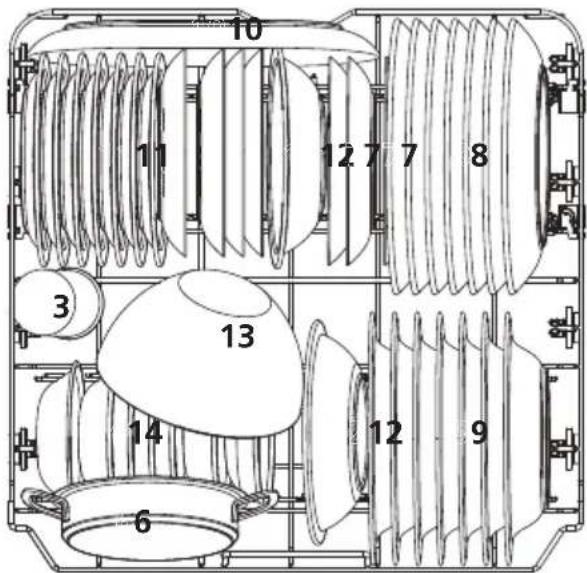

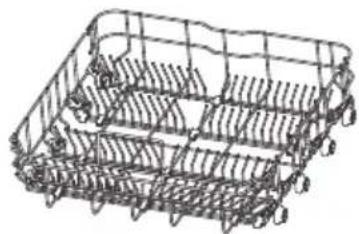

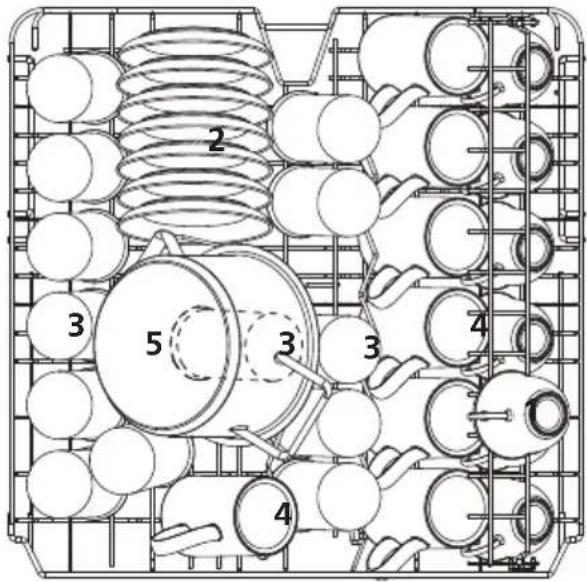

ENLoading the dishwasher to its full capacity will contribute to energy and water savings. 1.Upper basket: 2.Lower basket:

Cups Mugs Small potSaucersGlasses Item Number

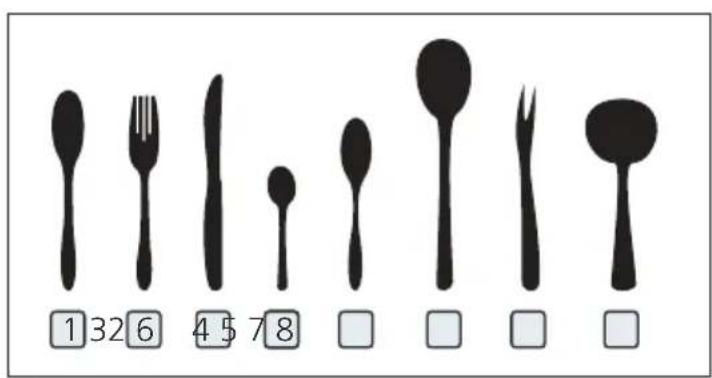

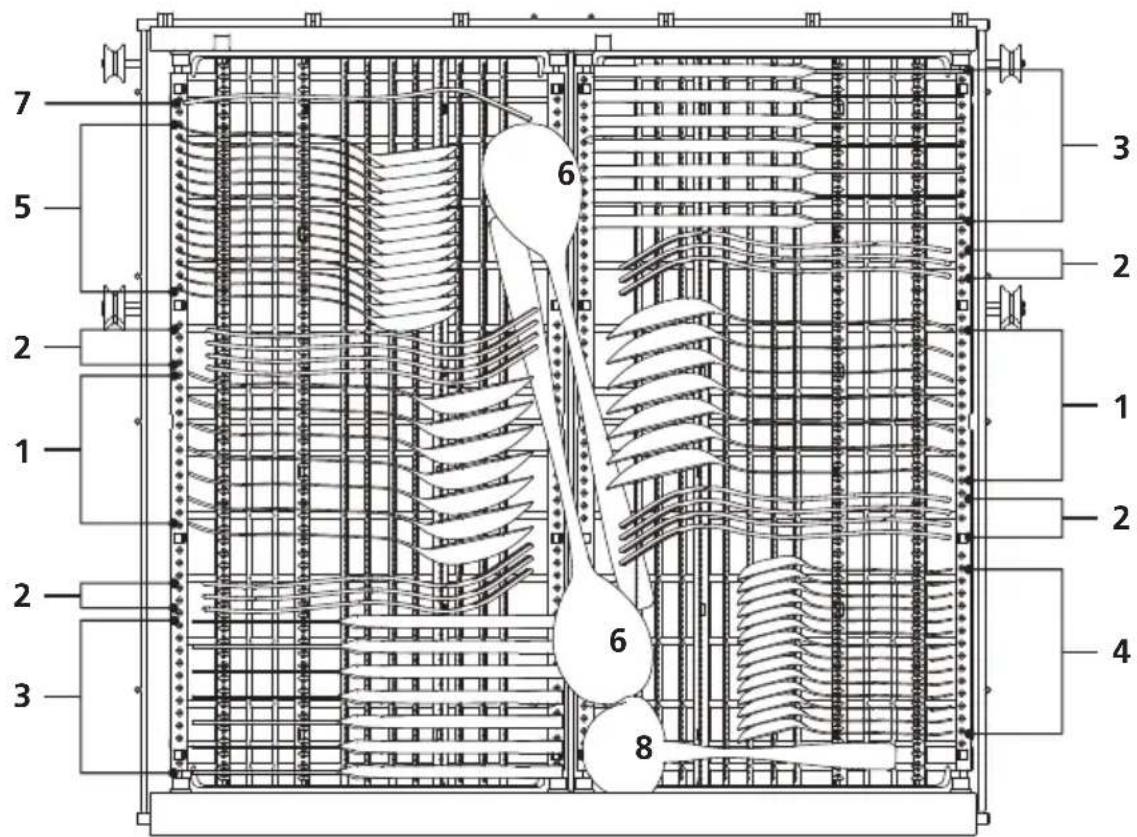

EN3.Cutlery rack: Information for comparability tests in accordance with EN60436 Capacity: 14 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

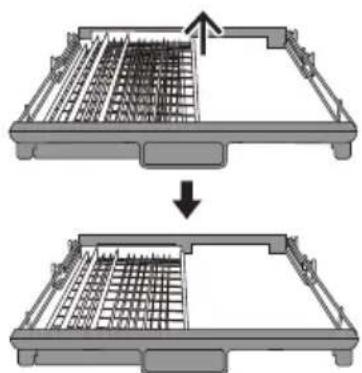

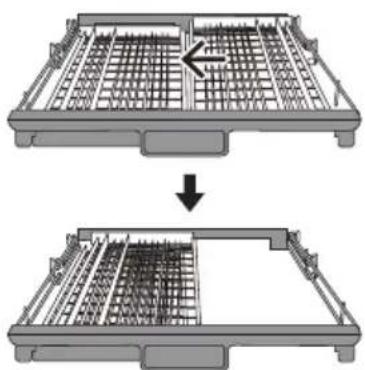

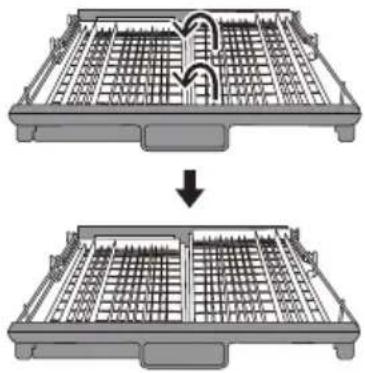

ENCutlery Rack Used Tips Lift the right basket up, both left and right baskets are flat. Move the right basket from right to left, two basket are overlapping. Remove the right basket from the tray, only has the left basket.

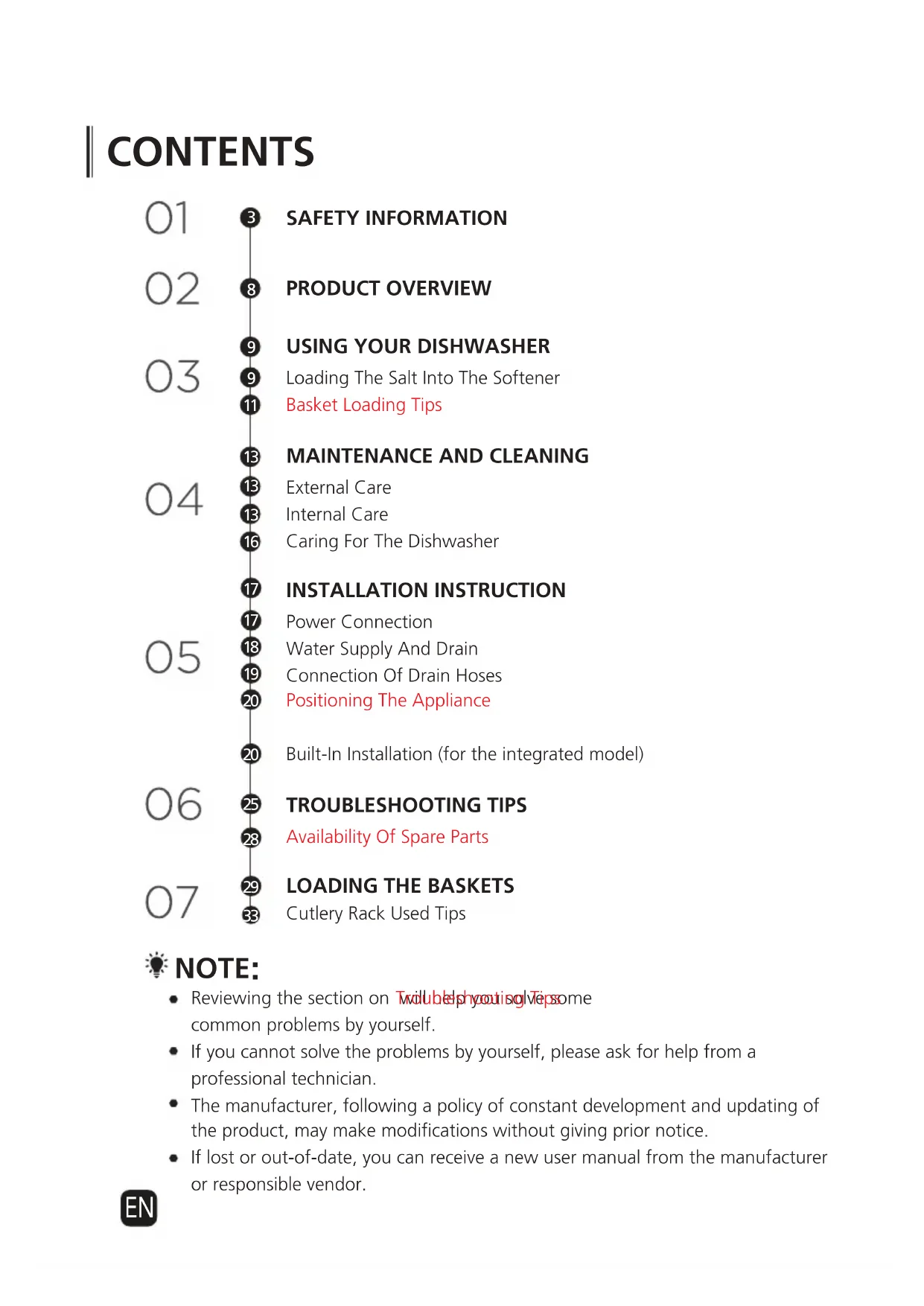

EN15 CONTENTS ERROR CODES NOTE: If you cannot solve the problems by yourself, please ask for help from a professional technician.The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.Wash Cycle TableChanging The Program Mid-cycleForget To Add A Dish?Auto OpenSaving EnergyStarting A Program

USING YOUR DISHWASHER

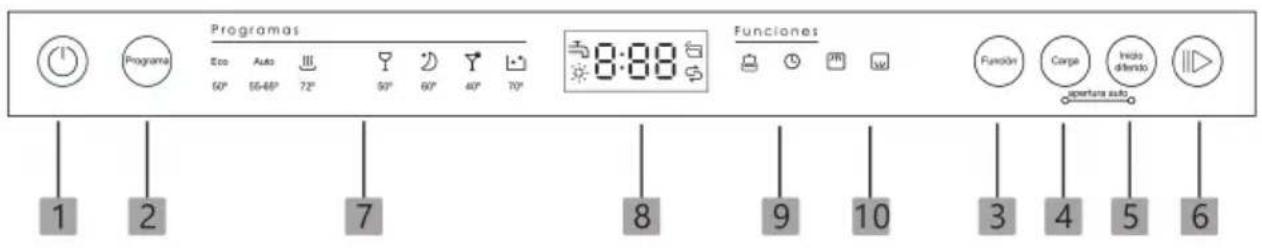

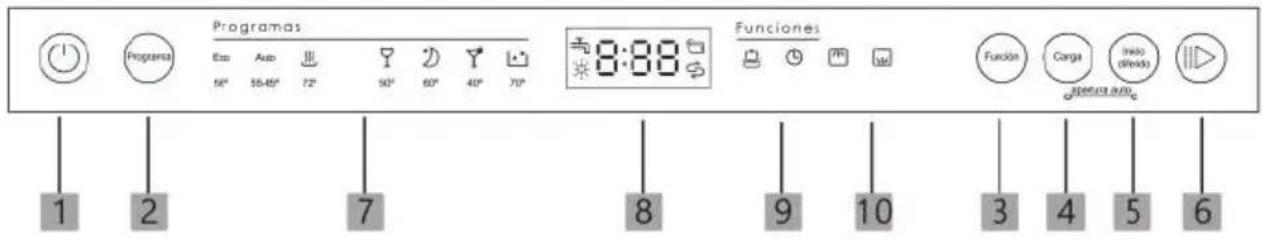

Control PanelWater SoftenerPreparing And Loading DishesFunction Of The Rinse Aid And DetergentFilling The Rinse Aid ReservoirFilling The Detergent Dispenser

Please read the corresponding content the instruction manual for detailed operating method.

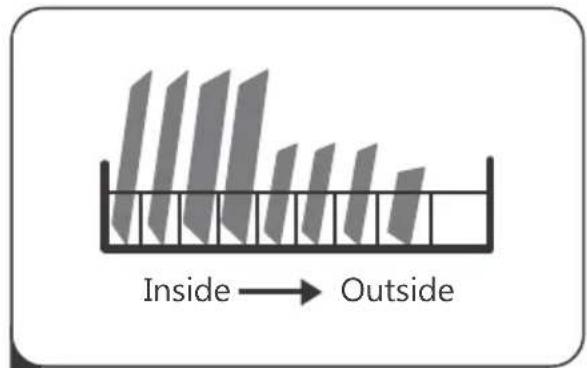

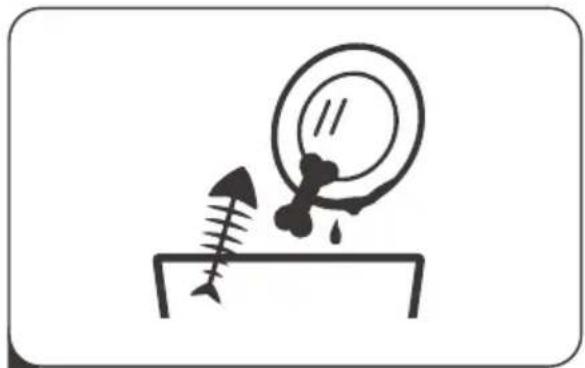

Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Fill the dispenser with detergent and rinse aid. Select a suitable program and start the dishwasher. Load the baskets. Remove larger residue from dishes. Avoid pre-rinsing.

Program Delay Press the Delay button to increase the delay start time. Delay a cycle for up to 24 hours in one-hour increments. After setting the delay time, close the door to start.Press this button to turn on your dishwasher.Press this button to select the appropriate washing indicator will be lit.program,the program Press the button to select either upper basket or lower basket loaded, and the response indicators will be lit.FunctionPress the button to select a function, corresponding indicatorwill be lit.StartPress the button to start the selected washing program.

Program indicator Auto Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.HygieneUse to sanitize your dishes and glassware. Maintains the water temperature at 7 ℃2 . ECO This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans.

USING YOUR DISHWASHER

For lightly soiled crockery and glass.Glass

Upper When you select Upper, only the dishes in the upper rack will be washed. The spray system of the lower basket will not operate. Lower When you select Lower, only the dishes in the lower rack will be washed. The spray system of the upper basket will not operate. Display screen

Water Faucet Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. If the “ ” indicator is lit, it means the water faucet closed. Salt If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. To show the reminding time, temperature, delay time, error code etc. When be selected, the dishwasher door opens automatically at the end of the program, which improves the drying results. This function is selected by Alt+Delay. (It can only be used with ECO,Auto,Hygiene, Whisper, Glass,Self-Cleaning) Function

Power Wash To wash very dirty, hard to clean dishes. (It can only be used with ECO, Hygiene, Whisper, Glass) Rapid A shorter wash for lightly soiled loads that do not need drying. Whisper Lower noise and normally energy consumption, used for washing in evening. Self-Cleaning This program provides an effective cleaning of the dishwasher itself. Express Reduce the program time. (It can only be used with ECO, Hygiene, Whisper, Glass) Alt indicator

EN6 Water Softener The water softener must be set manually, using the water hardness dial.The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is.The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. 1. Open the door, switch on the appliance;2. 3. 4. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds to enter the water softener setting mode.Press the Program button again to select the proper setting according to your local water hardness, the setting will change in the following sequence: H3->H4->H5->H6->H1->H2->H3;Without operation in 5 seconds or press the Power button to complete the setup and exit the setup mode.Please follow the steps below for adjustment in salt consumption.dH=1.25 Clarke=1.78 fH=0.178mmol/l

No regenerationWater softnerlevelEvery cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes. Regeneration occurs every X program sequence

EN7 NOTE: If your model does not have any water softener, you may skip this section.Water SoftenerThe hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof.For particular items, select a program with the lowest possible temperature.To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.Cutlery with wooden, horn china or mother-of-pearl handlesPlastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistantBonded cutlery items or dishesPewter or cooper itemsCrystal glass Steel items subject to rustingWooden plattersItems made from synthetic fibresSome types of glasses can become dull after a large number of washesSilver and aluminum parts have a tendency to discolor during washingGlazed patterns may fade if machine washed frequently For washing the following cutlery/dishes Are not suitableAre of limited suitabilityPlease check the section 3 “Loading The Salt Into The Softener” of PART Generic Version, If your dishwasher lacks salt.Ⅰ: Please check the section 3 “Loading The Salt Into The Softener” of PART Ⅰ: Generic Version, If your dishwasher lacks salt.

EN8 Items such as cups, glasses, pots, pans, etc. face downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. must NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. Removing the dishes WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way:the

ENLoading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. For the best washing effect, please load the baskets refer to standard loading options on last section of PART Generic VersionⅠ: For the best washing effect, please load the baskets refer to standard loading options on last section of PART Ⅰ: Generic Version Loading the lower basket

We suggest that you place large and difficult to clean items into the lower basket:such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. Loading the cutlery rack Cutlery should be placed in the cutlery rack separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

ENThe rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Function Of The Rinse Aid And Detergent

Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser. WARNING Proper Use of DetergentUse only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Do not fill detergent into the dispenser until you are ready to start the dishwasherDishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

EN11 Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

3. Press the Program button to select the proper set according to your using habits,

the will change in the following sequence: d3->d4->d5->d1->d2->d3. The higher the number, the more rinse aid the dishwasher uses.

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the . Open switch Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds, again setting setting mode the door, on the appliance Filling The Rinse Aid Reservoir

Close the cap after all.

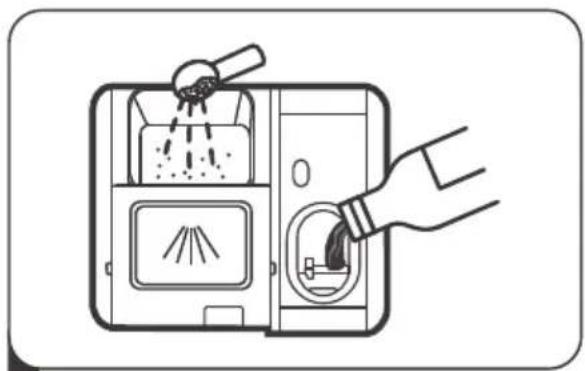

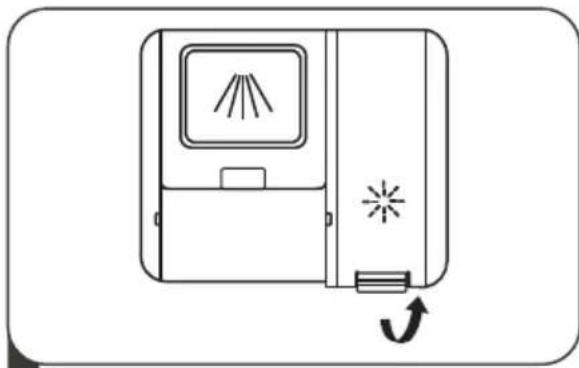

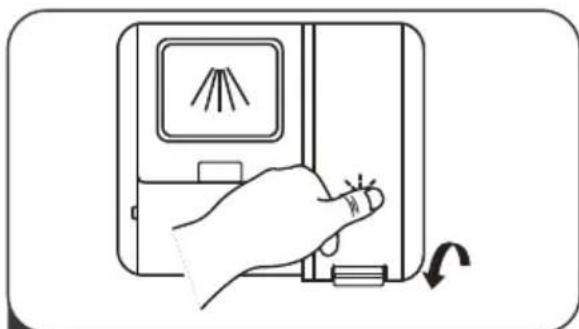

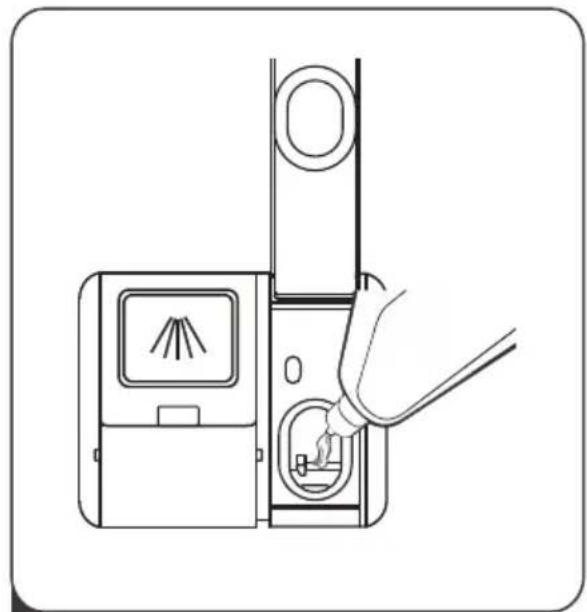

Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill.

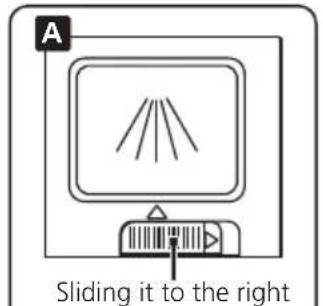

Please choose an open way according to the actual situation.A. Open the cap by sliding the release latch.B. Open the cap by pressing down the release latch.C. Open the cap by pressing in the release latch.Add detergent into the larger cavity (A) . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door.The additional detergent will activate during the pre-wash phase.for main wash Close the flap by sliding it to the front and then pressing it down. Sliding it to the rightPress down

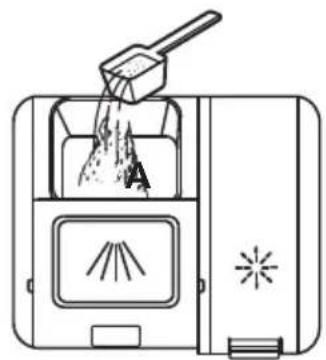

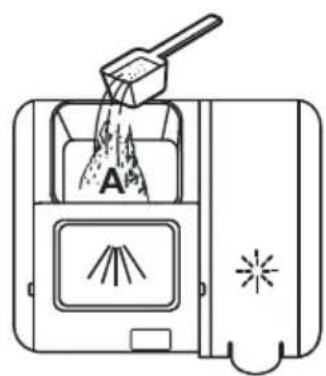

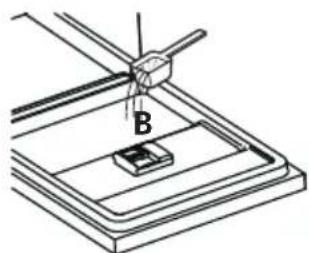

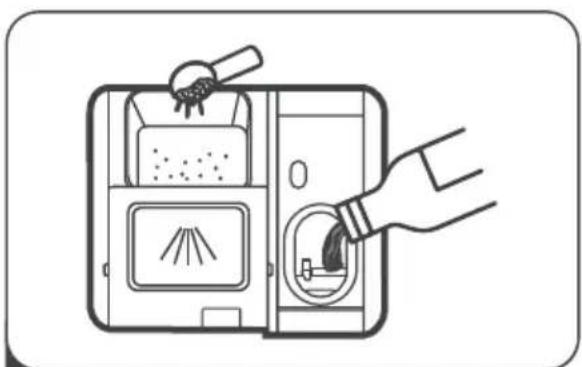

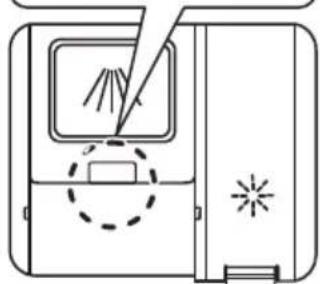

Filling The Detergent Dispenser NOTE: Please observe the manufacturer's recommendations on the detergent packaging. Press in Three ways to open the cover:

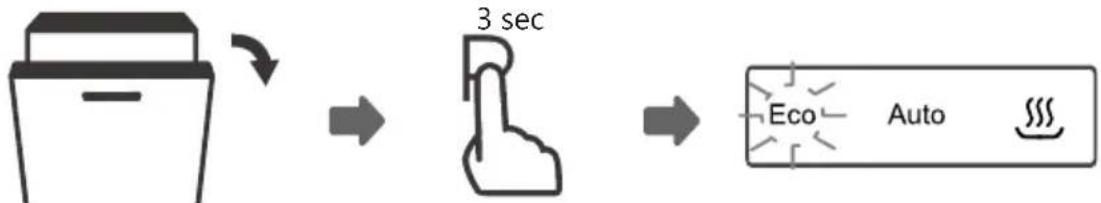

Starting A program 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.2. Pour in the detergent.3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”. Make sure that the water supply is turned on to full pressure. 4. Open the door, Press the Power button. 5. Choose a program, the response light will turn on. Then close the door, the dishwasher will start its cycle. Changing The Program Mid-cycle A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:1. Open the door a little to stop the dishwasher, after the spray arm stopped working, you can open the door completely.2. Press Program button more than three seconds the machine will be in program selection mode.3. You can change the program to the desired cycle setting. Saving Energy 1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.: The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation. NOTE: (*EN60436) ECO

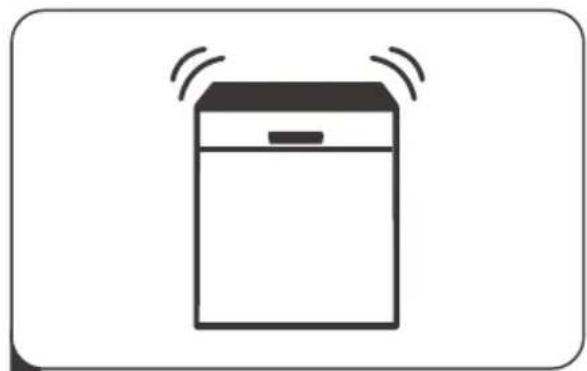

EN15 After washing, the door will open automatically to achieve better drying effect. Auto Open The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality. NOTE: Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

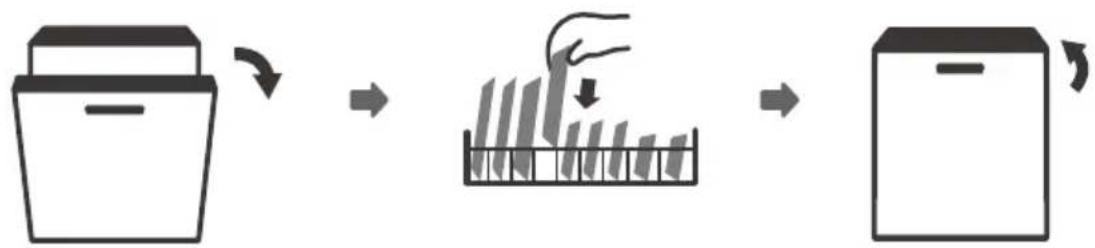

1. Open the door a little to stop the washing.

2. After the spray arms working, you can open the door completely.

3. Add the forgotten dishes.

4. Close the door he dishwasher will continued to run after 10 seconds.

stopped , t WARNING It is dangerous to open the door mid-cycle, as hot steam may scald you.

EN16 WARNING ERROR CODES If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. Meanings Longer inlet time. Overflow. Possible Causes Some element of dishwasher leaks .Faucets is not opened, or water intake is restricted,or water pressure is too low. Codes

Not reaching required temperature. Malfunction of heating element. Open circuit or break wiring for the communicationFailure of communication between main with display circuit boardcircuit board.

If there is an error code that cannot be solved, please request professional assistance.

Open circuit or break of distributary valve.Failure of orientation of distributary valve.

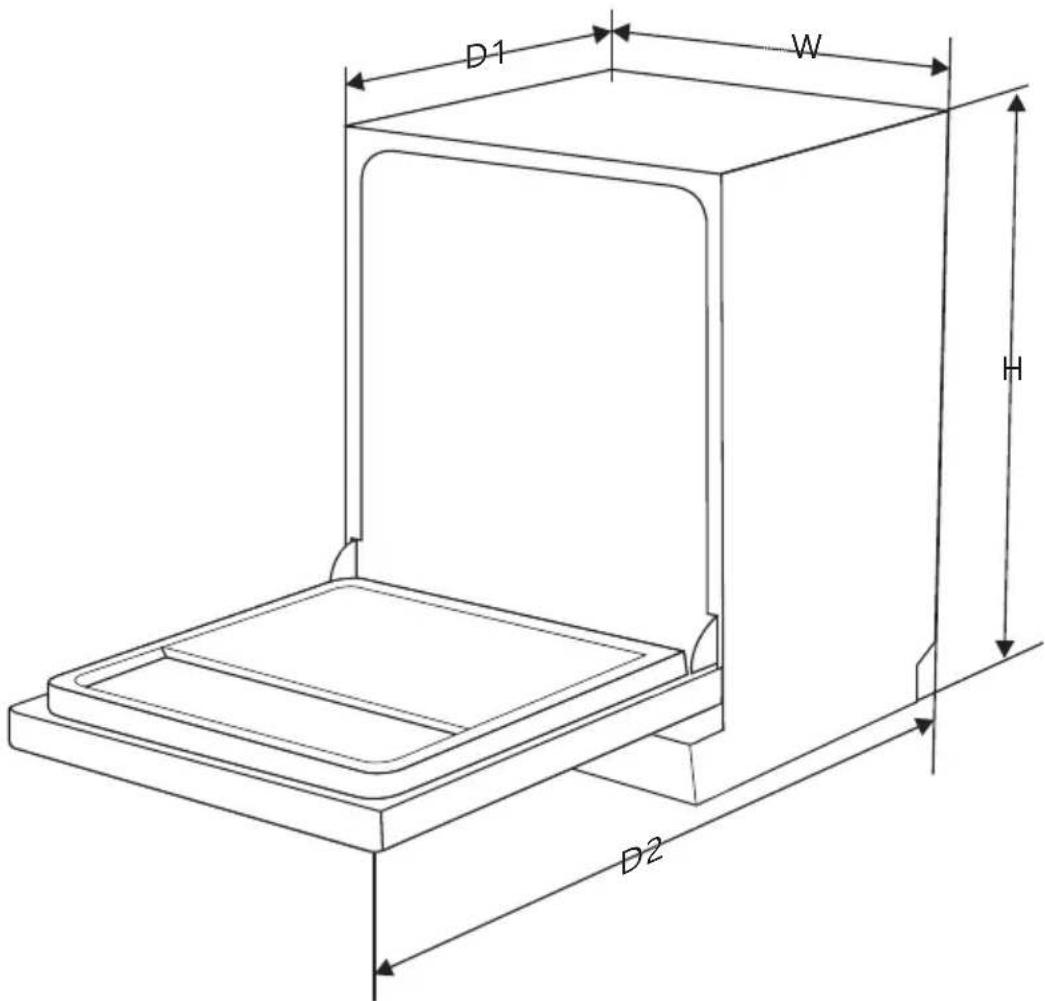

ENTECHNICAL INFORMATION Height (H)Width (W)Depth (D1)Depth (D2)815mm598mm550mm (with the door closed)1150mm (with the door opened 90°)WW

ENProduct information sheet (EN60436) Supplier's name or trade mark:Supplier's address ( ):Model identifier:General product parameters: Minimum duration of the guarantee offered by the supplier ( ): Additional information:Weblink to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 ( ) ( ) is found:( ) for the eco program.( ) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.( ) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1 b ( ) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco design requirements for household dishwashers pursuant to Directive 2009/125/EC of the European Parliament and of the Council amending Commission Regulation (EC) No 1275/2008 and repealing Commission Regulation (EU) No 1016/2010 (see page 267 of this Official Journal).

Dimensions in cmEEI ( )Cleaning performance index ( )Energy consumption in kWh [per cycle], based on the eco program using cold water fill. Actual energy consumption will depend on how the appliance is used.Program duration ( ) (h:min)Airborne acoustical noise emissions ( ) (dB(A) re 1 pW)Off-mode (W)Delay start (W) (if applicable)Rated capacity ( ) (ps)

Energy efficiency class ( )Drying performance index ( )Water consumption in litres [per cycle], based on the eco program. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water. Type Airborne acoustical noise emission class ( )Standby mode (W)Networked standby (W) (if applicable)

6–11 10–20 7–14 1,0–2,0 H2 10 9 12–17 21–30 15–21 2,1–3,0 H3 5 12 18–22 31–40 22–28 3,1–4,0 H4 3 20 23–34 41–60 29–42 4,1–6,0 H5 2 30 35–55 61–98 43–69 6,1–9,8 H6 1 60
