USER MANUAL 974451 SILVERLINE

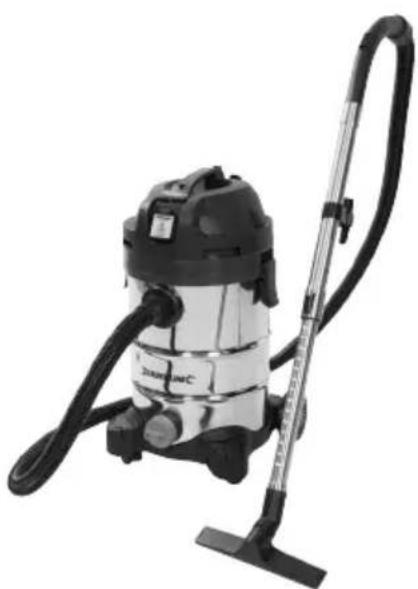

1250W Wet & Dry Vacuum Cleaner 30Ltr

Row of eight safety and compliance icons including helmet, hand gesture, open book, download arrow, warning triangle, minus sign, cross, and 'CE' symbol

silverlinetools.com

8 7 6 5 4 3 9 10 12 13 11 14 2 25 1 24 23 22 21 20 19 18 17 16 15 SILVERONEC

A

Close-up of a mechanical component with no visible text or symbols

B

Close-up of a hand cleaning a car wheel rim (no visible text or symbols)

English ......04

Français ......10

Deutsch......16

Español......22

Italiano ......28

Nederlands ......34

Polski ......40

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

Caution!

Class I construction (protective earth)

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to relevant legislation and safety standards.

Technical Abbreviations Key

V Volts
~,AC Alternating current
A, mA Ampere, milli-Amp
^a Degrees
∅ Diameter
Hz Hertz
W, kW Watt, kilowatt
dB(A) Decibel sound level (A weighted)
m/s ^2	Metres per second squared (vibration magnitude)

Specification

Voltage: 220-240V\~50/60Hz

Power: 1250W

Max air flow: 58Ltr/s

Suction power: 18kPa

Tank capacity: 30Ltr

Hose length: 2.5m

Max load of PTO Socket: 2000W

PTO socket type: UK

Hose diameter: 35mm

Power cord length: 6.0m

Ingress protection: IPX4

Protection class:

Dimensions (L x W x H): 355 x 355 x 610mm

Weight: 7.8kg

As part of our ongoing product development, specifications of Silverline products may alter without notice.

General Safety

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Wet & Dry Vacuum Safety

WARNING: ALWAYS disconnect from the power supply before opening the unit, cleaning, carrying out maintenance, or when the unit is not in use.

a) NEVER pull on the power cable to remove the plug from the power point. This could cause damage to the power cable, the vacuum cleaner and the power point.

b) DO NOT allow the vacuum to pass over the power cable. This could cause damage to the internal wires.

c) DO NOT vacuum the following items:

- burning matches

- glowing ashes

- cigarette ends

• corrosives

• flammable or explosive substances

d) Use this product only for the purposes for which it is intended. Other applications may be dangerous, and lead to serious injury and/or property damage.

e) Take great care when cleaning stairs. Ensure the vacuum is placed on a secure, lower level, to avoid the danger of the vacuum falling on to the user.

f) Use ONLY genuine Silverline consumables, attachments and spare parts

Product Familiarisation

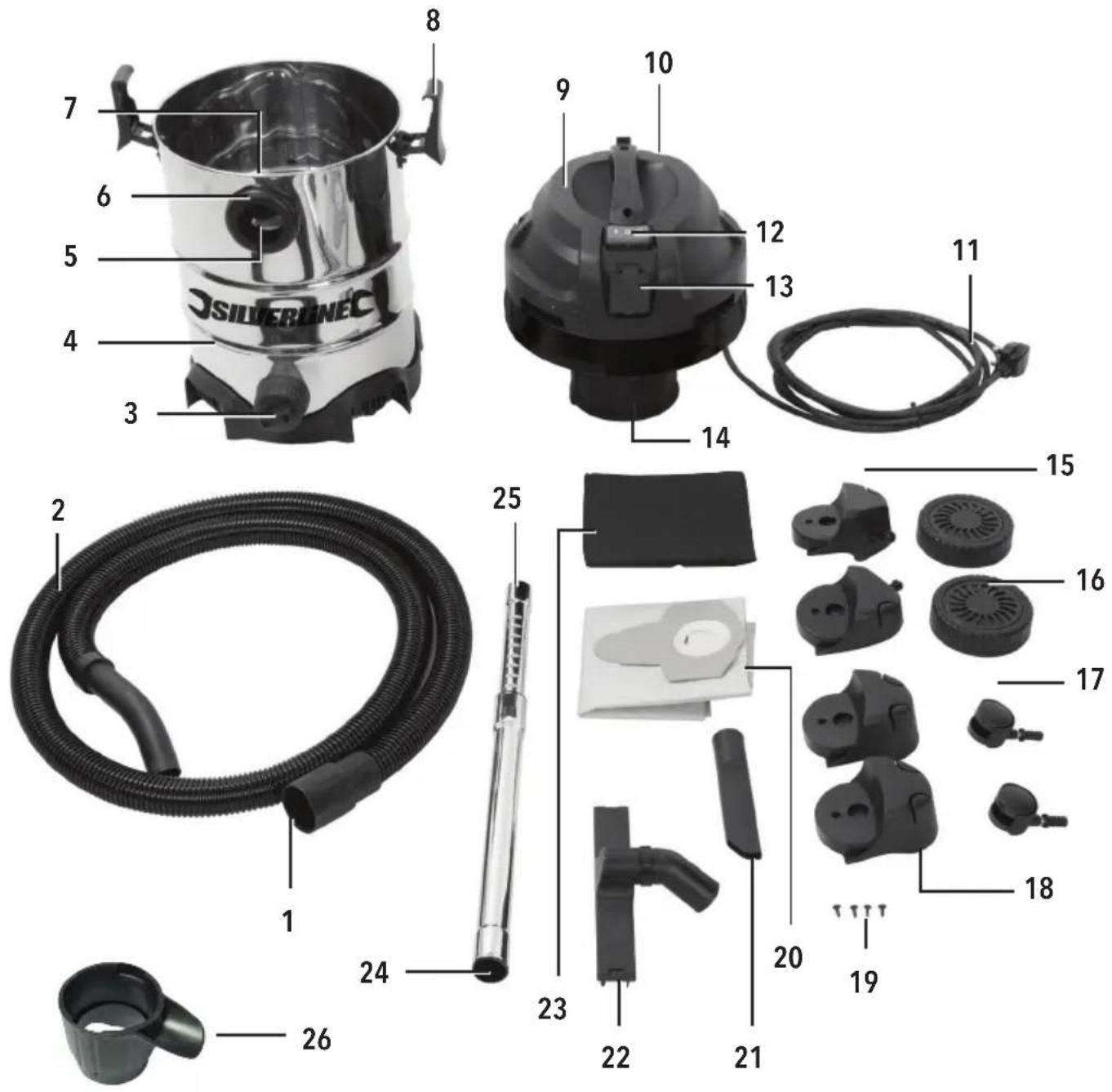

1	Vacuum Connector
2	Flexible Hose
3	Drain Cap
4	Think
5	Hose Connector
6	Air Inlet
7	Inlet Coupling (not shown)
8	Ld Clamp
9	Ld
10	Air Outlet
11	Mains Cable
12	DN/OFF
13	Switch Power Take Off (PTO) Socket
14	Filter Frame
15	Rear Wheel Mount
16	Rear Wheel
17	Caster Assembly
18	Front Wheel Mount
19	Wheel Fixing Screws (X4)
20	Dust Bag
21	Crevice Nozzle
22	Brush Head
23	Foam Filter
24	Extending Tube
25	Tube Latch
26	Air Outlet Cover

Intended Use

Heavy duty domestic vacuum cleaner suitable for wet and dry cleaning applications around the home, garage and workshop.

Unpacking Your Tool

• Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments

Wheel installation

1. Take the Tank (4) section of the vacuum cleaner and place it upside down on a secure flat surface with the Lid (9) off

2. Attach the Rear Wheel Mounts (15) to the mounting points at the rear of the Tank (Image A)

3. Attach the Front Wheel Mounts (18) to the mounting points at the front of the Tank

4. Secure the wheel mounts in place using the Wheel Fixing Screws (19)
5. Push the Rear Wheels (15) onto the Rear Wheel Mounts protruding axle
6. Push the Caster Assembly (17) into the holes in the Front Wheel Mounts to secure into place
7. Turn the Tank upright onto its wheels

Vacuum assembly

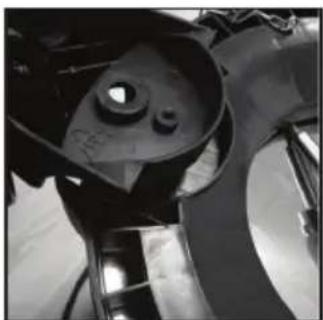

1. Fit the Foam Filter (23) by sliding it gently over the Filter Frame (14)
2. Fit the Dust Bag (20) over the Inlet Coupling (7) (Image B)
3. Replace the Lid (9) on top of the Tank (4)
4. Ensure the Power Take Off Socket (13) is directly above the Air Inlet (6)
5. Fasten both Lid Clamps (8)

Hose assembly

1. Fit the Vacuum Connector (1) to the Air Inlet (6), by aligning the notch in the Vacuum Connector with the slot in the Air Inlet and push-fit into place
2. Insert the larger end of the Extending Tube (24) into the free end of the Flexible Hose (2)
   Note: The Extending Tubes length can be adjusted by releasing the Tube Latch (25) and pulling the two ends apart to the desired length.
3. Attach the desired hose accessory to the free end of the Extending Tube

Operation

Power take off socket operation

Note: This vacuum cleaner can be used to power another electrical device, e.g. a power tool, up to 2000W.

1. Check that the ON/OFF Switch (12) is in the '0' (OFF) position
2. Connect the vacuum to the mains power supply
   WARNING: If the device has a power switch, make sure it is switched OFF before plugging into the Power Take Off Socket (13)
3. Plug the device into the Power Take Off Socket (power will be automatically provided through the PTO Socket)

Note: If using the vacuum cleaner as a dust extraction device, connect the Flexible Hose (2) to the tools dust extraction port, before powering ON.

1. Press the ON/OFF Switch to 'II' (ON) to start the vacuum cleaner

2. Turn your power tool ON and commence work

IMPORTANT: There is a deliberate 20 second start-up and shut-off delay on the vacuum when using a power tool connected to the PTO socket.

- The Power Take Off (PTO) Socket (13) provides power to external devices. The PTO is designed to be used in conjunction with an external machine that requires dust extraction

- The vacuum will power itself ON to work in conjunction with the machine that is connected

- When the machine connected to the Power Take Off (PTO) Switch is switched OFF the vacuum will simultaneously switch OFF

Wet & dry vacuum cleaning

Note: When using the vacuum for dry use fit the Dust Bag (20).

1. Check the ON/OFF Switch (12) is in the '0' (OFF) position
2. Plug the Mains Cable (11) into the mains power supply (See 'Specification')
   Note: The Power Take Off Socket (13) will provide power once the vacuum has been connected to the mains supply.
3. Switch the vacuum ON by pressing "I" on the ON/OFF Switch
4. Switch the vacuum OFF by pressing the ON/OFF Switch into the '0' position

Notes:

• Ensure the inside of the Tank (4) and the Filter Frame (14) are clean and free from dirt before operating
  • Make sure the Drain Cap (3) is closed and hand tight
• When the Tank is full, the float valve within the Filter Frame will close. There will be an increase in motor speed and loss of suction when this happens
• The Extending Tube (24) can be adjusted to suit the user. Release the Tube Latch (25) to adjust the length

Draining the liquid

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

1. Disconnect any attachments from the end of the vacuum hose
2. Lift the end of the Flexible Hose (2) up above head height so that any liquid runs down into the Tank (4)

3. Position your vacuum cleaner so the Drain Cap (3) is above the drainage area
   Note: Make sure that no perishable object or material is within 3 metres of the Drain Cap.

4. Unscrew the Drain Cap and allow the liquid to drain. Undo the Lid Clamps (8) and remove the Lid (9)

5. Tip the rest of the liquid out of the Tank into the drainage area

Blowing

1. Ensure the inside of the Tank (4) and the Filter Frame (14) are clean and free from dirt before operating
2. Ensure the Foam Filter (23) is clean and dry, and fitted to the Filter Frame
3. Replace the Lid (9) on top of the Tank
4. Close both Lid Clamps (8)
5. Remove the plastic Air Outlet Cover (26) already fitted to the Air Outlet (10). It has a small clip underneath so press at the underside of the cover before pulling out
6. Attach the Flexible Hose (2) to the Air Outlet
   WARNING: Point the small end of the Flexible Hose well away from any object or person; debris may be ejected from the hose end
7. Switch on the vacuum cleaner by pressing the ON/OFF Switch (12) into the 'I' position
8. Wait a few minutes for waste to be released from the end of the hose before blowing

Accessories

• A range of accessories and consumables, including filters and bags, is available from your Silverline stockist
• Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
• Never use caustic agents to clean plastic parts

Filter cleaning

Note: A clogged filter will cause suction power and cleaning efficiency to deteriorate. Check whether the filter is blocked if performance deteriorates.

• Detach the Lid (9), to gain access to the Foam Filter (23)
• Remove and clean the Filter using a brush and dry compressed air

Lubrication

- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Powerbox

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution
No function when ON/OFF Switch (12) is operated	No power Check power supply
	Defective ON/OFF Switch Replace the ON/OFF Switch at an authorised Silverline service centre
Poor suction power	The Dust Bag (20) is full	The vacuum performance will deteriorate when the bag is nearly full. Remove and replace the Dust Bag once full
	Hose blockage Dismantle the hose assembly and clear any blockages that may be present
	Air leak	Check hose connections, Drain Cap (3) and Lid (9) fastening, to ensure there are no air leaks

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 974451

Description: 1250W Wet & Dry Vacuum Cleaner 30Ltr

Conforms to the following directives and standards:

• Low Voltage Directive 2014/35/EC

• EMC Directive 2014/30/EC

• RoHS Directive 2011/65/EU

• EN60335-2-2:2010+A11:2012+A1:2013

• EN60335-1:2012+A11:2014

• EN62233:2008

• EN55014-1:2006+A1:2009+A2:2011

• EN55014-2:1997+A1:2001+A2:2008

• EN61000-3-2:2014

• EN61000-3-3:2013

Notified body: Eurofins Product Testing Service

The technical documentation is kept by: Silverline Tools

Date: 22/03/16

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address:

Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Black and white photo of a vacuum cleaner with attached hose and handle (no visible text or symbols)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
