319548 - Vacuum Cleaner SILVERLINE - Free user manual and instructions

Product type	Vacuum cleaner
Brand	Silverline
Model	319548
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Tank capacity	10 L
Hose length	2.5 m
Power cord length	3.5 m
Connection diameter (inner / outer)	27 mm / 31 mm
Dimensions (L × W × H)	280 × 280 × 365 mm
Weight	3.8 kg
Protection rating	IP24
Protection class	II (double insulation)
Maximum airflow	28.13 m³/s
Suction power	15 kPa
Main functions	Vacuuming dust and liquids, blower
Filter type	Foam filter
Included accessories	Brush, crevice tool, hose, 3 tubes, 4 casters, dust bag
Care and cleaning	Clean filter regularly, empty tank after liquid use
Safety	Automatic shut-off with float in liquid mode, double insulation
Spare parts and repairability	Use only original Silverline parts; repair by authorized service center
Warranty	3 years (subject to conditions, online registration required)
Intended use	Household, garage, workshop for dust and liquids

Frequently Asked Questions - 319548 SILVERLINE

How to assemble the Silverline 319548 vacuum cleaner?

Fix the caster brackets onto the tank, insert the casters. Install the dust bag if necessary, then place the motor head and secure with clips. Connect the hose by aligning the pins and turning clockwise. Attach the tubes and desired accessory.

How to use the vacuum cleaner in liquid mode?

Remove the dust bag and ensure the foam filter is in place. Plug in the appliance and turn it on. The float automatically stops suction when the tank is full. Empty the tank after each use.

How to use the blower function?

Connect the hose to the outlet on the motor head (rear) instead of the tank connector. Remove the dust bag for better efficiency. Never point the hose at people or animals.

Why is suction power weak?

Check if the dust bag is full or the filter is clogged. Replace the bag and clean the filter. Also ensure the airflow control flap on the hose is closed and the hose is not blocked.

How to clean the filter?

Unplug the appliance. Remove the foam filter and clean it with a soft brush or using the blower function. Do not wash the filter with water unless indicated. Replace it once dry.

What to do if the motor changes sound in liquid mode?

This indicates the tank is full of liquid. Turn off the vacuum immediately, unplug it, and empty the tank.

What accessories are included with the vacuum cleaner?

The appliance comes with a 2.5 m hose, three tubes, a brush, a crevice tool, four casters, and a dust bag. Additional accessories are available from Silverline.

How to maintain the power cord?

Inspect the cord before each use. Do not pull the cord to unplug, and do not let it run under the vacuum. If damaged, have it replaced by a professional.

Can I use the vacuum to pick up hot ashes?

No, never vacuum hot ashes, embers, matches, or flammable substances. This may damage the appliance or cause a fire.

How to benefit from the 3-year warranty?

Register your product on silverlinetools.com within 30 days of purchase. Keep the original receipt. The warranty covers material and manufacturing defects, excluding normal wear and accessories.

USER MANUAL 319548 SILVERLINE

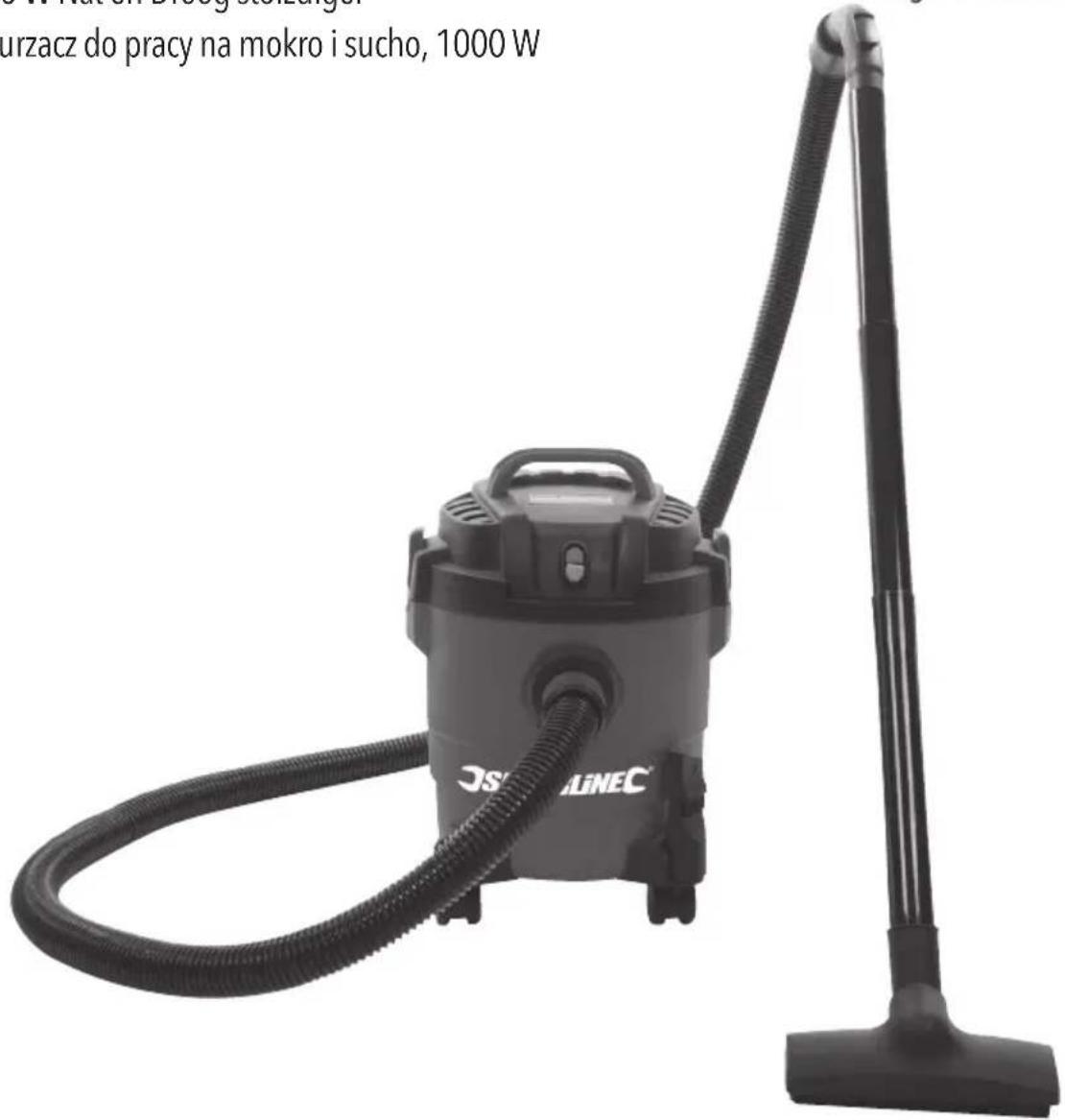

DIY 1000W Wet & Dry Vacuum Cleaner 10Ltr

FR Aspirateur eau et poussière 1000 W
DE Nass- und Trockensauger, 1000 W
ES Aspirador para polvo y liquidos 1000 W
IT Aspirapolvere secco/umido da 1000 W
NL 1000 W Nat en Droog stofzuiger
PL Odkuracz do pracny na mokro i SUCH, 1000 W

UK-319548/EU-919021

Register online: silverlinetools.com

silverlinetools.com

10 11 12

131415

16

ABC

D

E

F

English .6
Français 10
Deutsch............14
Espanol. 18
Italiano. 22
Nederlands .26
Polski 30

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Read instruction manual.

Caution!

Class II construction (double insulated for additional protection)

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to relevant legislation and safety standards.

Technical Abbreviations Key

V Volts
~, AC Alternating current
n0	No load speed
Hz Hertz
W, kW Watt, kilowatt
/min or min-1	Operations per minute
dB(A) Decibel sound level (A weighted)

Specification

Voltage: 220-240V~50/60Hz

Power: 1000W

Max air flow: 28.13 m/s

Suction power: 15kPa

Tank capacity: 10Ltr

Hose length: 2.5m

Hose Connector dia: 27mm (internal), 31mm (external)

Power cord length: 3.5 m

Ingress protection: IP24

Protection class:

Dimensions(LxWxH) 280×280×365mm

Weight: 3.8kg

As part of our ongoing product development, specifications of Silverline products may alter without notice.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

General Safety

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Save all warnings and instructions for future reference.

The term "appliance" in the warnings refers to your mains-operated (corded) appliance or battery operated (cordless) appliance.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate appliances in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Appliances create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating an appliance. Distractions can cause you to lose control.
2) Electrical safety
a) Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) appliances. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose appliances to rain or wet conditions. Water entering an appliance other than wet vacuuming will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the appliance. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating an appliance outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating an appliance in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an appliance while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating appliances may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the appliance. Carrying appliances with your finger on the switch or energising appliances that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the appliance ON. A wrench or a key left attached to a rotating part of the appliance may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the appliance in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Appliance use and care
a) Do not force the appliance. Use the correct appliance for your application. The correct appliance will do the job better and safer at the rate for which it was designed.
b) Do not use the appliance if the switch does not turn it ON and OFF. Any appliance that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the appliance before making any adjustments, changing accessories, or storing appliances. Such preventive safety measures reduce the risk of starting the appliance accidentally.
d) Store idle appliances out of the reach of children and do not allow persons unfamiliar with the appliance or these instructions to operate the appliance. Appliances are dangerous in the hands of untrained users.

e) Maintain appliances and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the appliance's operation. If damaged, have the appliance repaired before use. Many accidents are caused by poorly maintained appliances.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the appliance, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the appliance for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your appliance serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained.

Wet & Dry Vacuum Safety

WARNING: ALWAYS disconnect from the power supply before opening the unit, cleaning, carrying out maintenance, or when the unit is not in use.
a) NEVER pull on the power cable to remove the plug from the power point. This could cause damage to the power cable, the vacuum cleaner and the power point.
b) DO NOT allow the vacuum to pass over the power cable. This could cause damage to the internal wires.
c) DO NOT vacuum the following items:

• burning matches
  glowing ashes
  cigarette ends
  corrosives

• flammable, combustible or explosive substances

d) Use this product only for the purposes for which it is intended. Other applications may be dangerous, and lead to serious injury and/or property damage.
e) Take great care when cleaning stairs. Ensure the vacuum is placed on a secure, lower level, to avoid the danger of the vacuum falling on to the user.
f) Use ONLY genuine Silverline consumables, attachments and spare parts

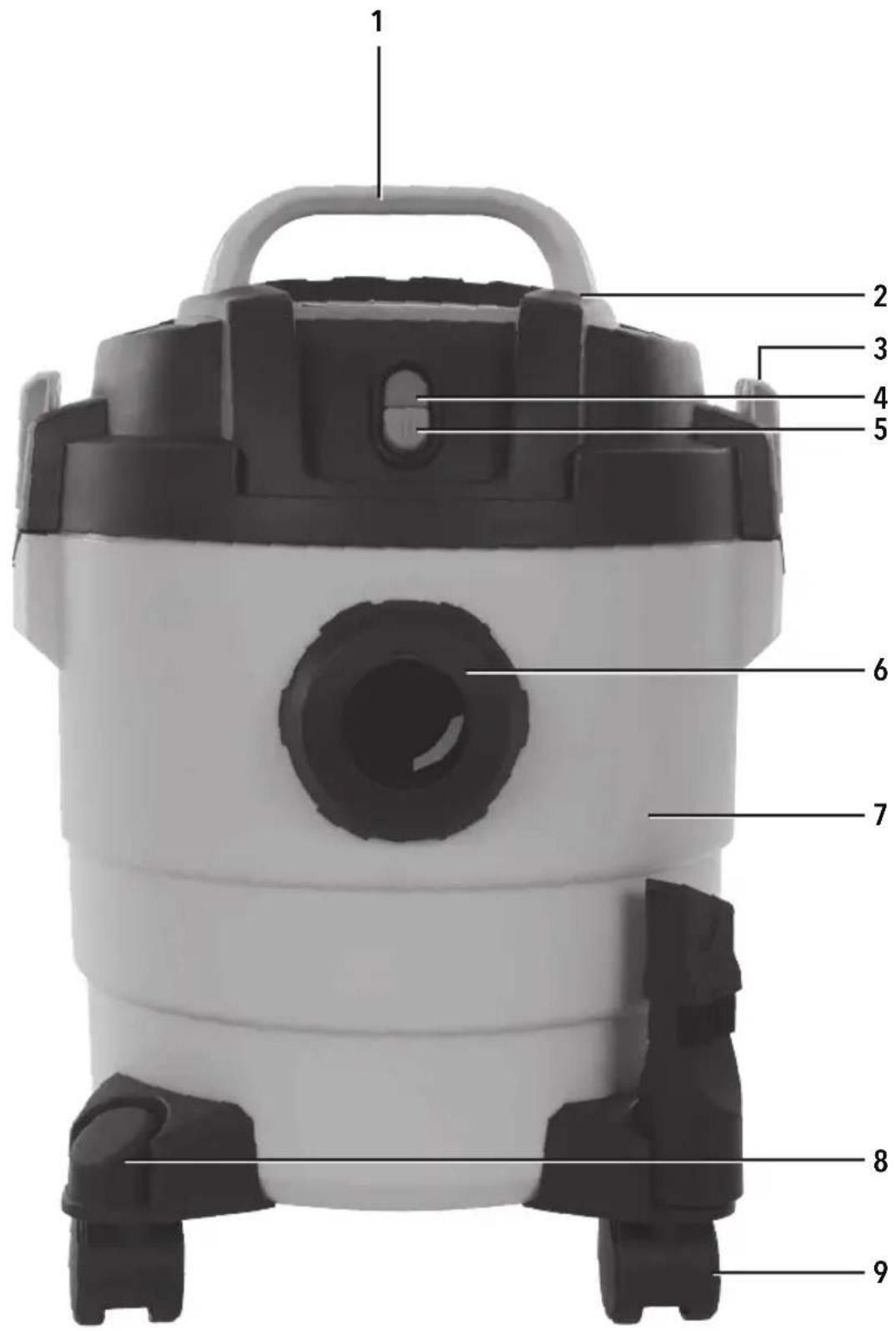

Product Familiarisation

1. Handle

2. Motor Assembly

3. Clip

4. OFF Switch

5. ON Switch

6. Hose Socket

7. Tank

8. Accessory Holder

9. Castor Wheel Mount

10. filter

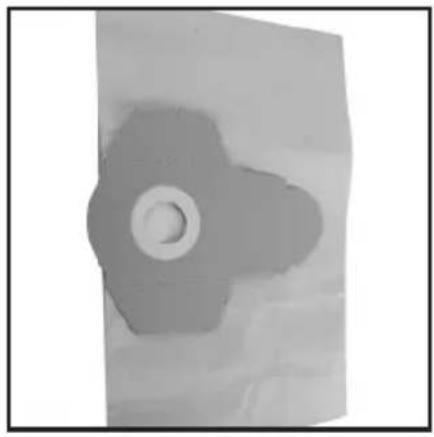

11. Dust Bag

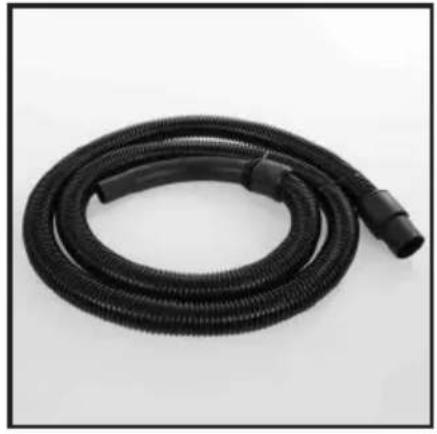

12. Hose

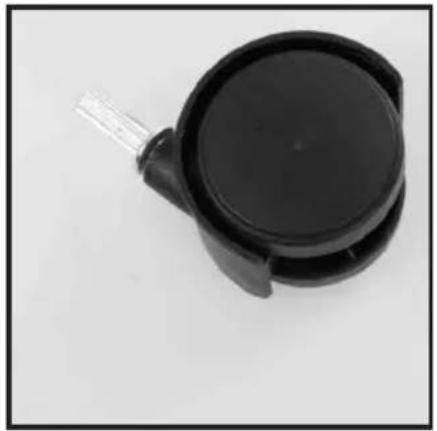

13. Castor (x4)

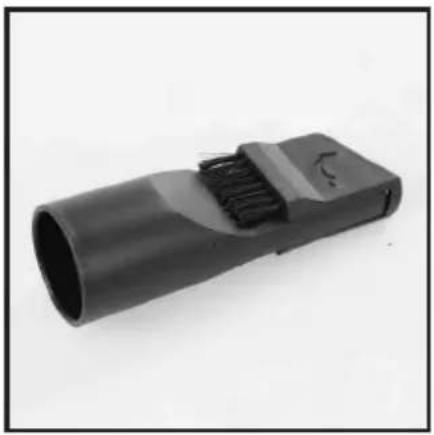

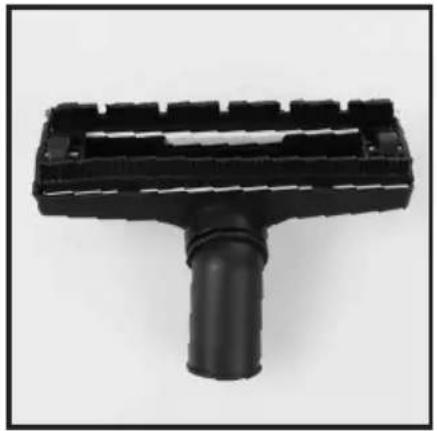

14. Brush Tool

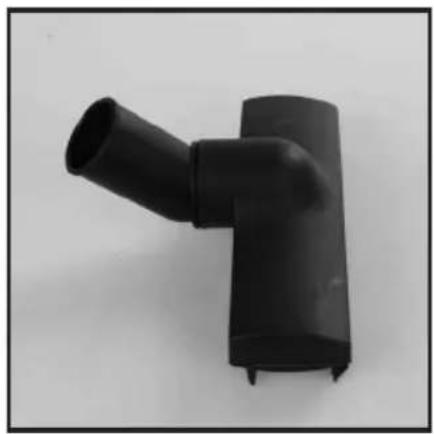

15. Crevice Tool

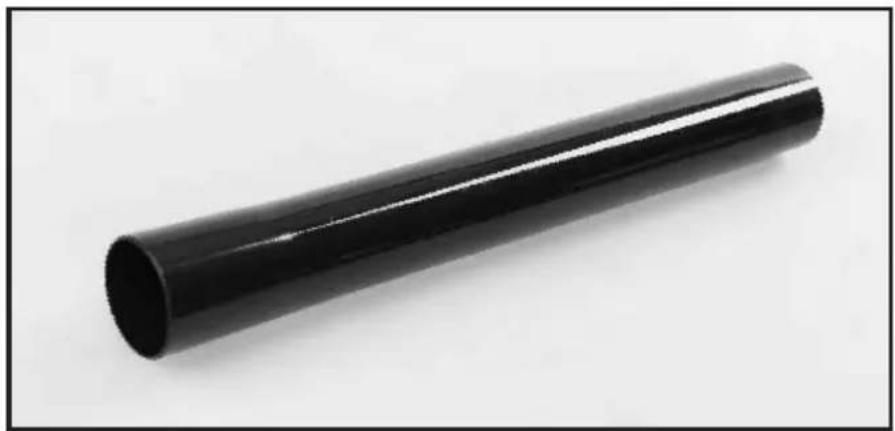

16. Hose Tube (x3)

Intended Use

Portable mains-powered vacuum cleaner suitable for wet and dry cleaning applications around the home, garage and workshop.

Unpacking Your Tool

• Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

Assembly

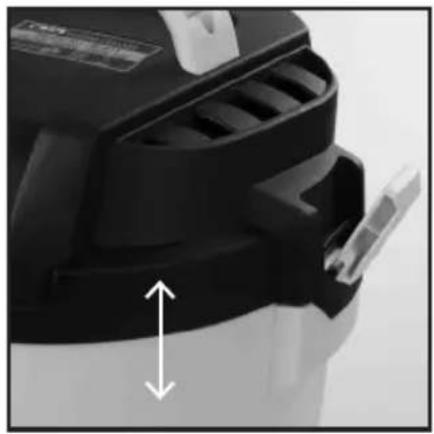

1. Use the Clips (3) to remove the Motor Assembly (2) from the Tank (7) (image B) and remove the accessories supplied in the Tank body
2. Turn the Tank upside down and fit the 4 Castor Mounts (9) on the base of the Tank with the screws provided
3. Holding each Caster Mount in turn push fit the Casters (13) into the Caster Mounts until each Castor is secure and the tank is level on the floor when turned upright. Be careful not to use excessive force that could damage the Tank or Caster Mounts

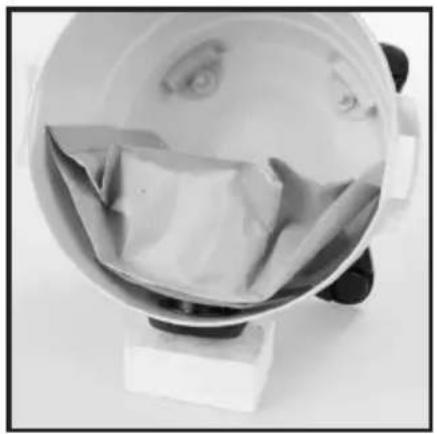

4. For normal vacuuming, the Dust Bag (11) should be fitted. The bag fits over the connector inside the Tank (image F). Hold the cardboard collar of the Dust Bag and push onto the connector. For maximum suction the Filter can be removed when a Dust Bag is fitted
5. Refit the Motor Assembly to the Tank and secure with the Clips

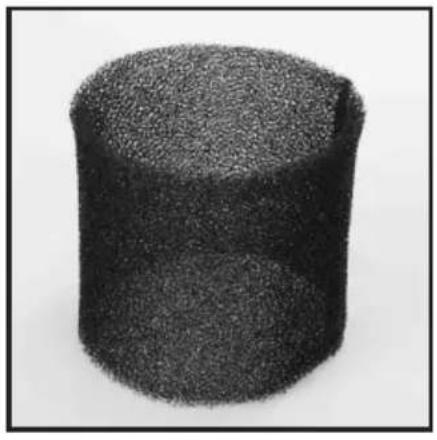

   The foam Filter (10) normally comes pre-fitted. When worn or damaged remove the existing Filter and fit the new Filter by sliding it gently over the filter frame (image E)

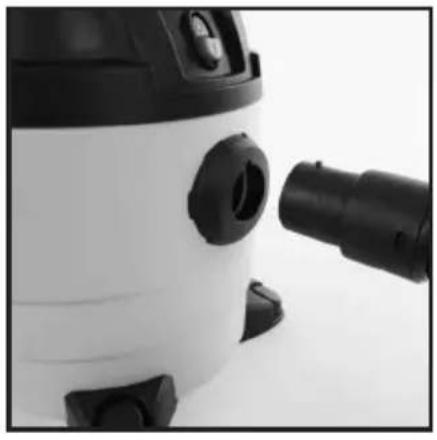

6. Insert the connector of the Hose (12) to the Hose Socket (6) by aligning the pins of the connector with the socket and pushing in then turn the connector clockwise
7. Use the Hose Tubes (16) to extend length of the hose
8. Fit accessory to the end of the Hose or Hose Tube if required, either the Brush Tool (14) or the Crevice Tool (15)

Note: Fine dust must not be allowed to enter the motor assembly as it could damage the motor. Normal household dust, plaster and other fine dust require a Dust Bag (11) to be fitted. For vacuuming liquid and some larger soft particles (larger wood chippings for example) a Dust Bag is not required. If the Filter (10) is collecting dust on its surface then a Dust Bag must be fitted. ALWAYS PROTECT THE MOTOR from fine dust.

Dust extraction

• The vacuum is suitable for dust extraction with portable, bench or floor-mounted power tools that have a dust port. A small adaptor may be required to match the tool's dust port diameter to the hose diameter (see specification)
• The power switch of the vacuum is the latching type that will remain in the ON position when mains power is interrupted. This enables it to be used with 'switchboxes' so the vacuum starts with the power tool when the switchbox is operated. The vacuum has a power rating of 1000W/4.3A. If a switchbox is used with the vacuum and a power tool, ensure the switchbox or the mains socket is not overloaded with the combined power rating value of the vacuum (1000W/4.3A) and the power tool.

Wet vacuuming

For wet vacuuming remove the Dust Bag (11) and make sure the Filter (10) is fitted

Blowing

• Setup as per normal vacuuming except remove the Hose from the Hose Socket (6) and fit to the rear of the Motor Assembly (image A)
• Blowing may be more effective with the Dust Bag (11) removed

Operation

Switching ON & OFF

1. Connect the mains plug of the power cable to a mains socket and switch ON the vacuum by pressing in the ON Switch (5)
2. To switch OFF press the OFF Switch (4)

Dry vacuum cleaning

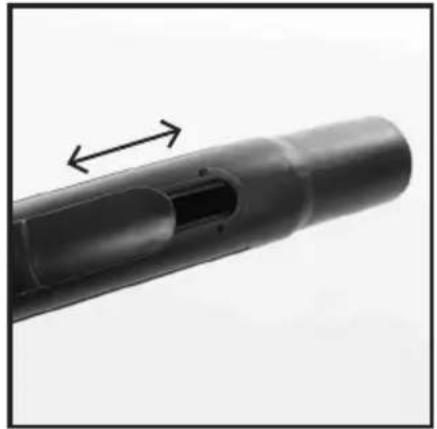

• The vacuum suction power can be varied with the sliding cover on the hose (image C) by opening for less suction and closing for more suction
• As the Dust Bag (11) gets full, suction will reduce and the bag will need replacing

Wet vacuum cleaning

WARNING: When vacuuming liquid there is a greater electrical safety risk as the Tank fills with liquid. It is recommended the vacuum is only connected to a mains supply with an integrated RCD on its circuit or with an additional plug-in RCD.

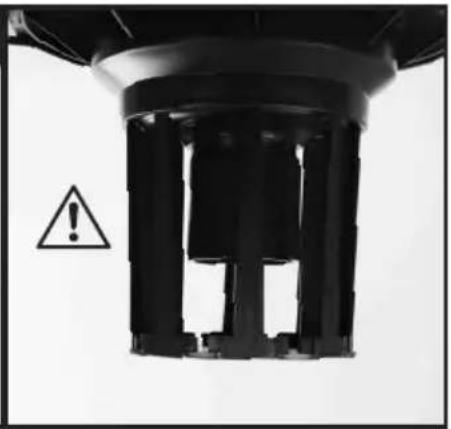

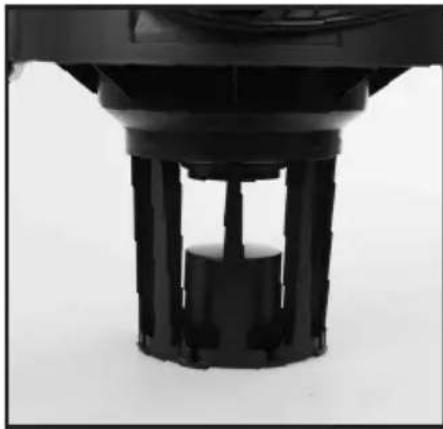

IMPORTANT: The vacuum is equipped with a float mechanism that indicates when the tank is full of liquid (image E right side). When the motor noise changes and becomes a higher pitch, switch the vacuum OFF immediately and empty the Tank.

1. Fit the required accessory or use the bare hose connector. The Brush Tool (14) has a squeezegee bar (image D) for helping to collect liquid on a surface for easy vacuuming
2. When vacuuming, try to create an easy passage for the liquid by keeping the hose more horizontal than vertical
3. Always empty the Tank after use
4. Dry the inside of the Tank and refit the Dust Bag (11) for dry vacuum cleaning

Blowing

WARNING: Do not point the end of the Hose towards any person or animal; debris/particles may be ejected from the hose end, especially when first switched ON. ALWAYS wear safety googles to protect eyes.
The blowing function can be used for clearing surfaces, inflating low pressure devices (normally inflated by mouth), and for cooling surfaces.

Accessories

• A range of accessories and consumables, including filters and dust bags, is available from your Silverline stockist. Spare parts can be obtained from toolsparsonline.com

Maintenance

The motor requires no maintenance or additional lubrication. There are no user serviceable parts within the motor assembly.

General inspection

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. If the power cable cannot be repaired or replaced to original specification the appliance should be scrapped.

Cleaning

WARNING: Before cleaning, ensure the appliance is OFF then remove the power plug from the wall socket.

Clean the vacuum body with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
- Never use caustic agents to clean plastic parts

Filter cleaning

Note: A clogged filter will cause suction power and cleaning efficiency to deteriorate. Check whether the Filter (10) is dirty if performance deteriorates.
- Remove the Filter then clean using a light brush and the vacuum in blower mode

Hose blockages

• The hose can be moved to the blower position to remove some blockages. Ensure the hose is pointed away from people or animals as the blockage may exit the hose with some force. The hose end can be lightly tapped against a surface to aid removal

Storage

• Store this tool carefully in a secure, dry place out of the reach of children. The Hose Tubes (16) and one of the brush accessories can be stored in Accessory Holders (8) at the top of the Caster Mounts (9), which will create a recess around the body of the tool for storing the mains cable

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution

No function when ON Switch (5) is operated	No power Check power supply
	Defective ON Switch Replace the ON Switch at an authorised Silverline service centre
Poor suction power	The Dust Bag (11) is full or Filter (10) dirty	The vacuum performance will deteriorate when the bag is nearly full or the Filter is partially blocked. Remove and replace the Dust Bag once full and/or check the Filter
	Hose blockage Dismantle the hose assembly and clear any blockages that may be present
	Air leak	Ensure suction control on Hose (12) is closed and there is no damage to the Hose itself causing air leaks

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:

• Your personal details

Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK
