Product type	Inspection camera
Brand	RIDGID
Model	SeeSnake Mini
Dimensions (L x W x H)	519 x 288 x 560 mm
Weight	11.8 kg
Push cable length	61 m
Diamètre du câble	9.1 mm
Compatible pipe diameter	38 mm to 203 mm
Camera resolution	640 x 480 pixels
Camera waterproof depth	100 m
Probe frequency	512 Hz
Integrated sensors	TiltSense (inclinometer), HDR photo sensor
Communication technology	TruSense, bidirectional communication with SeeSnake monitor
Power supply	Via SeeSnake monitor (not included)
Operating temperature	-10 °C to 50 °C
Protection rating	IP55 (without monitor)
Warranty	Lifetime legal warranty (subject to conditions)
Cleaning	Soft cloth, mild detergent; no solvent or pressure washer
Repairability	Maintenance and repair by an Independent RIDGID Authorized Service Center
Safety	Read the manual, wear PPE, do not use in water or explosive atmosphere

Frequently Asked Questions - SeeSnake Mini RIDGID

How to connect the SeeSnake Mini camera to a monitor?

Connect the system cable to the monitor by aligning the connector keyway with the plug and pushing the connector. Only turn the external locking sleeve, do not bend or twist the connector.

What types of pipes can the SeeSnake Mini inspect?

The SeeSnake Mini is ideal for pipes from 38 mm to 203 mm (1.5 to 8 inches) in diameter.

How to clean the camera and cable after an inspection?

Clean with a soft cloth and a nylon brush. You can use a mild detergent or disinfectant. Do not use solvent or pressure washer.

What is TruSense technology?

The TruSense technology establishes a bidirectional communication link between the camera head and the CSx Wi-Fi monitor. It integrates sensors like TiltSense (inclinometer) and an HDR photo sensor for better image clarity.

How to retrieve the camera after inspection?

Remove the cable from the pipe slowly and steadily, gradually winding it onto the drum. Wipe the cable with a cloth. Do not apply excessive force and avoid sharp angles to prevent loops or damage.

What are the essential safety precautions?

Always wear personal protective equipment (safety glasses, gloves, etc.). Do not use the equipment in water or in the presence of flammable liquids. Read the manual carefully before use.

Where can I get my SeeSnake Mini repaired?

Maintenance and repairs must be carried out by an Independent RIDGID Authorized Service Center. Contact your local distributor or visit RIDGID.com.

Does the warranty cover all defects?

The lifetime legal warranty covers defects in materials and workmanship for the life of the product. It does not cover failures due to misuse, abuse, or normal wear and tear.

How to use the pipe guides?

Pipe guides center the camera in the pipe, improving image quality and protecting the lens. Use them when possible to reduce wear.

How to store the SeeSnake Mini?

Store it in a dry and secure place, at a temperature between -10 °C and 70 °C. Keep out of reach of children and untrained persons.

USER MANUAL SeeSnake Mini RIDGID

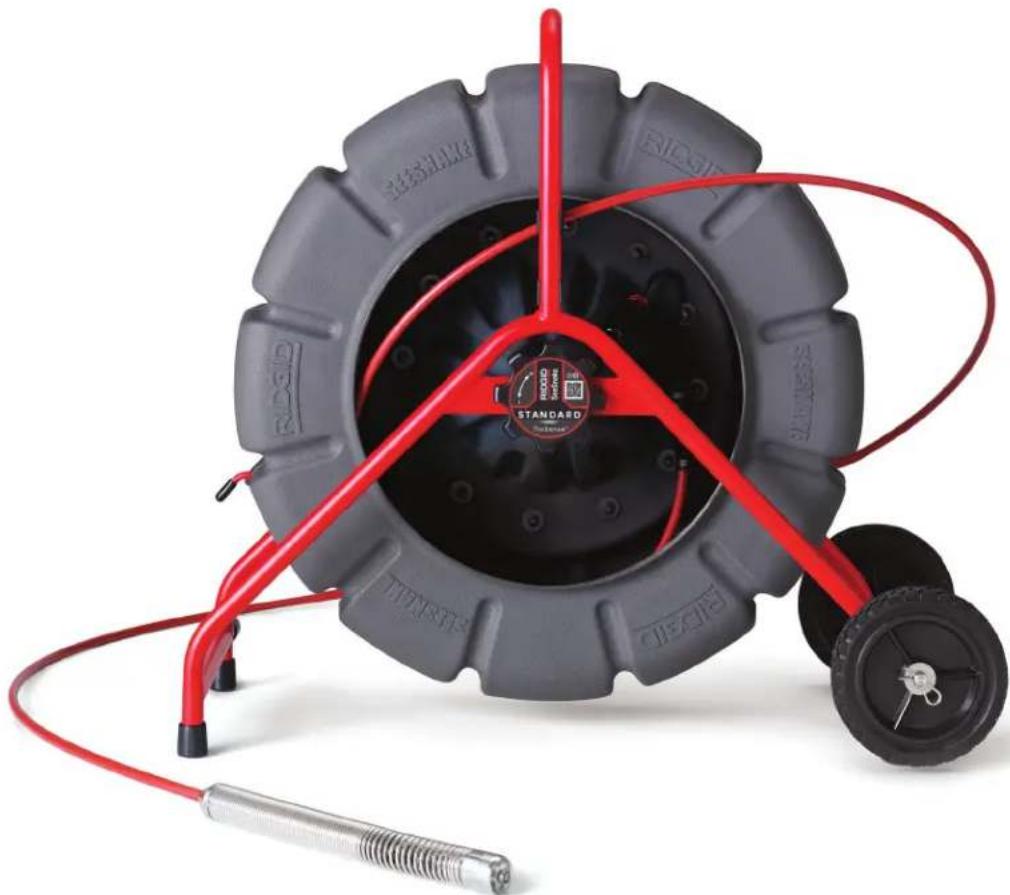

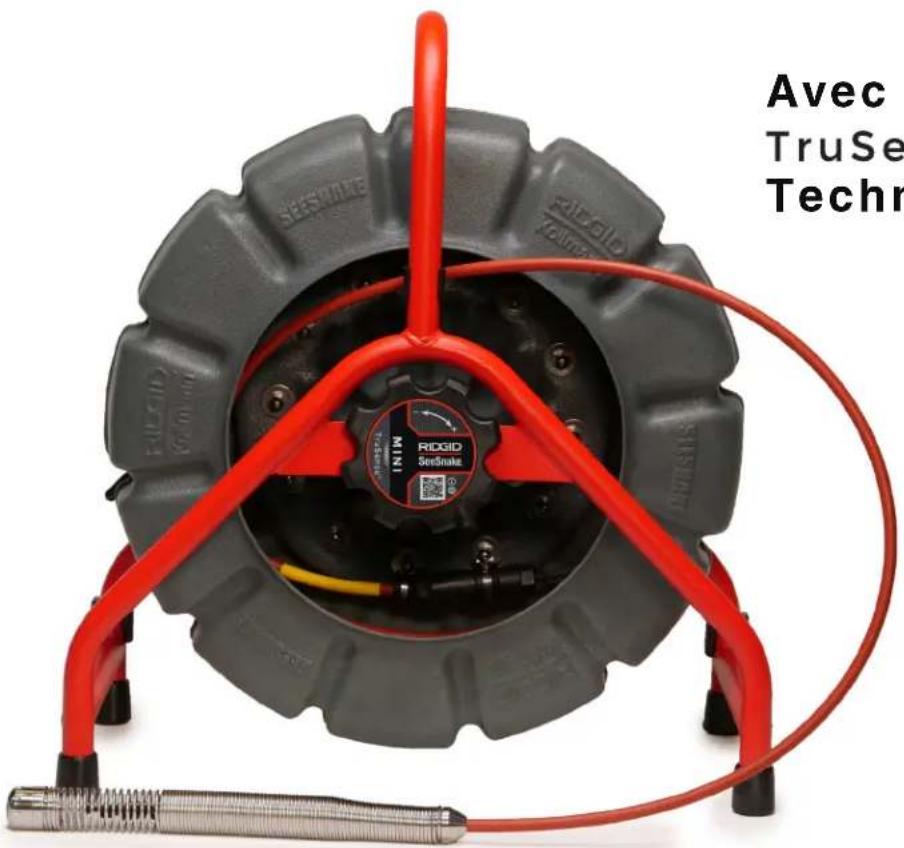

SeeSnake® MINI With TruSense™ Technology

Red and black photo of a standard tire roller with attached cable, no visible text or symbols

With TruSe Techn RIOXID SeSpike INTN RIOXID SeSpike

With

TruSense™

Technology

WARNING!

Read this Operator's Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire, and/or serious personal injury.

For support and additional information about using your See Snake Mini go to support.seesnake.com/mini or scan this QR code.

Table of Contents

Introduction

Regulatory Statements ...... 3

Safety Symbols 3

General Safety Rules

Work Area Safety 4

Electrical Safety 4

Personal Safety 4

Equipment Use and Care 5

Pre-Operation Inspection ....5

See Snake Mini Overview

Description 6

Specifications....7

Standard Equipment....7

System Components 8

Specific Safety Information

SeeSnake Mini Safety....8

Operating Instructions

Placement 9

Inspection Overview 9

Pipe Guides....9

Maintenance and Support

Cleaning....10

Maintaining Components....10

Storage 10

Support....10

Service and Repair....10

Disposal 10

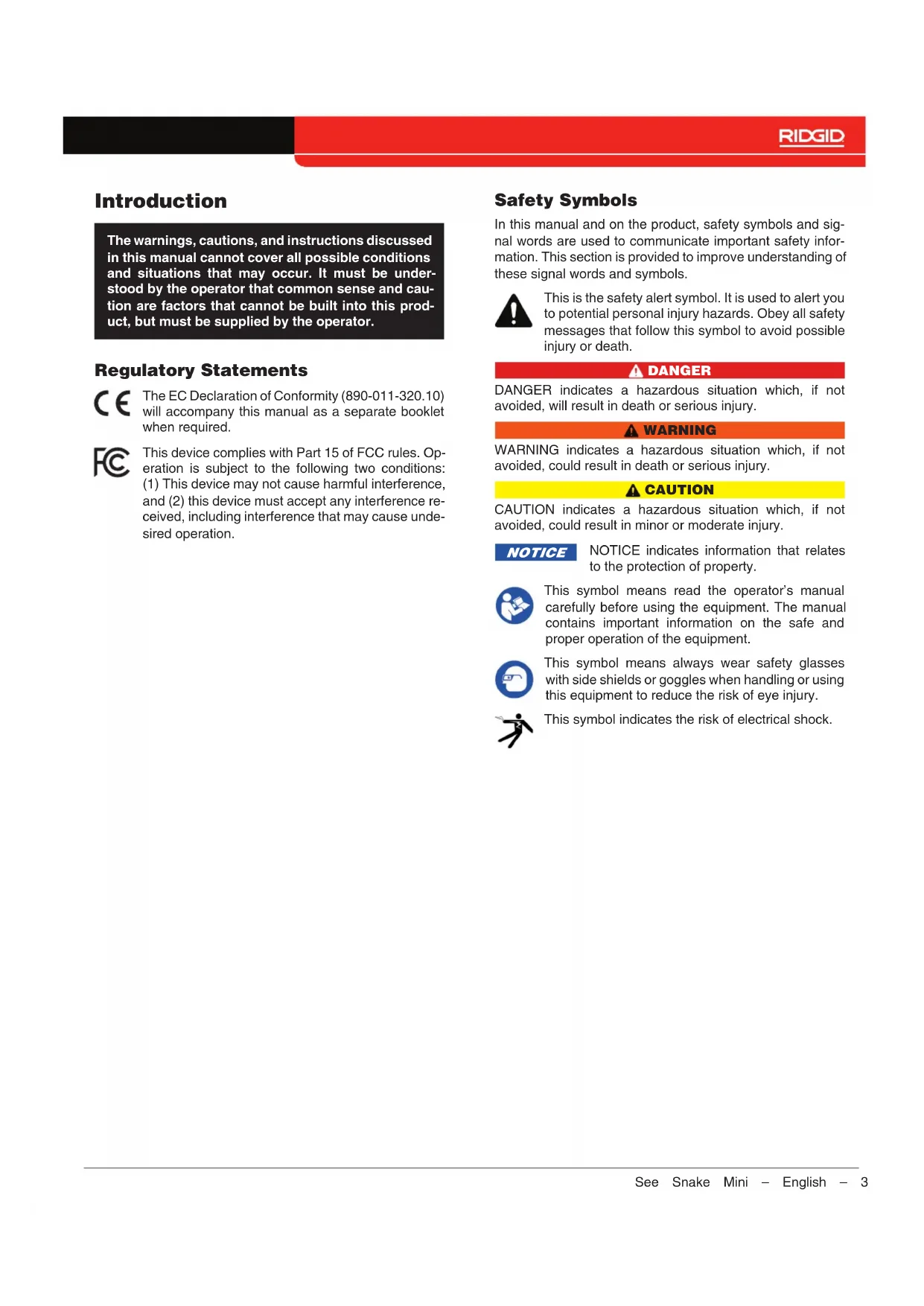

Introduction

The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.

Regulatory Statements

The EC Declaration of Conformity (890-011-320.10) will accompany this manual as a separate booklet when required.

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Safety Symbols

In this manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

A WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE indicates information that relates to the protection of property.

This symbol means read the operator's manual carefully before using the equipment. The manual contains important information on the safe and proper operation of the equipment.

This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce the risk of eye injury.

This symbol indicates the risk of electrical shock.

General Safety Rules

WARNING

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electrical shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS!

Work Area Safety

• Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate equipment in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Equipment can create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating equipment. Distractions can cause you to lose control.

Electrical Safety

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electrical shock if your body is earthed or grounded.
• Do not expose equipment to rain or wet conditions. Water entering equipment will increase the risk of electrical shock.
• Keep all electrical connections dry and off the ground. Touching equipment or plugs with wet hands can increase the risk of electrical shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords increase the risk of electrical shock.
• If operating equipment in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electrical shock.

Personal Safety

• Stay alert, watch what you are doing, and use common sense when operating equipment. Do not use equipment while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating equipment may result in serious injury.
• Dress properly. Do not wear loose clothing or jewelry. Loose clothes, jewelry, and long hair can be caught in moving parts.
• Practice good hygiene. Use hot, soapy water to wash hands and other body parts exposed to drain contents after handling or using drain inspection equipment. To prevent contamination from toxic or infectious material, do not eat or smoke while operating or handling drain inspection equipment.
• Always use appropriate personal protective equipment when handling and using equipment in drains. Drains may contain chemicals, bacteria, and other substances that may be toxic, infectious, and cause burns or other issues. Appropriate personal protective equipment always includes safety glasses and may include a dust mask, hard hat, hearing protection, drain cleaning gloves or mitts, latex or rubber gloves, face shields, goggles, protective clothing, respirators, and steel toed, nonskid footwear.
• If using drain cleaning equipment and drain inspection equipment at the same time, wear RID GID drain cleaning gloves. Never grasp the rotating drain cleaning cable with anything else, including other gloves or a rag which can become wrapped around the cable and cause hand injuries. Only wear latex or rubber gloves underneath RID GID drain cleaner gloves. Do not use damaged drain cleaning gloves.

Equipment Use and Care

• Do not force equipment. Use the correct equipment for your application. The correct equipment does the job better and more safely.
• Do not use equipment if the power switch does not turn it on and off. Any equipment that cannot be controlled with the power switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the equipment before making adjustments, changing accessories, or storing. Preventive safety measures reduce the risk of injury.
• Store idle equipment out of the reach of children and do not allow persons unfamiliar with the equipment or these instructions to operate the equipment. Equipment can be dangerous in the hands of untrained users.
• Maintain equipment. Check for misalignment or binding of moving parts, missing parts, breakage of parts, and any other condition that may affect the equipment's operation. If damaged, have the equipment repaired before use. Many accidents are caused by poorly maintained equipment.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the equipment in unexpected situations.
• Use the equipment and accessories in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the equipment for operations different from those intended can result in hazardous situations.
• Use only accessories that are recommended by the manufacturer for your equipment. Accessories that may be suitable for one piece of equipment may become hazardous when used with other equipment.
• Keep handles dry, clean, and free from oil and grease. Clean handles give better control of the equipment.

Pre-Operation Inspection

WARNING

To reduce the risk of serious injury from electrical shock or other causes, and to prevent damage to your equipment, inspect all equipment and correct any problems before each use.

To inspect all equipment, follow these steps:

1. Power off your equipment.
2. Disconnect and inspect all cords, cables, and connectors for damage or modification.
3. Clean any dirt, oil, or other contamination from your equipment to ease inspection and to prevent it from slipping from your grip during transport or use.

4. Inspect your equipment for any broken, worn, missing, misaligned, or binding parts, or any other condition which might prevent safe, normal operation.

5. Refer to the instructions for all other equipment to inspect and make sure it is in good, usable condition.

6. Check your work area for the following:

7. Adequate lighting.

8. The presence of flammable liquids, vapors, or dust that may ignite. If present, do not work in area until sources have been identified and corrected. The equipment is not explosion proof. Electrical connections can cause sparks.

9. A clear, level, stable, and dry place for the operator. Do not use the equipment while standing in water.

10. Examine the job to be done and determine the correct equipment for the task.

11. Observe the work area and erect barriers as necessary to keep bystanders away.

See additional product specific safety information and warnings starting on page 8.

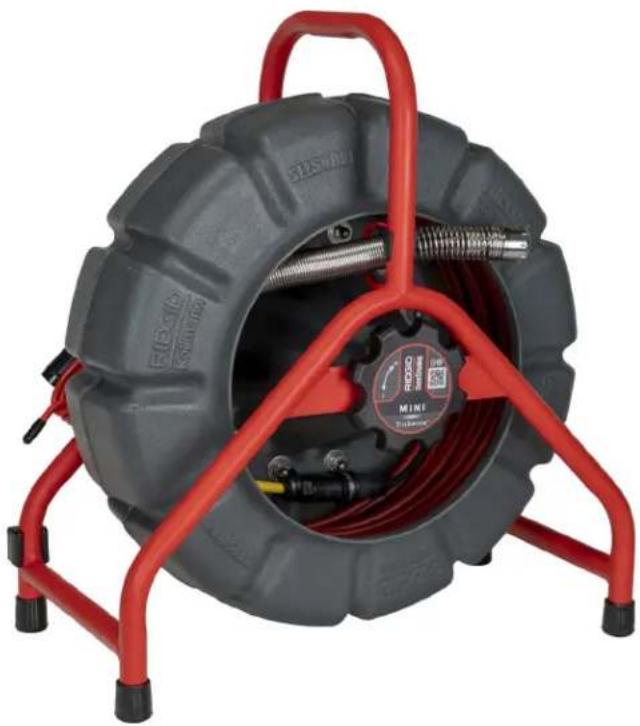

See Snake Mini Overview

Red and gray fire truck tire with attached hose and hoses, no visible text or symbols

Description

The RIDGID®SeeSnake® Mini is a portable camera reel in the See Snake family of premier diagnostic systems.

The Mini is ideal for inspecting 38 mm to 203 mm [1.5 in to 8 in] lines and comes with a 61 m [200 ft] push cable. The push cable is reinforced with fiberglass and flexible enough to travel through sharp 90° bends, yet stiff enough to push the camera head long distances.

Each Mini includes a built-in FleX mitter sonde that helps locate points of interest in the pipe. FleX mitter sondes have long, powerful antennas capable of putting out a signal strong enough to pinpoint the camera's location underground, while still preserving its flexibility through turns.

The Mini works with any See Snake monitor to record and distribute inspections. Pair it with a SeeSnake CSx series Wi-Fi enabled monitor to deliver professional multimedia reports to your customers quickly and easily. Available SeeSnake CSx monitors include the CS6x, CS6xPak, CS65x, and CS12x monitors.

A self-leveling camera head option is available to keep the image upright.

TruSense™ Technology Description

TruSense technology establishes a two-way communication link between the camera head and a connected CSx series Wi-Fi enabled monitor. Advanced on-camera sensors convey valuable information about the in-pipe environment.

Included TruSense Sensors

TiltSense™

The TiltSense inclinometer measures the camera's degree of tilt and displays it on a CSx series Wi-Fi enabled monitor, giving you a useful indicator of the camera's angle as it lays inside the pipe.

HDR Image Sensor

The high dynamic range (HDR) image sensor expands the camera's dynamic range, allowing a greater ratio of bright and dark areas to be displayed in the same image at the same time without reducing visibility. The result is superior clarity and detail, allowing you to quickly and easily identify problem areas.

Specifications
Weight 11.8 kg [26 lb]
Dimensions
Length 519 mm [20.4 in]
Depth 288 mm [11.3 in]
Height 560 mm [22 in]
Drum diameter 462 mm [18.2 in]
TruSense Camera, Fixed
Length	22 mm [0.9 in]*33 mm [1.3 in]**
Diameter 30 mm [1.2 in]
TruSense Camera, Self-Leveling
Length	26 mm [1 in]*37 mm [1.5 in]**
Diameter 30 mm [1.2 in]
Resolution 640 x 480 pixels
Sonde
Type FleXmitter	®
Frequency 512 Hz
Distance Measurement
Type TruSense Counter
Data Communication Two-Way

Specifications
Push Cable
Length 61 m [200 ft]
Diameter 9.1 mm [0.36 in]
Fiberglass core diameter 3.5 mm [0.14 in]
Minimum bend radius	76 mm [3 in]
Pipe Capacity §	38 mm to 203 mm[1.5 in to 8 in]
System Cable Length	4 m [13 ft]
Operating Environment
Temperature ‡	-10°C to 50°C[14°F to 122°F]
Storage temperature	-10°C to 70°C[14°F to 158°F]
Ingress protection(without monitor)	IP×5
Relative humidity	5 to 95 percent
Altitude	4,000 m [13,123 ft]
Camera depth rating	Waterproof to 100 m[328.1 ft]
* Measured from lens to spring.
** Measured from lens to end of threads.
§ Actual pipe capacity depends on pipe conditions.
‡ While the camera can function in extreme temperatures, some image quality changes may occur.

Standard Equipment

• SeeSnake Mini camera reel
- Operator's manual
- Pipe guide kit
- Spanner wrench

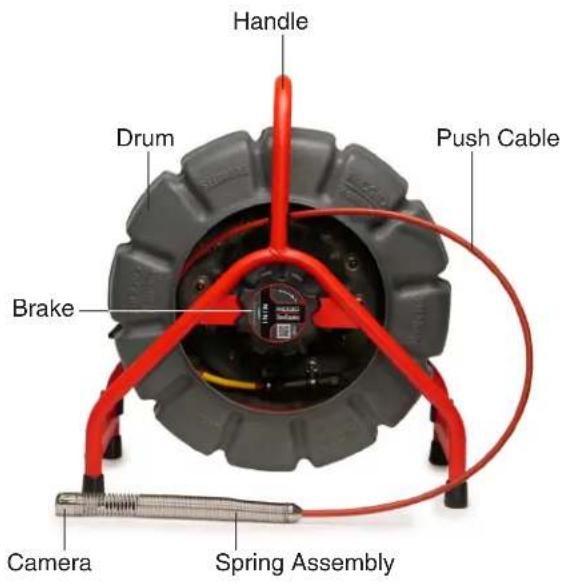

System Components

Handle Drum Push Cable Brake Camera Spring Assembly

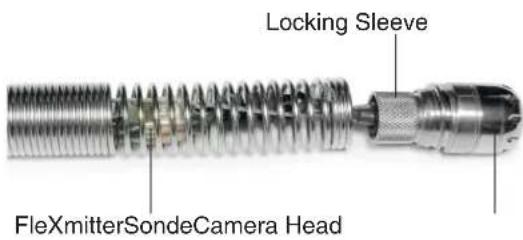

Locking Sleeve FleXmitterSondeCamera Head

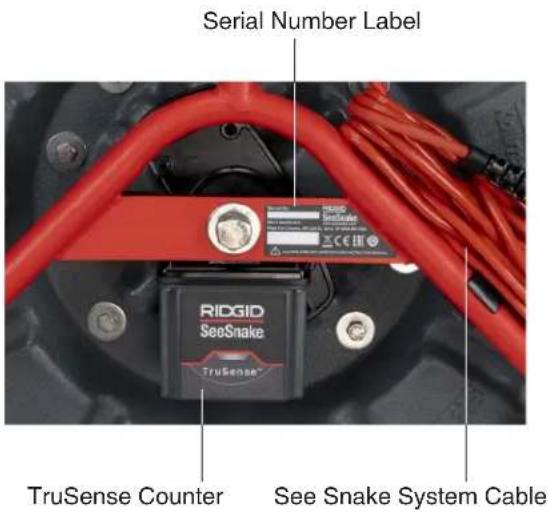

Serial Number Label TruSense Counter See Snake System Cable

Specific Safety Information

WARNING

This section contains important safety information that is specific to the See Snake Mini. Read these precautions carefully before using the equipment to reduce the risk of electrical shock, fire, and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

See Snake Mini Safety

• Read and understand this manual, the digital reporting monitor's manual, and the instructions for any other equipment you are using before operating the equipment. Failure to follow all instructions may result in property damage and/or serious injury. Keep this manual with the equipment for future use.
• Operating the equipment while in water increases the risk of electrical shock. Do not operate the system if operator or equipment are standing in water.
• The equipment is not designed to provide high voltage protection and isolation. Do not use where a danger of high voltage contact is present.
• To prevent damage to the equipment and to decrease the risk of injury, do not expose the equipment to mechanical shocks. Exposure to mechanical shocks can damage equipment and increase the risk of serious injury.
• Always use appropriate personal protective equipment when handling and using equipment in drains. Wear appropriate protective equipment such as latex or rubber gloves, goggles, face shields, and respirators when inspecting drains that might contain hazardous chemicals or bacteria. Always wear eye protection to protect against dirt and other foreign objects.

Operating Instructions

Placement

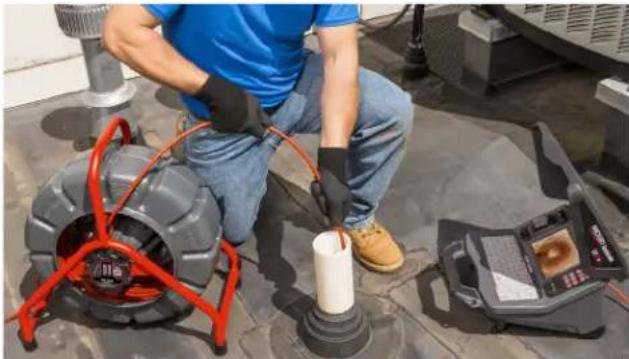

Set up your SeeSnake system near the pipe entrance so you can manipulate the push cable while viewing the monitor. Make sure that the drum can spin freely. Placing the reel where the drum cannot spin freely may result in over-winding the cable, which may result in property damage and/or serious injury.

Person operating a portable air purifier with red tubing, surrounded by equipment and a handheld device (no visible text or symbols)

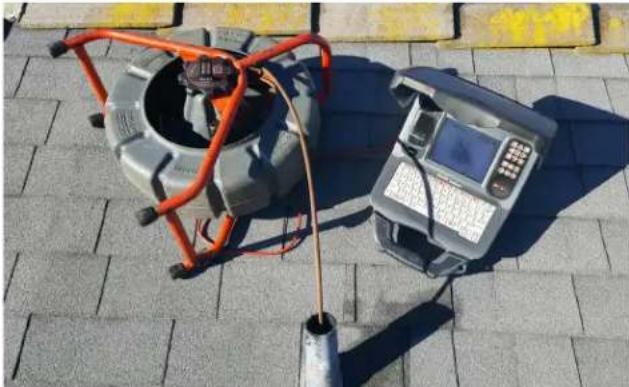

Lay the See Snake on its back for greater stability, particularly when on a rooftop, overhead entry, or hillside.

Outdoor scene with a portable gas stove, red oxygen bridge, and a digital payment terminal on a paved surface (no visible text or symbols)

Inspection Overview

To perform a pipe inspection, connect any See Snake monitor to the reel, power on the system, push the push cable through the pipe, and observe the display.

For advanced inspection options, such as capturing media, locating the sonde, tracing the push cable, and delivering reports, refer to the manual that comes with your monitor.

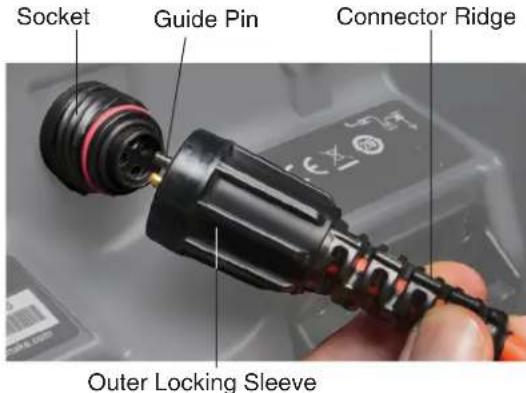

Connecting to the Monitor

Connect the system cable to the monitor by aligning the connector guide pin with the socket and pushing the connector straight in.

NOTICE

Only twist the outer locking sleeve. Never bend or twist the connector.

Socket Guide Pin Connector Ridge Outer Locking Sleeve

Retrieving the Camera

Pull the push cable back out of the pipe with slow, steady force and feed small lengths back into the drum. Wipe the push cable with a paper towel or rag as you retrieve it.

NOTICE

Do not exert excessive force or pull at sharp angles. Feeding longer lengths or forcing the push cable may cause it to loop, kink, or break.

Pipe Guides

Pipe guides center the camera in the pipe, improve picture quality, and help keep the lens clear. Use pipe guides when possible to reduce wear and tear on the camera system.

Maintenance and Support

Cleaning

Clean your system with rags and a soft nylon brush. If desired, a mild detergent or disinfectant can be used. Do not use solvents or high pressure water to clean any part of the system.

Maintaining Components

Camera Head

Scratches on the camera have a minimal effect on the its performance. Do not use scraping tools or sand the camera to remove scratches.

Push Cable

Run a rag over the push cable and visually inspect it for cuts and abrasions while pushing it back into the drum. Replace or repair the push cable if the outer jacket is cut or abraded.

Storage

The SeeSnake Mini must be stored in a dry, secure area between -10°C and 70°C [14°F and 158°F]. Store your equipment in a locked area out of the reach of children and people unfamiliar with its purpose.

Support

For support and additional information about using your system, visit support.seesnake.com/mini.

Service and Repair

Improper service or repair can cause the camera reel to be unsafe to operate.

Service and repair of the camera reel must be performed at a RIDGID Independent Authorized Service Center. To find your nearest service center or for any service or repair questions:

- Contact your local RIDGID distributor.

- Visit RIDGID.com.

- Contact Ridge Tool Company Technical Service Department at [e-mail] or, in the USA and Canada, call 1-800-519-3456.

Disposal

Parts of your system contain valuable materials that can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.

EC Countries: Do not dispose of electrical equipment with household waste!

According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national legislation, electrical equipment that is no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery Disposal

EC Countries: Defective or used batteries must be recycled according to the guideline 2006/66/EEC.

SeeSnake®

MINI

Avec TruSe Techn RIGID SeaSnake

Avec

TruSense™

Technologie

AVERTISSEMENT!

Red and gray fire truck tire with attached hose and hoses, no visible text or symbols

Description

Worker operating a portable water pump on a tiled floor, with equipment and a digital display nearby (no visible text or symbols)

Outdoor scene showing a gas stove with red cables and a digital payment terminal on a paved surface (no visible text or symbols)

Red and gray fire truck tire with attached hose and hoses, no visible text or symbols

Descripción

Worker operating a portable water pump on a tiled floor, with equipment nearby (no visible text or symbols)

Outdoor scene with a portable gas stove, red cables, and a digital payment terminal on a paved surface (no visible text or symbols)

- Visite RIDGID.com.

RIDGID ^® tools are warranted to be free of defects in workmanship and material.

How long coverage lasts

This warranty lasts for the lifetime of the RIDGID® tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material.

How you can get service

To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGIONDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.

What we will do to correct problems

Warranted products will be repaired or replaced, at RIDGE TOOL'S option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.

What is not covered

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages.

How local law relates to the warranty

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to country.

No other express warranty applies

This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID ^2 products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.

RIDGID FULL LIFETIME WARRANTY Against Material Defects & Workmanship

Parts are available online at Store.RIDGID.com

Ridge Tool Company

400 Clark Street

Elyria, Ohio 44035-6001

U.S.A.

Ce qui est couvert
