USER MANUAL 2955041 BARTSCHER

Two identical stainless steel kitchen cabinets with control knobs and side legs, no visible text or symbols.

INST ALLATION, OPERATING AND MAINTEN ANCE NSTR UCT IONS

MA NUEL D'INSTALLATION, D' UTILISATIO N ET D'E NTRETIEN

Circular industrial control knob with numeric markings and a small dial indicator (no readable text or symbols beyond basic markings)

Pos 0

Circular dial with numeric markings and a small knob above (no readable text or symbols)

Pos 1

Circular industrial fan dial with dual dials and a small propeller (no text or symbols visible)

Pos 2

Circular mechanical dial with numeric markings and a small knob above (no readable text or symbols beyond measurement indicators)

Pos 3

Technical diagram showing mechanical assembly with labeled components A, B, and C, including directional arrows and annotations.

Technical line drawing of a mechanical component with a circular annotation and dashed line labeled 'D' (no readable text or symbols)

ID 13

Technical diagram showing mechanical assembly with labeled components A, B, C, D, E and directional arrows indicating flow or movement.

1. TABLE OF CONTENTS ...... 1

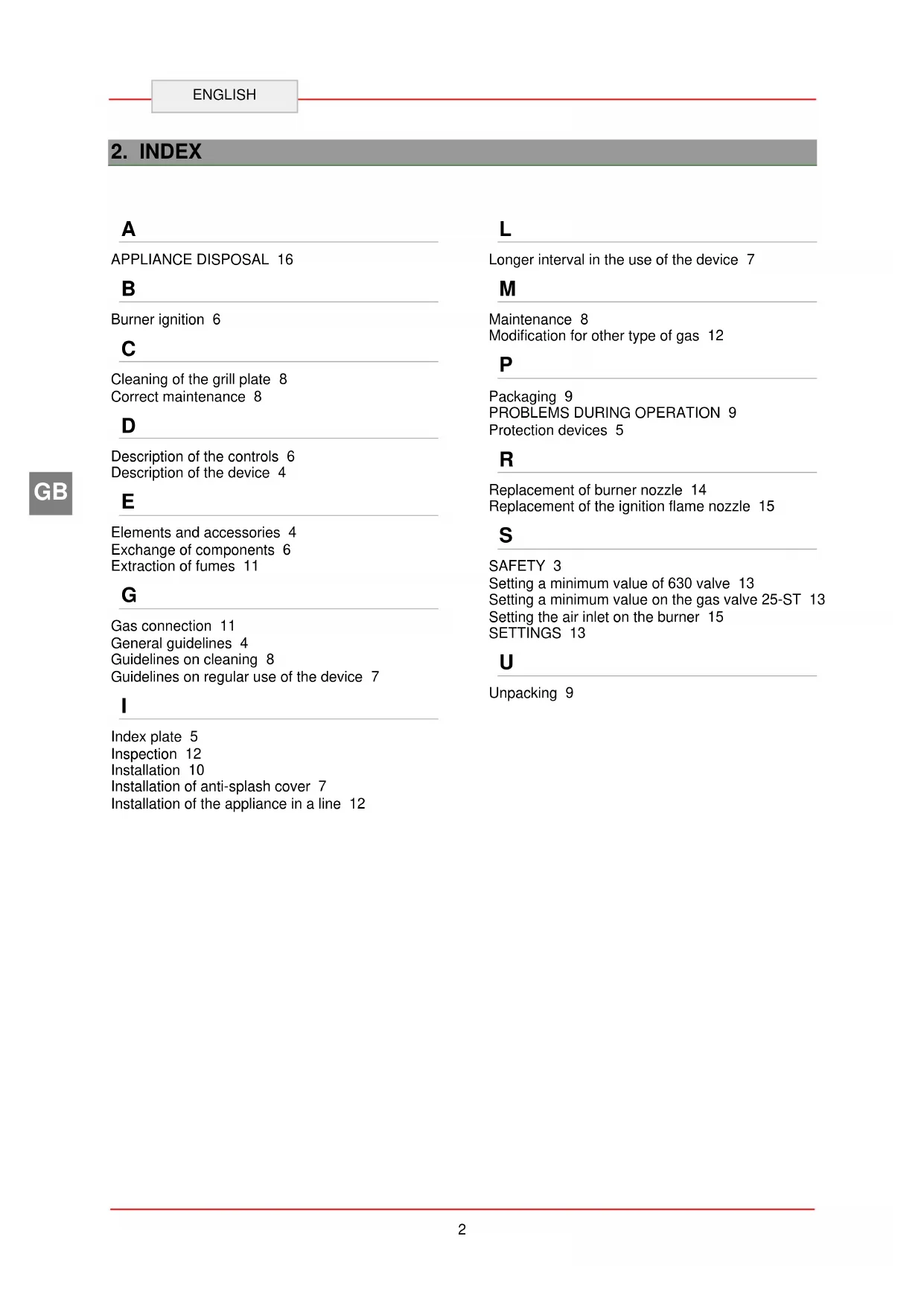

2. INDEX 2
3. SAFETY 3
4. GENERAL INFORMATION AND WARNINGS....4

4.1. General guidelines 4
4.2. Description of the device 4
4.3. Elements and accessories 4
4.4. Protection devices 5
4.5. Index plate 5
4.6. Exchange of components (service technician) 6

1. USE AND OPERATION 6

5.1. Description of the controls....6
5.2. Burner ignition 6
5.3. Installation of anti-splash cover 7
5.4. Guidelines on how to use the device 7

1. CLEANING AND MAINTENANCE 8

6.1. Guidelines on cleaning and maintenance 8
6.2. Correct maintenance 8
6.3. Cleaning of the grill plate 8

1. PROBLEMS DURING OPERATION 9

2. INSTALLATION 9

8.1. Packaging and unpacking 9
8.2. Installation (service technician) 10

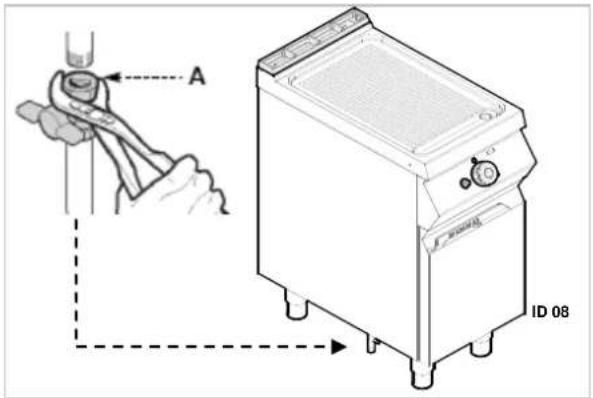

8.3. Gas connection (service technician) 11
8.4. Extraction of fumes....11

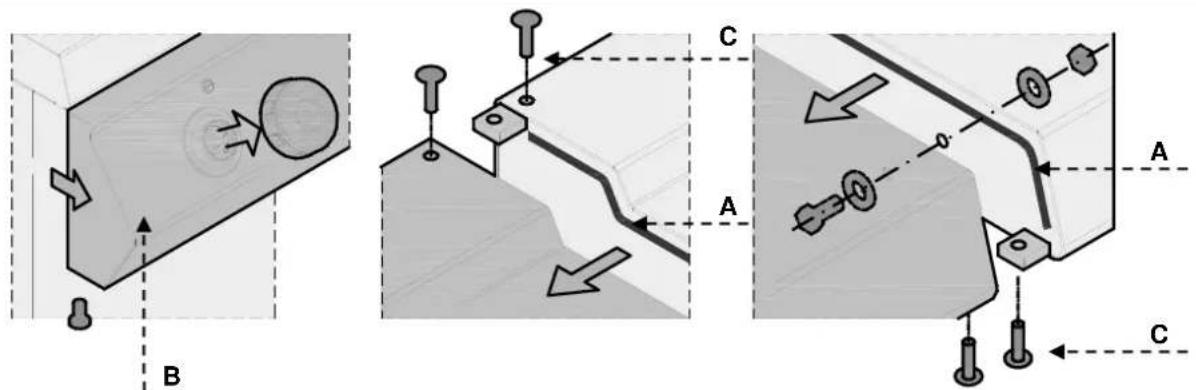

8.5. Installation of the appliance in a line 12

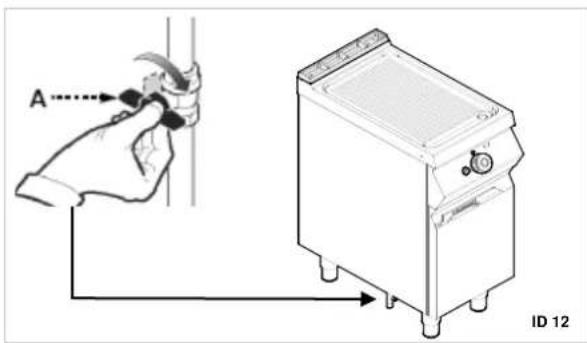

8.6. Modification for other type of gas (service technician) 12
8.7. Inspection (service technician).... 12

1. SETTINGS (service technician)....13

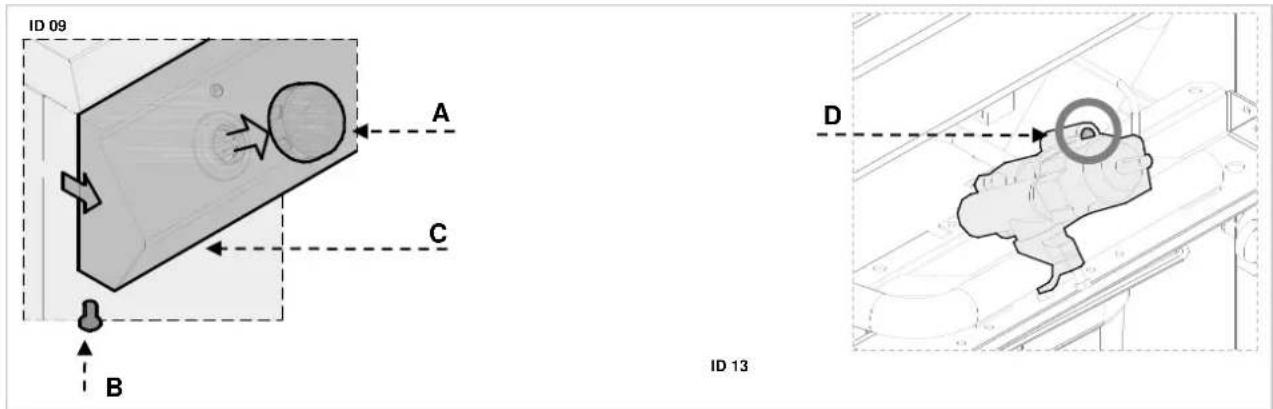

9.1. Setting a minimum value on the gas valve 25-ST....13

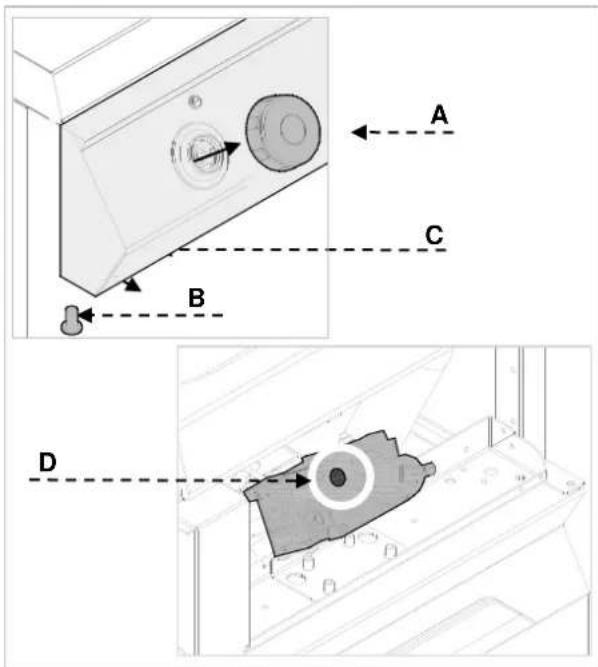

9.2. Setting a minimum value of 630 valve 13
9.3. Replacement of burner nozzles 14
9.4. Setting the air inlet on the burner 15

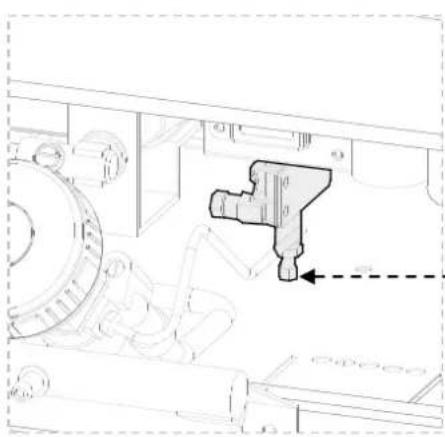

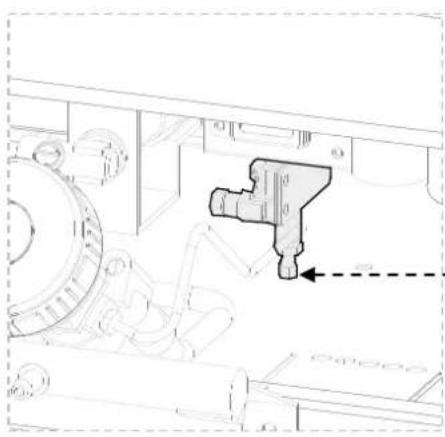

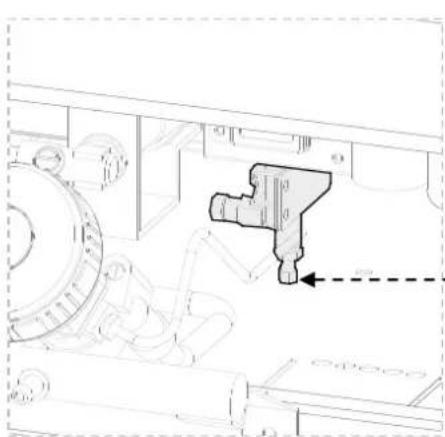

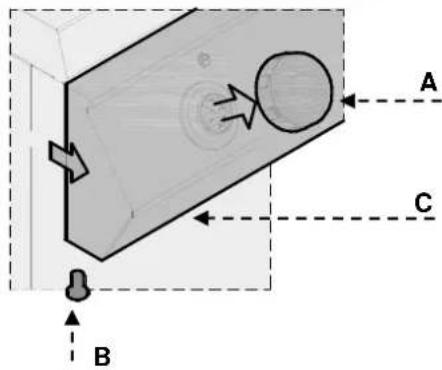

9.5. Replacement of the ignition flame nozzle 15

10.APPLIANCE DISPOSAL 16

ATTACHMENTS....I

Bartscher GmbH

APPLIANCE DISPOSAL 16

B

Burner ignition 6

C

Cleaning of the grill plate 8

Correct maintenance 8

D

Description of the controls 6

Description of the device 4

E

Elements and accessories 4

Exchange of components 6

Extraction of fumes 11

G

Gas connection 11

General guidelines 4

Guidelines on cleaning 8

Guidelines on regular use of the device 7

|

Index plate 5

Inspection 12

Installation 10

Installation of anti-splash cover 7

Installation of the appliance in a line 12

L

Longer interval in the use of the device 7

M

Maintenance 8

Modification for other type of gas 12

P

Packaging 9

PROBLEMS DURING OPERATION 9

Protection devices 5

R

Replacement of burner nozzle 14

Replacement of the ignition flame nozzle 15

S

SAFETY 3

Setting a minimum value of 630 valve 13

Setting a minimum value on the gas valve 25-ST 13

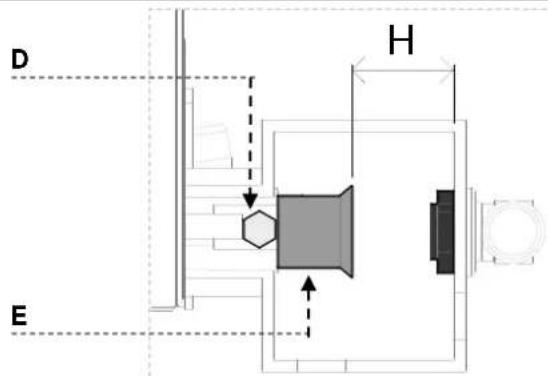

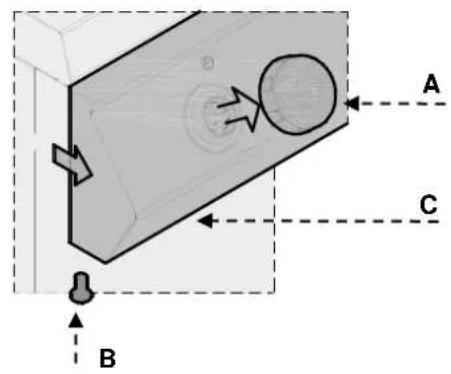

Setting the air inlet on the burner 15

SETTINGS 13

U

Unpacking 9

3. SAFETY

Read carefully the guidelines and

instructions in the instruction manual before you use the device.

The instruction manual contains general information on how to safely use and maintain the appliance.

Retain the manual for future reference.

The manufacturer took extra care when designing and manufacturing to prevent any safety or health hazard to the personnel operating the appliance.

Please read carefully the guidelines in the instruction manual and instructions placed directly onto the appliance. Above all, observe all the safety instructions.

Do not intervene in or remove the protective appliances installed in the appliance. Non-compliance may lead to severe safety and health hazard against people. We recommend to perform a few tests to know the layout and main functions of the control panel, particularly those to switch the appliance on and off.

The appliance is intended only for the use it has been designed for and any other use is considered as the use not in compliance with the intended use.

The manufacturer is not liable for material damage or damage to person caused by misapplication or incorrect application of the appliance.

Any maintenance work that requires special technical license or special skills may be performed by qualified personnel only.

To provide hygiene and protect foods from dirt, all the elements that have direct or indirect contact with the foods and all border areas must be thoroughly cleaned. Use only the cleaning agents intended for use in contact with food and avoid using flammable agents or harmful to health.

After every use of the device, sure that the burner is switched control elements are deactivated as supply line is disconnected.

During the installation, setting and connection of the device to the gas supply (Chapter 8 „INSTALLATION“) appropriate safety measures need to be taken.

In case of prolonged interval in using the device disconnect all power supply cables and thoroughly clean the inside and outside elements of the device (Chapter 6 „CLEANING AND MAINTENANCE”).

Never clean the device with jets of

water.

4. GENERAL INFORMATION AND WARNINGS

4.1. General guidelines

The manual has been edited by the manufacturer to provide the authorized personnel with the information necessary to work with the device.

We recommend the intended readers to read the manual carefully and comply with the information. By reading the information contained in the manual, hazards against people health and safety may be prevented.

Retain the manual in an easily available place throughout the time of use of the device to have access and refer to the required information at any time.

Special symbols, described below, have been used to stress important information or draw attention to essential data:

Warning

Indicate important safety

instructions. You should acquire the proper conduct to prevent hazard against people health and safety or not to cause any damage.

Caution

Indicate essentials technical data that

you cannot ignore.

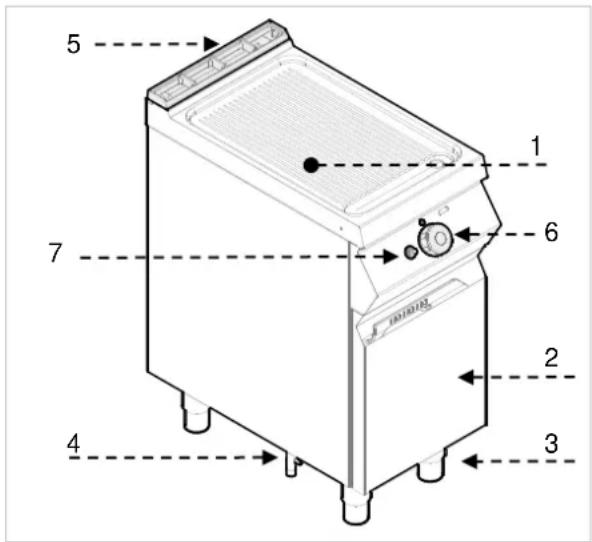

4.2. Description of the device

This device, which is called a GAS GRIDDLE PLATE has been designed and manufactured for professional gastronomy for direct preparation of dishes. Depending on the needs, two version are available – with one or two griddle plates.

1) Griddle plate
2) Lower part
3) Height-adjustable feet.
4) Gas connection
5) Extractor: Fume extraction.
6) Gas control knob: it adjusts the temperature of the griddle plate
7) Burner ignition: Piezo igniter

5 1 6 7 2 4 3

4.3. Elements and accessories

The device is delivered with the following elements:

A. Oil drip tray.

On order, we can provide the following accessories:

A. Splash guard

B. Sealing plug

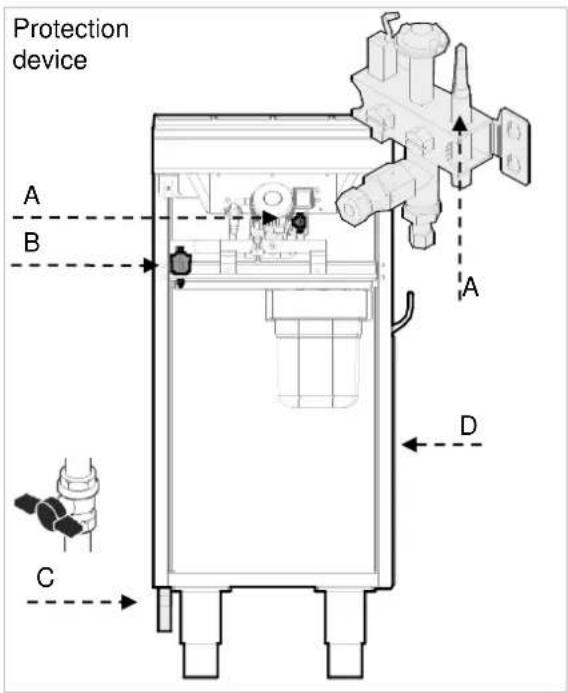

4.4. Protection devices

Protection device A B A D C

The device is equipped with the following protection systems:

A. Safety thermocouple: it blocks the gas supply if the flame goes out.

B. Safety thermostat: it blocks the gas supply in case of overheating (only for chromed versions).
C. Gas supply tap: to open and close the gas line.

Check daily that the protection es are mounted correctly and tional.

If the safety thermostat is released, the initial work settings of the device must be set again in the same position.

1. Leave the griddle plate to cool down.
2. Open the door (D).
3. Press the safety thermostat button (B), to activate the gas supply again.
4. Close the door (D).

When using the devices with two griddle plates, in order to detect the working thermostat, check which burner is not working and press the button of the appropriate thermostat.

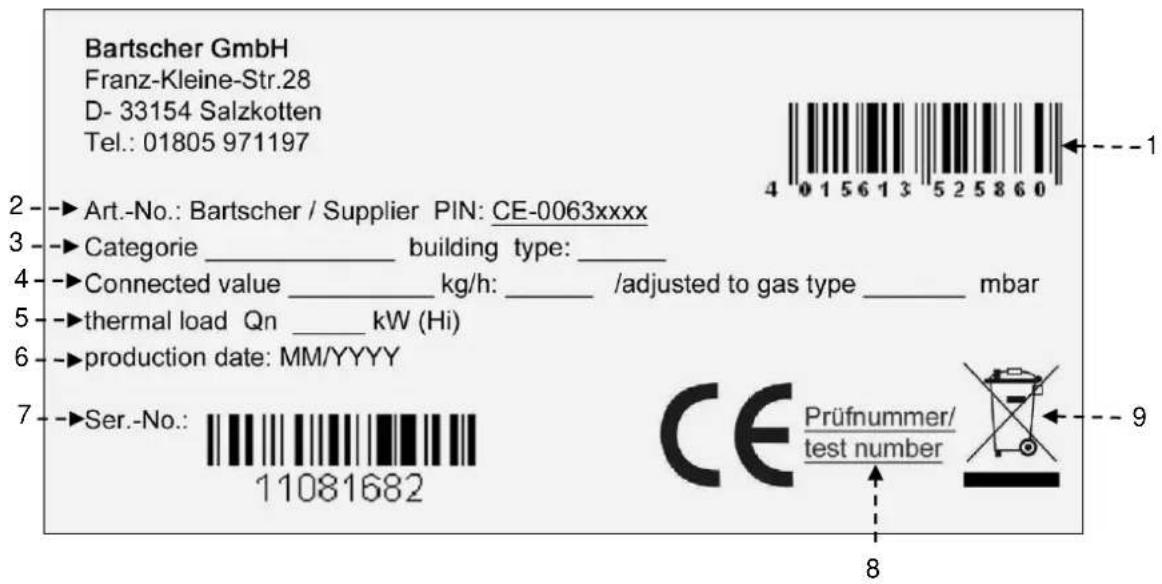

4.5. Index plate

The rating plate shown in the drawing is fixed directly on the device. It includes all guidelines and information required for safe use.

1) EAN number
2) Art. no./ model no. / CE certificate no.
3) Category of device / type of design

4) Power / gas consumption / Factory setting for specified gas type
5) Heat load
6) Production date
7) Series no.
8) CE Declaration of Conformity
9) WEEE symbol

Bartscher GmbH Franz-Kleine-Str.28 D- 33154 Salzkotten Tel.: [phone]►Art.-No.: Bartscher / Supplier PIN: CE-0063xxxx 3►Categorie _ building type: _ 4►Connected value _ kg/h: _ /adjusted to gas type _ mbar 5►thermal load Qn _ kW (Hi) 6►production date: MM/YYYY 7►Ser.-No.: 11081682 CE Prüfnummer/ test number 8 9

4.6. Exchange of components (service technician)

Before exchange of the

component switch on all the existing protection devices.

First of all, switch off the gas valve and prevent access to the appliance, which in the case of activation may lead to unexpected situations endangering the safety and health of people.

If necessary, exchange the used components to the original spare parts.

We are not liable for personal injury or damage to the components that arise due to application of other spare parts than original or intervention into the device without the manufacturer's consent that may have altered the safety requirements.

5. USE AND OPERATION

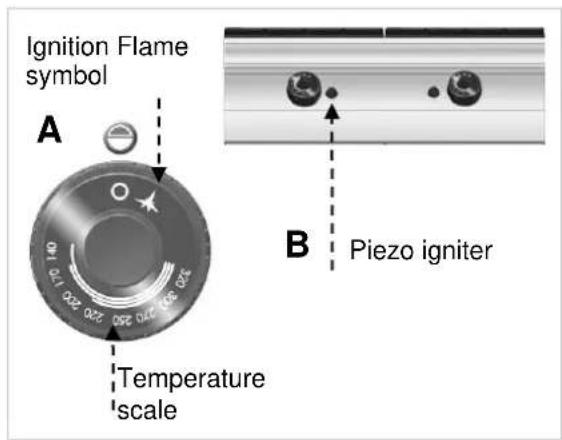

5.1. Description of the controls.

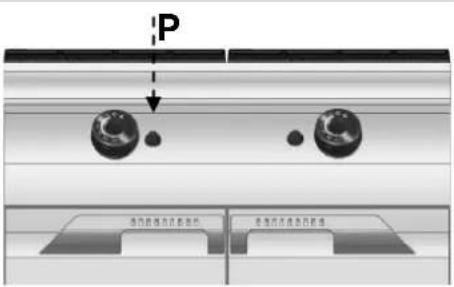

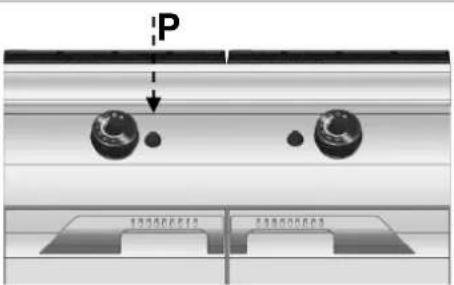

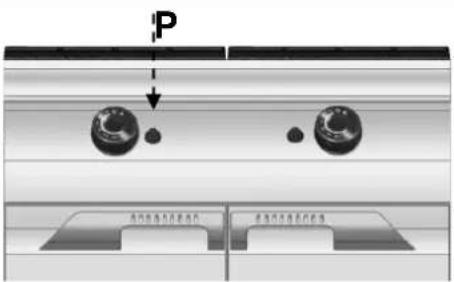

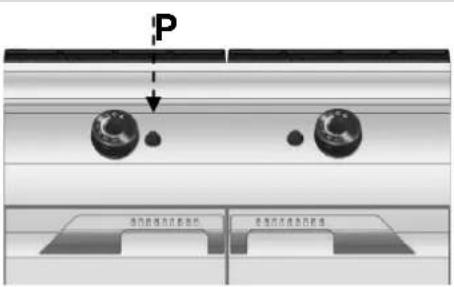

The elements controlling the essential functions are located on the control panel of the device.

A) Gas control knob: it regulates the gas supply and changes the temperature.
B) Piezo igniter: for igniting the ignition flame of the burner.

Ignition Flame symbol A Temperature scale B Piezo igniter

5.2. Burner ignition

ON

A) In order to ignite the ignition flame, press the knob of the selected gas burner and turn it left (position 1). Light the ignition flame using a match.
B) Hold the gas control knob for ca. 10 seconds in order to heat up the thermocouple, then release the knob.

C) To activate the gas burner, turn the gas control knob left (position 2).
D) Set the power of the gas burner (position 3).

Circular mechanical dial with numeric markings and a small knob (no readable text or symbols)

Pos 0

Circular industrial control knob with dial and star symbol (no readable text or numbers)

Pos 1

Circular mechanical dial with numeric markings (140–202) and a small knob above, no readable text or symbols beyond markings.

Pos 2

Close-up of a circular mechanical dial with numeric markings and a small triangular pointer (no readable text or symbols beyond measurement indicators)

Pos 3

A) Turn the gas control knob right to switch the gas burner off (position 1).

B) Turn the gas control knob right to extinguish the ignition flame (position 0).

CHROME PLATED GRIDDLE

The device with the chrome plated griddle should be heated up for ca. 30 minutes in the temperature of 200^ .

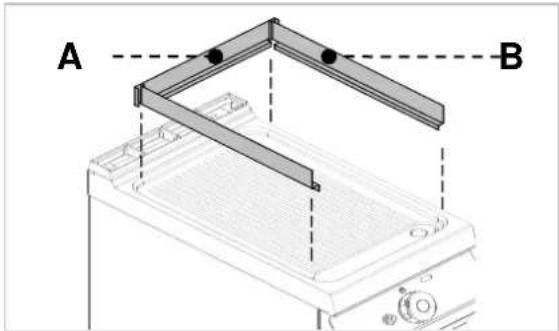

5.3. Installation of anti-splash cover

During the installation of anti-splash cover follow the instructions below:

1. Put the back part on the heating plate (A).
2. Catch on both side parts (B) and position them.

A B

5.4. Guidelines on how to use the device

Longer interval in the use of the device

If the device is not used for prolonged time, please follow these instructions:

1. Close the gas supply by closing the gas valve.
2. Thoroughly clean the appliance and adjacent surfaces.
3. Apply the vaseline oil on the stainless steel surfaces.
4. Perform all maintenance works.

Guidelines on regular use of the device

To guarantee the proper operation of the device, follow these instructions:

➢ Use only equipment recommended by the manufacturer;
➢ Verify whether the bottom of the oven was inserted properly.

Do not use the device for deep frying in oil or fat directly on the griddle plate.

Do not grill deep-frozen products on the plate: this may damage the plate.

Do not scrub the griddle plate in order to remove food residues, in particular special care should be taken when cleaning the chrome plated griddle.

Regularly instruct the specialist personnel to perform the following maintenance works:

➢ Installation pressure and tightness control;
➢ Thermocouples functionality control;
➢ Control of operation of the extractor and possible cleaning;
▶ Control of safety thermostats.

6. CLEANING AND MAINTENANCE

6.1. Guidelines on cleaning and maintenance

Before you start maintenance, turn on all the mounted active devices.

First of all, switch off the gas valve and prevent access to the appliance, which in the case of activation may lead to unexpected situations endangering the safety and health of people.

6.2. Correct maintenance

Proper maintenance includes daily cleaning of all components which have contact with food products, and regular maintenance of drain pipes.

Careful maintenance ensures the best performance, longer life of the device and proper operation of the protective devices.

Never direct the water stream or high pressure jet towards the device.

To clean the stainless steel, do not use iron wool or iron brush as they may leave iron particles on the surface that form rust in result of oxidation.

Use the wooden or plastic spatula, or soft cleaning sponge to remove the dried remains. If the appliance is not used for a prolonged time, apply the Vaseline oil on all stainless steel parts and air the room regularly.

Do not use any clearing agents contain substances hazardous or ful to health (solvents, petrol. etc.).

At the end of the working day clean:

▶ grill plate
▶ device.

6.3. Cleaning of the grill plate

Follow the instructions below.

1. Remove food residuals from the grill plate with use of spatula (particular caution is required in case of chrome-plated grill plate).
2. Apply the fat dissolving agent on the grill plate and leave for few minutes.
3. Close the drain hole with appropriate plug.
4. Pour hot water on the grill plate and leave for few minutes.
5. Remove the fat drip tray.

6. Put the receiving container under the outlet hole.

7. Remove the plug and wait for water to drain.

8. Thoroughly clean and dry the grill plate.

We recommend to wash the accessories in the dishwasher.

i Thoroughly and dry the grill plate to avoid rust and apply the protective layer of vaseline oil.

7. PROBLEMS DURING OPERATION

The information below is provided to recognize and repair any failures that may occur when operating the device.

Some of the failures can be repaired by the user, others require thorough specialist knowledge. Such problems may be solved exclusively by the qualified personnel.

Problem	Cause	Possible solution
Gas smell	The smell is sometimes released when extinguishing the flame	Close the gas valve and air the room.
Ignition flame does not start.	The igniter does not work.	Check the operation of the igniter. Ignite the flame manually.
	Air in the pipes in connection with the long downtime.
The flame still does not start.	The thermocouple is not hot enough	Extend the ignition process. Check whether the safety thermocouple is released.
The ignition flame burns, but the igniter does not ignite the burner.		Check the working thermostat.If the problem continues, contact the customer service.
Yellow flame.	Contaminated burner or blocked extractor.	Clean the burner and leave to dry off.If the problem continues, contact the customer service.

8. INSTALLATION

8.1. Packaging and unpacking

During unloading and when installing the device follow the information from the manufacturer placed directly on the packaging and in this manual.

To lift and transport the product plan to use a fork lift or stacker, and pay attention to even weight distribution to avoid a risk of tilting of the packaging (avoid excessive incline!).

While using the elevator pay

attention to the gas supply hoses and position of feet.

The packaging consists of the carton packaging and wooden pallet. There are symbols printed on the carton packaging that according to the international agreements inform about the regulations to follow when loading and unloading, transporting and storing the appliance.

THIS SIDE UP

CAUTION GLASS

KEEP DRY

When collecting the goods check if the packaging is complete and has not been damaged during transport.

Any damage should be immediately reported to the shipping company.

Unpack the device as soon as possible to check if the device is not damaged.

Do not use a sharp object to cut the carton box. It may damage the stainless steel inside the box.

Remove the carton packaging from bottom to top.

When unpacked check if the device is according to the order.

In case of any difference inform the sales agent immediately.

Do not store the packaging ials (nylon bags, polystyrene clips ...) in the reach of children!

Remove the protective PVC layer from the out and inner surfaces. If possible, do not use any metal tools.

8.2. Installation (service technician)

All the stages of the installation must be carefully planned.

The location should be equipped with all supply connections and production waste outlet. The location should also be properly lit and comply with all hygiene and sanitary requirements according to the binding regulations.

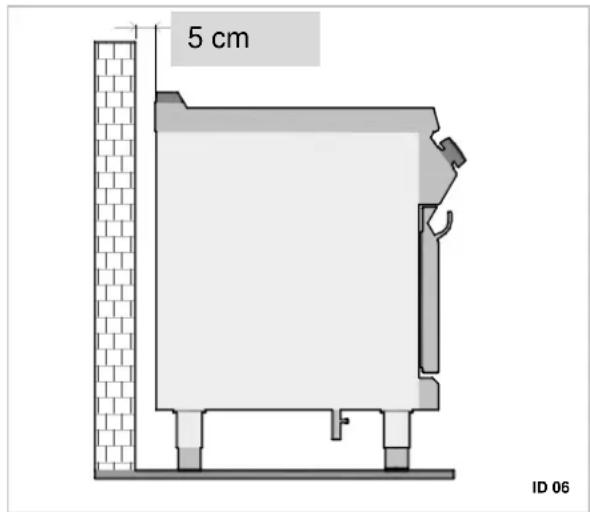

The appliance should be installed with the minimum 5 cm clearance from the wall, if the wall is not resistant to the minimum temperature of 150 °C.

Locate the device in the horizontal position by adjusting the individual feet.

When the device is to be led near the walls, partitions, en cabinets, decorative elements, they must be made from non- nable materials or covered with ple non-flammable materials.

To ensure the correct operation the device, the device must be led and operated in the roughly ventilated room only.

5 cm ID 06

Internal installation of the gas supply and the rooms in which the appliance is housed, must comply with the local regulations applicable in the country in which the appliance is used (Regulation of 12 June 96 and UNI-CIG 87/23).

In order to ensure the proper gas burning in the igniters, the required volume of air, that is ca. 2 cubic meters per hour for every kW of installed power, must be supplied.

8.3. Gas connection (service technician)

A gas connection must be performed in compliance with the applicable regulations.

Before connecting the appliance, check the technical data, type of gas, working pressure and flow rate which are provided on the rating plate.

The installation is performed by connecting the connection pipe of the appliance with a pipe of the gas distribution network. A shut-off valve must be installed on the connection to shut the gas supply off if necessary.

If there are significant pressure differences in the gas supply installation, it is recommended to install a pressure regulator.

After the installation, check the gas connection for tightness.

A ID 08

When looking for gas leaks do se the open flame!

GB

8.4. Extraction of fumes

Installation of the type "A" devices does not envisage connection to the fume exhaust system, but to the appropriate extraction hood which discharges the fumes to outside.

Installation under the extraction hood (A)

Place the device under the extraction hood (1) and attach a pipe to the device outlet of the size as shown on the figures.

The end of the fume extraction pipe should be located at least 1.8m above the floor.

Gas supply of the device should directly subjected to forced action system: blocking of the fan shut the gas supply off.

The fan must switch on automa- when the gas valve is open.

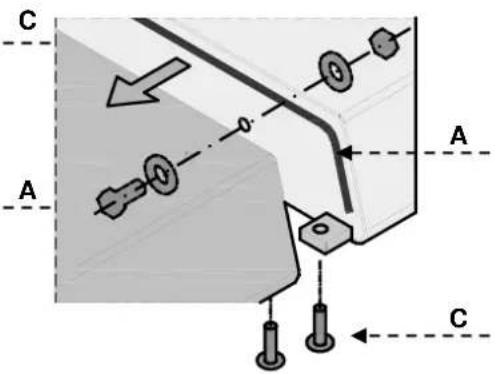

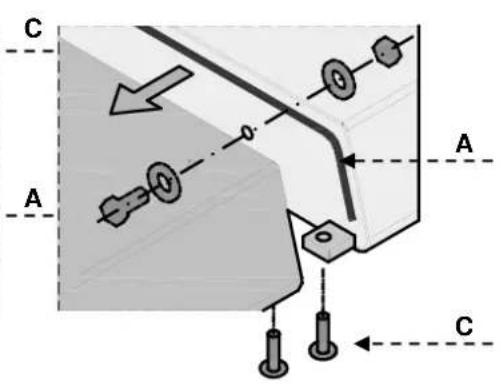

8.5. Installation of the appliance in a line

Technical diagram showing mechanical assembly with labeled components A, B, and C, including directional arrows and annotations.

To fix the appliance in a line (neighbouring) follow the steps:

Dismantle the control panel, and remove the cast iron frame from the chimney if necessary.

Apply the sealing tape (A) onto the joining sides.

Place the appliances next to each other and in a horizontal position (by adjusting the feet).

Connect the appliances with the joining elements.

8.6. Modification for other type of gas (service technician)

The device has been checked by the manufacturer for the type of gas shown on the rating plate. If a different type of gas is used, follow these instructions.

1. Close the gas valve (A).
2. Replace the burner nozzle (see chapter 9.3).
3. Replace the nozzle of the ignition flame (see chapter 9.5).
4. Set a minimum value on the burner gas control knob (see chapter 9.1).
5. Remove the sticker from the rating plate and apply a new sticker which includes the used gas type (item 4 of the rating plate).

A ID 12

8.7. Inspection (service technician)

Before starting the device, the installation check-up should be run to evaluate the working conditions of every single component and identify any errors.

It is recommended to run the following check-ups:

1. Open the gas valve and check the tightness of connections;

2. Check whether the igniter starts and burns properly.

3. Check and adjust, if necessary, the gas pressure and flow rate in Max and Min positions (see chapter 9.1)

4. Check whether the safety thermostat operates properly.
5. Check gas pipes for leakages.

9. SETTINGS (service technician)

Before setting the appliance, first of all switch on all the protection devices.

In particular deactivate the gas valve and prevent access to the appliance, which in the case of activation may lead to unexpected situations endangering the safety and health of people.

9.1. Setting a minimum value on the gas valve 25-ST

These settings are required only if the connected type of gas differs from the checked gas, after connecting to the gas supply.

Before performing this setting, check whether the gas pressure is compliant with the value of nominal pressure (see table).

Follow these instructions.

1. Close the gas valve.
2. Remove the gas control knob (A).
3. Loosen the screws (B) and remove the control panel (C).
4. Take out the injector D and replace it for a new one which is appropriate for the used type of gas (see attachment). After the setting seal the screw.
5. Finally, reattach the control panel (C) and the gas control knob (A).

9.2. Setting a minimum value of 630 valve

These settings are required only if the connected type of gas differs from the checked gas, after connecting to the gas supply.

Before performing this setting, check whether the gas pressure is compliant with the value of nominal pressure (see table attachments).

Follow these instructions.

1. Close the gas valve.
2. Remove the gas control knob (A).
3. Loosen the screws (B) and remove the control panel (C).
4. Take out the injector D and replace it for a new one which is appropriate for the used type of gas (see attachment). After the setting seal the screw.
5. Finally, reattach the control panel (C) and the gas control knob (A)..

After completing all calibration and adjustment work, check the gas installation for leakages and whether the device operates properly.

Make sure that the flame is stable at minimum and maximum output pressure.

i After adjustments, attach the prepared sealing marks and/or seal calibration screws.

A C B D

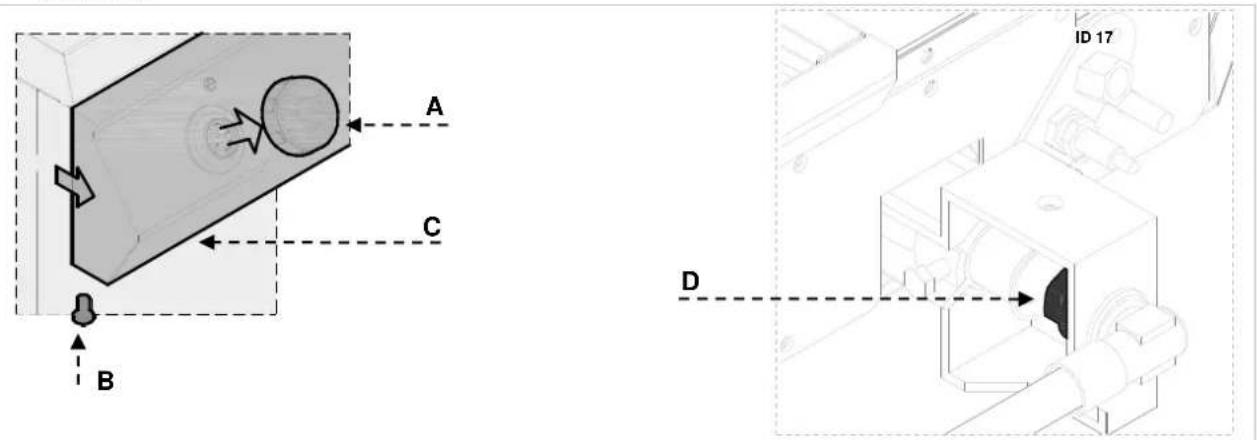

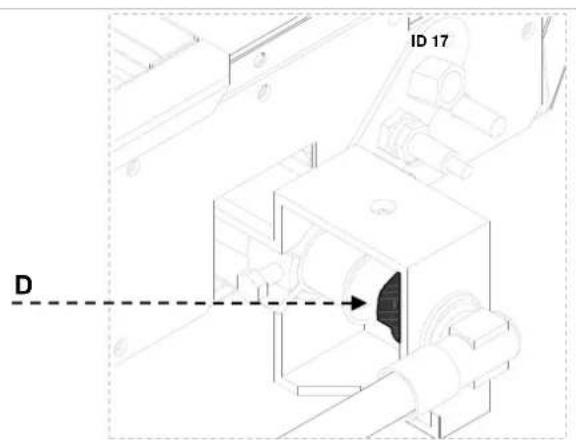

9.3. Replacement of burner nozzles

Follow these instructions.

1. Close the gas valve.
2. Remove the gas control knob (A).

3. Loosen the screws (B) and remove the control panel (C).

4. Remove the nozzle C and replace it with a nozzle intended for the used gas (see table).

5. Finally, set the device to the initial status

A C B D ID 17

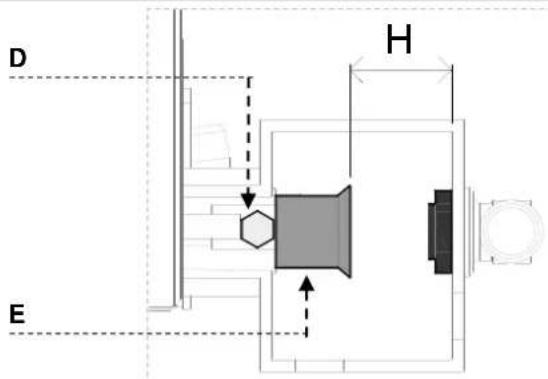

9.4. Setting the air inlet on the burner

Follow these instructions.

1. Close the gas valve.
2. Remove the gas control knob (A).
3. Loosen the screws (B) and remove the control panel (C).

Technical diagram showing a mechanical component with labeled parts A, B, and C, including directional arrows and circular features.

ID 16

1. Loosen the screw (D) and set the sleeve (E) depending on the type of used gas (see table in attachments).
2. Finally, set the device to the initial status.

D H E

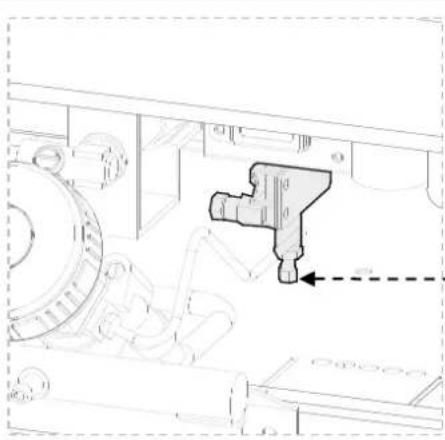

9.5. Replacement of the ignition flame nozzle

Follow these instructions.

1. Close the gas valve.
2. Remove the gas control knob (A).
3. Loosen the screws (B) and remove the control panel (C).

4. Ignition flame is located near the burner.

5. Loosen the nut (D).

6. Take out and replace the nozzle.
7. Retighten the nut and set the device to the initial status.
8. Adjust with a screw (E).

A C B

Technical line drawing of a mechanical assembly with no visible text or symbols

E D E

10. APPLIANCE DISPOSAL

The appliance is marked in conformity with the European Directive 2002/96/EG WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).

By disposing the appliance in dance with the regulations the contributes towards prevention of use effects on environment and

The symbol on the product or attached manual indicates that the product cannot be considered as ordinary household waste and should be transferred to a special collection point for electrical and electronic appliances for recycling.

Local waste management regulations should be observed.

Further information on procedure, reusing and recycling of the product is available in local offices, waste management unit or with the product sales agent.

Bartscher GmbH

1. DYSFONCTIONNEMENTS....9

2. INSTALLATION 9

Circular industrial control knob with numeric markings and a small dial indicator (no readable text or symbols beyond basic markings)

Pos 0

Circular mechanical dial with numeric markings and a small knob (no readable text or symbols beyond basic markings)

Pos 1

Close-up of a circular mechanical dial with numerical markings and a small knob (no readable text or symbols)

Pos 2

Close-up of a circular mechanical dial with numeric markings (120, 220, 260) and a small knob above it, no readable text or symbols beyond the markings.

Pos 3

Diagram of a mechanical component with directional arrows and a labeled point B (no text or symbols beyond labels)

Diagram showing a mechanical or structural component with forceps and directional arrows, no readable text or symbols present.

C A A C

Technical diagram showing a mechanical component with labeled parts A, B, and C, including directional arrows and circular features.

ID 17 D

Technical diagram showing mechanical assembly with labeled components A, B, C, D, E and directional arrows indicating flow or movement.

10. VALORISATION DE L'APPAREIL

Circular mechanical dial with numeric markings and a small knob above (no readable text or symbols)

Pos 0

Close-up of a circular mechanical dial with numeric markings (no readable text or symbols beyond markings)

Pos 1

Close-up of a circular metallic dial with numerical markings and a small knob at the top (no readable text or symbols)

Pos 2

Close-up of a circular mechanical dial with numeric markings and a small triangular pointer (no readable text or symbols beyond measurement indicators)

Pos 3

Technical diagram showing mechanical assembly with labeled components A, B, and C, including directional arrows and annotations.

Technical diagram showing mechanical assembly with labeled components A, B, C, D, E and directional arrows indicating flow or movement.

10. SMALTIMENTO DELL'APPARECCHIATURA

Circular mechanical dial with measurement markings (200, 90%, Q1, D9) and a small knob above it (no readable text or symbols beyond basic markings)

Pos 0

Circular dial with numeric markings and a small star symbol on top (no readable text or numbers)

Pos 1

Close-up of a circular metallic dial with measurement markings (no readable text or symbols)

Pos 2

Close-up of a circular mechanical dial with numeric markings and a small knob (no readable text or symbols beyond basic markings)

Pos 3

Diagram of a mechanical component with directional arrows and a labeled point B (no text or symbols beyond labels)

Diagram showing a structural connection with forceps and arrows indicating direction (no text or symbols)

C A A C

Technical diagram showing a mechanical component with labeled parts A, B, and C, including directional arrows and circular features.

Technical line drawing of a mechanical assembly with no visible text or symbols

E D E

Circular mechanical dial with numeric markings and a small knob above (no readable text or symbols)

Pos 0

Circular dial with numeric markings and a small star symbol on top (no readable text or numbers)

Pos 1

Close-up of a circular metallic dial with measurement markings (no readable text or symbols)

Pos 2

Close-up of a circular mechanical dial with numeric markings and a small knob (no readable text or symbols beyond basic markings)

Pos 3

P 进给前推力或加劲 进给后推力或加劲

DESLIGAMENTO

Diagram of a mechanical component with directional arrows and a labeled point B (no text or symbols beyond labels)

Diagram showing a mechanical or structural assembly with two pins and a stepped component, no text or symbols present.

C A A C

Technical diagram showing mechanical assembly with labeled components A, B, C, D, E and directional arrows indicating flow or movement.

10. DESCARTE DO APARELHO

Circular industrial control dial with rotary knob and star symbol (no text or labels)

Pos 1

Circular metallic dial with numeric markings and a small knob above it (no readable text or symbols)

Pos 2

Close-up of a circular mechanical dial with numeric markings and a small knob (no readable text or symbols beyond basic markings)

Pos 3

Diagram of a mechanical component with directional arrows and a labeled point B (no text or symbols beyond labels)

Diagram showing a mechanical or structural component with forceps and directional arrows, no readable text or symbols present.

C A A C

Technical diagram showing a mechanical component with labeled parts A, B, and C, including directional arrows and circular features.

ID 16

D H E

Technical diagram showing a mechanical component with labeled points A, B, and C and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical component with labeled parts E and D, showing internal structure and alignment indicators.

10. VERWIJDERING VAN HET APPARAAT

Circular industrial control knob with numeric dial and indicator lights (no readable text or symbols)

Pos 0

Circular mechanical dial with numeric markings and a small knob above (no readable text or symbols)

Pos 1

Close-up of a circular kitchen scale with measurement markings (no readable text or symbols)

Pos 2

260 MAX 120 170 120 170

Pos 3

P 室内防爆与防爆阀 室内防爆与防爆阀

WYŁĄCZANIE

CHRONIĆ PRZED WILGOCIA

Diagram of a mechanical component with directional arrows and a labeled point B (no text or symbols beyond labels)

Diagram showing a mechanical or structural assembly with two pins and a downward arrow, no text or symbols present.

C A A C

Technical diagram showing a mechanical component with labeled parts A, B, and C, including directional arrows and circular features.

ID 16

D H E

Technical diagram showing a 3D mechanical component with labeled points A, B, and C and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with no visible text or symbols

D E E

10. UTYLIZACJA URZĄDZENIA

IN COMPLIANCE WITH THE LAW IN FORCE, IT IS PROHIBITED TO REPRODUCE AND/OR DISTRIBUTE THIS MANUAL IN ANY WAY WITHOUT THE AUTHORISATION OF THE PROPRIETOR!

FR

AUX TERMES DE LA LOI, LA PROPRIETE DE CETTE NOTICE EST RESERVEE. IL EST DONC INTERDIT DE LA REPRODUIRE ET/OU DE LA DISTRIBUER SOUS QUELQUE FORME QUE CE SOIT SANS NOTRE AUTORISATION!

IT
