WARM8 - Heating H.KOENIG - Free user manual and instructions

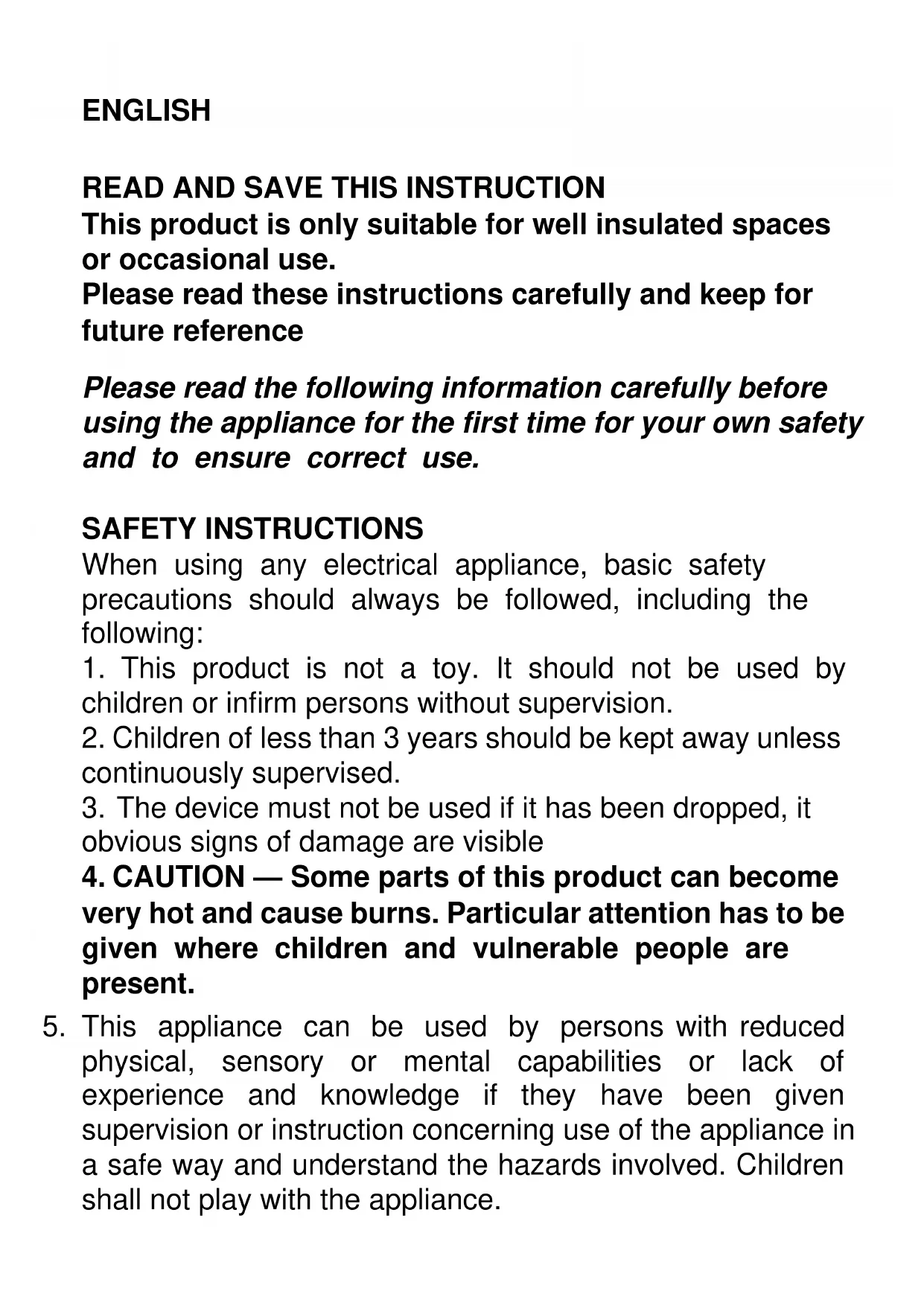

USER MANUAL WARM8 H.KOENIG

READ AND SAVE THIS INSTRUCTION

This product is only suitable for well insulated spaces or occasional use. Please read these instructions carefully and keep for future reference Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use. SAFETY INSTRUCTIONS When using any electrical appliance, basic safety precautions should always be followed, including the following:

This product is not a toy. It should not be used by children or infirm persons without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

The device must not be used if it has been dropped, it obvious signs of damage are visible

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.6. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

Disconnect from mains when not in use or cleaning.

Do not operate the appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

It is not recommended to use an extension cord.

The heater is hot when in use .To avoid burns, do not let bare skin touch hot surface.

Do not immerse cord, plug or any part of the appliance in water or any other liquid.

Do not use the heater in dusty environments or where flammable vapours are present (e.g. in a workshop or garage).

Do not place the heater on or near any other source of heat.

Warning: in order to avoid overheating, do not

A fire may occur if the heater is covered with or touches flammable material, including curtains, drapes, bedding etc. when in operation. KEEP THE HEATER FROM SUCH MATERIALS.

The heater must not be located immediately below a socket-outlet.17. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

Do not let the mains lead hang over the edge of the table or work surface or touch hot surfaces.

Do not use outdoors.

Do not use the appliance for other than its intended use. This appliance is intended for household use only.

Do not misuse the cord or pull the cable to disconnect it from the outlet. Instead, grasp the plug and pull it to disconnect.

Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.

Do not insert or allow foreign objects to enter the ventilation or exhaust openings as this may cause an electric shock , fire or damage to the appliance.

When the heater is turned on for the first time, it may release a slight, harmless odor. This odor is a normal occurrence caused by the initial heating of the internal heating elements and should not occur again.

Please do not put any unit on the product.

In order to avoid any accident, please turn off the unit when people leave.

Please do not use the product when there are no people to take care of children, animal or the disabled people.

If do not use the product for a long time, please disconnect the plug, put the product into the box and stock the product in a dry and ventilated place.

When using the product, please do not locate the air outlet and inlet next to the wall or curtain to avoid obstructing the air and influence the effect.

Please do not use the product under the direct sunshine.31. The inflammable or explosive article is not allowed to be put around the heater. The product is not allowed to be use in the environment filled with inflammable air or dust.

Please do not let the power cord touching the front net cover in order to avoid the high temperature damaging the power cord.

Do not hang the wet clothes above the heater.

The voltage and frequency of the power supply must comply with the technical specification of the heater.

Not allowed to impinge or shake the unit when it is in operation.

Please keep wind inlet & outlet unblocked, to avoid any malfunction appearance, such as distortion, changing color, etc.

Do not let the power cord at the wind outlet, it will damage the insulation layer of wires.

Ensure no water or rain drop into the unit, in order to avoid electric shock, short circuit or fire.

Clean the surface of the unit with damp cloth (or add some detergent). Do not use corrosive detergent or solvent to clean. Not allowed to wash directly with water.

Do not handle the power cord and plug by wet hands. 41.Do not insert the wood or metal stick or other slim objects into air inlet or outlet. 42.Do not put heavy objects onto the power cord. 43.Do not face the wind outlet to babies for a long time.

Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.46. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

Keep the appliance and its power cord out of reach of children under 8 years of age.

When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

Never leave the unit unattended while in operation.

Please keep this document at hand and give it to the future owner in case of transfer of your device LOCATION

1. The appliance should be placed with a minimum distance of 90 cm away from flammable

BEFORE USE1. Before use, remove all packaging and inspect the appliance for any damages. If there are appears to be any damages, please take back to place of purchase for a replacement.

2. Ensure that all the accessories are included as per diagram above before you can continue

with the installation.

3. Ensure that the location of the heater installed is not directly under a power socket and that a

power socket is available to power the appliances for use.

4. Refer to the installation guide for further instruction.

• ..... Fan only operation

HIGH heat setting (1500W) Set the thermostat to "max." and operate the appliance until the desired room temperature is reached. Turn the thermostat anticlockwise until the appliance switches off with an audible "click". This set temperature will be kept almost constant by the appliance switching on and off automatically. Please note that the appliance does not switch on unless the thermostat setting is higher than the room temperature.

Your heater is designed to automatically shut the heater off when tipped forward or backward. The unit will automatically turn on once it is returned to its normal upright position. Do not use on thick and long pile carpets, as the heater may not work, due the tip over switch not been activated.

Your appliance must be switch OFF via the main power supply and unplugged before proceeding with any cleaning work.

Clean the housing with a lightly damp cloth, a vacuum cleaner or a dusting brush.

Never use flammable or abrasive cleaning agents such as benzene or spirit to clean the appliance.

Never immerse the appliance in water!

Clean the air inlet and outlet regularly with a vacuum cleaner.

If the appliance is not used for an extended period it must be protected against excessive dust and dirt. Please dismount the heater and store in a dry place away from sunlight and dirt.

WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. MAINTENANCE SPECIFICATIONSThis warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/. ENVIRONMENT Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Adeva SAS / H.Koenig Europe - 8 RUE MARC SEGUIN F-77290 MITRY – MORY- France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]FRANCAIS

manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin

manual heat charge control with room and/or outdoor temperature feedback

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output elmin

single stage heat output and no room temperature control [no] In standby mode elsb

Two or more manual stages, no room temperature control [no]

with mechanic thermostat room temperature control [yes]

with electronic room temperature control [no]

electronic room temperature control plus day timer [no]

electronic room temperature control plus week timer [no]

Other control options (multiple selections possible)

room temperature control, with presence detection [no]

room temperature control, with open window detection [no]

with distance control option [no]

with adaptive start control [no]

with working time limitation [no]

with black bulb sensor [no] Contact details: ADEVA
