USER MANUAL HWS188GAE HAIER

WS105GA WS171GA HWS116GAE HWS188GAE WC188DE

Wine Cellar

User Guide

Weinkühler

Bedienungsanleitung

Cave à vin

Warning sign depicting a flame symbol in yellow and black on a white background

EN WARNING: Risk of fire/flammable material. The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

WS105GA WS171GA HWS116GAE HWS188GAE WC188DE

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Symbol of a trash bin crossed with no text or labels

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.

By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

EN

Content

1 - Safety information....4
2 - Safety tips....7
3- Maintenance ....11
4-Accessories....13
5- Product description ....14
6- Installation 15
7- Use....17
8- Energy saving tips....19
9 - Equipment 20
10- Care and cleaning....21
11- Troubleshooting 22
12- Technical data ....25
13- Customer service ....26

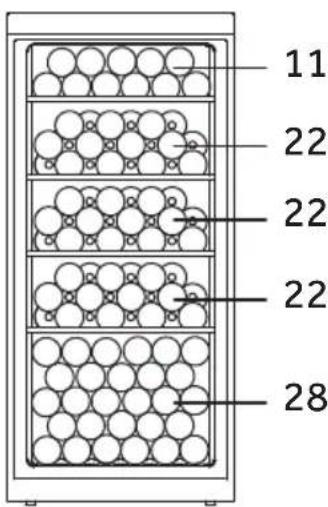

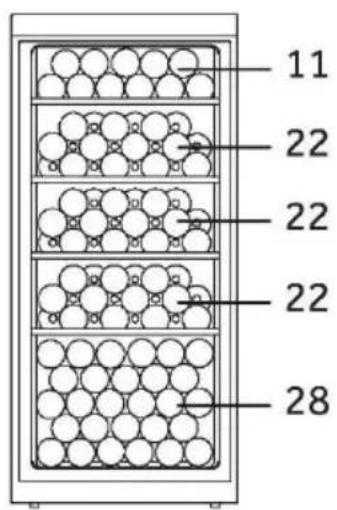

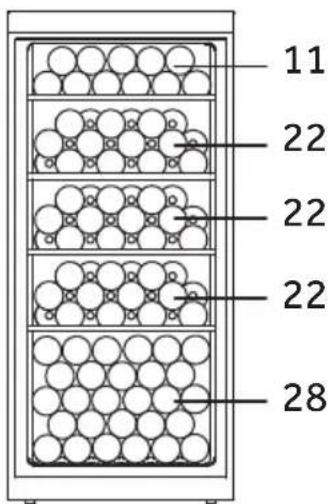

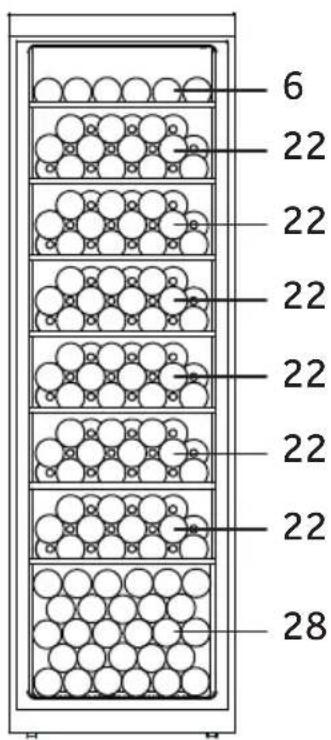

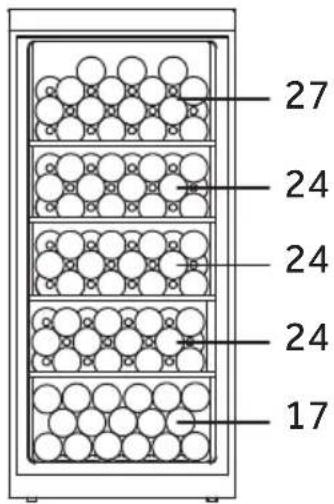

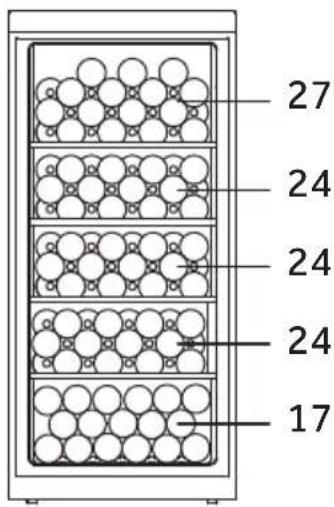

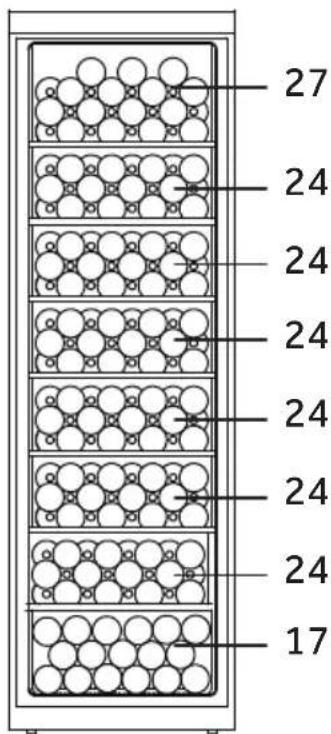

14- Wine bottle stacking....27

This appliance is intended to be used exclusively for the storage of wine. Before switching on the appliance for the first time read the following safety hints:

WARNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach and dispose them in an environmentally friendly manner.
▶Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶Do not install your wine cellar in any location not properly insulated or heated (e.g. garage etc). Your wine cellar was not designed to operate in ambient temperature below 10 °C.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.

WARNING!

▶ WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

▶Do not step on the power cable.

▶Use a separate earthed socket for the power supply w/ easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ WARNING: Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶Children shall not play with the appliance.

▶Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶ Cleaning and user maintenance shall not be made by children with out supervision.

The appliance must be positioned so that the plug is accessible.

If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance.

▶Wait at least 7 minutes to reconnect the power after the power has been disconnected.

▶Do not lift the appliance by its door handles.

The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.

WARNING!

▶Notice that the appliance is set for operation at the secific ambient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles(heavy objects, containers filled with water) on top of the appliance, to avoid personal caused by falling or electric shock caused by contact with water.
▶Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶Do not touch the inside surface of the appliance compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.

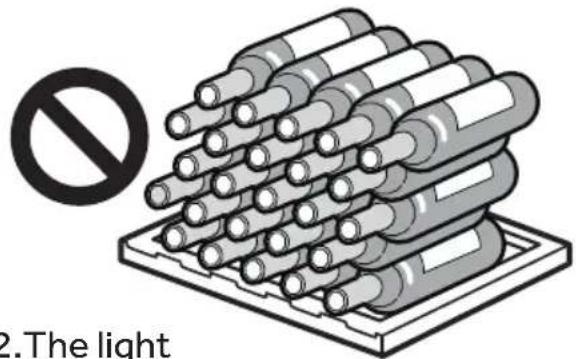

▶For proper wine cooling, do not overload the appliance.
▶Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ WARNING: Do not use electrical devices inside the appliance, unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service(see warranty card).
▶To prolong the service life of the appliance, avoid turning it off.
▶ Never place the appliance horizontally on the ground. After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.

WARNING!

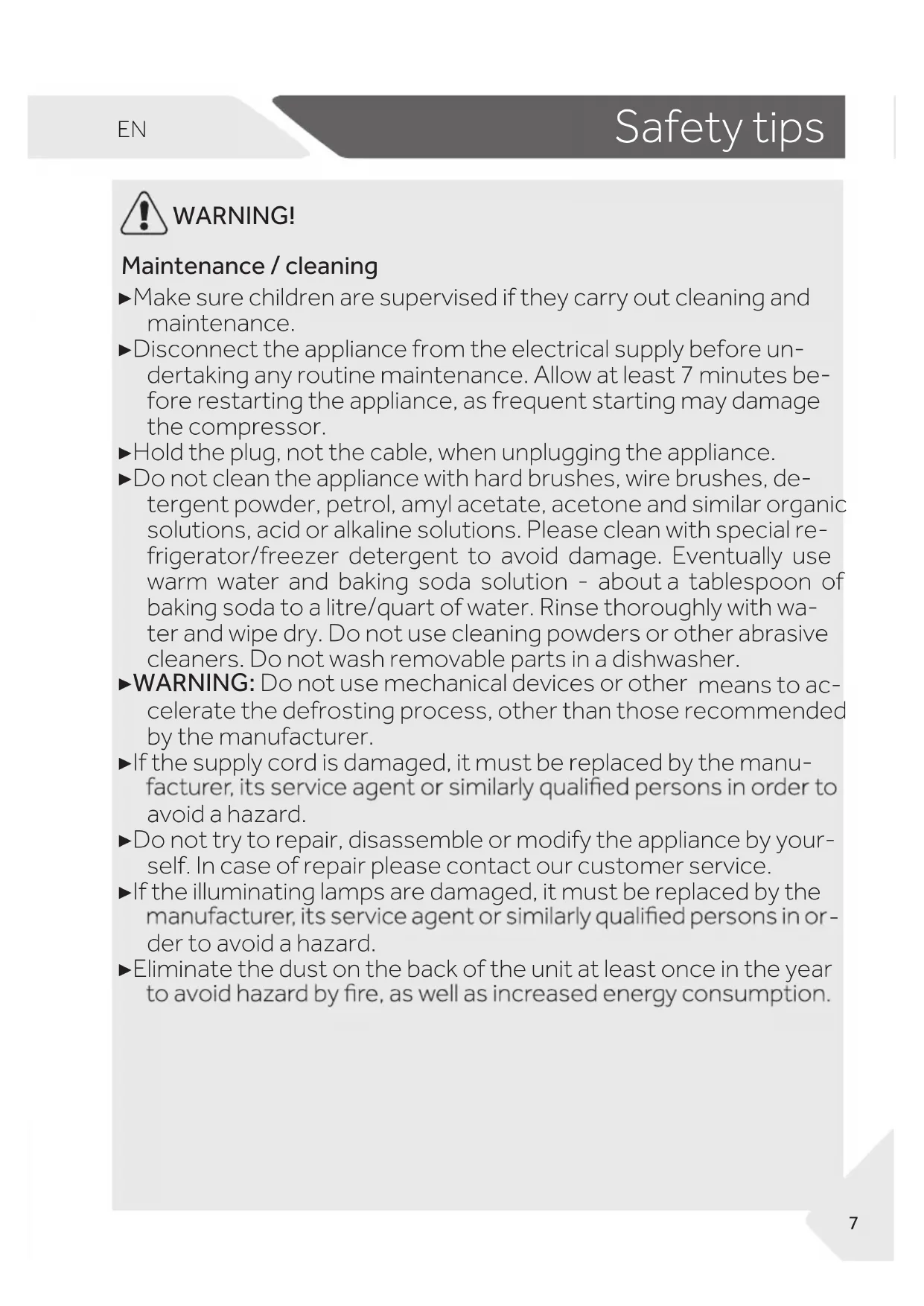

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and maintenance.
▶Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass door with hot water. Sudden temperature change may cause the glass to break.
If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gass information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

Intended use

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

▶To ensure the safe preservation of wine, please comply with this instruction for use.

The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.

▶ WARNING: Disconnect the appliance from the power supply before cleaning.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.

▶Allow at least 7 minutes before re-starting the appliance as frequent starting may damage the compressor.

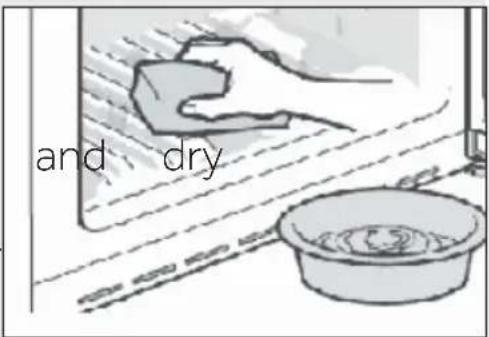

▶Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent
▶Rinse with clean warm water with soft cloth.
▶Do not clean any of the parts of the appliance in a dishwasher.

and dry

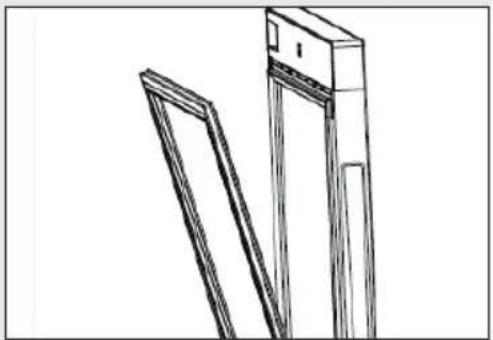

Clean the door gasket:

The door gaskets should be cleaned every 3 months to assure a proper seal. As below: Remove: Grasp the door gasket and pull

it out according to the direction of arrow to remove the whole door gasket in order.

Dip the brush with water or food grade alcohol, clean up the door gasket groove firstly by pulling back and forth the brush. Then wipe door gasket surface with a towel dipped with water or

food grade alcohol. Finally, wash the door gasket clean and wipe it dry with a clean towel.

Line drawing of two abstract geometric shapes resembling a stylized book or architectural element (no text or symbols)

Installation door gasket after cleaning:

Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove, and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove.

Cleaning the shelves:

▶All shelves can be taken out for cleaning.
▶Take out all bottles.
▶Lift each shelf a little and take it out.
▶Clean the shelf with a soft towel.
▶Wait until the shelves are dry before putting them back in.

Check the accessories and literature in accordance with this list: without isolation.

Quantity\Name	User Guide	Information Kit	Small Wooden Shelf	Wine shelves	Key
Product Model
WS105GA 1 1 1				3	2
WS171GA 1 1 1 6 2
HWS116GAE 1 1 0 4 2
HWS188GAE 1 1 0 7 2
WC188DE 1 1 0 7 2

tice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

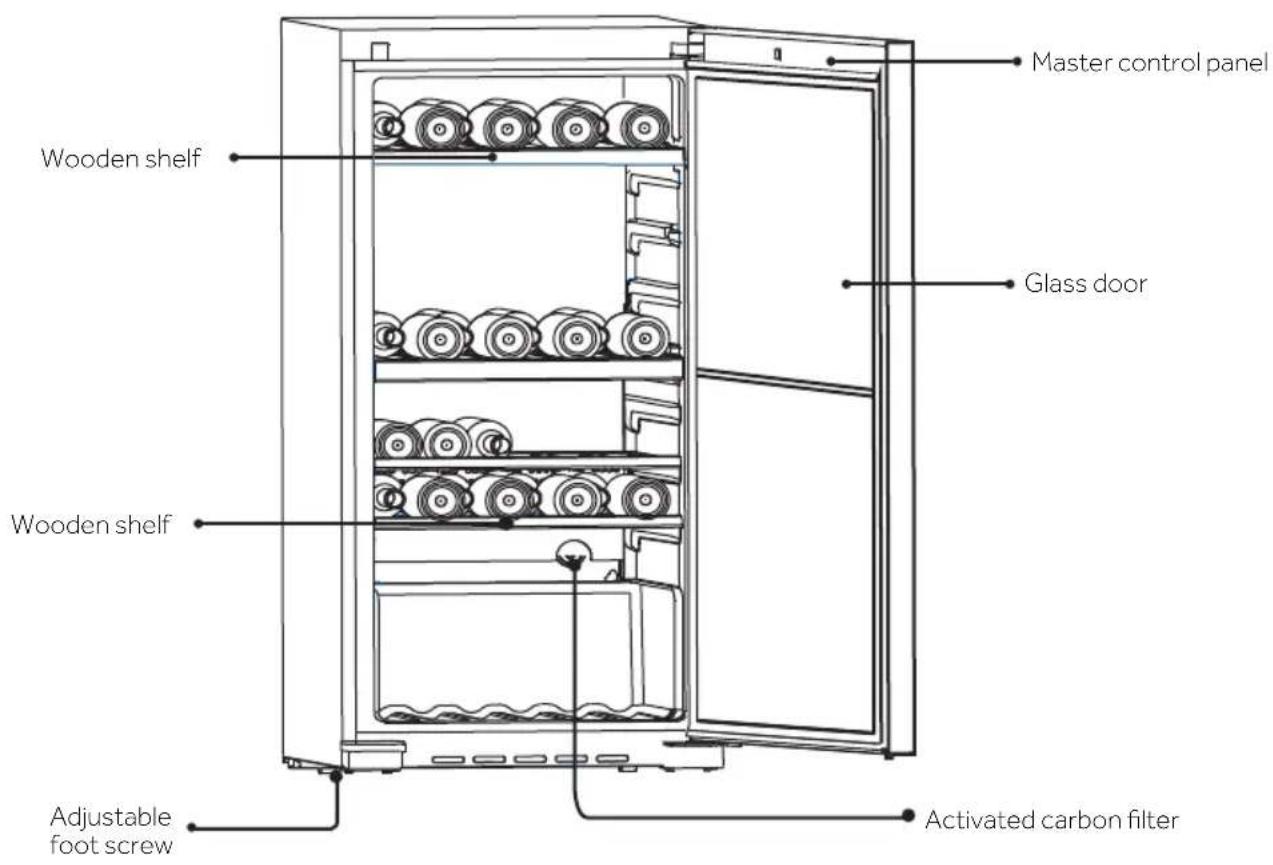

Picture of appliance

Master control panel Wooden shelf Glass door Wooden shelf Adjustable foot screw Activated carbon filter

This product contains a light source of energy efficiency class G.

1. Unpacking

▶ Take the appliance out of the packaging.
Remove all packaging materials including the foam base and all adhesive tape holding the accessories.

2. Environmental conditions

The room temperature should always be between 10°C and 38°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

3. Space requirements

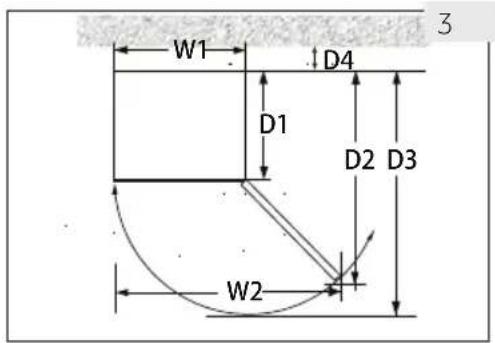

Required space to open the door (Fig. 3):

Width in mm	Depth in mm	Distance to wall in mm
W1 W2 D1 D2 D3 D4
595 806 577 1174 1202 100

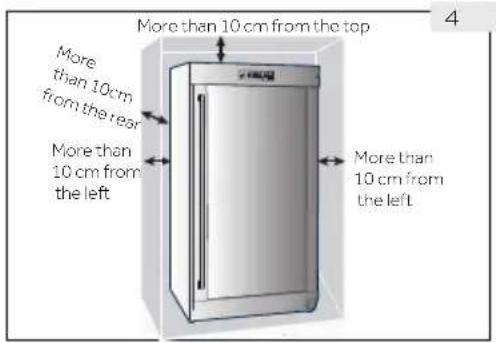

4. Ventilation space

For safety and energy reasons, the required ventilation distance of 10 cm in all directions must be observed (Fig. 4).

W1 D4 D1 D2 D3 W2 3

More than 10 cm from the top More than 10 cm from the rear More than 10 cm from the left More than 10 cm from the left

WARNING!

- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. This refrigerating appliance is not intended to be used as a built-in appliance

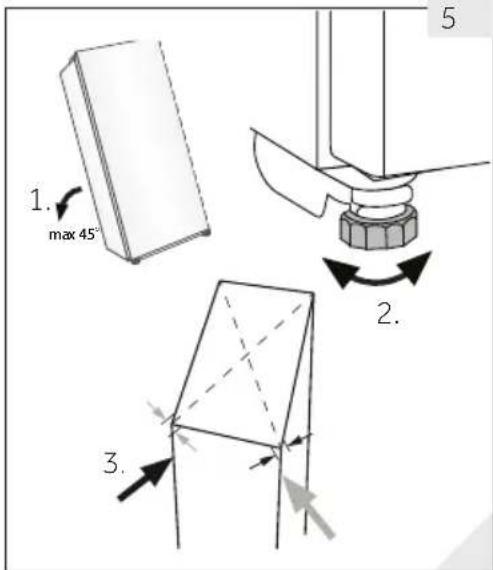

5. Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 5).
2. Set the adjustable front feet to the desired level by turning them.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

1. max 45° 2. 3. 5

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

6. Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:

Rotate the adjustable feet (Fig. 6) to turn them up or down:

▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lower the appliance.

24 h 7

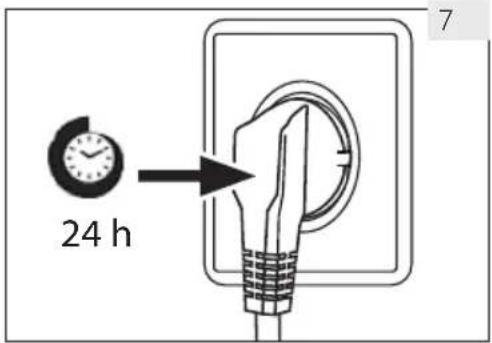

7. Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 24 hours (Fig. 7) so that the oil runs back into the capsule.

8. Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

▶the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are fit properly.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

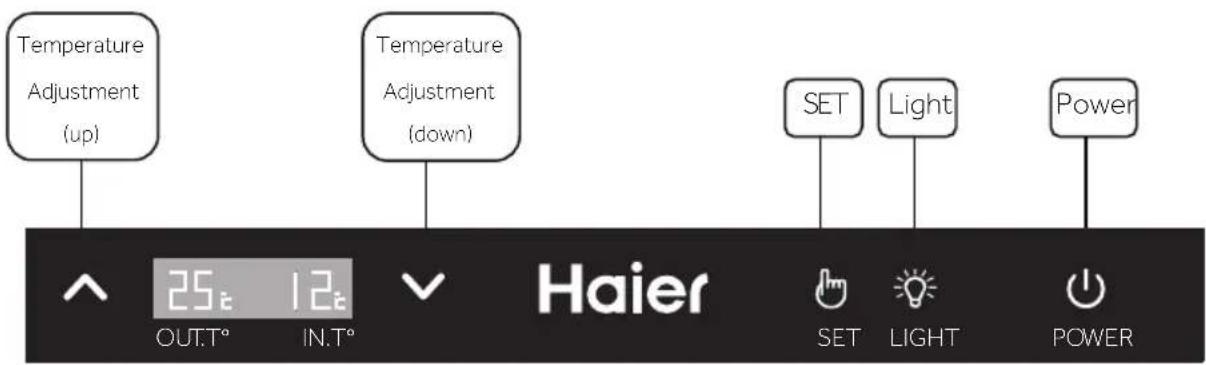

Control Panel

Temperature Adjustment (up) Temperature Adjustment (down) SET Light Power OUT.T° IN.T° Haier SET LIGHT POWER

The temperature range of display panel is 5 \~20°C (41\~68°F).

The default setting temperature is 12 °C (54°F).

You can set the temperature according to your wine storage requirements.

1. Temperature Adjustments

To set the temperature hold the 🏠 button for about 3 seconds. Then the temperature display of IN.T° flashes. Press the ∧ or ∨ button to increase or decrease the temperature setting. Once the desired temperature is attained, press the 🔊 button.

2. Interior Light

Compliment the look of your collection, a soft light has been built into the wine cellar.

Simply push the 🎯 button and the light comes on, push again for off.

When door is open the light will go on. Upon closing the door, light will go off.

3. “°F/°C” Conversion

Press and hold 3 seconds, the displayed temperature in Fahrenheit degree and °F character will convent to temperature in Celsius degree and "°C" character.

Press and hold 3 seconds again, the temperature in Celsius degree

and "°C" character will convert to temperature in Fahrenheit degree and "°F" character.

4. Door opening alarm

In case the door is kept open for over 1 min, buzzer will be beeping to give an alarm till the door is closed or any key on display panel can be operated and then the buzzer will stop beeping.

5. Temperature Power-Off Memory

In case of a power outage, the cellar will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power outage while other functions will return to the default status.

6. Power

Holding the ⏻ key for 3 seconds, the main power will turn off (power for all electrical devices inside will be cut off and the whole appliance will be in standby).

If the device is off, the power can be turned on by holding the ⏻ key for 3 seconds, and then all icons on the display screen will turn on.

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Open the appliance door as little and as briefly as possible.
▶Do not exceed the designed amount of bottles to avoid obstructing the air flow.
▶Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires shelves to be positioned in the appliance on factory-fresh condition, and wine to be placed without blocking the air outlet of the duct.

Equipment

EN

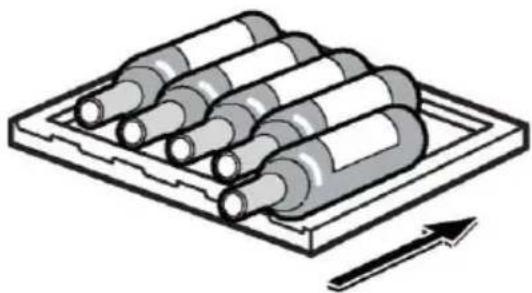

1. Shelf

1. The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.
2. Regualr bottles with diameter of 76mm can be stacked.
3. Magnum bottles can be stacked on the bottom.
4. The quantity can vary from the depicted number or bottles if they are stacked in a different way.

Precautions for Use of Wine Cellar

Do not place too much wine in the cellar so as not to exceed the bearing capacity of the wine shelves. Do not place more than three layers of wine on each shelf. The number of wine bottles should not exceed three layers on each shelf, or the bearing capacity of the wine shelves should not exceed 35kg.

Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable. In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

2. The light

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. The light

The LED interior light comes on when the door is opened. To turn on the light while the door is closed, touch the LIGHT button. To turn the lights off, touch button again. To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.

3. The lock

To lock the wine cellar, close the door and put the key in the lock:

▶Lock the door by turning the key counterclockwise;

▶Unlock the door by turning the key clockwise.

4. Automatic Defrosting

This appliance has an automatic defrosting function. During use, ensure that the drainage hole is unblocked so as to force defrosting water to flow smoothly through the drainage hole into the water receiver inside the cellar cabin.

Regularly clean water receivers at the bottom of the upper and lower compartments; use a dry cloth to absorb water inside the water receivers and wipe down them (clean them every three months as suggested).

1. Defrosting

The defrosting of the wine cellar is done automatically; no manual operation is needed.

2. Replacing the LED lamp

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

RNING!

Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.

Parameters of LED lamp:

Voltage12V; Max power:1.65W

3. Non-use for a longer period

Unplug the power cord.

Clean the appliance and door gaskets as described above.

Keep the door open to prevent the creation of bad odours inside.

4. Moving the appliance

1. Remove all bottles and unplug the appliance.
2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.
3. Do not tilt the wine cellar more than 45° to avoid damaging the refrigerating system.

5. Air exchange with activated carbon filter

The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon filter has been fitted in the lower area of the rear wall of the appliance to through put remains at an optimum quality.

tice

We recommend that you replace the filter once a year.Fiters can be obtained from your dealer.

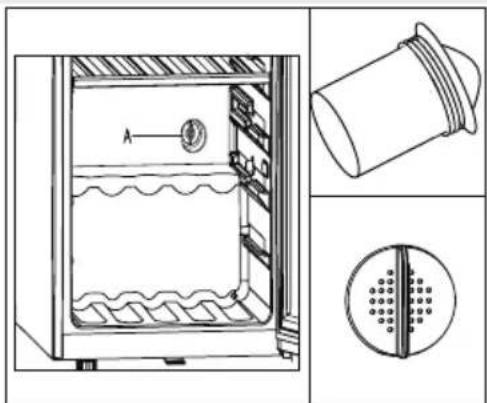

Changing the filter:

Take the fiter by the handle. Turn it to the left and remove.

Inserting the filter:

Insert with the handle in a vertical position. Turn it to the right and insert.

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular inset with dot pattern (no text or symbols)

Troubleshooting

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Error Code Cause Solution
H1	The appliance gives a high-temperature warning when the upper compartment's temperature has been higher than 25 °C for 3 hours.	Ambient temperature is too high. The appliance working temperature should be between 10°C and 38°C.
L1	The compressor stops working when the temperature is lower than 0 °C. The low temperature warning is given when the temperature has been lower than 0 °C for 2 hours.	Ambient temperature is too low. The appliance working temperature should be between 10°C and 38°C.

Problem Possible Cause Possible Solution

The compressor does not work.	·Mains plug is not connected in the mains socket.	·Connect the mains plug.
The appliance runs frequently or runs for a too long period of time.	·The outdoor temperature is too high. ·The appliance has been off power for a period of time. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·The door gaskets are dirty, worn, cracked or mismatched. ·The required air circulation is not guaranteed. ·The temperature is set too low.	·In this case, it is normal for the appliance to run longer. ·Normally, it takes a while for the appliance to cool down completely. ·Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door. ·Do not open the door too frequently. ·Clean the door gasket or replace them by the customer service. ·Ensure adequate ventilation. ·The problem will resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty and/or smells..	·The inside of the wine cellar needs cleaning.	·Clean the inside of the wine cellar.
It is not cold enough inside the appli-ance.	·The temperature is set too high. ·Bottles have been added recently. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·The door gaskets are dirty, worn, cracked or mismatched.	·Reset the temperature. ·Allow time for recently added bottles to reach desired temperature. ·Close the door. ·Do not open the door too frequently. ·Clean the doorgasket or replace them by the customer service..
It is too cold inside the appliance.	·The temperature is set too low.	·Reset the temperature.
Moisture formation on the inside of the refrigerator compartment.	·The climate is too warm and too-damp. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long..	·Increase the temperature. ·Close the door. ·Do not open the door/drawer too frequently.

Troubleshooting

EN

Problem Possible Cause Possible Solution
Moisture accumulates on the wine cellar;s outside surface.	The climate is too warm and too dampThe door is not closed tightly.The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that the door is shut tightly and that the gaskets seal properly.
The appliance makes abnormal sounds	The appliance is not located on level ground.The appliance touches some object around it.	Ajust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	This is normal-
The interior lighting or cooling system does not work.	Mains plug is not connected to the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to-the room.Call the local electricity company.Please call the service for changing
The sides of the cooler and door strip get warm	This is normal.	-
The door does not shut properly	The appliance is not level.The door is blocked.	Level the appliance with the leveling feet.Check for blockages like bottles or shelves.

To contact the technical assistance, visit our website:

https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Product fiche according to regulation EU No. 2019/2016

Brand		HaierHaier	Haier Haier	Haier
Model name / identifier	WS105GA	WS171GA	HWS116GAE	HWS188GAE	WC188DE
Category	Wine Cellar	Wine Cellar	Wine Cellar	Wine Cellar	Wine Cellar
Household refrigeration category	I	I	I	I	I
Energy efficiency class	G	G	G	G	G
Annual energy consumption (kWh/year) 1)	153 153	176 176	170
Storage volume (L)		385	220 385
Climate class:This appliance is intended to be used at an ambient temperature between 10 °C and 38 °C	SN-ST	SN-ST	SN-ST	SN-ST	SN-ST
Airborne acoustical noise emissions(db(A) re 1pW)	C(38)	D(42)	C(38)	C(38)	C(38)
Type of appliance	Freestanding
This appliance is intended to be used exclusively for the storage of wine.	Yes	Yes	Yes	Yes	Yes
Dimensions (D/W/H in mm)	639×595×1,265	639×595×1,850	639×595×1,265	639×595×1,850	639×59

Explanations:
1) based on standard test results for 24 hours. The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc.
2) The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light and the air cyclye
- extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C';
- temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
- subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
- tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

Customer Service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

▶ the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____ Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find our addresses in Europe below:

European Haier addresses

Country* Postal address Country Postal address
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY	France	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY
SpainPortugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
GermanyAustria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
UnitedKingdom	Haier Appliances UK Co. Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

AVAILABILITY OF SPARE PARTS: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for

Morocco, 6 months for Algeria, Tunisia no legal warranty required.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

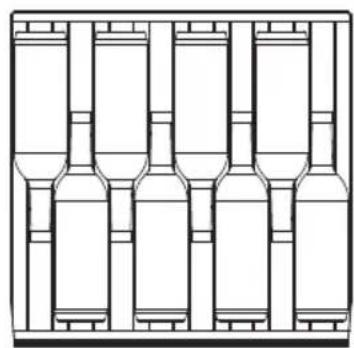

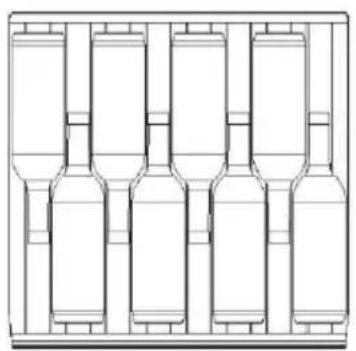

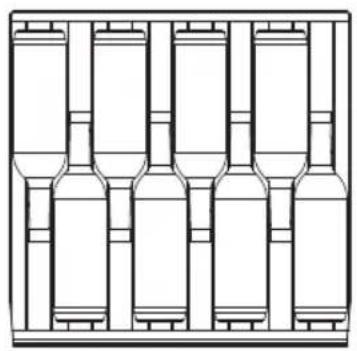

The bottle arrangement is based on a graphic representation of a standard Bordeaux bottle (0.75 l). Due to the different bottle specifications, the actual bottle loading quantity could be different.

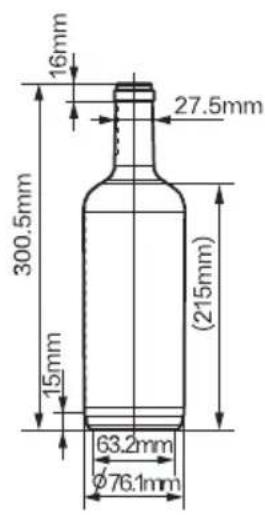

16mm 27.5mm 300.5mm (215mm) 15mm 63.2mm Ø76.1mm

Architectural line drawing of a symmetrical architectural facade with vertical columns and brickwork patterns (no text or symbols)

11 22 22 22 28

WS105GA HWS116GAE

27 24 24 24 17

(105 bottle capacity) (116 bottle capacity)

6 22 22 22 22 22 22 28

WS171GA

27 24 24 24 24 24 24 17

HWS188GAE
WC188DE
(166bottle capacity) (188bottle capacity)

WS105GA-WS171GA-HWS116GEA-HWS188GEA-WC188DE-EN

Haier

Bedienungsanleitung

Weinkühler

WS105GA

WS171GA

HWS116GAE

HWS188GAE

WC188DE

Warning symbol and icon set including warning triangle, information icon, and recycling bin with crossbones

Legende

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10 cm from the rear More than 10 cm from the left More than 10 cm from the left

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of stacked cylindrical objects with a prohibition symbol (no text or labels)

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. Die Beleuchtung

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular inset (no text or symbols)

Fehlerbehebung

DE

WS105GA WS171GA HWS116GAE HWS188GAE WC188DE

Pure electrical circuit lines without any symbols

Service Clients ......26

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10cm from the rear More than 10 cm from the left More than 10 cm from the left

AVERTISSEMENT!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. La Lumière

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular component detail (no text or symbols)

Haier

Manuale utente

Cantinetta per vini

WS105GA

WS171GA

HWS116GAE

HWS188GAE

WC188DE

Symbol of a trash bin crossed with diagonal lines, representing waste or discharge (no text or labels)

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

W1 D4 D1 D2 D3 W2 More than 10 cm from the top More than 10cm from the rear More than 10 cm from the left More than 10 cm from the top

ATTENZIONE!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. Illuminazione

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular inset detail (no text or symbols)

Haier

Manual del Usuario

Bodega de vinos

WS105GA

WS171GA

HWS116GAE

HWS188GAE

WC188DE

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10cm from the rear More than 10 cm from the left More than 10 cm from the left

¡ADVERTENCIA!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of cylindrical objects on a base with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2 La luz

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular component (no text or symbols)

Haier

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or restriction (no text present)

Legenda

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10 cm from the rear More than 10 cm from the left More than 10 cm from the left

OSTRZEŻENIE!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

6. Regulacja drzwi

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2.Oświetlenie

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular component (no text or symbols)

Haier

Návod k Použití

Chladnička na víno

WS105GA

WS171GA

HWS116GAE

HWS188GAE

WC188DE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Popis

Line drawing of a mechanical component with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10cm from the rear More than 10 cm from the left More than 10 cm from the left

VAROVÁNÍ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of cylindrical objects on a base with a prohibition symbol (no text or labels)

Illustration of a tray with multiple cylindrical objects, one moving upward (no text or symbols)

2. Světlo

Technical line drawing of a refrigerator interior with labeled components and a close-up inset showing internal structure (no text or symbols)

Haier

WS105GA WS171GA HWS116GAE HWS188GAE WC188DE

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or restriction (no text present)

Legende

g pons in

Reinig de deurpakking.

Line drawing of a mechanical component or bracket with two angled surfaces (no text or symbols)

More than 10 cm from the top More than 10cm from the rear More than 10 cm from the left More than 10 cm from the left

RSCHUWING!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. Het licht

Technical line drawing of a refrigerator interior with side and top views, showing internal components and a circular inset with dot patterns (no text or symbols)

16mm 27.5mm 300.5mm (215mm) 15mm 63.2mm Ø76.1mm

Architectural line drawing of a multi-level building facade with symmetrical windows and structural elements (no text or symbols)

11 22 22 22 28

27 24 24 24 17

Haier

Manual do utilizador

Garrafeira

WS105GA WS171GA HWS116GAE HWS188GAE WC188DE

Symbol of a trash bin crossed with no text or labels

Eliminação

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no text or symbols

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Illustration of cylindrical pipes mounted on a base with a prohibition symbol (no text or labels)

Illustration of a tray with five cylindrical objects, one highlighted and an arrow indicating direction (no text or symbols)

2. Aluz

Technical line drawing of a refrigerator interior with side and top views (no text or symbols)

16mm 27.5mm 300.5mm (215mm) 15mm 63.2mm Ø76.1mm

Pure architectural line drawing of a multi-story building facade with no text, numbers, or symbols

11 22 22 22 28

WS105GA-WS171GA-HWS116GEA-HWS188GEA-WC188DE-PT

Haier

Εγχειρίδιο χρήσης

Συντηρητής κρασιών

WS105GA

WS171GA

HWS116GAE

HWS188GAE

WC188DE

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling stylized buildings or panels (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of stacked cylindrical objects with a prohibition symbol (no text or labels)

Illustration of five cylindrical objects arranged in a tray with an arrow indicating direction (no text or symbols)

2. Ο φωτισμός

Technical line drawing of a refrigerator interior with side and top views (no text or symbols)

WS105GA-WS171GA-HWS116GEA-HWS188GEA-WC188DE-EL

Haier
