USER MANUAL Elite Silver MOTOROLA

• You can close the case lid when charging. Charge Headset Charge Case Charge (Micro USB) Case Charge Status Light Green fully charged (2 full headset charges). Yellow 70% charged (1 full headset charge). Red less than 50% charged (less than 1 headset charge).4 Charge it Note: When in the case, the headset charges first

Note: The batteries in your headset and charge case are designed to last the life of your product. They should only be removed by a recycling facility. Any attempt to remove or replace a battery will damage your device.Connect & go 5 Connect & go let’s get you connected Easypair method Turn Bluetooth on.

Put headset on (turn on) Voice prompt: “Welcome to Motorola Elite Sliver” “ready to pair” Follow the voice prompts. Complete.

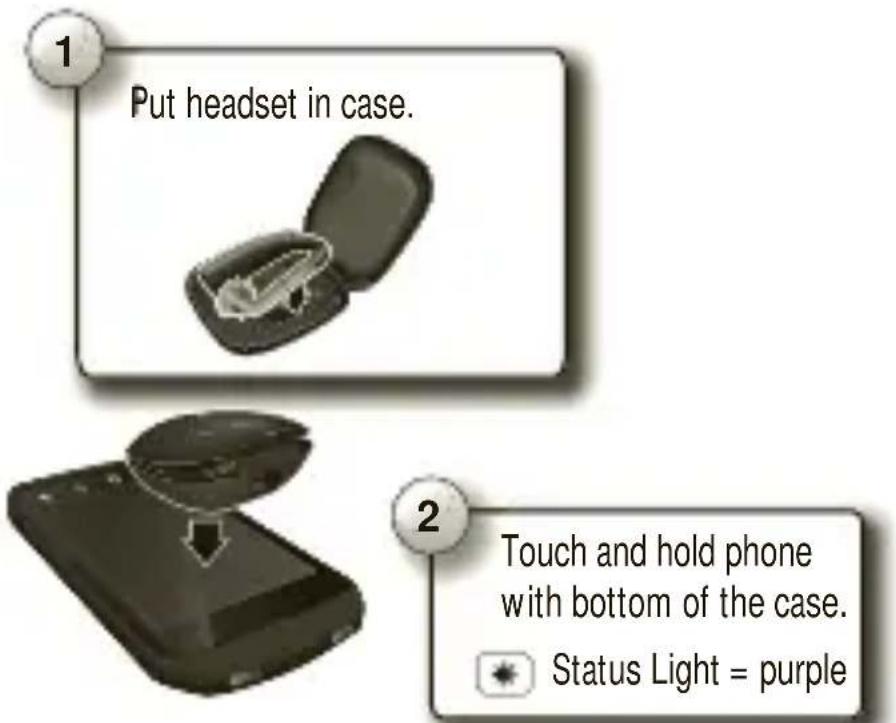

Enter “0000” if prompted Enter passcode.6 Connect & go NFC method With NFC (Near Field Communication), pairing is as simple as bringing the headset and phone close to each other. Note: If your phone does not support NFC, use the

Easypair method ” on page 5. Put headset in case.

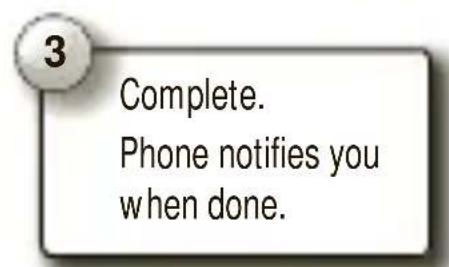

Touch and hold phone with bottom of the case. Status Light = purple Phone notifies you when done.

2Connect & go 7 Note: NFC tag location varies from phone to phone. See your phone’s user guide for more information. Note: NFC may vary slightly among phones. The phone’s display screen must be on when pairing.8 Basics Basics standard features, advanced quality Calls To … make a voice dial call Press the Call button and you hear a tone. redial last call Press and hold the Call button until you hear a tone. mute or unmute a call Press and hold the Smart button until you hear “mute on” or “mute off”. end a call Press the Call button. change call volume Press the Smart button while in a call. answer second incoming call Press the Call button.Basics 9 Note: Some features and phone/network dependent. Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely. music Note: This feature is phone dependent. Bluetooth® music can be streamed from your phone. Start and control music playback from your phone. While a call is active, music pauses. When the call ends, music resumes playing. reject second call Use phone keypad to reject a second incoming call. To …10 Basics Clean & dry Get the most from your headset, keep it clean and dry.

• High humidity or perspiration can make the ear fitting feel slippery. Wipe the ear fitting with a soft cloth to remove dirt and moisture. Note: Be very careful when wiping near the sensor.

• Check for and remove any debris that may be blocking the small speaker port on the earpiece.Advanced 11 Advanced more clever stuff second device Using two phones? Or maybe a tablet and a phone? Pair with two devices.

• Before pairing the second device, turn off the Bluetooth feature of the previously paired device. Now pair your second device as normal, see “Connect & go” on page 5.

• Once paired, to connect to both devices simply turn them on. You’ll hear “<phone x> connected” as each device connects with your headset.

• To use headset features, such as voice dial and redial, with the desired device, just use the feature as normal and follow the voice prompts.

• To use the NFC method to pair, see “NFC method” on page 6.12 Advanced Cool features Note: These features don’t work for second incoming calls. CALLER ID If your phone knows your caller’s number, then you hear “call from <number>” on an incoming call. Note: Some features are phone/network dependent. Call time You hear a voice prompt telling you how much talk time you have left when turning on your headset. To save battery power, turn off the headset when you don't use it for an extended time.Advanced 13 Status light if light shows… your headset is… three blue flashes powering on/off quick red flash low battery steady purple NFC pairing mode14 Advanced Settings Press and hold the Call button while turning on the headset to turn these features on/off, then follow the voice prompts to change them:

• Reset to factory default Caution: This action erases all pairing information stored in your headset.

• Multipoint (two phone) connections

• WBA (Wide-band Audio) on/offWant more? 15 Want more? we’ve here to help Troubleshooting A few frequently asked questions—with answers, of course. Find more at www.motorola.com/support

My headset will not enter pairing mode. Make sure that any devices previously paired with the headset are turned off. If the indicator light is flashing in blue, first turn off the other device, then turn the headset off and on. You hear “ready to pair”. My phone doesn't find my headset when searching. Press and hold the Call button and turn your headset off then on (close and reopen earpiece). Follow voice prompts to reset headset. You hear16 Want more? “Welcome to the Motorola Elite Sliver. Ready to pair.” My headset will not pair with my phone. Press and hold the Call button and turn your headset off then on (close and reopen earpiece). Follow voice prompts to reset headset. You hear “Welcome to the Motorola Elite Sliver. Ready to pair. ” My headset connected before, but now it's not working. Make sure your phone is on and the Bluetooth® feature is turned on in your phone. If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature and pair your phone and headset again. See “second device” on page 11.Want more? 17 Connect with Motorola Get what you need:

• Answers: User guides, online help and more at www.motorola.com/support

• Bluetooth: If you have questions or need assistance, contact us at 1-877-MOTOBLU, or visit www.motorola.com/bluetoothsupport or www.motorola com/bluetoothconnect

• Accessories: Find more accessories at www.motorola.com/products

• Don’t let the product come in contact with liquids.* Liquids can get into the product’s circuits, leading to corrosion.

• Don’t place your product near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction.

• Don’t dry a wet or damp product with an appliance or heat source

such as a hair dryer or microwave oven. DOs

• Do avoid leaving your product in your car in high temperatures.*

• Do avoid dropping the product.* Dropping your product, especially on a hard surface, can potentially cause damage.*

• Do contact your retailer or Motorola if your product has been damaged by dropping, liquids or high temperatures.

Never dispose of battery powered products in a fire because they may explode. Battery Charging Battery Charging Notes for charging your product’s battery:

During charging, keep your battery and charger near room temperature for efficient battery charging.

New batteries are not fully charged.19

New batteries or batteries stored for a long time may take more time to charge.

Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging. Third Party Accessories Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your product’s performance. In some circumstances, third party accessories can be dangerous and may void your product warranty. For a list of Motorola accessories, visit www.motorola.com/products Driving Precautions Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile device or accessory may be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products. While driving, NEVER:

Enter or review written data.

Perform any other functions that divert your attention from driving. While driving, ALWAYS:

Keep your eyes on the road.

Use a handsfree device if available or required by law in your area.20

Enter destination information into a navigation device before driving.

Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.

Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.

End your call or other task if you cannot concentrate on driving. Responsible driving practices can be found at www.motorola.com/callsmart (in English only). Caution About High Volume Usage

Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

Limit the amount of time you use headsets or headphones at high volume.

Avoid turning up the volume to block out noisy surroundings.

Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked. For more information about hearing, see our website at direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English only).21 Children Keep your product and its accessories away from small children. These products are not toys and may be hazardous to small children. For example:

A choking hazard may exist for small, detachable parts.

Improper use could result in loud sounds, possibly causing hearing injury.

Improperly handled batteries could overheat and cause a burn. Symbol Key Your battery, charger, or accessory product may contain symbols, defined as follows: Symbol Definition Important safety information follows. Do not dispose of your product or battery in a fire. Your product or battery may require recycling in accordance with local laws. Contact your local regulatory authorities for more information. 032374o 032376o 032375o22 Do not dispose of your product or battery with your household waste. See “Recycling” for more information. Do not use tools. For indoor use only. Near Field Communication mark. Listening at full volume to music or voice through a headset may damage your hearing. Symbol Definition23 European Union Directives Conformance Statement EU Conformance The following CE compliance information is applicable to Motorola products that carry one of the following CE marks: Hereby, Motorola declares that this product is in compliance with:

The essential requirements and other relevant provisions of Directive 1999/5/EC

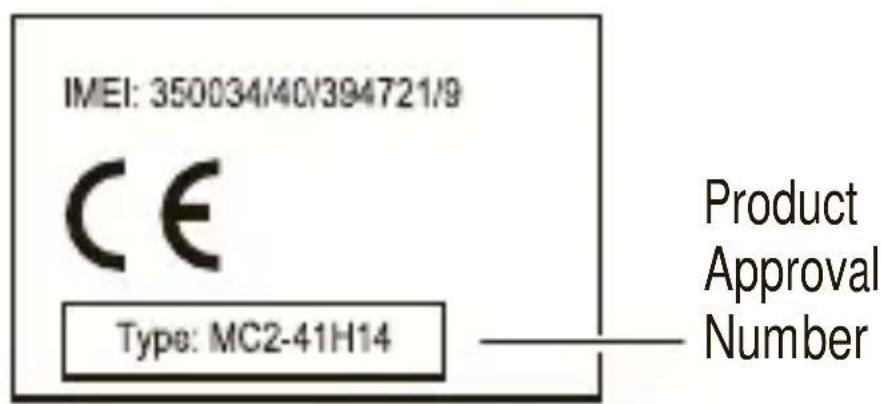

All other relevant EU Directives The above gives an example of a typical Product Approval Number. You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte . To find your DoC, enter the Product Approval Number from your product’s label in the “Search” bar on the website. Product Approval Number24 FCC Notice to Users FCC Notice The following statement applies to all products that bear the FCC logo on the product label. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3). Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.25 For products that support W-Fi 802.11a (as defined in the product specifications available at www.motorola.com ), the following information applies. This equipment has the capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure (U-NII) band. Because this band is shared with MSS (Mobile Satellite Service), the FCC has restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wireless hot spots operating in this band have the same restriction, outdoor services are not offered. Nevertheless, please do not operate this device in Wi-Fi mode when outdoors. Industry Canada Notice to Users Industry Canada Notice Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN

7.1.5. This Class B digital apparatus complies with Canadian ICES-003.

Use & Care Use & Care To care for your Motorola product, please keep it away from: liquids of any kind Don’t expose your product to water, rain, extreme humidity, sweat, or other moisture. If it does get wet, don’t try to accelerate drying with the use of an oven or dryer, as this may damage the product.26 extreme heat or cold Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For battery powered accessories, do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C (113°F). microwaves Don’t try to dry your product in a microwave oven. dust and dirt Don’t expose your product to dust, dirt, sand, food, or other inappropriate materials. cleaning solutions To clean your product, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. shock and vibration Don’t drop your product.27 Recycling Recycling Products & Accessories Please do not dispose of products or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted products and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling Packaging & Product Guides Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details. Software Copyright Notice Software Copyright Notice Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be28 deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Export Law Assurances Export Law This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade. Product Registration Registration Online Product Registration: www.motorola.com/us/productregistration Product registration is an important step toward enjoying your new Motorola product. Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions. Registration is not required for warranty coverage. Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing a Motorola product.29 Motorola Limited Warranty for the United States and Canada Warranty What Does this Warranty Cover? Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its mobile telephones (“Products”), Motorola-branded or certified accessories sold for use with these Products (“Accessories”), and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories, and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty: Products and Accessories Products Covered Length of Coverage Products and Accessories

• defined above, unless otherwise provided for below. One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.30 Exclusions (Products and Accessories) Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage. Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty. Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap™ covers and cases. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. Products and Accessories that are Repaired or Replaced. The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer. Products Covered Length of Coverage31 scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage. Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage. Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.32 Software Exclusions (Software) Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the Internet), is provided “as is” and without warranty. Who is Covered? This warranty extends only to the first consumer purchaser, and is not transferable. What Will Motorola Do? Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No Products Covered Length of Coverage Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk). Ninety (90) days from the date of purchase.33 data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software, and applications, please create a back up prior to requesting service. How to Obtain Warranty Service or Other Information You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number. What Other Limitations are There? ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE USA 1-800-331-6456 Canada 1-800-461-4575 TTY 1-888-390-645634 CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW. Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.35 Copyright & Trademarks Motorola Mobility, Inc. Consumer Advocacy Office 600 N US Hwy 45 Libertyville, IL 60048 www.motorola.com Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at: Motorola Mobility Argentina S.A. Suipacha 1111 - Piso 18 C1008AAW Buenos Aires ARGENTINA Motorola Industrial Ltda. Rodovia SP-340 - Km 128,7 - Bairro Tanquinho CEP 13820-000 - Jaguariúna - SP Central de atendimento Motorola para capitais e regiões metropolitanas ligue 4002-1244. demais localidades ligue 0800 773 1244. 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details.36 All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Note: The images in this guide are examples only. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. The “N-Mark” logo is a trademark or registered trademark of NFC Forum, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobility, Inc. All rights reserved. Caution: Motorola does not take responsibility for changes/modification to the transceiver. Product ID: MOTOROLA ELITE SLIVER (HZ750) Manual Number: 68016693001-AELITE SLIVER DE MOTOROLA ESPruébelo 1 Pruébelo esto es lo que debe hacer Obtenga llamadas y sonido nítido con MOTOROLA ELITE SLIVER el audífono Bluetooth® es tan pequeño que resulta casi imperceptible. Pero tiene muchas funciones imposibles de ignorar, como audio de banda ancha y cancelación de ruido. Tome la iniciativa y pruébelo: Dé un vistazo p. 2
• Cárguelo p. 3
• Conexión e inicio p. 5
• Conceptos básicos p. 8
• Conceptos avanzados p. 12
• ¿Desea más? p. 16

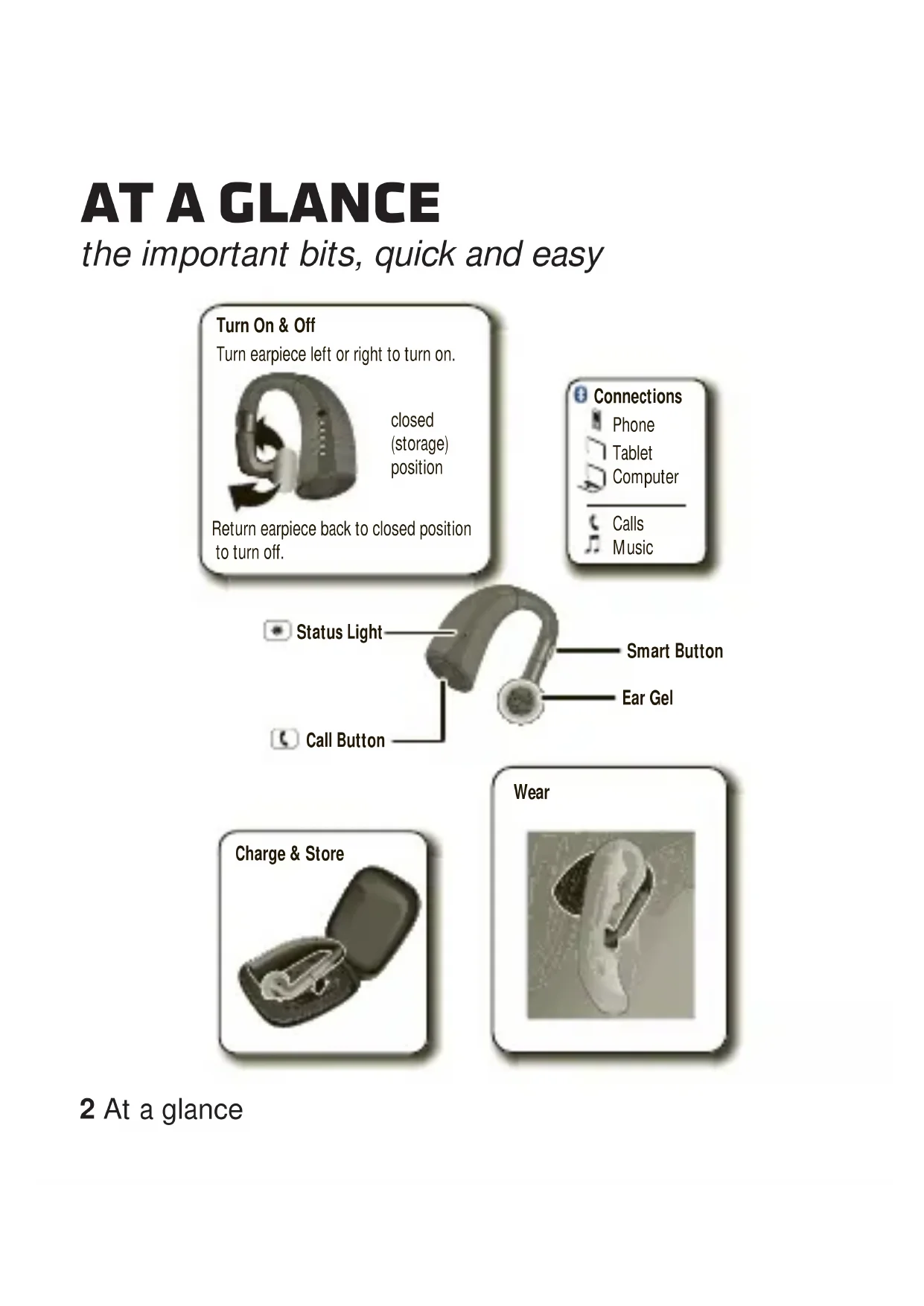

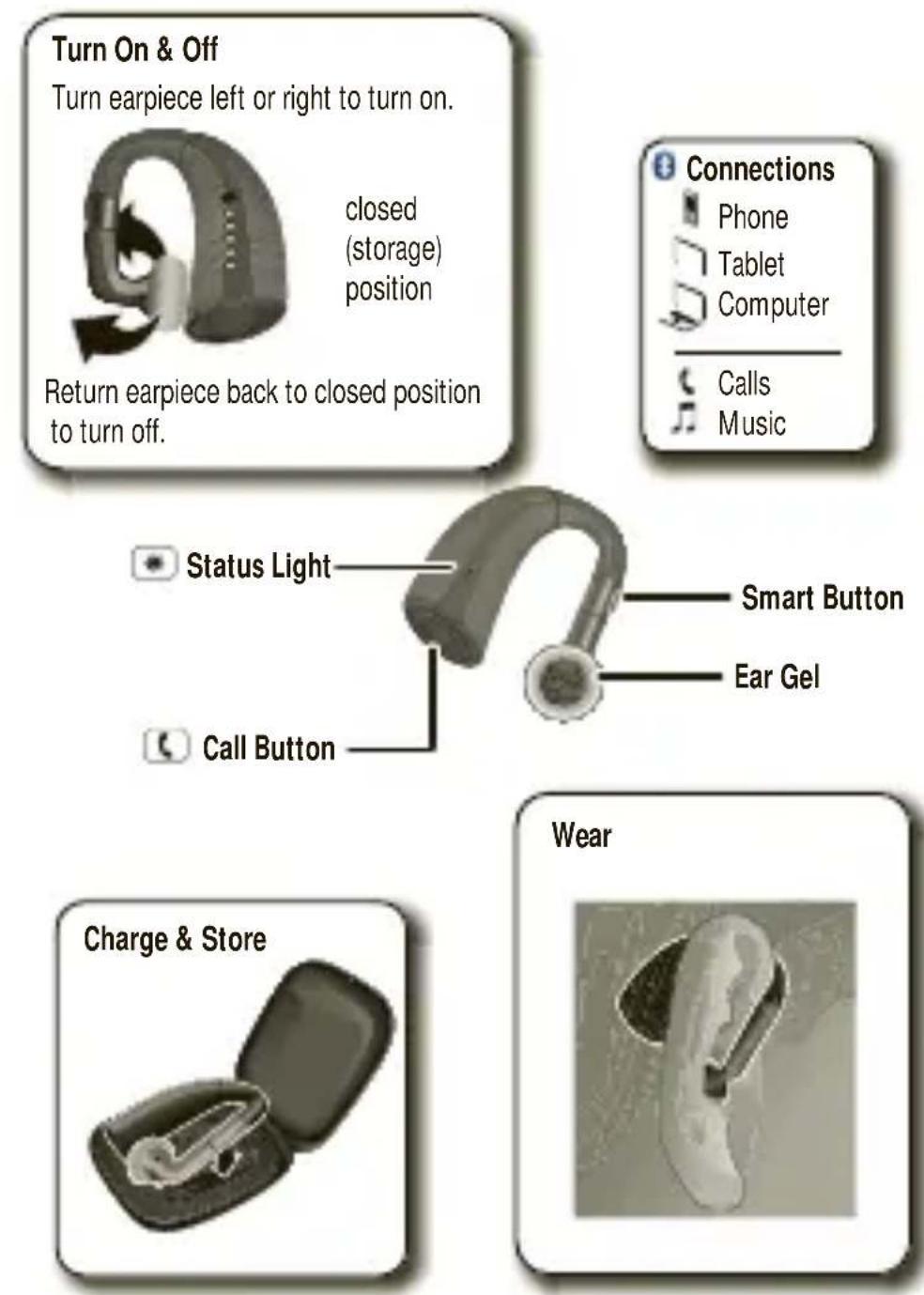

• Información de seguridad, reglamentos y aspectos legales Precaución: lea la información importante, reglamentaria y legal en la parte posterior de esta guía.2 Dé un vistazo Dé un vistazo los puntos que importan, rápido y fácil Encendido y apagado Luz de estado Teléfono Tablet Computadora Conexiones Llamadas Música Botón inteligente Uso Botón de llamada Almohadilla ergonómica de gel Carga y almacenamiento Gire el auricular a la izquierda o la derecha para encenderlo. Regrese el auricular a la posición cerrada para apagarlo. posición cerrada (almacenamiento)Cárguelo 3 Cárguelo preparación para usar el dispositivo Luz de estado del audífono Verde más de 5 horas de tiempo de conversación Amarillo entre 2 a 4 horas de tiempo de conversación Rojo menos de 1 hora de tiempo de conversación p. 20
