Product Type	Wall mount bracket for TV
Brand	Sony
Model	SUW100
Compatibility	Sony 15-inch color LCD TV
Bracket weight	Approx. 0.9 kg
Maximum supported weight	Approx. 10 kg
Tilt angle	Up to 15° forward
Material	Steel
Color	Black
Installation type	Wall-mounted, with screw fixing
Package contents	Bracket Ⓐ (1), Bracket Ⓑ (1), screws (2)
Screws included	2 mounting screws for the TV
Necessary accessories not included	4 wall mounting screws, wall anchors suitable for the wall
Care and cleaning	Clean with a soft, dry cloth
Spare parts	Not available separately
Repairability	Have installation and repair done by a qualified professional
Safety	Do not stand on the TV or bracket; do not exceed the maximum weight; follow installation instructions
General information	Designed exclusively for the Sony 15-inch TVs mentioned in the instruction manual

Frequently Asked Questions - SUW100 SONY

How to install the SUW100 wall mount bracket?

Follow the 8 steps in the instruction manual: check the parts, choose the location, attach bracket Ⓐ to the wall with four suitable screws, attach bracket Ⓑ to the TV, connect the cables, hang the TV, adjust the angle if necessary, then replace the rear panel. Some experience is required; have the installation done by a professional if needed.

What is the maximum weight this bracket can support?

The bracket can support a maximum weight of approximately 10 kg. The bracket itself weighs approximately 0.9 kg.

Which TVs is this bracket compatible with?

This bracket is designed only for Sony 15-inch color LCD TVs that specify the use of this bracket in the instruction manual.

Can I install the bracket myself?

Some experience is required. Sony recommends having the installation done by Sony dealers or professionals. If you do it yourself, carefully follow the instructions and ensure the wall is sufficiently strong.

How to adjust the TV angle?

After installation, you can tilt the TV forward about 15° for a better viewing angle. Hold the TV firmly on both sides when adjusting.

Which screws to use to attach the bracket to the wall?

Wall mounting screws are not included. You must use four screws and wall anchors suitable for the material and strength of your wall. Consult a professional if necessary.

How to remove the TV from the bracket?

First remove the TV's rear panel, then unscrew the two provided screws that secure bracket Ⓐ to bracket Ⓑ. Hold the TV firmly during the operation.

Does the bracket come with all necessary screws?

No, only two screws are provided to attach bracket Ⓐ to bracket Ⓑ. The four wall mounting screws and wall anchors must be purchased separately.

Where to find the complete user manual?

The complete manual is available free of charge in PDF format at notice-facile.com. You can download it or request a translation.

What to do if the wall is not strong enough?

Before installation, check that the wall is flat, straight, and contains reinforcement material. If it is not strong enough to support the TV and bracket, do not proceed with installation and consult a professional.

USER MANUAL SUW100 SONY

Operating Instructions

US

This Wall-Mount Bracket is designed for use only with a Sony 15-inch LCD Color TV that specifies the use of the Bracket in its Operating Instructions.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or contractors and pay adequate attention to safety during the installation.

FR

Mode d'emploi

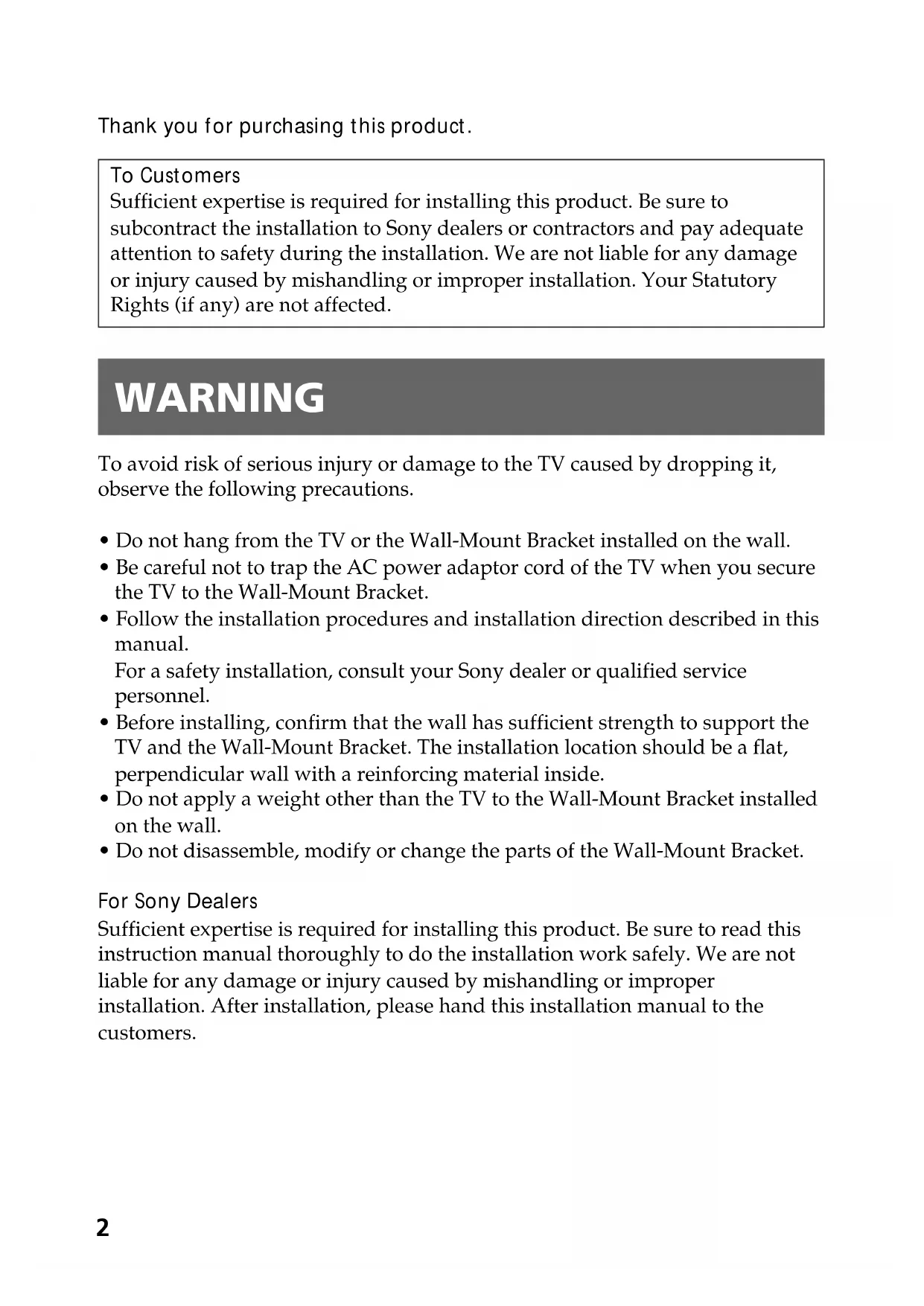

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or contractors and pay adequate attention to safety during the installation. We are not liable for any damage or injury caused by mishandling or improper installation. Your Statutory Rights (if any) are not affected.

WARNING

To avoid risk of serious injury or damage to the TV caused by dropping it, observe the following precautions.

• Do not hang from the TV or the Wall-Mount Bracket installed on the wall.
• Be careful not to trap the AC power adaptor cord of the TV when you secure the TV to the Wall-Mount Bracket.
• Follow the installation procedures and installation direction described in this manual.
  For a safety installation, consult your Sony dealer or qualified service personnel.
• Before installing, confirm that the wall has sufficient strength to support the TV and the Wall-Mount Bracket. The installation location should be a flat, perpendicular wall with a reinforcing material inside.
• Do not apply a weight other than the TV to the Wall-Mount Bracket installed on the wall.
• Do not disassemble, modify or change the parts of the Wall-Mount Bracket.

For Sony Dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. We are not liable for any damage or injury caused by mishandling or improper installation. After installation, please hand this installation manual to the customers.

Caution

• This Wall-Mount Bracket is only for Sony 15-inch LCD Color TVs.
  Do not use the bracket with a TV whose operating instructions do not specify the use of this bracket.
• Be especially careful not to drop the TV when you install it high on a wall.

US

Installation

For Sony Dealers

For the installation, have ready six commercially available mounting screws, anchor bolts, etc. that are appropriate for the wall.

The type and length of the screws required depend on the material and strength of the wall. If you do not know which material your wall is made of, consult your Sony dealer or qualified service personnel.

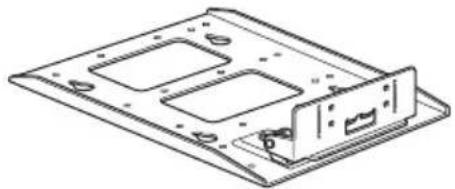

Step 1: Check the parts

Check all the parts are included in the package.

Bracket Ⓐ (1)

Bracket Ⓑ (1)

Screw (2)

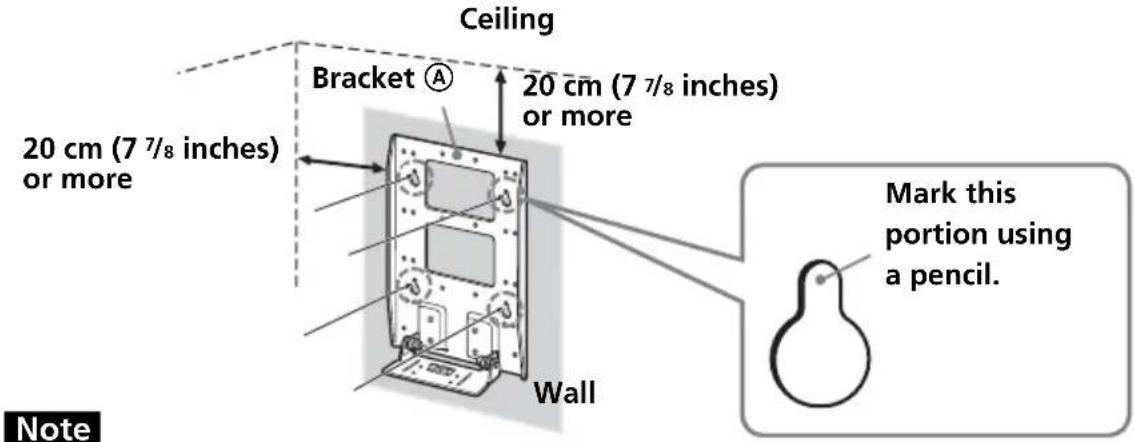

Step 2: Decide the installation location

Decide the location on the wall to install the TV.

Then, place bracket Ⓐ on the installation location and mark the four screw holes on the wall using a pencil.

Before marking, make sure that the distance between the upper edge of bracket ① and the ceiling and that between the side edge of bracket ② and the side wall are 20 ~cm (77 / 8 inches) or more.

Ceiling 20 cm (7 7/8 inches) or more 20 cm (7 7/8 inches) or more Bracket A Wall Mark this portion using a pencil. Note

Attach bracket Ⓐ level with the floor.

Step 3: Secure bracket Ⓐ to the wall

1 Insert four of the screws you prepared at the positions marked in Step 2 (page 4).

Do not tighten the screws completely for the moment. Keep a space of 2 to 3 mm (3/32 to 1/8 inches) from the wall.

Screws you prepared

Wall

2 - 3 mm (3/32 - 1/8 inches)

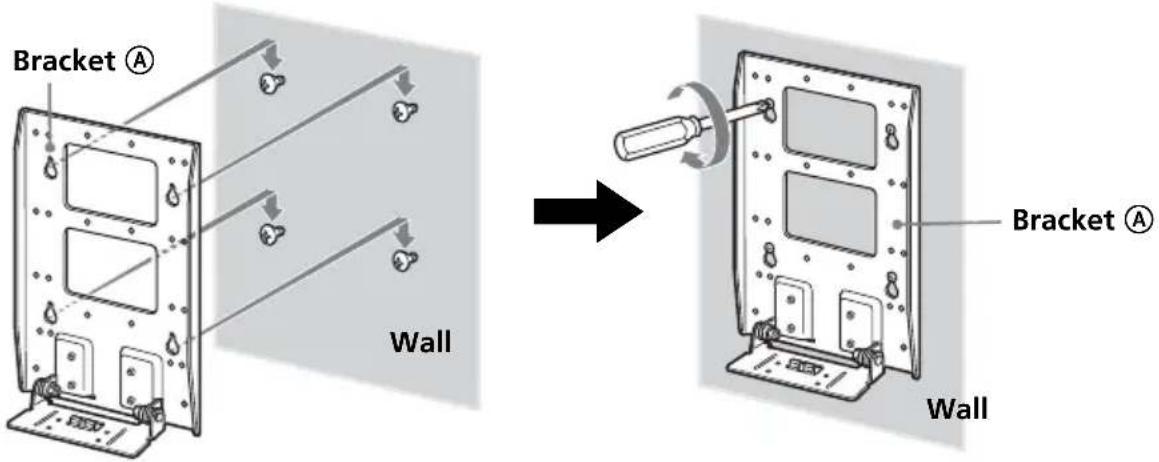

2 Press bracket Ⓐ to the wall and slide it down. Then fully tighten the four screws on the wall.

Bracket A Wall Bracket A Wall

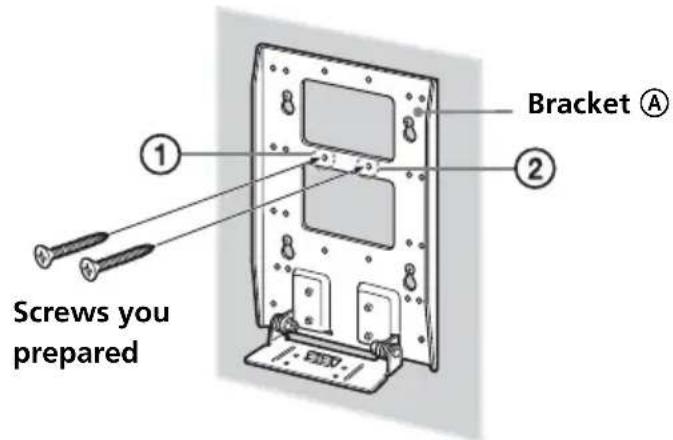

3 Fully tighten two of the screws you prepared in screw holes ① and ② firmly.

Screws you prepared ① ② Bracket Ⓐ

continued

Step 4: Attach bracket Ⓑ to the TV

Before attaching bracket Ⓑ, disconnect the AC power adaptor and all the cables from the TV.

For how to remove the rear cover of the TV, refer to the Operating Instructions supplied with the TV.

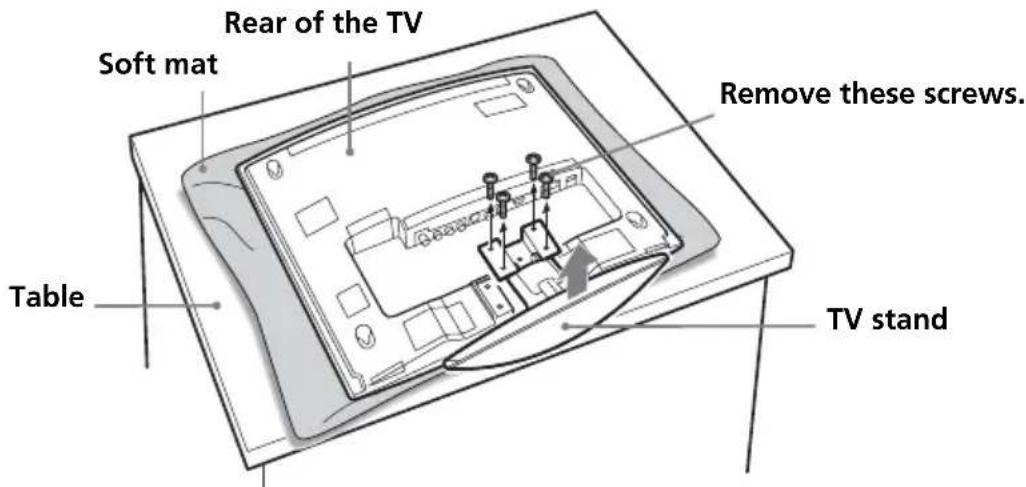

1 Remove the four screws as illustrated below, and detach the TV stand from the TV.

To prevent damaging the surface of the LCD display, place the TV on a soft mat.

Rear of the TV Soft mat Remove these screws. Table TV stand

Notes

• Place the TV body only on the table as illustrated above. If the TV stand is also on the table level to the TV body, the TV body may become unstable and cause damage.
• When removing the TV stand, hold it firmly.

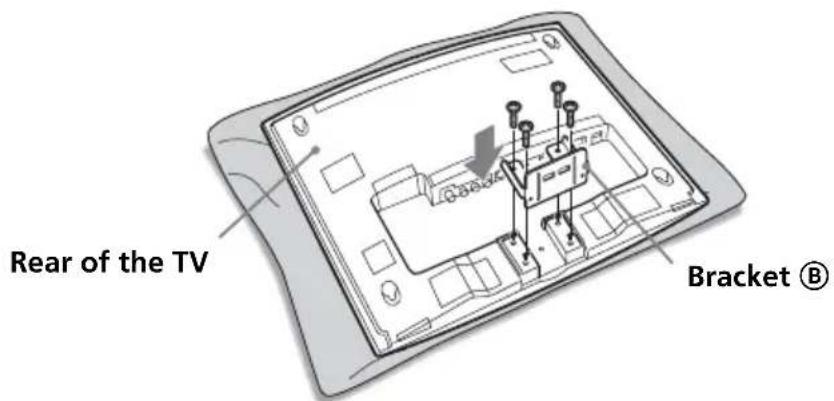

2 Secure bracket Ⓑ to the TV firmly using the four screws removed in step 1.

Rear of the TV Bracket Ⓑ

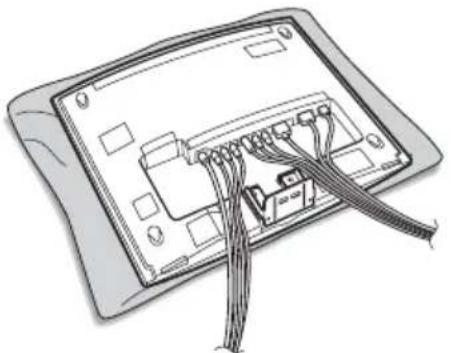

Step 5: Connect the cables to the TV

Before securing the TV to the wall, connect the cables to the TV.

You can arrange the cables by passing them along the sides of bracket Ⓑ.

Note

Do not replace the rear cover of the TV for the moment.

Diagram of an electronic device showing internal wiring and ports (no text or symbols)

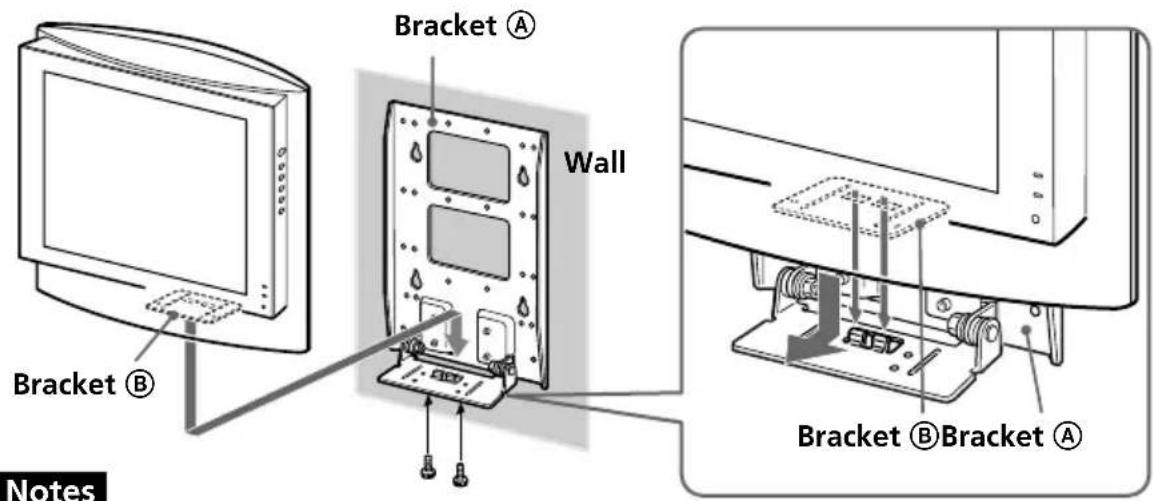

Step 6: Secure the TV to the wall

1

Hook bracket Ⓑ on bracket Ⓐ.

Bracket A Wall Bracket B Bracket B Bracket A Notes

Notes

• Secure the TV to the wall without the rear cover.
• Hold the TV firmly. Be especially careful when you secure the TV in a high place.

2

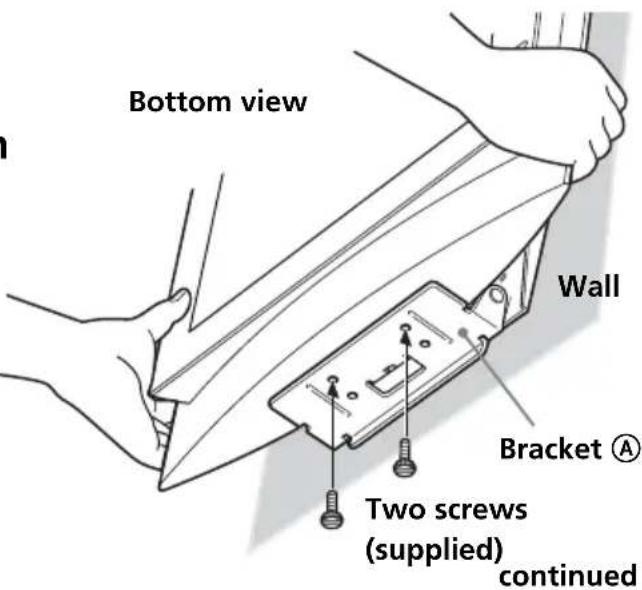

Align the screw holes on bracket Ⓑ with those on bracket Ⓐ, and fully tighten the supplied two screws using a coin or similar.

Note

To prevent the TV being dropped, hold the TV firmly as illustrated and tighten the screws.

Bottom view Wall Bracket A Two screws (supplied) continued

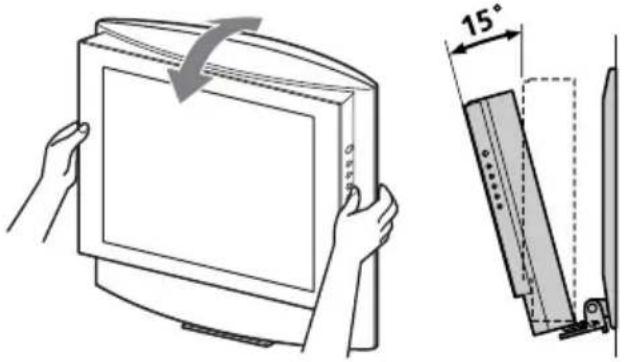

Step 7: Adjust the TV angle for easy viewing

You can tilt the TV up to about 15^ forward.

Note

When adjusting the angle, be sure to hold both sides of the TV.

Illustration of hands holding a flat-screen computer monitor and next to a folded paper or cable with a 15° angle indicator (no text or symbols present)

Step 8: Replace the rear cover on the TV

For details on how to replace the rear cover, refer to the Operating Instructions of the TV.

Detaching the TV from the Wall-Mount Bracket

To detach the TV, remove the rear cover from the TV, then remove the two screws.

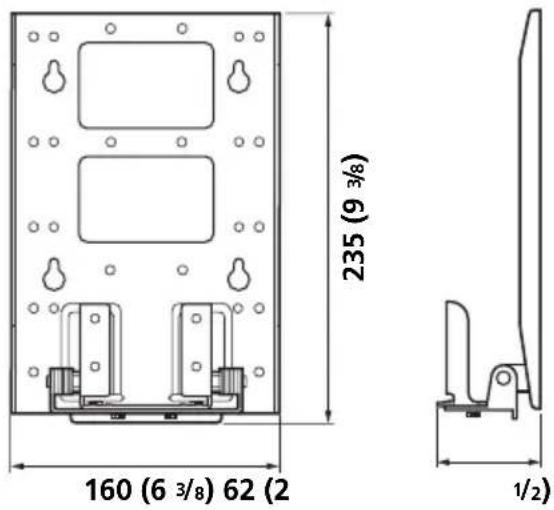

Specifications

160 (6 3/8) 62 (2 235 (9 3/8) 1/2)

Unit: mm (inches)

Bracket mass:

Approx. 0.9 kg (1 lb 16 oz)

Supportable weight:

Approx. 10 kg (22 lb 1 oz)

Design and specifications are subject to change without notice.

Diagram of an electronic device showing internal wiring and ports (no text or symbols)

Illustration of hands holding a flat-screen monitor and next to a close-up of its cover, with a 15° angle indicator (no text or symbols on the device itself)

160 (6 3/8) 235 (9 3/8) 62 (2 1/2)

Unité : mm (pouces)

Soporte Ⓐ Pared Soporte Ⓐ Pared

Diagram of an electronic device showing internal cable connections (no text or symbols)

Paso 6: Fije el televisor a la pared

1

Illustration of hands holding a flat-screen monitor and next to a 15-degree angled view of a rectangular device (no text or symbols)

160 (6 3/8) 235 (9 3/8) 62 (2 1/2)
