USER MANUAL IAN 296936 CRIVIT

4 PERSON DOUBLE ROOF

DOME TENT Assembly and safety advice

TENTE IGLOO DOUBLE TOIT

4 PERSON DOUBLE ROOF

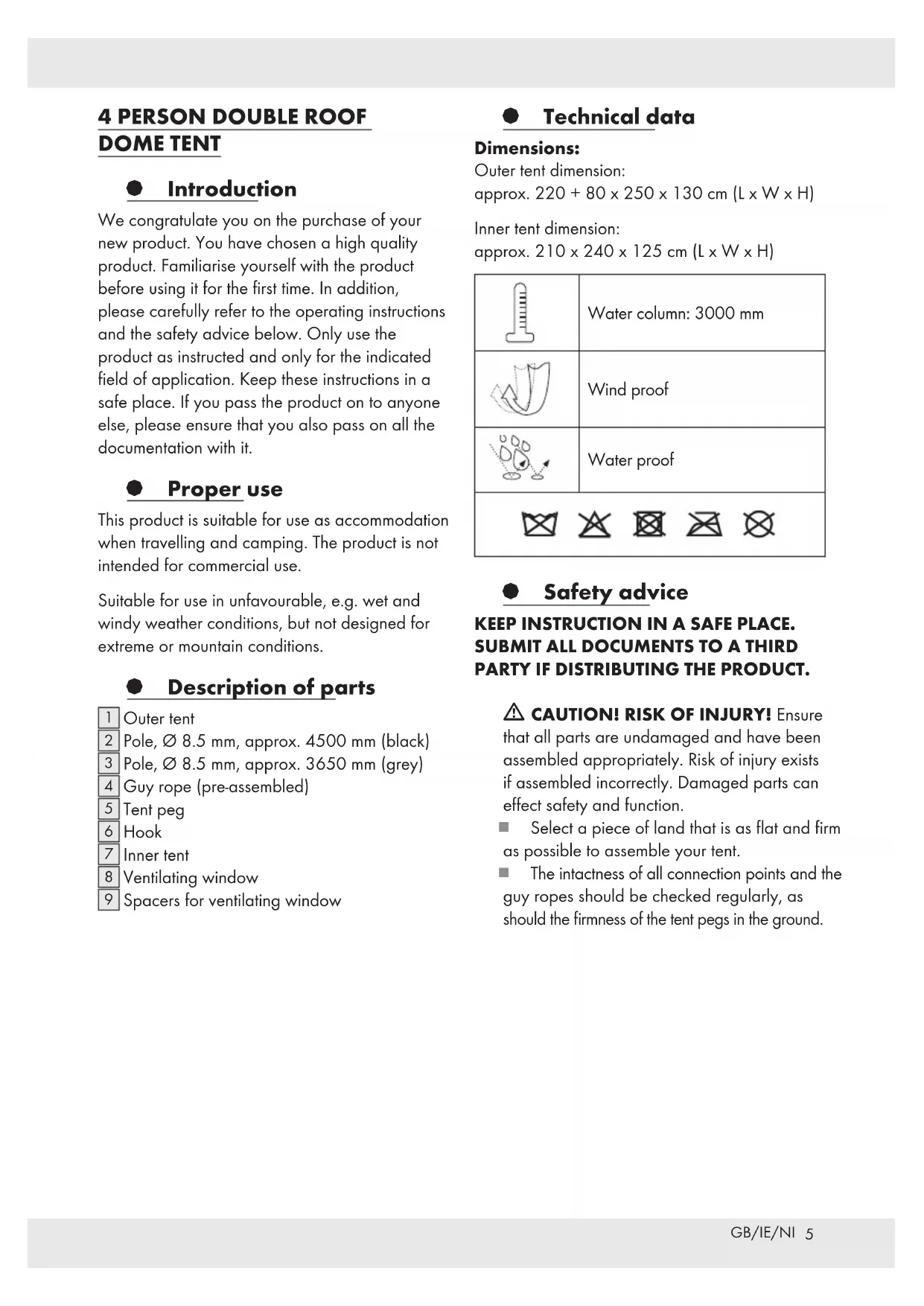

DOME TENT § Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. § Proper use This product is suitable for use as accommodation when travelling and camping. The product is not intended for commercial use. Suitable for use in unfavourable, e.g. wet and windy weather conditions, but not designed for extreme or mountain conditions. § Description of parts

Pole, Ø 8.5 mm, approx. 4500 mm (black)

Pole, Ø 8.5 mm, approx. 3650 mm (grey)

Guy rope (pre-assembled)

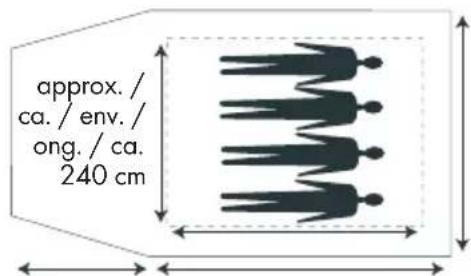

Spacers for ventilating window § Technical data Dimensions: Outer tent dimension: approx. 220 + 80 x 250 x 130 cm (L x W x H) Inner tent dimension: approx. 210 x 240 x 125 cm (L x W x H) Water column: 3000 mm Wind proof Water proof § Safety advice KEEP INSTRUCTION IN A SAFE PLACE.

SUBMIT ALL DOCUMENTS TO A THIRD

PARTY IF DISTRIBUTING THE PRODUCT. m CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can effect safety and function. Select a piece of land that is as flat and firm as possible to assemble your tent. The intactness of all connection points and the guy ropes should be checked regularly, as should the firmness of the tent pegs in the ground.6 GB/IE/NI Do not use any insect spray in or on the tent. Small leaks on the seams can be repaired with a seam spray and impregnation spray can be used for the tent skin. m CAUTION! DANGER OF POISONING AND DAMAGE TO PROPERTY! Do not light any fires within the product and keep it away from sources of heat. You should also familiarize yourself with the local fire protection regulations (e.g. camping site, tent pitch). Warning! Danger of suffocation! If the inside of the tent is not adequately ventilated, there is a risk of suffocation. Make sure that the vents on the side of the inner tent are not covered at any time. Do not leave children unattended in the tent. The logo on the inner tent

indicates it is an access slot for USB cables (for LED lighting or phone charging). WARNING! Do not use high voltage appliances or hot appliances in the tent, as this may cause fire or electric shock. § Fire precautions Camp safely. Follow these commonsense rules: Do not place hot appliances near the walls, roof or curtains. Always observe the safety instructions for these appliances. Never allow children to play near hot appliances. Keep exits clear. Do not block the exit with objects. Make sure you know the fire precaution arrangements on the site. § Tent assembly Inside the carrying bag there is a label with a QR-code. If the QR code is scanned you will receive details about how to pitch the product. Please ensure that the product is only assembled by people with the appropriate skills. Note: The polyester material of the tent consists of water-repellent material. It is possible that during the first rainfall the tent will not be completely watertight. However, the threads of the tent will contract when exposed to water so that after a short time the tent will become watertight. Erect the product in accordance with the illustrations A to F. Illustration A:

flat on the ground. The tunnels for the poles

must be facing upwards.

2. Run the two fiberglass poles

with the plastic end forward into the two tunnel guides on the outer tent one after another and slide them through to the end. Illustration B:

of the awning through the tunnel guide on the awning so that it extends evenly on both sides of the tunnel guide.

up and fix the poles to the metal pins of the floor fastenings. Illustration C:

5. Fix one side of the tent in the ground with

. Then take hold of the other end of the tent and pull it apart in such a way that the tent is taut.7 GB/IE/NI

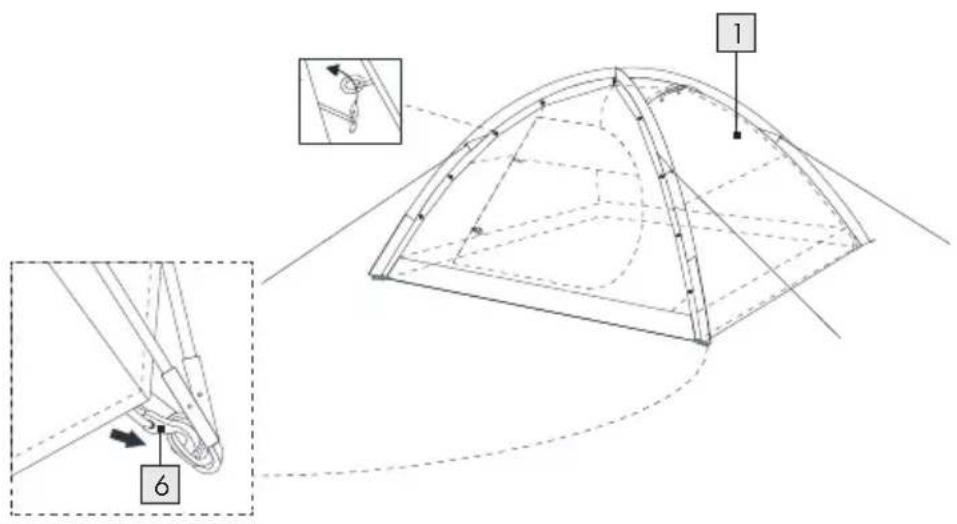

6. Attach the fastening hooks

to the metal loops on the front side and plastic loops on the back of the outer tent

and secure them with the spacers

by tensioning the floor fastenings with the tent pegs

with the guy rope (pre-assembled)

10. Open the entrance, unroll it and attach it

with the two fasteners. Illustration E:

11. If the inner tent is not buttoned onto the outer

tent, proceed with step 12, 13.

into the toggle of the outer tent

that are designated for that purpose.

at the corners of inner tent

to connect with the outer tent

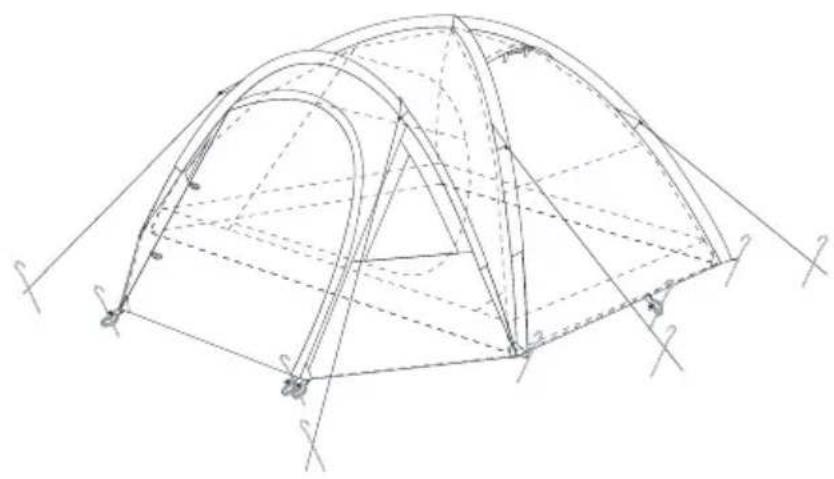

14. Stretch the tent until taut and pull all of

the corners and guy ropes

until they are tight. Do not over-tighten the guy ropes

. If the strength of the wind increases the attachment point and seam of the tent might tear. § Taking down the tent Clean the tent both inside and outside before you take the tent down. The tent must be dismantled in the reverse order to the manner in which it has been erected. § Packing the tent together

CAUTION! Please ensure that the tent is completely dry before you pack it together. Otherwise this may result in stains and damage to the fabric. m CAUTION! The tent pegs

and other individual parts must be packed separately in the bags provided. Otherwise the tent pegs

might damage the tent. Always fold the tent together in such a way that the floor of the tent is facing outwards. Collect all of the parts together carefully before you pack the tent. You should count the parts in order to ensure that none of them have been mislaid or lost. After the tent has been rolled up, pack it carefully into the carrying bag. § Cleaning and care

CAUTION! Never wash the tent in a washing machine. Otherwise the product may lose some of its ability to keep out water. m CAUTION! Never use petrol, solvent or other cleaning agents. Otherwise there is a danger of damage to the product. Condensation can form in all synthetic tents; you should therefore air the tent as frequently as possible in order to counteract this. Remove any dirt from the tent with a soft sponge and clean water. Please allow all parts to dry thoroughly before you repack the tent. This will prevent the formation of mould, bad odours and discolouration. If the zipper sticks when being opened or closed, spray it with silicone spray. The product may lose some of its ability to keep out water with frequent use. Therefore you should spray the tent regularly with a waterproofing agent (available in DIY shops, camping shops etc.). Store the product in a cool dry area.8 GB/IE/NI § Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. § Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.9
