USER MANUAL IAN 89267 CRIVIT

Assembly instructions

IAN 89267

Table des matieres

Intended use 33
Safety instructions 34-35
Risk of injury 34-35
Avoidance of material damage 35
Assembly 36-37
Inflating 38
Deflating 38
Care, storage 39
Disposal 39
3-year warranty 39-41

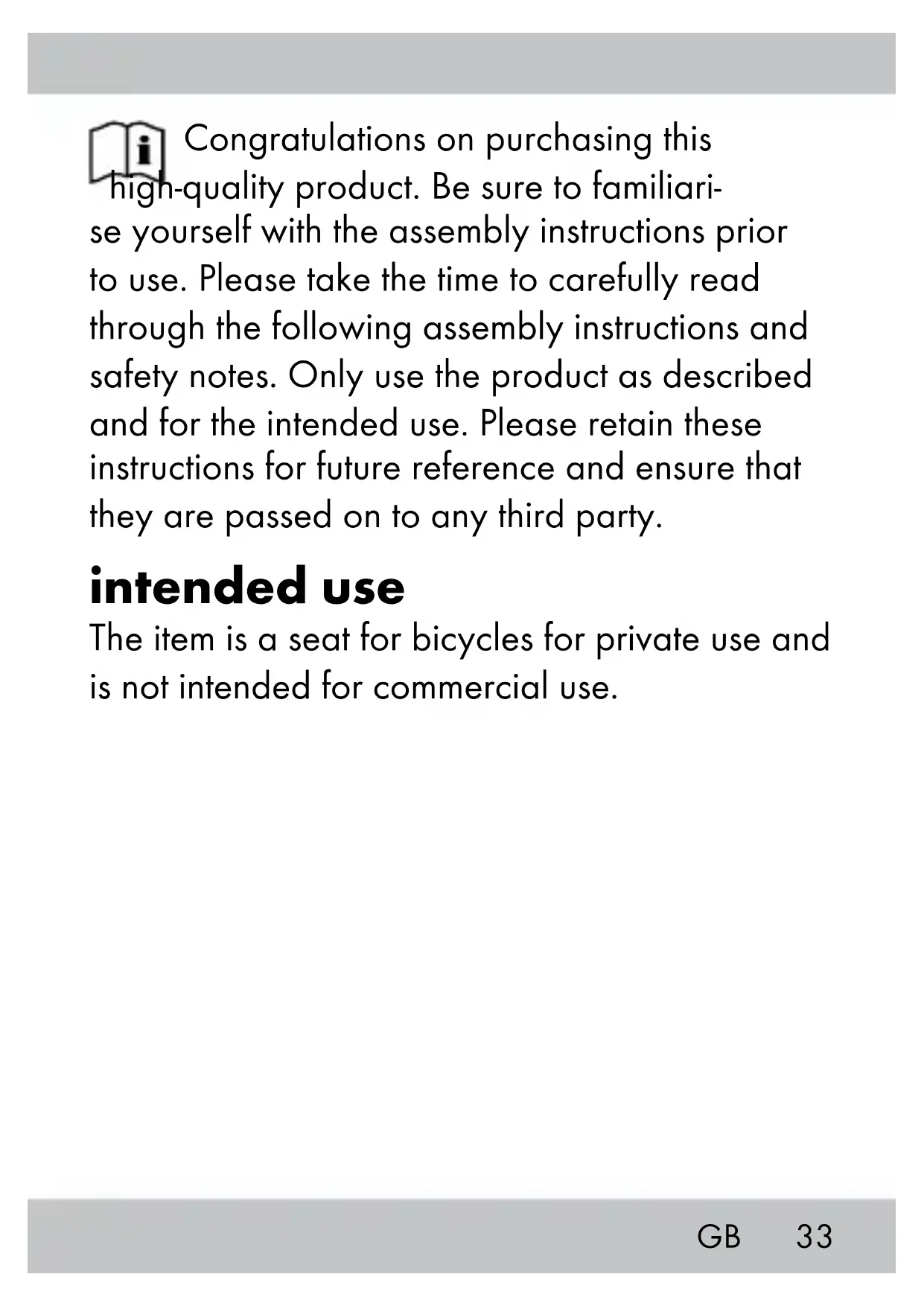

Congratulations on purchasing this

high-quality product. Be sure to familiarise yourself with the assembly instructions prior to use. Please take the time to carefully read through the following assembly instructions and safety notes. Only use the product as described and for the intended use. Please retain these instructions for future reference and ensure that they are passed on to any third party.

intended use

The item is a seat for bicycles for private use and is not intended for commercial use.

Safety instructions Risk of injury!

• Assemble the item correctly and ensure that it cannot slip when riding. Do not adjust the item while riding.
• Quick releases must lie on the dropouts in a closed state. Adjust the quick release so that you feel some resistance when it is in a 90^ position and pull it tight. If necessary, consult your specialist dealer.
• Check the item before each use for damage and wear-and-tear. Check that all screws are tight before each use and if necessary, tighten screw connections again. The item may only be used if it is in flawless condition!

• If using a child seat, ensure that all spring washers under the saddle are covered in order to prevent the pinching of fingers.

• Every type of tear or scratch in the areas of the saddle subject to high stress (screw connections) is an indication that the life-span of that part has expired and the part must be replaced.

Avoidance of material damage

Ensure that the item does not come in contact with sharp objects. Protect the item from extreme weather influences such as cold, wetness and direct exposure to the sun.

Assembly

Always adjust the saddle to the appropriate height for you. Observe the marking on the seat post, which marks the minimum insertion depth. The item's fastening screw must be tightened with 24 Newton metres on both sides in order to be securely fastened to the plug seat post.

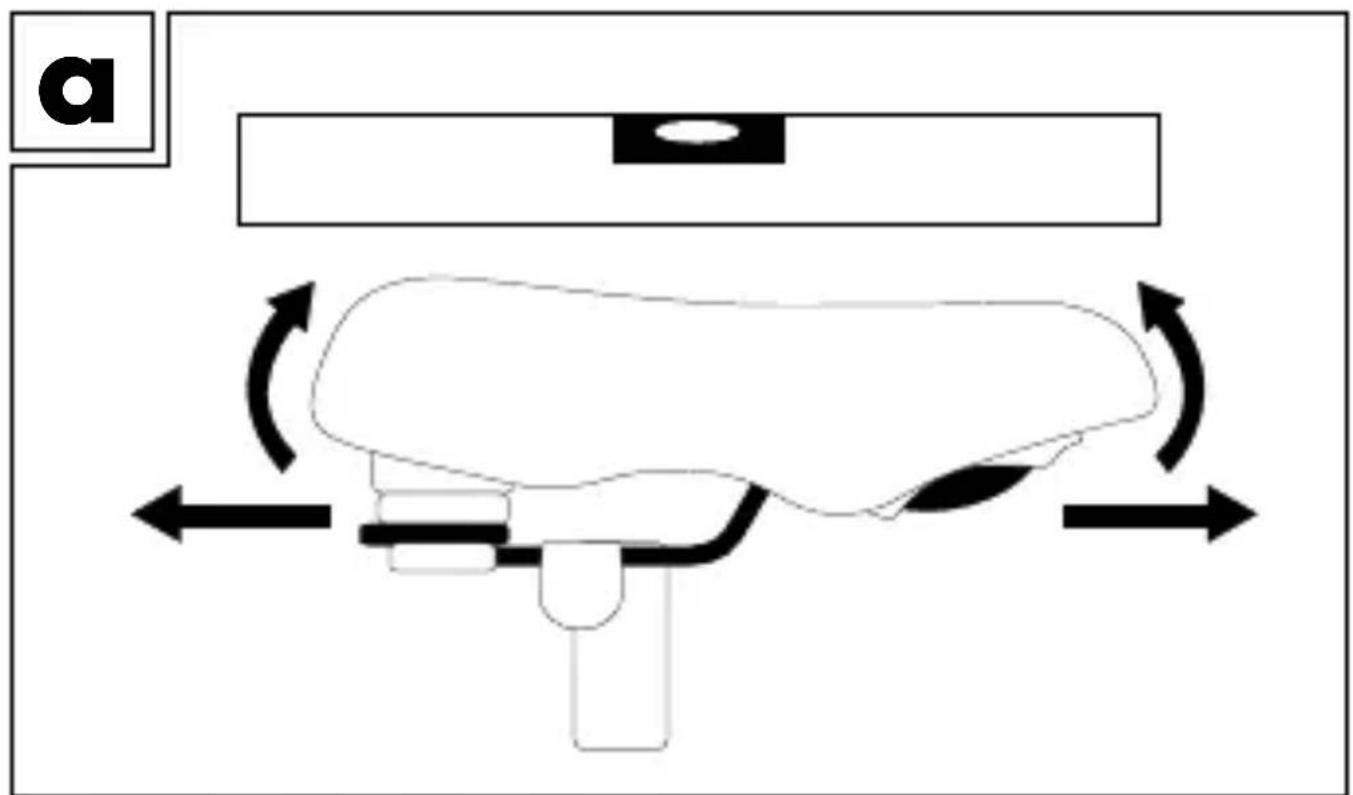

(Fig. A) Adjust the item horizontally.

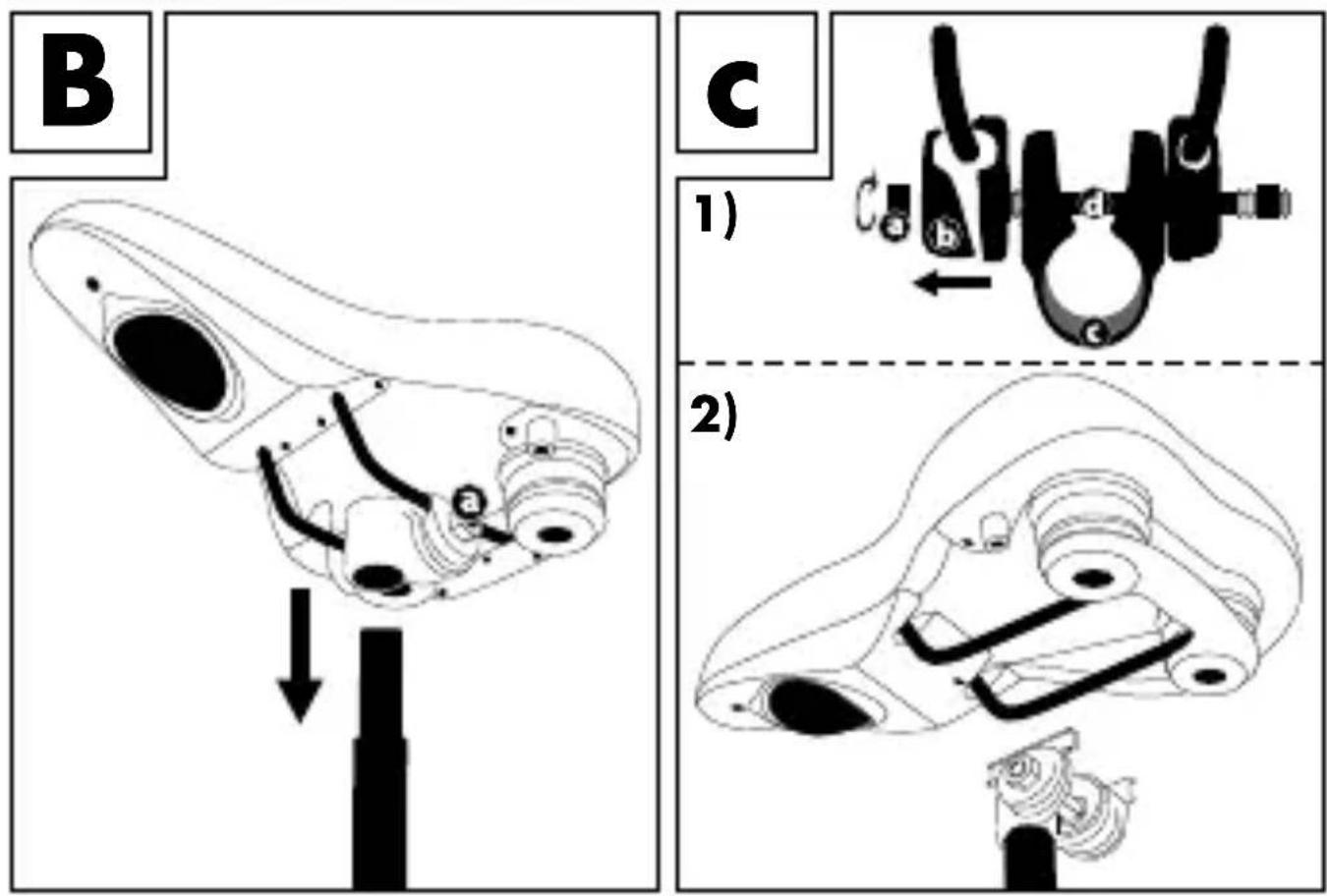

(Fig. B) For plug seat posts: Fasten the saddle with the pre-mounted block to the plug seat post.

(Fig. C)

1. Remove the fastening screws (a) on both sides with 13^ open-end wrench. Remove the distance piece (b), the screw (d), as well as the block (c).
2. Subsequently, mount the saddle directly to the patent saddle post.

a - Fastening screw
b - Distance piece
c - Block

d - Screw

Inflating

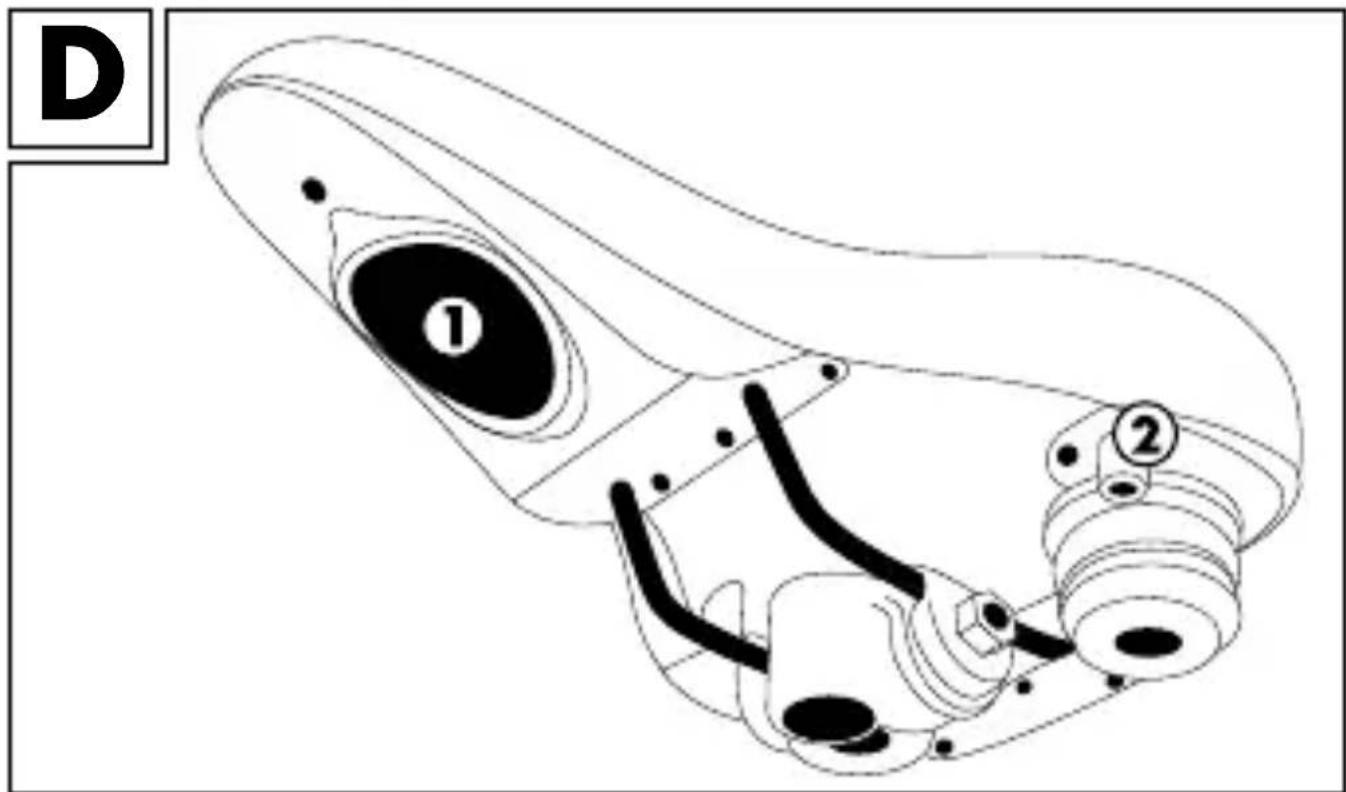

Push the inflation button (1) until you have achieved the desired degree of hardness (Fig. D).

Standard values:

• Soft - pump 3 x
  • Medium - pump 5 ×
  • Hard - pump 10 ~x

Deflating

Press the air valve (2).

Care, storage

Also, store the item in a clean dry place at room temperature.

Important! Only clean with a damp cleaning cloth and thereafter, wipe dry.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required!

Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required.

Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 89267

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 08/2013
