USER MANUAL Tune 660NC JBL

Man with curly hair sitting outdoors, wearing a denim jacket and white shirt, with palm trees in the background (no text or symbols visible)

TUNE BUDS

JBL

WHAT'S IN THE BOX

JBL

S/M/L

SCAN ME

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

GET IT ON Google Play

Download on the App Store

QR code with central logo containing 'JBL' text and headphones icon

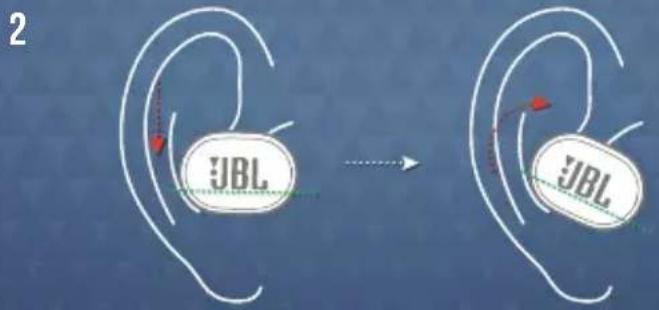

HOW TO WEAR

1 TRY DIFFERENT SIZES FOR A PERFECT FIT AND AUDIO PERFORMANCE.

S/M/L

JBL JBL

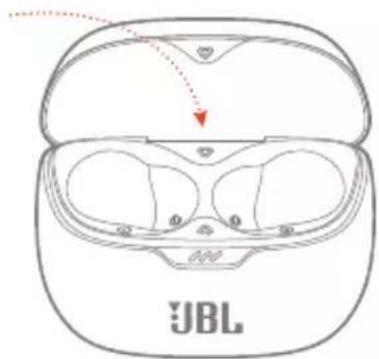

FIRST TIME USE

Two identical JBL earbuds with textured handles, no text or symbols visible

JBL

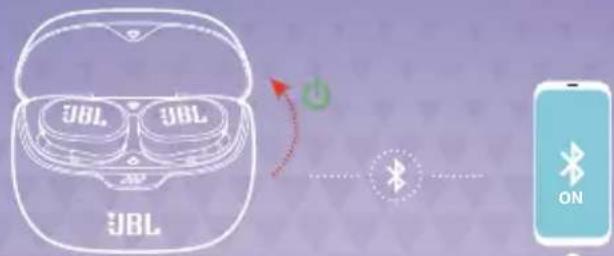

POWER ON & CONNECT

JBL JBL JBL ON

OTHERS ANDROID™ 6.0+ WINDOWS 10 V1803+

Settings Bluetooth Bluetooth DEVICES JBL TUNE BUDS Connected Now Discoverable

JBL TUNE BUDS JBL TUNE BUDS will appear on devices linked with my [e-mail] Connect Fast Pair

Illustration of a laptop with a 'ON' button and a wireless symbol (no text or numbers present)

MICROSOFT SWIFT PAIR

CHOOSE "JBL TUNE BUDS" TO CONNECT

DUAL CONNECT + SYNC

STEREO MODE MONO MODE

Line drawing of a JBL brand earbuds device (no text or symbols on body)

L/RRL

Line drawing of a JBL-branded electronic device with a lid and base (no text or symbols)

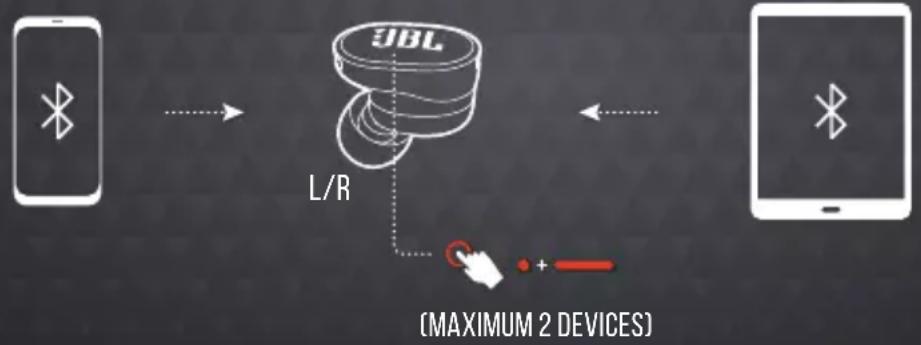

MULTI-POINT CONNECTION

TAP × 1

HOLD (5 s)
    note right of B: L/R
    note right of C: + -
    note bottom of C: [MAXIMUM 2 DEVICES]

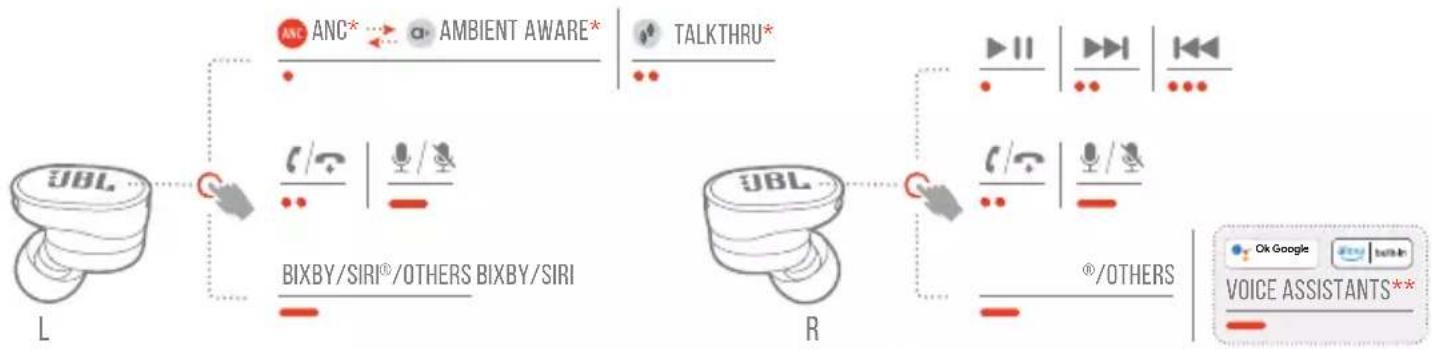

CONTROLS

TAP × 1 TAP × 2 TAP × 3 HOLD [ 2s]

* ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL TUNE BUDS TO JBL HEADPHONES APP

** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

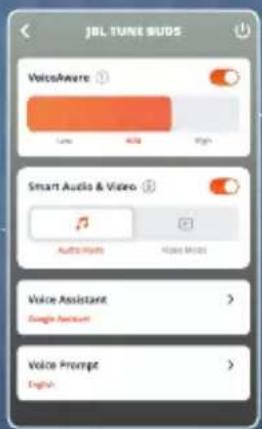

VOICEAWARE

DWL - +

JBL TUNE SUDS VoiceAware Low High Smart Audio & Video Audio Audio Video Stream Voice Assistant Single Instrument Voice Prompt English

VoiceAware ① Low Mid High

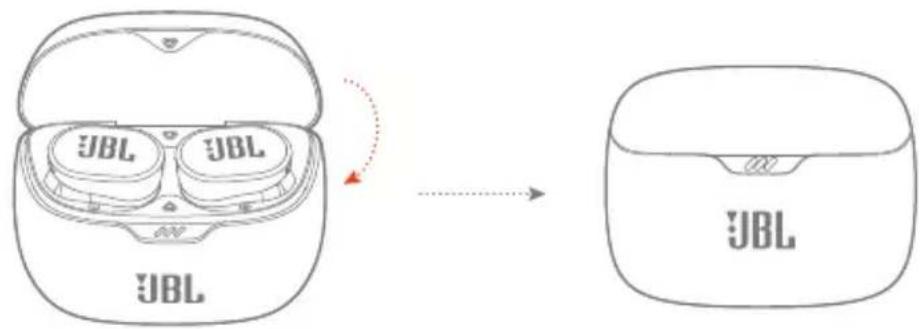

POWER OFF

JBL JBL JBL

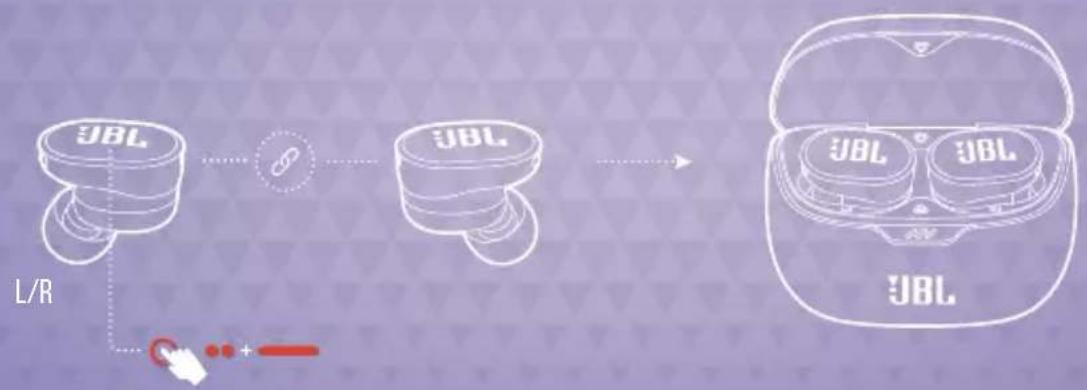

FACTORY RESET

TAP × 2

HOLD (5 s)

DO MORE WITH THE APP

JBL TUNB BUDS L 100% R 30% S 50% Ambient Sound Control EAC Non-Cloning Equalizer Tululey

*

Voice Assistant Google Assistant On Google Top and hold to get owned. More Settings Go on Google Resource No other more settings Amazon: Alexa Not in accordance Native Voice Assistant. Select to access

*ONLY AVAILABLE ON ANDROID™

Gestures Left Right Customized Gesture Antibody/Second Center Top Double-Top Call Control Call Control Always announce which requiring a call

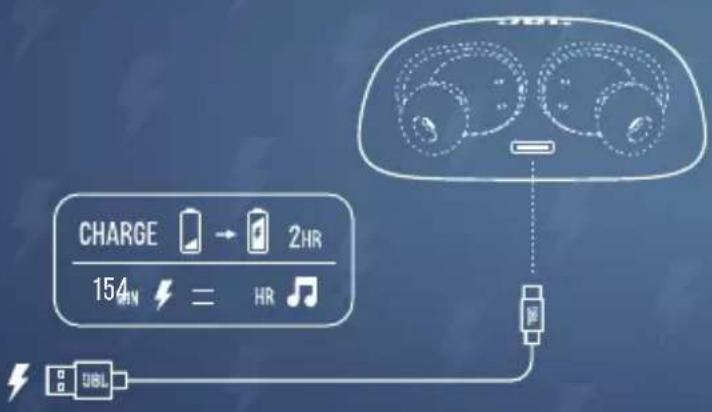

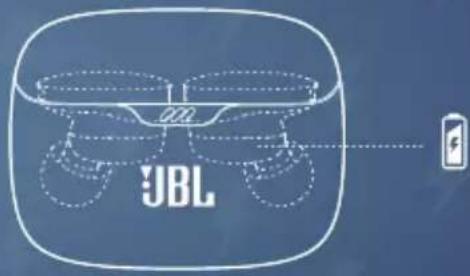

CHARGING

CHARGE → 2HR 154Ω = HR ⏱ 36BL

JBL

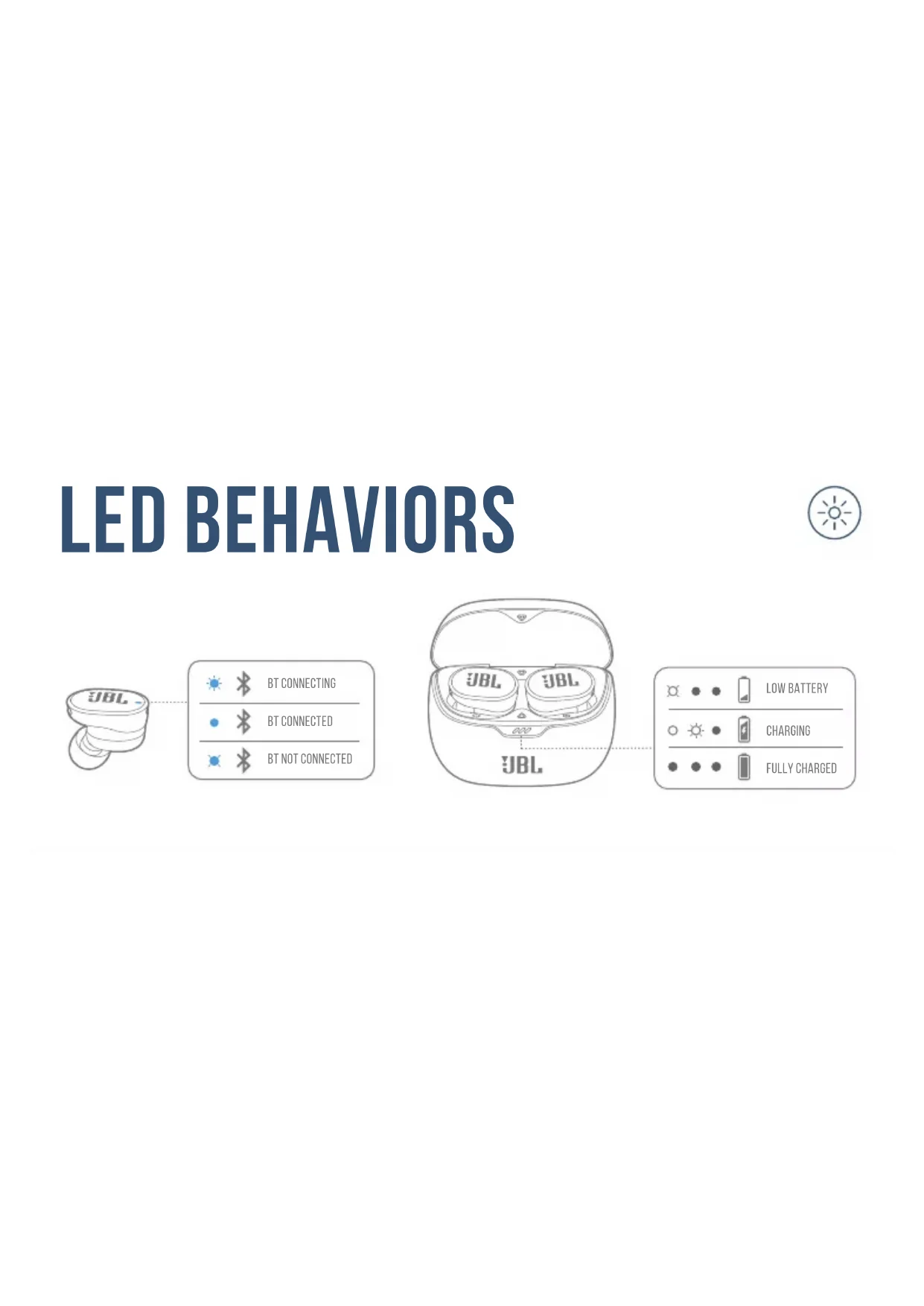

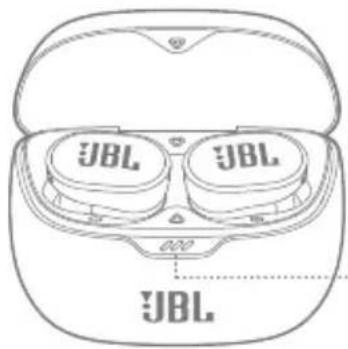

LED BEHAVIORS

BT CONNECTING

BT CONNECTED

BT NOT CONNECTED

JBL JBL JBL

LOW BATTERY

CHARGING

FULLY CHARGED

TECH SPEC

IP54

Model: TUNE BUDS

Driver size: 10 mm/0.39" Dynamic Driver

Power supply: 5 V

=1A

Earbud:

5.4 g per pc (10.8 g combined)/

0.012 lbs per pc (0.024 lbs combined)

Charging case:

42 g/ 0.093 lbs

Earbud battery type: Lithium-ion Battery (70 mAh/ 3.85 V)

Charging case battery type: Lithium-ion Battery (750 mAh/3.7 V)

Charging time: 2 hrs from empty

Music playtime with BT on

and ANC off: Up to 12 hrs

Music playtime with BT on

and ANC on: Up to 10 hrs

Talk time with ANC on: Up to 6 hrs

Talk time with ANC off: Up to 6.6 hrs

Frequency response: 20 Hz – 20 kHz

Impedance: 32 ohm

Sensitivity: 101 dB SPL@1 kHz

Maximum SPL: 93 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.3

Bluetooth profile version: A2DP V1.3.2, AVRCP V1.6.2, HFP V1.8

Bluetooth transmitter

frequency range:

Bluetooth transmitter

power:

2.4 GHz - 2.4835 GHz

<11 dBm (EIRP)

Bluetooth transmitter

modulation:

GFSK, π/4-DQPSK, 8-DPSK

Maximum operation

temperature:

45°C

FR

CONTENU DE LA BOÎTE APPLICATION

TalkThru (Conversation)*

Bixby/Siri®/Autres

Assistants vocaux**

HVAD ER DER I AESKEN APP

ANC (Aktives Noise-Cancelling)*

Ambient Aware

(Umgebungsbewusst)*

TalkThru*

LED-MERKKIVALON TOIMINNOT

DETTA FINNS I LÅDAN APP

FLERPUNKTSANSLUTNING

Ambient Aware (Ortam

Farkındalığı)*

一只0.012lbs(一副0.024lbs)

充电盒：42q/0.093lbs

KEGUNAAN LAIN APLIKASI

* Hanya tersedia di Android™

MENGISI DAYA

POLA LED

BT menyambungkan

BT Tersambung

BT tidak tersambung

Daya baterai lemah

Mengisi daya

Daya terisi penuh

SPESIFIKASI TEKNIS

Model: TUNE BUDS

Ukuran driver: 10 mm/0,39" Driver Dinamis

Catu daya: 5 V = 1 A

Earbud: 5,4 g per buah (total 10,8 g)/

0,012 lbs per buah (total 0,024 lbs)

Casing pengisi daya: 42 g/0,093 lbs

Tipe baterai earbud: Bateral Litium-ion (70 mAh/3,85 V)

Tipe bateral casing pengisi

daya: Baterai Litium-ion (750 mAh/3,7 V)

한쪽 0.012lbs(양쪽 0.024lbs)

충전 케이스:42g/0.093lbs

이어버드 배터리 유형:

충전 케이스 배터리 유형:

충전 시간:

BT설정 및 ANC(액티브

노이즈캔슬링)해제시

음악 재생 시간

BT 및 ANC(액티브노이즈

캔슬링)설정시음악

재생 시간

ANC(액티브노이즈 캔슬링)

사용시 통화 시간:

ANC(액티브노이즈캔슬링)

해제 시통화 시간:

주파수 응답:20Hz\~20kHz

임피던스:32

민감도:101dB SPL@1kHz

최대 SPL:93dB

** JBL Headphones 3000000000 Voice Assistant 500000000

A2DP V1.3.ZAVRCP V1.6.2 HFP V1.8

ఎం:ఒార్ అండులు

2.4 GHz - 2.4835 GHz

- <11 dBm (EIRP)

మ్రు:ఎండియాన్

GFSK1π/4-DQPSK18-DPSK

###

- 45℃

AR

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

IC RF Exposure Information and Statement

The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLTUNEBUDS) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 1.067 W / kg.

The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-JBLTUNEBUDS

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

ANATEL

Google, Android and Google Play are trademarks of Google LLC.

built-in

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.

Product specifications and app screens are subject to change without notice.

HP_JBL_TUNE BUDS_QSG_Global_CR_V15
