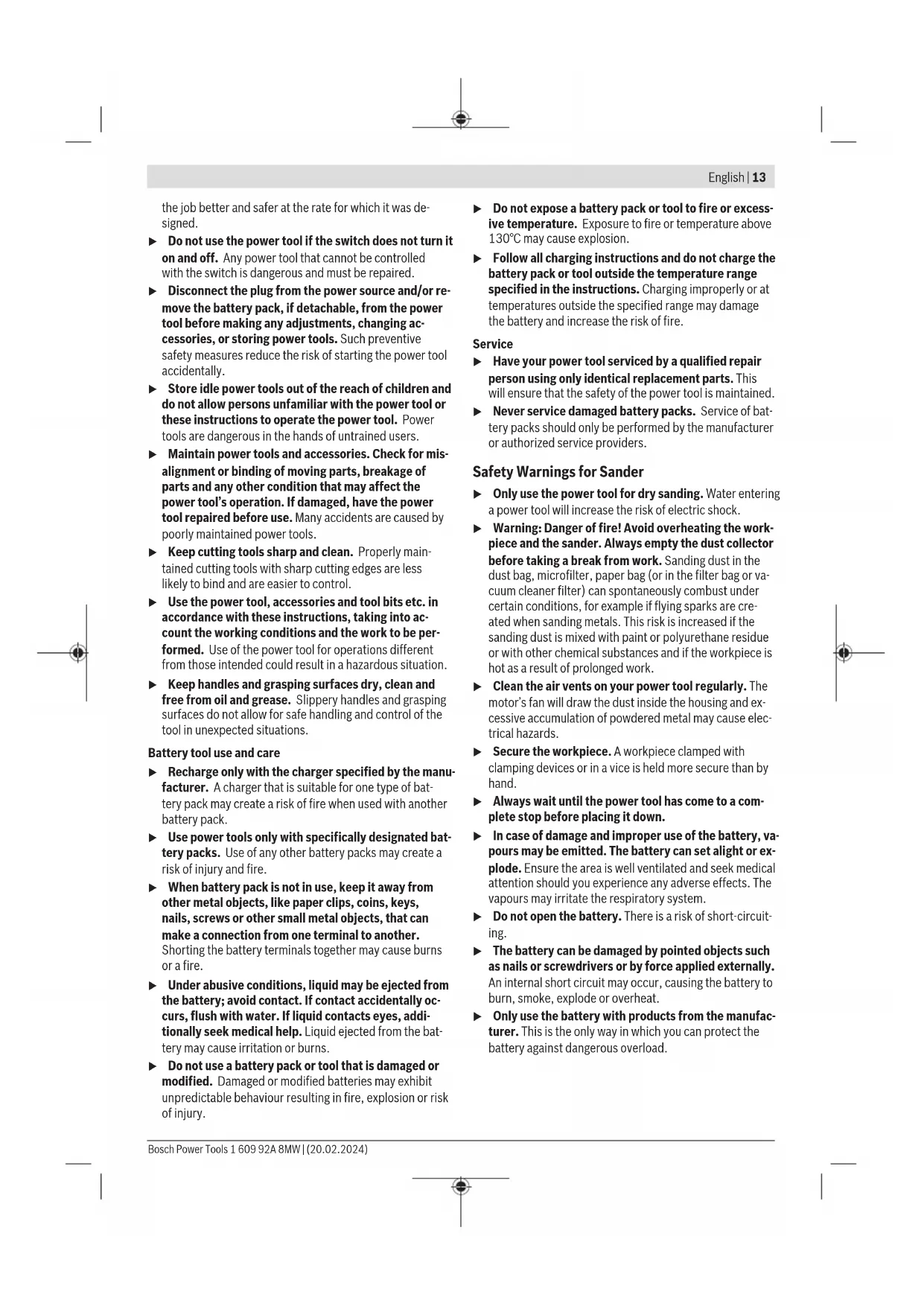

(7) Front clamping bracket (8) On/off switch (9) Button for rechargeable battery charge indicator

(10) Battery charge indicator

(11) Rechargeable battery

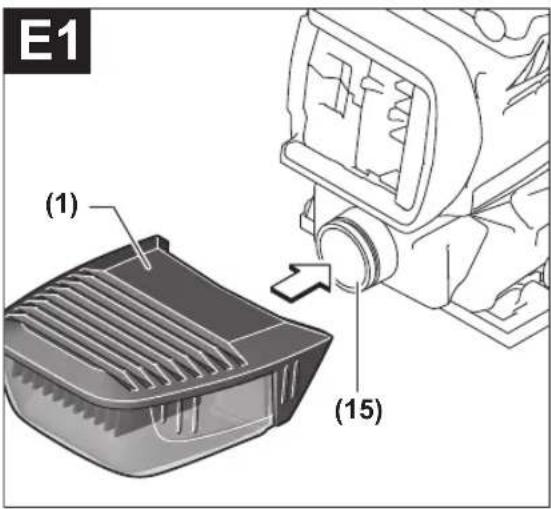

(12) Battery release button (13) Handle (insulated gripping surface) (14) Screws for base plate (x 4) (15) Extraction outlet (16) Filter element (Microfilter System)

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical data Orbital Sander GSS 18V-10 Article number 3 601 JD0 2.. Rated voltage V= 18 No-load speed

11,000 No-load orbital stroke rate

22,000 Sanding sheet surface cm

Orbital Sander GSS 18V-10 Orbit diameter mm 1.6 Dimensions mm 199.5 x 113 x 141 Weight kg 1.4–2.4 Recommended ambient temperature during charging °C 0to+35 Permitted ambient temper- ature during operation

and during storage °C –20to+50 Recommended rechargeable batteries GBA18V... ProCORE18V... Recommended battery char- gers GAL 18... GAX 18... GAL 36... A) Measured at 20–25°C with rechargeable batteryGBA18V4.0Ah B) Limited performance at temperatures <0°C Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according toEN62841-1. Typically, the A-weighted sound pressure level of the power tool is 79dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-4:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ac- cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly in- crease the vibration and noise emissions over the total work- ing period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly. 1 609 92A 8MW | (20.02.2024) Bosch Power ToolsEnglish | 15 Assembly u Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from uninten- tionally pressing the on/off switch. Charge the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The accessory no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. To remove the battery (11), press the release button (12) and pull the battery sideways out of the power tool. Do not use force to do this. Follow the instructions on correct disposal. Fitting the base plate (see figure A) Unscrew the four screws (14) completely. Fit a suitable base plate, together with the sanding plate, and retighten the screws. Changing the sanding plate (see figure A) If necessary, the sanding plate (3) can be replaced. Unscrew the four screws (14) completely and remove the sanding plate (3). Fit the new sanding plate (3) and retighten the screws. Changing the sanding sheet Remove dirt and dust from the sanding plate (3), e.g. with a brush, before attaching a new sanding sheet. To ensure optimum dust extraction, make sure that the punched holes in the sanding sheet are aligned with the drilled holes in the sanding plate. Sanding sheets without hook-and-loop backing (see figures B–D)

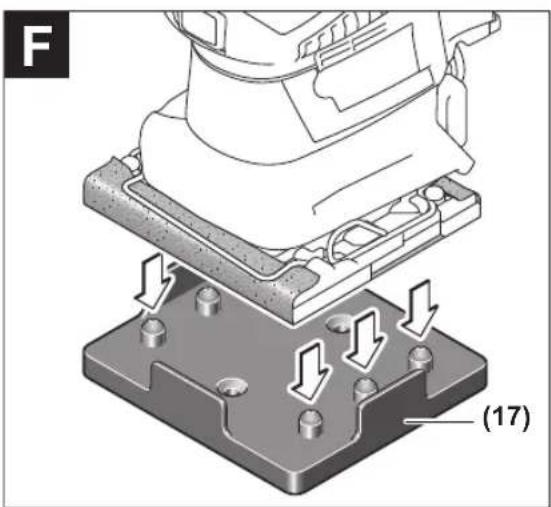

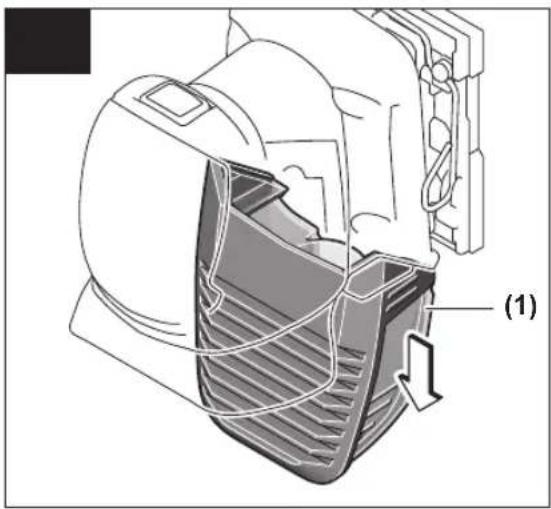

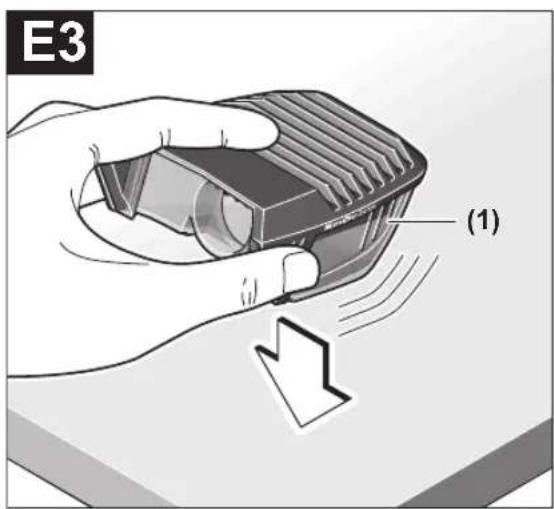

Unlock both sanding-sheet clamps (4) and swivel them downwards.

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Orbital Sander Article number

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015+A11:2022 EN 62841-2-4:2014
