TCG4215 - Grill plate BOSCH - Free user manual and instructions

Product type	Electric contact grill (contact grill)
Brand	Bosch
Model	TCG4215
Dimensions (H x W x D)	115 x 400 x 330 mm
Power supply	220-240 V, 50/60 Hz
Power	2000 W
Number of plates	2 removable plates (ridged side and smooth side)
Cooking modes	Contact grilling, conventional grilling, pancakes, salamander, gratin dish
Temperature setting	2 independent rotary knobs (upper and lower plates)
Control indicators	2 indicator lights (upper and lower) for temperature indication
Grease collecting trays	2 removable trays
Safety	Plate lock for storage, insulated carrying handle
Cleaning	Plates, trays and gratin dish dishwasher-safe; appliance cleanable with damp cloth
Plate coating	Non-stick (estimated)
Included accessories	2 plates, 2 collection trays, 1 gratin dish
Usage	Domestic, indoor, up to 2000 m altitude
Warranty	According to distributor conditions
Repairability	Bosch after-sales service, repair by approved professional

Frequently Asked Questions - TCG4215 BOSCH

How to clean the plates of the Bosch TCG4215?

The plates, grease collection trays and gratin dish are dishwasher-safe. You can also clean them by hand while still warm. The appliance itself can be cleaned with a damp cloth, without immersing.

What to do if the appliance does not heat up?

Check that the appliance is plugged in and that the rotary knobs are set to a temperature. The control indicators should light up. If the problem persists, contact Bosch after-sales service.

Can I use the grill without the plates?

No, never operate the appliance without its plates. This could damage the appliance or cause injury.

How to lock the appliance for storage?

After cooling, close the plates and move the two locking sliders to the locked position.

How to use the contact grilling mode?

Place the plates with the ridged side facing inward, close the appliance, set the temperature and place the food. The heat cooks evenly from top and bottom.

How to avoid burns during use?

Always use the handle to manipulate the appliance. Do not touch hot surfaces. Wait for complete cooling before cleaning or storing.

Why is there smoke during first use?

This is normal: manufacturing residues burn off. Ventilate the room and let the appliance heat up 3 times without food at maximum power.

Can I use metal utensils on the plates?

Avoid objects with sharp edges to avoid scratching the non-stick coating. Use utensils made of wood, silicone or heat-resistant plastic.

How to adjust the temperature on the Bosch TCG4215?

Turn the rotary knobs (1 for the upper plate, 3 for the lower one) to the desired position. The indicator lights go out when the temperature is reached.

How to dispose of the appliance at the end of its life?

In accordance with European directive 2012/19/EU, do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic equipment.

USER MANUAL TCG4215 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Contact grill

TCG4215

[en] Instruction manual Contact grill 9

	A B C	Downloaded from	Denban
	A B	high	5
	A B	high	5
	A B	high	4-5
	B	high	4-5
	A B	high	5
	A B	high	4-5
	A	high	5
	B	high	5
	C	high	5
	C	high	5
Keep warm	B C	low	1-3

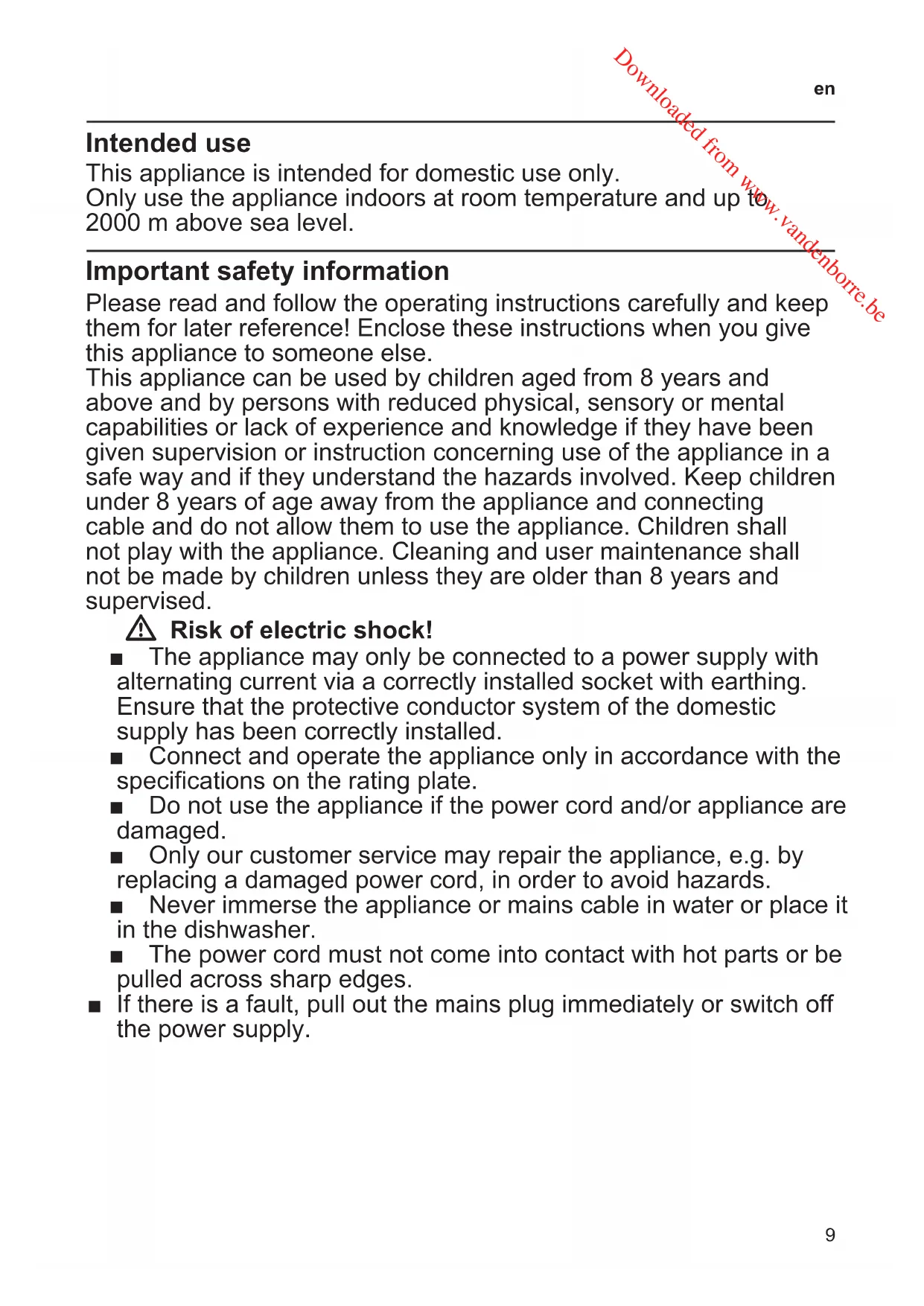

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

⚠️ Risk of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing.
Ensure that the protective conductor system of the domestic supply has been correctly installed.
■ Connect and operate the appliance only in accordance with the specifications on the rating plate.
■ Do not use the appliance if the power cord and/or appliance are damaged.
■ Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Never immerse the appliance or mains cable in water or place it in the dishwasher.
■ The power cord must not come into contact with hot parts or be pulled across sharp edges.
■ If there is a fault, pull out the mains plug immediately or switch off the power supply.

Risk of fire!

■ Do not connect the appliance to or operate it by means of a time switch or remote control socket.
■ Always pull out the mains plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
■ Never leave the appliance unattended while it is switched on!

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of injury!

Improper use of this appliance may result in injury.

Risk of burns!

During operation of the appliance the temperature of exposed surfaces may become very high. Take hold of the appliance by the handle only, do not transport the appliance until it has cooled down!

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Parts and controls

Fig. 1

1 Rotary knob upper grill plate
2 Indicator light upper grill plate
3 Rotary knob lower grill plate
4 Indicator light lower grill plate 🏠
5 Handle
6 Plate holder (4x)
7 Grill plates *
8 Plate lock (4x)
9 Locking slide (2x)
10 Fat drain
11 Fat collecting cups * (2x)
12 Casserole dish *
* dishwasher-proof

Before using your appliance for the first time

■ Move locking slides to 🔒.
■ Insert the power cord of the contact grill into the socket.
■ Open the appliance.
■ Turn both rotary knobs to the highest setting and heat up appliance without any food at least 3x in a well ventilated room (open window), then leave to cool down.
■ When using for the first time, a slight odor and a little smoke may appear during the first few minutes of use. This is not a threat nor any evidence of malfunction of the product. In this case open the window and ventilate the room until there is no more smoke or odor.
■ Fig. 3: Remove grill plates, wash and dry. Lubricate the sides of the grill plates to be used with a little cooking oil.
■ Fig. 4: When inserting the grill plates, ensure that the lugs are inserted into the plate locks at the back and that the plate holders are engaged.

Using the appliance

Risk of burns!

Fat may splash during grilling.

Important: Do not operate without grill plates! Do not scratch the coated plates with sharp-edged objects!

As the contact grill can be used in different positions, various cooking methods are possible. The fold-out pages at the front of the instruction manual illustrate recommended grilling times and grill settings for different foods.

Contact grilling (Fig. 2a)

The corrugated side of the upper grill plate is placed directly on the food. The food is cooked evenly from above and below. Especially suitable for quick grilling at high temperatures, e.g. rump steaks, chops or paninis.

Grilling (Fig. 2b)

The grill is opened fully. The food is distributed over the whole area and must be turned.

Making crêpes (Fig. 2c)

The grill is opened fully. Use the smooth sides of the grill plates.

Au gratin dishes

The upper plate is pulled up and is suspended horizontally in the highest position. The upper grill plate must not touch the food. Especially suitable for cooking “au gratin” and for baking toppings.

Casserole dish (Fig. 2d)

Use the smooth sides of the grill plates and fill the casserole dish.

Preparation

■ Position the contact grill according to the cooking method.
■ Fig. 5: Insert grill plates with the corrugated or smooth side according to the cooking method.
■ Place the fat collecting cup under the fat drain.
■ Close the appliance and select the required temperature using the respective rotary knobs.
■ The indicator lights light up. They extinguish as soon as the set temperature has been reached.
■ Now place the food or the casserole dish on the grill.
■ The cooking time depends on the thickness and size of the food.

Tip: To obtain optimum results, adjust the temperatures during use.

General

Grill food so it is light instead of dark or brown, remove burnt remnants. Do not overgrill starchy foods, especially potato and cereal products (production of acrylamides minimised).

Before placing food on the grill plates, preheat the grill. Place food on the grill plates. Before placing new food on the plates, wipe them with kitchen roll. Frozen food items must be fully defrosted and dry. Only add salt to meat and fish after grilling.

Eliminating minor faults yourself

The appliance cannot be locked for storage.

■ Fig. 6: The locking slide is already closed (☐). Open the slide (☐).

or

■ Fig. 7: The lock is dirty. Clean the lock.

Cleaning

⚠️ Risk of electric shock!

Before cleaning the appliance, pull out the mains plug.

Never immerse the appliance in water, wipe with a damp cloth only! Do not use a steam cleaner. Leave the appliance to cool down.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents. Do not clean with oven/grill spray.

■ Take out the grill plates. Grill plates, fat collecting cups and casserole dish are dishwasher-proof.
■ Clean the base of the appliance regularly.

Tip: Clean grill plates by hand while they are still lukewarm.

Storage

Fig. 6

■ Before storing the appliance, leave it to cool down and close the grill plates.
■ To do this, move both locking slides to 🔒.

Tip: The appliance can be stored horizontally or vertically.

Technical specifications

Electrical connection	220-240 V~50/60 Hz
Output 2000 W
Appliance height 115 mm
Appliance width 400 mm
Appliance depth 330 mm

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
