Product Type	Rechargeable Lithium-Ion Battery
Brand	Hähnel
Model	HLXEL15HP
Compatibility	Hähnel cameras and other brands (original and compatible batteries)
Charging Connector	Micro USB (charger included)
Recommended Power Supply	USB source 5V, 2.1A minimum
LED Indicators	Red (charging), Green (charged)
Charging Temperature	10°C to 25°C
Maximum Operating Temperature	60°C (do not exceed)
Storage	Cool and dry place, out of reach of children
Lifespan	Varies, recharge once a year if unused
Maintenance	Clean with a dry cloth, avoid moisture
Safety	Protection against short circuits, overheating, overcharging; do not open or throw into fire
Weight	Approximately 40 g
Dimensions	Approximately 40 x 30 x 15 mm
Package Contents	Battery, charger, Micro USB cable, protective case
Repairability	Not user-repairable
Recycling	Follow local regulations

Frequently Asked Questions - HLXEL15HP Hähnel

How to charge the Hähnel HLXEL15HP battery?

Connect the charger to a USB source (wall adapter, computer, etc.) with a Micro USB cable. Insert the battery into the charging compartment. The red LED lights up during charging and turns green when the battery is fully charged. Use a 2.1A source for optimal charging.

What type of charger to use?

Use only the charger provided with the battery or a charger specifically designed for Lithium-Ion batteries. Do not use an unsuitable charger.

How long does it take to charge the battery?

Charging time depends on battery capacity and USB source. Generally, with a 2.1A source, a full charge takes about 2 to 4 hours.

Can I charge two batteries at the same time?

Yes, the charger has two compartments. You can charge two batteries simultaneously. Each compartment has its own charging LED.

Is the battery compatible with my camera?

The Hähnel HLXEL15HP battery is designed to be compatible with many original Hähnel camera batteries and other brands. Check your device's reference to confirm.

How to store the battery if not used for a long time?

Fully charge the battery before storing. Store it in the provided protective case in a cool, dry place. Recharge it once a year to preserve its lifespan.

What to do if the battery heats up abnormally?

A slight temperature increase is normal. If it exceeds 60°C, immediately stop using or charging. Let it cool down in a safe place. Do not expose to direct sunlight.

Can I use the battery in a vehicle?

Yes, you can use a USB car charger as a power source. Ensure the source provides at least 2.1A. Do not leave the battery in the vehicle in hot weather.

How to know if the battery is defective?

If the battery does not charge (LED stays off or blinks), heats excessively, or if its runtime has significantly decreased, it is likely worn out. Replace it following recycling guidelines.

How to dispose of the used battery?

Do not throw the battery in the trash. Dispose of it at a collection point for used batteries, in accordance with local regulations. Do not incinerate.

USER MANUAL HLXEL15HP Hähnel

1. Left Battery Compartment
2. Left battery charge LED

3. Right battery charge LED

4. Right Battery Compartment

5. Micro input USB input

B

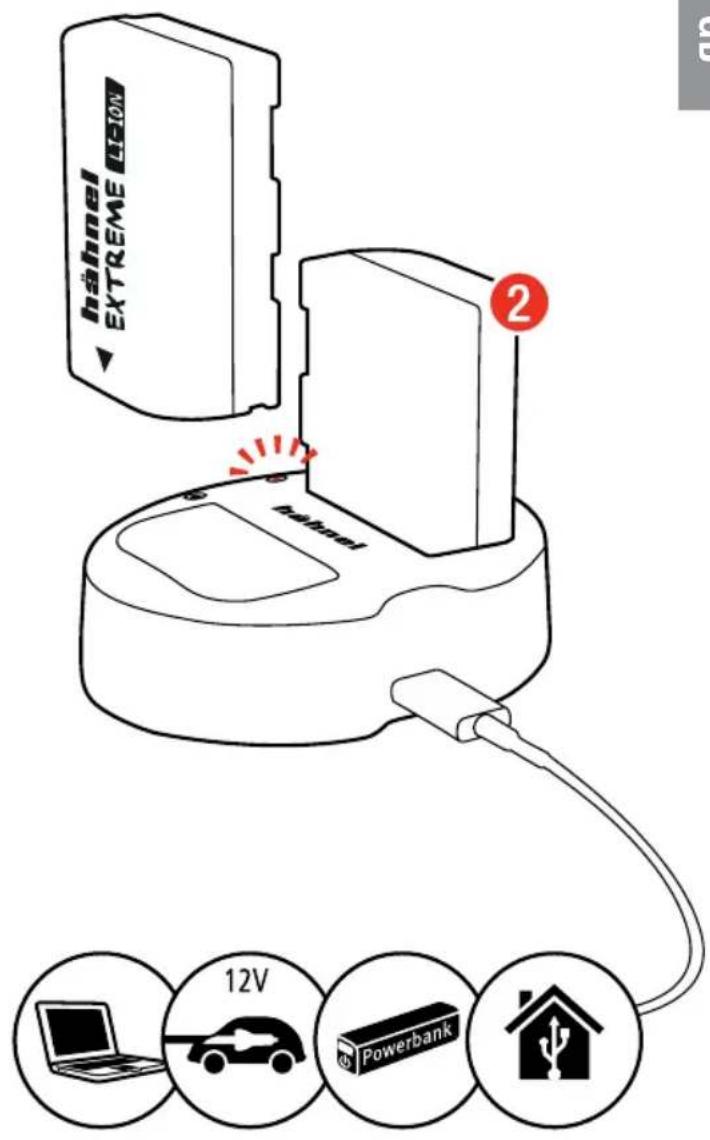

2. Connect charger to USB

B

IRL/UK How to use the Charger

1 Connect the Charger to a USB power source (i.e. USB Mains Adapter, USB Car charger, PC or laptop etc.) with the Micro USB cable supplied. The USB power source needs to provide 2.1Amps for best charge operation
2 Insert one or two batteries into the charger. The charger can charge original, hahnel and third party batteries
3 During charge the LED will light up red and will change to green when the battery is fully charged
4 Remove the battery from charger when fully charged

Charging the Battery

• The Battery must be charged before use
• Use only a charger specifically designed for Lithium Ion batteries.
• Best charging results will be achieved at temperatures between 10° and 25°C . Lower or higher temperatures can prevent complete charging
• A slight increase in battery temperature during use and charging is normal

How to store the battery

If the battery pack is not being used for a long period of time, fully charge the battery before

storage and repeat this procedure once per year to maintain optimum battery lifetime. Store the battery in the protective case supplied with the battery. Store battery in a cool, dry place.

Battery Lifetime

The lifetime of a rechargeable battery is limited. The capacity will drop progressively with use and age of battery pack. Replace the battery pack when available battery time is shortened noticeably. The battery lifetime can vary substantially depending on storage, operating conditions, the charger used and exposure to unsuitable environmental conditions. Exposure to high temperatures can shorten the battery lifetime.

CAUTION

• Do not expose battery to excessive temperatures (below 0°C or above 40°C ) or strong direct sunlight
• Do not leave battery in the trunk or on the dashboard of a vehicle, over heating can result in leaking, fire or explosion
• Battery temperature, while on charge or in use should never increase above 60°C / 140°F . If higher temperature occurs, discontinue using and stop charging immediately
• Do not store battery in wet or humid locations

• Do not store battery connected to a charger

• Do not short circuit + and - contacts. Do not store battery with metal objects. Keep battery contacts insulated when in storage or transportation

• Do not throw battery in fire and dispose of in accordance with appropriate regulation
• Do not connect battery in reverse polarity
• Do not subject battery to strong impact or continuous mechanical shocks
• Do not solder onto any of the battery contacts
• Do not dismantle or modify the battery Contents of an open battery (electrolyte) can cause, skin or eye irritation and/or respiratory irritation. In the case of any such irritation seek immediate medical attention
• Do not place battery in microwave, cooker or high-pressure container
• Do not swallow battery. If swallowed seek immediate medical attention
• Keep batteries out of reach of children
• Use only the designated charger to recharge battery
• Dispose of battery in accordance with the appropriate regulations

LIMITED WARRANTY STATEMENT

Hahnel warrants to the original end user/purchaser that for the warranty period of 1 year (European

Union 2 years) the product will be free of defects in materials and workmanship under normal use. The warranty period begins with the date of purchase. Proof of purchase must be provided with any warranty claim. Returned products must be shipped prepaid, properly packaged and insured. Hahnel does not accept any responsibility for loss or damage in transit. The liability of Hahnel under this warranty is limited to repair, replacement or refund of net price (action taken is at the discretion of the company). To the extent not prohibited by law, Hahnel will not be liable for any loss of data, revenue, profits, consequential or incidental losses including punitive damages arising out of, or relating to, the use or inability to use the product. Under no circumstances will Hahnel's liability exceed the net amount paid for the product.

Not Covered by this Warranty are:-

Product returned without proof of purchase
- Minor defects or deviation from the product specification which are immaterial, negligible in regard to product value or the function of the product
- Batteries with declining running time (reduced capacity)
- Batteries no longer accepting charge
