IAN 280636 - Scale SILVERCREST - Free user manual and instructions
Find the device manual for free IAN 280636 SILVERCREST in PDF.
| Product type | Bathroom scale |
| Brand | SilverCrest |
| Model | IAN 280636 |
| Maximum capacity | 180 kg (396 lb / 28 st) |
| Graduation | 0.1 kg / 0.2 lb / 0.01 st |
| Platform dimensions | Approx. 31.5 × 30 cm |
| Platform material | Safety glass |
| Display type | Liquid crystal display (LCD) |
| Weight units | kg, lb, st (selectable) |
| Power supply | 1 CR2032 lithium battery (3 V DC) |
| Battery life | Not specified; replace when 'Lo' is displayed |
| Turn-on | Automatic when stepping on the platform |
| Auto-off | Approx. 10 seconds after stepping off |
| Low battery indicator | 'Lo' on the display |
| Overload indicator | 'oL' on the display |
| Calibration function | Automatic after moving or changing battery |
| Intended use | Indoor, household use |
| Cleaning | Slightly damp cloth; do not immerse in water |
| Warranty | 3 years from date of purchase |
| Package contents | 1 bathroom scale, 1 CR2032 battery, 1 instruction manual |
Frequently Asked Questions - IAN 280636 SILVERCREST
User questions about IAN 280636 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scale in PDF format for free! Find your manual IAN 280636 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 280636 by SILVERCREST.
USER MANUAL IAN 280636 SILVERCREST
Operation and Safety Notes
FR BE
PESE-PERSONNE
GB/IE/NI Operation and Safety Notes
List of pictograms used
Introduction
Proper use.. 6
Parts list.. 6
Included items.. 6
Technical information.. 6
Safety advice.. Page 6
Initial use
Replacing the battery.. 8
Setting the units of weight.. 9
Switching on your product/measuring your weight Page 9
Troubleshooting
Cleaning
Disposal
Warranty

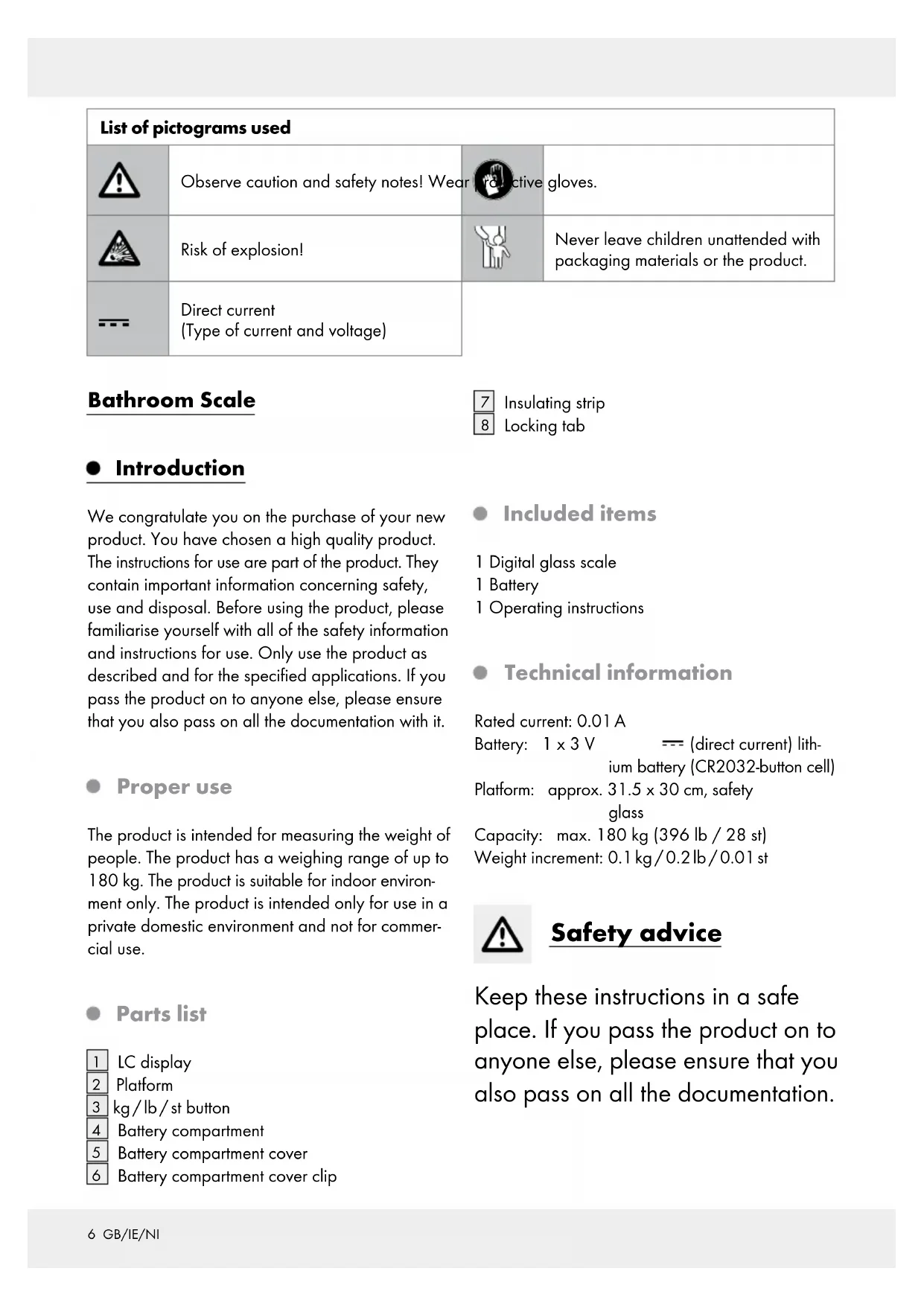

| List of pictograms used | |||
| Observe caution and safety notes! Wear reactive gloves. | |||
| Risk of explosion! | Never leave children unattended with packaging materials or the product. | ||
| - - | Direct current (Type of current and voltage) | ||
Bathroom Scale
7 Insulating strip
8 Locking tab
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Proper use
The product is intended for measuring the weight of people. The product has a weighing range of up to 180kg . The product is suitable for indoor environment only. The product is intended only for use in a private domestic environment and not for commercial use.
- Parts list
1 LC display
2 Platform
3 kg/lb/st button
4 Battery compartment
5 Battery compartment cover
6 Battery compartment cover clip
- Included items
1 Digital glass scale
1 Battery
1 Operating instructions
Technical information
Rated current: 0.01 A
Battery: 1 × 3V (direct current) lithium battery (CR2032-button cell)
Platform: approx. 31.5 × 30 cm, safety glass
Capacity: max. 180 kg (396 lb / 28 st)
Weight increment: 0.1kg / 0.2lb / 0.01 st
Safety advice
Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.
WARNING!RISK
OF LOSS OF LIFE OR
ACCIDENT TO INFANTS AND
CHILDREN! Never leave children unsupervised with the packaging materials or the product. Otherwise there is a risk to life from suffocation. Always keep children away from the product. This product is not a toy.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
CAUTION! DANGER
OF INJURY! Do not
load the product beyond 180 kg. The safety glass could break and cause cut injuries.
CAUTION! DANGER
OF INJURY! Do not step
onto the product with wet feet and do not use the product if the platform is moist. You might slip.
Protect your product from impact, moisture, dust, chemicals and sudden changes in temperature and keep it away from sources of heat (ovens, heating radiators).
Check the product for damage before bringing it into use. If the product is damaged do not use it.
Remove the battery if the product breaks down or is defective. Otherwise the battery is more likely to leak.
Always have any repairs carried out at the service centre or by an electrical equipment repair specialist.
Dangers arising from the use of batteries
WARNING! DANGER TO
LIFE! Batteries are not intended to be in the hands of children. Do not leave batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately!
CAUTION! DANGER OF EXPLOSION! Never
recharge single-use batteries. Do not short-circuit or open them. Overheating, fire or destruction
of the batteries might result. Never throw batteries into fire or water. The batteries might explode.
- Avoid extreme environmental conditions and temperatures as they may affect batteries e.g. above radiators. Otherwise the batteries are more likely to leak.
■ Exhausted or damaged batteries can cause caustic burns upon contact with the skin. To avoid this, always wear suitable protective gloves in these circumstances!
Avoid contact with the skin, eyes and mucous membranes if fluid is leaking from a battery. If you come into contact with corrosive battery fluids, flush the affected area thoroughly with clean water and contact a doctor immediately.
Remove the battery if you are not going to use the product for an extended period.
When inserting the battery, ensure the correct polarity! This is shown in the battery compartment.
Remove a spent battery immediately from the product. There is an increased danger of leaks!
Batteries must not be disposed of in the normal domestic waste!
Every consumer is legally obliged to dispose of batteries in the proper manner!
- Keep batteries away from children; do not throw batteries in the fire, short-circuit them or take them apart.
If the above instructions are not complied with, the battery may discharge itself beyond its end voltage. There is then a danger of leaking. If the battery has leaked inside your product, you should remove it immediately in order to prevent damage to the product!
- Initial use (see Fig. H)
- Open the battery compartment 4 at the back of the product by pushing the battery compartment cover clip 6 on the battery compartment cover 5 toward the battery compartment 4 and lifting off the battery compartment cover 5.
- Remove the insulating strip 7 under the battery.
- Reattach the battery compartment cover 5 to the battery compartment 4. Be sure to insert the retaining pin on the battery compartment cover 5 into the notch on the edge of the battery compartment 4.
Firmly press the battery compartment cover 5 into the battery compartment 4 until you hear it lock into place.
- Replacing the battery (see Fig. G)
-
Replace the battery when the product is not in use.
-
Open the battery compartment cover 5 as described in chapter "Initial use".
- Remove the drained battery by pulling the locking tab 8 until the battery is automatically released. Remove the battery from the battery compartment 4.
Note:The LC display 1 will show then to replace the battery. When standing on the product if the battery is low, the LC display 1 will display "Lo" (see Fig. C) and the product will automatically switch off.
Note: When the product displays "Lo", replace the drained battery with a new battery of the type specified under "Technical data".
- Insert a new battery in the battery compartment 4. Be sure to insert the battery correctly, with the ^ + ^ pole up. The battery must be pushed into the battery compartment 4 until secured in place by the locking tab 8.
- Close the battery compartment 4 as described in chapter "Initial use".
- Setting the units of weight
Note: The standard unit of weight is kilogram (kg). The factory default setting for the product as supplied is "kg".
Press the kg/lb/st button 3 to select the unit of weight. The units will be displayed in the LC display 1 as follows:
Kilogram (kg): see Figure A
Pound (lb): see Figure E
Stone (st): see Figure F
- Switching on your product / measuring your weight
Tip: Weigh yourself at the same time of day (preferably in the morning) after visiting the toilet, with an empty stomach and without clothing to ensure that your results are compatible.
Place the product down on a solid, flat horizontal surface.
Step on to the product.
Place even weight on each leg.
If at all possible stand on the same areas of the platform each time and do not move. Moving during the weighing process can lead to discrepancies in the results.
The product will start to measure immediately. After blinking 3 times, the weight display will display the result, as shown in, for example, Fig. B.
Note: If the product shows "ol" (see Fig. D), it signals that the product is overloaded. Observe the maximum capacity of 180kg (396 lb / 28 st).
Step off the platform. The product switches off automatically after about 10 seconds. Until then the weight measurement remains visible.
Note: After a change of location and following every battery change, the product must be re-calibrated. To do this, proceed as follows:
Step onto the product. The product will show you an incorrect measuring result. Step off the platform. The product will calibrate automatically.
Wait until the product switches off automatically.
Step onto the product once again. The product will show you the correct measuring result.
Troubleshooting
This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If the LC display indicates a problem, move such objects away from it.
Electrostatic charge can lead to the product failing. In cases of the product failing to work remove the batteries for a short while and then replace them.
- Cleaning
Clean the product using a slightly moist cloth. For more stubborn dirt you can also apply a weak soap solution to the cloth.
Never immerse the product in water or other liquids. Ignoring this advice may damage the product.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries!
Batteries must not be disposed of with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
