USER MANUAL HappyCare HCCV2 TELEFUNKEN

Safety advices and warnings 5

Warning. 5
Danger of electrocuon 6
Danger of burns. 8
Standards 9

Set-up and Use 10

Before rst use 10
Using your steam generator 10
✓ Ironing ps 11
Cleaning and maintenance 12

Technical informaon 13

Environment and recycling. 13

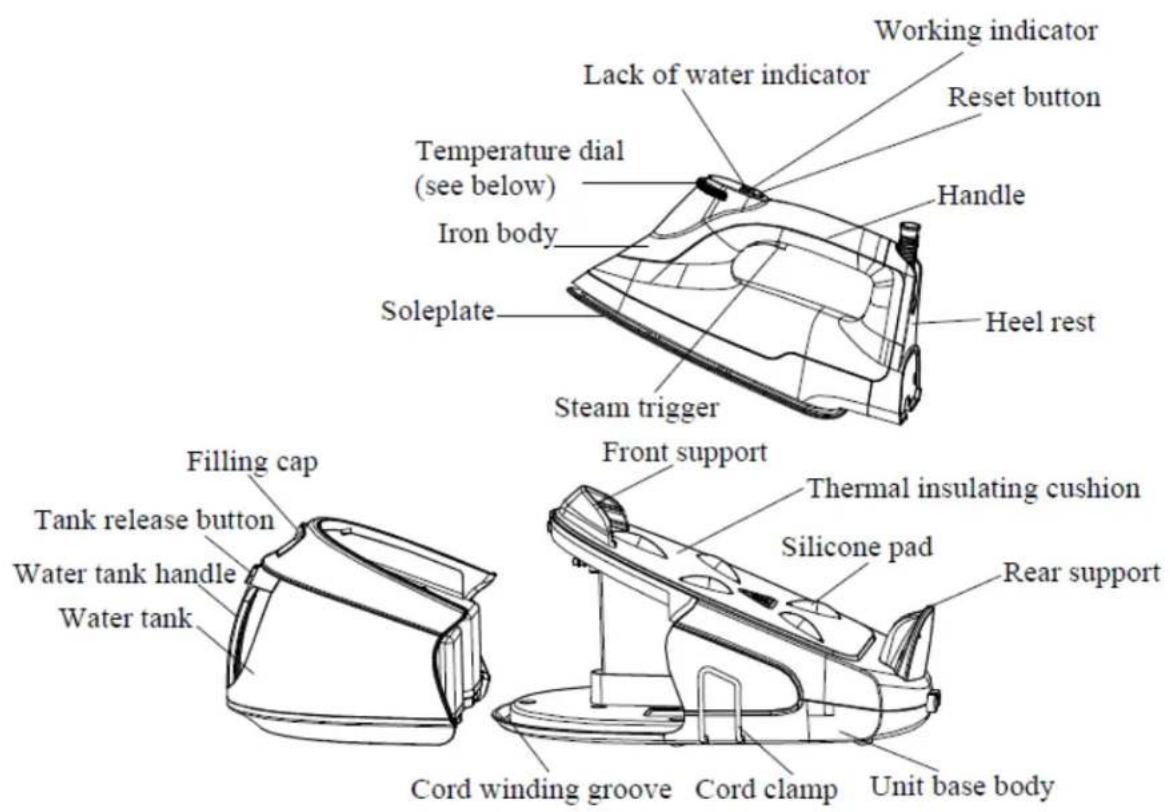

DESCRIPTION

Tank release buon

Grasp the water tank handle with the hand and press the tank release buoy with one nger, then you can take out of the water tank for lling water.

Front & Rear support

You can put the iron on the front & rear support during operaon and you can also secure the iron into front & rear support for storage aer nishing ironing.

Working indicator

Aer plug up, the working indicator will be illuminated. While the soleplate is heang up, the working indicator will be ashed. When achieve the target temperature, working indicator will be changed ashing to illuminang, which indicates you can iron with steam.

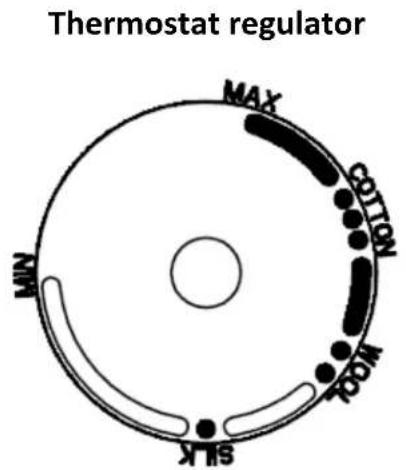

Temperature dial

Turn the dial to set ironing temperature to meet the garment changed.

Steam trigger

Press the steam trigger with a life force, the steam will be sprayed from the soleplate connuously. When loosen the steam trigger, the appliance can only be used for dry ironing without steam.

Lack of water indicator

If less water in the tank, the indicator will be illuminated, following with two "D" sounds of buzzer. It prompts you to add water into the tank.

Resetbuon

If less water in the tank, the lack of water indicator will be illuminated, at that me, you need to refill the water tank. Aerrell the water tank with water, hold and press the reset buon for about 2 seconds to make the lack of water indicator be exguished and then you can release steam for ironing.

Cord clamp

When not in use, the power cord and supply cord shall be stored. Pull out the cord clamp rst, aer winding the cords around the cord winding groove, push the cord clamp back.

SAFETY ADVICES AND WARNINGS

WARNING

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED FOR DOMESTIC HOUSEHOLD USE ONLY AND SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.
• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN.
• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.

• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.

• THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF IT HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.

• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME.
• CHILDREN FROM 0 TILL 8 YEARS SHALL NOT USE THIS APPLIANCE. THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN ABOVE 8 YEARS OLD) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. KEEP AWAY THIS APPLIANCE AND ITS ELECTRIC PLUG AWAY FROM CHILDREN UNDER 8 YEARS OLD. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• CHILDREN SHALL NOT PLAYED WITH THE APPLIANCE.

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.
• CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE

CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.

• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• NEVER IMMERSE THIS APPLIANCE IN WATER.
  FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
• NEVER USE APPLIANCE AS AN ADDITIONAL HEATING SOURCE.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE.
• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
• THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
• THE APPLIANCE IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.

• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE OR THE APPLIANCE ITSELF.

• ALWAYS UNPLUG THE APPLIANCE FROM THE MAINS SOCKET BEFORE FILLING THE TANK WITH WATER. TO ADD WATER, TURN THE STEAM GENERATOR OFF USING THE SWITCH. NEVER FILL THE APPLIANCE UNDER RUNNING WATER.

• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.
• NEVER MOVE THE APPLIANCE WHEN IN USE.

DANGER OF BURNS!

• THE STEAM GENERATOR MUST BE USED AND PLACED ON A FLAT, STABLE, HEAT AND WATER RESISTANT SURFACE. DO NOT PLACE IT ON A SOFT IRONING BOARD COVER OR ANY OTHER SOFT SURFACE. WHEN YOU PLACE THE STEAM GENERATOR ON THE IRON REST, MAKE SURE THE SURFACE ON WHICH PLACE IT IS STABLE.
• WHEN IN USE, THE SURFACES OF YOUR STEAM GENERATOR CAN REACH VERY HIGH TEMPERATURES, WHICH MAY CAUSE BURNS. DO NOT TOUCH THE HOT SURFACES OF THE APPLIANCE (ACCESSIBLE METAL PARTS AND PLASTIC PARTS ADJACENT TO THE METALLIC PARTS).

• NEVER LEAVE THE STEAM GENERATOR UNATTENDED WHEN IN USE AND UNTIL IT HAS COOLED DOWN (AROUND 1 HOUR).

• BEFORE ANY CLEANING OPERATION, WAIT UNTIL THE APPLIANCE IS COMPLETELY COLD AND HAS BEN UNPLUGGED FOR AT LEAST 1 HOUR.

• DO NOT LIFT OR MOVE THE APPLIANCE WHEN IN USE TO AVOID BURNS.
• NEVER AIM THE APPLIANCE'S STEAM JET AT PERSONS OR ANIMALS.
• DO NOT USE THE APPLIANCE CLOSE TO CURTAINS, FURNITURE OR OTHER INFLAMMABLE OBJECTS.

STANDARDS

THESE APPLIANCES CONFORM TO DIRECTIVES 73/23/EEC, 89/336/EEC, DEE 2002/96/CE, ROHS 2002/95/CE, CE 1935/2004.

SET-UP AND USE

Before rst use

1. Remove any scker, protece foil or storage cover from the soleplate.
2. Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes for the purpose of removing any residue on the soleplate according to the secon of "Steam ironing".

NOTE: It is normal that strange odor comes out from the unit for the rst use. This will cease aer a short while.

NOTE: Some parcels may come out of the soleplate when you use the iron for the rst me. This is normal; the parcels are harmless and stop coming out of the iron aer a short while.

NOTE: When you switch on the appliance, the steam staon iron may produce a pumping sound. This is normal; the sound tells you that water is pumped into the soleplate.

NOTE: During the heang process of the soleplate, there will be life steam coming out from the soleplate automatically and this phenomenon will connue for about 3 seconds.

Using your steam generator

The appliance has two funcons. You can use either as a dry ironing or a steam ironing system. The details refer to the following:

3. Dry ironing

• Put the iron on the steam staon iron's thermal insulang cushion.
• Connect the plug to wall outlet, one "D" sound of buzzer can be heard and the working indicator starts to illuminate.
• Turn temperature dial to your desired seng, which is depended on the fabric of garment, refer to IRONING TIPS laer. The soleplate starts to be heated up and the working indicator begins to ash.
• When the working indicator changes from ashing to illuminang, it means the selected temperature is reached and you now can start ironing.

WARNING: Never touch hot soleplate at any me before cooling down!

4. Steam ironing

• Grasp the water tank handle with the hand and press the tank release buoyon with one nger to move out the water tank. Open the lling cap and ll water into the water tank. You had beer use puried water with less calcium parcels. Aer it, close the lling cap. The max capacity of water tank is 1.8L, the water level shall not be exceeded the MAX mark. Replace the detachable water tank properly.
  Note: If the tap water in your area is very hard, we advise you to mix it with an equal amount of distilled water. If the water tank is not properly placed, the iron does not produce any steam.
• Put the iron on the steam staon iron's thermal insulang cushion.

• Connect the plug to wall outlet, one "D" sound of buzzer can be heard and the working indicator starts to illuminate.

• Turn temperature dial to your desired seng, which is depended on the fabric of garment, refer to IRONING TIPS laer. The soleplate starts to be heated up and the working indicator begins to ash.

• When the working indicator changes from ashing to illuminang, it means the selected temperature is reached and the steam is ready for ironing. Press the steam trigger to release steam for ironing.

Note: During ironing, the temperature indicator goes on from me to me. This indicates that the iron is heang up to the set temperature. The system may occasionally produce a pumping sound during steam ironing. This is normal and tells you that water is pumped into the soleplate.

WARNING: Do not touch hot soleplate at any me before cooling down! Never direct the steam at people! The supply cord may become hot during a long ironing session. Do not place the iron on a metal support when in use as it may damage the soleplate, always place the iron on the silicone support as it's equipped with thermal insulaon cushion designed to withstand high temperature.

• During operaon, if there is less water in the tank, the lack of water indicator will be illuminated, following with two "D" sounds of buzzer. At that me, you should rell the water tank. Aer it, press the reset buoy to reacvate the steam release funcon.

Note: Your steam generator has been designed to funcon using tap water. If your tap water is very hard water type, we advise you to mix 50% tap water with 50% of distilled water available in most shops. In some waterfront areas, your water salt content can be high; in this case we recommend using only demineralized water. Always check that the water tank is properly secured in the device aer lling.

• Aer ironing, you can put the iron the thermal insulang cushion. If there is no steam sprayed out from the soleplate within 8 minutes, the appliance will be turned o automatically. Remove the plug from the wall socket. But the soleplate is sll hot, never touch it with hand, place it on the thermal insulang cushion unl it cools down completely.
• And you can hold the iron in vercal posion and press the steam trigger to iron hanging curtains and clothes (jackets, suits, coats).
• The iron has an an-drip funcon. If iron garments too long me, the temperature of soleplate will decrease, the iron will stop coming out steam automatically and no water droplets can come out from soleplate.

Ironing ps

• Always check rst whether a label with ironing instrucons is attached to the arcle. Follow these ironing instrucons in any case.
• The iron heats up quicker than cooling it down, therefore, you should start ironing the aricles requiring the lowest temperature such as those made of synthec ber.
• If the fabric consists of various kinds of bers, you must always select the lowest ironing temperature to iron the composition of those bers.

• Silk and other fabrics that are likely to become shiny should be ironed on the inner side.

• Never iron over zip, rivet in the cloth. This will damage the soleplate. Iron around any such object.

Symbol	Fabric	Temp.	Variable steam
	Synthec bers/silk	0	X
	Wool		√
	Coon Linen	MAX	√
	Note: The symbol means: This arcle cannot be ironed!

Note: “√” stands for being able to use;
"×" stands for being NOT able to use.

Cleaning and maintenance

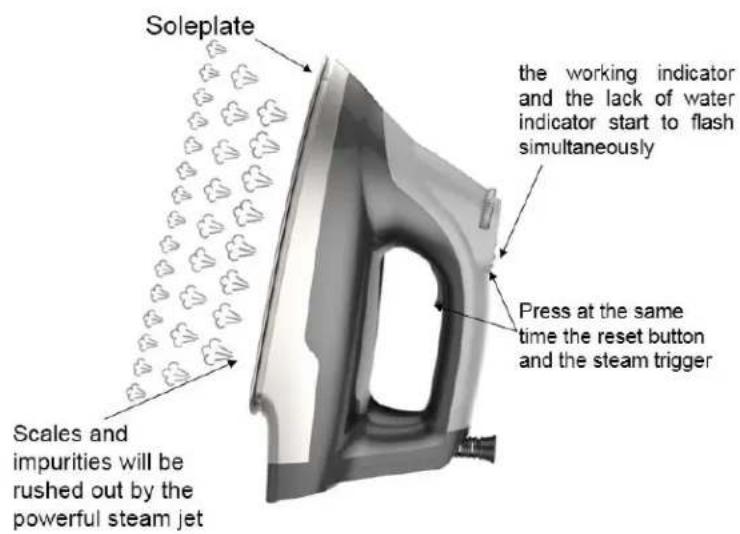

• Your steam generator is equipped with "Auto-Cleaning" funcon. Aer using for a long me, the inside of soleplate will have scale and impurity deposit. So we design the auto cleaning funcon, it will produce a large amount of steam in a life seconds, it will rush the scale and impurity out of the soleplate. Turn the temperature dial to minimum seng, press the reset buoy and steam trigger at the same me, both the indicator A and B start to ash simultaneously, at that time, the iron can be cleaned automatically.

Before cleaning, disconnect the power outlet and let the appliance cools down.

• Wipe akes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to scrape the soleplate.

• Clean the upper part of iron with a so damp cloth. Wipe the water drop on the steam staon iron and the thermal insulang cushion with dry cloth.
• When not using the appliance for a long me, pour out the water in the tank, and store the iron on the thermal insulang cushion.
• Wind the iron cord and power cord around the cord winding groove and secure it by the cord clamps.

TECHNICAL INFORMATION

Model	HCCV2
Rated voltage	200V-240V ~50Hz-60Hz
Rated power input	2000W-2400W

ENVIRONMENT AND RECYCLING

For EU product versions and/or in case that it is requested in your country:

• The materials of which the packaging of this appliance consists are included in a collecon, classicaon and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrates of substances that could be considered harmful to the environment

• The following informaon concerns the energy labeling and the ecological design:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selecve collecon of waste electrical and electronic equipment (WEEE)

This appliance complies with Directive 2012/19/EC on Low Voltage and Directive 2004/108/EC on Electromagnec Compatibility.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX

This manual instruction is also available on the following website:

http://pieces-detachees.sogedis.fr/
