USER MANUAL TFK373FE2 TELEFUNKEN

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability

of the appliance, it must be xed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open ame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, ofces and other working environments - farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualied persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridge. Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.EN

• Do not plug in damaged, torn or old plugs.

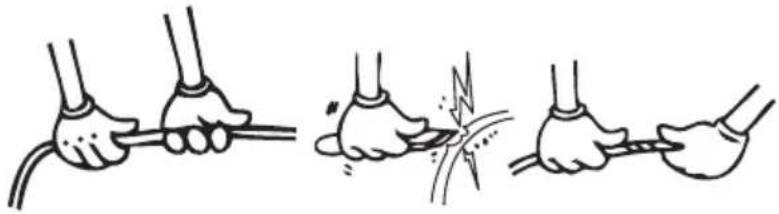

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• Do not place explosive or ammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice- cream and ice cubes immediately after you have taken them out of the freezer department!

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

• Fix the accessories in the fridge during transportation to prevent damage to accessories.EN

Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.

• Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 ampere fuse minimum. If you don’t have a receptacle conrming with this, please have it done by a qualied electrician.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

• Place your fridge in a place that it would not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or left under the rain.

• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

• The adjustable front legs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° as shown in the gure to prevent the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.EN

Before Using your Fridge

• When it is operated for the rst time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efcient operation. Otherwise, you may damage the compressor.

• Your fridge may have a smell when it is operated for the rst time; the smell will fade away when your fridge starts to cool. Information about New Generation Cooling Technology Fridges with new generation cooling technology have a different working system than static fridges. In normal fridges, humid air that enters into fridge and the water vapor that comes out from the foods, accumulates frost formation in freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be stopped. During the stopping period, to keep the foods cold, user has to extract the food to outside of fridge and user has to clear the ice during this period. In the fridges with new generation cooling technology, situation in the freezer compartment is completely different. With the aid of fan, cold and dry air is blown out through many points into the freezer compartment. As a result of the homogenously blown cold air, even in the spaces between shelves, foods are frozen equally and correctly. On the other hand there will be no frost formation. In the refrigerator compartment, there will be nearly same conguration with freezer compartment. Air, that is emitted with the fan, located at the top of refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed such that the air distribution becomes homogenous in this compartment. As there is no air passage between freezer and refrigerator compartment, there will be no odor mixing. As a result of these, your fridge with new generation cooling technology, gives you, ease of use beside the huge volume and esthetic appearance.EN

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

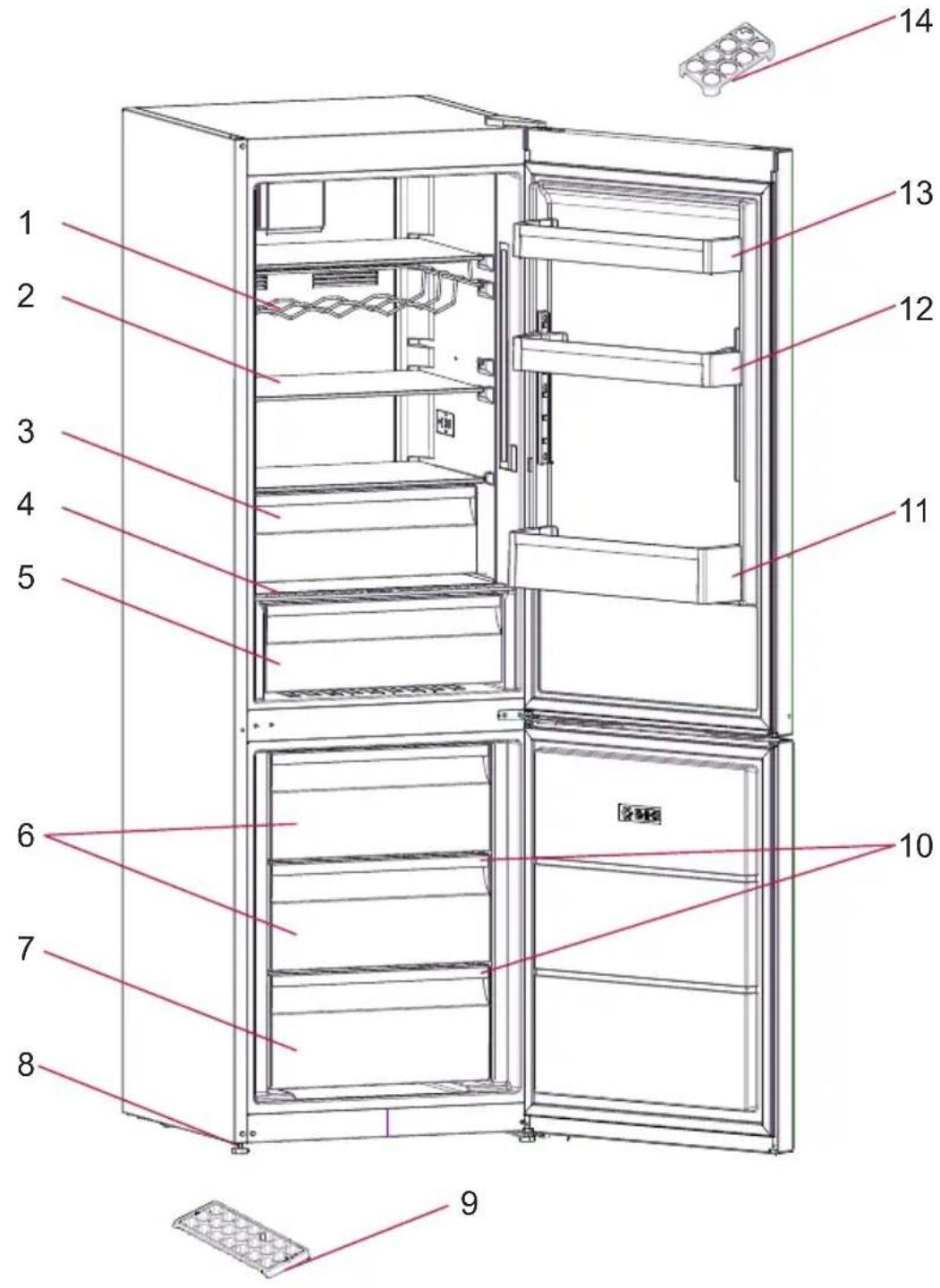

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

1) Wine rack (In some models)

3) Chiller (In some models)

10) Freezer glass shelves

12) Adjustable door shelf (In some models not adjustable)

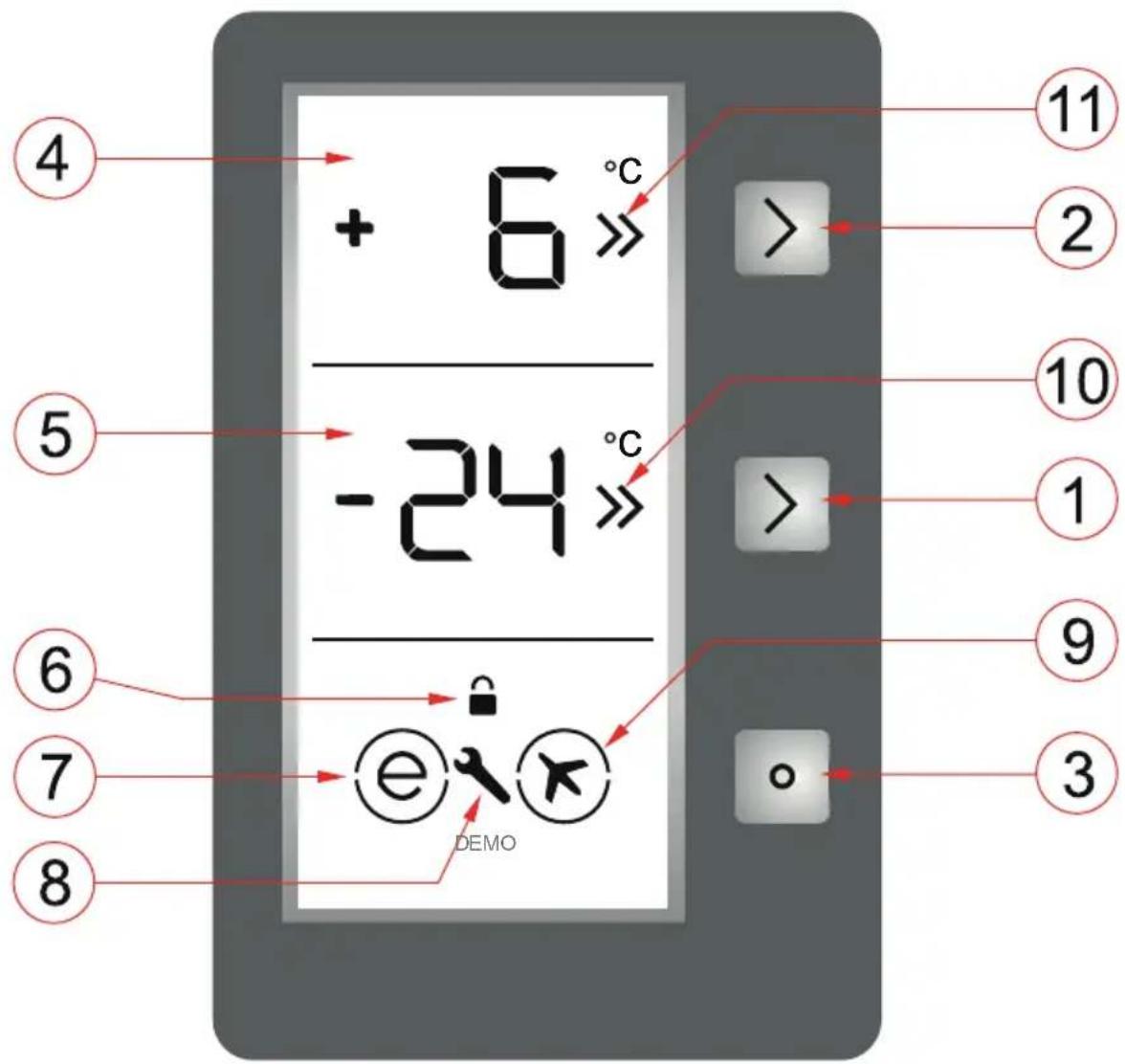

Display and control panel

DEMO Use of control panel

1. It enables the setting value of freezer to be modied and super freeze

mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C, SF.

2. It enables the setting value of cooler to be modied and super cool

mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C, SC.

3. It enables the modes (economy, holiday…) to be activated if desired.

4. It is cooler set value screen.

5. It is freezer set value screen.

6. It is child-lock symbol.

7. It is economy mode symbol.

8. It is alarm symbol.

9. It is holiday mode symbol.

10. It is super freeze indicator.

11. It is super cooling indicator.EN

Operating your fridge Super freeze mode How would it be used?

• Press freezer set button until SF letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

• Freezer temperature segment will show "SF". During this mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.

• Economy and Holiday mode can not be selected.

• Super freeze mode can be cancelled by the same operation of selecting. Super cool mode How would it be used?

• Press cooler set button until SC letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

• Cooler temperature segment will show "SC". During this mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.

• Economy and Holiday mode can not be selected.

• Super cool mode can be cancelled by the same operation of selecting. Economy mode How would it be used?

• Push "mode button" till a circle appears around economy symbol.

• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.

• Freezer and refrigerator temperature segments will show "E".

• Circle of economy symbol and E will light till mode nishes.

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button. Holliday mode How would it be used?

• Push "mode button" till a circle appears around plane symbol.

• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.

• Freezer temperature segment will show "H".

• Circle of plane symbol and H will light till mode nishes. During this mode:

• Freezer may be adjusted. When holiday mode will be cancelled , the selected setting values will proceed.

• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button. cEN

Drink cool mode When would it be used? This mode is used to cool the drinks within adjustable time. How would it be used?

• Press freezer button for 3 seconds.

• dc letters will be seen on freezer screen and the 05 blinks on cooler screen.

• Press cooler button to adjust the time (05 - 10 - 15 - 20 -

• When you select the time the numbers will blink 3 times on screen and sound beep beep.

• If no button is pressed within 2 seconds the time will be set.

• The countdown starts from the adjusted time minute by minute.

• The rest time blinks on the screen.

• To cancel this mode press freezer set button for 3 seconds. Screen saver mode How to use?

• This mode will be activated when you press on mode button for 5 seconds.

• If pressed on no button in 5 seconds when he mode is active, lights of the control panel will go off.

• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can maket he adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.

• To cancel screen saver mode press on mode button for 5 seconds again.

• When screen saver mode is active you can also activate child lock.

• If you do not press any button for 5 seconds after activating child lock, the lights of the control panel will go off. Then, you can view the previous settings and that child lock

symbol is active when you pres any button, and you can cancel child lock as is described in the instruction of that mode. Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is +4 °C.

• Press cooler button once.

• When you rst push this button, the last value appears on the setting indicator of the cooler.

• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)

Light cancelling mode When would it be used?

• If you want to cancel lights of cooler, you can select this mode.

• While pushing on freezer, cooler, mode buttons, open and close one of the doors for 3 times. The mode will be selected in this way. From now on, the lights will not come on when the function is not cancelled by the same way.

• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours. Function of Child lock When would it be used? To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance. Activating Child Lock Press on Freezer and Cooler buttons simultaneously for 5 seconds. Deactivating Child Lock Press on Freezer and Cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Freezer temperature settings

• Initial temperature value for Freezer Setting Indicator is -18°C.

• Press freezer set button once.

• When you rst push this button, the last set value will blink on screen.

• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).

• When you push the freezer set button until superfreeze symbol appears on the Freezer Setting Indicator, and if you do not push any button in 1 seconds Super Freeze will ash.

• If you continue to press, it will restart from -16°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

• When you push the cooler set button until supercool symbol appears on the Cooler Setting Indicator, and if you do not push any button in 1 seconds Super Cool will ash.

• If you continue to press, it will restart from +8°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Warnings about Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• Do not pass to another adjustment before completing an adjustment.EN

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Climate Class Ambient Temperature

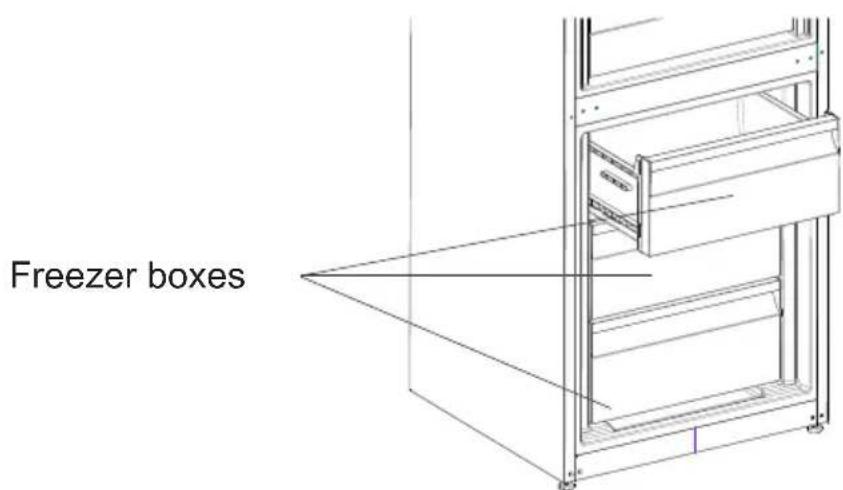

ACCESSORIES Freezer box The freezer box allows foods are maintained more regularly. Removing The freezer box;

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always Keep the handle of box while removing the box. Chiller Shelf Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and avour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw sh, lightly pickled, rice, etc... Do not put foods you want to freeze or ice trays in order to make ice. Removing the Chiller shelf

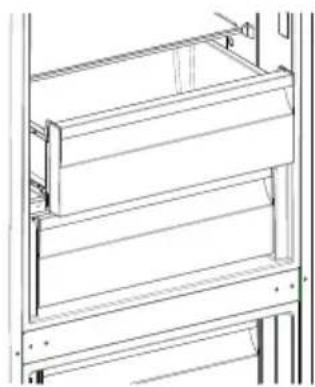

• Pull the chiller shelf out toward you by sliding on rails.

• Pull the chiller shelf up from rail to remove. Freezer boxes (In some models)EN

ACCESSORIES Humidity controler When the humidity controler in the closed position, it allows fresh fruit and vegetables to be stored longer. In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, humidity control should be taken into the open positions. Adjustable Door Shelf Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1). Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed. Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails. Adjustable Glass Shelf Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it. You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you. (In some models) Visual and text descriptions on the accessories section may vary according to the model of your appliance. (In some models) Figure -2 Figure -1 Figure -1 Figure -2EN

CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water.

• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use ammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity. Make sure that your fridge is unplugged while cleaning. Defrosting

• Your refrigerator performs fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, ows into the vaporization container behind your refrigerator and evaporates by itself in there. Evaporating trayEN

CLEANING AND MAINTENANCE

Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

• Make sure you have disconnected the plug of your refrigerator before cleaning the vaporization container.

• Remove the vaporization container from its position by unscrewing the screws as indicated. Clean it with soapy water at specic time intervals. Thus, the odor formation will have been prevented.EN

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough.

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.

• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

• You can put the fruits and vegetables into crisper without packing. Some recommendations have been specied below for the placement and storage of your food in the cooling compartment. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator. Food Maximum Storing time Where to place in the fridge department Vegetables and fruits 1 week Vegetable bin Meat and sh 2 - 3 Days Wrapped in plastic foil or bags or in a meat container (on the glass shelf) Fresh cheese 3 - 4 Days In special door shelf Butter and margarine 1 week In special door shelf Bottled products milk and yoghurt Until the expiry date recommended by the producer In special door shelf Eggs 1 month In the egg shelf Cooked food All shelvesEN

ARRANGING FOOD IN THE APPLIANCE

• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.

• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.

• Please do not place the food you shall newly freeze nearby the already frozen food.

• You should freeze the food to be frozen (meat, minced meat, sh, etc.) by dividing them into portions in such a way that they can be consumed once.

• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putreed.

• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

• If there had been humidication in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.

• During long lasting power failures, please do not open the door of the deep freeze compartment. Your refrigerator shall preserve your frozen food for about 18 hours in ambient temperatures of 25°C and for about 13 hours in ambient temperatures of 32°C. This value will decrease under higher ambient temperatures. During longer power failures, do not refreeze your food and consume them as soon as possible.EN

ARRANGING FOOD IN THE APPLIANCE

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily. Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re- frozen.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags. Some recommendations have been specied on pages 62, 63 and 64 for the placement and storage of your food in the deep freeze compartment.EN

ARRANGING FOOD IN THE APPLIANCE

Meat and sh Preparation Maximum Storing time (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packages without using spices

Giblets (pieces) In pieces 1 - 3 Bologna sausage/ salami Should be packaged even if it has membrane Chicken and turkey Wrapping in a foil 4 - 6 Goose and Duck Wrapping in a foil 4 - 6 Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets

Fresshwater shes (Salmon, Carp, Crane, Siluroidea) After cleaning the bowels and scales of the sh, wash and dry it; and if necessary, cut the tail and head.

Lean sh; bass, turbot, ounder

Fatty shes (Tunny, Mackarel, bluesh, anchovy)

Shellsh Cleaned and in bags 4 - 6 Caviar In its package, aluminium or plastic container

Snail In salty water, aluminum or plastic container

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.EN

ARRANGING FOOD IN THE APPLIANCE

Vegetables and Fruits Preparation Maximum Storing time (months) String beans and beans Wash and cut to small pieces and boil in water

Beans Hull and wash and boil in water 12 Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water

Pepper Cut the stem, cut into two pieces and remove the core and boil in water

Spinach Washed and boil in water 6 - 9 Cauliower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

Eggplant Cut to pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn

Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone

Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Adding 10 % of sugar in the container

Plum, cherry, sourberry Wash and hull the stems 8 - 12EN

Dairy Products Preparation Maximum Storing time (months) Storing Conditions Packet (Homogenize) Milk In its own packet

Pure Milk – In its own packet Cheese- excluding white cheese In slices 6 - 8 Original package may be used for short storing period. It should be wrapped in foil for longer periods. Butter, margarine In its package 6 Maximum Storing time (months) Thawing time in room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough

• Original package and foam may be kept for re- transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or x them into the fridge against shocks using bands during re-positioning and transportation. Carry your fridge in the upright position. Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE ERROR TYPE WHY WHAT TO DO

"Failure Warning" There is/are some part(s) Out of order or there is a failure in cooling process Call Service for assistance as soon as possible.

Freezer comp. Not Cold enough This caution will be seen especially after long term of power failure

1. Do not freeze the foods

that are thaw and use in short time period.

temperature to colder values or set the super freeze , until the compartment gets to normal temperature.

3. Do not put fresh food

until this failure is off.

"Refrigerator comp. Not Cold enough" Ideal temperature for Ref. Compartment is

C. If you see this warning your foods have risk of spoiling.

1. Set the refrigerator

temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.

2. Do not open the door

much until this failure is off. LF and LC "not cold enough Warning" It is the combination of LF and LC Error type You will see this failure when rst starting the appliance. It will be off after the compartments gets normal temperature

Refrigerator comp. too Cold The foods starts to freeze because of the too much cold temperature

If your fridge is not operating;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating. If your fridge is not cooling enough;

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?

• Is the door of fridge closed properly?

• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?

• Is your fridge lled excessively?

• Is there adequate distance between your fridge and the rear and side walls?

• Is the ambient temperature within the range of values specied in the operating manual? If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

BEFORE CALLING YOUR AFTER SALES SERVICE

ERROR TYPE ERROR TYPE WHY WHAT TO DO LOPO "Low voltage Warning" When the power supply gets lower than 170 V the appliance gets to steady position. This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required levelEN

• Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.

• Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in No- Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?

• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high. If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door gaskets broken or torn?

• Is your fridge on a level surface?EN

If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.

• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.

• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.EN

1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2– Allow ward food and drinks to cool down outside the appliance. 3– When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy. 4– When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste. 5– When placing food and drinks, open the appliance door as briey as possible. 6– Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc ). 7– Door gasket must be clean and pliable. Replace gaskets if worn.EN

1) Between A(low consumption) to G (high consumption)

2) Energy consumption of 126 kWh per year, calculated on the basis of

results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3) * = One Star storage is for the frozen food which keeps the inner

temparature lower than -6 °C. ** = Two Star storage is for the frozen food which keeps the inner temparature lower than - 12 °C. *** = Tree Star storage is for the frozen food which keeps the inner temparature lower than - 18 °C. **** = FOUR Star storage is for the freezing the food from +18 TO – 18 °C. It also keeps the foods under 3 star storage conditions.

4) Your fridge is designed to operate in the ambient temperature intervals

stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Conformity Information

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range.

• The appliance is designed in compliance with the EN62552, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards. TECHNICAL TABLEEN 72FR
