Local Air Conditioner User Manual Read and save these instructions before use

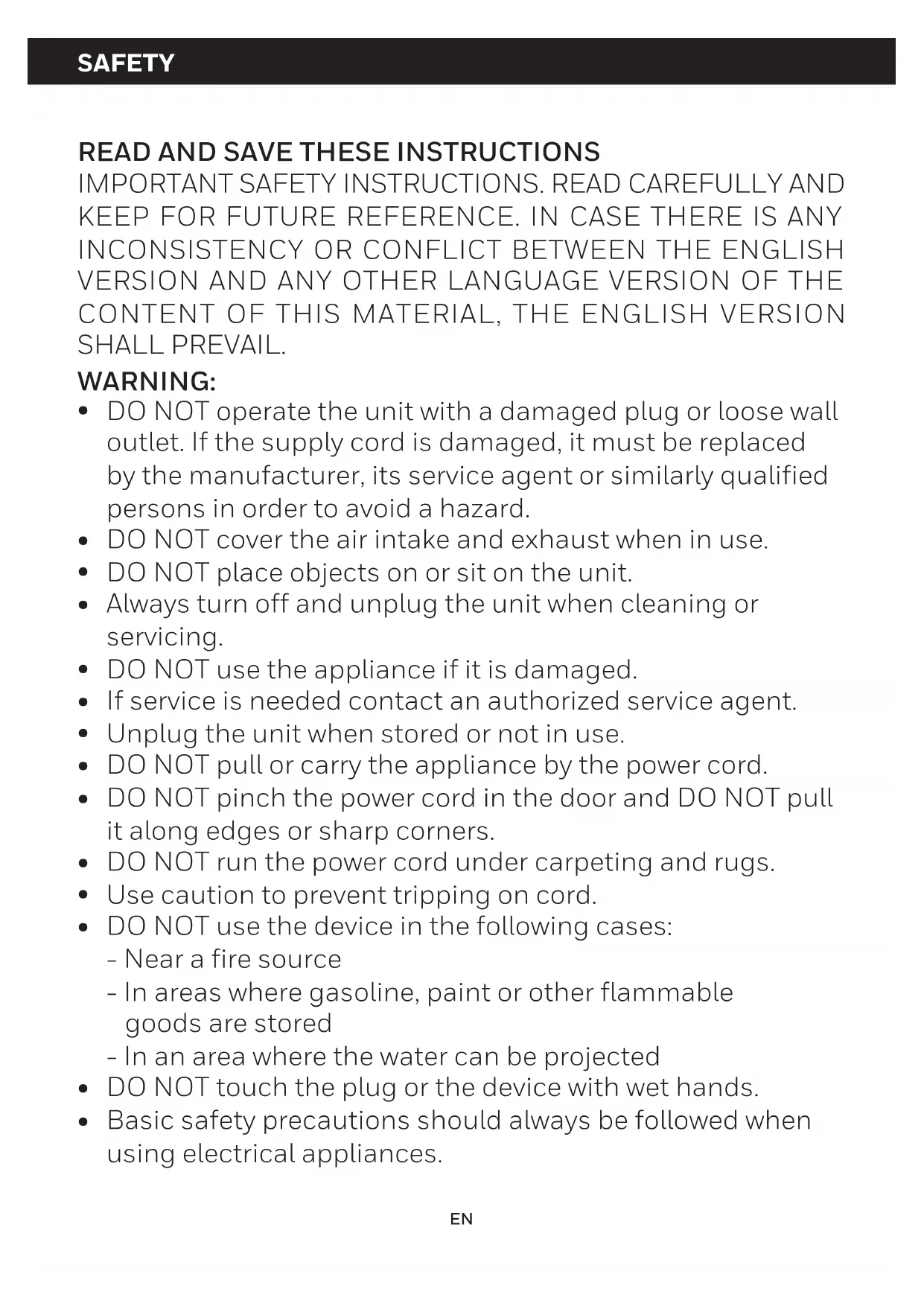

DO NOT operate the unit with a damaged plug or loose wall outlet. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. DO NOT cover the air intake and exhaust when in use. DO NOT place objects on or sit on the unit. Always turn off and unplug the unit when cleaning or servicing. DO NOT use the appliance if it is damaged. If service is needed contact an authorized service agent. Unplug the unit when stored or not in use. DO NOT pull or carry the appliance by the power cord. DO NOT pinch the power cord in the door and DO NOT pull it along edges or sharp corners. DO NOT run the power cord under carpeting and rugs. Use caution to prevent tripping on cord. DO NOT use the device in the following cases: - Near a fire source - In areas where gasoline, paint or other flammable goods are stored - In an area where the water can be projected DO NOT touch the plug or the device with wet hands. Basic safety precautions should always be followed when using electrical appliances. SAFETY

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY

ENSAFETY (CONTINUED) This appliance has been manufactured for use in domestic environments and should not be used for other purposes. Only use the installation kit provided to install this unit. DO NOT attempt to extend the hose or install this unit using other methods other than that shown in this manual. Improper installation will void any existing warranties. DO NOT use an extension cord with this unit. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Never insert your fingers or rods into the air outlet. Take special care to warn children of these dangers. The manufacturer is not liable for injury caused to persons or property damage due to non-compliance with maintenance instructions and improper use of the appliance. The appliance shall be installed in accordance with national wiring regulations. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure that they do not play with the appliance.

WARNING This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION This symbol shows that the operation manual should be read carefully. CAUTION This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. CAUTION This symbol shows that information is available such as the operating manual or installation manual. Read the instruction carefully before using the appliance. R290 refrigerant gas complies with European environmental directives. This appliance contains a certain number of grams (see rating label at the back of the unit) of R290 refrigerant gas. The maximum refrigerant charge amount is 0.3 kg. When defrosting or cleaning, do not use any method other than those recommended by the manufacturer. Do not place the appliance in a room with continuous sources of ignition (e.g. open flame, operating gas appliance or working electrical heater). Do not pierce and do not burn. Do not perforate any part of the refrigerant circuit. Refrigerant gas may be odorless. The appliance must be installed, used and stored in an area that is greater than 12 m

Accumulation of possible refrigerant leaks in an unventilated room could lead to fire or explosion should the refrigerant come in contact with electric heaters, stoves or other sources of ignition. The appliance must be stored in a way to prevent mechanical damage. Only individuals authorized by an accredited organization certifying their competence to handle refrigerants in compliance with industry legislation should work on the refrigerant circuit. Repair must be performed based on the recommendations from the manufacturer. Maintenance and repair that requires the assistance of other qualified personnel must be performed under the supervision of specialists in the use of flammable refrigerants. Additional warnings for appliances with R290 refrigerant gas.

EN1 THANK YOU Congratulations on your purchase of this Honeywell Local Air Conditioner. Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal of the appliance, please refer to the below paragraph of the manual. USER TIPS Local Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are housed in a compact unit. The air is dehumidified and cooled while a flexible hose sends heat outside. The Local Air Conditioner includes a window venting kit. No permanent installation is needed. The unit is easy to move from room to room and offers a truly flexible air conditioning solution. Auto Evaporation System - The unit automatically evaporates the condensate through the hose. There is no need to empty the drainage tank except in humid conditions. Read and follow the instructions carefully. To ensure optimal efficiency of the product, keep doors and windows closed when it is used as an air conditioner or dehumidifier. If the product is being used with the fan function only, an open window could improve air circulation.

Important: Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize. Air outlet automatically opens when the unit is turned on, and automatically closes when the unit is turned off. Manually adjust the air vent located at the top of the unit to adjust the direction of air flow. Follow installation instructions to set up the unit. Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.

(For Continuous Drain)

(Air Conditioning Mode)

93EN INSTALLATION It is important that the installation instructions below are followed for successful installation of this Local Air Conditioner. Please call Customer Support if you have any difficulties or queries regarding these installation procedures. Installation Kit: Installation Steps: Window bracket panel adapter, hose and hose connector are pre-assembled inside the package.1.

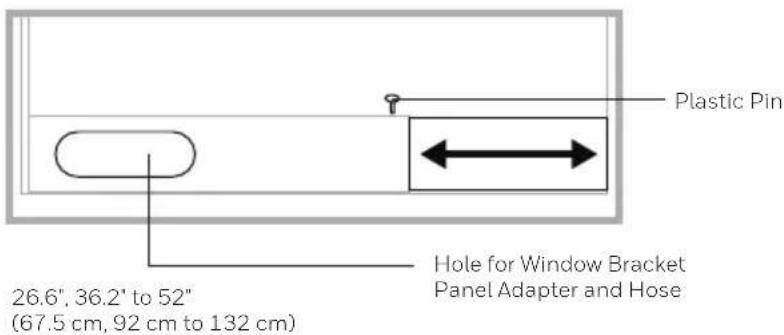

2. Adjust the window bracket as per width or height of your window and insert the plastic pin to

fix at the desired position. There is a hole where the hose will be inserted later. Make sure this hole is not blocked. Hole for Window Bracket Panel Adapter and Hose

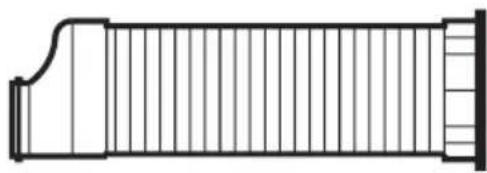

3. Hose Connector (1 Piece) 7. Foam Seal (non-adhesive) (1 Piece)

26.6", 36.2" to 52" (67.5 cm, 92 cm to 132 cm) Plastic Pin

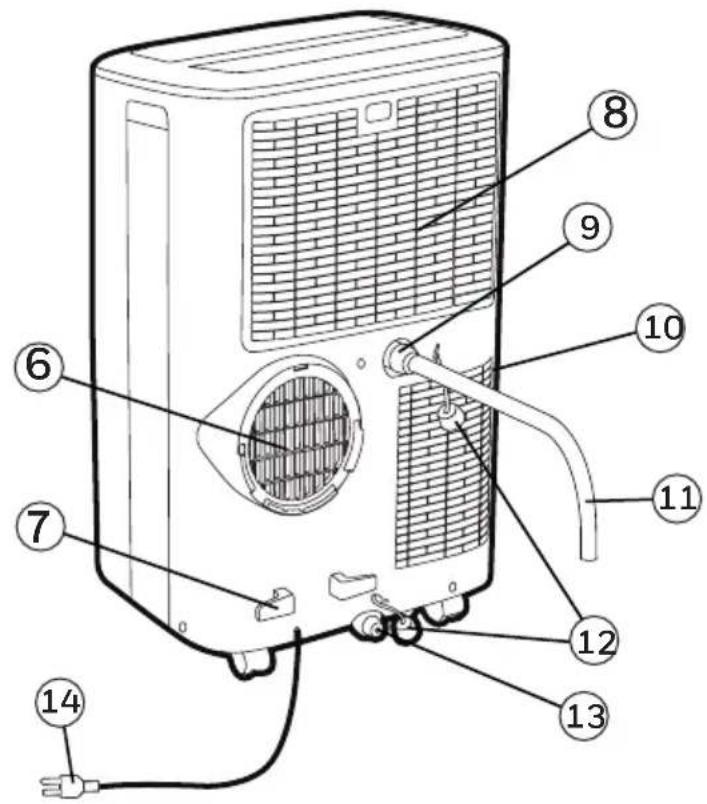

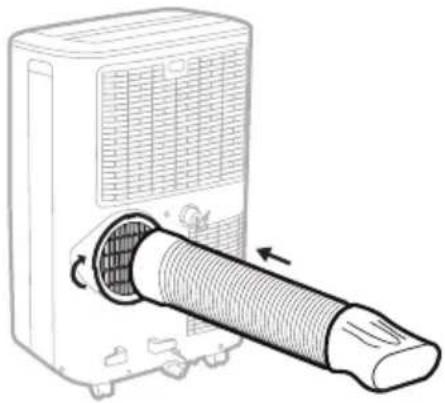

3. Connect the hose to the rear exhaust outlet on the back of the unit. Slide-in the hose connector

then rotate clockwise until it is locked in place. Note: After setting the window bracket to the size of your window, please remove it from the window and follow the instructions below. Hose: Dia. 5.9" (15 cm) Length: 10.6" to 59" (27 cm to 150 cm)

4. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are

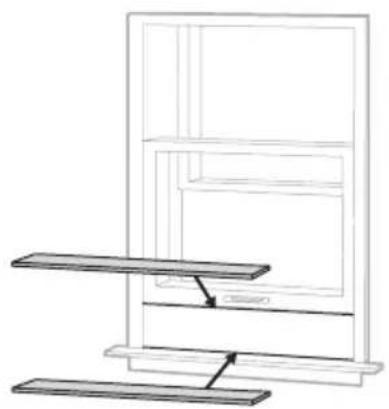

tight and installed properly. Cut the Foam Seal (adhesive) to the proper length and attach them to the window sash and frame.

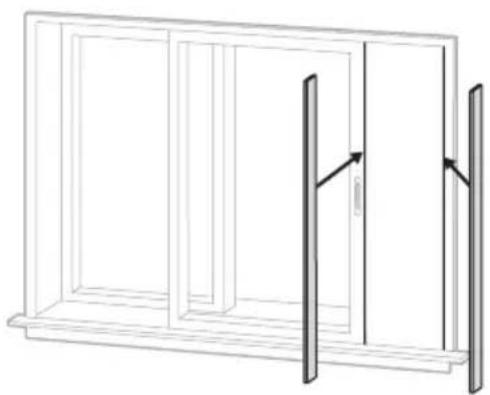

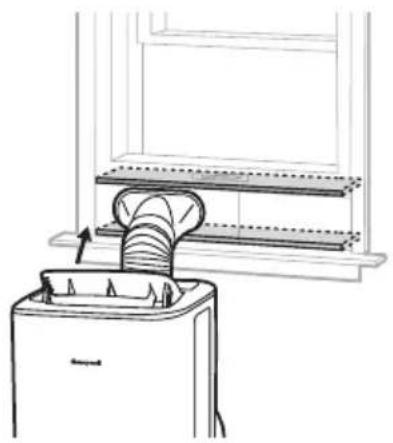

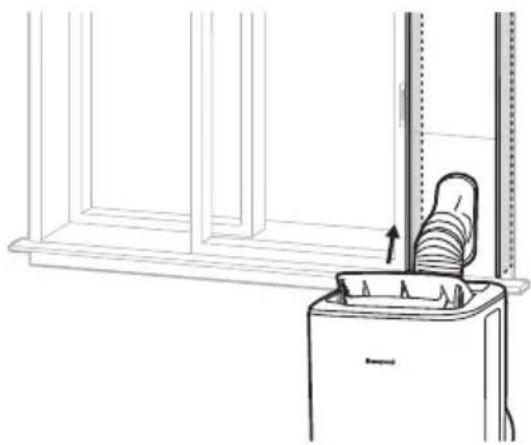

7. Cut the Foam Seal (non-adhesive) to the window length. Stuff the Foam Seal (non-adhesive)

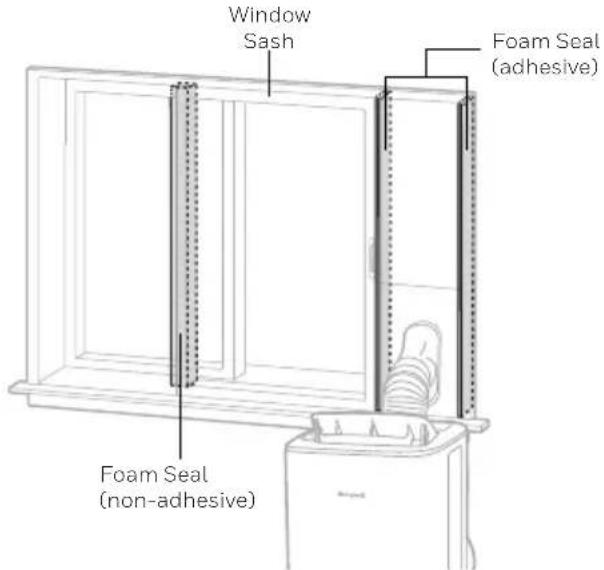

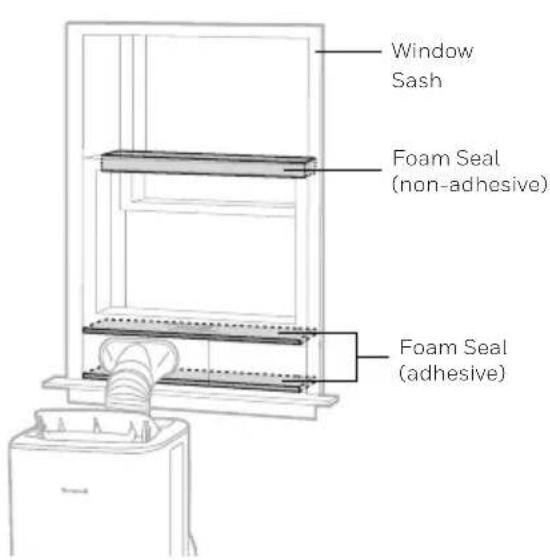

between the inner window sash and the outer window glass to prevent air and insects from getting into room. Horizontal Sliding Window Horizontal Sliding Window Vertical Sliding Window Vertical Sliding Window Foam Seal (adhesive) Foam Seal (non-adhesive) Foam Seal (non-adhesive) Window Sash Foam Seal (adhesive) Window Sash

8. The Local Air Conditioner is now ready to use.

6. Connect the window bracket to the window.6

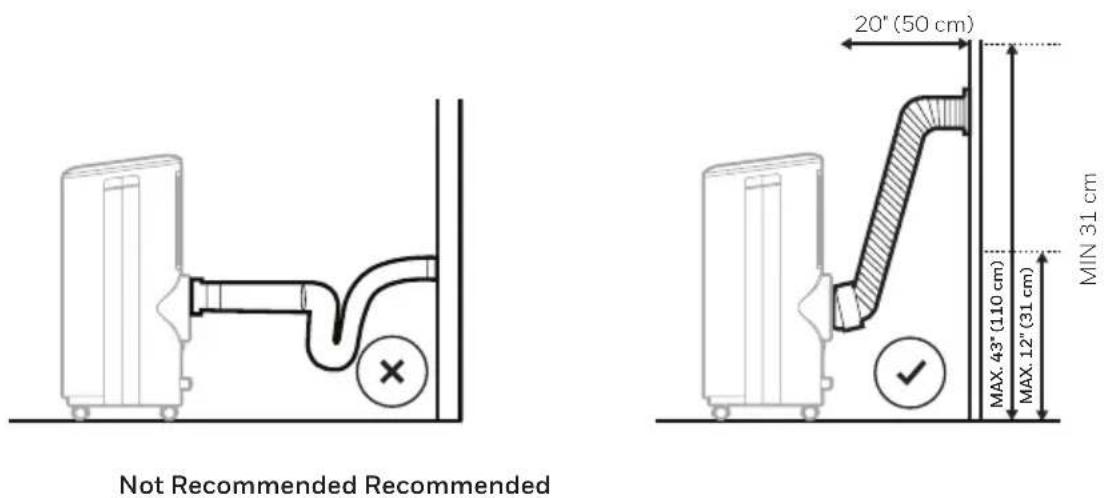

INSTALLATION (CONTINUED) IMPORTANT: Do not replace or lengthen the hose as this could cause the unit to malfunction. The supplied hose has a diameter of 5.9" (15 cm) and can be extended from 10.6" to 59" (27 cm to 150 cm). Do not bend (to the extent shown below) the hose. A bent hose will block exhaust air and cause the unit to malfunction or shut-off. Make sure the back of the unit is at least 20" (50 cm) away from the wall. Do not place the unit in front of curtains or drapes as this could obstruct the airflow.

WARNING: Any warranties included with this product will be voided if an extra extension hose is

added to the originally provided installation kit or if the installation is performed differently than the manufacturer's instructions, without proper consultation. Please contact Customer Support for help with installation procedures if needed. Note: Due to the power input of the unit on start up, voltage drops may occur and this can influence other equipment (e.g. dimming lights). Please make sure that the unit is connected to a supply with a maximum permissible system impedance Zmax = 0.306 Ohm. If you require further clarification, you may contact your local power supply authority. Not Recommended Recommended

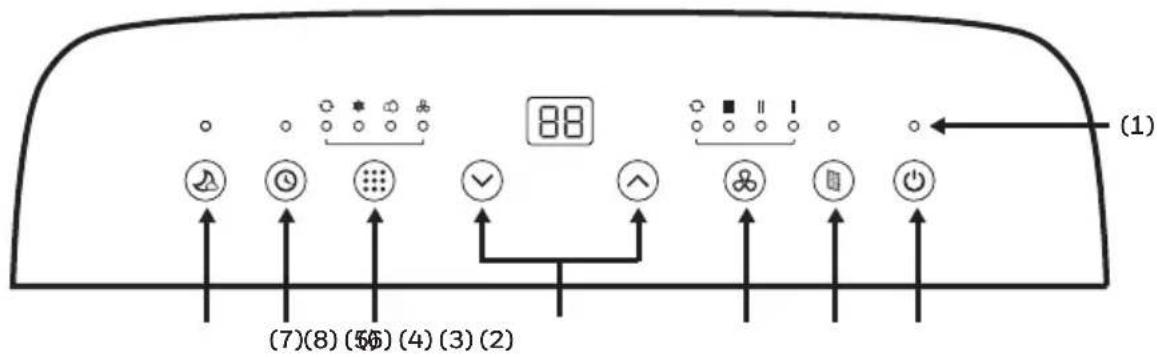

The Power Control turns the unit on and off. When the unit is plugged into an appropriate electrical outlet, the POWER indicator light will illuminate red indicating the unit is in a Standby Mode, ready to be switched on at anytime. The air vent will automatically open when the unit is turned ON and automatically close when unit is turned OFF. POWER CONTROL (6) (4) (3) (2) (1) (7)(8) (5) When the operation has reached 250 hours, the Filter Reset light will illuminate. Switch the Local Air Conditioner OFF and carefully remove filters from the unit and clean. Replace filters and press the Filter Reset button, the Filter Reset light will turn off and the operation time will be cleared. FILTER RESET 4 settings: High, Medium, Low and Auto. Note: Auto fan speed can be selected in cooling mode only.

FUNCTION BUTTONS (CONTINUED) The default display is setting temperature. In cooling mode, when or button is pressed, the set temperature is displayed and may be adjusted. Note: By pressing both or buttons at the same time, the display will toggle between Celsius (°C) and Fahrenheit (°F).

TEMPERATURE CONTROL MODE CONTROL Air Conditioning Mode (COOL) Adjust fan speed and air temperature to suit your desired comfort level. Temperature setting range is 16°C - 32°C (60°F - 90°F). Ambient temperature range is 16'C - 35'C (60'F - 95'F).

Settings: Air Conditioning, Dehumidifying, Fan, Auto. The corresponding indicator light will illuminate to indicate the current mode setting. Dehumidifying Mode (DRY) Fan speed is preset to Low. Note: If the unit will be used mainly as a dehumidifier, do not connect the hose. Continuous drainage is then necessary (refer to Continuous Draining for Dehumidifier Mode). IMPORTANT: The Dehumidifier mode is used to support moisture reduction but should not be expected to dehumidify to the same degree as a standard dehumidifier-only appliance. The built-in dehumidifier automatically adjusts dehumidification based on ambient room temperatures. It is not possible to adjust to a desired humidity percentage. The front display only shows the current and desired temperatures. It does not show humidity levels.

Fan Mode For air circulation without air conditioner cooling. Note: Auto fan speed cannot be selected in fan mode. Auto Mode Press the or button to select the temperature you want. In this mode, the unit will automatically select cooling or fan only depends on the set temperature and the room temperature. The Local Air Conditioner will control room temperature automatically around the set temperature. Note: Fan speed can't be adjusted in auto mode.

FUNCTION BUTTONS (CONTINUED) SLEEP MODE The Timer is adjustable between 1 - 24 hours. AUTO TURN OFF: While unit is running, press the Timer button and the display will flash. While the display is flashing, press the or button to select the number of hours you want the unit to turn OFF automatically. AUTO TURN ON: When unit is in a standby mode (plugged in with power light on), press the Timer button and the display will flash. While the display is flashing, press the or button to select the number of hours until you want the unit to turn ON automatically. TIMER CONTROL When the Sleep Mode is activated in Air Conditioning mode, the set temperature will increase by 1°C or 1°F after the first hour of cooling and will increase a further 1°C or 1°F after the second hour of cooling. The unit will maintain this temperature for 5 hours. The set temperature will then reduce by 1°C or 1°F on the seventh hour and reduce a further 1°C or 1°F on the tenth hour. Sleep mode will then deactivate automatically. Note: The Sleep Mode can be deactivated during cooling mode by pressing any button at any time. Condensation may accumulate in the unit. If the internal tank is full, error code "P1" will be displayed and an alarm will beep for 30 seconds. The unit will not operate until the water has been drained from the lower drain plug (refer to Water Condensation Drainage). After switching the Local Air Conditioner off, the compressor will not start immediately. You must wait about 4 minutes before it switches back on again.

WATER FULL ALARM10EN

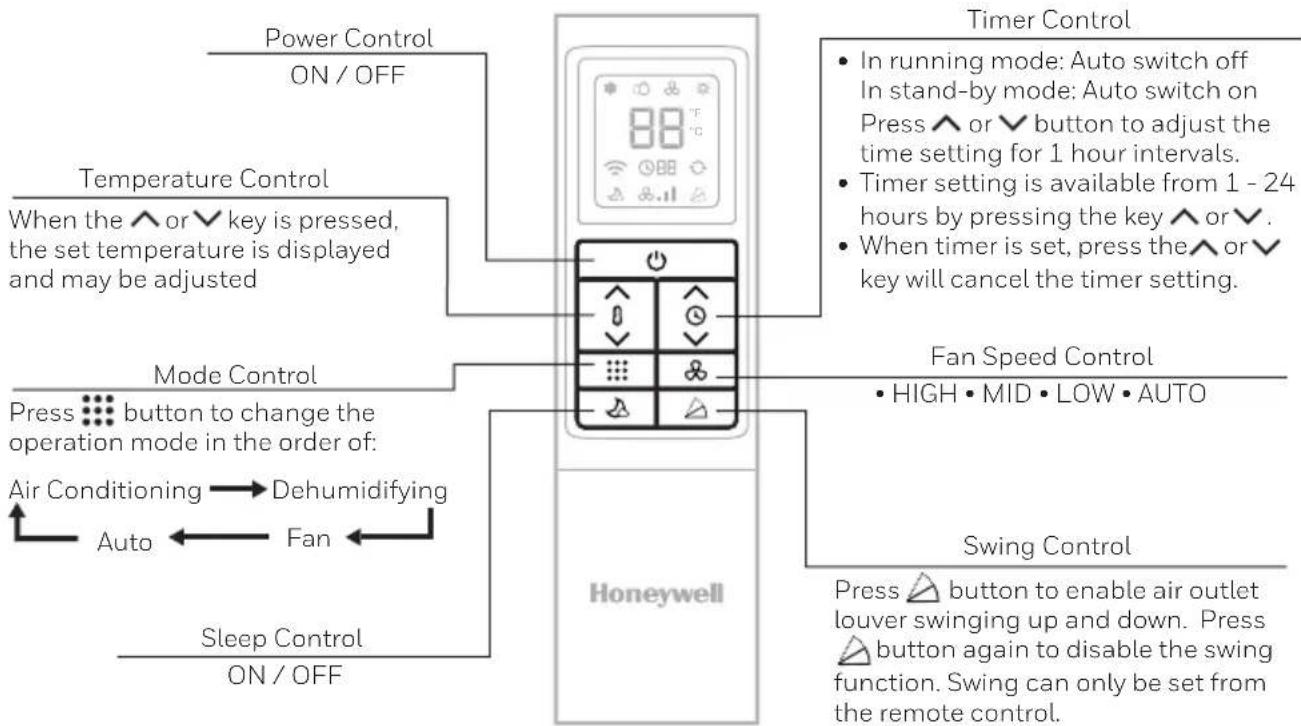

USE AND OPERATION (CONTINUED) REMOTE CONTROL All key functions can be accessed from the remote control. Use only two AAA or IEC R03 1.5V batteries. Remove the batteries if the remote control is not in use for a month or longer. All batteries should be replaced at the same time, do not mix with old batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Properly dispose of used batteries.

Power Control ON / OFF Temperature Control When the or key is pressed, the set temperature is displayed and may be adjusted

Sleep Control Swing Control In running mode: Auto switch off In stand-by mode: Auto switch on Press or button to adjust the time setting for 1 hour intervals. Timer setting is available from 1 - 24 hours by pressing the key or

When timer is set, press the or key will cancel the timer setting. Mode Control

• HIGH • MID • LOW • AUTO ON / OFF Press button to enable air outlet louver swinging up and down. Press button again to disable the swing function. Swing can only be set from the remote control. Press button to change the operation mode in the order of: Fan Speed Control Timer Control Note: Battery Installation: Remove the cover on the back of the remote control and insert two AAA batteries with + and - pointing in the proper direction according to the polarity markings.

CLEANING AND MAINTENANCE

Appliance Maintenance: Turn off the appliance before disconnecting the power supply. Only clean the appliance with a soft dry cloth.

Switch off and unplug the Local Air Conditioner from the electrical outlet. Remove the Upper Filter/ Grill, unscrew the Lower Filter/ Grill and carefully remove. Gently wash using water and/ or diluted liquid dishwashing detergent. Rinse thoroughly and gently shake excess water from the filters. Make sure the filters are dry before reinstalling. Note: You may use a vacuum cleaner to remove dust. Replace the Upper Grill onto the unit, and reinstall the Lower Grill with the screw.

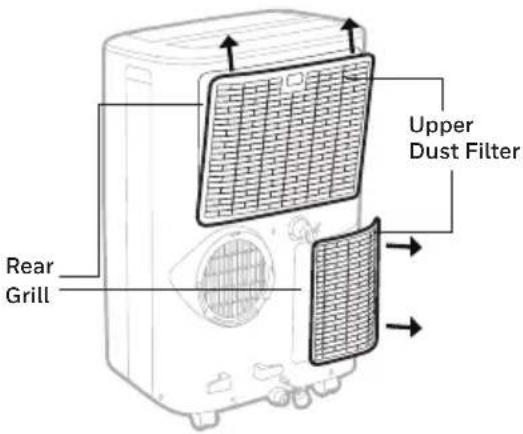

Dust Filter Maintenance: The dust filter is to be cleaned every two weeks to maintain air cooling efficiency. Please follow the below instructions for cleaning the dust filters:

WARNING: DO NOT power or operate the Local Air Conditioner when cleaning or when the Dust Filter

is removed from the unit, or if there is a loose-fitting Dust Filter. DO NOT attempt to handle or touch any of the parts or wiring inside the Rear Grill after the Dust Filter has been removed from the unit. Doing so can cause serious injury or electrical shock. Rear Grill Upper Dust Filter12 Be sure to drain the left-over water condensation. Remove the lower drain plug and use a shallow pan to collect the water (make sure to replace the deain plug cap when finished). To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing. Turn off and unplug the Local Air Conditioner from the power supply. Remove the dust filter and clean with water. Dry the dust filter and then reinstall. Disconnecting the Window Installation Kit:

Remove the Hose from the unit by rotating anti-clockwise then pulling away. Remove the Foam Seal, Window Bracket, Window Bracket Panel Adapter and Hose Connector. It is recommended to store the Window Kit parts in a bag together with the Remote Control, Drain Tube and placing them together with the Local Air Conditioner unit. If needed, you can clean the Window Kit with a damp cloth and water before storing. Make sure all parts of the Window Kit are dry before storage.

Cover the Local Air Conditioner with a cloth/ plastic bag before storage, to protect from dust and scratches collecting on the surface of the unit. It is recommended to coil the power cord before storing to ensure the cord is protected from bents and creases. Store the Local Air Conditioner in a cool, dry place, away from direct sunlight.

End of Season Storage and Maintenance: If the appliance will not be used for a long time, follow these steps:

CLEANING AND MAINTENANCE (CONTINUED)13EN

WATER CONDENSATION DRAINAGE

When there is excess water condensation inside the unit, the Local Air Conditioner stops running and shows an error code "P1" with an alarm. This indicates that the water condensation needs to be drained using the following procedures: Unplug the unit from power source. Place a shallow pan under the lower rubber drain plug. See diagram. Remove the drain plug cap. Water will drain out and collect in the shallow pan. After the water is drained, replace the drain plug cap. You can now turn on the unit.

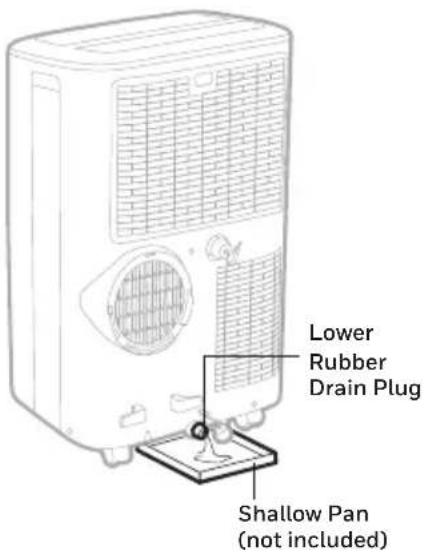

Water may need to be drained in high humidity areas. Lower Rubber Drain Plug Shallow Pan (not included) Manual Draining in Cooling, Dehumidifying and Auto Modes Unplug the unit from power source. Remove the upper drain plug cap. Some residual water may spill so please have a pan to collect the water. Connect the drain tube (included) to the upper drain plug. See diagram. The water can be continuously drained through the drain tube into a floor drain or bucket. Replace the drain plug cap. You can now turn on the unit.

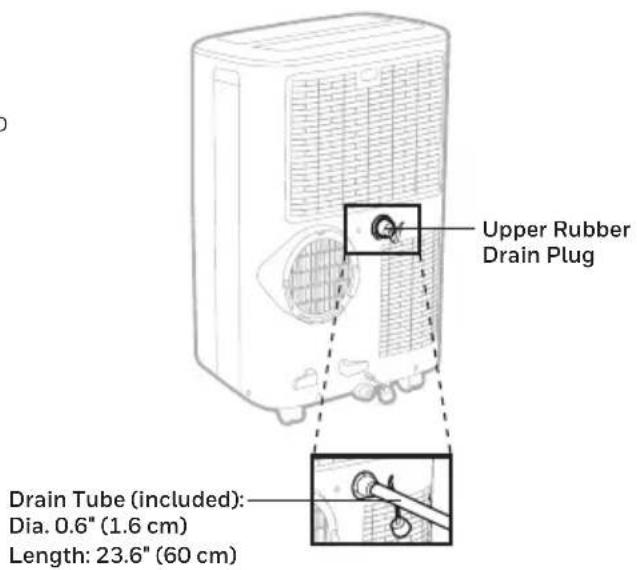

Continuous Draining for Dehumidifier Mode Drain Tube (included): Dia. 0.6" (1.6 cm) Length: 23.6" (60 cm) Upper Rubber Drain Plug While using the unit in dehumidifier mode, continuous drainage is recommended.14 TROUBLESHOOTING GUIDE The following troubleshooting guide addresses the most common problems. If problems persist, call customer support. Unplug and disconnect the appliance from the power source before attempting to troubleshoot.

PROBLEM POSSIBLE CAUSE SOLUTION

The air conditioning unit does not start No electricity. Check for power. Batteries in the remote control need to be replaced. Change remote control batteries. The power cord is not properly plugged in. Remove and reconnect the power cord. Runs a short while only The thermostat temperature setting is too close to room temperature. Lower the set temperature. Air outlet is blocked. Make sure the hose is properly connected. There are tight bends in the air hose. Connect hose as per instructions on page 4.15 TROUBLESHOOTING GUIDE (CONTINUED)

PROBLEM POSSIBLE CAUSE SOLUTION

Runs but not cooling A door or window is open. Make sure the window or door is closed. The dust filter is dirty. Clean the dust filter. The hose is detached. Reinstall hose properly (refer to Installation section). Temperature setting is too high. Reduce temperature setting. Air outlet or intake is blocked. Remove blockage. Room exceeds recommended size. Move unit to smaller room. Large size or number of windows are decreasing cooling effectiveness. Cover windows with curtains or blinds. Will not run and error code "P1" is displayed Excess water condensation inside the tank. Drain the water (refer to Water Condensation Drainage). EN16

"E1" Indoor temperature sensor failure (open circuit or short circuit). "E3" Evaporator temperature sensor failure (open circuit or short circuit). "P1" Water full alarm. EN•

WATER TANK VOL ALARM10NL

GIDS VOOR PROBLEEMOPLOSSING

PROBLEMA CAUSA POSSÍVEL SOLUÇÃO

A unidade de ar condicionado não inicia Não há eletricidade. Verifique a energia. As pilhas do controlo remoto precisam ser substituídas. Mude as pilhas do controlo remoto. O cabo de alimentação não está ligado corretamente. Retire e volte a ligar o cabo de alimentação. Funciona apenas por um curto período de tempo A temperatura definida no termostato está muito próxima da temperatura ambiente. Baixe a temperatura definida. A saída do ar está bloqueada. Certifique-se de que o tubo de exaustão está ligado corretamente. Existem dobras que apertam o tubo de exaustão de ar. Ligue o tubo e exaustão conforme as instruções na página 3.15PT GUIA DE RESOLUÇÃO DE PROBLEMAS (CONTINUAÇÃO)

PROBLEMA CAUSA POSSÍVEL SOLUÇÃO

The appliance must not be disposed of with house-hold waste, but taken to an authorized waste separation and recycling centre.
