Product Type	In-Ear Monitors
Brand	Mackie
Model	MP220
Category	Earplug (monitoring earphones)
Transducers	Dual high-precision dynamic
Sensitivity	108 dB/mW
Impedance	8 Ω
Maximum Input Power	10 mW
Frequency Response	20 kHz
Connector Type	3.5 mm stereo jack (with 6.35 mm adapter included)
Cable Length	1.5 m (59.1 in)
Weight	0.03 kg (0.07 lb)
Included Eartips	Foam, silicone, and double-flange, each type in S, M, L sizes
Included Accessories	Rigid carrying case, 3.5 mm to 6.35 mm adapter
Maintenance	Clean with a mild detergent solution. Do not immerse.
Safety Instructions	Set volume to minimum before connection, increase gradually. Avoid prolonged exposure to high sound levels (risk of hearing damage). Do not use while driving, sleeping, or in hazardous environments. Keep out of reach of children (choking hazard).
Warranty	Limited manufacturer's warranty. See www.mackie.com for details.

Frequently Asked Questions - MP220 MACKIE

How to clean the MP220 earphones?

Use a mild detergent solution to clean the earphones. Do not immerse them in water. Wipe gently with a soft cloth.

Can I replace the cable of the MP220?

Yes, the cable is detachable and uses an MMCX connector that can swivel for comfort and durability.

What types of eartips are included with the MP220?

Three types of eartips are included: foam, silicone, and double-flange, each available in S, M, and L sizes.

How to correctly insert the MP220 earphones?

Gently insert the earphones into your ears following the L/R indicators. The cable can be worn over or behind the ear. Slightly rotate the eartip if needed for a perfect fit.

What is the impedance of the MP220?

The impedance is 8 Ω.

Are the MP220 suitable for stage use?

Yes, they are designed for performers and offer exceptional sound isolation, comfort, and clarity even in noisy environments.

What to do if an eartip gets stuck in my ear?

Consult qualified medical personnel to remove it. Do not attempt to remove it yourself to avoid injury.

What is the sensitivity of the MP220?

The sensitivity is 108 dB/mW.

How to connect the MMCX cable?

Align the MMCX connector and push gently until it clicks. The connector can swivel to fit your ear.

Where to find technical support for the MP220?

Visit www.mackie.com and click on Support, or call 1-800-898-3211 (USA/Canada) Monday through Friday during Pacific business hours.

USER MANUAL MP220 MACKIE

MP-120 Single Dynamic Driver Professional In-Ear Monitors
MP-220 Dual Dynamic Driver Professional In-Ear Monitors
MP-240 Dual Hybrid Driver Professional In-Ear Monitors

OWNER'S MANUAL

www.mackie.com

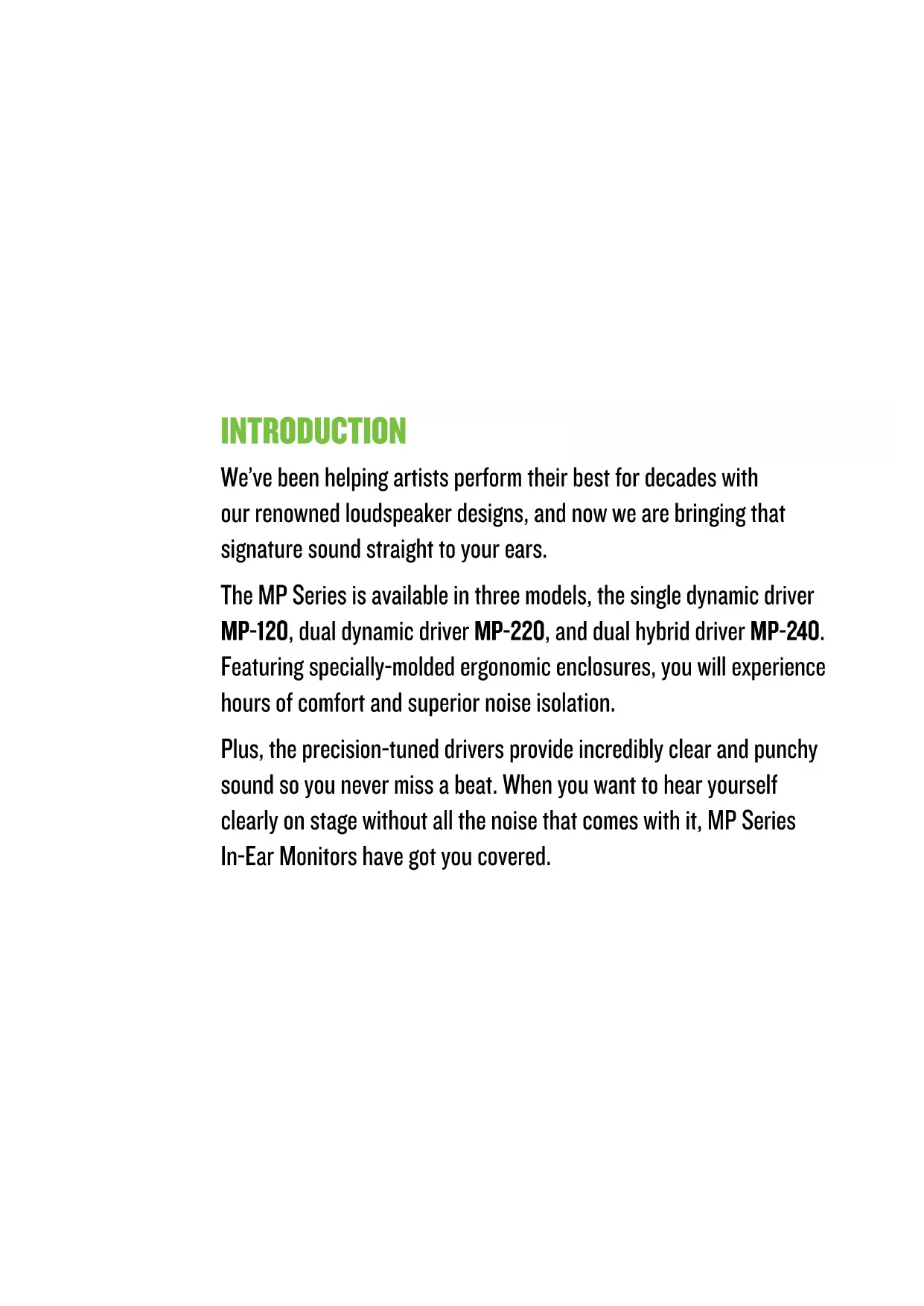

INTRODUCTION

We've been helping artists perform their best for decades with our renowned loudspeaker designs, and now we are bringing that signature sound straight to your ears.

The MP Series is available in three models, the single dynamic driver MP-120, dual dynamic driver MP-220, and dual hybrid driver MP-240. Featuring specially-molded ergonomic enclosures, you will experience hours of comfort and superior noise isolation.

Plus, the precision-tuned drivers provide incredibly clear and punchy sound so you never miss a beat. When you want to hear yourself clearly on stage without all the noise that comes with it, MP Series In-Ear Monitors have got you covered.

MP-120 Features

PROFESSIONAL IN-EAR MONITORS

• Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

PRECISION DYNAMIC DRIVER

• MP-120 in-ear monitors feature a single high-performance dynamic driver for responsive, full-range sound

MADE FOR ARTISTS

• MP-120 in-ear monitors deliver the performance and comfort that artists need to be in tune with the stage

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1 / 8'' to 1 / 4'' adapter

MP-220 Features

PROFESSIONAL IN-EAR MONITORS

• Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

MADE FOR ARTISTS

• MP-220 in-ear monitors deliver the clarity, performance, and comfort that artists need to perform their best

DUAL PRECISION DRIVERS

• With dual precision dynamic drivers, MP-220 in-ear monitors offer powerful bass response and enhanced clarity

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works best for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1/8" to 1/4" adapter

MP-240 Features

PROFESSIONAL IN-EAR MONITORS

• Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

MADE FOR ARTISTS

• MP-240 in-ear monitors deliver the incredible high-frequency clarity and dynamic response that artists need to perform their best

HYBRID DUAL DRIVER DESIGN

• Utilizing a dynamic driver for low frequencies and a Knowles® balanced armature driver for mids and highs, MP-240 in-ear monitors deliver high-fidelity, studio quality sound for artists, engineers, and audiophiles alike

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works best for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1/8" to 1/4" adapter

IMPORTANT SAFETY INSTRUCTIONS

1. Read, follow, and keep these instructions. Heed all warnings.
2. Do not use in or near dangerous environments. This includes driving, cycling, walking, jogging and other areas where traffic is present and accidents could occur.

3. Keep this product and its accessories out of reach of children. Handling or use by children may pose a risk of death or serious injury. Contains small parts and cords that may pose a risk of choking or strangulation.

4. Set the volume level of the audio device to a minimum, and then, after connecting the earphones, adjust the volume gradually. Sudden exposure to loud noises could cause hearing damage.

5. Install the in-ear monitors firmly. If an ear tip accidentally detaches and is left in your ear, it may cause injury.

6. Failure to use, clean, or maintain ear tips may increase the risk of the ear tips detaching from the nozzle and becoming lodged in your ear.

7. Prior to inserting the in-ear monitors, always recheck the ear tip to make sure it is firmly attached to the nozzle.

8. If an ear tip becomes lodged in your ear, seek skilled medical assistance to remove it. Damage to the ear may be caused by non-professionals attempting to remove the ear tip.
9. Keep in-ear monitors clean. To clean the in-ear monitors, wash outside with a mild detergent solution.

10. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

11. Do not immerse in water, such as while taking a shower, bath, or washing your face. Otherwise, sound deterioration or failures may result.

12. Do not use while sleeping as accidents may result.
13. Use a slow twisting motion to remove the earphones. Never pull on the microphone cord.
14. Stop using the earphones immediately if they are causing great discomfort, irritation, rash, discharge, or any other uncomfortable reaction.

15. If you are currently receiving ear treatment, consult your physician before using this device.

16. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss:

Duration, per day in hours	Sound Level
8 90 dB
6 92 dB
4 95 dB
3 97 dB
2 100 dB
1.5 102 dB
1 105 dB
0.5 110 dB
0.25 or less 115 dB

NOTE ON STATIC ELECTRICITY

Static electricity accumulated in the body may cause mild tingling in your ears. To minimize the effect, wear clothes made from natural materials.

Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (2012/19/EU) and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service.

GETTING STARTED

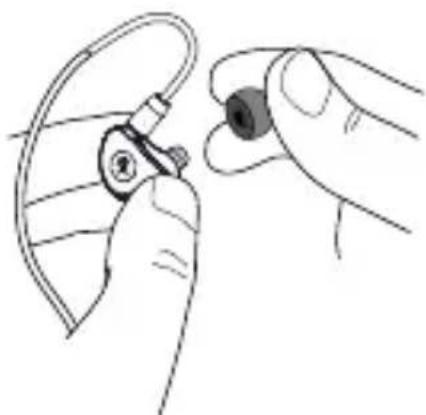

1. Select and attach one ear tip per in-ear monitor. It should easily attach by applying light pressure, but you may find that you have to rotate the ear tip back-and-forth until it's secure.

1. Your ears are important to us! Be careful of permanent hearing damage. Lower the volume on your device. Even intermediate levels may be painfully loud. Always turn the volume all the way down before connecting the in-ear monitors or doing anything new that may affect the headphone volume. Then turn it up slowly as you listen carefully.

2. Plug the connector of the in-ear monitors into the device.

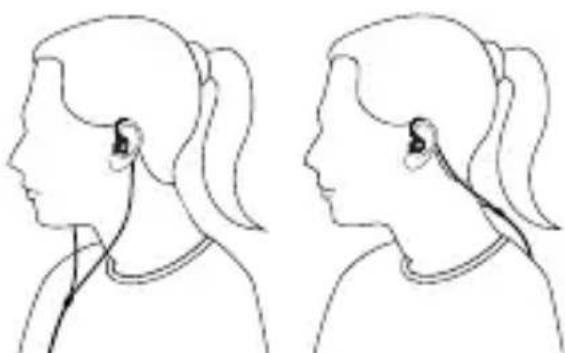

3. Carefully insert the in-ear monitors into your ears. The L/R markings are located on the inside of the in-ear monitors where the flexible over-ear piece meets the in-ear monitor.

1. The cable may be located on your front or rear side.

1. Raise the volume on your device up to a comfortably loud listening level and enjoy!

Technical Specifications	MP-120 MP-220 MP-240
Bandwidth	20 kHz
Sensitivity	mW 104 dB / mW 108 dB / mW
Maximum Input Power	0 mW 10 mW
Impedance	32 Ω	8 Ω	16 Ω
Drive Type	c Dual Dynamic Dual Hybrid
Input Type	3"·1/4" Stereo
Output Type	Ear Monitors
Cable Length	59.1 in·1500 mm
Weight	0.07 lb·0.03 kg
	All specifications subject to change

Need help with the In-Ear Monitors?

• Visit www.mackie.com and click Support to find: FAQs, manuals, and addendums.
• Telephone [phone] to speak with one of our splendid technical support chaps (Monday through Friday, normal business hours, Pacific Time).

LIMITED WARRANTY Please keep your sales receipt in a safe place.

This Limited Product Warranty ("Product Warranty") is provided by LOUD Audio, LLC. ("LOUD") and is applicable to products purchased in the United States or Canada through a LOUD-authorized reseller or dealer. The Product Warranty will not extend to anyone other than the original purchaser of the product (hereinafter, "Customer," "you" or "your").

For products purchased outside the U.S. or Canada, please visit www.mackie.com to find contact information for your local distributor, and information on any warranty coverage provided by the distributor in your local market. LOUD warrants to Customer that the product will be free from defects in materials and workmanship under normal use during the Warranty Period. If the product fails to conform to the warranty then LOUD or its authorized service representative will at its option, either repair or replace any such nonconforming product, provided that Customer gives notice of the noncompliance within the Warranty Period to the Company at: www.mackie.com or by calling LOUD technical support at 1.800.898.3211 (toll-free in the U.S. and Canada) during normal business hours Pacific Time, excluding weekends or LOUD holidays. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.

For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com.

The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Product Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.

INTRODUCCION

BESCHRÄNKTE GARANTIE

Part No. 2049160 Rev. C 01/18 ©2018 LOUD Audio, LLC. All Rights Reserved.
