USER MANUAL XRCA333 SONY

FM/AM Cassette Car Stereo

Operating Instructions

US

Mode d'emploi

FR

Owner's Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. XR-CA330/CA333 Serial No.

For installation and connections, see the supplied installation/connections manual.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Welcome!

Thank you for purchasing this Sony Cassette Player.

In addition to the cassette playback and radio operations, you can expand your system by connecting an optional CD/MD unit*1.

When you operate this unit or a connected optional CD unit with the CD TEXT function, the CD TEXT information will appear in the display when you play a CD TEXT disc*2.

1 You can connect a CD changer, an MD changer, a CD player, or an MD player.
^2 A CD TEXT disc is an audio CD that includes information such as the disc name, artist name, and track names.

This information is recorded on the disc.

READY

The "XM Ready" logo indicates that this product will control a Sony XM tuner module (sold separately).

Please see your nearest authorized Sony dealer for details on the XM tuner module.

For instructions on XM tuner operation, please refer to the XM tuner module's included instruction manual.

Precautions

• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
• If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse.
• If no sound comes from the speakers of a two-speaker system, set the fader control to the center position.
• When a tape is played back for a long period, the cassette may become warm because of the built-in power amplifier. However, this is not a sign of malfunction.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

To maintain high quality sound

If you have drink holders near your audio equipment, be careful not to splash juice or other soft drinks onto the car audio. Sugary residues on this unit or cassette tapes may contaminate the playback heads, reduce the sound quality, or prevent sound reproduction altogether.

Cassette cleaning kits cannot remove sugar from the tape heads.

Notes on Cassettes

Cassette care

• Do not touch the tape surface of a cassette, as any dirt or dust will contaminate the heads.
• Keep cassettes away from equipment with built-in magnets such as speakers and amplifiers, as erasure or distortion on the recorded tape could occur.
• Do not expose cassettes to direct sunlight, extremely cold temperatures, or moisture.

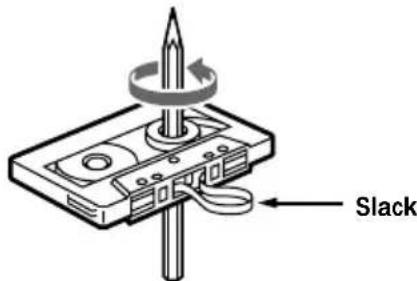

• Slack in the tape may cause the tape to be caught in the machine. Before you insert the tape, use a pencil or similar object to turn the reel and take up any slack.

Distorted cassettes and loose labels can cause problems when inserting or ejecting tapes. Remove or replace loose labels.

The sound may become distorted while playing the cassette. The cassette player head should be cleaned after each 50 hours of use.

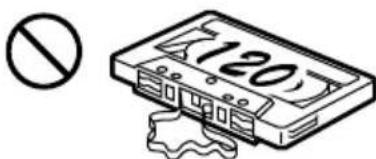

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is not recommended except for long continuous play. The tape used for these cassettes is very thin and tends to stretch easily. Frequent playing and stopping of these tapes may cause them to become entangled in the cassette deck mechanism.

Table of Contents

This Unit Only

Location of controls 5

Getting Started

Resetting the unit 6

Detaching the front panel 6

Setting the clock 7

Cassette Player

Listening to a tape 7

Radio reception during fast-forwarding or rewinding of a tape
— Automatic Tuner Activation (ATA) ..... 8

Radio

Memorizing stations automatically Best Tuning Memory (BTM) 8

Memorizing only the desired stations 9

Receiving the memorized stations. 9

Other Functions

Adjusting the sound characteristics 10

Attenuating the sound 10

Changing the sound and display settings .... 10

Boosting the bass sound D-bass 11

Selecting the sound position — "My Best sound Position" 11

With Optional Equipment

CD/MD Unit

Playing a CD or MD 12

Playing tracks repeatedly
— Repeat Play 13

Playing tracks in random order Shuffle Play 13

Additional Information

Maintenance. 14

Dismounting the unit 15

Specifications 16

Troubleshooting guide 17

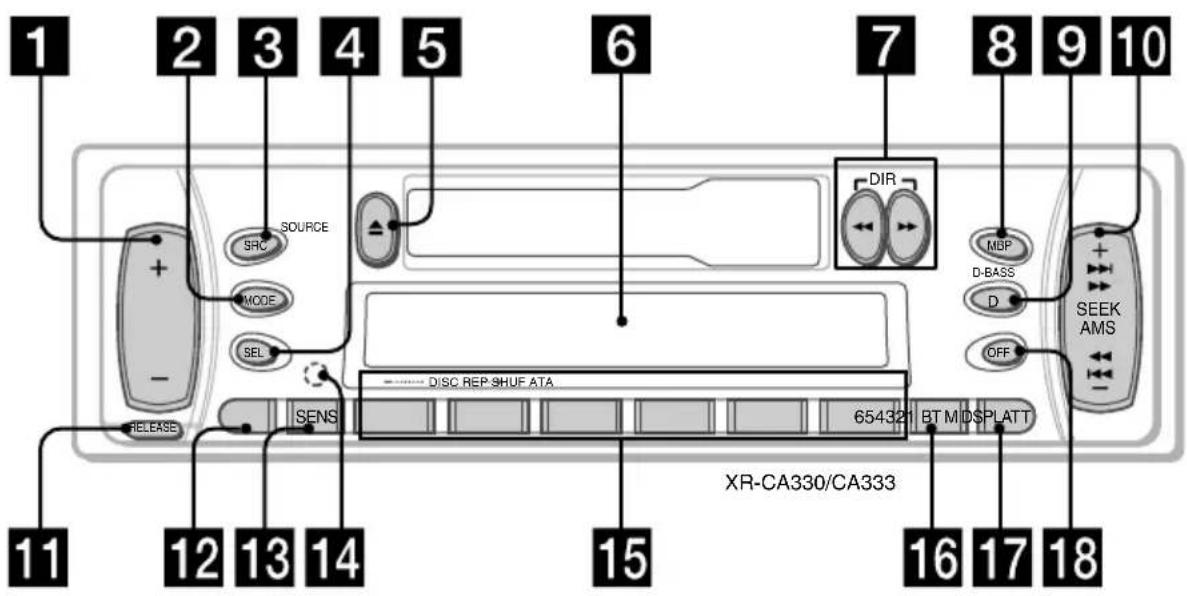

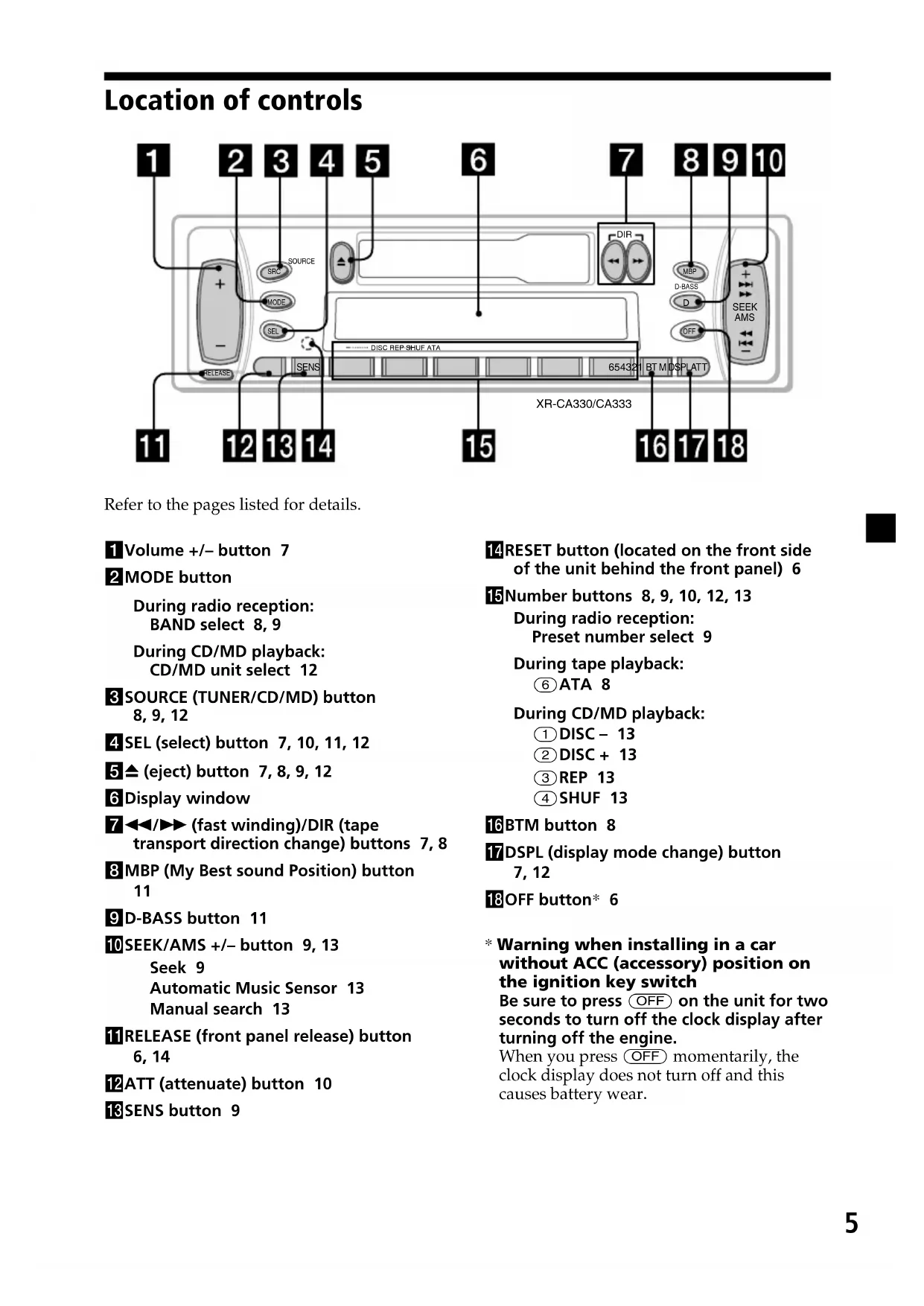

Location of controls

Refer to the pages listed for details.

Volume + / - button 7
2 MODE button

During radio reception: BAND select 8,9

During CD/MD playback: CD/MD unit select 12

3 SOURCE (TUNER/CD/MD) button 8,9,12
4SEL(select)button7,10,11,12
5 (eject) button 7, 8, 9, 12
6 Display window
(fast winding)/DIR (tape transport direction change) buttons 7,8
MBP (My Best sound Position) button 11
9D-BASS button 11
10SEEK/AMS + / - button 9,13 Seek 9 Automatic Music Sensor 13 Manual search 13
RELEEASE(front panel release) button 6,14
12ATT (attenuate) button 10
18SENS button 9

RESET button (located on the front side of the unit behind the front panel) 6
15Number buttons 8,9,10,12,13 During radio reception: Preset number select 9

During tape playback:

⑥ATA 8

During CD/MD playback:

① DISC - 13
② DISC + 13
③ REP 13
④SHUF 13

16BTM button 8
17DSPL (display mode change) button 7, 12
18OFF button* 6

• Warning when installing in a car without ACC (accessory) position on the ignition key switch Be sure to press OFF on the unit for two seconds to turn off the clock display after turning off the engine. When you press OFF momentarily, the clock display does not turn off and this causes battery wear.

Getting Started

Resetting the unit

Before operating the unit for the first time or after replacing the car battery, you must reset the unit.

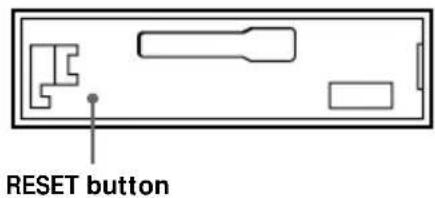

Remove the front panel and press the RESET button with a pointed object, such as a ballpoint pen.

Note

Pressing the RESET button will erase the clock setting and some memorized functions.

Detaching the front panel

You can detach the front panel of this unit to protect the unit from being stolen.

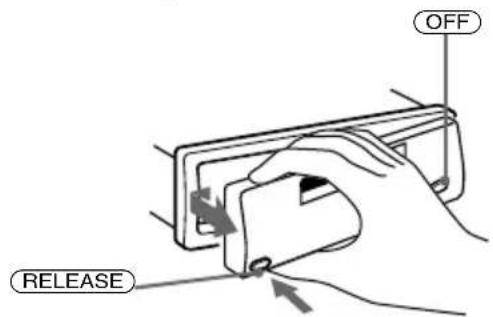

1 Press OFF
2 Press (RELEASE), then slide the front panel a little to the left, and pull it off towards you.

Notes

• Be sure not to drop the panel when detaching it from the unit.
• If you detach the panel while the unit is still turned on, the power will turn off automatically to prevent the speakers from being damaged.
• When carrying the front panel with you, use the supplied front panel case.

Attaching the front panel

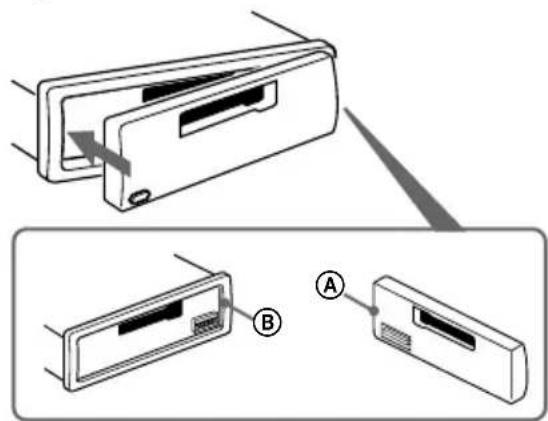

Attach part A of the front panel to part B of the unit as illustrated and push the left side into position until it clicks.

Notes

• Be sure not to attach the front panel upside down.
• Do not press the front panel too hard against the unit when attaching it.
• Do not press too hard or put excessive pressure on the display window of the front panel.
• Do not expose the front panel to direct sunlight or heat sources such as hot air ducts, and do not leave it in a humid place. Never leave it on the dashboard of a car parked in direct sunlight or where there may be a considerable rise in temperature.

Caution alarm

If you turn the car ignition off without removing the front panel, the caution alarm will beep for a few seconds.

If you connect an optional power amplifier and do not use the built-in amplifier, the beep sound will be deactivated.

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1 Press DSPL for two seconds.

The hour indication flashes.

Press either side of the volume button to set the hour.

to go forward

to go back

2Press SEL.

The minute indication flashes.

Press either side of the volume button to set the minute.

to go forward

to go back

2 Press DSPL.

The clock starts.

After the clock setting is complete, the display returns to normal playback mode.

Cassette Player

Listening to a tape

Insert a cassette.

Playback starts automatically.

The side facing up is played.

The side facing down is played.

Tip To change the tape's playback direction, press and

To stop playback and eject the cassette

Press

Fast-winding the tape

During playback, press or .

Direction indicator*	To advance	To rewind
FWD	▶	←
REV	←	→

• The indicator will flash while fast-winding the tape.

To start playback during fast-forwarding or rewinding, press the other fast-winding button partially until the locked button is released.

Radio reception during fast-forwarding or rewinding of a tape

— Automatic Tuner Activation (ATA)

When fast-forwarding or rewinding with the or button, the tuner will turn on automatically.

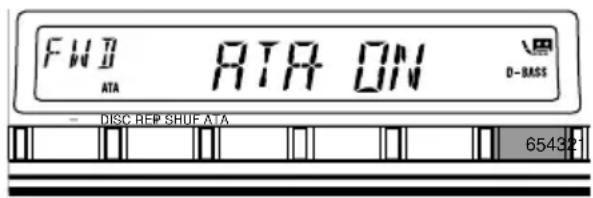

During playback, press (6) (ATA) repeatedly until "ATA-ON" in the display appears.

ATA-ON ATA-OFF

ATA mode starts.

To return to normal playback mode, select "ATA-OFF."

Radio

Memorizing stations automatically

Best Tuning Memory (BTM)

The unit selects the stations with the strongest signals and memorizes them in the order of their frequencies. You can store up to 6 stations on each band (FM1, FM2, FM3, AM1, and AM2).

Caution

When tuning in stations while driving, use Best Tuning Memory to prevent accidents.

1 Press SOURCE repeatedly to select the tuner.

In case of tape playback, press to eject the tape.

Each time you press (SOURCE), the source changes as follows:

• If the corresponding optional equipment is not connected, this item will not appear.

2 Press MODE repeatedly to select the band.

Each time you press MODE, the band changes as follows:

3 Press BTM for two seconds.

The unit stores stations in the order of their frequencies on the number buttons.

A beep sounds when the setting is stored.

Notes

• The unit does not store stations with weak signals. If only a few stations can be received, some number buttons will retain their former setting.
• When a number is indicated in the display, the unit starts storing stations from the one currently displayed.

Memorizing only the desired stations

You can preset up to 18 FM stations (6 each for FM1, 2, and 3) and up to 12 AM stations (6 each for AM1 and 2) in the order of your choice.

1 Press SOURCE repeatedly to select the tuner.
In case of tape playback, press to eject the tape.
2 Press MODE repeatedly to select the band.
3 Press either side of SEEK/AMS to tune in the station that you want to store on the number button.
4 Press the desired number button (① to ⑥) until “MEM” appears.

The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previously stored station will be erased.

Receiving the memorized stations

1 Press SOURCE repeatedly to select the tuner.
In case of tape playback, press to eject the tape.
2 Press MODE repeatedly to select the band.
3 Press the number button (1 to 6) on which the desired station is stored.

If you cannot tune in a preset station

Automatic tuning/ Local Seek Mode

Automatic tuning:

Press either side of (SEEK/AMS) to search for the station.

Scanning stops when the unit receives a station. Press either side of (SEEK/AMS) repeatedly until the desired station is received.

Local Seek Mode:

If the automatic tuning stops too frequently, press SENS repeatedly until "LOCAL-ON" appears.

"LCL" indicator is displayed.

Only the stations with relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want to listen to, press either side of (SEEK/AMS) until the desired frequency appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

During radio reception, press (SENS) repeatedly until "MONO-ON" appears.

"MONO" indicator is displayed.

The sound improves, but becomes monaural ("ST" disappears).

To return to normal mode, select "MONOFF."

Adjusting the sound characteristics

You can adjust the bass, treble, balance, and fader.

You can store the bass and treble levels independently for each source.

1 Select the item you want to adjust by pressing SEL repeatedly.

Each time you press SEL, the item changes as follows:

BAS (bass) TRE (treble) BAL (left-right) FAD (front-rear)

2 Adjust the selected item by pressing either side of the volume button.

Adjust within three seconds after selecting the item.

Attenuating the sound

Press ATT.

After "ATT-ON" momentarily flashes, the "ATT" indication appears in the display.

To restore the previous volume level, press ATT again.

"ATT-OFF" flashes momentarily.

Changing the sound and display settings

The following items can be set:

A.SCRL (Auto Scroll)* (page 12).
- M.DSPL (Motion Display) - the demonstration mode which appears when the tape is ejected and no source is selected (e.g., tuner is turned off).
- BEEP - to turn the beep sound on or off.

1 Press SEL.

2 Press the preset number button to select the desired item.

Number buttons

③:A.SCRL*
④: M.DSPL
6: BEEP

• When no CD or MD is playing, this item will not appear.

3 Press the preset number button repeatedly to select the desired setting (Example: ON or OFF).

Boosting the bass sound

D-bass

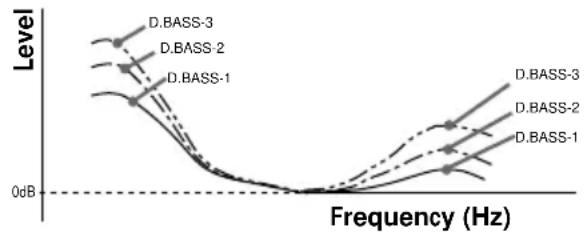

You can enjoy a clear and powerful bass sound. The D-bass function boosts the low frequency signal and high frequency signal with a sharper curve than conventional bass boost.

You can hear the bass line more clearly even while the vocal volume remains the same. You can emphasize and adjust the bass sound easily with the D-BASS button.

Adjusting the bass curve

Press D-BASS repeatedly to select the desired bass curve.

As the D-BASS number increases so does the effect.

$$ \begin{array}{l} \text {D . B A S S - 1} \longrightarrow \text {D . B A S S - 2} \longrightarrow \text {D . B A S S - 3} \longrightarrow \ \text {D . B A S S - O F F} \end{array} $$

Note

The bass sound may distort at same volume. If the bass sound distorts, select less effective bass curve.

Selecting the sound position — “My Best sound Position”

When you drive without passengers, you can enjoy comfortable sound environment by "My Best sound Position."

"My Best sound Position" has two presets, which adjusts the sound level of balance and fader. You can select one very easily with MBP button.

Display window	Balance Level		Fader Level
	Right	Left	Front	Rear
MBP-A	-4dB	0	0	-4dB
MBP-B	0	-4dB	0	-4dB
MBP-OFF	0	0	0	0

Press MBP repeatedly until the desired listening position.

Mode of "My Best sound Position" will be shown in the display in order of the table.

After one second, the display goes back to the normal playback mode.

If you want to adjust the sound level of balance and fader more precisely, you can do it in SEL button. (See "Adjusting the sound characteristics" on page 10.)

With Optional Equipment

CD/MD Unit

This unit can control external CD/MD units. If you connect an optional CD unit with the CD TEXT function, the CD TEXT information will appear in the display when you play a CD TEXT disc.

Playing a CD or MD

1 Press SOURCE repeatedly to select CD or MD.

In case of tape playback, press to eject the tape.

2 Press MODE until the desired unit appears.

CD/MD playback starts.

When a CD/MD unit is connected, all the tracks play from the beginning.

Tip

With the optional MG Memory Stick System-up Player MGS-X1 connected to this unit, press SOURCE to select "MD," then press MODE to select the unit number of the MD (MD1 or MD2, etc.).

Changing the display item

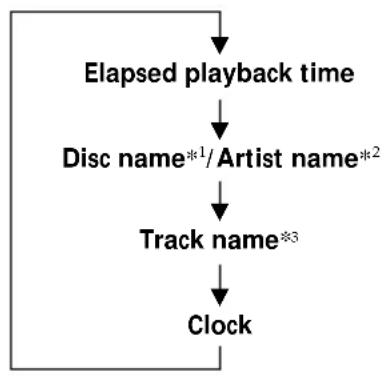

Each time you press DSPL during CD, CD TEXT, or MD playback, the item changes as follows:

• If you have not labelled the disc or if there is no disc name prerecorded on the MD, "NO NAME" appears in the display.
  2 If you play a CD TEXT disc, the artist name appears in the display after the disc name. (Only for CD TEXT discs with the artist name.)
  3 If the track name of a CD TEXT disc or MD is not prerecorded, "NO NAME" appears in the display.

Automatically scrolling a disc name — Auto Scroll

If the disc name, artist name, or track name on a CD TEXT disc or MD exceeds 8 characters and the Auto Scroll function is on, information automatically scrolls across the display as follows:

• The disc name appears when the disc has changed (if the disc name is selected).
• The track name appears when the track has changed (if the track name is selected).

If you press DSPL to change the display item, the disc or track name of the CD TEXT or MD disc is scrolled automatically whether you set the function on or off.

1 During playback, press SEL.

2 Press ③ repeatedly to select "A.SCRL-ON."

To cancel Auto Scroll, select "A.SCRL-OFF."

Note

For some discs with very many characters, the following cases may happen:

Some of the characters are not displayed.
Auto Scroll does not work.

Locating a specific track — Automatic Music Sensor (AMS)

During playback, press either side of (SEEK/AMS) momentarily for each track you want to skip.

To locate succeeding tracks

To locate preceding tracks

Locating a specific point in a track - Manual Search

During playback, press and hold either side of SEEK/AMS. Release when you have found the desired point.

To search forward

To search backward

Switching to other discs

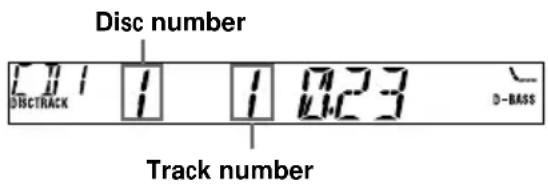

During playback, press ① (DISC-) or ② (DISC+) button.

The desired disc in the current unit begins playback.

① (DISC-): For preceding discs
(2)(DISC + ) : For succeeding discs

Playing tracks repeatedly

Repeat Play

You can select:

• REP-1 - to repeat a track.
• REP-2 - to repeat a disc.

During playback, press ③ (REP) repeatedly until the desired setting appears.

Repeat Play starts.

To return to normal playback mode, select "REP-OFF."

Playing tracks in random order — Shuffle Play

You can select:

• SHUF-1 - to play the tracks on the current disc in random order.
• SHUF-2 - to play the tracks in the current unit in random order.
• SHUF-ALL - to play all the tracks in all the units in random order.

During playback, press (4) (SHUF) repeatedly until the desired setting appears.

Shuffle Play starts.

• "SHUF-ALL" is only available when you connect two or more optional CD/MD units.

To return to normal playback mode, select "SHUF-OFF."

Additional Information

Maintenance

Fuse replacement

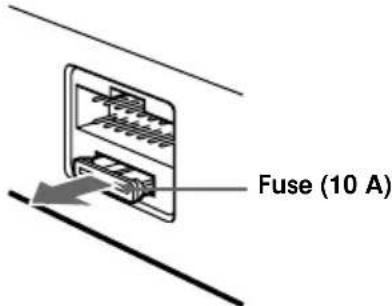

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Cleaning the connectors

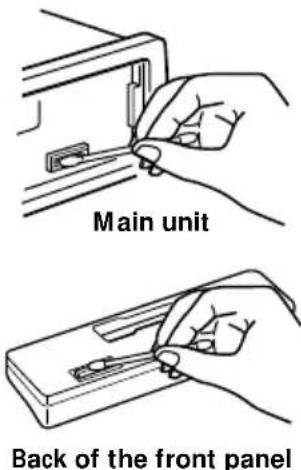

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, open the front panel by pressing (RELEASE), then detach it and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the engine before cleaning the connectors and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or any metal device.

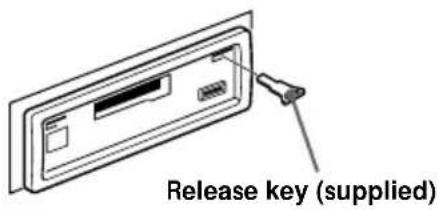

Dismounting the unit

1

2

3

4

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION 22 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20Hz to 20kHz with no more than 5% total harmonic distortion.

Other specifications

Cassette player section

Tape track 4-track 2-channel stereo

Wow and flutter 0.13% (WRMS)

Frequency response 30 - 15,000Hz

Signal-to-noise ratio 55 dB

Tuner section

FM

Tuning range FM tuning interval:

87.5-107.9MHz

(at 200kHz step)

Antenna terminal External antenna connector

Intermediate frequency 10.7 MHz

Usable sensitivity 11 dBf

Selectivity 75 dB at 400kHz

Signal-to-noise ratio 62 dB (stereo),

68 dB (mono)

Harmonic distortion at 1kHz

0.7% (stereo),

0.5% (mono)

Separation 33 dB at 1kHz

Frequency response 30 - 15,000Hz

AM

Tuning range AM tuning interval:

530-1,710kHz

(at 10kHz step)

Antenna terminal External antenna connector

Intermediate frequency 10.7MHz / 450kHz

Sensitivity 30~ V

Power amplifier section

Outputs Speaker outputs

(sure seal connectors)

Speaker impedance 4-8 ohms

Maximum power output 45W· 4 (at 4 ohms)

General

Outputs Audio output

Power antenna relay

control lead

Power amplifier control

lead

Tone controls Bass ± 10 dB at 20Hz

Treble ± 10 dB at 20kHz

Power requirements 12 V DC car battery

(negative ground)

Dimensions

Approx. 178· 50· 178mm

(7^1 / 8· 2· 7^1 / 8 in.)

(w/h/d)

Mounting dimensions

Approx. 182· 53· 161mm

(7^1 / 4 · 2^1 / 8 · 6^3 / 8 in.)

(w/h/d)

Mass

Approx. 1.2kg (2 lb 10 oz.)

Supplied accessories

Parts for installation and

connections (1 set)

Front panel case (1)

Optional accessories BUS cable (supplied via

an RCA pin cord)

Optional equipment CD changer (10 discs)

CDX-656

CD changer (6 discs)

CDX-T69

MD changer (6 discs)

MDX-66XLP

Source selector

XA-C30

MG-MS System-up Player

MGS-X1

Design and specifications are subject to change without notice.

Troubleshooting guide

The following checklist will help you remedy the problems you may encounter with your unit. Before going through the checklist below, check the connections and operating procedures.

General

Problem	Cause/Solution
No sound.	·Cancel the ATT function (page 10).·Set the fader control to the centre position for two-speaker systems.·Adjust the volume with ⊙.
The contents of the memory have been erased.	·The power cord or battery has been disconnected.·The RESET button was pressed.→Store again into the memory.
Indications do not appear in the display.	Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 14) for details.

Tape playback

Problem	Cause/Solution
The sound is distorted.	The tape head is contaminated. →Clean the head with a commercially available dry-type cleaning cassette.

Radio reception

Problem	Cause/Solution
Preset tuning is not possible.	·Store the correct frequency in the memory. ·The broadcast signal is too weak.
Automatic tuning is not possible.	·The broadcast signal is too weak. →Use manual tuning. ·The local seek mode is set to ON. →Set the local seek mode to OFF (page 9).
The stations cannot be received. The sound is hampered by noises.	Connect an power antenna control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's antenna booster. (When your car has built-in FM/AM antenna in the rear/side glass only.)
The “ST” indication flashes.	·Tune in the frequency accurately. ·The broadcast signal is too weak. →Set to MONO mode (page 9).

CD/MD playback

Problem	Cause/Solution
The sound skips.	A dirty or defective disc.

The following indications will flash for about five seconds, and an alarm sound will be heard.

Error displays (when an optional CD/MD unit is connected)

Display	Cause	Solution
NO MAG	The disc magazine is not inserted in the CD/MD unit.	Insert the disc magazine in the CD/ MD unit.
NO DISC	No disc is inserted in the CD/MD unit.	Insert discs in the CD/MD unit.
ERROR*1	A CD is dirty or inserted upside down.*2	Clean or insert the CD correctly.
	An MD does not play because of some problem.*2	Insert another MD.
	A CD/MD cannot play because of some problem.	Insert another CD/MD.
BLANK*1	No tracks have been recorded on an MD.*2	Play an MD with tracks recorded on it.
RESET	The CD/MD unit cannot be operated because of some problem.	Press the reset button of the unit.
NOT READY	The lid of the MD unit is open or MDs are not inserted properly.	Close the lid or insert the MDs properly.
HI TEMP	The ambient temperature is more than 50°C (122°F).	Wait until the temperature goes down below 50°C (122°F).

1 When an error occurs during playback of a CD or MD, the disc number of the CD or MD does not appear in the display.
2 The disc number of the disc causing the error appears in the display.

If the above-mentioned solutions do not help improve the situation, consult your nearest Sony dealer.

Felicitations!

③:A.SCRL*
④: M.DSPL
6: BEEP

La lecture CD/MD commence.
