DH 250 - Dehumidifier Orbegozo - Free user manual and instructions

Product Type	Dehumidifier
Brand	Orbegozo
Model	DH 250
Dehumidification Technology	Thermoelectric (without compressor)
Dehumidification Capacity	Approximately 250 ml/day at 30°C, 80% RH
Water Tank Volume	1.5 liters (automatic shut-off when full)
Dimensions (W x H x D)	154 mm x 218 mm x 130 mm
Power Supply	AC/DC adapter 9 V DC, 2.6 A
Power Consumption	23.4 W
Fan Type	High-speed brushless DC motor (80 mm x 80 mm)
Automatic Shut-Off When Tank Full	Yes, with yellow indicator light
Indicator Lights	Green light (on), yellow light (tank full)
Drying Function	Warm air output from both sides
Operating Temperature	Above 5°C, above 40% RH
Maintenance and Cleaning	Unplug before cleaning; use a soft cloth and a brush for the grilles
Safety	Do not open; repair by qualified professional; keep out of reach of children under 8 years
Available Spare Parts	AC/DC adapter, water tank (not specified)
Compliance	Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC

Frequently Asked Questions - DH 250 Orbegozo

How does the DH 250 dehumidifier work?

The DH 250 uses a thermoelectric technology without a compressor. Humid air enters through the air inlet (4), passes over a cooled module, and the condensed water is collected in the tank. The dry and warm air exits through the outlet (6).

What is the dehumidification capacity?

Approximately 250 ml per day at 30°C and 80% relative humidity. This is suitable for small rooms such as changing rooms or closets.

When is the tank full?

The tank has a capacity of approximately 1.5 liters. When full, the unit automatically turns off and the yellow light (3) comes on.

How to clean the device?

Before cleaning, turn off and unplug the device. Use a soft cloth for the surface and a brush for the air inlet and outlet grilles.

What to do if the device does not turn on?

Check that the AC/DC adapter is properly connected and the outlet works. If the problem persists, contact an authorized technical service.

Can I use the device continuously?

Yes, but it will automatically shut off when the tank is full. You will need to empty the tank and restart the device by pressing the ON/OFF button.

Is the device noisy?

The DH 250 is designed to be quiet thanks to its brushless motor fan. It is suitable for use in bedrooms or offices.

How to empty the tank?

Turn off the device (ON/OFF button to OFF). Remove the water tank (5) from the front, empty it, then put it back. Press ON to restart.

Where to place the device?

Place it in a closed room of small size (changing room, closet, bedroom). Ensure the grilles are not obstructed and the device is vertical to avoid leaks.

What to do in case of breakdown?

Do not open the device (risk of electric shock). Contact a qualified professional authorized by the distributor. Any repair must be carried out by a technical service.

USER MANUAL DH 250 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

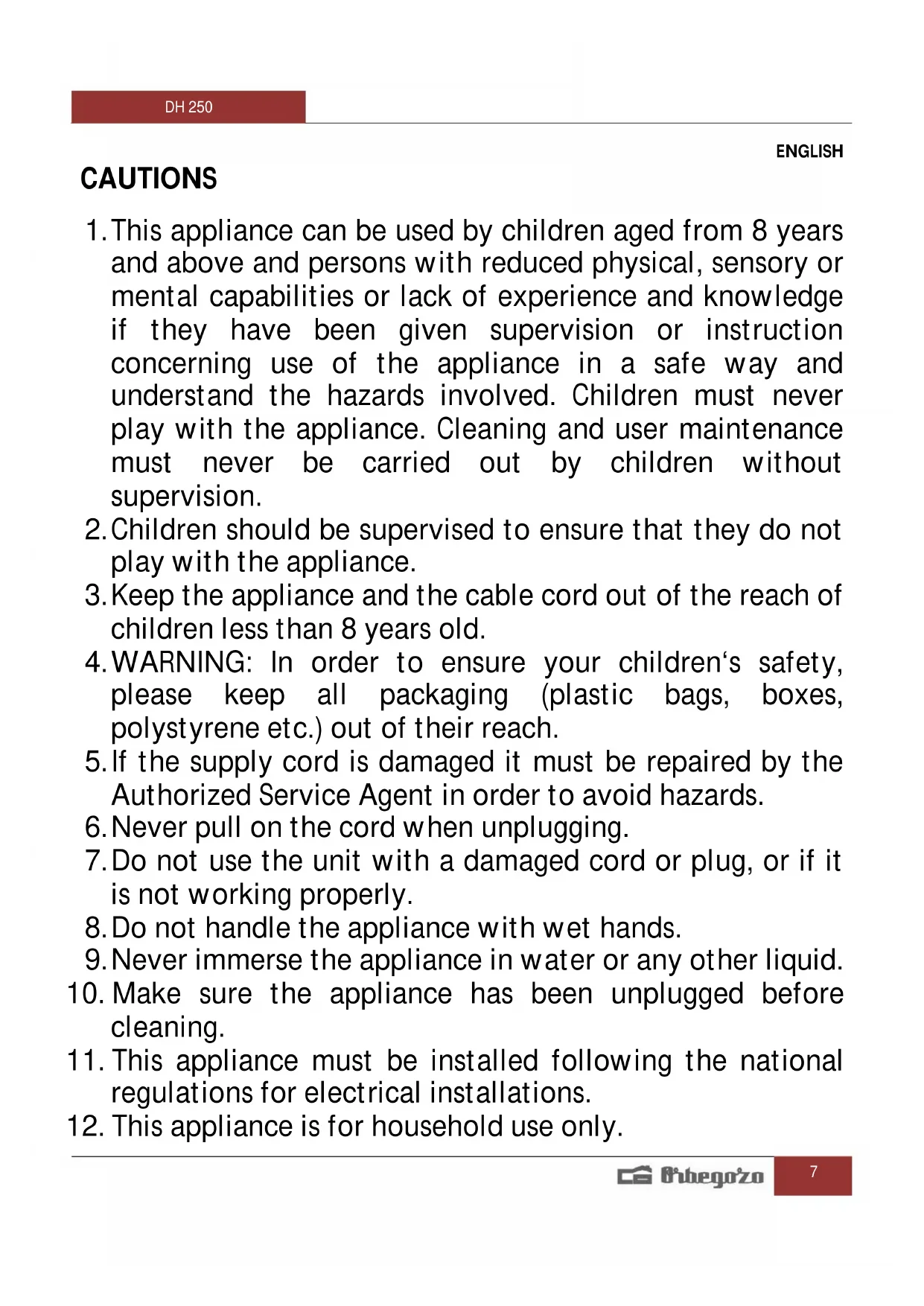

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. After having finished using the midi dehumidifier, the user should switch the unit off by pressing the On/Off button to Off position.

16. Keep the front inlet grill and the side outlets free from air blocking materials such as clothing, plastic bag or paper.
17. Always keep the unit at an up-right position to avoid water leakage.

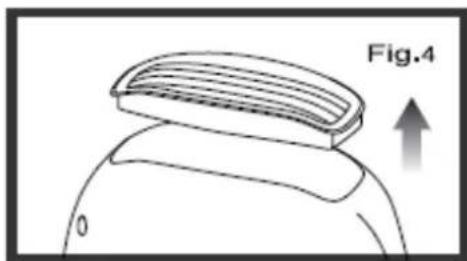

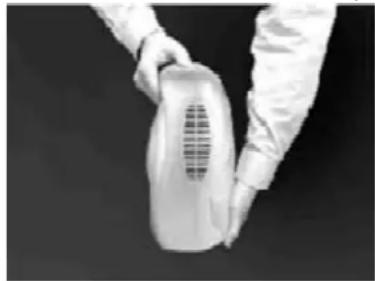

18. The thumb should be placed at the top centre of the unit while lifting by the lift-slot(7),to avoid tilting .At the same time, the other hand should be holding the base to secure the unit(as Fig.4).

• This appliance must be installed following the national regulations for electrical installations.

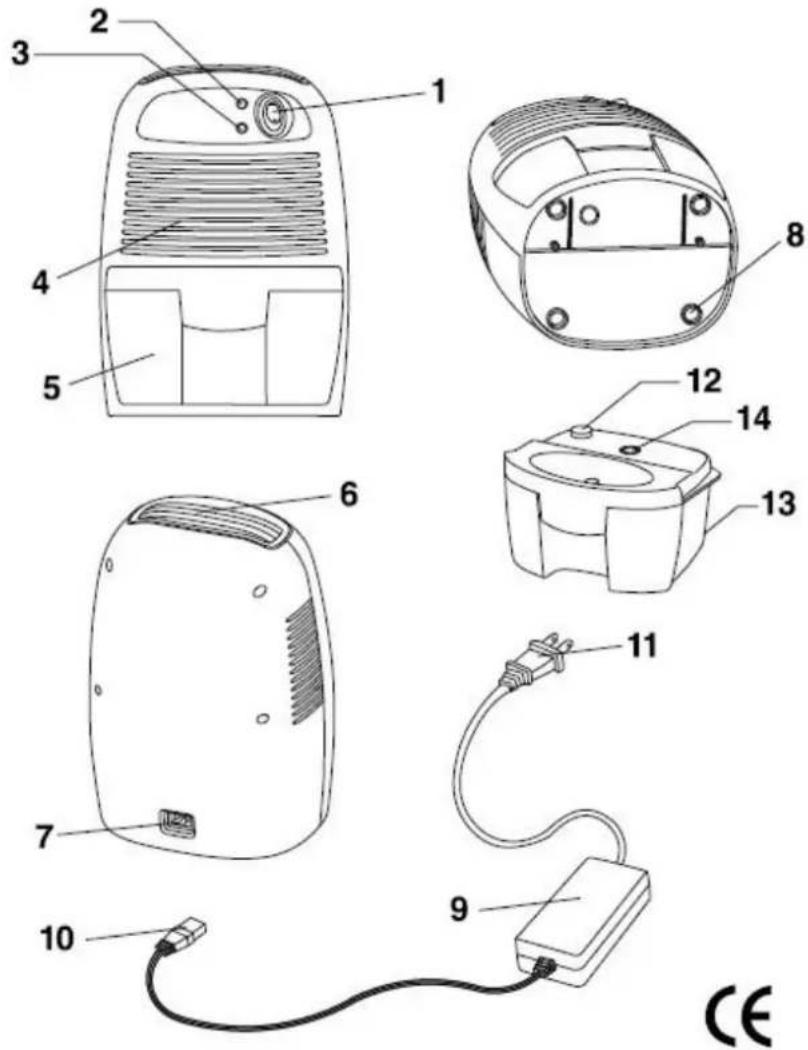

NAMES AND FUCTIONS PARTS

FEATURES

This midi Dehumidier uses Peltier technology(no compresor) which makes it light and quiet.It is perfect for small romos.Poor ventilation causes musty odour and damp in wardrobe,walk-in closet,larders,cabinet or store room,etc.The midi Dehumidifier eliminates this problem by keeping them free of unwanted moisture.

1) On/Off button.
2) 'On' Green LED
3) 'Full' Yellow LED.
4) Air inlet.
5) Removable water tank.
6) Dry air outlet.
7) DC Power socket
8) Rubber Feet.
9) AC/DC power adaptor
10) DC power jack
11) AC plug with power cord
12) Water displacement hole.
13) Water tank.
14) Hydraulic cut-off

To avoid electric shock. Do not open. There are no userservicable parts inside.
Any repair work must be done by qualified technician appointed by our distributors.
* Specifications are subject to change for improvement without prior notice.

SPECIFICATIONS

Moisture removal: Approximately 250ml per day at 30^,80% RH

Cooling Element: Thermo-electric Peltier module.

Fan: 80x80mm high speed long life DC brushless motor with turbo blades.

A.C. / D.C. power supply: 9V DC 2.6Amp.

Power consumption: 23.4W

Water tank capacity: 500ML

Water level Detector: Automatic switch off with 'Yellow' LED indicator when water tank is full.

Product dimension: 154mm (W)x218mm(H)x130mm(D)

Working environment: Over 15^ C, over 40% RH.

CONNECTION

1. After removing the packaging materials, there should be 2 items:

a. Midi dehumidifier.
b. AC/DC Power adaptor.

1. Plug the DC power jack (11) of the switching mode power supply to the DC power socket (7), then connect the AC plug(11) of the switching mode power supply to the appropriate main socket.

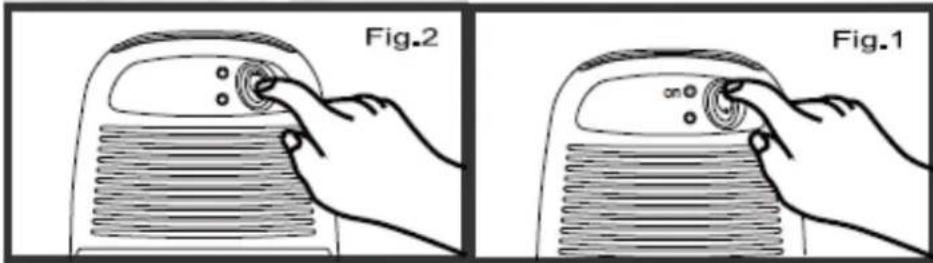

2. Press the 'On/ Off 'button(1) to 'On' position, the midi dehumidifier will begin to operate. The green LED will be turned on. Listen and feel for the air blowing form dry air outlet(fig 1).
3. To switch off the unit press'on/off' button(1) to 'Off' position, the midi dehumidifieer will be turned off.(as fig.2).

REMOVABLE WATER TANK

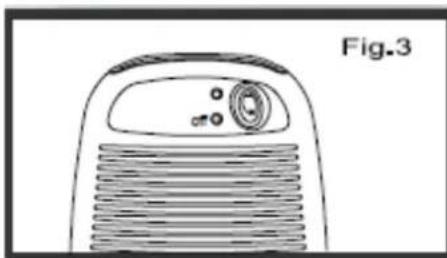

When the water tank is full, with approximately 1.5 litre of water collected, the unit will be switched off automatically and the 'Yellow' LED (3) will be on (as fig.3)

To remove the water tank, first switch off the Midi dehumidifier, press 'On/Off' button to the 'Off' position. Then, remove the water tank from the unit and pour the water out to the toilet or bathroom. Put the water tank back into the unit. To continue dehumidifying, press the 'On/Off' button to 'On' position again.

CLEANING

Before cleaning the unit, turn off the Midi Dehudifier and unplug the AC plug from the main socket first. Use a piece of soft cloth to clean the surface of the product or use a bruch to wipe the dust off the grills of the air inlet(4) and air outlet(6).

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that spose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
