Product type	Travel scale (luggage scale)
Brand	Orbegozo
Model	PC 4500
Maximum capacity	50 kg (110 lb)
Accuracy	50 g (0.1 lb)
Units of measurement	kg / lb
Display	LCD screen, digit height 9 mm
Power supply	1 lithium CR2032 battery (3 V)
Functions	Zero / tare, unit conversion, weight lock, auto-off after 2 minutes
Indicators	Low battery ("Lo"), overload
Material	ABS plastic
Dimensions (L x W x H)	Approximately 150 x 30 x 50 mm
Weight	Approximately 120 g (without battery)
Color	Not specified (generally white or gray)
Included accessories	Strap, hook, CR2032 battery
Maintenance	Clean with a damp cloth, do not immerse
Safety	Do not use near a microwave oven or mobile phone; keep out of reach of children
Warranty	2 years (legal compliance)
Spare parts	CR2032 battery (commercially available)
Repairability	Not user-serviceable; contact an authorized specialist

Frequently Asked Questions - PC 4500 Orbegozo

How to turn the PC 4500 scale on and off?

To turn on, press the button. To turn off, hold the button for 3 seconds. The scale beeps once when shutting down.

How to use the tare function?

After lifting the scale and obtaining a locked weight, press the button to reset the display to zero. The scale beeps once and you can start a new weighing.

How to change the weight unit (kg/lb)?

Turn off the scale. Hold the button for about 3 seconds. The display shows zero and the unit flashes. Press the button to select the desired unit. After 3 seconds, the unit is set.

What does 'Lo' display on the screen mean?

The 'Lo' display indicates that the battery is low. Replace it with a new CR2032 lithium battery.

How to replace the scale battery?

Remove the battery compartment located on the right by pressing the latches. Pull corner A to remove the old battery. Insert the new battery observing polarity. Replace the compartment.

What to do if the screen displays 'Err' or overload?

The overload indicator appears if the weight exceeds 50 kg. Remove the object immediately to avoid damaging the scale.

How to clean the scale?

Wipe it with a slightly damp cloth. Never immerse it in water and do not use abrasive or chemical products.

Can the scale be used near a microwave?

No, maintain a minimum distance of 1.5 meters from an operating microwave oven to avoid interference and unreliable weighing.

Is the scale suitable for children?

This device is not intended for children. Do not leave packaging within their reach and keep the scale away from babies to avoid risk of ingestion of small parts.

How can I get the user manual in French in PDF format?

On the product page, you can download the user manual in French in PDF format for free. For other languages, use the translation request form.

USER MANUAL PC 4500 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not repair the device yourself, but rather consult an authorized expert.
• Use the device only for the intended purpose.

Caution

• Make sure your hands and the appliance are dry when you insert the batteries.
• A microwave oven or a mobile phone may cause interference, which can lead to unreliable weighing results.
• Use the scale at a safe distance of at least 1.5 meters from a working microwave oven, or switch off the microwave oven.

Specifications

1. Zero / Tare
2. Low power / overload indication
3. LCD digit height: 0.35" (9mm)
4. 50kg / 110lb
5. 50g / 0.1lb
6. Power: 1x3V lithium cell (CR2032)

Key illustration

Switch on / off, conversion weight unit, zero / tare

Weighing

1. Strap the webbing belt through the luggage handle, and secure the hook of the belt onto the triangle ring.
2. Press button to switch on the scale before lifting (ensure no stress). You will hear 2 beeps after switching on.
3. When display does not show zero, press button to reset LCD to zero.
4. Lift the scale gently. Make sure the scale is horizontal and balanced. LCD shows the weight of luggage.
   Wait for the weight reading to stop and stabilize, flash 3 times and locked. You will hear 2 beeps after locking on. Usually weight reading will be locked in 2-3 seconds. It will be longer if the weighing object is heavy. Scale will display weight
   reading for 2 minutes and automatically switch off.
5. When weight reading is locked, press button to reset LCD display to zero. You will hear 1 beep. Then you can start new weighing.
6. Press button for 3 seconds to switch the scale off. You will hear 1 beep after switching off.

To convert weight unit

When the scale is power off, press button for about 3 seconds, LCD shows zero and the weight unit is flashing. Press button to select weight unit. After idle for 3 seconds, the weight unit is set and you can start weighing.

Warning indicators

1. Replace new battery.
2. Scale overload. Remove item to avoid damage.Max.weight capacity is indicated on the scale.

Power

The scale is powered by 1X3V lithium cell (CR2032). At the first time of use, open battery case cover on the right end of the scale. Remove battery isolation sheet before use.

To replace battery

LCD will display "Lo" when battery power is low. Replace battery as follows:

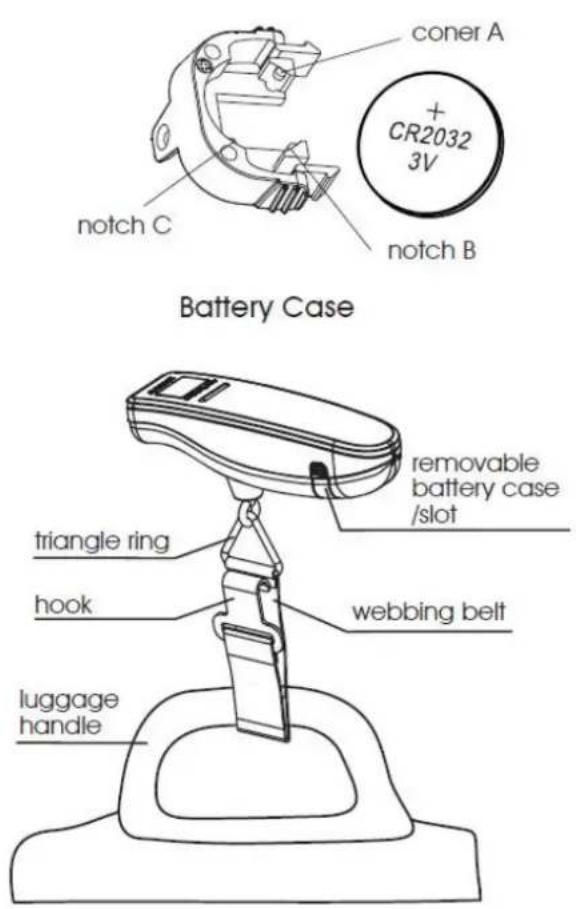

1. Hold the scale in one hand. The thumb and index finger of the other hand hold and press on the screw threads of the battery case and pull out the battery case from the slot.
2. Push corner A outswards to release the used battery.
3. To insert new battery, slide one side of new battery beneath the retainer notch B & C. Press the other side of battery till it clips underneath the corner A.

Ensure to observe the polarity as illustrated in the drawing.

1. Insert the battery case back to the slot on the scale.

Care and maintenance

1. Wipe the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical / abrasive cleaning agents.
2. DO NOT stress the triangle ring for long time. During travel, keep the scale away from objects with sharp ends (such as toy, stationery etc.), in case the scale is switched on frequently and consume battery power.
3. To make sure accuracy, DO NOT use this scale in strong-magnetic field.
4. Keep the scale away from babies and children to avoid danger of swallow the batteries and small components.

UNIVERSAL ADAPTOR

Before you use the universal adaptor, please read the following instruction manual first. This universal adaptor is a compact one piece unit with 4 international adaptors, and provides a child protection safety shutter, power indicator light and surge protector.

This item with fit the plugs in Europe / UK / USA / China / Japan / Australia / Spain and almost every country in the world.

Simple line drawing of an electrical switch inside a circle (no text or symbols)

Simple line drawing of a mechanical device inside a circle (no text or symbols)

Simple line drawing of a device with three ports and a circular outline (no text or symbols)

Simple line drawing of a device inside a circle, no text or symbols present

1. For EUROPE, just pull out the plug in the middle. After using it, just push the plug back into the pit.

2. For UK / SPAIN push the button to the "UNLOCK" position. The plug will flip out, pull out the white plastic pin, and then push the button to the "Lock" position. After using it, push the button to the "UNLOCK" position and push back the plug into the hole then push the button to the "Lock" position.

3. For USA / JAPAN / CHINA / AUST / THAILAND, push the button to the "UNLOCK" position. The plug will flip out, then swivel the plug to the angle you want and push the button to the "Lock" position. After using it, push the button to the "UNLOCK" position and push back the plug into the hole then push the button to the "Lock" position.
4. You can plug this into any available power outlet and then connect your device to the universal adaptor. If the indication light shows red, it indicates that the universal adaptor is working.

WARNING:

1. Make sure your hands are dry before using the universal adaptor.
2. Keep this away from children.
3. This unit does not convert voltage. Make sure that the power outlet you intend to use has the proper voltage to run your device before using the adaptor to avoid possible damage to your device.
4. Do not connect more than one plug at a time when using product.
5. The appliance isn't destined for the use of children or person with physical or mental problems and without experience nor knowledge; unless they make it down control of a responsible or professional for the use of the appliance.
6. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
7. Children should be supervised to ensure that they do not play with the product.
8. This appliance must be installed following the national regulations for electrical installations.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
