Product type	Impedance body fat scale
Brand	Orbegozo
Model	PB 2227
Weighing capacity	200 kg (440 lb)
Accuracy	0.1 kg (0.2 lb)
Functions	Weight, % fat, % water, % muscle, % bone, calories, BMI
User memory	10 profiles (1 to 10)
Personal settings	Gender, height (100-250 cm), age (10-100 years)
Power supply	1 CR2032 battery (included)
Display	LCD screen with indicators
Weighing surface	Glass platform
Unit of measurement	kg / lb (switchable)
Auto-start	Yes, by stepping on the scale
Low battery indicator	Displays "LO"
Overload protection	Displays "ERR" beyond 180 kg
Safety instructions	Use on a flat, hard surface; do not use on carpet
Cleaning	Soft damp cloth, do not immerse
Recommended use	Bare and dry feet, same time of day
Contraindications	Pregnant women, pacemaker wearers, dialysis, edema
Compliance	EMC Directive 2014/30/EU

Frequently Asked Questions - PB 2227 Orbegozo

How to use the scale for the first time?

Insert the CR2032 battery respecting polarity. Place the scale on a flat, hard surface. Step on gently to turn it on automatically. Ignore the first reading and use the second measurement for better accuracy.

How to set personal parameters (gender, height, age)?

Press the ■ button to enter settings. Use the p and q buttons to adjust the memory number (1-10), gender, height (100-250 cm) and age (10-100 years). Confirm each step with ■.

What do the different displays mean (fat, water, muscle, bone, calories, BMI)?

After weighing, the scale successively displays weight, body fat %, water %, muscle mass %, bone mass (in kg), calories and BMI. Each value flashes then stabilizes.

Why does the screen display 'ERR'?

The 'ERR' display indicates that the maximum weight of 180 kg has been exceeded. 'ERR 2' signals a measurement error of the body fat percentage. Check that you are barefoot and still.

How to clean the scale?

Use a soft damp cloth. Never immerse the scale in water. Avoid corrosive or chemical detergents. Quickly clean any contact with irritating substances (grease, vinegar, etc.).

Can I use the scale if I am pregnant?

No, pregnant women should not use this device. People with a pacemaker, undergoing dialysis treatment, or presenting symptoms of edema should also avoid use.

Which battery to use and how to change it?

The scale uses a CR2032 battery (1 piece). Open the cover on the back, remove the old battery and insert the new one respecting polarity (+/-). Close the cover.

How to interpret the body fat percentages?

Consult the evaluation chart in the manual. For example, for a 30-year-old man, 15.6-20.0% is considered normal. Values are indicative: if in doubt, consult a doctor.

Why do measurements vary from day to day?

Variations can be due to hydration, physical effort or diet. Always weigh yourself at the same time of day, on an empty stomach, barefoot and dry, on a flat surface.

What to do if the screen displays 'LO'?

The 'LO' display indicates that the battery is low. Replace the CR2032 battery with a new one. After replacement, parameters may be reset.

USER MANUAL PB 2227 Orbegozo

Digital twin-chip washing machine (no visible text or symbols on body)

PB 2227

Sonifer, S.A.

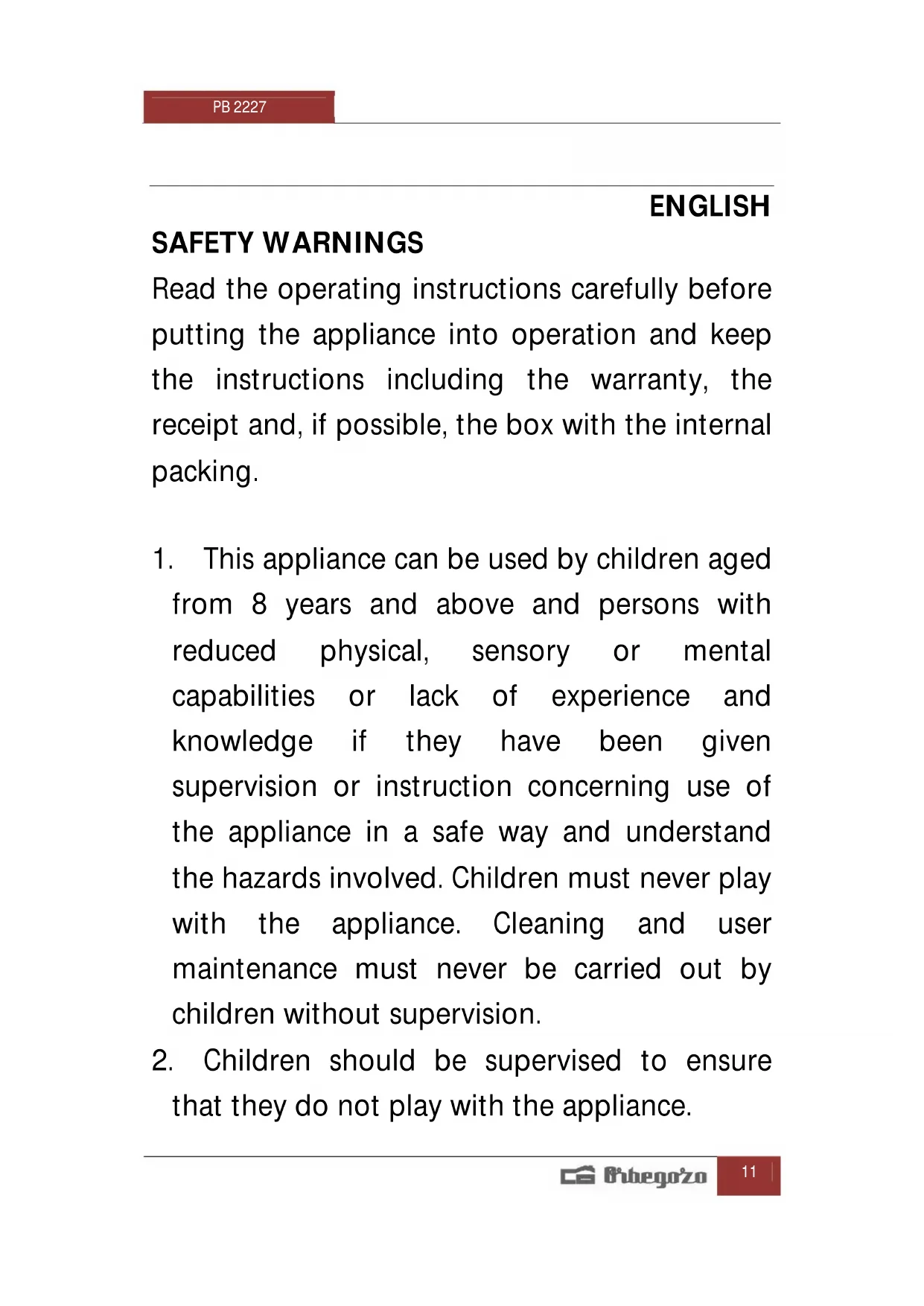

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. Do not use the unit if it is not working properly.
6. Do not handle the appliance with wet hands.
7. Never immerse the appliance in water or any other liquid.
8. Make sure the appliance has been unplugged before cleaning.
9. This appliance must be installed following the national regulations for electrical installations.
10. This appliance is for household use only.

1. During Measuring

A. The device is designed to allow auto step on. Please always ignore the first reading and only start taking effective record from the second time weighing.
B. Always remove your and, wipe clean your feet before using.
C. Step on the weighing platform gently.

D. It is advisable to take measurement at the same time of the day.
E. Measured result could be misleading after intensive exercise, excessive dieting or under extreme dehydration condition.
F. Always weigh/use the scale on a hard and flat surface. When you are measuring, please keep still.
G. The measured data of the following people may have deviation:

Children under 10 or adult over 100 (can only use the device under normal weighing mode)

Adult over 70

Body building athletes or other occupational athletes.

H. People with the following conditions should not use the device:

Pregnant women

Those with symptom of edema

Those on dialysis treatment

Those who use heart pacemaker or with other implanted medical device.

2. Safety Warning

A. The Fat% Hydration% content evaluated by the Fat Monitor Scale is only for reference (not for medical purpose). If your Fat% Hydration% content is over/below normal level, please consult your doctor for more advice.
B. Keep away from strong electro-magnetic field when using the scale.
C. if It could be slippery if you weigh on a wet surface. Moreover, the weighing platform surface is glazed, never step on the edge of the scale and do keep balance during your weighing.
D. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Weighing Operation

1. Insert the batteries 1 X CR2032 battery (lithium) into the battery compartment with correct polarity.
2. Turn on scale, choose a measuring unit with up/down buttons
3. Place the scales on a firm, flat and even surface to ensure accuracy.
4. Step on the scales platform to switch on the product, stand still while the scales compute your weight.
5. Your weight will be displayed and will flash twice before it is fixed.
6. When you step off the scales it will automatically switch off after 15 seconds.
7. If no weighting is carried out while 0.0 is displayed the scales will automatically switch off after 15 seconds.

Remarks: This initialization process as below must be repeated if the scale is moved. At all other times step straight on the scale.

• Step 1. Press the platform centre and remove your foot.
• Step 2. "0.0" will be displayed
• Step 3. The scale will switch off and now it is ready for use.

This initialisation process must be repeated if the scale is moved. At all other times step straight on the scale.

- Step 4. Gently step on the scale. Put your feet evenly on the scale without moving and wait whilst the scale compute weight. Your correct weight will then be displayed in the following way: 80.3 Kg.

Body Fat Measurement:

In order to ensure accurate results users should enter the required personal parameters:

age, sex and height.

These scales have the facility to store the personal parameters of 10 people.

The technology used in these scales, Bio-electrical impedance Analysis (BIA) is more technologically advanced than the older Body Mass Index (BMI) method where fat % is calculated using only height and weight. BIA technology uses 5 parameters to get a more accurate resolution for the analysis (weight and biological resistance which are automatically measured by the scales together with the three personal parameters entered manually).

Mode selection and parameter setting:

Press the platform center and remove your foot. Display showed 0.0

Press ■ entering into user code selection. The user code is flashing

Press ▲ or ▼ to switch between Body Parameter 0-9. Press ■ to confirm.

Press ▲ or ▼ to select male or female. Press ■ to confirm.

Press ▲ or ▼ to indicate height. Press ■ to confirm.

Press ▲ or ▼ to indicate age. Press ■ to confirm.

The values are flashed and recorded.

Step on the scales after 0.0 appears, First the weight is measured and recorded, then is displayed, indicating that the scales are analysing, please do not alight. Once finished, the weight and body fat percentage, water percentage, bone weight, muscle percentage and KCAL and BMI will be displayed alternately for 2 times before the scales automatically turn off. Refer to the body fat reading against the (Body Fat & Water Ratio Chart) to find out the body status. please find the screen display order as following

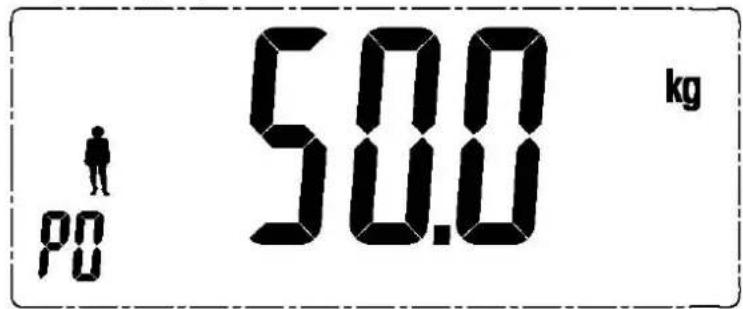

Weight display

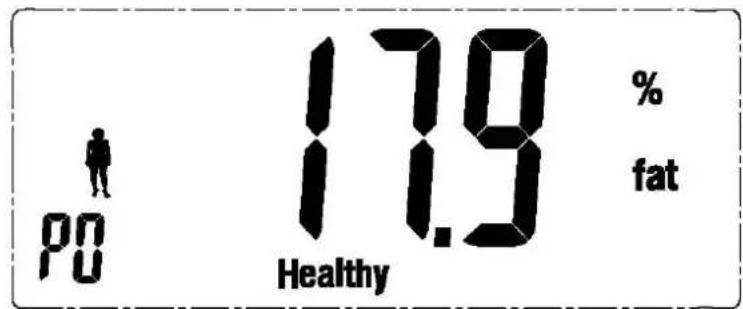

Body fat percentage display

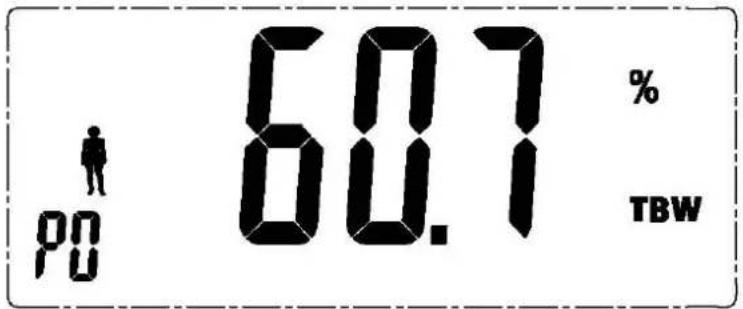

Body water percentage display

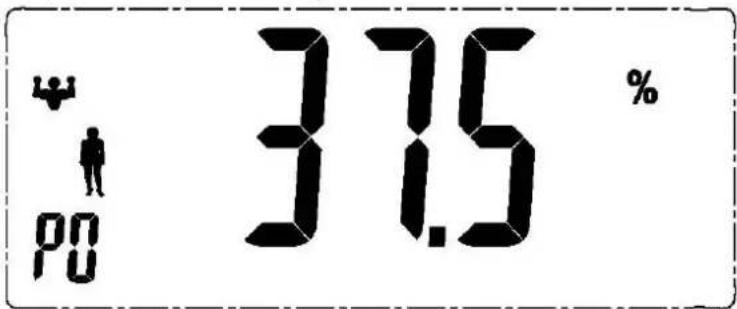

Body muscle percentage

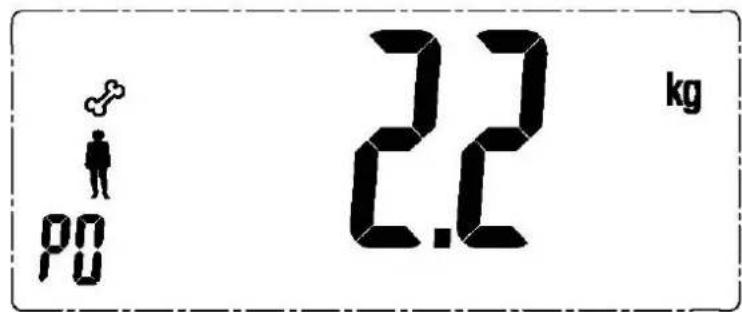

Body bone weight display

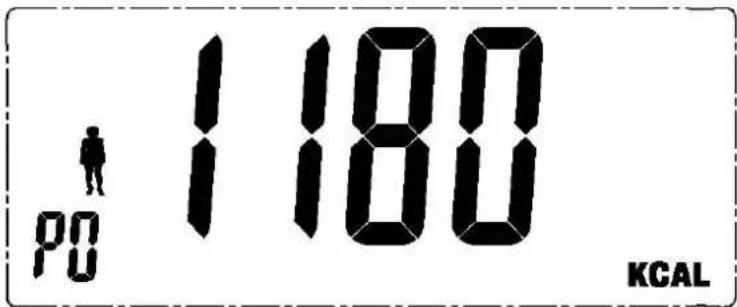

KCAL display

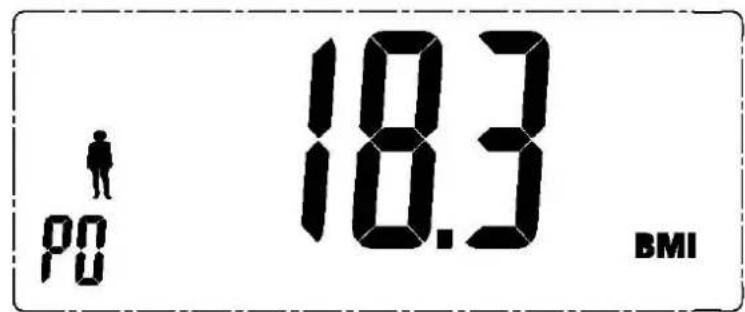

BMI display

Body fat ratio Chart(%)

AGE	FEMALE(%)				MALE(%)
	underweight	healthy	overweight	obese	underweight	healthy	overweight	obese
6-39	<21	21~33	33~39	>39	<8	8~19	19~25	>25
40-59	<23	23~35	35~40	>40	<11	11~22	22~28	>28
60-100	<24	24~36	36~42	>42	<13	13~25	25~30	>30

Due to the natural difference between people this chart should be used for reference purposes only.

Water Ratio Chart & Muscle Ratio Chart (%)

AGE	FEMALE (%)				MALE (%)
	Low	Healthy	High	Body Muscle	Low	Healthy	High	Body Muscle
6-15	<57.0	57.0-67.0	>67.0	>34	<58.0	58.0-72.0	>72.0	>40
16-30	<47.0	47.0-57.0	>57.0		<53.0	53.0-67.0	>67.0
31-60	<42.0	42.0-52.0	>52.0		<47.0	47.0-61.0	>61.0
61-100	<37.0	37.0-47.0	>47.0		<42.0	42.0-56.0	>56.0

Bone Weight Chart (Kg)

	FEMALE			MALE
Weight	<45 Kg	45-60 Kg	>60 Kg	<60 Kg	60-75 Kg	>75 Kg
Ref.bone weight	-2.6 Kg	-3.2Kg	-8Kg	-3.4 Kg	-3.8 Kg	-8Kg

KCAL Chart

AGE	FEMALE		MALE
	WEIGHT(KG)	KCAL	WEIGHT(KG)	KCAL
6-17	50	1265	60	1620
18-29	55	1298	65	1560
30-49	60	1416	70	1680
50-69	60	1302	70	1561
70-100	50	1035	65	1397

BMI Chart

BMI	LOW	HEALTHY	HIGH	OVERWEIGHT
	<18.5	18.5-27	30-39	>40

Trouble shooting

1. When the LCD screen displays "LO", you should install a new battery.
2. When the LCD displays "ERR", it indicates that the maximum weight has been exceeded.
3. When the LCD screen displays Err 2, it shows an error in the body fat percentage

Use and care

• Ensure the sales are on a flat, even and firm surface. Avoid carpet or soft surfaces.
• Always weight yourself with the same scales placed on the same surface. Uneven floors may affect the reading. The surface of the scales will be slippery if wet. Keep it dry!
• Weight yourself without clothing and footwear, before meals and always at the same time of day.
• For better accuracy, it is not advised to take the measurement within 2 hours of waking up.
• Keep the scales in a dry place to protect the electronic components.
• Clean after use with a lightly damp cloth, do not use solvents or immerse the product in water.
• Avoid overloading the scales; otherwise, permanent damage may occur.
• Do not disassemble the scales other than to replace the battery.
• Do not store the scales in an upright position when not in use as this will drain the battery.
• Avoid excessive impact or vibration to the unit, such as dropping the scales onto the floor, or objects onto the scales.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected

DECLARATION OF CONFORMITY: This device complies with the requirements of the EMC directive 2014/30/EU
