Product Type	Wall sleeve air conditioner
Brand	Whirlpool
Model	ACE114PP0
Cooling Capacity	Not specified in the manual, but typical for this type of unit
Power Supply	115 V (103.5-126.5 V) or 230/208 V (197.6-253 V) depending on model
Rated Current	0-12 A depending on voltage
Recommended Fuse	15 A time-delay fuse or circuit breaker
Operating Modes	Cool, Fan, Heat (on some models), Power Saver
Fan Speeds	Auto, Turbo, High, Low (depending on model)
Temperature Range	66 °F to 88 °F (19 °C to 31 °C)
Timer	Delayed start/stop from 1 to 24 hours
Remote Control	Yes, with included AAA batteries
Air Filter	Washable, cleaning every 2 weeks recommended
Annual Maintenance	Recommended by a qualified technician
Power Cord	With protection device (Reset/Test), 3-prong grounded plug
Installation	In existing or new wall sleeve, several sleeve sizes compatible
Weight	Not specified, two-person lift recommended
Warranty	1 year full, 2 to 5 years on sealed refrigeration system
Replacement Parts	FSP (Factory Specification Parts) available
Customer Service	1-800-461-5681 (Canada) for assistance

Frequently Asked Questions - ACE114PP0 WHIRLPOOL

How to install the air conditioner in an existing wall sleeve?

Remove the existing rear grille, clean the sleeve, then insert the new grille provided. Secure it with the 6 No. 8-32 self-tapping screws. Ensure the word 'Top' is readable from the inside. Check the sleeve dimensions as instructions vary by size.

How often should the air filter be cleaned?

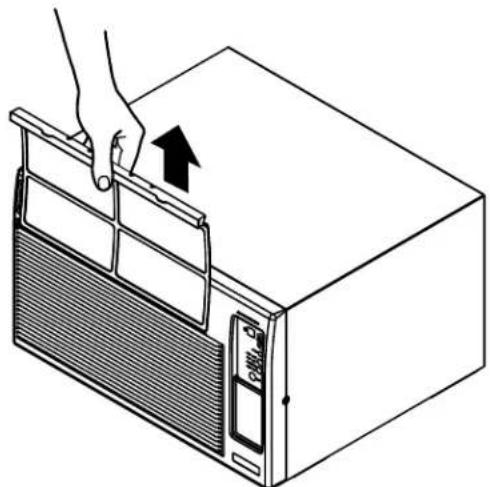

It is recommended to check the filter every two weeks. To clean, remove it, vacuum it or wash it in warm water with a mild detergent. Dry it completely before reinstalling. Never operate the unit without the filter.

What normal sounds can be heard during operation?

You may hear water droplets hitting the condenser, air movement, thermostat clicks, vibrations depending on the wall, or a high-frequency hum from the compressor. These sounds are normal.

How to test the power cord with the protection device?

Plug the cord into a grounded 3-prong outlet. Press RESET, then TEST (the Reset button should trip). Then press RESET again to remain engaged. If the test fails, replace the cord.

How to set the timer for delayed start?

Make sure the air conditioner is off. Press TIMER, then use the + or - buttons to select a delay from 1 to 24 hours. The unit will start after this delay. To cancel, press TIMER again.

The remote control no longer works, what to do?

Check the batteries: replace if necessary (2 AAA batteries). If the problem persists, remove obstacles between the remote and the air conditioner. The range is about 8 meters. If the remote is defective, use the buttons on the unit.

How to set the temperature in degrees Celsius?

Press the + and - buttons simultaneously to toggle between °F and °C. The temperature range is 66 °F to 88 °F (19 °C to 31 °C). Use the + or - buttons to increase or decrease by 1-degree increments.

The air conditioner does not turn on, what to check?

Make sure the power cord is plugged into a 3-prong outlet and the RESET button is pushed in. Check the circuit breaker or fuse. Wait 3 minutes if the unit was recently turned off. In case of power outage, it will automatically resume previous settings.

Why is there ice on the cooling coil?

This can happen if the outdoor temperature is below 66 °F (19 °C) and you are using cooling mode. Do not use cooling below this temperature. A dirty filter can also cause frost. Clean the filter and let the unit defrost.

What does the warranty cover and for how long?

The full warranty lasts 1 year (parts and labor). From the 2nd to the 5th year, only the sealed refrigeration system (compressor, evaporator, condenser, filter-drier, and connecting tube) is covered. Repairs must be performed by a Whirlpool authorized service.

USER MANUAL ACE114PP0 WHIRLPOOL

THROUGH-THE-WALL AIR CONDITIONER

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service call: 1-800-253-1301.

In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777

or visit our website at... www.whirlpool.com

or...www.whirlpoolappliances.ca

CLIMATISEUR ENCASTRÉ DANS LE MUR

AIR CONDITIONER SAFETY 2

INSTALLATION REQUIREMENTS. 3

Tools and Parts 3
Location Requirements. 3
Electrical Requirements 3

INSTALLATION INSTRUCTIONS. 5

Unpack the Air Conditioner. 5
Before Installing Air Conditioner 5
Install Air Conditioner in Existing Wall Sleeve 5
Install Air Conditioner in New Wall Sleeve. 6
Complete Installation 7

AIR CONDITIONER USE. 8

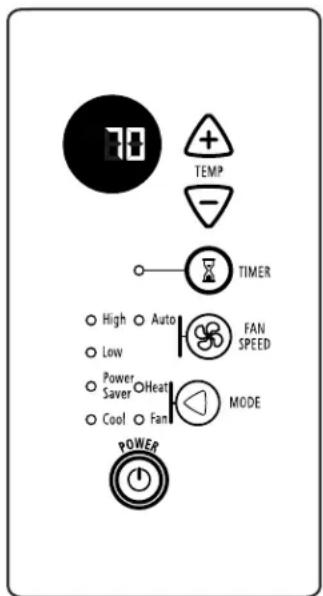

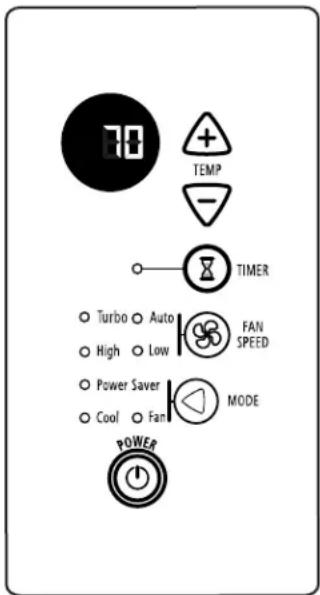

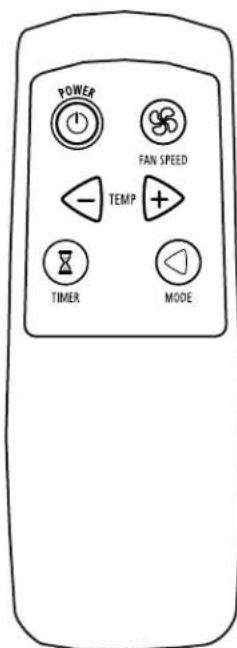

Starting Your Air Conditioner 8

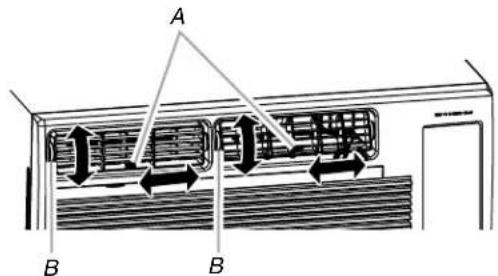

Changing Air Direction 10
Normal Sounds. 10

AIR CONDITIONER CARE 11

Cleaning the Air Filter 11

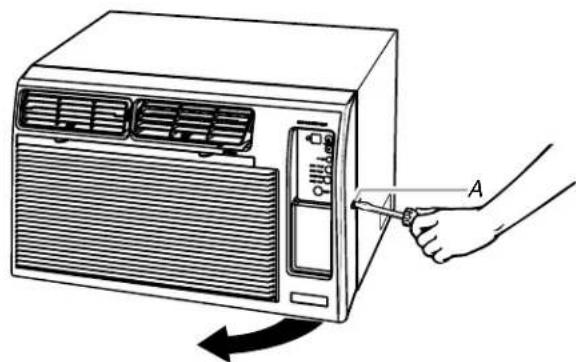

Cleaning the Front Panel. 11
Annual Maintenance. 11

TROUBLESHOOTING 12

ASSISTANCE OR SERVICE. 13

In the U.S.A. 13
In Canada 13

WARRANTY 14

TABLE DES MATIÈRES

SECURITE DU CLIMATISEUR 15

EXIGENCES D'INSTALLATION 16

AIR CONDITIONER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
- Do not use an adapter.

Do not use an extension cord.
Unplug air conditioner before servicing.
Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Flat-blade and Phillips screwdrivers

Tape measure
Drill and 1 / 8 or smaller bit
Utility knife

■Pliers

Level

Parts supplied

Check that all parts are included in parts package.

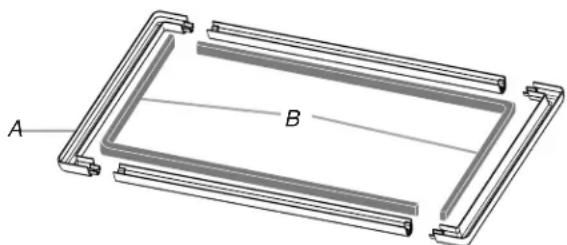

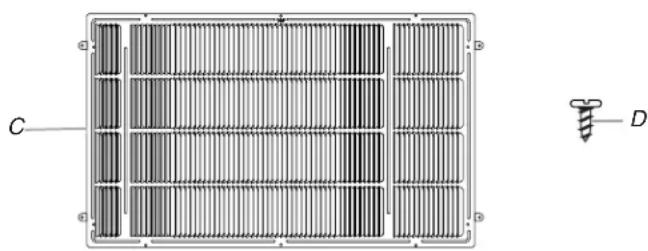

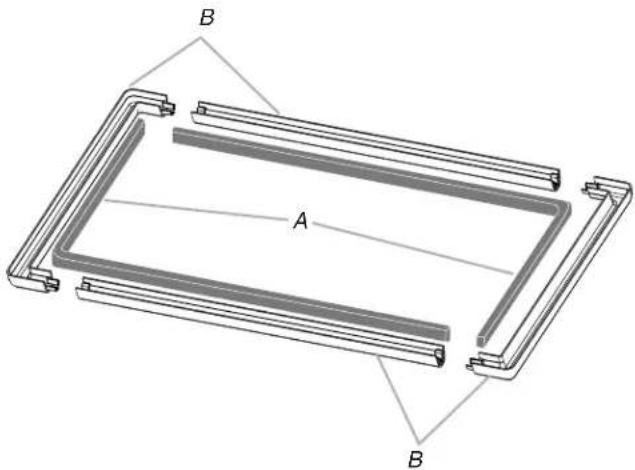

A. Trim frames (4)

B. Insulating foam seals (2)

C. New grille
D. #8 - 32 self-tapping screws (6)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.

The location should provide:

Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.

NOTE: Do not use an extension cord.

Free movement of air in room to be cooled.
A large enough opening for the air conditioner and sleeve (sold separately).
Adequate wall support for weight of air conditioner.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located behind the front panel on the front flange above the coil area.

Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

Power supply cord Wiring requirements

14"(0.6 cm)	■115 volt (103.5 min. - 126.5 max.)
	■0-7.5 amps
	■15-amp time-delay fuse or circuit breaker
	■Use on single outlet circuit only.
	■115 volt (103.5 min. - 126.5 max.)
	■7.6-12 amps
	■15-amp time-delay fuse or circuit breaker
	■Use on single outlet circuit only.
	■230/208 volt (197.6 min. - 253 max.)
	■0-12 amps
	■15 amp time-delay fuse or circuit breaker
	■Use on single outlet circuit only.

Recommended ground method

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a grounded 3 prong plug. To minimize possible shock hazard, the cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrical installer.

It is the customer's responsibility:

To contact a qualified electrical installer.

To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from: National Fire Protection Association One Batterymarch Park Quincy, MA 02269

Power Supply Cord

NOTE: Your unit's device may differ from the one shown.

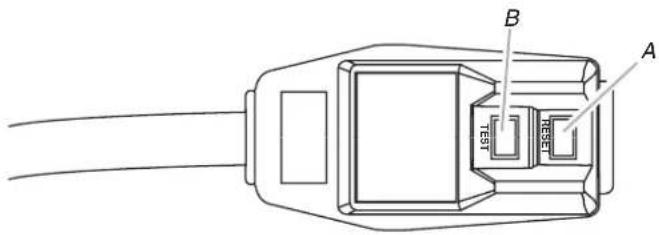

A. Reset button B. Test button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed, the electronics detect leakage current and power will be disconnected in a fraction of a second.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET.
3. Press TEST (listen for click; Reset button will trip and pop out).
4. Press and release RESET (listen for click; Reset button will latch and remain in). The power supply cord is ready for operation.

NOTES:

The Reset button must be pushed in for proper operation.
The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset.
Do not use the power supply cord as an off/on switch. The power supply cord is designed as a protective device.
A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.
The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims.

INSTALLATION INSTRUCTIONS

Unpack the Air Conditioner

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Remove packaging materials

■Remove and properly dispose of packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.
■ Handle air conditioner gently.

Before Installing Air Conditioner

This air conditioner has been designed for installation through the wall in a sleeve. It is the responsibility and obligation of the customer to have this product installed by a qualified technician familiar with through-the-wall installation.

OR

If you choose to install the air conditioner yourself, read all installation instructions, as well as the electrical requirements and operating instructions, before installing your unit. This will help to avoid any installation problems and will help ensure trouble-free performance of your new air conditioner.

Install Air Conditioner in Existing Wall Sleeve

■Remove existing rear grille and install the new grille that came with your air conditioner.
NOTE: If the new rear grille is not installed in the existing wall sleeve, your air conditioner will not operate correctly and the warranty will be void.
■ Handle air conditioner gently.
■Be sure your air conditioner does not fall out of the opening during installation or removal.
The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet.
■Be sure the wall where the air conditioner will be installed will support the weight of the unit.
■Do not install the air conditioner where the plastic cabinet front will be exposed to a heat source that raises the surface temperature above 120^ (49^)
Do not block the louvers in the front panel.

1. Measure the existing wall sleeve.
2. See the section that matches the dimensions of the existing wall sleeve.

Wall sleeve dimensions: 26.75'' × 15.75'' × 15'' (68 cm x 40 cm x 38.1 cm)

1. Remove screws attaching the existing grille to the wall sleeve.
2. Remove the existing grille from the wall sleeve.
3. Remove all debris from inside the wall sleeve.
4. Insert new grille into wall sleeve.

NOTE: Make sure that the word "Top" is readable from inside the room.

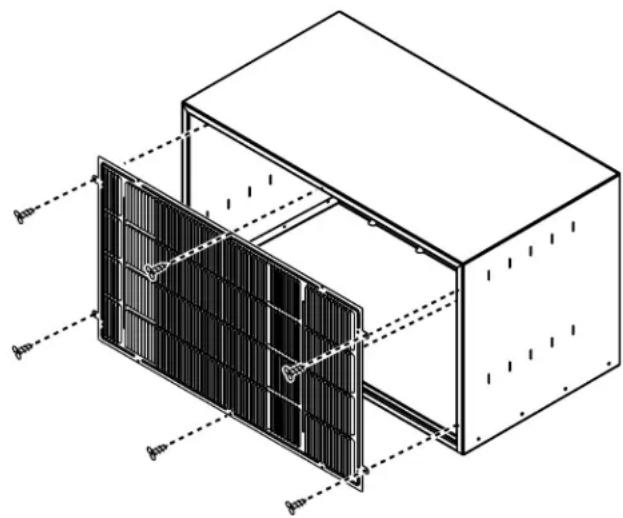

1. Secure the grille to the sleeve by inserting 6 - #8 - 32 self-tapping screws (provided) through the holes in the grille and into the sleeve.

Insert the 6 - #8 - 32 self-tapping screws (provided) through the holes in the grille and into the wall sleeve.

Wall sleeve dimensions: 26^ × 15.625^ × 16.875^ (66 cm x 39.9 cm x 42.9 cm)

1. Remove the existing grille from the wall sleeve.
2. Remove all debris from inside the wall sleeve.

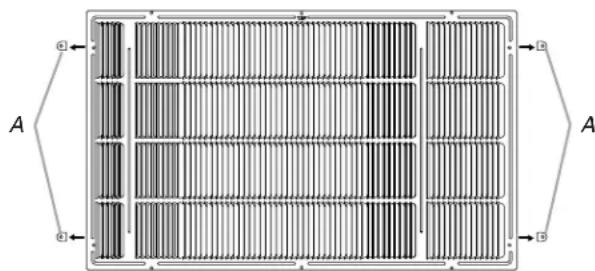

3. Remove the tabs on the sides of the grille (provided with your new air conditioner) by bending the tabs back and forth using a pair of pliers.

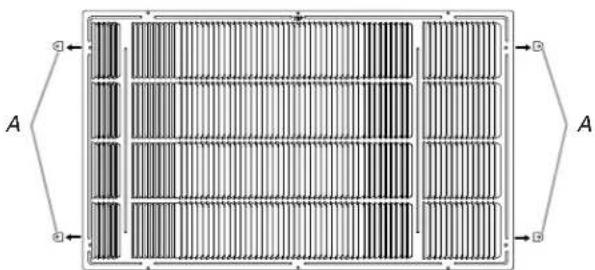

A. Remove the tabs using a pair of pliers.

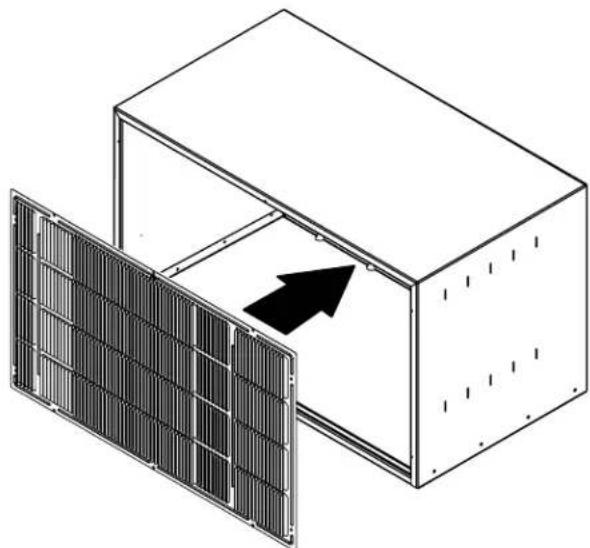

1. Insert new grille into wall sleeve.

NOTE: Make sure that the word "Top" is readable from inside the room.

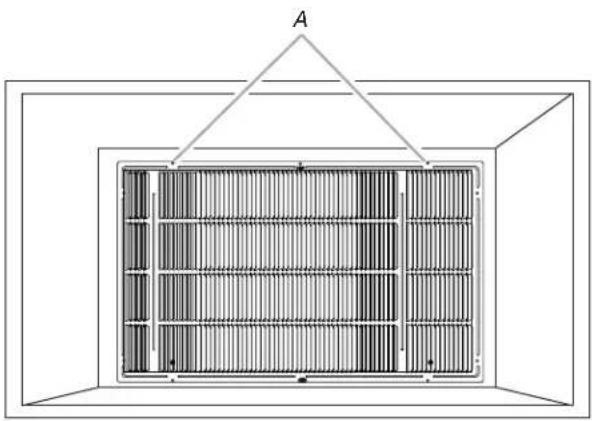

1. Using the grille as a template, mark location of 2 holes on the top of the wall sleeve. Drill 18 " holes into the wall sleeve.

A. Drill 12 holes into the wall sleeve.

1. Attach the rear grille using #8 - 32 self-tapping screws (provided).

Wall sleeve dimensions: 25.5'' × 15.25'' × 17.5'' (64.8 cm x 38.7 cm x 44.5 cm) or 25%^ × 15^17/32'' × 16^23/32'' (65.7 cm x 39.45 cm x 42.47 cm)

1. Remove the existing grille from the wall sleeve.
2. Remove all debris from inside the wall sleeve.
3. Remove the tabs on the sides of the grille (provided) with your new air conditioner by bending the tabs back and forth using a pair of pliers.

A. Remove the tabs using a pair of pliers.

1. Insert new grille into sleeve.

NOTE: Make sure that the word "Top" is readable from inside the room.

1. Secure the grille to the wall sleeve by using the screws (provided) in the same locations as the screws in the grille that was removed.

Insert grille and attach with screws (provided).

Wall sleeve dimensions: 27'' × 16.75'' (68.58 cm x 42.55 cm) or greater

These sleeves require a larger rear grille and installation parts than the ones provided with this air conditioner. See your local supplier for a kit to fit this size wall sleeve.

NOTE: If you install your new air conditioner into this size wall sleeve without using the kit, you will cause damage to your new air conditioner and the warranty will be void.

Install Air Conditioner in New Wall Sleeve

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Install the new grille that came with your air conditioner or new wall sleeve.

NOTE: If this grille is not installed in the wall sleeve, your air conditioner will not operate correctly and the warranty will be void.

■ Handle air conditioner gently.

■Be sure your air conditioner does not fall out of the opening during installation or removal.
The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet.
■Be sure the wall where the air conditioner will be installed will support the weight of the air conditioner.
■Do not install the air conditioner where the plastic cabinet front will be exposed to a heat source that raises the surface temperature above 120^ (49^)
Do not block the louvers in the front panel.

Wall sleeve dimensions: 26.75'' × 15.75'' × 15'' (68 cm x 40 cm x 38.1 cm)

1. Remove the front and back covers from the new wall sleeve. NOTE: Save the covers for future use to seal the wall sleeve if the air conditioner is removed.
2. Clean out any debris from the inside of the wall sleeve, making sure the inside is clean and that the drain holes are completely open.
3. Insert new grille into sleeve. NOTE: Make sure that the word "Top" is readable from inside the room.
4. Secure the grille to the sleeve by inserting the 6 - #8 - 32 self-tapping screws (provided) through the holes in the grille and into the sleeve.

Complete Installation

1. Assemble trim frame by laying the 4 frame pieces face down on a flat surface and snapping them securely together.

1. Install the 14 insulating foam around the inside edge of the trim frame. Begin in the bottom left corner and place the insulating foam around the entire inside of trim frame. Check to be sure foam is flush with the bottom edge of the trim frame.

A. Insulating foam seals B. Trim frame

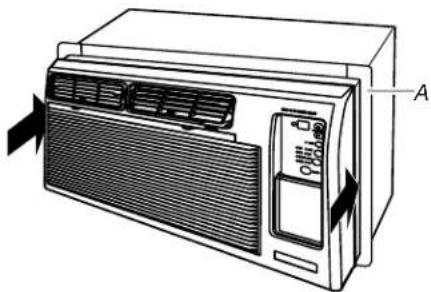

1. Slide the trim frame onto the air conditioner until the foam makes a seal with the wall sleeve.

A. Trim frame against wall sleeve

1. Check that Fan Control is Off.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.
2. Press RESET on power supply cord.

AIR CONDITIONER USE

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.
Do not try to operate your air conditioner in the cooling mode when outside temperature is below 66^ (19^) . The inside evaporator coil will freeze up, and the air conditioner will not operate properly.

NOTES:

In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored.
If the electronic control will not respond to touch pad or remote control commands, it is necessary to unplug the unit from the electrical outlet for 5 seconds before plugging back in.

Starting Your Air Conditioner

Models without heat

Models with heat

1. Press POWER to turn on air conditioner.

NOTE: When the unit is turned on, it will display the previous settings for the mode, fan speed and temperature.

1. Choose mode. See "Mode."
2. Choose fan speed. See "Fan Speed."
3. Choose temperature. See "Temperature."

Mode

1. Press and hold MODE.
2. Choose COOL, FAN, HEAT (on some models) or POWER SAVER.

Cool—Cools room. Press FAN SPEED to choose fan speed. Then adjust the temperature by pressing the up or down arrow buttons.
Fan-Operates the fan at Low, High or Turbo (on some models) speed, without cooling.
Power Saver—The fan will switch from the set fan speed to LOW whenever the compressor turns off in response to the set temperature. When the compressor cycles back on, the fan will return to the set fan speed.
Heat (on some models)—The unit will circulate and heat the air.

When heater is powered off, low fan will automatically stay on and run for 60 seconds. Low Fan indicator light will blink while the low fan is operating.

Models without heat

Power Saver

Cool Fan

MODE

Models with heat

Power

Saver

Cool

MODE

Fan Speed

Models without heat

1. Press and hold FAN SPEED.

2. Choose AUTO, TURBO, HIGH or LOW.

When Auto is selected, the fan speed will change automatically as the temperature in the room changes.

7^ or more above the set temperature will use Turbo.
4^ - 7^ above the set temperature will use High.
4^ or below the set temperature will use Low.

O Turbo

O Auto

FAN

SPEED

Models with heat

1. Press FAN SPEED

2. Choose AUTO, HIGH or LOW.

When Auto is selected, the fan speed will change automatically as the temperature in the room changes.

Cool mode:

7^ or more above the set temperature will use High.
7^ or less above the set temperature will use Low.

Heat mode:

7^ or more below the set temperature will use High.
7^ or less below the set temperature will use Low.

O High

O Auto

FAN

SPEED

Temperature

Press the TEMP plus pad to raise the temperature 1^ until it reaches 88^ (31^) .

TEMP

Press the TEMP minus pad to lower the temperature 1^ until it reaches 66^ (19^)

NOTE: By pressing both pads at once, the display will switch from ^ F to ^ C .

Timer Delay

To set the Timer for a 1- to 24-hour delay until the air conditioner turns on (the air conditioner must be Off):

1. Press TIMER. Indicator light remain on.

1. Press the plus or minus pad to change the delay time from 1 to 24 hours.
2. To turn Timer off, press TIMER again.

To set the Timer delay for a 1- to 24-hour delay until the air conditioner turns off (air conditioner must be On):

1. Press TIMER. Indicator light will remain on.

2. Press the plus or minus pad to change the delay time from 1 to 24 hours. The display will automatically go back to the set temperature after 10 seconds.

3. To display the amount of time left, depress TIMER once.

4. To turn Timer off, press TIMER twice.

To operate air conditioner with remote control

NOTE: Remote control may vary in appearance.

NOTE: Two AAA batteries (included) power the remote control. Replace batteries after 6 months of use, or when the remote control starts to lose power.

To turn the air conditioner on or off:

Press POWER.

To raise the temperature:

Press the TEMP plus pad to raise the temperature 1^ until it reaches 88^ (31^) .

To lower the temperature:

Press the TEMP minus pad to lower the temperature 1^ until it reaches 66^ (19^) .

To select the mode:

Press MODE.

NOTE: Mode works the same as the air conditioner touch pad control.

MODE

NOTE: Fan Speed works the same as the air conditioner touch pad control.

FAN SPEED

To set Timer for a 1- to 24-hour delay before air conditioner turns on (air conditioner must be Off):

1. Press TIMER.

TIMER

1. Press the plus or minus pad to change the delay time from 1 to 24 hours.

To set Timer for a 1- to 24-hour delay before air conditioner turns off (air conditioner must be On):

1. Press TIMER.
2. Press the plus or minus pad to change delay time from 1 to 24 hours.

Changing Air Direction

Use the tabs to direct the air up, down, right, left or straight ahead.

A. Right or left directional tabs
B. Up or down directional tabs

Normal Sounds

When your air conditioner is operating normally, you may hear sounds such as:

• Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser.
  Air movement from the fan.
  ■Clicks from the thermostat cycle.
  ■ Vibrations or noise due to poor wall or window construction.
  A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember... the cost of this service call is your responsibility.

Cleaning the Air Filter

The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter every 2 weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the filter in place.

1. Turn off air conditioner.
2. Grasp air filter at tabs. Slide air filter up and out of filter slot.

1. Use a vacuum cleaner to clean air filter. If air filter is very dirty, wash it in warm water with mild detergent. Do not wash air filter in the dishwasher or use any chemical cleaners.

NOTE: Air dry filter completely before replacing to ensure maximum efficiency.

1. Slide air filter down into filter slot.

Cleaning the Front Panel

1. Unplug air conditioner or disconnect power.
2. Remove the air filter and clean it separately. See "Cleaning the Air Filter."
3. Remove the screws from both sides of the air conditioner cabinet.

A. Screw

1. Remove the front panel.
2. Clean the front panel using a soft cloth with a mild detergent and warm water. Rinse with clear water and dry.
3. Rinse the control panel and dry thoroughly with a soft, dry cloth.
4. Replace the front panel. Replace screws.
5. Plug in air conditioner or reconnect power.

Annual Maintenance

Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility.

TROUBLESHOOTING

You can solve many common air conditioner problems easily, saving you the cost of a service call. Try the suggestions below to see whether you can solve your problem without outside help.

Air conditioner will not operate

The power supply cord is unplugged. Plug into grounded 3 prong outlet. See "Electrical Requirements."
The power supply cord has tripped (Reset button has popped out). Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
A household fuse has blown, or a circuit breaker has tripped. Replace the fuse or reset the circuit breaker. See "Electrical Requirements."
The Power button has not been pressed. Press POWER.
The local power has failed. Wait for power to be restored.

Air conditioner blows fuses or trips circuit breakers

• Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit.
  ■Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See "Electrical Requirements."
  An extension cord is being used. Do not use an extension cord with this or any other appliance.
  ■You are trying to restart the air conditioner too soon after turning off the unit. Wait at least 3 minutes after turning off the unit before trying to restart the air conditioner.

Air conditioner power supply cord trips (Reset button pops out)

Disturbances in your electrical current can trip (Reset button will pop out) the power supply cord. Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
An electrical overloading, overheating, pinching or aging can trip (Reset button will pop out) the power supply cord. After correcting the problem, press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.

NOTE: A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.

Air conditioner seems to run too much

The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the "blast" of cold air you may be accustomed to from older units, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in BTU/hr.) marked on the air conditioner.

The air conditioner is in a heavily occupied room, or heat-producing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heat-producing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled.

Air conditioner cycles on and off too much

The Mode is set to Power Saver. Use Power Saver only when you are asleep or away from home. Use Cool and a higher fan setting for your best comfort.
- The air conditioner is not properly sized for your room. Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms.
The filter is dirty or obstructed by debris. Clean the filter.

There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heat-producing appliances during the hottest part of the day.

The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc.
The outside temperature is below 66^ (19^) . Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66^ (19^) .

The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room.
Windows or doors to the outside are open. Close all windows and doors.
The Air Exchanger is set to OPEN (on some models). Set the Exhaust control to CLOSED for maximum cooling and/or heating.

■Temperature control is not at a cool enough setting. Adjust the Temperature control to a cooler setting. Press the TEMP minus pad to reduce the temperature by 1^ until it reaches 66^ (19^) . Set the Fan Speed control to High or Turbo (on some models).

Water drips from cabinet into your house

The air conditioner is not properly leveled. The air conditioner should slope slightly downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions.

NOTE: Do not drill a hole in the bottom of the metal base and condensate pan.

Air conditioner cooling, but room is too warm—Ice forming on cooling coil behind intake grille

The outside temperature is below 66^ (19^) . Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66^ (19^) .
The filter is dirty or obstructed by debris. Clean the filter.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only FSP replacement parts. FSP replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL appliance.

To locate FSP replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
■Installation information.
Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to Whirlpool

Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

For product related questions, please call the Whirlpool

Canada LP Customer Interaction Centre toll free:

1-800-461-5681

Monday to Friday 8:00 a.m. - 6:00 p.m. (EST).

Saturday 8:30 a.m. - 4:30 p.m. (EST).

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Referrals to local dealers.

For parts, accessories and service in Canada

Call 1-800-807-6777. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Customer Interaction Centre

Whirlpool Canada LP

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

WHIRLPOOL® AIR CONDITIONER WARRANTY

ONE YEAR FULL WARRANTY

For one year from the date of purchase, if this air conditioner fails when operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for replacement parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

SECOND THROUGH FIFTH YEAR FULL WARRANTY ON SEATED REFRIGERATION SYSTEM

In the second through fifth years from date of purchase, when this air conditioner is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for replacement parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system, including the compressor, evaporator, condenser, dryer-strainer and connecting tubing. Service must be provided by a Whirlpool designated service company.

Whirlpool Corporation or Whirlpool Canada LP will not pay for:

1. Service calls to correct the installation of your air conditioner, instruct you on how to use your air conditioner, to replace house fuses or correct house wiring or reset circuit breakers, or to clean or replace owner accessible air filters.
2. Repairs when your air conditioner is used in other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation not in accordance with local electrical and plumbing codes, or use of products not approved by Whirlpool Corporation or Whirlpool Canada LP.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. Your air conditioner is designed to be repaired in the home.
6. The removal and reinstallation of your air conditioner if it is installed in an overhead or other inaccessible location or is not installed in accordance with published installation instructions.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.

WHIRLPOOL CORPORATION OR WHIRLPOOL CANADA LP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and province to province.

Outside the 50 United States or Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see "Troubleshooting." Additional help can be found by checking "Assistance or Service," or by calling our Customer Experience Center at 1-800-253-1301, from anywhere in the U.S.A. or write: Whirlpool Corporation, Customer Experience Center, 553 Benson Road, Benton Harbor, MI 49022-2692. In Canada, call 1-800-807-6777.

For service in Canada, call 1-800-807-6777. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer Interaction Centre, Whirlpool Canada LP, 1901 Minnesota Court, Mississauga, Ontario L5N 3A7. Please include a daytime phone number in your correspondence.

11/04

Keep this warranty and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your air conditioner to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

SECURITE DU CLIMATISEUR

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

ASSISTANCE OU SERVICE

WHIRLPOOL CORPORATION OU WHIRLPOOL CANADA LP N'ASSUME AUCUNE RESPONSABILITÉ POUR LES DOMMAGES FORTUIS OU INDIRECTS.

© 2005 Whirlpool Corporation

All rights reserved.
