USER MANUAL Milkstar 302704 Arendo

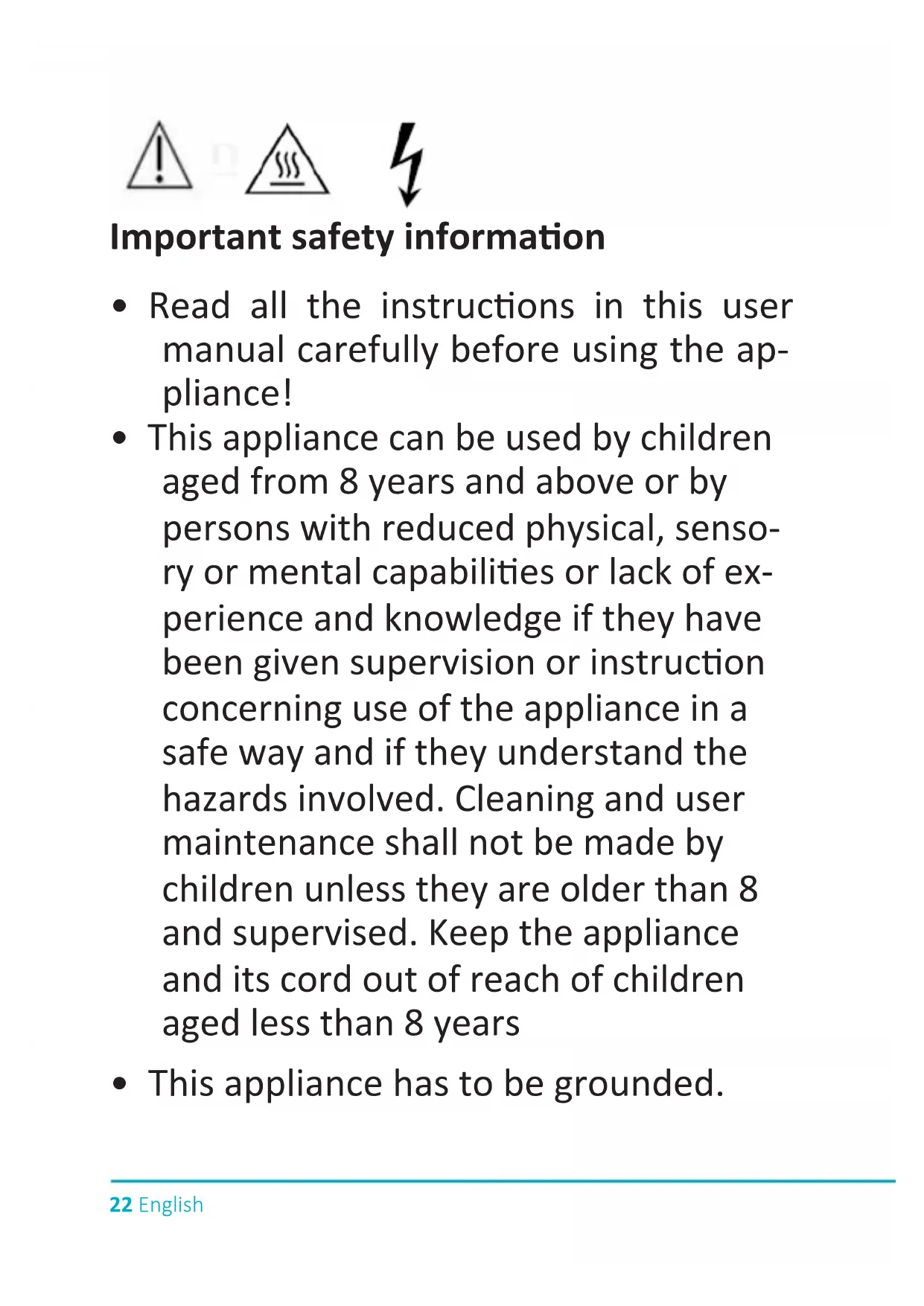

• Read all the instrucons in this user manual carefully before using the ap- pliance!

• This appliance can be used by children aged from 8 years and above or by persons with reduced physical, senso- ry or mental capabilies or lack of ex- perience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years

• This appliance has to be grounded.23English

• Do not immerse in water or other liquids. There is a risk of short circuits

• Do not pour liquids on the plug

• Never operate damaged appliances

• Do not place the appliance on pol- ished wood surfaces, as this could damage the wood.

• Never touch live parts

• Connect the appliance only to a prop- erly installed socket with the correct voltage

• Do not use extension cords

• Never leave the main cable hanging loosely, do not remove the plug with wet hands, never lay or suspend the cable and the plug on hot surfaces and never let plugs and cables come into contact with oils

• Unplug the appliance from the socket aer every use24 English

• Unplug the appliance when it is not being used and before replacing any accessories or when cleaning the ap- pliance as well

• Do not touch the metal parts and the body when the appliance is being used or has been used recently, as this may cause burns or scalding and the heang surface will sll retain heat for some me aer use.

• Always hold the appliance by its han- dle

• Do not use this appliance with a dam- aged cable or plug. If the power cable is damaged, it must be replaced by the manufacturer, his service representa- ves or a similarly qualied person in order to avoid hazards.

• Children should be supervised to en- sure that they do not play with the appliance25English

• Please do not operate outdoors!

• Please do not operate without milk in the container!

• Turn o the appliance and the main power when it is not being used.

• Never touch rotang parts. There is a risk of injury!

• The container may overow if the capacity is exceeded.

• Use the appliance only in conjuncon with the supplied base unit

• Never operate the product on une- ven surfaces

• Use only re blankets to exnguish res on appliances

• The appliance is not designed for commercial or industrial purposes. It is only suitable for domesc use.

• Do not insert any objects and / or ngers into any openings in the appli- ance26 English

• Turn o the appliance before dispos- al, disconnect the power cable and discard the appliance at an ocial disposal site

• Keep the appliance and the cable out of the reach of children under 8 years

• Never immerse the cable or plug in water or any other liquid to protect against re, electric shock and injury to persons

• Supervision is necessary when the appliance is used by children or used in the vicinity of children

• Unplug before cleaning or remove the plug from the socket when the unit is not in use. Let the appliance cool down before cleaning, as soon as you x or install parts

• Never operate the appliance with a damaged cable or plug, aer a defect or with any kind of damage.27English

• Hand over the appliance to the near- est authorized dealer for checking, repair or adjustment.

• Using accessories, which are not rec- ommended by the manufacturer may cause re, electric shock or injury to persons

• Do not let the cable hang over the edge of the table or counter or touch hot surfaces

• Do not place on or near a hot gas or electric oven or in a heated oven

• Always insert the plug rst in the appliance and then the cable into the socket. To switch o the appliance, turn the knob to "o" and then pull the plug out of the socket.

• Do not misuse the appliance for an- ything other than the intended pur- pose to prevent possible injury28 English

• Scalding may occur if the lid is re- moved during operaon

• This appliance is intended to be used in household and similar such as: Sta kitchen areas in shops and other working environments; Farm house; By clients in hotels and other resi- denal type environments; Bed and breakfast oers

• Warning! The heang element is hot aer use. Please let the device cool down before cleaning or touching in order to prevent injuries.

• Keep preserve these instrucons carefully!29English Thank you for choosing an Arendo product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

• Base unit with heang plate and connecon cable

• Unpack the carton carefully and keep all the packing materials un- l you ensure that the product is complete and working properly.

• Remove all packaging materials and lms and preserve this booklet for possible future use. Check if the appliance has been delivered completely and is in proper condion.

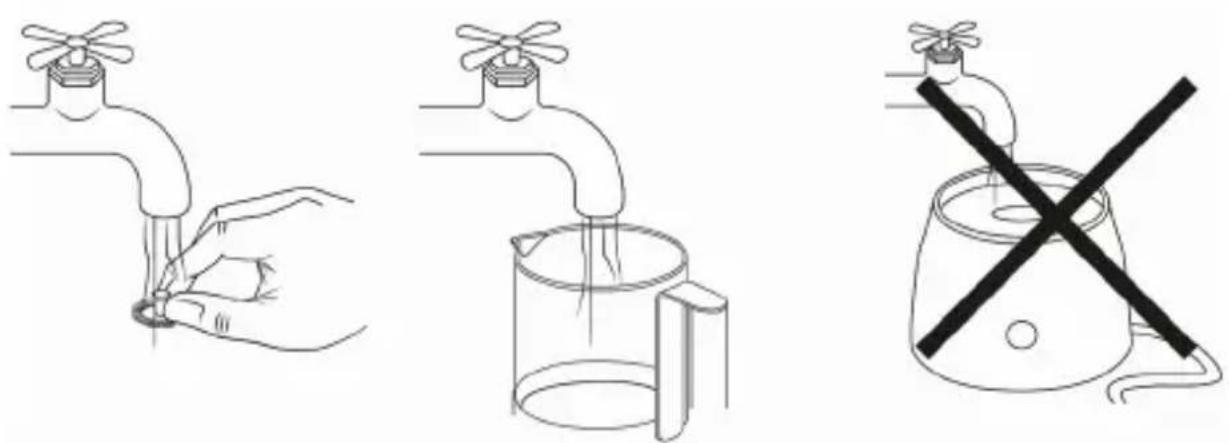

• Clean the container and the accessories before using the appliance for the rst me as described in the chapter "Cleaning and Care", to remove dust or producon residues.

• Never expose the base unit to water! Never immerse the appliance in water.

• Please note the ps and tricks in this manual!

3. Product details30 English

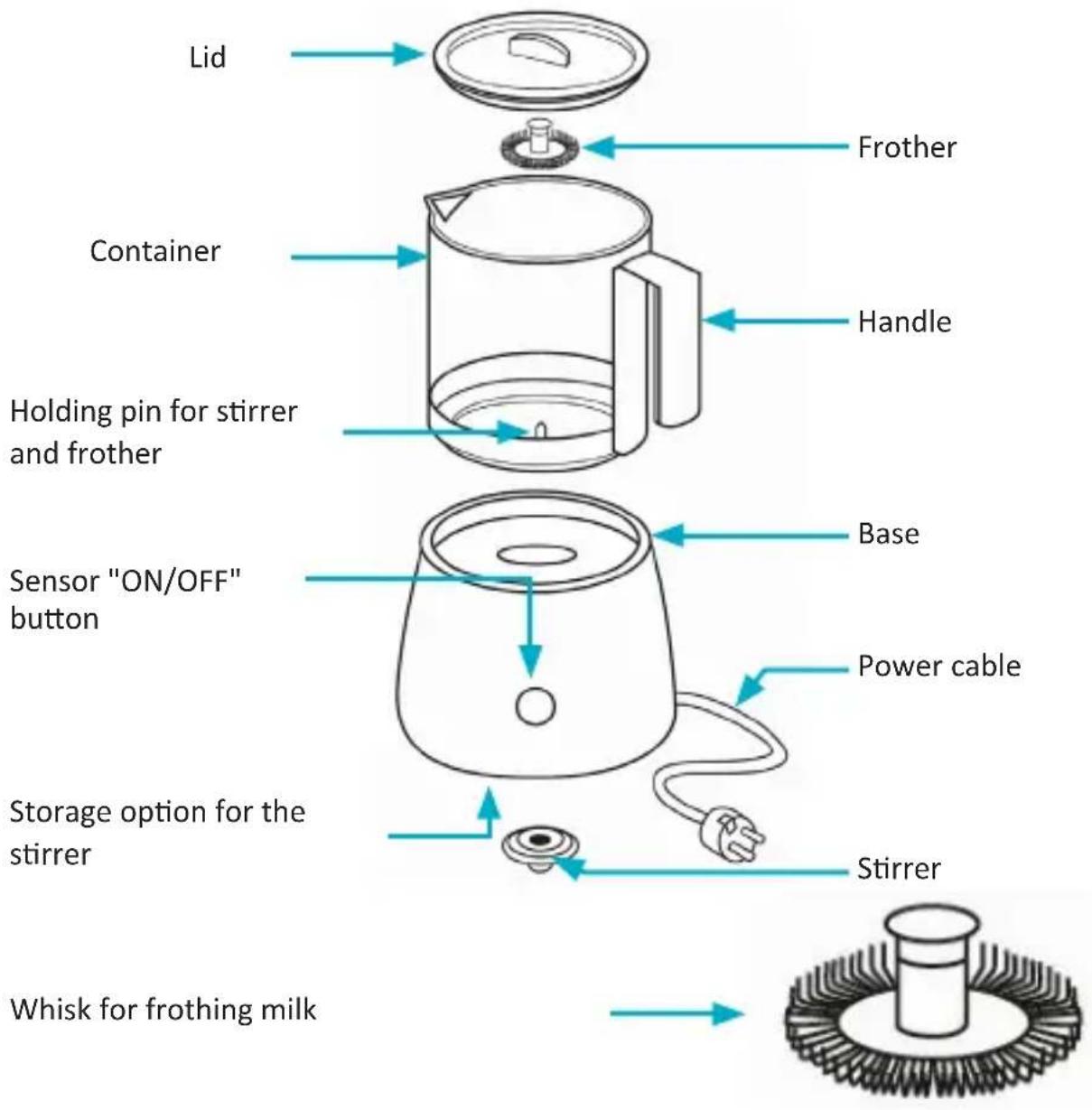

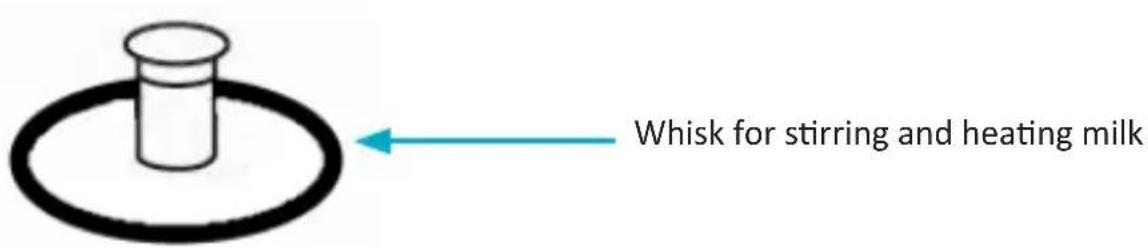

4 Funcons of the buons Lid Frother Container Handle Base Sensor "ON/OFF" buon Power cable Whisk for frothing milk Whisk for srring and heang milk Srrer Holding pin for srrer and frother Storage opon for the srrer31English The sensor buon on the front of the base unit is used to switch on the appliance and to select the operang modes at the same me. The selecon is conrmed by a short audible signal. Cauon! Use mode 2 (white LED) only for srring mode! Select the appropriate aachment and x it in the container. LED colour Funcon Red Heang, 60-240 seconds White Heang, 300-420 seconds Blue normal ow (heang plate switched o), 120 seconds Sensor buon Funcon Press once Sensor buon glows red Press twice Sensor buon glows white Press thrice Sensor buon glows blue Press four mes Cancel / Switch o the appliance32 English

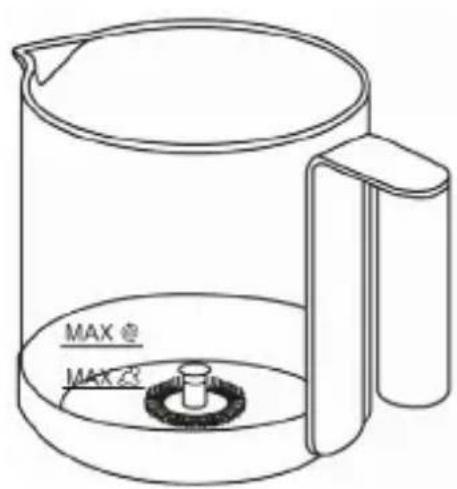

5 Usage Please note that the maximum level is dierent for the various modes. The maximum level is 175 ml for frothing (" "). The maximum level is 250ml for srring (" ").33English

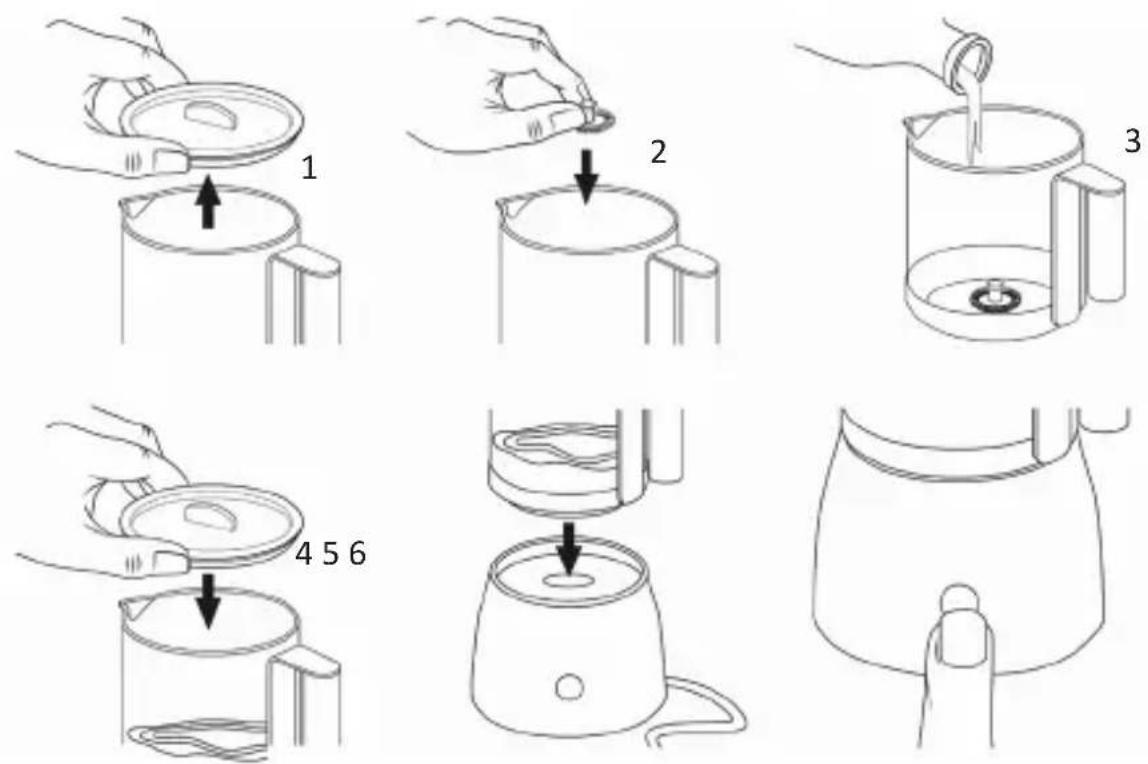

1. Remove the lid of the milk frother.

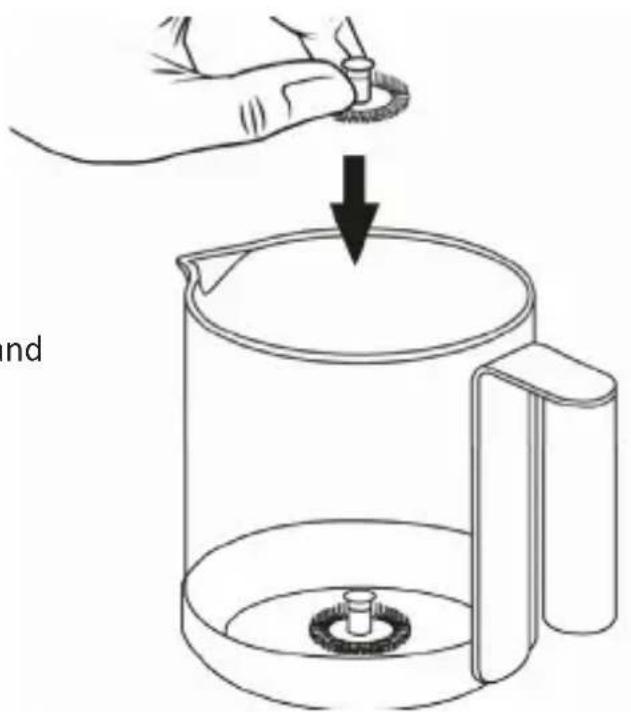

2. Insert the desired aachment (srrer or frother).

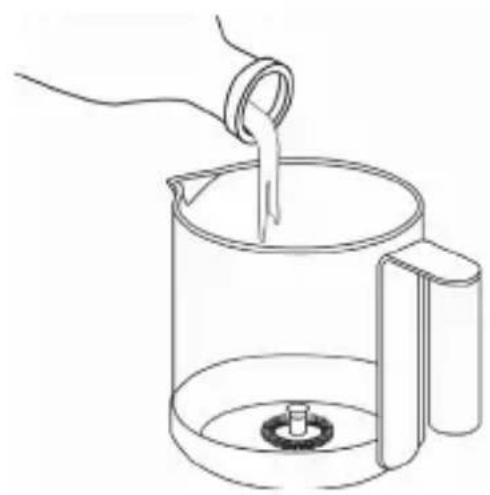

3. Pour milk into the container. Ensure that you do not exceed the maximum

level: Frothing 175 ml (" ";) Srring 250ml (" ").

4. Close the lid of the milk container and ensure that it is xed correctly.

5. Place the milk container on the base unit. Connect the power cable to a

properly installed socket.

6. Press the sensor buon (" ") on the front of the base unit of the milk

frother to switch on the appliance. Press the sensor buon "ON/OFF" on the front of the base unit to select the desi- red mode. An audible signal conrms the selecon. And the ( ) symbol starts glowing in red on the buon (heang plate switched on). If the ( ) symbol is blue, then the heang plate is switched o and the content is not being heated. If the appliance is started, then the milk frother is automacally switched o aer 60-240 seconds. The container is subsequently lled with hot or cold milk froth de- pending on whether you had switched the heang plate on or o ("red" or "blue" mode). If you want to switch o or stop the appliance during operaon, press the sensor buon (" ") once again.34 English

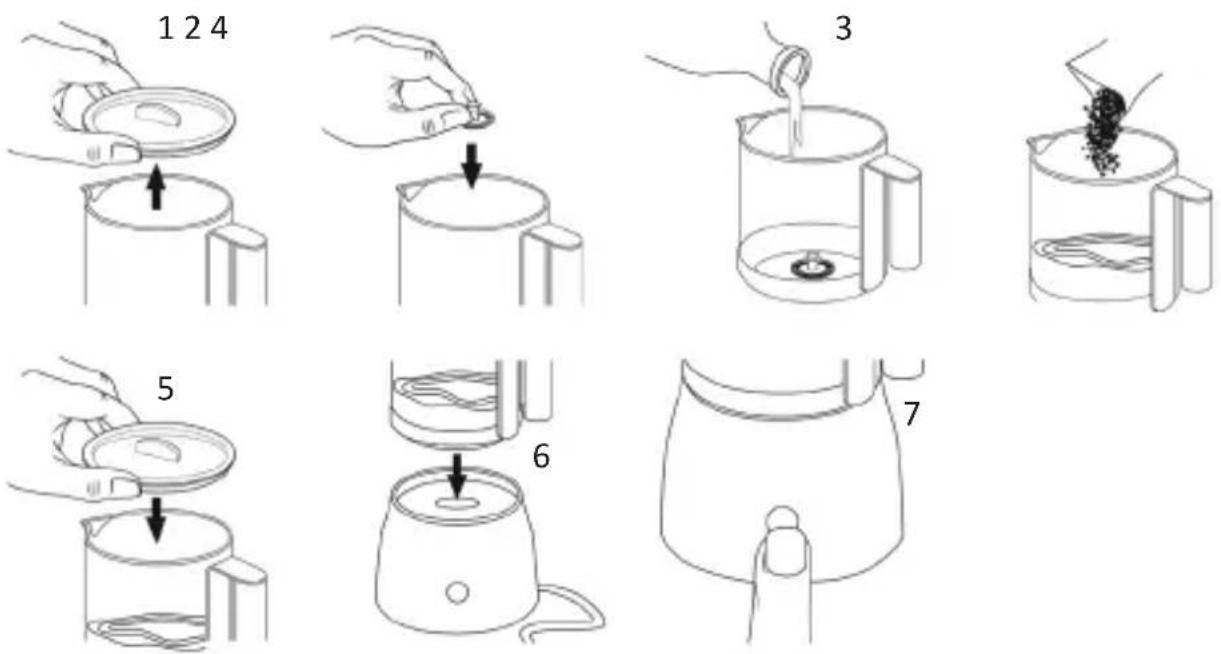

5.2 Srring funcon (E.g. for cocoa)

1. Remove the lid of the milk frother.

2. Insert the desired aachment (srrer or frother).

3. Pour milk into the container. Ensure that you do not exceed the maximum

level: Frothing 175 ml (" ";) Srring 250ml (" ").

4. Add the desired mixing powder (e.g. cocoa powder).

5. Close the lid of the milk container and ensure that it is xed correctly.

6. Place the milk container on the base unit. Connect the power cable to a

properly installed socket.

7. Press the sensor buon (" ") on the front of the base unit of the milk

frother to switch on the appliance. Press the sensor buon (" ") on the front of the base unit to select the desired mode. An audible signal conrms the selecon. And the ( ) symbol starts glo- wing in blue on the buon (heang plate switched o). If the ( ) symbol is red or white, then the heang plate is switched on and the content is being heated. The white LED colour means a longer heang duraon.

635English If the appliance is started, then the milk frother is automacally switched o aer 300-420 seconds. The container is subsequently lled with hot or cold milk froth depending on whether you had switched the heang funcon on or o ("white" or "blue" mode). If you want to switch o or stop the appliance during operaon, press the "ON/OFF" sensor buon once again. Tips and Tricks Some useful ps are given in this chapter to help you get the most out of your milk frother.

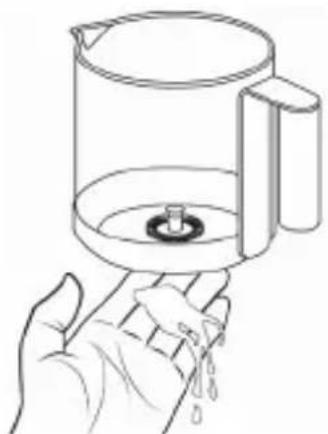

• If you want to speed up the frothing or srring operaon, we recommend you to wet the boom of the milk container with some water. Whisk Funcons maximum level Cold milk frothing 175ml

Frothing and heang 175ml

Heang (with a very small amount of froth) 250ml ( )36 English

• Use the milk frother to froth or heat milk. Prepare your coee or hot chocolate during the process and serve the drink directly aer compleon.

• Use whole milk (fat content> 3.0%) for the best results.

• Cold milk can be foamed with this milk frother. But this does not mean that you can cool the milk with the appliance. The milk frother works in this state with the temperature of the milk.

• Store the brush in a safe place. These are very small in size and can be easily lost.

• Allow the appliance to cool down for two minutes aer frothing or heang ll the thermostat is reset and then the milk frother is ready for use again. Rinsing with water and subsequent drying aer each use reduces this me.

• The milk frother is designed to froth and heat milk. If you add avours such as coee or cocoa powder in the milk frother, ensure that the appliance is cleaned immediately aer use and thoroughly.

A selecon of quick and easy drinks that you can prepare with the milk frother is given below.

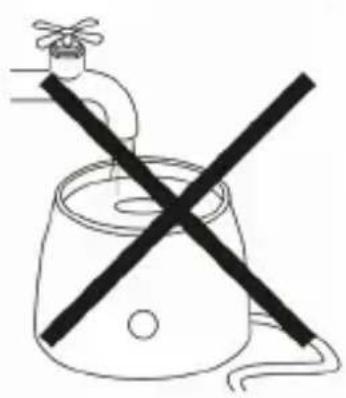

7. Cleaning and care

With frothed milk With hot milk Cappuccino: 1/3 Espresso Add 2/3 frothed milk Add cocoa powder over the froth Caè Lae: 1/3 Espresso Add 2/3 hot milk and sr Lae Macchiato: - Fill the frothed milk in a tall glass. - Carefully pour Espresso along the edge of the glass Hot chocolate: - Add milk to the container - Add cocoa powder and mix milk and powder by srring. Use the srrer for this purpose37English Remove the container before cleaning the base unit. Separate the lid from the container. Never immerse the base unit in water. Do not start cleaning unl the appliance has cooled down completely. 8 Technical data The container Please clean it immediately aer use. Rinse and clean the inside walls with warm soapy water and a non-abrasive cloth. Dry the container with a so cloth. The lid Wash it directly with water. The body Clean the body with a so cloth. Never use sharp cleaning objects,hard nylon brush or metal brush scratches on the stainless steel surface in order to avoid scratches on the stainless steel surface! Please do not clean with metal objects and scouring agents under any circumstances. Never immerse the base unit in water. Srring and frothing aachment The aachments can be cleaned directly using water. Then thoroughly dry the aachments.38 English Power supply 230-240V AC ~, 50Hz Power input

• Standby: ≤0.5W Capacity

• up to 175ml (frothing) " "

• up to 250ml (heang/srring) " " Dimensions (HxWxD) in cm 21x13x18 cm

9. Safety instrucons and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not cered for use in the open air; only use it in dry condions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the de- vice to sudden changes in temperature or heavy vibraon as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe naonal regulaons and restricons. Do not use the device for purposes other than those described in the instrucons. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteraon to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instrucons. The device specicaons may change without any separate prior noce to this eect.39English

10. Disposal instrucons

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Direcve and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inict sus- tained damage on the environment if they are disposed of incorrectly. As a con- sumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collecon points. The details in each case are governed by naonal law. The symbol on the product, the operang instrucons and/or the packaging refers to these regula- ons. By separang materials in this way, recycling and disposing of old devices, you are making an important contribuon towards protecng our environment. WEEE guideline: 2012/19/EU WEEE register number: DE 67896761 WD Plus GmbH, herewith declares that the products 302772 and 302704 conform to the principle requirements and other relevant spulaons. The complete Declaraon of Confor- mity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover40 Français Importantes consignes de sécurité
