USER MANUAL WIXL 105 (EX) 60 HZ INDESIT

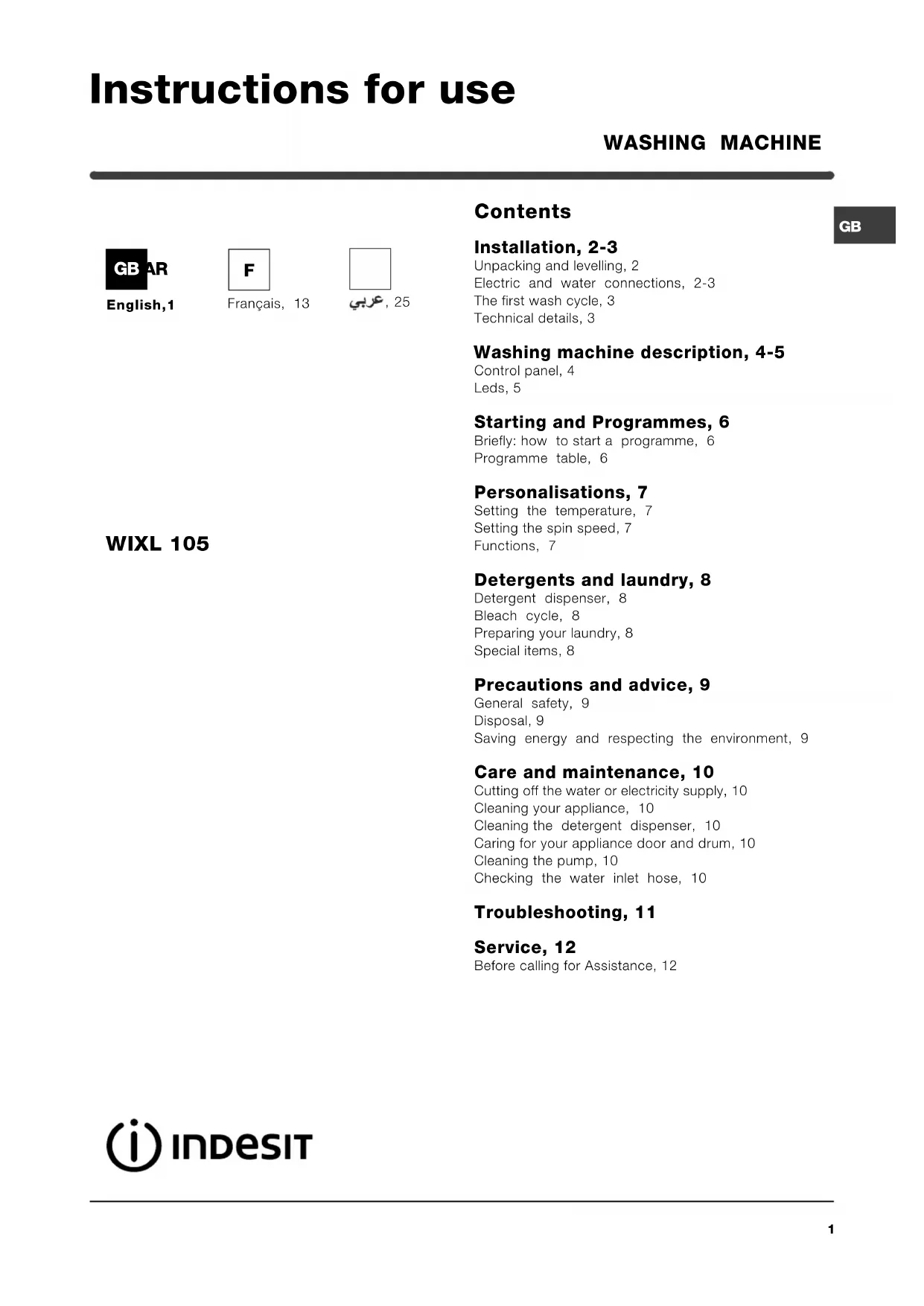

Contents Installation, 2-3 Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3 Washing machine description, 4-5 Control panel, 4 Leds, 5 Starting and Programmes, 6 Briefly: how to start a programme, 6 Programme table, 6 Personalisations, 7 Setting the temperature, 7 Setting the spin speed, 7 Functions, 7 Detergents and laundry, 8 Detergent dispenser, 8 Bleach cycle, 8 Preparing your laundry, 8 Special items, 8 Precautions and advice, 9 General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9 Care and maintenance, 10 Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Cleaning the detergent dispenser, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10 Troubleshooting, 11 Service, 12 Before calling for Assistance, 12 WASHING MACHINE WIXL 105 Instructions for use GB AR English,1 , 25

Installation Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been

damaged during transport. If this is the case, do not install it and contact your retailer.

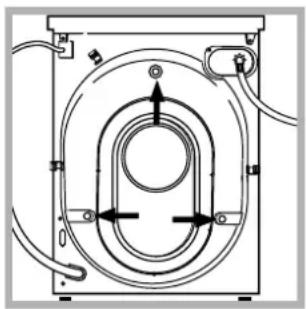

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Use the plug provided to seal the three holes

where the plug was housed, situated on the lower right-hand side on the rear of your appliance.

6. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location. Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor,

without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end

of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the

hose. The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. Never use hoses that have already been used.

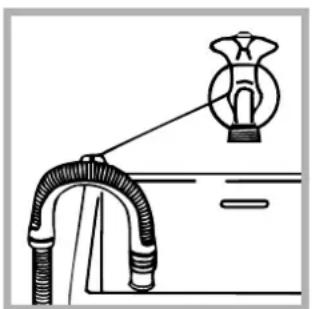

Connecting the drain hoseConnect the drain hose,without bending it, to adraining duct or a walldrain situated between65 and 100 cm fromthe floor;alternatively, place itover the edge of abasin, sink or tub,fastening the ductsupplied to the tap (seefigure). The free end ofthe hose should not beunderwater. We advise against the use of hose extensions; in case of absolute need, the extension must have thesame diameter as the original hose and must notexceed 150 cm in length.Electric connectionBefore plugging the appliance into the mainssocket, make sure that: the socket is earthed and in compliance with theapplicable law; the socket is able to sustain the appliance'smaximum power load indicated in the Technicaldetails table (on the right); the supply voltage is included within the values indicated on the Technical details table(on the right); the socket is compatible with the washingmachine's plug. If this is not the case, replacethe socket or the plug. The washing machine should not be installed in an outdoor environment, not even when the area issheltered, because it may be very dangerous toleave it exposed to rain and thunderstorms. When the washing machine is installed, the mains socket must be within easy reach. Do not use extensions or multiple sockets. The power supply cable must never be bent or dangerously compressed. The power supply cable must only be replaced by an authorised serviceman.Warning! The company denies all liability if and whenthese norms are not respected. The first wash cycle Once the appliance has been installed, and beforeyou use it for the first time, run a wash cycle withdetergent and no laundry, setting the 90°Cprogramme without a pre-wash cycle.

Technical details ModelWIXL 105Dimensions59.5 cm wide85 cm high56.5 cm deepCapacityfrom 1 to 6 kgElectricconnectionsPlease refer to the technical data platefixed to the machine.Waterconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 52 litresSpin speedup to 1000 rpmControlprogrammesaccording to EN60456 directiveprogramme 2; temperature 60°C;run with a load of 6 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2006/95 CE (Low Voltage)- 2002/96 CE4

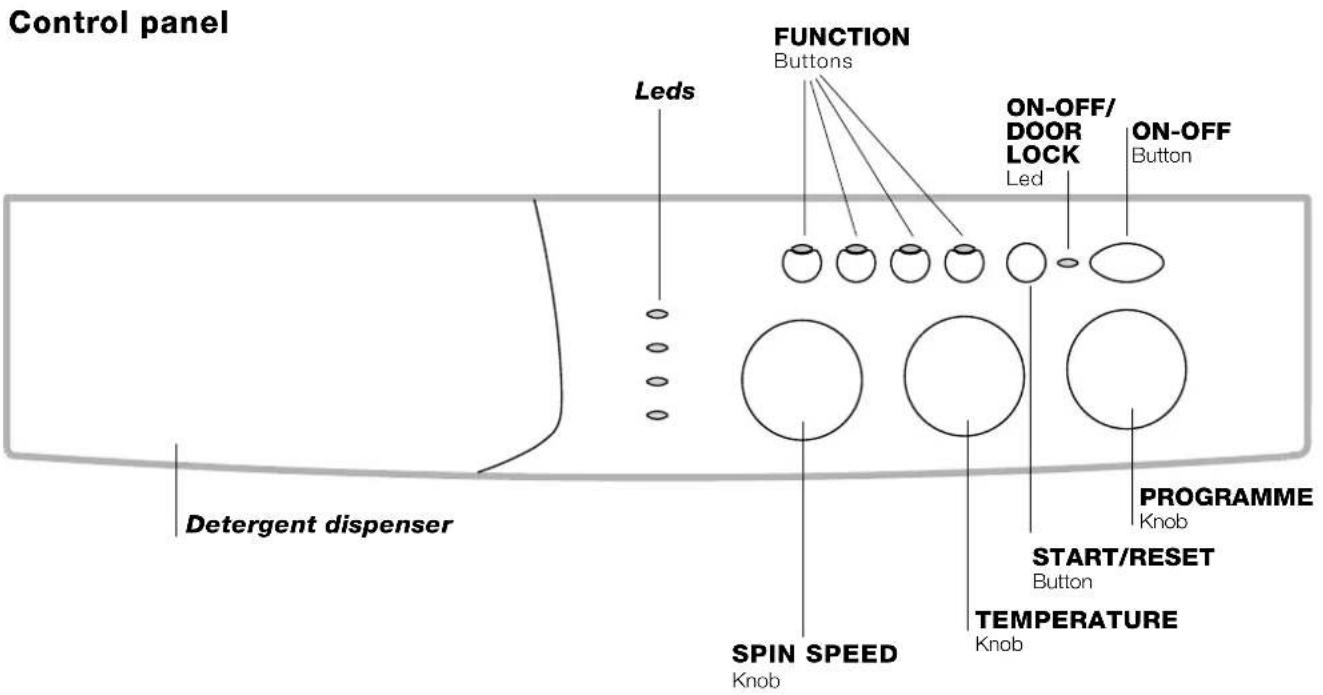

Washing machine description Control panel Detergent dispenser ON-OFF Button START/RESET Button TEMPERATURE Knob PROGRAMME Knob Leds FUNCTION Buttons SPIN SPEED Knob ON-OFF/ DOOR LOCK Led Detergent dispenser: to add detergent and fabric softener (see page 8). LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5). SPIN SPEED knob: to set the spin speed or exclude the spin cycle completely (see page 7). FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on. TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7). START/RESET button: to start the programmes or cancel any incorrect settings. ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5). ON/OFF button: to turn the washing machine on and off. PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.5

ON-OFF/DOOR LOCK led: If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door. The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality (see page 11). Leds The LEDS provide important information. This is what they can tell you: Delay set: If the Delay Timer function has been enabled (see page. 7), once you have started the programme, the LED corresponding to the delay set will begin to flash: As time passes, the remaining delay will be displayed, and the corresponding LED will flash: Once the set delay is complete, the flashing LED will turn off and the programme set will start. Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way: Prewash Wash Rinse Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on. Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.6

Type of fabric anddegree of soilProgrammesTem pe-ratureDetergentFabricsoftenerStain removaloption/bleachCyclelength(minutes)Description of wash cycle pre- wash wash StandardExtremely soiled whites(sheets, tablecloths, etc.) 90°C Pre-wash, wash cycle, rinse cycles,intermediate and final spin cyclesExtremely soiled whites(sheets, tablecloths, etc.) 90°C Delicate/Traditional Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled whites and fastcolours 60°C Delicate/Traditional Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled whites anddelicate colours 40°C Delicate/Traditional Wash cycle, rinse cycles,intermediate and final spin cyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 40°C Delicate/Traditional Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled fast colours(baby linen, etc.) 60°C Delicate Wash cycle, rinse cycles, anti-crease or delicate spin cycleHeavily soiled fast colours(baby linen, etc.) 40°C Delicate Wash cycle, rinse cycles, anti-crease or delicate spin cycleDelicate colours (all typ es ofslightly soiled garments) 40°C Delicate Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wool

40°C Wash cycle, rinse cycles, anti-crease and delicate spin cycleVery delicate fabrics(cu rtains, s ilk, viscose, etc.) 30°C Wash cycle, rinse cycles, anti-crease or draining cycleTime 4 youHeavily soiled whites and fastcolours 60°C Wash cycle, rinse cycles,intermediate and final spin cyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 40°C Wash cycle, rinse cycles,intermediate and final spin cyclesDelicate colours (all typ es ofslightly soiled garments)

50Cold wash (without detergents),wash cycle, rinse cycles, anddelicate spin cycleFabrics for sportswear(Tracksuits, shorts, etc.) 30°C 63Wash cycle, rinse cycles,intermediate and final spin cyclesPARTIAL PROGRAMMESRinse Delicate/TraditionalRinse cycles and spin cycleSpin cycle Draining and spin cycleDrain Draining Starting and Programmes Programme table Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and

shut the appliance door.

3. Set the PROGRAMME knob to the programme

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Add the detergent and any fabric softener

7. Start he programme by pressing the START/RESET

button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

8. When the programme is finished, the ON-OFF/

DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button

Notes -For programmes 8 and 9, we advise against exceeding a wash load of 3.5 kg. -For programme 13 we advise against exceeding a wash load of 2 kg. -For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. Special programme Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent.7

Personalisations Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash (

Setting the spin speed Turn the SPIN SPEED knob to set the spin speed for the programme selected. The maximum spin speeds for each programme are as follows: Programmes Maximum spin speed Cotton 1000 rpm Synthetics 800 rpm Wool 600 rpm Silk no The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme. Note. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes. Functions To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. Function Effect CommentsEnabled withprogrammes:Delay T im erDelays the startof the wash byup to 9 hours.Press the button repeatedly until the LED corresponding to thedesired delay is turned on.The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it. All StainremovalBleaching cycledesigned toremove thetoughest stains.Please remember to pour the bleach into extra compartment 4 (se e page 8) This function is incompatible with the EASY IRON function.2, 3, 4, 5,Rinse cycle.Eas y ironThis optionreduces theamount ofcreasing onfabrics, makingthem easier toiron.When this function is set, programmes 4, 5, 7 will end with thelaundry left to soak (Anti-crease) and the Rinse cycle phaseLED will flash.- to conclude the cycle, press the START/RESET button;- to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.This function is incompatible with the STAIN REMOVAL function.3, 4, 5, 7, 8,9, 10, Rinsecycle.Ex tra R inseIncreases theefficiency of therinse.Recommended when the appliance has a full load or with largequantities of detergent.1, 2, 3, 4, 5,8, 9, 10, 12,13, Rinsecycle.8

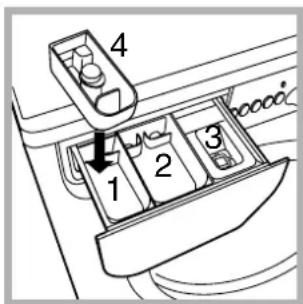

Detergent dispenser Good washing results also depend on the correctdose of detergent: adding too much detergent won'tnecessarily make for a more efficient wash, and mayin fact cause build up on the interior of yourappliance and even pollute the environment.Open up the detergentdispenser and pour inthe detergent and fabricsoftener, as follows.compartment 1: Detergent for pre-wash(powder)Before pouring in the detergent, make sure thatextra compartment 4 has been removed.compartment 2: Detergent for the wash cycle(powder or liquid)Liquid detergent should only be poured inimmediately prior to the wash cycle start.compartment 3: Additives (fabric softeners, etc.)The fabric softener should not overflow from the grid.extra compartment 4: Bleach Do not use hand wash detergent because it may form too much foam. Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for colouredfabrics, synthetics and for wool.Place extracompartment 4,provided, intocompartment 1.When pouring in thebleach, be careful not toexceed the "max" levelindicated on the centralpivot (see figure).To run the bleach cycle alone, pour the bleach intoextra compartment 4, set the Rinse programme and push the function Extra rinse .To bleach during a wash cycle, pour in the detergentand fabric softener, set the desired programme andenable the Stain removal option (see page 7).The use of extra compartment 4 excludes thepossibility of using the pre-wash cycle. In addition, thebleach cycle cannot be run with programmes 7 (Silk)and Daily (see page 6). Preparing your laundry Divide your laundry according to:- the type of fabric/the symbol on the label.- the colours: separate coloured garments fromwhites. Empty all pockets and check for loose buttons. Do not exceed the weight limits stated below,which refer to the weight when dry:Sturdy fabrics: max 6 kgSynthetic fabrics: max 2.5 kgDelicate fabrics: max 2 kgWool: max 1,5 kgHow much does your laundry weigh?1 sheet 400-500 g1 pillow case 150-200 g1 tablecloth 400-500 g1 bathrobe 900-1,200 g1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillowcase or mesh bag. Wash them separately withoutexceeding half the appliance load. Use programme 7which excludes the spin cycle automatically.Quilted coats and windbreakers: if they arepadded with goose or duck down, they can bemachine-washed. Turn the garments inside out andload a maximum of 2-3 kg, repeating the rinse cycleonce or twice and using the delicate spin cycle.Wool: for best results, use a specific detergent,taking care not to exceed a load of 1,5 kg. Detergents and laundry

Precautions and advice The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety This appliance has been designed for non- professional, household use and its functions must not be changed. This washing machine should only be used by adults and in accordance with the instructions provided in this manual. Never touch the washing machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. Do not open the detergent dispenser while the appliance is in operation. Do not touch the drain water as it could reach very high temperatures. Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. Always keep children well away from the appliance while in operation. The appliance door tends to get quite hot during the wash cycle. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading your laundry into the washing machine, make sure the drum is empty. Disposal Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly. If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.10

Care and maintenance Cutting off the water or electricity supply Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by pulling it out (see figure). Wash it under running water; this operation should be repeated frequently. Caring for your appliance door and drum Always leave the appliance door ajar to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same. Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber:

1. using a screwdriver,

remove the cover panel on the lower front of the washing machine (see figure);

rotating it anti- clockwise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Never use hoses that have already been used.11

Troubleshooting Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list. Problem The washing machine won't start. The wash cycle won't start. The washing machine fails to load water. The washing machine continuously loads and unloads water. The washing machine does not drain or spin. The washing machine vibrates too much during the spin cycle. The washing machine leaks. The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED. There is too much foam. Possible causes/Solution: The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly. The button has not been pressed. The START/RESET button has not been pressed. The water tap is not turned on. A delayed start has been set (using the Delay Timer, see page 7). The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed. The drain hose is not fitted between 65 and 100 cm from the floor (see page 3). The free end of the hose is underwater (see page 3). The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6). The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7). The drain hose is bent (see page 3). The drain duct is clogged. The drum was not unblocked correctly during installation (see page 2). The washing machine is not level (see page 2). The washing machine is closed in between furniture cabinets and the wall (see page 2). The water inlet hose is not screwed on correctly (see page 2). The detergent dispenser is obstructed (to clean it, see page 10). The drain hose is not secured properly (see page 3). Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance. The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). You used too much detergent.12

Before calling for Assistance: Check whether you can solve the problem on your own (see page 11); Restart the programme to check whether the problem has been solved; If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. Always request the assistance of authorised servicemen. Notify the operator of: the type of problem; the appliance model (Mod.); the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine. Service13
