USER MANUAL Retro 2518256 RUSSELL HOBBS

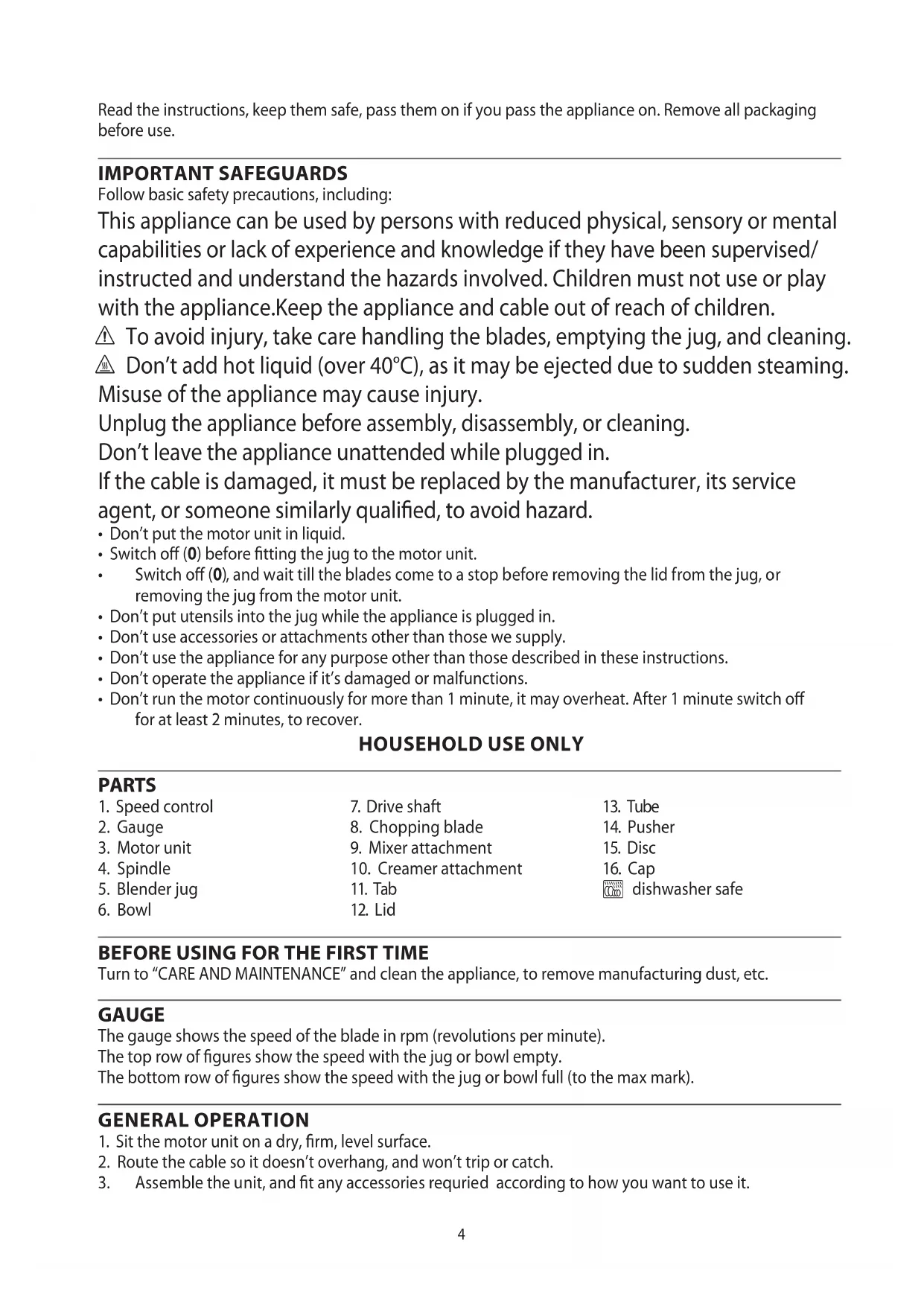

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use. IMPORTANT SAFEGUARDS Follow basic safety precautions, including: This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/ instructed and understand the hazards involved. Children must not use or play with the appliance.Keep the appliance and cable out of reach of children. c To avoid injury, take care handling the blades, emptying the jug, and cleaning. h Don’t add hot liquid (over 40°C), as it may be ejected due to sudden steaming. Misuse of the appliance may cause injury. Unplug the appliance before assembly, disassembly, or cleaning. Don’t leave the appliance unattended while plugged in. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualied, to avoid hazard.

• Don’t put the motor unit in liquid.

• Switch o (0) before tting the jug to the motor unit.

• Switch o (0), and wait till the blades come to a stop before removing the lid from the jug, or removing the jug from the motor unit.

• Don’t put utensils into the jug while the appliance is plugged in.

• Don’t use accessories or attachments other than those we supply.

• Don’t use the appliance for any purpose other than those described in these instructions.

• Don’t operate the appliance if it’s damaged or malfunctions.

• Don’t run the motor continuously for more than 1 minute, it may overheat. After 1 minute switch o for at least 2 minutes, to recover.

10. Creamer attachment

Turn to “CARE AND MAINTENANCE” and clean the appliance, to remove manufacturing dust, etc. GAUGE The gauge shows the speed of the blade in rpm (revolutions per minute). The top row of gures show the speed with the jug or bowl empty. The bottom row of gures show the speed with the jug or bowl full (to the max mark). GENERAL OPERATION

1. Sit the motor unit on a dry, rm, level surface.

2. Route the cable so it doesn’t overhang, and won’t trip or catch.

3. Assemble the unit, and t any accessories requried according to how you want to use it.5

4. Check that the speed control is set to O.

5. Put the plug into the power socket (switch it on, if it’s switchable).

6. Move the speed control to the 1, 2 or 3 position to operate your food processor.

7. Switch the appliance o by moving the speed control to the 0 position and unplug it.

8. Hold the speed control in the Y position to operate your food processor in short, controlled bursts.

9. Release the control to stop.

The general assembly steps are shown in gure A.

1. Lower the blender jug on to the motor unit, then turn the jug clockwise, to lock it in place.

5. Align the pips on the cap with the slots in the hole in the lid, t the cap, and turn it clockwise to lock

8. Once nished, switch the appliance o (0) and unplug it.

1. For best results, full the jug with between 150ml and 500ml of ice cubes.

2. Put the lid on the blender, then:

3. Turn the speed control to Y for a second or two, then release it.

4. Check the results, and adjust.

The general assembly steps are shown in gure B.

1. Fit the spindle to the top of the motor unit.

2. Lower the bowl on to the motor unit, then turn it clockwise to lock it in place.

3. Fit the drive shaft.

4. Fit the chopping blade.

5. Put the ingredients into the bowl.

6. Hold the lid with the tube slightly behind the bowl handle, set it on the bowl, then turn it clockwise

to lock the tab into the top of the handle.

7. Once nished, switch the appliance o (0) and unplug it.

The general assembly steps are shown in gure C. Use the mixer to mix ingredients together. Use the creamer to thicken cream, to beat eggs, and to cream eggs and sugar together.

1. Fit the spindle to the top of the motor unit.

2. Lower the bowl on to the motor unit, then turn it clockwise to lock it in place.

3. Fit the drive shaft.

4. Fit the mixer or creamer attachment.

5. Put the ingredients into the bowl.

6. Hold the lid with the tube slightly behind the bowl handle, set it on the bowl, then turn it clockwise

to lock the tab into the top of the handle.

• To add ingredients while the motor is running, lift the pusher out of the tube, add the ingredients through the tube then replace the pusher.

2. Lower the bowl on to the motor unit, then turn it clockwise to lock it in place.

3. Lower the disc over the top of the spindle with the slicing or grating side facing upwards depending

to whether you want to slice or grate the ingredients.

4. Hold the lid with the tube slightly behind the bowl handle, set it on the bowl, then turn it clockwise

to lock the tab into the top of the handle.

5. Remove the pusher, and drop the ingredients down the tube.

6. Replace the pusher, and use it to push the ingredients gently down the tube.

• Don’t use ngers or cutlery to push food down the tube – only the pusher.

• Don’t let the bowl get more than about half full – stop and empty it.

1. Switch the appliance o (0) and unplug it.

2. Wipe the outside of the motor unit with a clean damp cloth.

3. Hand wash the removable parts.

4. If you use a dishwasher, the harsh environment inside the dishwasher will aect the surface nishes.

5. The damage should be cosmetic only, and should not aect the operation of the appliance.

` You may wash these parts in a dishwasher. RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate ocial recycling/collection point. For recipes, please visit http://eu.russellhobbs.com/recipes/7
