USER MANUAL 37517 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Questions? Please call us - our friendly associates are ready to help. USA:1.800.851.8900

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Use pot holders when removing hot containers.
5. To protect against a risk of electrical shock, do not immerse cord, plug, or base in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
11. Do not place on or near a hot gas or an electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot food, water, or other hot liquids.
13. To disconnect, push up the switch and then remove plug from wall outlet.
14. Do not use appliance for other than intended use.
15. Lift and open cover carefully to avoid scalding, and allow water to drip into the cooking pot.
16. CAUTION: Risk of electric shock. Cook only in removable cooking pot.
17. Do not place the unit directly under cabinets when operating as this product produces large amounts of steam. Avoid reaching over the product when operating.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

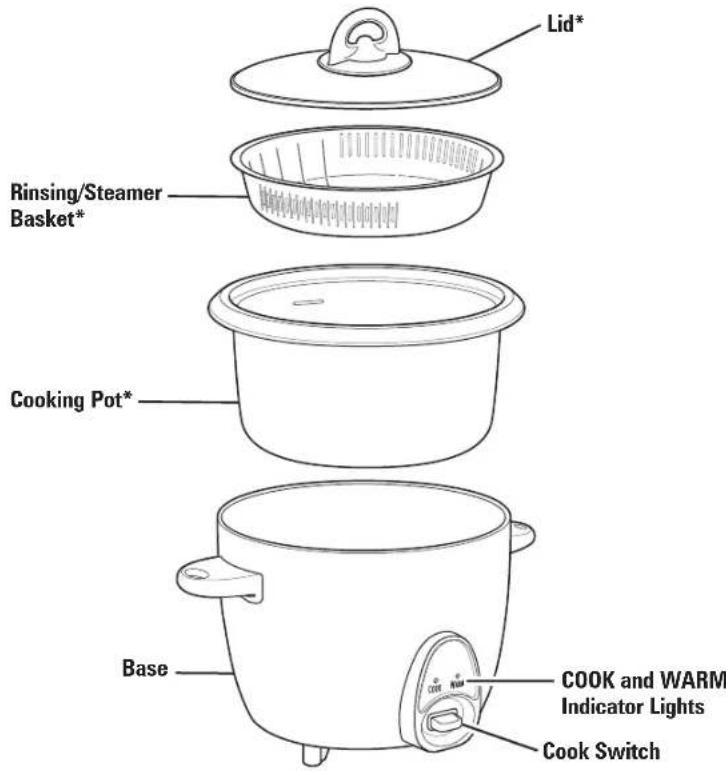

Parts and Features

*To order parts:

US:1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

Rice Measuring Cup 6-Ounce (177 ml)*

How to Cook Rice, Grain, and Cereal

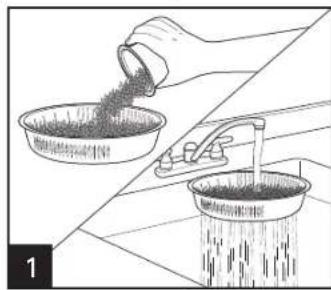

Measure rice with rice measuring cup. Add the desired amount of measured uncooked rice to steamer basket. Do not fill above side vents to prevent rice from falling through while rinsing. Place basket under a slow-flowing faucet and rinse. Add drained rice to cooking pot. Repeat rinsing with any remaining rice.

Add lid to cooking pot.

WARNING Electrical Shock Hazard. Cook only in removable cooking pot. Never place water or food directly into the base.

CAUTION Burn Hazard. Steam from steam vent can cause injury. BEFORE FIRST USE: Wash all removable parts before using. See Care and Cleaning for details.

Follow charts on pages 6 and 7 for cooking amounts, times, and yields. Fill with water to corresponding water line. Example: If you add 3 level rice cups of rice to the cooking pot, add water to the "3" line of the cooking pot.

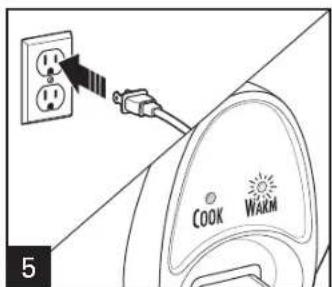

Plug into outlet. The WARM light will illuminate BUT UNIT IS NOT COOKING.

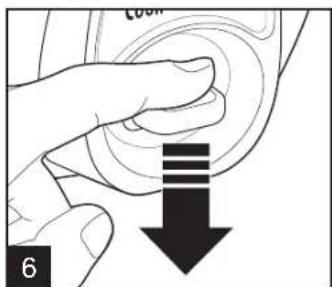

Press cook switch down to begin cooking.

Place cooking pot securely into the base. NOTE: Make sure bottom of cooking pot is not bent or warped, or it will not conduct heat correctly.

How to Cook Rice, Grain, and Cereal (cont.)

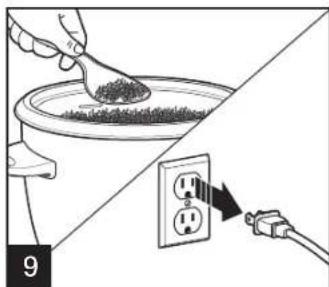

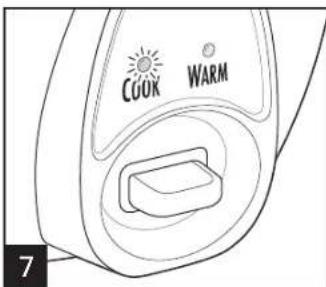

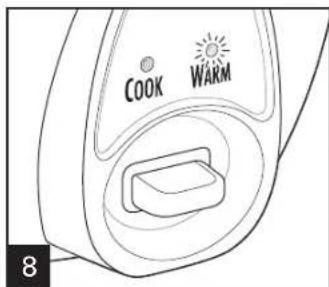

When finished cooking, cooker will switch automatically to WARM and light will illuminate.
Unplug.COOK light will illuminate.

Rice Cooking Chart

Chart is based on measuring rice and water with the rice measuring cup provided.
- There are many different types of rice. Rice packaging directions may call for different amounts of rice and water from the chart; following package directions may vary results.
- Do not exceed MAX fill line to prevent overflow while rice is cooking.

TYPE OF RICE

MAXIMUM AMOUNT OF RICE*

MAXIMUM AMOUNT OF WATER

APPROX. COOKING TIME YIELD**

Long Grain White 8 cups (1.42 L) fill to 8 line 34-36 min 16+ cups

Long Grain Brown 8 cups (1.42 L) fill to 8 line 52-54 min 16+ cups

Arborio 8 cups (1.42 L) fill to 8 line 38-40 min 16+ cups

Basmati*** 8 cups (1.42 L) fill to 8 line 35-37 min 16+ cups

Jasmine*** 8 cups (1.42 L) fill to 8 line 33-35 min 16+ cups

Sushi Rice 8 cups (1.42 L) fill to 8 line 27-29 min 16+ cups

Measured in rice measuring cup
Measured in 1-cup U.S. measure
**Rinse before cooking

Grain and Cereal Cooking Chart

• Follow directions to cook rice, adding water as indicated.
  Chart is based on measuring grain or cereal and water with the rice measuring cup provided. Teff, amaranth, and other very small grains are not recommended.

TYPE OF GRAIN OR Cereal	MAXIMUM AMOUNT OF GRAIN OR Cereal*	MAXIMUM AMOUNT OF WATER*	APPROX. COOKING TIME	YIELD**
Barley 1 cup (177 ml) 3 cups (532 ml)			36-38 min	2 3/4 cups
Buckwheat 4 cups (710 ml) 10 cups (1.77 L)			31-33 min	9 cups
Farro 8 cups (1.42 L) fill to 8 line			53-55 min	15 cups
Millet 5 cups (887 ml) 10 cups (1.77 L)			41-43 min	11 1/2 cups
Quinoa*** 8 cups (1.42 L) fill to 8 line 35			-37 min 17 1/2 cups
Wheatberries 8 cups (1.42 L) fill to 8 line 86			-88 min 15 cups
Cream of Wheat****†	1 cup (177 ml)	5 cups (887 ml)	19-21 min	3 3/4 cups
Grits	1 cup (177 ml)	4 cups (710 ml)	13-15 min	3 cups
Old-Fashioned Oatmeal	6 cups (1.06 L)	10 cups (1.77 L)	23-25 min	10 cups

Measured in rice measuring cup
Measured in 1-cup U.S. measure
Rinse before cooking
**Stir once or twice during cooking

^ Cream of Wheat is a trademark of B&G Foods North America, Inc. Use of the trademark does not imply any affiliation with or endorsement by B&G North America, Inc.

How to Steam Food

WARNING Electrical Shock Hazard. Cook only in removable cooking pot and steamer basket. Never place water or food directly into the base. CAUTION Burn Hazard. Steam from steam vent can cause injury.

Fill cooking pot with 2 rice measuring cups of water.

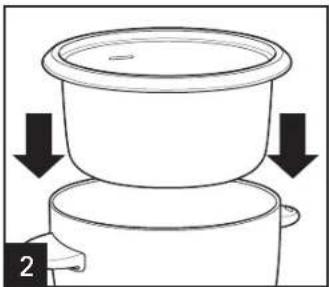

Place cooking pot securely into the base. NOTE: Make sure bottom of cooking pot is not bent or warped, or it will not conduct heat correctly.

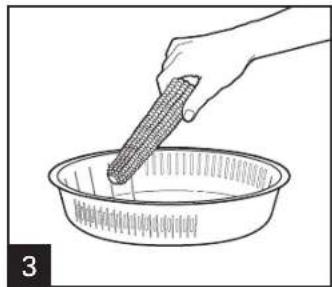

Add food to steamer basket according to the Steam Cooking Chart on page 10.

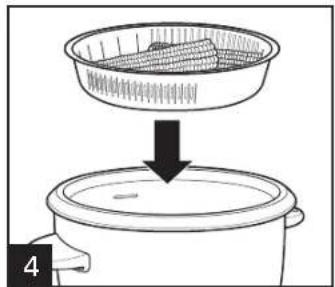

Place steamer basket into cooking pot.

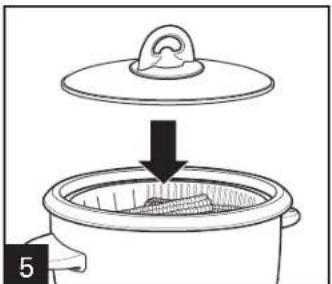

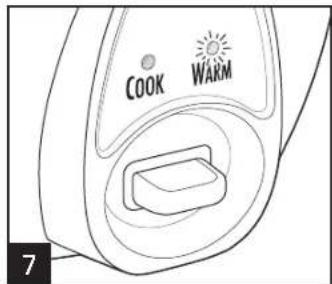

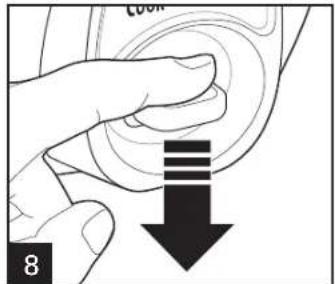

Add lid to cooking pot. The WARM IRgbgttilbutilletatPress cook switch

down to begin BUT UNIT IS NOT COOKING.

cooking.

How to Steam Food (cont.)

COOK light will illuminate. Steam food to desired doneness. See approximate cooking times on chart. Unit automatically switches to WARM when all water is evaporated. NOTE: If unit switches to WARM and food needs more steaming, add water to cooking pot and push down switch to cook.

Using an oven mitt, remove food from steamer basket.

Unplug.

Steam Cooking Chart

TYPE OF FOOD	MAXIMUM AMOUNT OF FOOD*	MAXIMUM AMOUNT OF WATER*	APPROX. COOKING TIME	DONENESS TEST FOR FOOD
Vegetables:
Asparagus, cut in 3-inch pieces	4 cups (946 ml)	2 cups (473 ml)	12-14 min	Crisp-tender
Broccoli, florets	4 cups (946 ml)	2 cups (473 ml)	10-12 min	Crisp-tender
Carrots, sliced 1/4-inch thick	4 cups (946 ml)	2 cups (473 ml)	17-19 min	Crisp-tender
Corn-on-the-Cob	2-3 ears	2 cups (473 ml)	19-21 min	Crisp-tender
Potatoes, cut in 1/2-3/4 inch chunks	4 cups (946 ml)	2 cups (473 ml)	19-21 min	Tender
Zucchini, sliced 1/4-inch thick	4 cups (946 ml)	2 cups (473 ml)	13-15 min	Crisp-tender
Poultry/Seafood:
Chicken, tenders	20 oz. (567 g)	2 cups (473 ml)	18-20 min	Internal temperature 160°-165°F (71°-74°C)
Salmon, fillet	20 oz. (567 g)	2 cups (473 ml)	18-20 min	Internal temperature 145°F (63°C)
Shrimp, peeled and veined 31-40 count	24 oz. (680 g) 2 cups (473 ml) 13-15 min	Pink and opaque

*Measured in 1-cup U.S. measure
- The more food added to the steamer basket, the longer the steam time should be.
- Smaller pieces of food will steam faster than larger pieces.

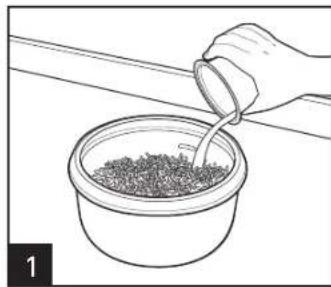

How to Steam Food While Cooking Rice

Follow charts on pages 13 and 14 for cooking amounts, times, and yields. Fill with water to corresponding water line. Example: If you add 3 level cups of rice to the cooking pot, add water to the "3" line of the cooking pot. NOTE: Some foods should be added to the steamer basket at the start of cooking rice and others need to be added when steaming starts heavily from the lid vent.

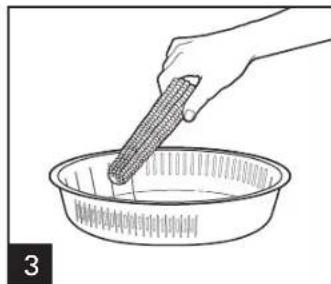

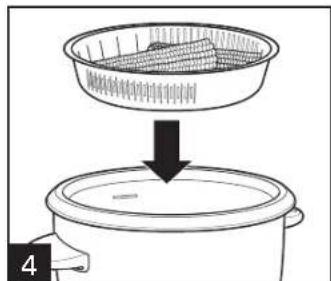

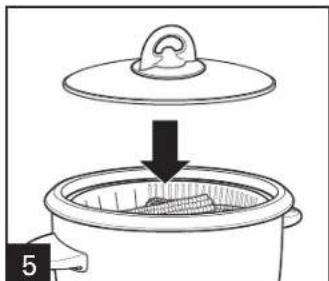

Add food to steamer basket. Add lid to cooking pot. Place steamer basket into cooking pot.

WARNING Electrical Shock Hazard. Cook only in removable cooking pot and steamer basket. Never place water or food directly into the base.
CAUTION Burn Hazard. Steam from steam vent can cause injury.

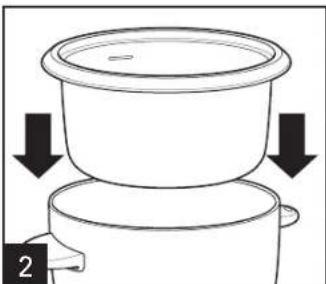

Place cooking pot securely into the base. NOTE: Make sure bottom of cooking pot is not bent or warped, or it will not conduct heat correctly.

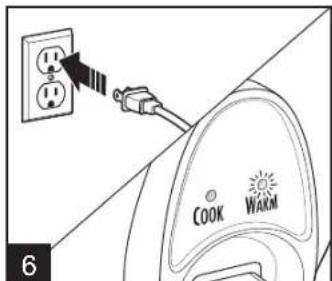

Plug into outlet. The WARM light will illuminate BUT UNIT IS NOT COOKING. 1

How to Steam Food While Cooking Rice (cont.)

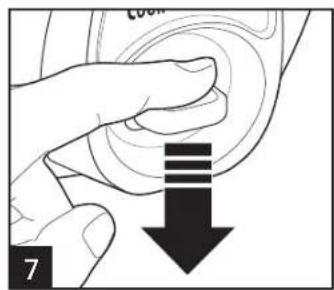

Press cook switch down to begin cooking.

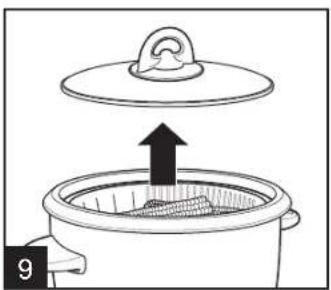

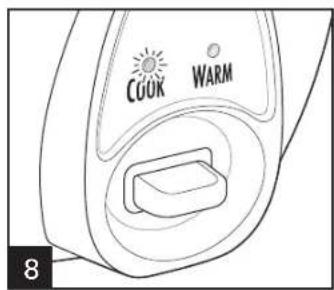

COOK light will illuminate. Remove

lid to check doneness of food in steamer basket. NOTE: To check steamed food during rice cooking time, use caution and an oven mitt while lifting lid. If food is done, remove food with spatula from steamer basket to serving bowl/platter.

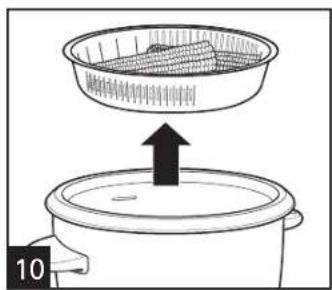

Using an oven mitt, remove steamer basket.

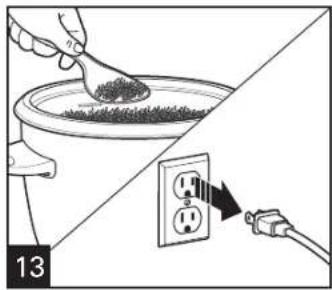

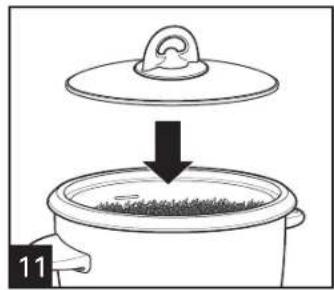

Add lid to cooking pot. Unplug.

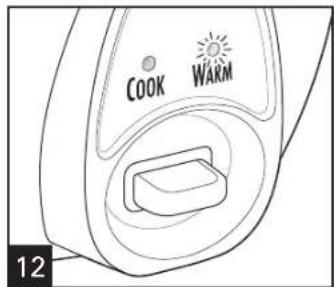

When finished cooking rice, cooker will automatically switch to WARM mode and light will illuminate.

Steaming Food With Rice Chart

Chart is based on measuring rice and water with the rice measuring cup provided. If you lose the rice measuring cup, one rice measuring cup equals 6 oz. (177 ml) or approximately 3/4 cup U.S. measure, or follow the recommended two parts water to one part rice.

TYPE OF FOOD	MAXIMUM AMOUNT OF FOOD*	MAXIMUM AMOUNT OF RICE**	MAXIMUM AMOUNT OF WATER	APPROX. COOKING TIME***	YIELD OF RICE*	DONENESS TEST FOR FOOD
Asparagus, cut in 3-inch pieces 4 cups	(946 ml)	4 cups	Fill to 4 line 21-23 min 8 cups Crisp-Tender: add vegetables when steaming heavily from vent
Broccoli, florets 4 cups	(946 ml)	4 cups	Fill to 4 line 22-24 min 9 cups Crisp-Tender: add vegetables when steaming heavily from vent
Corn-on-the-Cob 2-3 ears 4 cups		(710 ml)	Fill to 4 line 25-27 min 9 cups Crisp-Tender
Potatoes, cut in 1/2-3/4 inch chunks	4 cups	4 cups	Fill to 4 line 23-25 min 9 cups Tender: add potatoes from the start. Let stand 10 minutes on WARM.
	(946 ml)	(710 ml)
*Measured in 1-cup U.S. measure **Measured in rice measuring cup ***All times are for long grain white rice
· The more food added to the steamer basket, the longer the steam time should be. · Smaller pieces of food will steam faster than larger pieces.			· Give rice a flavor boost by substituting an equal amount of chicken/ beef/vegetable broth for water.

Steaming Food With Rice Chart (cont.)

TYPE OF FOOD	MAXIMUM AMOUNT OF FOOD*	MAXIMUM AMOUNT OF RICE**	MAXIMUM AMOUNT OF WATER	APPROX. COOKING TIME***	YIELD OF RICE*	DONENESS TEST FOR FOOD
Yellow Squash and Red Bell Peppers, sliced 1/4-inch thick and 1-inch cubes	4 cups (946 ml)	4 cups (710 ml)	Fill to 4 line 23-25 min 8 1/2 cups Crisp-Tender: add vegetables when steaming heavily from vent
Chicken, tenders 18 oz.	(510 g)	4 cups (710 ml)	Fill to 4 line 23-25 min 8 1/4 cups Internal temp 160°-165°F (71°-74°C). Let stand on WARM up to 10 minutes if needed.
Salmon fillet 18 oz.	(510 g)	4 cups (710 ml)	Fill to 4 line 23-25 min 9 cups Internal temperature 145°F (63°C). Let stand on WARM up to 10 minutes if needed.
Shrimp, peeled and veined 31-40 count	18 oz. (510 g)	4 cups (710 ml)	Fill to 4 line 23-25 min 9 cups Pink and opaque
*Measured in 1-cup U.S. measure **Measured in rice measuring cup ***All times are for long grain white rice

Care and Cleaning

Unplug.

Wipe cooking pot with a damp cloth or sponge. To remove stubborn spots, use a mild nonabrasive cleanser.

WARNING

Electrical Shock Hazard.

Do not immerse base, cord, or plug in water or other liquid.

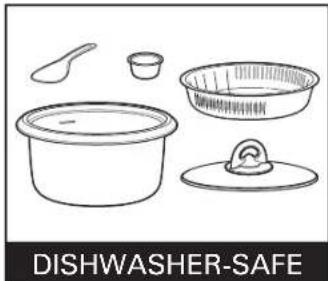

Cooking pot and lid are dishwasher-safe. Steamer basket, rice measuring cup, and rice paddle are dishwasher-safe for top rack only. DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Troubleshooting

PROBLEM PROBABLECAUSE/SOLUTION

Cooker doesn't turn on.

Rice is not cooked.

• Cooker is not plugged in. Make sure rice cooker is plugged into a properly operating electrical outlet.
• Not enough water/cooking liquid. Follow package directions or see Rice Cooking Chart for more information.
• Place cooking pot securely into the base. NOTE: If cooking pot is bent or warped, it will not seat properly in base and, therefore, will not conduct heat correctly. To replace cooking pot, call the toll-free Customer Assistance number listed on the cover of this guide.
• Let rice rest for 10 to 15 minutes after cooking is complete and rice cooker has switched to WARM.

Rice is mushy. - Too much liquid added to cooking pot. Reduce liquid.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
