Product type	Multifunction meat grinder
Brand	Bosch
Model	CompactPower MFW3X13B
Power supply	220-240 V, 50-60 Hz
Power	800 W (estimated)
Main functions	Meat grinding, sausage making, grating/slicing, citrus pressing, grain milling, fruit pressing
Perforated discs included	Fine (2.7 mm), medium (4 mm), coarse (8 mm)
Available speeds	2 speeds (slow/fast) + reverse
Maximum usage time (grinder)	10 minutes continuously, then cool to room temperature
Maximum usage time (grain mill)	15 minutes continuously, then cooling for 45 minutes
Maintenance	Hand wash, dry immediately, oil metal parts. Do not wash metal parts in dishwasher.
Safety	Accessory lock, reverse for unblocking, programmed break drive blade for overload protection
Included accessories	Base accessory, pusher, funnel, 3 discs, sausage attachment, slicing attachment (4 inserts), citrus press, grain mill, fruit press, cleaning brush, insert removal hook

Frequently Asked Questions - CompactPower MFW3X13B BOSCH

How to use the meat grinder?

Place the base accessory on the appliance, insert the auger and desired disc, then screw on the ring. Plug in and turn on. Push food with the pusher. Never put your hands into the opening.

How to clean the appliance after use?

Always unplug the appliance. Clean accessories by hand with a soft sponge. Metal parts must be dried immediately and lightly oiled to prevent rust. Do not put metal parts in the dishwasher.

What to do if the appliance does not start?

Check that the plug is properly inserted into a power outlet. If the problem persists, the appliance may have experienced an overload and the drive blade is broken. Replace the blade (ref. 10005188) through customer service.

Can I grind bones with this appliance?

No, the appliance is designed for boneless meat without cartilage or tendons. Bones can damage the blade and the appliance.

How to use the reverse function?

Turn off the appliance and wait for a complete stop. Press and hold the 1·2 | rev button for 5 to 10 seconds. Release and wait for it to stop, then restart. This function unblocks stuck food.

What foods can I grind with the grain mill?

You can grind wheat, oats, rice, coffee, pepper, nuts, almonds, flax seeds, buckwheat, etc. Do not grind very hard products like corn or dried peas.

How to replace the drive blade?

Loosen the blade screw with a PH2 screwdriver, remove the old blade, install the new one and tighten the screw. Order the part (ref. 10005188) from customer service.

Can I wash the parts in the dishwasher?

Only plastic parts can go in the dishwasher. Metal parts (blade, discs) must be hand washed to prevent rust and oxidation.

How long can I use the appliance continuously?

For the meat grinder, do not exceed 10 minutes continuously. For the grain mill, 15 minutes maximum, then let it cool for 45 minutes.

Where to find spare parts and accessories?

Spare parts and accessories are available from Bosch customer service or at www.bosch-home.com. Refer to the list in the manual.

USER MANUAL CompactPower MFW3X13B BOSCH

CompactPower Meat mincer

MFW39... MFW3X...

[en] Instruction manual Meat mincer 18

Read and follow the operating instructions carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is intended for domestic use only. Use the appliance for processing normal quantities of food for domestic use.

The appliance and accessories (depending on the model) are suitable for the following purposes:

Meat mincer: for cutting and mixing raw and cooked meat, bacon, poultry and fish.

Sausage filler: for making sausages and meat rolls.

Shredding attachment: for shredding, grating and cutting up food.

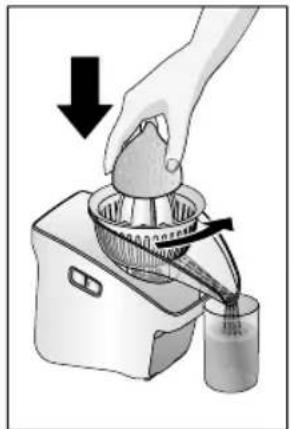

Citrus press: for squeezing juice out of citrus fruits.

Grain mill: for grinding all types of grain (except maize), such as e.g. poppy seeds, linseeds, sesame, buckwheat and also herbs, spices and coffee.

Fruit press: for squeezing juice out of fruits such as e.g.

raspberries, currants, strawberries, gooseberries or grapes and tomatoes.

Food which is to be processed must not contain any hard components (e.g. bones). The appliance should not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Use the appliance only with genuine parts and accessories.

Never use the attachments or slicing / shredding inserts on other appliances. Only use matching parts for the relevant attachments.

Only use the appliance indoors at room temperature and up to 2000 m above sea level. Do not place the appliance on or near hot surfaces, e.g. hobs.

Your work surface should be easily accessible, resistant to moisture, firm, flat, dry and large enough to prevent any harm from splashing and to let you work unhindered.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance and if they understand the hazards involved.

Keep children away from the appliance and connecting cable and do not allow them to use the appliance.

Children must not play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Danger of electric shock and fire

Connect and operate the appliance only according to the type plate specifications. Do not use if the mains cable or appliance show any signs of damage. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on! We recommend that the appliance is never switched on for longer than is necessary to process the ingredients.

The mains cable must not come into contact with hot parts or be pulled across sharp edges. Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands and do not operate at no load. The appliance must always be disconnected from the mains after each use, whenever the appliance is unattended, prior to assembly, disassembly or cleaning and in the event of a fault.

Risk of injury

Immediately after using the appliance wait for it to stop. Before fitting or replacing attachments, the appliance must be switched off and disconnected from the mains.

Do not grasp the sharp blades and edges of the shredding and slicing inserts.

Keep hands clear of rotating parts. Never reach into the feed chute or outlet opening. Never put the food to be processed into the feed chute with your hands. Only use the pusher provided!

Never clean the sharp blades and edges of the shredding and slicing inserts with your bare hands. Clean them with a brush.

Caution! Risk of damaging the appliance

Check that there are no foreign objects in the feed chute or attachments. Do not poke objects (e.g. knives, spoons) in the feed chute or outlet opening.

Before changing the direction of rotation (reverse), wait until the drive has come to a complete standstill. Only allow the appliance to run uninterrupted for a maximum of 10 minutes. Then switch off and allow to cool down to room temperature.

⚠️ Important!

It is essential to clean the appliance as described after each use or after it has not been used for an extended period. → “Care and daily cleaning” see page 27

Congratulations on the purchase of your new Bosch appliance.

On the following pages of these operating instructions you will find useful information for safe use of this appliance.

We request that you read these operating instructions carefully and observe all instructions. This ensures you will be able to enjoy this appliance for a long time, and the results will confirm your choice of this appliance.

Retain these operating instructions for subsequent use or for the next owner. You can find further information about our products on our website.

Content

Intended use....18

Safety instructions....19

Overview....20

Before using for the first time....21

Control and display elements....21

Overload protection 22

Speed setting....22

Reversing function....22

Base unit....23

Base attachment....23

Shredding attachment 24

Citrus press attachment....25

Grain mill attachment....25

Fruit press attachment....26

Care and daily cleaning....27

Recipes....28

Tips....28

Disposal....29

Guarantee....29

Spare parts and accessories....30

Troubleshooting....31

Overview

→ Fig. A

1 Base unit

a Drive for attachments

b Button I or O/I*

c Button O or 1·2 | rev*

d Operation indicator

e Release button

f Carrying handle

g Storage compartment with cover

h Mains cable

i Cable storage compartment

2 Base attachment

a Housing

b Feed chute

c Filling tray

d Pusher

e Worm gear with agitator paddle

f Threaded ring

3 Meat mincer insert

a Blade

b Perforated disc, fine (2,7 mm)*

c Perforated disc, medium (4 mm)

d Perforated disc, coarse (8 mm)

4 Sausage filler insert

a Bearing ring

b Sausage filler nozzle

→ Fig. C

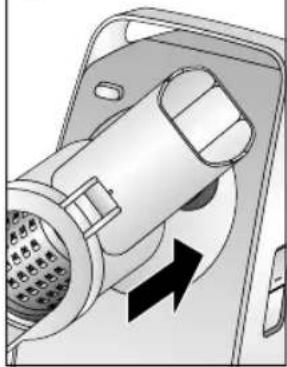

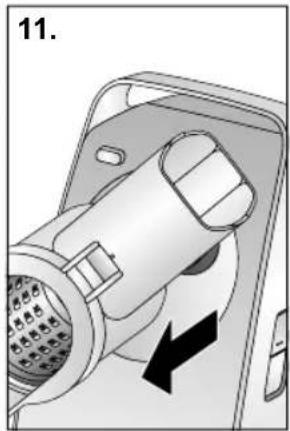

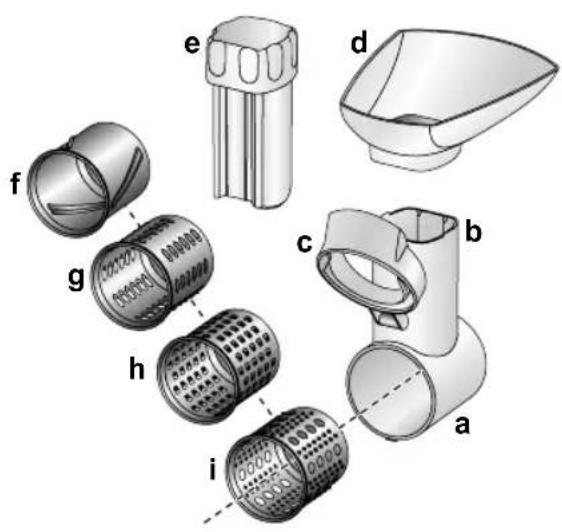

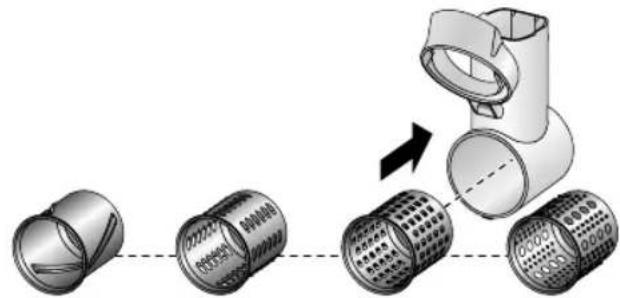

5 Shredding attachment\*

a Housing

b Feed chute

c Cap

d Filling tray

e Pusher

f Slicing insert

g Shredding insert, coarse

h Shredding insert, fine

i Grating insert

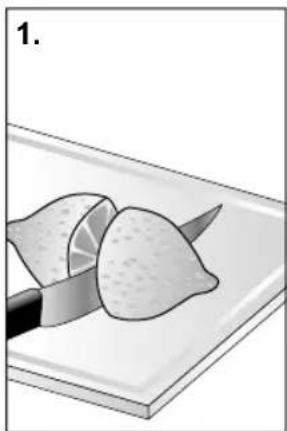

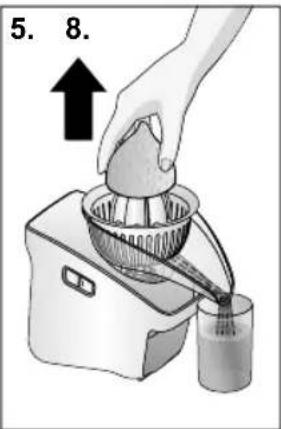

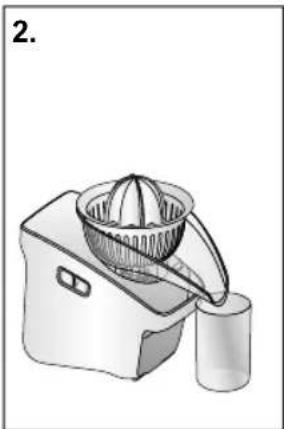

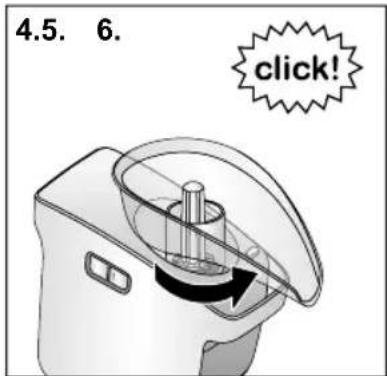

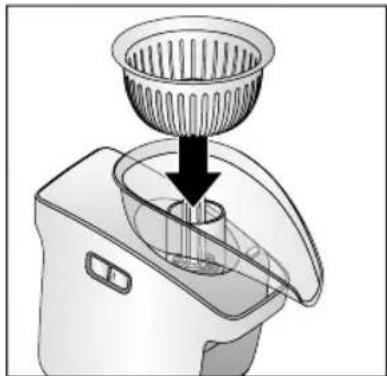

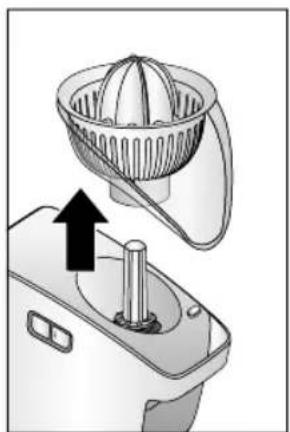

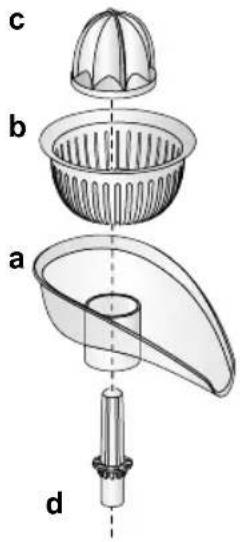

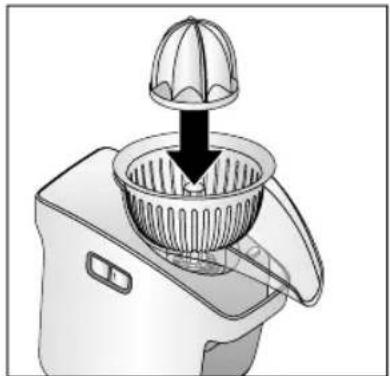

6 Citrus press attachment\*

a Collecting tray

b Filter insert

c Pressing cone

d Driving shaft with spring

Before using for the first time

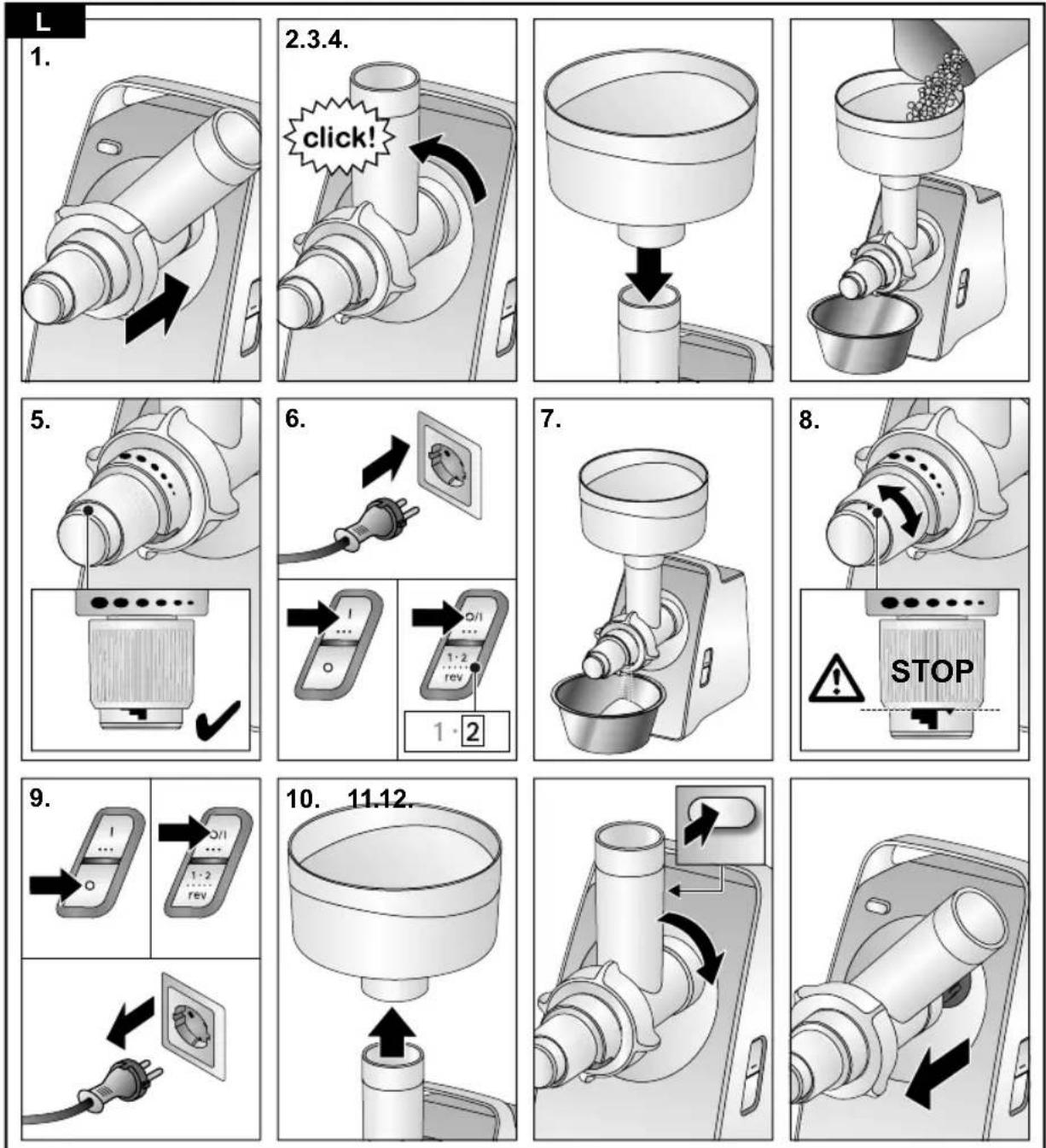

7 Grain mill attachment\*

a Housing
b Feed chute
c Filling tray
d Worm gear
e Grinding ring
f Grinding cone
g Grinding chamber
h Setting ring
i Adjustment screw with scale
j Threaded ring

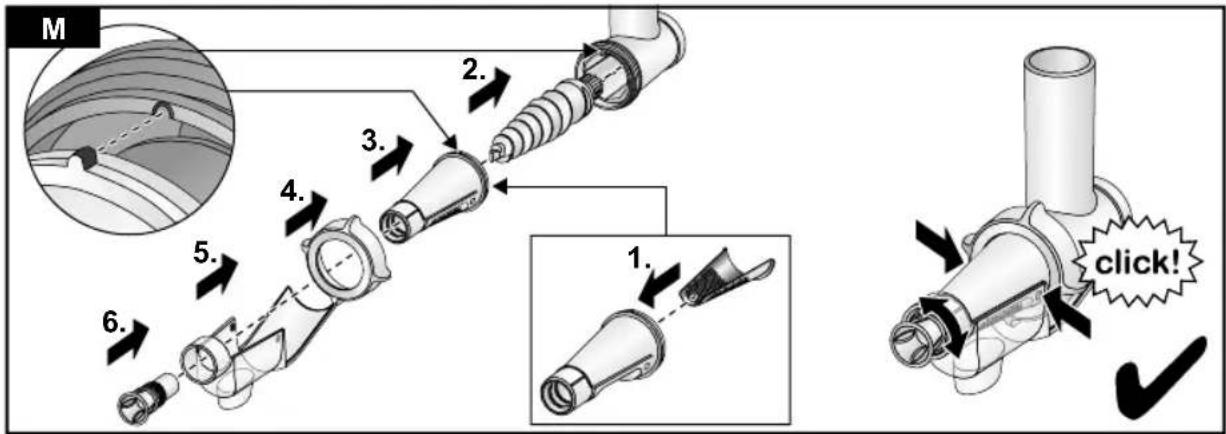

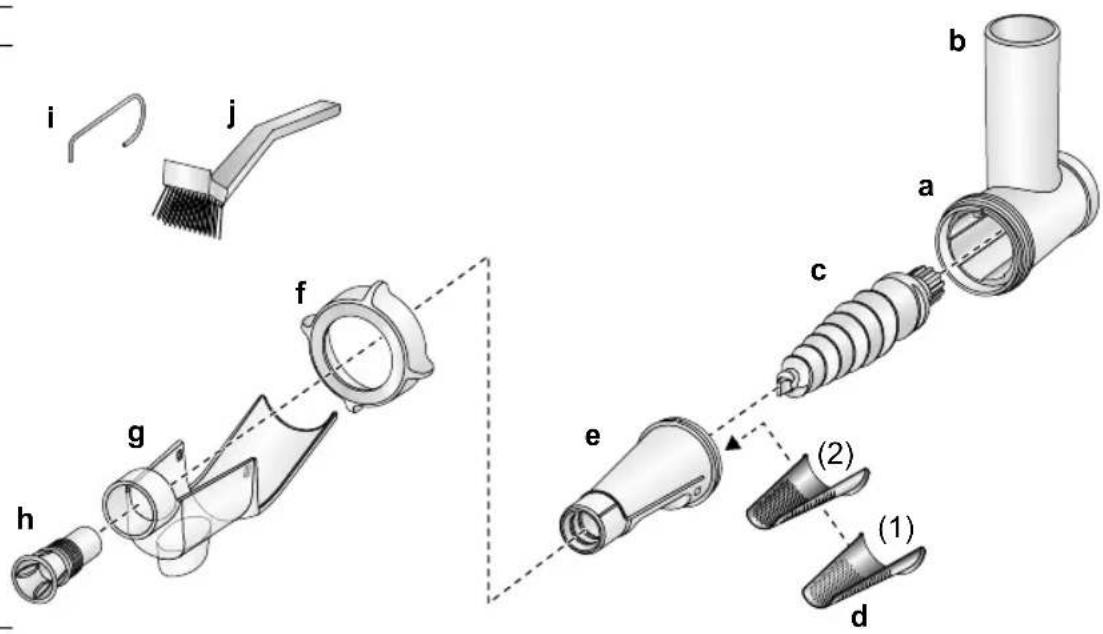

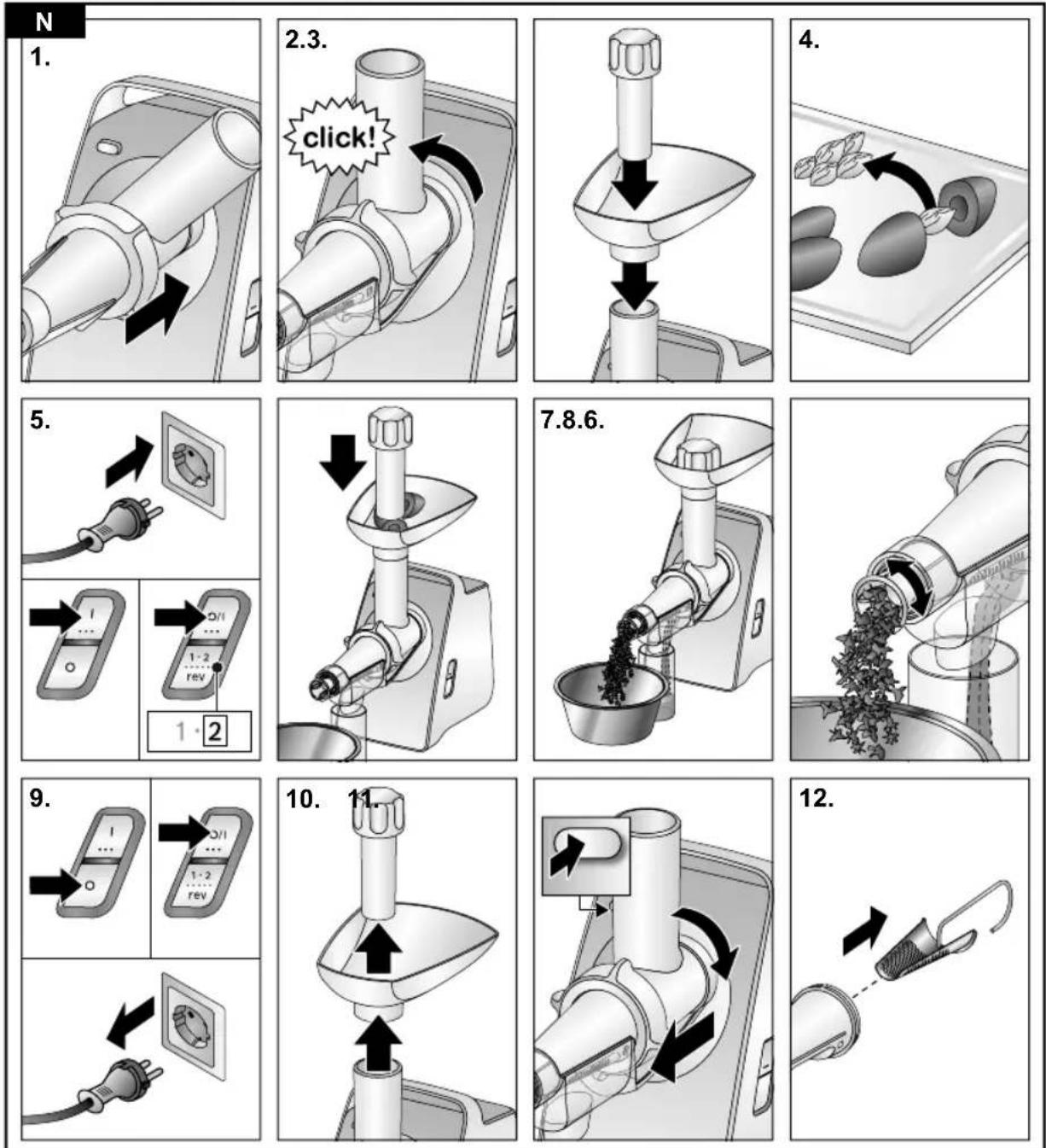

8 Fruit press attachment\*

Use filling tray and pusher from the base attachment.

a Housing
b Feed chute
c Worm gear with sealing ring
d Filter inserts: fine (1) & coarse (2)
e Filter holder with sealing ring
f Threaded ring
g Outlet funnel
h Pulp nozzle (adjustable)
i Hook for removing the filter insert
j Cleaning brush

* depending on the model

The operating instructions refer to different models of the appliance. An overview is provided on the pages that feature the figures. → Fig. P

Spare parts and accessories are available from Customer Service or at www.bosch-home.com. → “Spare parts and accessories” see page 30

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and checked.

Caution!

Never operate a damaged appliance!

■ Remove the base unit and all accessories from the packaging.
■ Remove the packaging material that is present.
■ Dismantle any assembled parts into their individual parts. Do this in reverse order, as described under „Preparation“.
■ Check all parts for completeness.
→ Fig. A / C
■ Inspect all parts for visible damage.
■ Thoroughly clean and dry all parts before using for the first time.
→ “Care and daily cleaning” see page 27

Control and display elements

MFW39...

Button I

Press button I to switch on the appliance. The drive will start up at once.

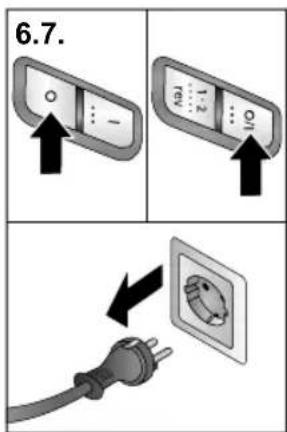

Button O

Press button O to switch off the appliance. The drive stops.

MFW3X...

Button O/I

Press button O/I to switch on the appliance. The drive starts running immediately with speed 2 (fast). Press button O/I again to switch off the appliance. The drive stops.

Button 1·2 | rev

Pressing button 1·2 | rev briefly switches the speed of the appliance between 1 (slow) and 2 (fast). → “Speed setting” see page 22

Pressing and holding button 1·2 | rev starts the reversing function. → “Reversing function” see page 22

All models

Operation indicator

The operation indicator lights up when the appliance is switched on. On models with the reversing function the function indicator flashes for as long as the 1·2 | rev button is pressed.

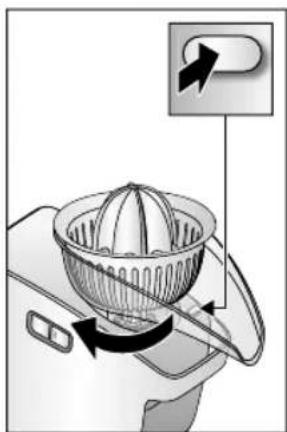

Release button

Press the release button to unlock an attachment fitted on the appliance. Only when the release button is pressed is it possible to turn the attachment clockwise and remove it from the base unit.

Cable storage compartment

The mains cable can be pulled out of the cable storage compartment or pushed back in again. Only ever pull the cable out as much as is required.

Storage compartment

Unused perforated discs belonging to the meat mincer can be kept in the storage compartment and it closed with the cover.

Overload protection

To prevent serious damage to your appliance if the base attachment is overloaded, the agitator paddle has a notch (predetermined breaking point). If overloading occurs, the agitator paddle will break at this point. A new agitator paddle is available from Customer Service (No. 10005188). Spare parts with a predetermined breaking point are not covered by our warranty obligations.

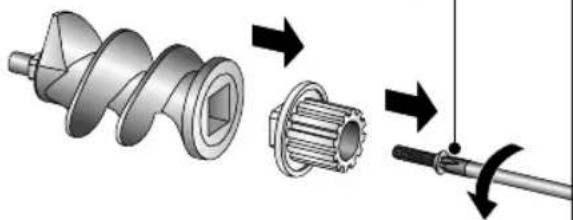

Replace agitator paddle

→ Fig. B

1. Release the screw in the agitator paddle with a screwdriver (PH2) and remove the faulty paddle.
2. Fit a new agitator paddle and screw tight again.

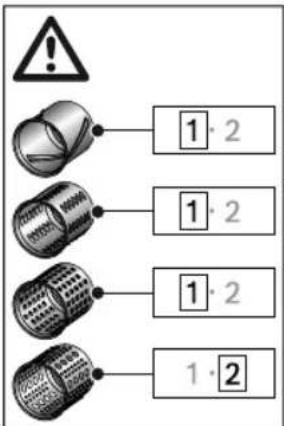

Speed setting

ONLY MFW3X...

Using the speed setting feature, the speed can be set to 1 (slow) or 2 (fast).

Caution!

For certain applications, it is imperative to use speed 1 (slow). Take note of the recommended speeds! See table → Fig. P

■ Switch on the appliance with button O/I. The appliance will run at speed 2 (fast).
■ Press button 1·2 | rev briefly. The appliance will switch to speed 1 (slow).
■ Press button 1·2 | rev briefly. The appliance will switch back to speed 2 (fast).

Reversing function

ONLY MFW3X...

The reversing function is designed to release food that has got stuck by briefly running the worm gear in reverse. The reversing function switches off automatically after 15 seconds.

Caution!

• Never use the reverse function with the grain mill attachment or the fruit press attachment!
• Never press and hold button 1·2 | rev continuously while the appliance is switched on. Only press and hold button 1·2 | rev continuously once the appliance has come to a complete stop.

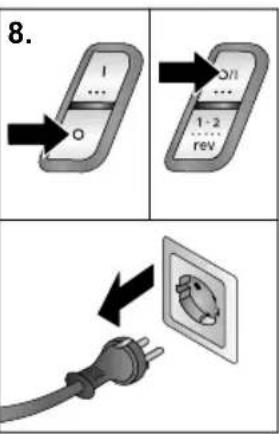

  ■ Switch the appliance off with button O/I and wait until the drive has stopped.
  ■ Press and hold button 1·2 | rev.
  ■ After approx. 5-10 seconds, release button 1·2 | rev and wait for the drive to come to a standstill.
  ■ Switch the appliance on again with button O/I.

Note: If food that has got stuck is not released by briefly putting the appliance into reverse, switch the appliance off, unplug and clean it. → “Care and daily cleaning” see page 27

Base unit

Preparation

Risk of injury!

Do not insert the mains plug until all preparations for working with the appliance are complete and the required attachments are assembled correctly and connected to the base unit.

■ Place the base unit on a stable and level work surface.
■ Pull the mains cable out of the cable storage compartment to the required length.

The base unit is now prepared.

Base attachment

The base attachment can be used for the following applications:

Meat mincer

For chopping up raw or cooked food. Select the appropriate perforated disc depending on the type and consistency of the food to be processed. "Tips" see page 28

Sausage filler

For filling artificial and natural casings with sausage meat. For producing meat rolls.

Note: Other applications are possible using the base attachment and appropriate accessories available from Customer Service.

Caution!

When assembling the different individual parts, make sure that the notched markings on the inserts match up with the relevant one on the housing.

Preparation for meat mincer

Risk of injury!

Do not reach into the sharp knife.

Caution!

Always only use one perforated disc.

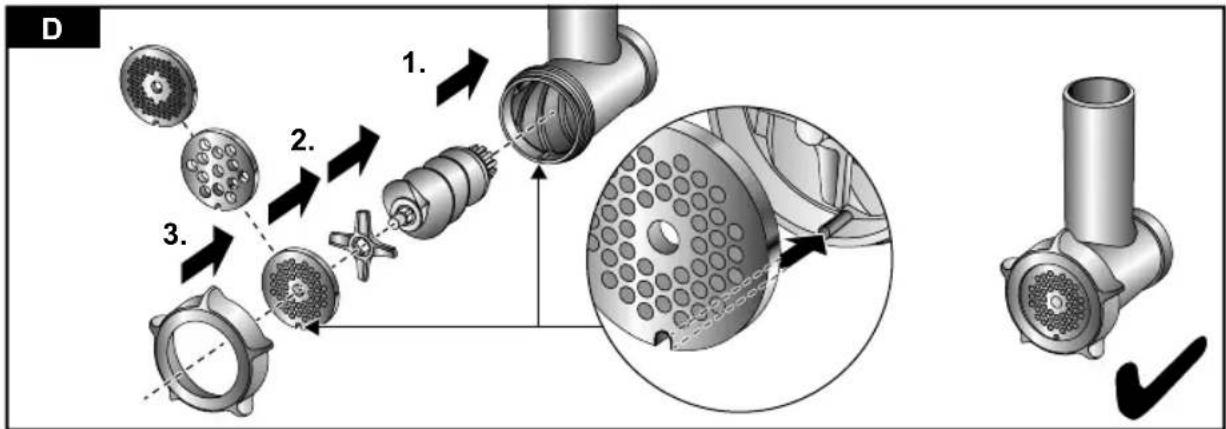

→ Fig. D

1. Insert the worm gear with the agitator paddle at the front in the housing.

2. First fit the knife and then the required perforated disc onto the worm gear.

3. Fit the threaded ring onto the housing and screw tight in a clockwise direction without using force.
   The meat mincer is now prepared.

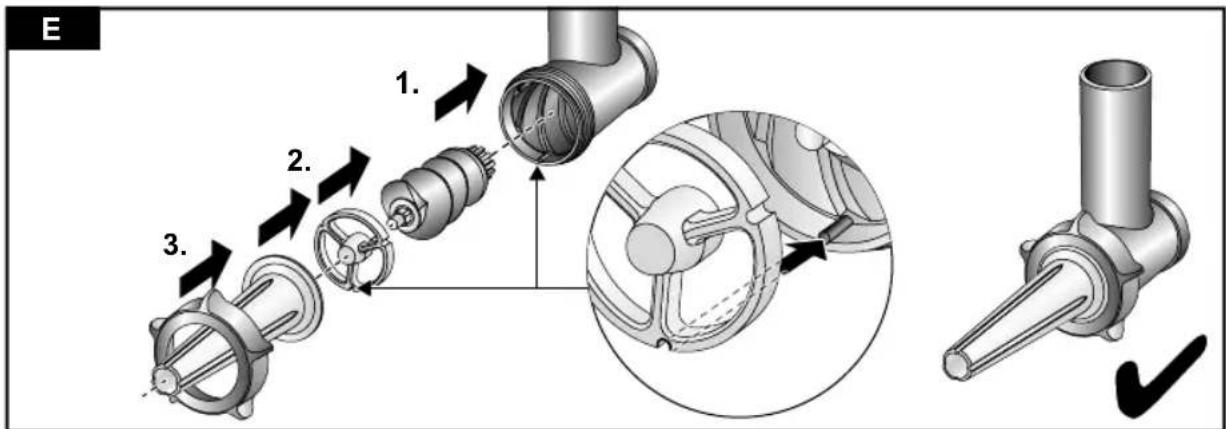

Preparation for sausage filler

→ Fig. 田

1. Insert the worm gear with the agitator paddle at the front in the housing.
2. First fit the bearing ring onto the worm gear and then the sausage nozzle into the housing.
3. Fit the threaded ring onto the housing and screw tight in a clockwise direction without using force.

The sausage filler is now prepared.

Use

Note: The food is processed in different ways depending on the application.

→ "Recipes" see page 28

The following example describes use of the base attachment as a meat mincer:

⚠️ Risk of injury!

• Do not reach into the feed chute with your hands.
• Only use the pusher when adding more food.

Caution!

• Do not process bones, gristle, sinews or other solid components.
• Do not process frozen meat.
• Do not apply great force with the pusher.

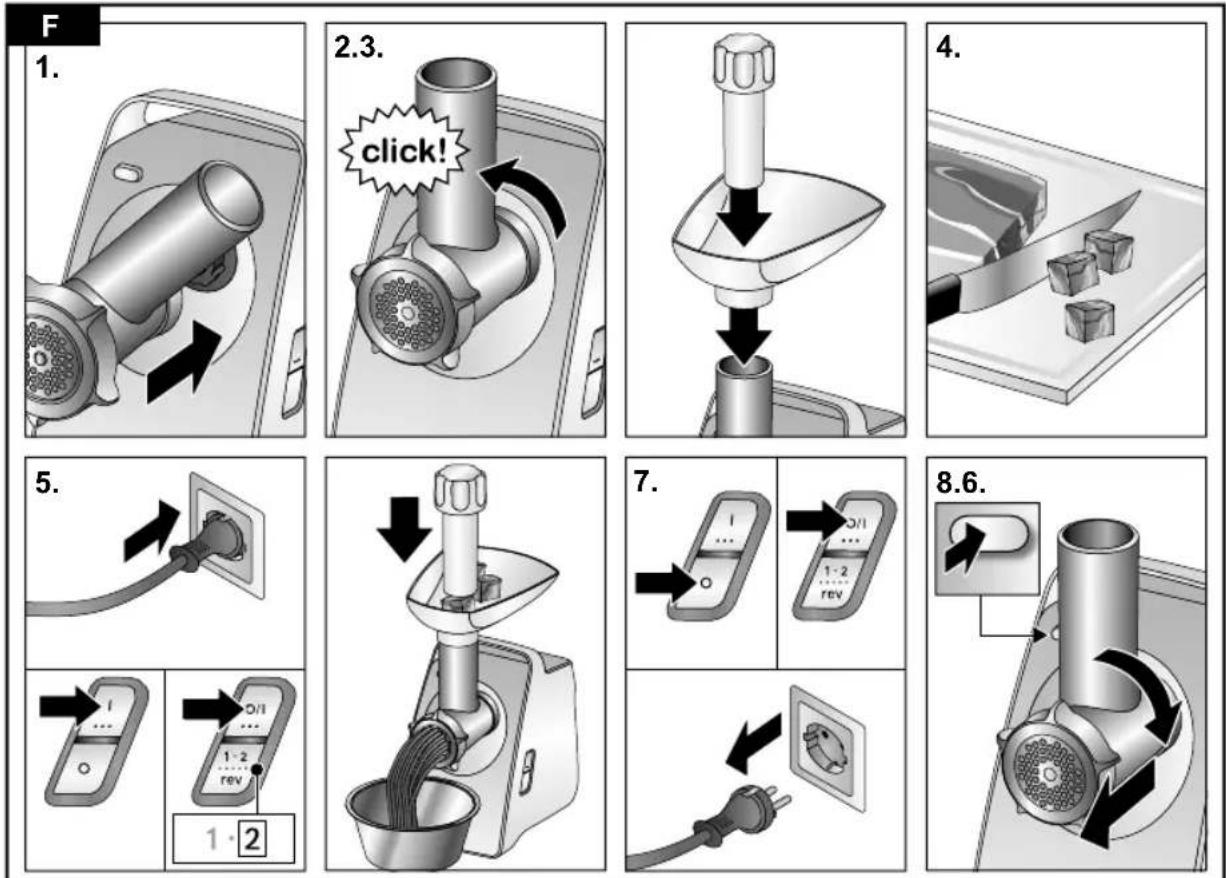

→ Fig. F

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position.
3. Fit the filling tray and insert the pusher in the feed chute.

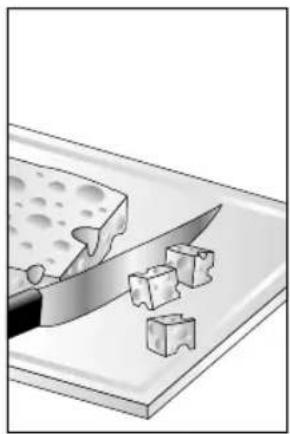

4. Prepare your food. Chop up large parts beforehand so they fit into the feed chute without having to press them in.

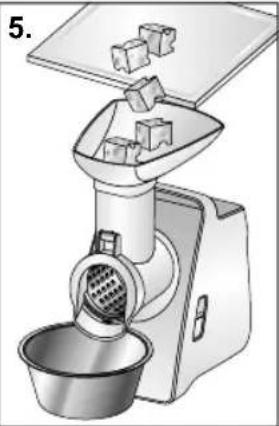

   ■ Place a suitable container under the attachment. Add the prepared food to the filling tray.

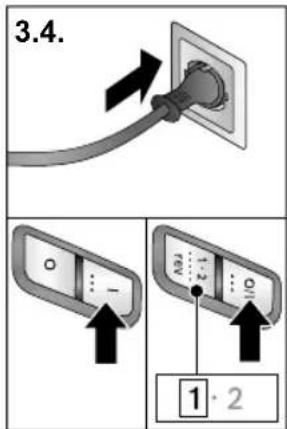

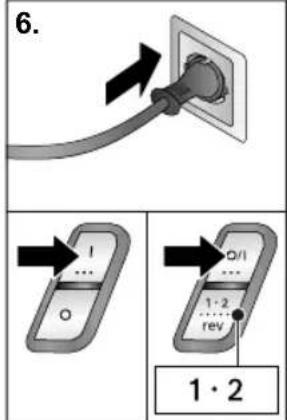

5. Connect the mains plug. Switch on the appliance.

en

Shredding attachment

Note (MFW3X...):

After switching on, the appliance runs at the ideal speed 2 (fast).

1. Use the pusher to slide the food down the feed chute, applying light pressure.

2. Once you have finished, switch off the appliance and pull out the mains plug.

■ Remove the filling tray and pusher.

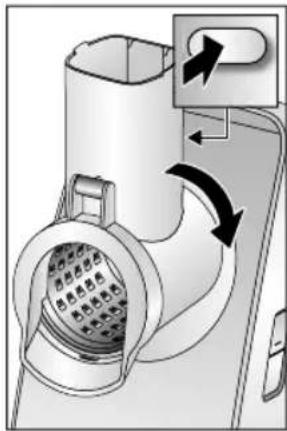

1. Hold down the release button and turn the attachment clockwise until it disengages.

■ Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 27

Shredding attachment

For shredding, grating and slicing items such as cheese, fruit, vegetables, nuts, almonds, dried bread rolls and other hard foodstuffs. Select the appropriate insert depending on the type and consistency of the food to be processed. → “Tips” see page 28

Preparation

Risk of injury!

Do not reach into the sharp blades and edges of the shredding, grating and slicing inserts.

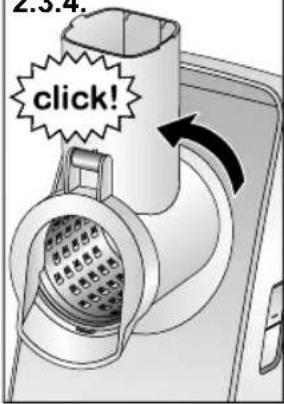

→ Fig. G

1. Open the cap. Fit the required insert into the housing.

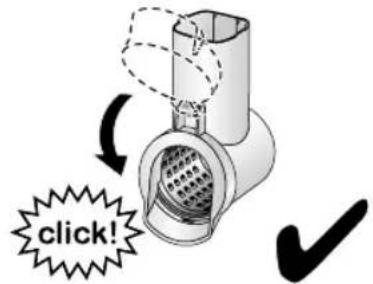

2. Close the cap until you hear it click into position.

The shredding attachment is now prepared.

Use

Risk of injury!

- Do not reach into the feed chute with your hands.

- Only use the pusher when adding more food.

Caution!

- The pusher can only be inserted in one direction.

- Remove hard shells (e.g. on nuts).

- Do not apply great force with the pusher.

Caution! (MFW3X...)

• Always use the shredding and cutting inserts at speed 1 (slow).
• Use the grating insert at speed 2 (fast).
  → "Speed setting" see page 22

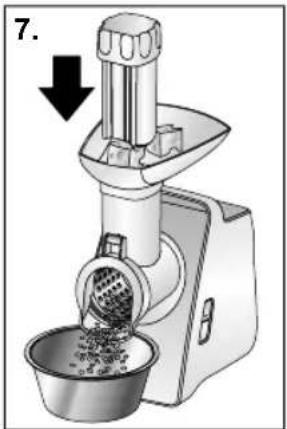

→ Fig. H

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position.
3. Fit the filling tray and insert the pusher in the feed chute.
4. Prepare your food. Chop up large parts beforehand so they fit into the feed chute without having to press them in.
5. Place a suitable container under the attachment. Add the prepared food to the filling tray.
6. Connect the mains plug. Switch on the appliance.

Caution! (MFW3X...)

After switching on, the appliance runs at speed 2 (fast). To use the shredding and cutting inserts, you must press button

1·2 | rev once to switch to speed 1 (slow).

→ "Speed setting" see page 22

1. Use the pusher to slide the food down the feed chute, applying light pressure. The food is now cut up or shredded.

2. Once you have finished, switch off the appliance and pull out the mains plug.

3. Remove the filling tray and pusher.

4. Hold down the release button and turn the attachment clockwise until it disengages.

5. Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 27

Citrus press attachment

For squeezing juice out of citrus fruits, e.g. lemons, oranges, grapefruits.

Preparation

Risk of injury!

The attachment for the citrus press is directly assembled on the base unit. Do not insert the mains plug until all preparations for working with the appliance are complete.

Caution!

The base unit is moved through 90^ for preparation and use of the citrus press attachment. Never use other attachments in this position.

→ Fig. Ⅱ

1. Hold the base unit by the carrying handle and carefully tip up so the drive points upwards. Possibly turn the base unit to make the buttons easily accessible.

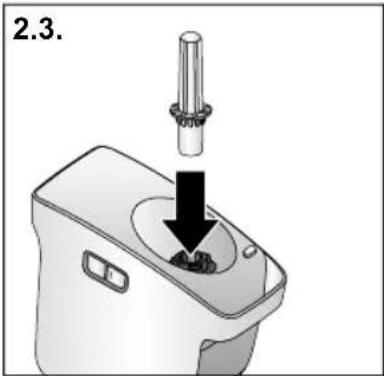

2. Insert the driving shaft with the spring element pointing down in the drive of the base unit.

Caution!

It should be possible to push the driving shaft down lightly with your finger. It must not get sticky with residue from juice or become blocked with pips or foreign bodies.

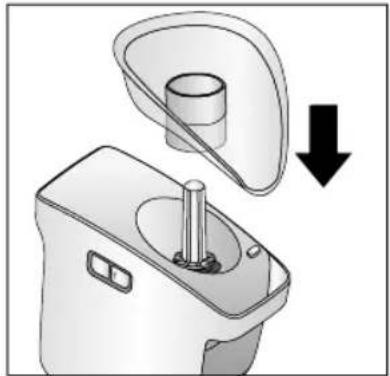

1. Fit the collecting tray onto the drive at an angle.
2. Turn the collecting tray anticlockwise until you hear it click into position.
3. Fit the filter insert onto the collecting tray.
4. Fit the pressing cone onto the driving shaft.

The citrus press attachment is now fitted to the base unit and prepared.

Use

→ Fig. J

1. Cut the citrus fruits in half.
2. Place a suitable container under the attachment.
3. Connect the mains plug. Switch on the appliance. The drive is running.

Caution! (MFW3X...)

After switching on, the appliance runs at speed 2 (fast). To use the citrus press, you must press button 1·2 | rev once to switch to speed 1 (slow). → “Speed setting” see page 22

1. Position the halved citrus fruits with the cut surface on the pressing cone and press down. As soon as the fruit is pressed onto the pressing cone, the cone will rotate.
2. To finish the process, reduce the pressure on the cone.
3. Once you have finished, switch off the appliance and pull out the mains plug.
4. Hold down the release button and turn the attachment clockwise until it disengages.
5. Remove the attachment, take it apart and clean all parts. → "Care and daily cleaning" see page 27

Notes:

• To obtain the largest amount of juice, the pressing procedure should be repeated a few times.
• The filter insert with the pulp and pips should be emptied as necessary.

Grain mill attachment

For grinding products such as wheat, oats, rice, coffee beans, peppercorns, wild mustard, walnuts, hazel nuts, dried mushrooms, almonds, soya, linseeds, buckwheat groats, shelled sunflower seeds, etc. The appliance is not intended to be used for grinding very hard products such as dried peas, maize or popcorn. → “Tips” see page 28

Preparation

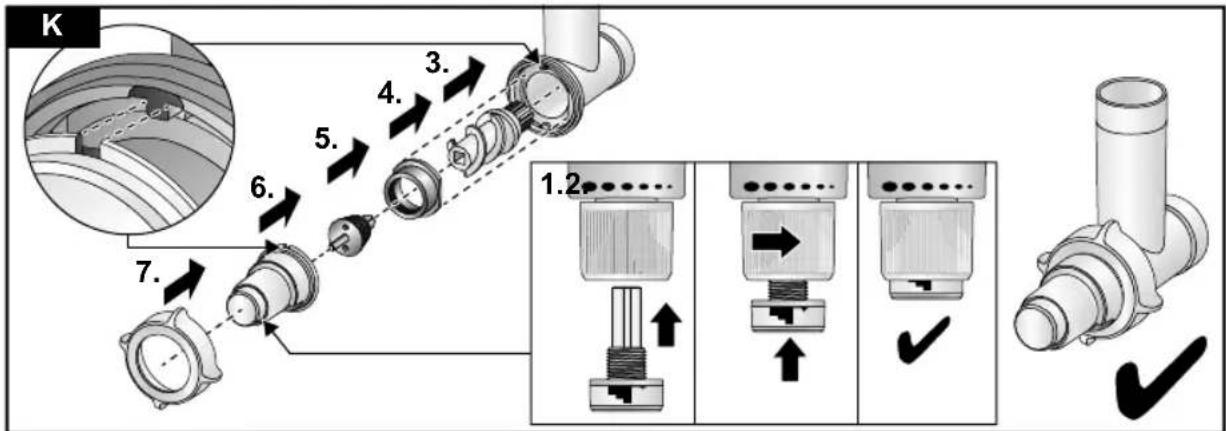

→ Fig. K

1. Place the adjustment screw in the setting ring. Ensure that the scale points upwards.
2. Press the adjustment screw towards the grinding chamber and turn the setting ring in a clockwise direction until the scale for the grinding level is reached.

en

Fruit press attachment

1. Insert worm gear into the housing.
2. Insert grinding ring into the housing. Note shape of the parts!
3. Insert grinding cone with the square shaft into the corresponding opening of the worm gear.
4. Place grinding chamber on the housing. Recess on the grinding chamber must be situated on the lug on the housing.
5. Fit the threaded ring onto the housing and screw tight in the clockwise direction without using force.

Use

Risk of injury!

■ Do not reach into the feed chute with your hands.
■ Do not look into the feed chute during operation, as the bouncing particles can hurt your eye.

Caution!

When the mill is attached, never use reverse function. Attachment may be damaged!

Fig. L

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position. Tighten threaded ring.
3. Fit the filling tray.
4. Place a suitable container under the attachment. Fill the filling tray. → "Tips" see page 28

Caution!

Never allow the grain mill attachment to run without ingredients.

1. Set the degree of grinding by turning the setting ring:

2. anticlockwise = coarser grain

3. clockwise = finer grain
   Always select a value between:
4. STOP = coarsest degree of grinding
5. 1 = finest degree of grinding (never use it at the beginning)

1. Connect the mains plug. Switch on the appliance.

Caution!

The appliance may be operated continuously for a maximum of 15 minutes. Then leave the appliance to cool down for 45 minutes!

1. The flour trickles through the discharge chute.
2. Degree of grinding can be re-adjusted in small steps during operation.

Caution!

Setting it beyond the STOP line during operation can damage the appliance.

1. Once you have finished, switch off the appliance and pull out the mains plug.
2. Remove the filling tray.
3. Hold down the release button and turn the attachment clockwise until it disengages.
4. Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 27

Fruit press attachment

For squeezing juice out of fruits such as e.g. raspberries, currants, strawberries, gooseberries or grapes and tomatoes.

Preparation

Note: selection of the filter insert determines the content of fruit pulp in the juice. Do not press fruit whose pips are similar in diameter to the hole diameter in the filter insert (e.g. raspberries).

Fig. M

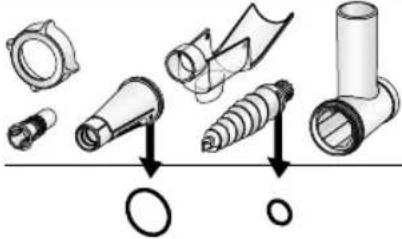

■ Make sure that the sealing rings are fitted onto the filter holder and the worm gear. If not, insert them into the sealing grooves of these parts.

1. Insert the filter insert into the filter holder and press it into place.
2. Insert the worm gear into the housing.
3. Insert the filter holder into the housing. Lug on the filter holder must be situated in the recess on the housing.

Care and daily cleaning

1. Fit the threaded ring onto the housing and screw tight in the clockwise direction without using force.
2. Place the outlet funnel onto the filter holder until it audibly clicks into place.
3. Screw pulp nozzle into the filter holder. The fruit press attachment is now prepared.

Use

Warning

Risk of injury!

Do not reach into the feed chute with your hands.

Caution!

• Remove hard fruit peel, pips and stalks.
• Berries such as e.g. currants can be pressed together with their stalks.
  – Fruit with larger pips and stones such as e.g. plums and cherries must have their pips or stones removed before juicing.
• Do not process frozen fruit.
• Do not apply great force with the pusher.

→ Fig. N

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position. Tighten threaded ring.
3. Fit the filling tray and insert the pusher in the feed chute.
4. Prepare the fruit. Chop up large fruit beforehand so it fits into the feed chute without having to be pressed in. Remove larger pips and stones (e.g. cherries, plums).

■ Place one container under each of the apertures for juice and for the pulp.
■ Add the prepared fruit to the filling tray.

1. Connect the mains plug. Switch on the appliance.

2. Use the pusher to slide the fruit down the feed chute, applying light pressure.

3. The pressed juice flows out from the outlet funnel. The pulp (solid components) is pressed through the pulp nozzle.

4. Adjust the pulp nozzle. Unscrewing makes the pulp more moist; screwing in makes it dryer and more juice flows from the funnel. If the pulp is too dry, unscrew the nozzle, to avoid clogging the appliance with the pulp.

5. Once you have finished, switch off the appliance and pull out the mains plug.

6. Remove the filling tray and pusher.

7. Hold down the release button and turn the attachment clockwise until it disengages.

■ Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 27

1. To remove the filter insert, insert the hook into the hole in the filter insert and carefully extract.

Caution!

Pay special attention to the juice squeezing process. Make sure filter openings are not clogged. Clogging of the housing outlet with the pulp of juicy fruits can cause the flooding of the drive unit.

If the housing outlet becomes clogged, switch off the appliance and pull out the mains plug. Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 27

Care and daily cleaning

The appliance, all attachments and the relevant accessories must be thoroughly cleaned after each use.

⚠️ Risk of electric shock!

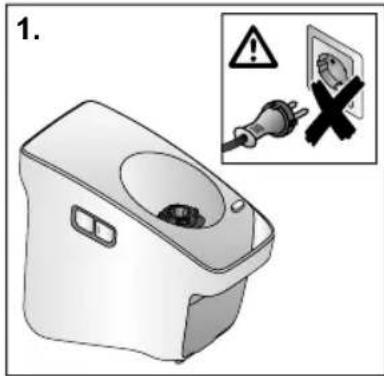

• Disconnect the mains cable from the socket prior to cleaning.
  – Never immerse the base unit in liquids and do not clean in the dishwasher.

Risk of injury!

Do not reach into the sharp blades and edges of the shredding and slicing inserts. Clean them with a brush.

en Recipes

Caution!

• Do not wash metal parts in the dishwasher!
• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Fig. ☐ gives an overview of how to clean the individual parts.

■ Wipe the outside of the base unit with a soft, damp cloth and dry off.
■ Dismantle the attachments used in reverse order (see „Preparation“ for the relevant attachment).
■ Clean all accessories with a detergent solution and a soft cloth/sponge or with a soft brush.
■ Allow all parts to dry.

Notes:

• Immediately rub metal parts dry and apply a little cooking oil to protect them from rust.
• Discolouration of plastic parts may occur when processing foods such as carrots. This can be removed with a few drops of cooking oil.

Recipes

Note (MFW3X...):

For all operating steps, set the speed to 2 (fast).

Bread dumplings

• 300 g fresh white bread
• 20 ml milk
• 40 g butter or margarine
• 3 eggs
• 1 tbsp finely chopped onions
• Parsley
• A little flour
• Salt and pepper

■ Cut the bread into slices 10 mm thick and halve lengthways. Add 20 ml of milk and soak.

■ Process the moistened bread for approx. 60 secs with the meat mincer (perforated disc, medium).
■ Add the finely chopped onions, parsley and melted butter and mix.
■ Add the whisked eggs, salt and pepper and mix into the bread dough.
■ Leave the dough to prove for several minutes. Then knead again.
■ Shape the dumplings with wet hands. Roll the dumplings in flour.
■ Place dumplings in boiling water and leave to simmer for approx. 20 minutes. Do not bring to the boil!

Tips

Meat mincer

Using the perforated discs

- Perforated disc, fine (2.7 mm) for: cooked chicken / pork / beef, cooked liver, cooked fish for soups; raw pork and beef for meat loaf; raw liver, meat and bacon for liverwurst; pork for Mettwurst

- Perforated disc, medium (4 mm) for: pork and beef for pâté and Cervelat sausage

- Perforated disc, coarse (8 mm) for: roast pork for goulash soup; leftovers (joint, sausage) for bakes

■ If you require a finer consistence to your processed food, process it several times or use different perforated discs one after the other (coarse, medium, fine).

■ You can add other ingredients (e.g. onions, spices) directly during processing. This ensures all ingredients are mixed together thoroughly.

Sausage filler

■ Soak natural casing in lukewarm water for about 10 minutes before processing.
■ Do not stuff casings too full or the sausages may burst during boiling or frying.

Shredding attachment

Caution! (MFW3X...)

• Always use the shredding and cutting inserts at speed 1 (slow).
• Use the grating insert at speed 2 (fast).
  → "Speed setting" see page 22

Using the inserts

• Slicing insert: for carrots, celery, kohlrabi, courgettes
• Shredding insert (coarse): for carrots, nuts, hard cheese (e.g. Emmentaler)
• Shredding insert (fine): for nuts, hard cheese, Parmesan cheese
• Grating insert: for potatoes, Parmesan cheese, nuts

Grain mill attachment

• Do not grind oleaginous products at the smallest degree of grinding. The grinder may jam or become blocked.
• In the case of softer grain, such as oats or linseeds, the coarse setting must be selected for grinding.
• Wash the grinder thoroughly when changing from one product to another. This will prevent odours from impairing each other.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Spare parts and accessories

Spare parts and accessories
	2.7 mm	10003879	Perforated disc (fine) for meat mincer
	4 mm	10003880	Perforated disc (medium) for meat mincer
	8 mm	10003881	Perforated disc (coarse) for meat mincer
		00754389	Sausage filler: for filling artificial and natural casings with sausage meat. For producing meat rolls.
		10007189
		12011263	Shredding attachment: for shredding, grating and slicing
		798161	Slicing insert for the shredding attachment
		798162	Shredding insert (coarse) for the shredding attachment
		798160	Shredding insert (fine) for the shredding attachment
		798130	Grating insert for the shredding attachment
		12013990	Citrus press attachment: for squeezing oranges, lemons and grapefruits.
		17004678	Grain mill attachment: for grinding products such as wheat, oats, rice, coffee beans, peppercorns, wild mustard, walnuts, hazel nuts, dried mushrooms, almonds, soya, linseeds, buckwheat groats, shelled sunflower seeds, etc.
		17004677	Fruit press attachment: for squeezing juice out of fruits such as e.g. raspberries, currants, strawberries, gooseberries or grapes and tomatoes.

Spare parts and accessories are available from retailers and Customer Service.

Troubleshooting

Problem Cause Remedy
The appliance does not start when switched on.	Appliance has no power supply.	Insert the mains plug in the socket.
The appliance is running normally, but the food is not being processed.	The appliance was overloaded, and the agitator paddle has broken at the predetermined breaking point.	Switch the appliance off and wait until it has stopped. Unplug the appliance, remove the attachment, take it apart and clean. Replace the agitator paddle. → “Overload protection” see page 22
The food is not being processed or only very slowly.	The attachment or worm gear is blocked.	Appliance without reversing function: Switch appliance off, wait until it has stopped and unplug. Remove the attachment, take it apart and clean to eliminate the blockage. → “Care and daily cleaning” see page 27
		Appliances with reversing function: Switch off the appliance with button O/I and wait for the drive to come to a standstill. Press and hold button 1·2 | rev. After approx. 5-10 seconds, release button 1·2 | rev and wait for the drive to come to a standstill. Switch the appliance on again and continue to use it. → “Reversing function” see page 22
	The pressure on the pusher is too great or the feed chute is too full.	Reduce the pressure on the pusher and fill the feed chute with less food.
	The food to be processed still contains hard components.	Remove hard components. Precook/steam vegetables before processing them.
The reversing function does not start.	Button 1·2 | rev was pressed too briefly.	Press and hold button 1·2 | rev until the reversing function starts.
	The worm gear is blocked right up.	Switch the appliance off, wait until it has stopped and unplug. Remove the attachment, take it apart and clean to eliminate the blockage. → “Care and daily cleaning” see page 27

If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

Sécurité anti-surcharge ....36

Presse-agrumes ....39

Sécurité anti-surcharge

→ Suite de la figure ©

→ Suite de la figure J

Overbelastingsbeveiliging....65

Snelheidsinstelling....66

g Raspe-innsats, grov

h Raspe-innsats, fin

i Rivjerninnsats

6 Sitruspresse-påsats\*

a Oppsamlingsskål

b Silinnsats

c Presskjegle

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

(waste electrical and electronic equipment – WEEE).

⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚡

www.bosch-home.com/ae

* Sun-Thu 8am to 5pm (exclude public holidays)

AL Republika e Shqiperise, Albania

Elektro-Service sh.p.k

Rruga Kasem Shima, Kodi postar-1050

Prane Ures Mezezit

1023 Tirane

Tel.: [phone]; -131

mailto:[e-mail]

EXPERT Service

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Cel: [phone]

mailto:[e-mail]

AM Armenia

ZIG ZAG LLC

Charenci str. 25

Yerevan 375025

Tel.: [phone]

mailto:[e-mail]

www.zigzag.am

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.au

*Mon-Fri 24 hours

AZ Azärbaycan Respublikası, Azerbaijan

Baku Service Company MMC

Azadliq Pr. 116

Baku

Tel.: [phone]

mailto:[e-mail]

www.ser-cen.az

Yurd Service MMC

50, Bakikhanov Str.

Baku, AZ1007

Tel.: [phone]

mailto:[e-mail]

www.yurd.az

Optimal Elektronika MMC

Hasanoghlu 7B

Baku, AZ1072

Tel.: 12 954

mailto:[e-mail]

www.optimal.az

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel./Fax: [phone]

mailto:[e-mail]

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

* Sat-Thu 7am to 5pm (exclude public holidays)

19F, Jinling Asia Pacific Tower,

No.2 Hanzhong Road, Gulou District,

210005 Nanjing, Jiangsu Province

Service Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.cn

* phone rate depends on the network used

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

mailto:[e-mail]

CYN Turkish Rep. Of North Cyprus

Argas Limited Company

37 Osman Paşa Cad. K. Çiltlik

Lefkoşa

Tel.: [phone]

mailto:[e-mail]

Semson Ticaret Sti. Ltd

Bedrettin Demirel Cad. no 17

Girne

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GE Georgia,

Elit Service Ltd.

Vake-Saburtalo district,

Intersection of Al. Kazbegi ave.

and Kavtaradze Str. 0186

Kavtaradze str. 1

Tbilisi

Tel.: [phone]

mailto:[e-mail]

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 07, 23/F, CDW Building,

388 Castle Peak Road,

Tsuen Wan, New Territories,

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mon-Sat 8am to 8pm (exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

1201 ACE High Tech City 1 Building

775 Gyeongin-ro Youngdeungpo-gu

Seoul 07299 South Korea

Tel.: [phone]

mailto:[e-mail]

Business Center "Khan Tengri"

Almaty

Hotline: 5454*

mailto:[e-mail]

* Toll free from mobile only

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

Lintel Investments and

Management Services Pvt. Ltd.

Ma. Maadheli, Majeedhee Magu

Malé

Tel.: [phone]

mailto:[e-mail]

www.lintel.com.mv

NL Nederlande, Netherlands

Level 3, Air NZ Building

Smales Farm Business Park

74 Taharoto Road, Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

* Mon-Fri 8.30am to 5pm (exclude public holidays)

PK Pakistan, یاکستان

MEGA Home Appliances

Plaza 46-A, Commercial Sector XX,

Phase 3, DHA

Lahore

* Mon-Sat 9am to 6pm (exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics and

Airconditioning Co. Ltd.

BOSCH Service centre, Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.,

P.O. Box 7997

Jeddah 21472

Tel.: [phone]*

mailto:[e-mail]

www.aljelectronics.com.sa

* Sat-Thu 8am to 11pm (exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapo新加坡

BSH Home Appliances Pte. Ltd.

38C Jalan Pemimpin, #01-01

Singapore 577180

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.sg

* Mon-Fri 9am to 6pm, Sat 9am to 1pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

* Mon-Sat 8am to 6pm (exclude public holidays)

Shamsi street no: 67/A

Dushanbe

Tel.: [phone]

mailto:[e-mail]

Vostok Co. Ltd.

Yakkacinarskaya street No: 144/4

Dushanbe

Tel.: [phone]

mailto:[e-mail]

www.volna.tj

TM Türkmenistan, Turkmenistan

Bayram Anna Yuryewna

Stariya marka, Atabeyeva str.

Spectrum mağaza

Ashgabat

Tel.: [phone]

mailto:[e-mail]

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

mailto:[e-mail]

Service-General SH.P.K.

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

96 Fifteenth Road, Randjespark

1685 Midrand - Johannesburg

Tel.: [phone]

mailto:[e-mail]

mailto:[e-mail]

www.bosch-home.com/za

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
  • Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Simple line drawing of a conical bowl or container with a flared rim and a flat base (no text or symbols)

e

4

3

Technical diagram of a mechanical component with labeled parts (a and b), no readable text or symbols present.

B
1.2.

Mechanical assembly diagram showing a spiral drill bit, gear shift, and shaft connection (no text or labels)

PH2

Technical illustration of a mechanical gear assembly with a shaft and threaded end (no text or symbols)

bosch-home.com № 10005188

C
5

6

7

8

G
1.

1.

H
1.

Diagram of a device's internal structure showing a connector with directional arrows indicating movement (no text or symbols)

2.3.4.

Mechanical assembly diagram showing a lever pressing down on a base (no text or symbols)

Illustration of a knife cutting cheese on a cutting board (no text or symbols)

Illustration of a kitchen grater with a bowl and lid, no text or symbols present

Diagram of a portable air conditioner unit with cooling fan and directional arrows indicating airflow (no text or symbols)

Diagram of a device interior showing a cylindrical component with internal components and directional arrows (no text or symbols)

I

Illustration of a toilet with a lid and outlet, showing a downward arrow indicating a change (no text or symbols present)

Illustration of a kitchen mixer with a bowl dropping from the top (no text or symbols)

Illustration of a hand washing a juice maker with a lid, showing the cup and handle (no text or symbols)

J

Illustration of a knife cutting a piece of meat on a cutting board (no text or symbols)

Illustration of a hand washing machine with a cloth and a cylindrical container (no text or symbols)

Illustration of a hand pouring liquid into a mixing bowl using a stand mixer (no text or symbols)

Illustration of a hand washing a small kitchen appliance with a lid and handle (no text or symbols)

			✓	X	!X	!X
			✓	✓	✓	✓
			✓	✓	✓	X
			✓	✓	✓	✓
			✓	✓	✓	✓
			X	✓	✓	X
			✓	✓	✓	✓
			X	✓	✓	X
			✓	✓	✓	✓
			X	✓	✓	X
			✓	✓	✓	✓
			✓	X	✓	X
			X	✓	✓	X

			MFW3910W	MFW3X10..	MFW3X13..	MFW3X14..	MFW3X15..	MFW3X17..	MFW3X18..
	I	O	√
	O/I	1:2...rev		√	√	√	√	√	√
	2.7 mm			√1:2		√1:2	√1:2	√1:2	√1:2
	4 mm / 8 mm		√	√1:2	√1:2	√1:2	√1:2	√1:2	√1:2
			√	√1:2	√1:2	√1:2	√1:2	√1:2	√1:2
					√1:2	√1:2		√1:2	√1:2
						√1:2		√1:2	√1:2
					√1:2	√1:2		√1:2	√1:2
									√1:2
									√1:2
							√1:2	√1:2	√1:2
