USER MANUAL DRH 914 JE DE DIETRICH

Instructions for the use of the instructions booklet

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Contents

Safety Instructions 21

Disposal 22

Use and Control / Before Use 23

Starting the appliance 23

Temperature control 23

Internal parts / Storage shelves / Door shelves 24

Hints / Saving Energy 24

Hints for refrigeration 25

Hints for freezing. 25

Hints for storage of frozen food 26

Explanation of the cold zonesigns 26

Maintenance/Defrosting 27

How to change the bulb 28

Something not Working 29

Customer Service and Spare Parts / Technical Specifications 30

Installation / Positioning 30

Electrical connection 31

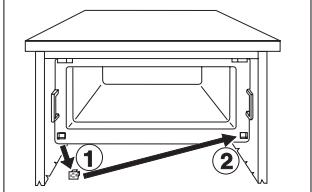

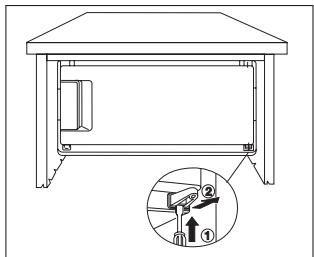

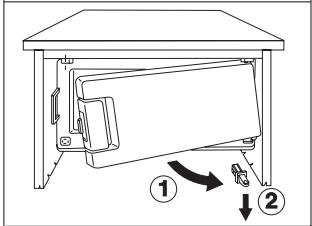

Change of door opening direction of frozen food compartment 31

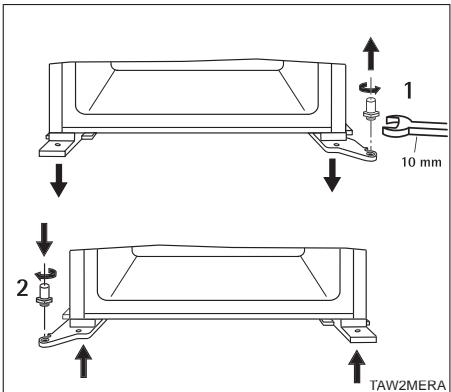

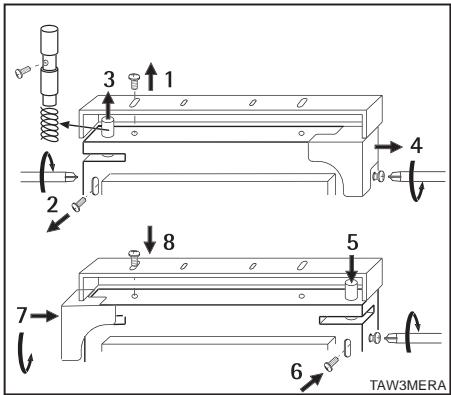

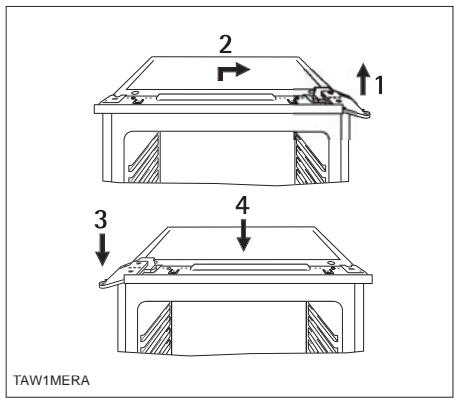

Door reversal 32

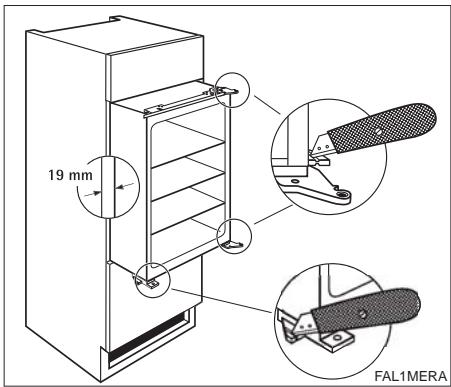

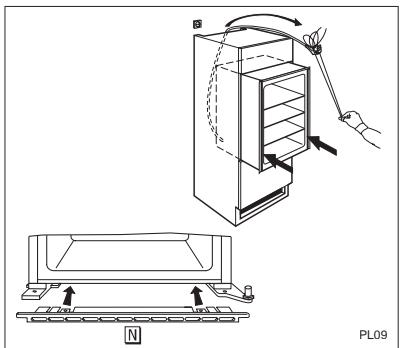

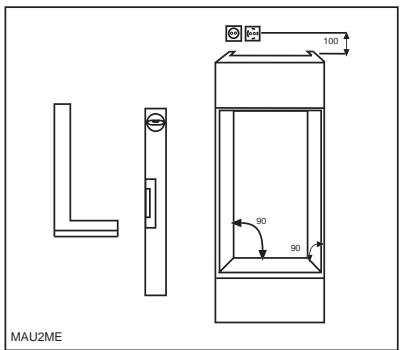

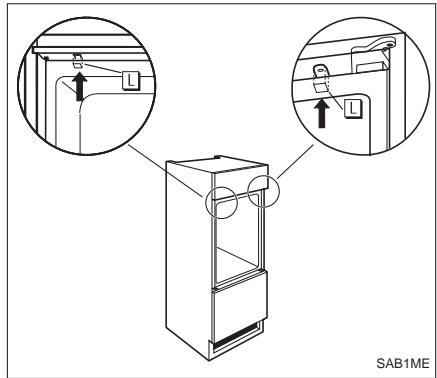

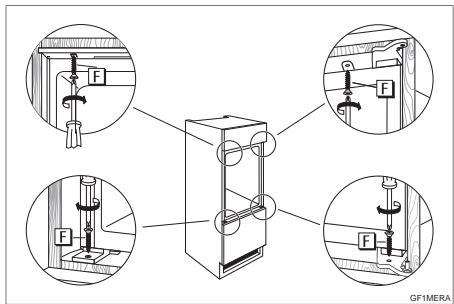

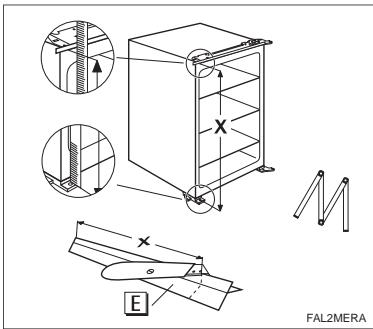

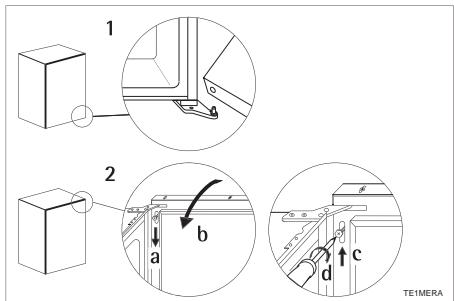

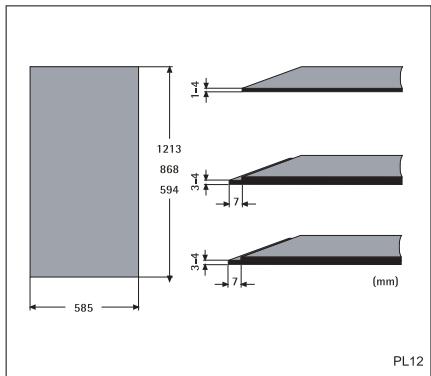

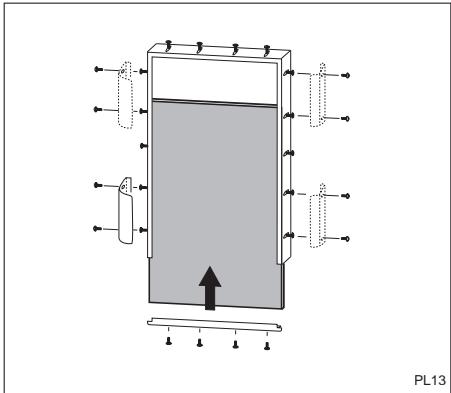

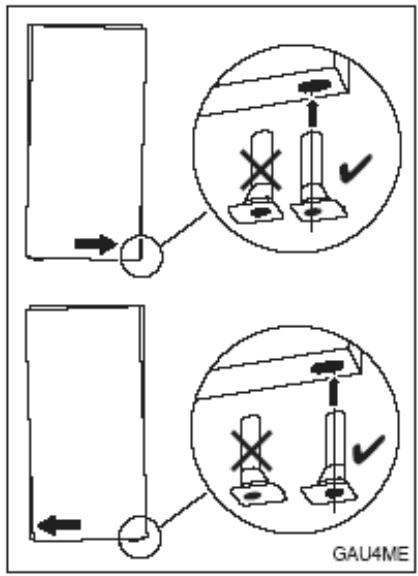

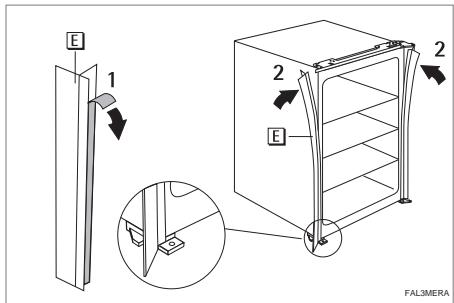

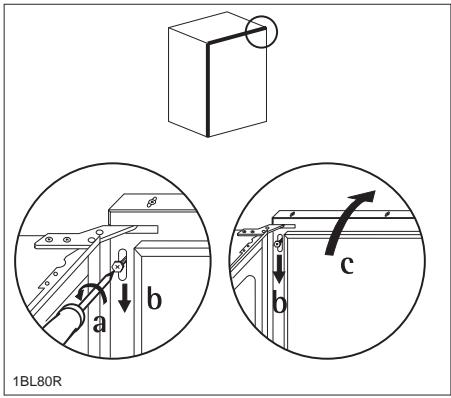

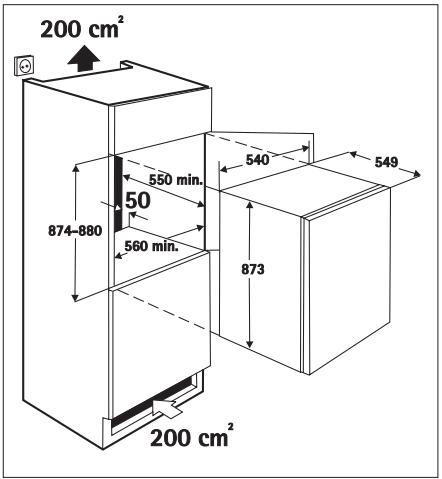

Building-in 33

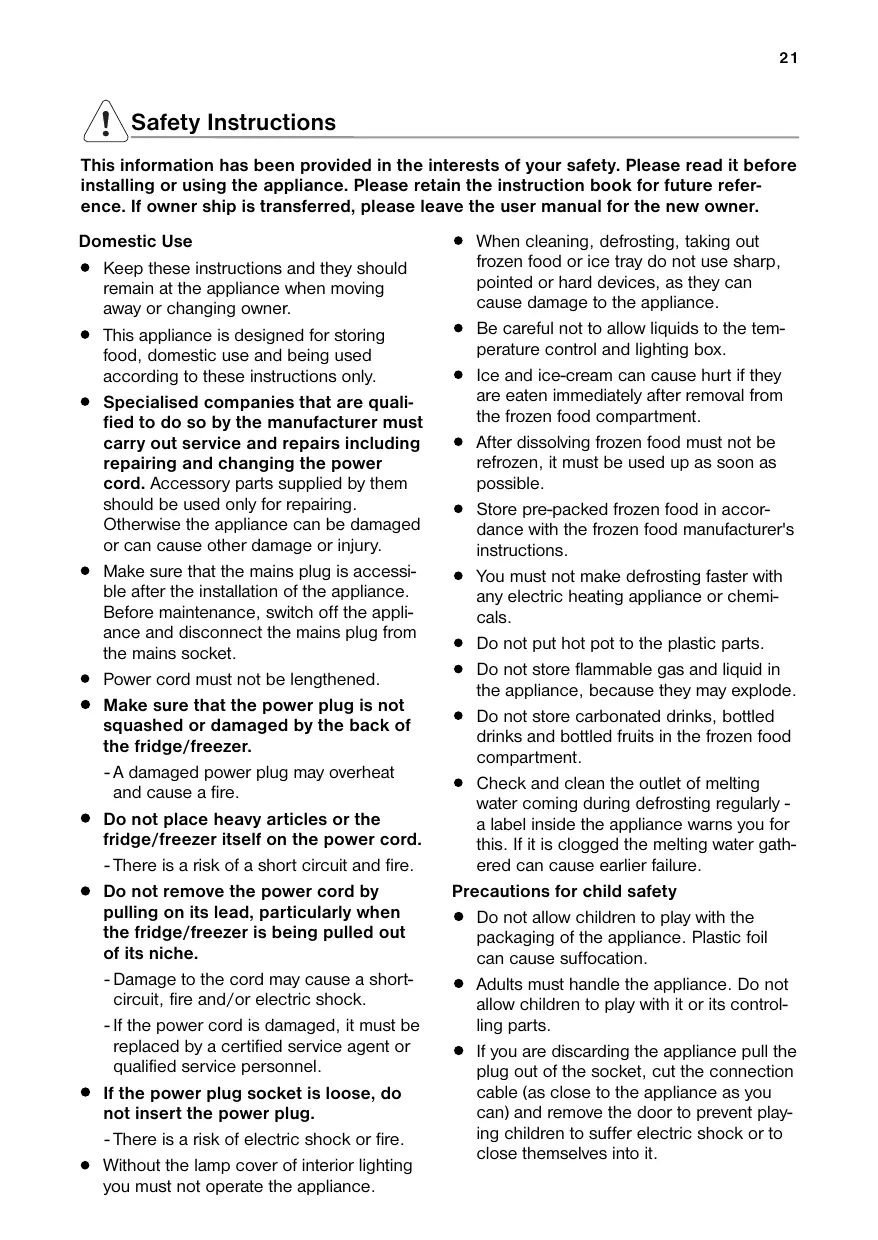

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or using the appliance. Please retain the instruction book for future reference. If owner ship is transferred, please leave the user manual for the new owner.

Domestic Use

• Keep these instructions and they should remain at the appliance when moving away or changing owner.
• This appliance is designed for storing food, domestic use and being used according to these instructions only.
• Specialised companies that are qualified to do so by the manufacturer must carry out service and repairs including repairing and changing the power cord. Accessory parts supplied by them should be used only for repairing. Otherwise the appliance can be damaged or can cause other damage or injury.
• Make sure that the mains plug is accessible after the installation of the appliance. Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the fridge/freezer.

-A damaged power plug may overheat and cause a fire.

• Do not place heavy articles or the fridge/freezer itself on the power cord.

• There is a risk of a short circuit and fire.

• Do not remove the power cord by pulling on its lead, particularly when the fridge/freezer is being pulled out of its niche.

• Damage to the cord may cause a short-circuit, fire and/or electric shock.

• If the power cord is damaged, it must be replaced by a certified service agent or qualified service personnel.

• If the power plug socket is loose, do not insert the power plug.

• There is a risk of electric shock or fire.

• Without the lamp cover of interior lighting you must not operate the appliance.

• When cleaning, defrosting, taking out frozen food or ice tray do not use sharp, pointed or hard devices, as they can cause damage to the appliance.

• Be careful not to allow liquids to the temperature control and lighting box.
• Ice and ice-cream can cause hurt if they are eaten immediately after removal from the frozen food compartment.
• After dissolving frozen food must not be refrozen, it must be used up as soon as possible.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• You must not make defrosting faster with any electric heating appliance or chemicals.
• Do not put hot pot to the plastic parts.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not store carbonated drinks, bottled drinks and bottled fruits in the frozen food compartment.
• Check and clean the outlet of melting water coming during defrosting regularly - a label inside the appliance warns you for this. If it is clogged the melting water gathered can cause earlier failure.

Precautions for child safety

• Do not allow children to play with the packaging of the appliance. Plastic foil can cause suffocation.
• Adults must handle the appliance. Do not allow children to play with it or its controlling parts.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Environment Protection

• This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit. Information on your local disposal sites may be obtained from your municipal authorities.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Disposal

Appliance Packaging Information

The materials marked with the symbol are recyclable.

PE< for polyethylene, e.g. sheet wrapping material

PS< for polystyrene, e.g. padding material (always CFC-free)

POM< polyoxymethylene, e.g. plastic clips. All materials are environmentally sound!

Safety precautions for isobutane

Warning

• The refrigerant of the appliance is isobutane (R 600a) that is inflammable and explosive to a greater extent.

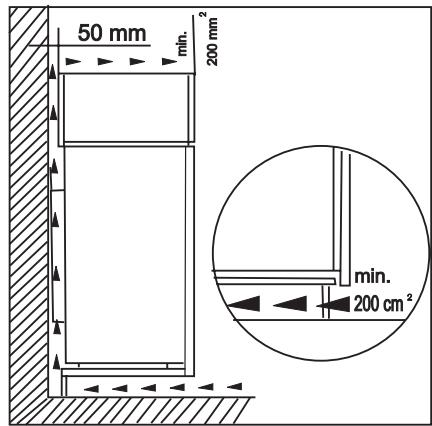

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Before Use

Wait 4 hours before connecting the appliance to allow the oil to flow back in the compressor.

• Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

• Remove safety elements used for transportation.

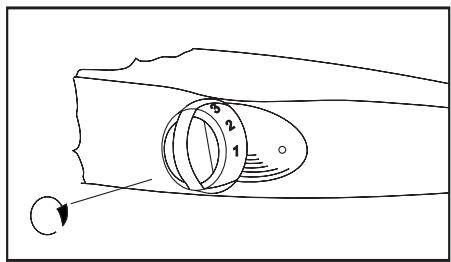

Starting the appliance

• Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).
• The thermostat control situated inside the fridge compartment regulates the temperature of the appliance.
• Turn the thermostat control to the required setting.

Temperature Control

• The following effects are of significance in respect of the interior temperature:
• Ambient temperature
• Quantity and temperature of the food stored;

• Frequency with which the door is opened and how long it is left open
  the location of the appliance.

• The temperature inside the appliance is automatically adjusted.

• Setting "1" = highest temperature, warmest setting
• Setting "6" = lowest temperature, coldest setting.
• Setting “●” = Off

A medium setting is generally the most suitable.

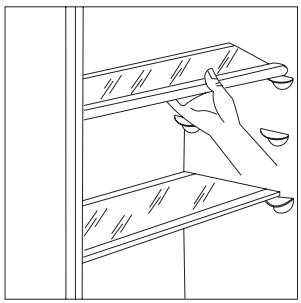

Storage shelves

• The shelves can be removed for cleaning.
• To permit storage of food packages of various sizes, the shelves can be placed at different heights.
• To remove the internal shelf pull forward until it can be tipped up or down and removed.
• Please do the same in reverse to insert the shelf at a different height.

The glass shelf above the vegetable drawers and the bottle shelf should always remain in position, to ensure correct air circulation.

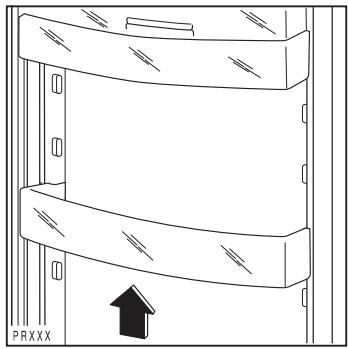

Door shelves

• To permit storage of food packages of various sizes, the central door shelf can be adjusted in height.
• Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.
• For more thorough cleaning, the top and bottom door sheves can be easily removed and refitted in position.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section Installation. When installed correctly the cabinet will consume less energy.

• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

• If the ambient temperature is high, the thermostat knob is on the coldest setting (higher numbers) and the appliance is fully loaded, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, turn the knob to a warmer setting (lower numbers) to allow automatic defrosting and so a saving in electricity consumption.

• Do not place warm foods inside the appliance. Allow warm foods to cool first.
• Keep the heat emitting condenser, the metal grille on the rear wall of your appliance, always clean.

Hints for refrigeration

• Do not store warm food or evaporating liquids in the refrigerator and do cover or wrap up the food, particularly if it has a strong smell.

To help you use your refrigerator correctly, here are some useful hints:

• Raw meat (beef, pork, lamb & poultry): wrap in polythene bags and place on top of the salad compartment, this being the coldest spot in the refrigerator.

Meat can only be stored safely in this way for one or two days at the most.

• Cooked food, cold cuts, jelly, etc.: these should be well covered and can be stored on any of the glass shelves.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom drawer/s.

• Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to keep out as much air as possible.
• Milk bottles: these should have a top and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.
- Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacturer.

Explanation of the cold zonesigns

The symbol shown here on the left indicates the coldest point inside your refrigerator.

Coldest area: below or equal to +4^

Meat, poultry, fish, cold cuts, ready-to-eat meals, mixed salads, egg or cream based mixes and cakes, fresh pasta, cake mixes, pizzas/quiches, fresh foods and fresh-milk cheeses, vegetables ready to be used and packed in plastic bags and all other fresh foods whose expiry date is associated with a preservation temperature below or equal to +4^ .

Temperatur indicator

Thermostat must be adjusted

Right Temperature

With the temperature indicator you can keep a check that your refrigerator is working properly.

The indicator shows the "OK" symbol when the coldest area reaches a temperature that is below or equal to 4^ .

If the temperature is higher than 4^ the indicator is black so you must adjust the thermostat to make the temperature drop.

ATTENTION: Keeping the refrigerator door open for a long time will cause the internal temperature to rise. To measure the temperature correctly, it should be read on the indicator within 30 seconds.

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

Bleeding part of the moisture of cooling chamber in form of frost and ice goes with the operation of the refrigerator.

Thick frost and ice has an insulating effect, so it reduces cooling efficiency as the temperature increases, it needs more energy, at a certain thickness it does not allow the door of the frozen food compartment to open, possibly the door can be broken.

At this type of appliance defrosting fresh food compartment is automatic without any external intervention.

The thermostatic control interrupts the operation of compressor at regular intervals for more or less time - during this cooling is interrupted - temperature of the fresh food compartment increases and defrosting occurs. After defrosting the thermostatic control restarts operation of the system.

Melting water flows through defrost water outlet into the evaporative tray maintained on the top of compressor and evaporates due to warmth of it.

Check and clean the outlet of melting water coming during defrosting regularly. If it is clogged the melting water gathered can cause earlier failure as it can go to the insulating of the appliance.

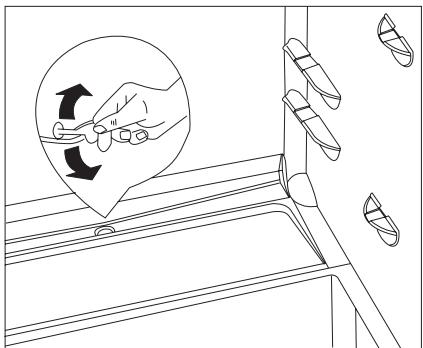

Clean the melting water outlet with the supplied pipe scraper that can be seen in the figure. The pipe scraper has to be stored in the outlet.

Occasionally check defrost water outlet not to be clogged up.

The most typical case of clogging up in the defrost water outlet when you put food wrapped in some paper into the appliance and this paper contacts back plate of fresh food compartment and freezes to it. If you remove the food right at this moment the paper will tear and it can cause clogging up in the outlet by getting into it. So you are asked to be careful - because of the above - when placing foods wrapped in paper into the appliance.

In case of increased demand e.g. during heatwaves, the refrigerator temporarily happens to operate constantly. During this the automatic defrosting is ineffective.

Remaining small ice and frost stains on back plate of the fresh food compartment after defrosting period is not abnormal.

The frozen food compartment can not be equipped with automatic defrosting set since the deep-frozen and frozen foods do not endure melting temperature.

Provided it is not too thick, the layer of frost or ice can be scraped off and removed using a plastic scraper.

When ice coating is so thick that it can not be removed with the plastic scraper, the frozen food compartment has to be defrosted (generally 2-3 times a year).

Take the foods out of the frozen and fresh food compartment, wrap them into some layers of paper or cloth. Put them to a possible cool place while defrosting.

Break the circuit of the appliance and leave the doors of frozen and fresh food compartment open.

Continuously blot off the defrosting water by a soft cloth or sponge.

After defrosting wipe the surfaces, apply voltage to the appliance and put the foods back to their places.

It is recommended to operate the appliance at the highest position of the thermostatic control so that it can reach the proper storing temperature as soon as possible.

How to change the bulb

Disconnect the appliance from the electricity supply.

Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Should the light fail to work you can change it as below:

Break the circuit of the appliance.

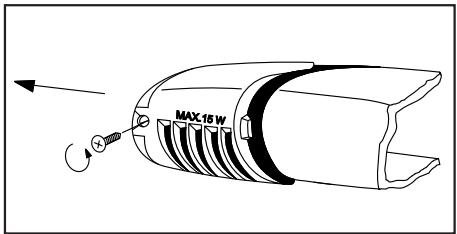

Unscrew the plate screw fixing the lamp cover, then take the lamp cover off in the direction of arrow and the bulb can be changed. (Type of the bulb: Mignon 322, 230 V, 15 W, E 14 thread)

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

To guarantee a safe operation of the fridge, once a year remove the ventilation grill at the base and clean the air channels with a vacuum cleaner.

After changing bulb replace the lamp cover, screw the plate screw and apply voltage to the appliance.

The lack of light does not influence operation of the refrigerator.

Something not Working

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM	SOLUTION
Door does not close	Level properly the appliances if it is not well levelled. Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out. The appliance is not properly installed. Please look in the “Building-in” section.
It is too warm inside the refrigerator	Set a lower temperature. Distribute the food products to allow cold air to circulate around them. Make sure that the door is completely closed and that the insulating strip is complete and clean. The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the refrigerator.	Turn the temperature regulator to a warmer setting temporarily.
The compressor works continuously.	Turn the thermostat knob to a lower number. The temperature where the cabinet is placed is above normal room temperature. Check that the ventilation is sufficient and that the ventilation openings are unobstructed. The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
There is water inside/outside the refrigerator.	Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Water comes out on the floor.	Place the drain hose at the back of the cabinet above the drain bowl.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected. The injected cooling gas may produce a gurgling sound while passing through the tubes. The motor may cause a humming noise and/or slight bumping. The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

Model Name
- Model Number (PNC)
- Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

The technical data is indicated in the rating plate on the left side inside the appliance.

Installation

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

• It is necessary that the niche is provided with a conduct of venti-lation having the following dimensions:

Depth: 50 mm

Width: 540 mm

The climate classification can be found on the rating plate, which is located inside the cabinet on the left hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN	+10 to +32 °C
N	+16 to +32 °C
ST	+16 to +38 °C
T	+16 to +43 °C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with

current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

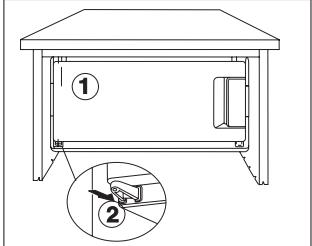

Change of door opening direction of frozen food compartment

After changing the outer door opening direction at this type it is necessary to remount the door of the frozen food compartment as well.

Operations and their order can be seen in figure.

• Press the retaining lever inside the lower doorhinge.
• Tilt the lower doorhinge out together with the freezer compartment door then remove it from the pin of the freezer compartment door.
• Remove the rectangular plug and put it into the opening got free on the other side.

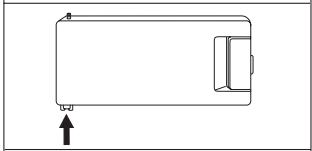

• Having the freezer compartment door turned by 180^ put the lower hinge onto the lower pin of the freezer compartment door.
• Put the upper hinge pin of the freezer compartment door into the free opening, then push the lower hinge into its place together with the freezer compartment door.

In case you do not want to perform the procedures above, call the nearest brand-mark service. Technicians will accomplish the refitting expertly for charge.

Door reversal

After reversing the door, make sure the magnetic seal adheres to the cabinet. If the room temperature is cold (e.g. in winter), the seal may not adhere perfectly to the cabinet. In this case, wait until the seal has softened on its own or speed up the process by warming the relevant part with a normal hairdryer.

Building-in

Dimensions of the recess

It is necessary that the niche is provided with a conduct of ventilation having the following dimensions:

Depth 50~mm

Width 540 mm

Compartment levelling
Door removal

The following assembly steps only apply for doors with rabbet on the right side (supply sta

tus). If the door rabbit is provided for on the left side, please carry out the relevant assembly steps on the opposite side.

1. Make the adjustments.

2. Cut the side trim (E).

1. Apply the side trim (E).

1. Insert the appliance.

1. Fix the appliance.

1. Apply the hole covers.

1. Fit the decorative panel.

1. Fitting the handle.

1. Refit the door.

1. Door alignment (if necessary).

PE<=Polyathylen
PS<=Polystyrol
PP<=Polypropylen
