Product type	Quartz watch
Brand	Calypso
Model	K5654
Display	Digital with electroluminescent (EL) backlight
Time functions	Hours, minutes, seconds, month, date, day of week, AM/PM, 12/24 hour format
Alarm	2 alarms (Alarm-1 and Alarm-2) with audible signal
Hourly chime	Yes (on/off)
Stopwatch	With lap time measurement
Timer	Countdown
World time	36 cities, daylight saving time (DST) adjustment for some
Second time zone	Yes (adjustable Alarm-2 display)
Power source	Button cell battery (not specified, estimated: SR626SW or equivalent)
Accuracy	±30 seconds per month (at normal temperature 25°C)
Operating temperature	10°C to 40°C
Water resistance	Not suitable for swimming or diving (avoid immersion)
Shock resistance	Resists normal use shocks, avoid drops on hard surfaces
Care	Clean with soft cloth and clean water, avoid chemicals and soap
Safety	Do not open the case, avoid strong electric/static fields
Repairability	Not user repairable (do not attempt to open)
Batteries	Remove battery if unused for a long time, recycle according to WEEE regulations
Dimensions (estimated)	Approximately 40 mm diameter, 12 mm thickness
Weight (estimated)	Approximately 50 g (with strap)
Included accessories	User manual (PDF format)

Frequently Asked Questions - K5654 Calypso

How do I set the standard time on my Calypso K5654 watch?

Use the MODE and SET buttons. In standard display mode, press and hold SET until digits flash, then adjust with START/STOP. Confirm with SET.

How do I set the alarm on this model?

In alarm mode, press and hold SET to flash alarm time, then use START/STOP to set hours and minutes. Press MODE to confirm.

How do I use the stopwatch?

Press MODE to select stopwatch. Use START/STOP to start/stop, and SET to take a lap (split).

How do I set the timer (countdown)?

Select timer mode with MODE. Press and hold SET to set time, adjust with START/STOP, then press START/STOP to start countdown.

How do I enable or disable the hourly chime?

In alarm display mode, press SET to enable/disable the chime (bell symbol). Refer to the manual for details.

How do I use the world time display?

Select world time mode with MODE. Use SET to choose a city from 36 codes. Cities with daylight saving time are marked 'V' in the table.

What to do if the screen is hard to read in sunlight?

The display may be less visible in direct light. Use the electroluminescent backlight by pressing LIGHT.

How do I clean my Calypso K5654 watch?

Clean with a soft cloth and clean water. Avoid chemicals, soap, and abrasive cleaners.

Is the watch waterproof?

No, it is not designed for swimming or diving. Avoid pressing buttons underwater and remove it for aquatic activities.

What to do if there is condensation inside?

This indicates moisture ingress. Have the watch checked immediately by a professional to prevent component corrosion.

USER MANUAL K5654 Calypso

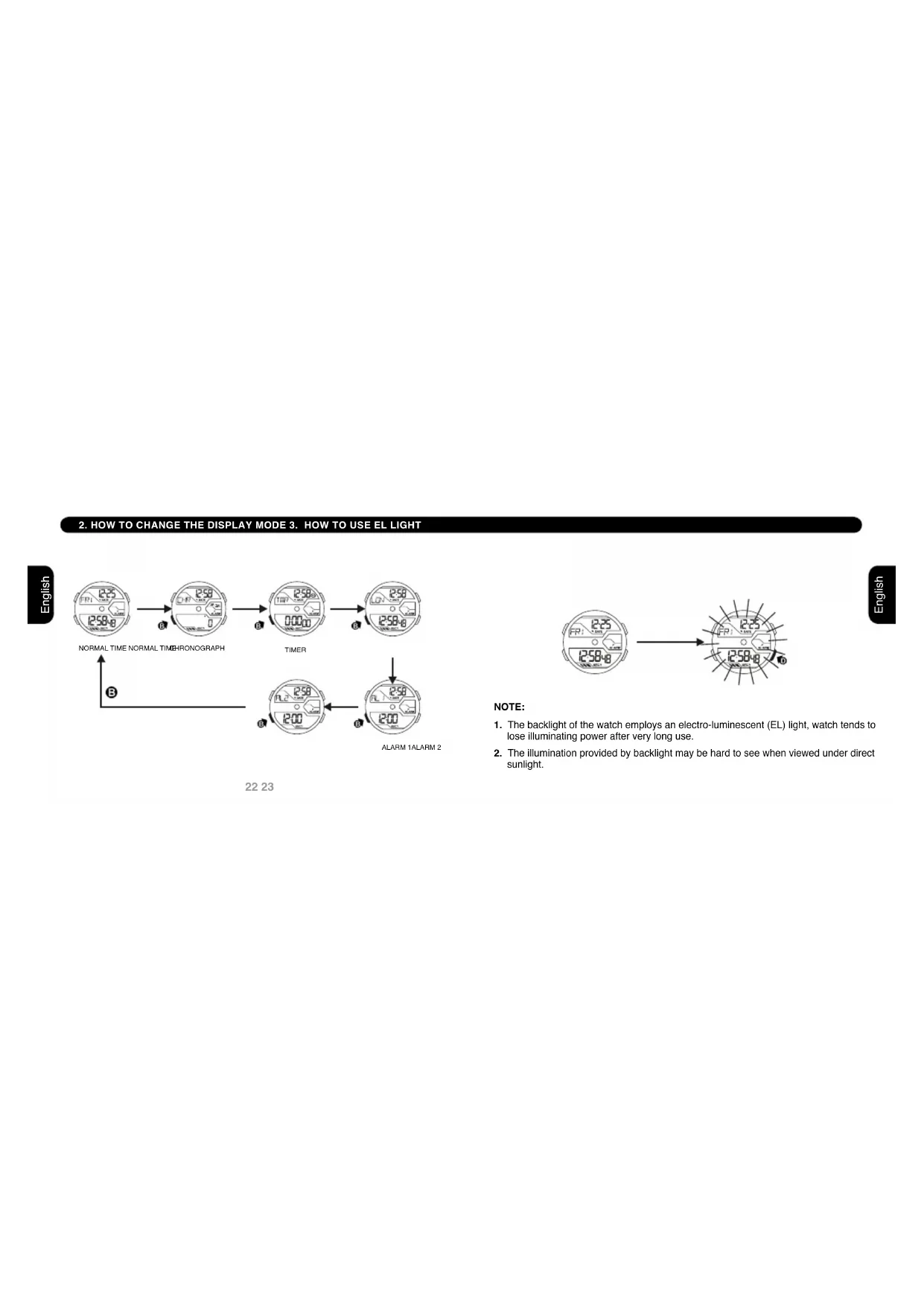

1. The backlight of the watch employs an electro-luminescent (EL) light, watch tends to lose illuminating power after very long use.
2. The illumination provided by backlight may be hard to see when viewed under direct sunlight.

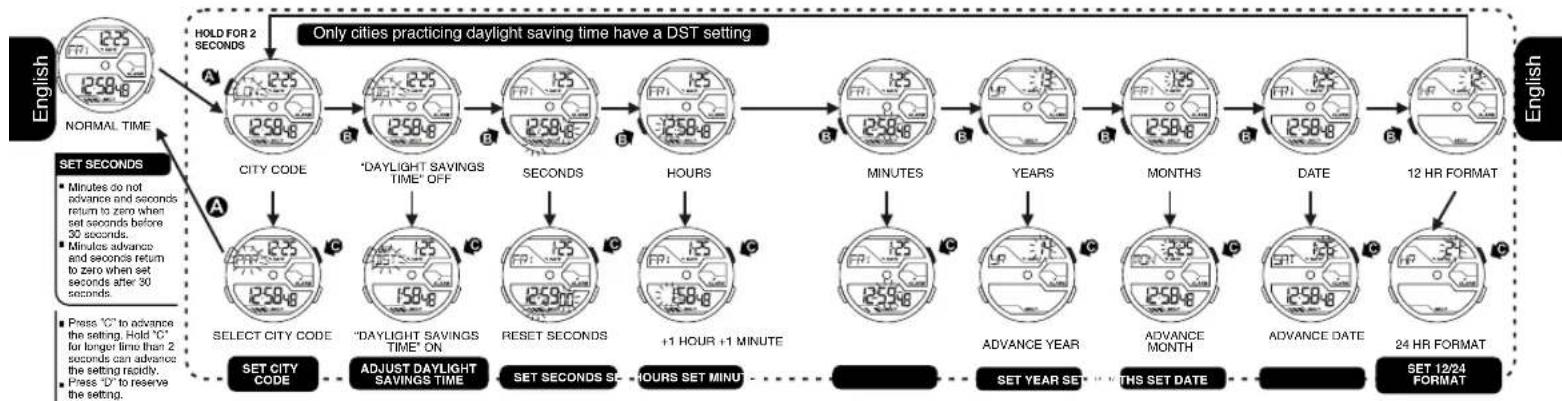

4. HOW TO SET NORMAL TIME

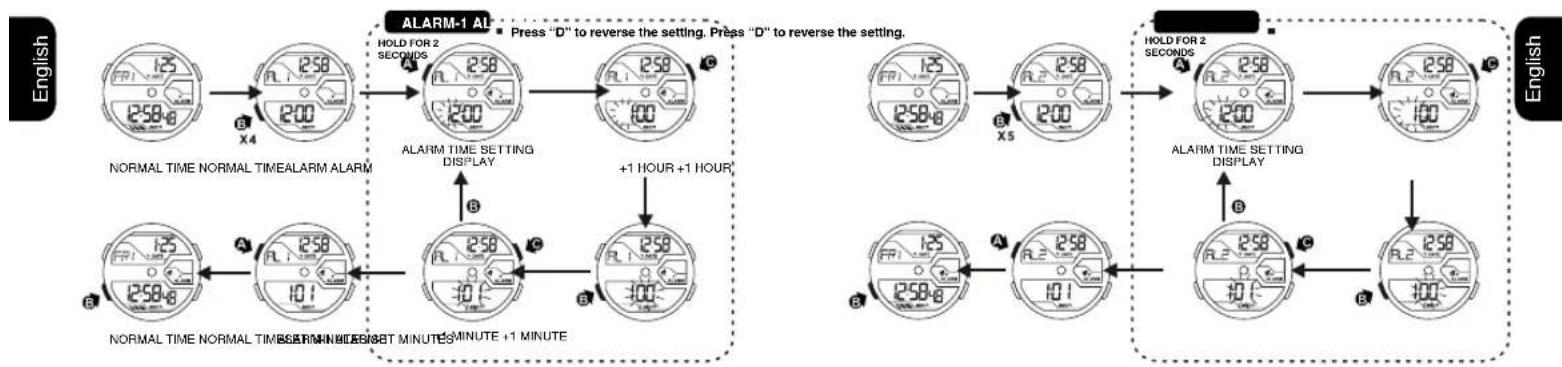

5. HOW TO SET ALARM TIME

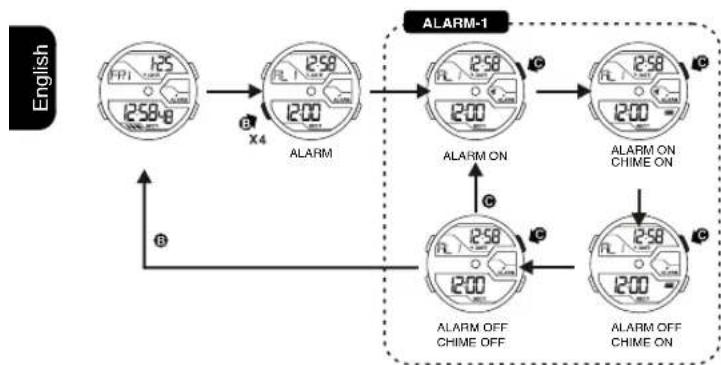

7. HOW TO USE ALARM-1 AND CHIME DISPLAY 8. HOW TO USE ALARM-2 AND CHIME DISPLAY

9. HOW TO SET THE CHRONOGRAPH

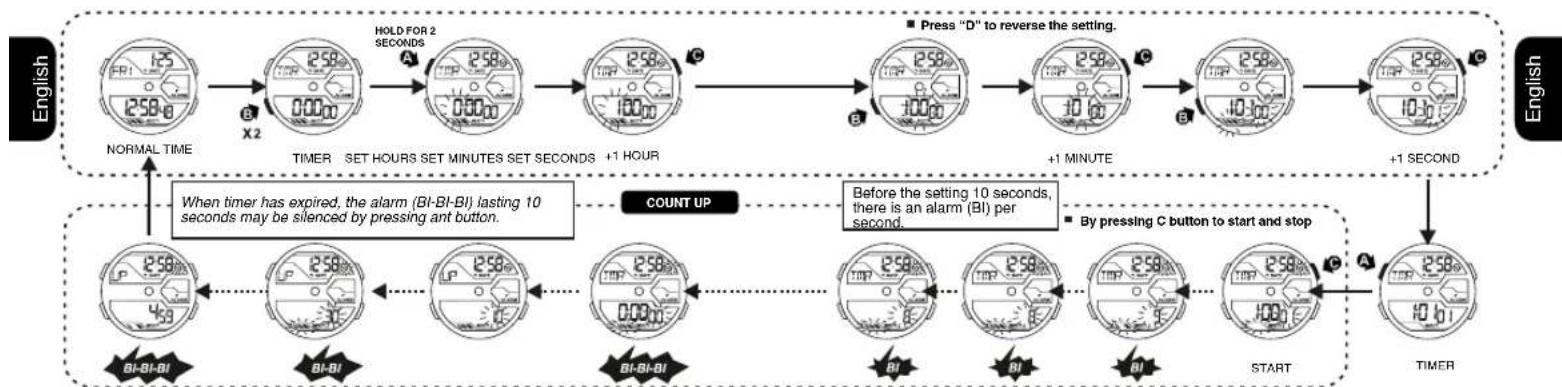

10. HOW TO USE TIMER

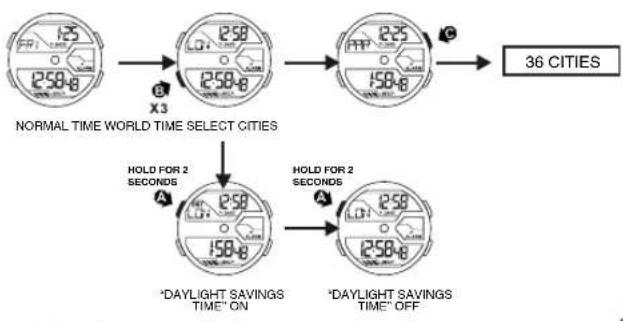

10. HOW TO SET WORLD TIME

Only cities practicing daylight saving time have a DST setting

36 city names (x represents no daylight saving time, v represents a selectable daylight saving time function)

GMT Difference

-11

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

0

0

1

1

2

2

2

CITY CODE

PPG

HNL

ANC

LAX

DEN

CHI

NYC

CCS

RIO

-2

RAI

GMT

LON

PAR

BER

ATH

CAI

JRS

DAYLIGHT SAVINGS TIME

X

X

V

V

V

V

V

X

V

X

X

X

V

V

V

V

V

V

CITY NAME

Samoa

Honolulu

Anchorage

Anchorage

Los Angel

Denver

Chicago

New York

Caracas

Rio De Janeiro

Prata

Greenwich

London

Paris

Berlin

Athens

Jerusalem

GMT Difference

3

3

3.5

4

4.5

5

5.5

6

6.5

7

8

8

9

9

9.5

10

11

12

CITY CODE

JED

MOY

THR

DXB

KBL

KHI

DEL

DAC

RON

BKK

HKG

BIS

SEL

TYO

ADL

SYD

NOU

WLG

DAYLIGHT SAVINGS TIME

X

V

X

X

X

X

X

X

X

X

X

X

X

Seoul

Tokyo

V

X

V

CITY NAME

Jeddah

Moscow

Tehran

Dubai

Kabul

Kashmiri

Delhi

Darua

Daqua

Yangon

Bangkok

Hong Kong

Beijing

Beijing

Beijing

Sydney

Noumea

Wellington

11. CARE OF YOUR WATCH

12. FEATURES AND SPECIFICATIONS

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.

7. Keep your watch away from the conditions of strong electric field and static electricity.

8. Standard display mode: Hour, minutes, seconds, day of week, month, date.

Function:
Year, Month, date AM/PM and Electro-Luminiscent light.
- Alarm function with buzzer signal output.
- Chronograph function with lap operation.
- Hourly chime.
- 12/24 hour format switch option.
World Time.
- Timer.
Second time zone.

1. Accuracy at normal temperature (25^) : + - 30 seconds a month.
2. Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your

quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
