USER MANUAL 10027045 Klarstein

• Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.

• Do not touch the heating element during or immediately after use.

• Do not operate your dishwasher unless all enclosure panels are properly in place.

• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

• Do not place any heavy objects or stand on the door when it is open. The appliance could tip for- ward.

• When using your dishwasher, you should prevent plastic items from contacting with heating ele- ment.

• Check that the detergent receptacle is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.

• For plastic items not so marked, check the manufacturer‘s recommendations.

• Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

• Other means for disconnection from the supply must be incorporated in the xed wiring with at least 3 mm contact separation in all poles.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

• Young children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.

• The door should not be left in the open position since this could present a tripping hazard.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly quali ed person in order to avoid a hazard.

• Please dispose of packing materials properly.

• During installation, the power supply must not be excessively or dangerously bent or attened.

• Do not tamper with controls.

• The appliance is to be connected to the water mains using new hose sets, and the old hose-sets should not be reused.

• Make sure that the carpet must not obstruct the openings at the bottom base.

• Use the dishwasher only for its intended function.

• The dishwasher is intended for indoor use only.

• The dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments.

• Please do not overload your dishwasher. There is only space for 9 standard dishes (item 10027046) or 12 standard dishes (items 10027045, 10028642) respectively . Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption

21WARNING Locate sharp items so that they are not likely to damage the door seal. Load sharp knives with the handles up to reduce the risk of cut-type injuries. Warning: Knives and other uten- sils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Control Panel and Indicator Lights 1 Power switch: To turn on/o the power supply. 2 The Delay button allows you to delay the start time of any cycle automatically up to 24 hours. 3 Program key-press: Press the key to scroll through the wash cycles. The corresponding pro- gramme light will be ON to indicate which WASH CYCLE has been selected 4 Function alternative button: Press this button you can choose the additional function “3 IN 1” , washing of upper layer or washing of lower layer and the corresponding light ashes. 5 Start/Pause button: The appliance will start or pause the expected washing cycle 6 Child lock button: Press the two buttons for 3 seconds, the appliance could be locked and any button can not be used. 7 Program indicator light: When you select a washing programme, the corresponding light will dis- play. 8 Salt re ll indicator: The indicator lights up when the softener needs to be re lled. 9 Rinse aid re ll indicator: The indicator lights up when dispenser needs to be re lled. 10 3-in1-indicator: The indicator lights up when the additional function be selected. 11 Child lock indicator The „Child Lock“ will be available when you press the Child lock buttons for 3 seconds, and the „Child lock“indicator lights up after ashing 6 times. 12 Washing light of upper layer: To come on when the upper spray arm is washing. 13 Washing light of lower layer: To come on when the lower spray arm is washing. 14 Digital display: To display the running time remain, malfunction codes and delay time. 22Product Description 1 Upper basket 2 Spray arms 3 Lower basket 4 Water softener 5 Cutlery basket 6 Datergent dispenser 7 Rinse aid dispenser 8 Fork shelf

23Installation WARNING Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock.. Positioning and leveling

1. Remove the appliance from all packaging and check that it has not been damaged during trans-

portation. If it has been damaged, contact the retailer and do not proceed and further with the installation process.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent

cabinets or even with the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).

3. Position the dishwasher on a level and sturdy oor. If the oor is uneven, the front feet of the

appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operation. Connecting the water and electricity supplies Connection to the water and electricity supplies should only be performed by a quali ed technician. The dishwasher should not stand on top of the water hoses or the electricity supply cable The appli- ance must be connected to the water supply network using new piping. Do not use old piping.

• Connecting the water inlet hose Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this pre- caution is not taken, there is a risk that the water inlet can get blocked and the appliance could be damaged.

• Connecting the water outlet hose Fit the drainage hose of your machine to the drainage pipe without bending. If the length of the hose is not su cient, apply to the authorized service for an extension made from the same mate- rial as the original. Remember that the length of the hose should not exceed 4meters even when with an extension. If the drainage hose is longer the 4 m. the dishes will not be cleaned properly secure your hose rmly to the drainage pipe to avoid it coming o during the washing process.

• Electrical connection Before inserting the plug into the electrical socket, make sure that the socket is earthed and complies with current regulations. The household electrical supply system should be provided and should meet requirements of the appliance under normal load. The socket must be compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug. WARNING Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible. The cable should not be bent or compressed. If the power sup- ply cable is damaged, it must be replaced by the manufacturer or its Technical Service. Advice regarding the rst wash cycle After the appliance has been installed, immediately before running the rst wash cycle, completely ll the salt dispenser with and add approximately 1.2 Kg of salt (see Rinse aid and re ned salt). The water may over ow: this is normal and is not a cause for concern. It is also normal that the LOW SALT indicator light continues to ash for a few cycles after the salt has been loaded. 24Water outlet Connect the water drain hose. The drain hose must be correctly tted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. How to drain excess water from hoses If the sink is 1000 mm higher from the oor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable container that is held outside and lower than the sink. Extension hose If you need a drain hose extension, observe to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning eect of the dishwasher could be reduced. Syphon connection The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum) from the bottom of the dish. The water drain hose should be xed by a hose clip. When starting the dishwasher you should check:

• Whether the dishwasher is level and xed and the inlet valve is opened.

• Whether there is leakage at the connections of the conducts.

• Whether the wires are tightly connected and the power is switched on.

• Whether the inlet and drain hoses are knotted.

• All packing materials and printings should be taken out from the dishwasher. Prior Using for the First Time Please note that model 10028642 can not adjust the degree of water hardness. Fill the salt chamber with the appropriate salt (see: Loading the Salt into the Softener). Adjusting water softener (only 10027045) The water softener must be set manually, using the water hardness dial. The water softener is de- signed to remove minerals and salts from the water, which would have a detrimental or adverse ef- fect on the operation of the appliance. The higher the content of these minerals and salts, the harder the water is. According to your type of dishwasher, the softener is set by dial or display. If your ap- pliance has no water softener, you may skip this section. The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hard- ness of the water used. This is intended to optimize and customize the level of salt consumption so that the salt consumption could be set proceed as follows: 24 25Item number 10027045

1. Find out about the hardness value of your tap water. Your water utility company will help you.

2. Set value can be found in the water hardness table.

time and H.. ashes on the digital display (factory setting is H4).

5. To change the setting press „Delay„ button. Each time the button is pressed, the set value in-

creasesby one level. When the value of H7 has been reached, the display jumps back to H0(o ).

6. Press „ Program „ button. The chosen setting has now been stored.

Hardness (°dH) Range Value 0-6 soft (1) H0 6-8 soft (1) H1 8-10 medium (2) H2 10-12 medium (2) H3 12-16 hard (3) H4 16-20 hard (3) H5 20-30 very hard (4) H6 30-50 very hard (4) H7 Loading the Salt into the Softener WARNING Only use salt speci cally designed for use in dishwashers! All other types of salt not speci - cally designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages. Only ll with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been split, remaining on the bottom of the machine for any period of time, which may cause corrosion. After the rst wash cycle the control panel light expires. The salt container is located beneath the lower basket and should be lled as follows:

1. Remove the lower basket and then unscrew and remove the cap from the salt container.

2. If you are lling the container for the rst time, ll 2/3 of its volume with water (around 500ml).

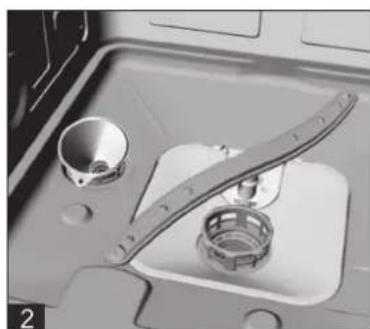

3. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt.

4. It is normal for a small amount of water to come out of the salt container.

5. Carefully screw the cap back on.

6. Usually, the salt warning light will be o in 2-6 days after the salt container is lled with salt. The

salt container must be re lled when the salt warning light in the control panel comes on again. 26Fill the rinse aid dispenser Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. WARNING Only use branded rinse aid for dishwasher. Never ll the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the ap- pliance. If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator „D“ located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full. How to ll the rinse aid dispenser

1. To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out.

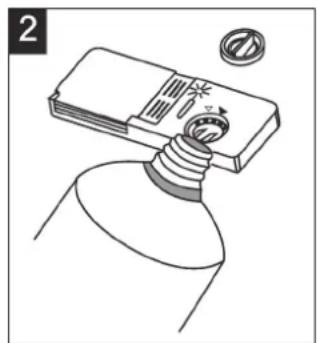

2. Pour the rinse aid into the dispenser, be careful not to over ll.

3. Replace the cap by inserting it aligned with „open“ arrow and turning it to the „closed“ (right)

arrow. The rinse aid is released during the nal rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to sheet o the dishes. Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To ll the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 140ml. Be careful not to over ll the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don‘t forget to replace the cap before you close dishwasher door. ATTENTION Clean up any rinse aid split during lling with an absorbent cloth to avoid excess foaming during the next wash. How to adjust the rinse aid dispenser The rinse aid dispenser has four or six settings. Always start with the dispenser set on „4“ If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to „5 . If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. The dose is factory set in position 5. Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes or a bluish lm on glassware or knife blades.

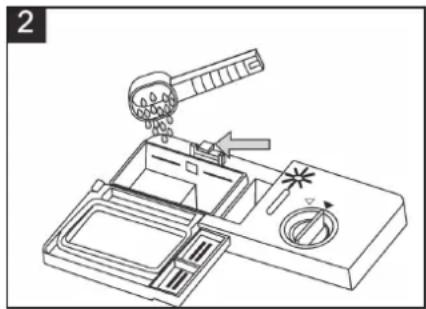

27Fill in the detergent Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. WARNUNG Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

• Use only detergent speci cally made for use in dishwashers.

• Keep your detergent fresh and dry.

• Don‘t put powder detergent into the dispenser until you‘re ready to wash dishes. Concentrated detergent Based on their chemical composition, dishwasher can be split in two basic types:

• conventional, alkaline detergents with caustic components

• low alkaline concentrated detergents with natural enzymes The use of „Eco“ washing programme in conjunction with concentrated detergents reduces pollution and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason“Eco“ washing programme in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using“intensive“ programme. Detergent tablets Detergent tablets of di erent brands dissolve at di erent speeds. For this reason some detergent cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals. How to ll in the detergent:

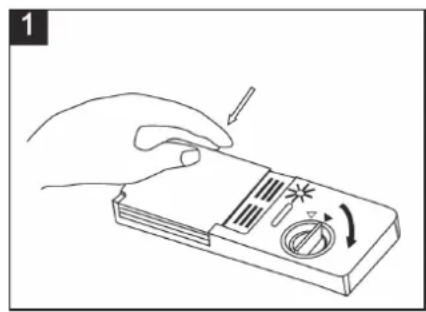

1. If the lid is closed: press re-

before starting each wash cy- cle. Only use branded deter- gent aid for dishwasher. Amount of detergent to use Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right:

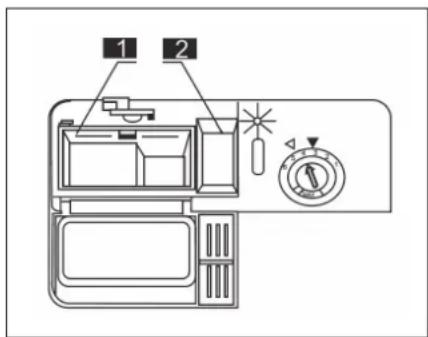

1. The place of main wash cycle detergent placed, MIN means

approximately 20g of detergent.

2. The place of pre-wash cycle detergent placed, approximately

5g of detergent. 28Please observe the manufacturer‘s dosing and storage recommendations as stated on the detergent packaging. Close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent Chamber. This detergent will take e ect during the pre-wash phase. There are 3 sorts of detergents:

• With phosphate and with chlorine

• With phosphate and without chlorine

• Without phosphate and without chloride Normally new pulverized detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to ll salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not removed completely. In this case please choose a programme with higher temperature. Use of 3-in-1 detergent tablets ATTENTION Before using these products you should rst check that the water hard-ness in your supply is compatible with the use of these products as per the detergent manufacturers instruc- tions (on the packaging). When using combination products, the rinse-aid and salt lights are no longer useful. It may be helpful to select the lowest possible setting for water hardness. Using the 3-in-1 function

• If you use 3-in-1 peoducts use the 3-in-1-function. in1washing cycle is additional function, they must be used with other programme (Intensive, Eco and Light).

• To select 3-in-1 function press the power switch and select the 3-in-1 washing cycle by pressing the option button 3-in-1 until the „3in1“ indicator blinks.

• The 3-in-1 washing cycle will be available after pressing the Start/Pause button.

• If you decide to switch to the use of a standard detergent system we advise that you re ll both the salt and rinse aid compartments. Switch the water hardness setting to the highest possible position and run for three normal cycles without load.

• Readjust the water hardness setting again according to the conditions for your region (For more information please refer to your instruction manual). Loading the Dishwasher Baskets For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and silverware baskets may vary from your model. Scrape o any large amounts of lefto- ver food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/pans, etc. are stood upside down.

• Curve items, or those with recesses, should be at a slant so that water can run o .

• They are stacked securely and can not tip over.

• They do not prevent the spray arms from rotating while washing takes place.

• Very small items should not be washed in the dishwasher as they could easily fall out of the bas- kets.

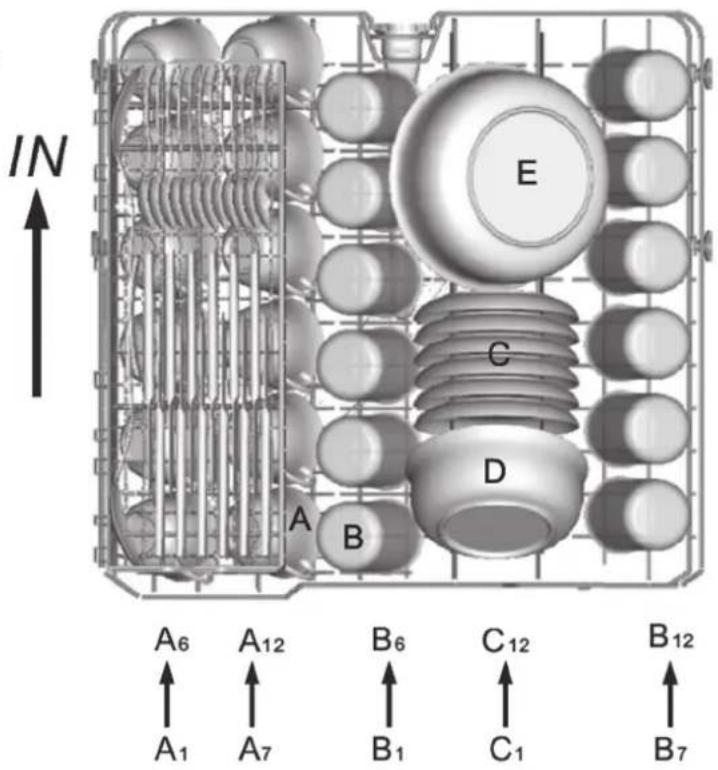

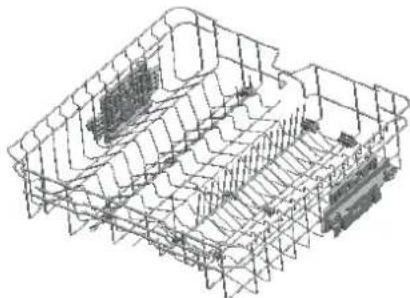

29Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, co ee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. Upper basket A Cup B Glasses C Saucer D Serving bowl E Serving bowl I Dessert plate K Serving spoon Adjusting the upper basket Basket height adjustment mechanism on the upper basket of your machine is designed to let you adjust the height of your upper basket upwards or downwards,without removing it from your machine when it is full,and create large spaces at the top or bottom area of your machine as needed.Basket of your machine is set to lower position in factory settings.

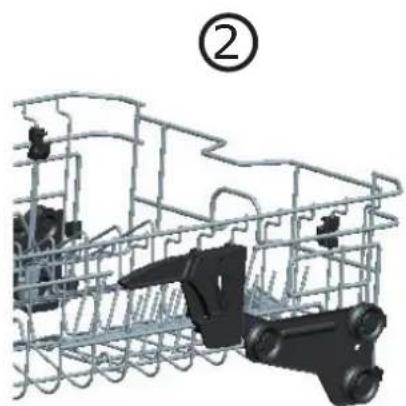

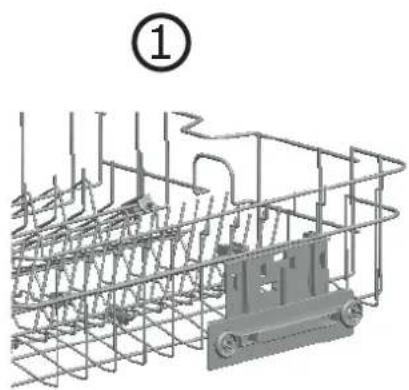

1. To lower the upper basket, press the levers located at the left and right sides of the upper basket

and push the upper basket downwards slightly at the same time.

2. To raise the upper basket, just pull the upper basket upwards without operating any levers.

To lower position. To upper position.

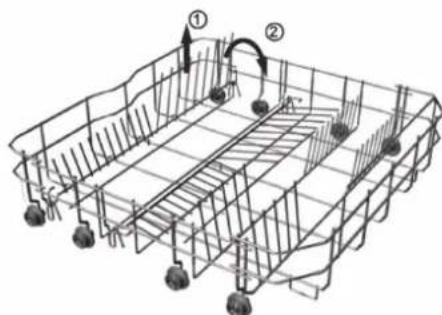

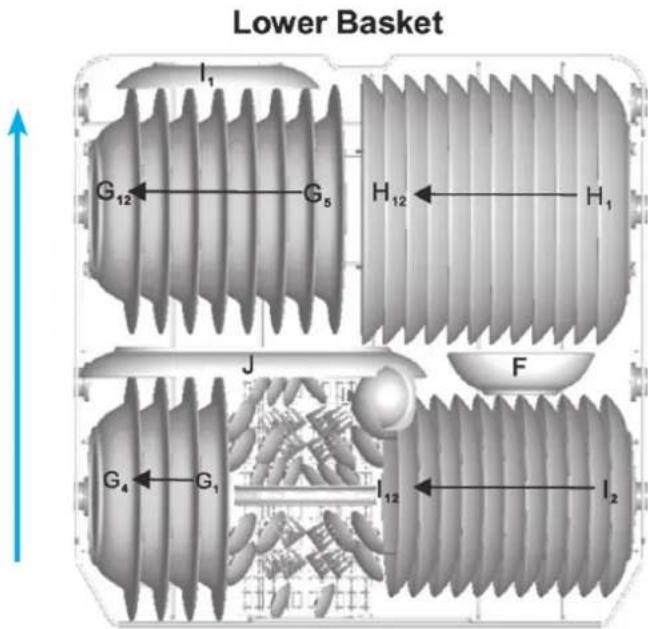

Loading the Lower Basket We recommend that you place large items which are most di cult to clean in to the lower basket: pots, pans, lids, serving dishes and bowls, s shown in the gure below. It is preferable to place serv- ing dishes and lids on the side of the baskets in order to avoid blocking the rotation of the top spray arm. Pots, serving bowls, etc. must always be placed top down. Deep pots should be slanted to allow water to ow out. The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded. Lower basket F Serving bowl G Soup plater H Dinner plate I Dessert plate J Oval plate Upper and Lower basket Folding racks Folding racks consisting of two parts that are lo- cated on the lower basket of your machine are designed in order to let you place big items easier as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger can be obtained. You can use folding racks by rasing then upwards, or by folding.Cutlery basket and fork shelf Cutlery should be placed in the cutlery basket with handles at the bottom: If the basket has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket. For washing in the dishwasher are not suitable:

• Cutlery with wooden, horn or pearl handles

• Plastic items that are not heat re- sistant

• Cutlery with parts that is not tem- perature resistant

• Bonded cutlery items or dishes,

• Pewter or cooper items

• Lead crystal glass and Wooden platters

• Steel items subject to rusting

• Items made from synthetic bre For washing in the dishwasher are of limited suitability:

• Some types of glasses can be- come dull after a large number of washes

• Silver and aluminium parts have a tendency to discolour during washing

• Glazed patterns may fade if ma- chine washed frequently When loading the dishes and cutlery, please note:

• Dishes and cutlery must not impede the rotation of the spray arms.

• Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes please make sure that they are suitable for dishwashers.

• Don‘t overload your dishwasher for good results and reasonable energy consumption.

• Dishes and items of cutlery must not lie inside one another, or cover each other

• To avoid damage to glasses, they must not touch

• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Possible causes for demage to glassware an other dishes is the type of glass or manufacturing pro- cess. Chemical composition of detergent. Water temperature and duration of dishwasher programme ATTENTION Use glassware or porcelain that have been marked dishwasher-proof by the manufacturer. Use a mild detergen and select a programme with a low temperature. To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended. At the End of the Wash When the working cycle has nished, the buzzer of dishwasher will ring for 6 times, then stop. Turn o the appliance using the „Power“ button, shut o the water supply and open the door of the dish- washer. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and uten- sils while they are still hot and more susceptible to breakage. They will also dry better. 32Washing Programmes Washing programmes Program Description Cycle Running time (min) Energy (kWh) Water (Liter) Intensive For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sit- ting with dried food on them for a while. Pre-wash Main wash(60°C) Rinse 1 Rinse 2 Hot rinse Drying

Eco/Standard (*EN50242) (*EN50242) For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle Pre-wash Main wash(46°C) Rinse Hot rinse Drying

Light Light Light wash cycle to be used for more delicate items which are sensitive to high temperatures.(Run cycle immediately after use) Pre-wash Main wash (46°C) Rinse Hot rinse Drying

60 min. For lightly and nor- mally soiled plates and pans for every day. Hot rinse 1 Hot rinse 2 Hot rinse(60°C) Drying

Rapid Rapid shorter wash for lightly soiled loads that do not need drying. Main wash(40 ) Hot rinse

Pre-rinse To rinse dishes that you plan to wash later that day Pre-wash

*EN 50242: this program is the test cycle. The information for comparability test in accordance with EN50242, as follows:

• Capacity: 12 settings

• Position of upper basket: Lower position

• Rinse aid setting: 5 (or 4 for four setting dispenser)

33Starting a Washing Programme

1. Draw out the lower and upper basket, load the dishes and push them back. It is recommended

to load the lower basket rst, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. Make sure that the water supply is turned on to full pressure.

4. With a little force to ensure the door is properly closed and press the Power button.

5. Press the Program button to select a desired wash cycle. Then press the Start button.

Change the Programme A cycle that is underway can only be modi ed if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be re lled

• Press Power button to cancel the programme, and turn on it again.

• Then you can change the programme to the desired cycle setting.

• If you open the door when washing, the machine pauses and warning alarm rings, the display ap- pears E1. When you close the door, the machine will keep on working.

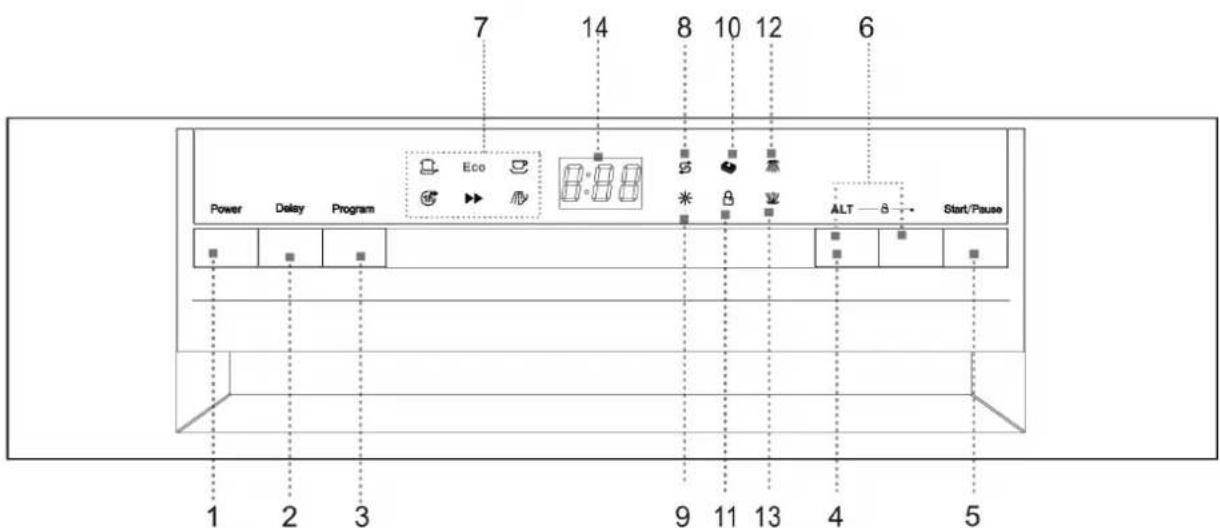

• The 6 programme lights show the state of the dishwasher. If one of the programme lights is on, the cycle is running. If one of the programme lights is blinking, the cycle is paused. ATTENTION If If all the lights begin to glimmer, that indicates the machine is out of order, please turn o the main power and water supply before calling a service. Forget to Add Dish

• A forgotten dish can be added any time before the detergent cup opens.

• Open the door a little to stop the washing.

• After the spray arms stop working, you can open the door completely.

• Add forgotten dishes.

• Close the door, the dishwasher will work after ten seconds. WARNING It is dangerous to open the door when washing, because the hot water may scald you. Open the door carefully! Switch Off the Dishwasher

• The digital display appears „---“ and the buzzer rings 6 times, only in this case the programme has ended.

• Switch o the dishwasher by pressing the Power button.

• Turn o the water tap.

• Open the door carefully. Hot steam may escape when the door is opened!

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

• Open the dishwasher‘s door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved. Unloading the dishwasher

• It is normal that the dishwasher is wet inside.

• Empty the lower basket rst and then the upper one. This will avoid water dripping from the up- per

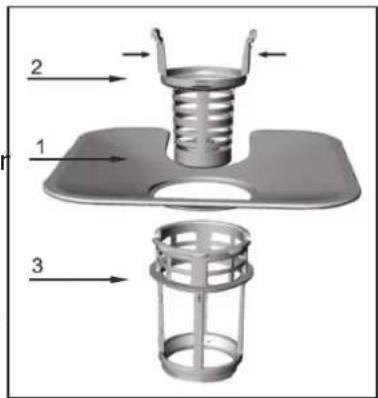

• basket onto the dishes in the lower one. 34Cleaning and Care Filtering system The lter is used to avoid the big remnants and other sundries getting inside the pump. The residue can obstruct the lter in sometime. The lter system consists of the followring lters:

1. Flat lter: Food and debris will be trapped by a special jet on the

2. Coarse lter: Big debris, such as bone and glass that could clog

the drain will be trapped in the coarse lter. To remove an item caught in this lter, gently squeeze the taps on the top of this lter and lift it out.

3. Micro lter: This lter holds soil and food residue in the sump

area and prevents it from being redeposit on the dishes during a cycle. Inspect the lters for obstructions every time the dishwash- er has been used. By unscrewing the coarse lter, you can remove the lter system. Remove any food remnants and clean the lters under running water. Filter assembly For best performance and results, the entire lter assembly should be cleaned once a week. To clean the coarse lter and the micro lter, use a cleaning brush.

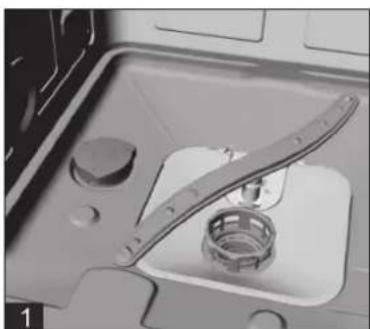

1. Remove the spray arm, contrarotate the Coarse lter and then lift it up.

2. Then lift the at lter up.

3. If operate from step 1 to step 2, the lter system will be removed; while

operate from step 2 to step 1, the lter system will be installed. ATTENTION Never run the dishwasher without the lters in place. When clean- ing the lters, don‘t knock on them. Otherwise, the lters could be contorted and the performance of dishwasher could be debased. Im- proper replacement of the lter may reduce the performance level of the appliance and damage dishes and utensils. Cleaning the Spray Arms

• It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

• To remove the spray arms, screw o the nut clockwise to take out the washer on top of the spray arm and remove the arm.

• Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing thoroughly. Protect against freezing If your dishwasher is left in an unheated place during the winter, ask a service technical to:

• Cut o electrical power to the dishwasher.

• Turn o the water supply and disconnect the water inlet pipe from the water valve.

• Drain water from the inlet pipe and water valve. (Use a pan to catch the water)

• Reconnect the water inlet pipe to the water valve.

• Remove the lter in the tub and the bottom and use a sponge to use up water in sump

35Cleaning the Door To clean door, use only a soft warm, damp rag. To prevent penetration of water into the door lock do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the nish. Some papers towels can also scratch or leave marks on the surface. How to Keep Your Dishwasher in Shape

• After every wash: Turn o the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

• Remove the plug: Before cleaning or maintenance, always remove the plug from the socket.

• No solvents or abrasive cleaning: To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made speci cally for dishwashers.

• When You go on holiday: It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn o the water supply and leave the door of the ap- pliance slightly ajar. This will help the seals last longer.

• Moving the Appliance: If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

• Seals: One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this. Troubleshooting Tips Error codes When some malfunctions happen, the appliance will display error codes to warn you. Code Meaning Possible Cause E1 Door open The door is opened when the dishwasher is operating E2 Water inlet Water inlet malfunction E3 Water drainage Water drainage malfunction E4 Temperature sensor Temperature sensor malfunction E5 Over ow/leakage Over ow occurs/Water leakage occurs E6 Water leakage Water leakage occurs E7 Heating element Abnormal heating E8 Water diversion system Water diversion system malfunction WARNING If over ow occurs, turn o the main water supply before calling a service. If there is water in the base pan because of an over ll or small leak, the water should be removed before restarting the dishwasher. Troubleshooting Reviewing the charts on the following pages may make you be free of calling for service: Problem Possible causes What to do Dishwasher doesn‘t run Fuse blown, or the circuit breaker acted Replace fuse or reset circuit breaker. Remove any other ap- pliances sharing the same circuit with the dishwasher. Power supply is not turned

Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Water pressure is low Check that the water supply is connected properly and the water is turned on. 36Problem Possible causes What to do Drain pump doesn‘t stop Overow The system is designed to detect an overow. When it does, it shuts o the circulation pump and turns on the drain pump. Noise Some audible sounds are normal Sound from detergent cup opening. Utensils are not secure in the baskets/ something has dropped into basket To ensure everything is secured in the dishwasher. Motor hums If you do not use it often, remember to set it to ll and pump out every week, which will help keep the seal moist. Suds in the tub Improper detergent Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then start the „pre-rinse“ wash cycle to drain out the water... Repeat if necessary. Spilled rinse agent Always wipe up rinse agent spills immediately. Stained tub interior Detergent with colorant was used Make sure that the detergent is the one without colorant Dishes and atware not clean Improper program Improper basket loading Select a stronger programme Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware Spots and lming on glasses and atware 1 Extremely hard water 2 Low temperature 3 Overloading 4 Improper loading 5 Damp powder detergent 6 Empty rinse agentr 7 Incorrect dosage 1 Take out all metal utensils out of the dishwasher. 2 Do not add detergent. 3 Choose the longest cycle. 4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash. 5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher. 6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work use citric acid crystals instead. Cloudiness on glassware Combination of soft water and too much detergent Use less detergent if you have soft water and select a shortest cycle to wash the glassware Yellow or brown lm on inside surfaces Tea or coee stains Using a solution of 1/2 cup of bleach and 3 cups of warm water to remove the stains by hand. Iron deposits Call a water softener company for a special lter. White lm on inside surface Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. The Detergent dispenser lid cannot be closed Clogged detergent residue is blocking the catch Clean the detergent from the catch. Detergent left in dispenser cups Dishes block detergent Cups Re-loading the dishes properly. Steam Normal phenomenon There is some steam coming through the vent by the door latch during drying and water draining. Black or gray marks on dishes Aluminum utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks Water standing on the bottom This is normal A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated. Dishwasher leaks Overll dispenser or rinse aid spills Be careful not to overll the rinse aid dispenser. Spilled rinse aid could cause oversudsing and lead to overowing. Wipe away any spills with a damp cloth. Dishwasher isn‘t level Make sure the dishwasher is level.
