The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. DSC-WX10

Serial No.

Model No. AC-UB10/UB10B

Serial No.

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140^) such as in direct sunlight or in a car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

AC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

For Customers in the U.S.A. and Canada

I RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name:SONY

Model No.: DSC-WX10

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

I Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Refer to "Cyber-shot User Guide" (HTML) on supplied CD-ROM

For details on advanced operations, please read "Cyber-shot User Guide" (HTML) on the CD-ROM (supplied) using a computer.

GB

Insert the CD-ROM into the CD-ROM drive.

For Windows users:

① Click [User Guide] [Install].
② Start "User Guide" from the shortcut on the desktop.

For Macintosh users:

① Select the [User Guide] folder and copy [eng] folder stored in [User Guide] folder to your computer.
② After copying is complete, double-click "index.html" in [eng] folder.

Checking the accessories supplied

• Rechargeable battery pack NP-BG1 (1)/Battery case (1)
• Multi-use terminal USB cable (1)
• AC Adaptor AC-UB10/UB10B (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)

• Wrist strap (1)
  CD-ROM (1)

• Cyber-shot application software
  "Cyber-shot User Guide"

• Instruction Manual (this manual) (1)

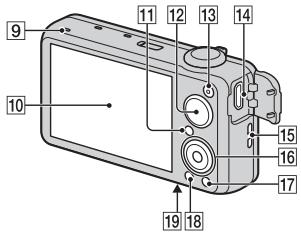

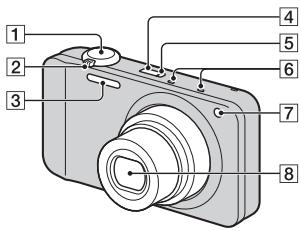

Identifying parts

1 Shutter button
For shooting: W/T (Zoom) lever For viewing: Q (Playback zoom) lever/ (Index) lever
3 Flash
4 ON/OFF (Power) button
5 Power/Charge lamp
6 Microphone
Self-timer lamp/Smile Shutter lamp/AF illuminator
8 Lens

Speaker
10 LCD screen
11 (Playback) button
12 Mode dial
MOVIE (Movie) button
14 HDMI connector
[15] Hook for wrist strap
16 Control wheel
17 ?/In-Camera Guide/Delete) button
18 MENU button
19 (TransferJetTM) mark
20 Battery insertion slot
21 Tripod receptacle

• Use a tripod with a screw less than 5.5mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

22 Battery eject lever
23 Access lamp
24 Memory card slot
25 Multi connector (Type3b)
26 Battery/memory card cover

Inserting the battery pack

GB

1 Open the cover.
2 Insert the battery pack.

• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.

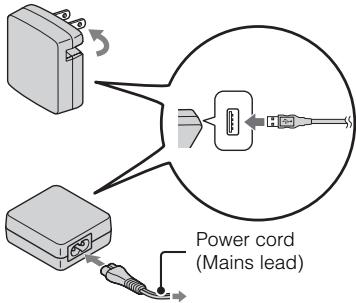

Charging the battery pack

For customers in the USA and Canada
For customers in countries/regions other than the USA and Canada

Power/Charge lamp

Lit: Charging

Off: Charging finished

Flash: Charging error

1 Connect the camera and the AC Adaptor (supplied), using the multi-use terminal USB cable (supplied).

2 Connect the AC Adaptor to the wall outlet (wall socket). The Power/Charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

• When the Power/Charge lamp on the camera does not lit even if the AC Adaptor is connected to the camera and the wall outlet (wall socket), it indicates that the charging stops temporarily on standby. The charging stops and enters the standby status automatically when the temperature is outside of the recommended operating temperature. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10^ to 30^ ( 50^ to 86^ ).
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If any malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, multi-use terminal USB cable (supplied) and AC Adaptor (supplied).

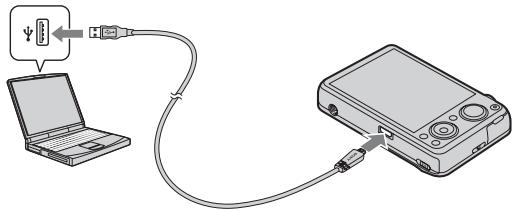

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a multi-use terminal USB cable.

GB

Note

Note the following points when charging via a computer:
- If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.
- Do not turn on/off or restart the computer, or wake the computer resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.
- No guarantees are made for charging using a custom-built computer or a modified computer.

Charging time

The charging time is approximately 270min using the AC Adaptor (supplied).

Note

• The above charging time applies when charging a fully depleted battery pack at a temperature of 25^ ( 77^ ). Charging may take longer depending on conditions of use and circumstances.

Battery life and number of images you can record and view

	Battery life	Number of images
Shooting (still images)	Approx. 180 min.	Approx. 360 images
Viewing (still images)	Approx. 280 min.	Approx. 5600 images
Shooting (movies)	Approx. 85 min.	—

Notes

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions:

• Using Sony "Memory Stick PRO Duo" (Mark2) media (sold separately)

• The battery pack is used at an ambient temperature of 25^ (77^) .

• The number for "Shooting (still images)" is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

• DISP (Display Setting) is set to [ON].
• Shooting once every 30 seconds.
• The zoom is switched alternately between the W and T ends.
• The flash strobes once every two times.

• The power turns on and off once every ten times.

• The battery life for movies applies shooting under the following conditions:

• Movie quality: AVCHD HQ

• When continuous shooting ends because of set limits (page 22), press the MOVIE (Movie) button again and continue shooting. Shooting functions such as the zoom do not operate.

Supplying power

The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor, using the multi-use terminal USB cable (supplied).

You can import images to a computer without worrying about wearing down the battery pack by connecting the camera to a computer using the multi-use terminal USB cable.

Notes

• Power cannot be supplied when the battery pack is not inserted in the camera.
• Power supply from the wall outlet (wall socket) is available only when the camera is in playback mode or when a connection is made between the camera and a computer. If the camera is in shooting mode or while you are changing the settings of the camera, power is not supplied even if you make a USB connection using the multi-use terminal USB cable.
• If you connect the camera and a computer using the multi-use terminal USB cable when the camera is in playback mode, the display on the camera is changed from the playback screen to the USB connection screen. Press (Playback) button to switch to the playback screen.

Inserting a memory card (sold separately)

Ensure the notched corner faces correctly.

1 Open the cover.
2 Insert the memory card (sold separately).

• With the notched corner facing as illustrated, insert the memory card until it clicks into place.
  3 Close the cover.
• Closing the cover with the battery inserted incorrectly may damage the camera.

Memory cards that you can use

	Memory card	For still images	For movies
A	Memory Stick PRO Duo	○	○ (Mark2 only)
	Memory Stick PRO-HG Duo	○	○
	Memory Stick Duo	○	—
B	SD memory card	○	○ (Class 4 or faster)
	SDHC memory card	○	○ (Class 4 or faster)
	SDXC memory card	○	○ (Class 4 or faster)

• In this manual, products in A are collectively referred to as "Memory Stick Duo" media, and products in B are collectively referred to as SD card.

To remove the memory card/battery pack

Memory card: Push the memory card in once.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Note

• Never remove the memory card/battery pack when the access lamp (page 8) is lit. This may cause damage to data in the memory card/internal memory.

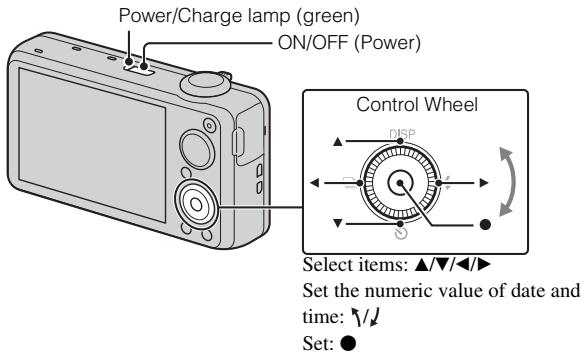

Setting the clock

GB

1 Press the ON/OFF (Power) button.

Date & Time setting is displayed when you press the ON/OFF (Power) button for the first time.

• It may take time for the power to turn on and allow operation.

2 Select a desired language.
3 Select the desired area following the instructions on the screen, then press .
4 Set [Date & Time Format], [Daylight Savings] or [Summer Time] and [Date & Time], then select [OK] → [OK].
- Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
5 Select the desired display color, following the instructions on the screen.
6 When an [In-Camera Guide] introductory message is appeared on the screen, select [OK].

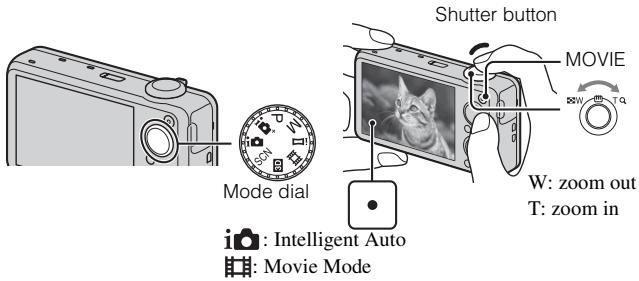

Shooting still images/movies

Shooting still images

1 Press the shutter button halfway down to focus.

When the image is in focus, a beep sounds and the indicator lights.

2 Press the shutter button fully down.

Shooting movies

1 Press the MOVIE (Movie) button to start recording.
- Use the W/T (zoom) lever to change the zoom scale.
2 Press the MOVIE button again to stop recording.

Notes

• The sound of the lens and lever operating will be recorded when the zoom function operates while shooting a movie. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera's default settings and when the temperature is approximately 25^ ( 77^ ). When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.

GB

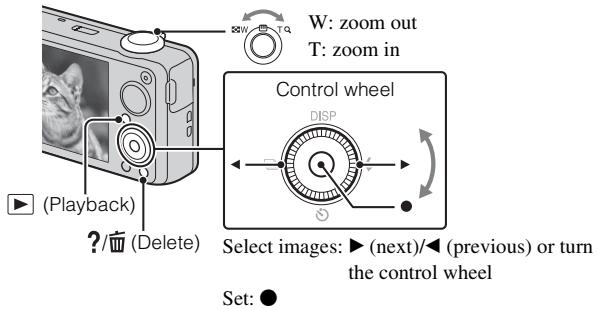

1 Press the (Playback) button.

• When images on a memory card recorded with other cameras are played back on this camera, the registration screen for the data file appears.

Selecting next/previous image

Select an image by pressing (next)/ (previous) on the control wheel or by turning the control wheel. Press in the center of the control wheel to view movies.

- Deleting an image

① Press?/面 (Delete) button.
② Select [This Image] with on the control wheel, then press .

Returning to shooting images

Press the shutter button halfway down.

In-Camera Guide

This camera contains an internal function guide. This allows you to search the camera's functions according to your needs.

? /面 (In-Camera Guide)

1 Press the ?/亩 (In-Camera Guide) button.

• When viewing images, [Delete/In-Camera Guide] is displayed. Select [In-Camera Guide].

2 Select a search method from [In-Camera Guide].

Shoot/ playback guide: Search for various operation functions in shooting/viewing mode.

Icon guide: Search the function and meaning of displayed icons.

Troubleshooting: Search common problems and their solution.

Objective guide: Search functions according to your needs.

Keyword: Search functions by key words.

History: Display the last 12 items displayed in [In-Camera Guide].

Introduction of other functions

Other functions used when shooting or playing back can be operated using the control wheel or MENU button on the camera. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, try the other functions.

Function Guide

Control wheel

DISP(Display Setting): Allows you to change the screen display.

(Self-Timer): Allows you to use the self-timer.
(Burst Settings): Allows you to use the burst shooting mode.
(Flash): Allows you to select a flash mode for still images.

1Menu Items

Shooting

Movie shooting scene	Select movie recording mode.
3D Shooting	Select the 3D image shooting mode.
Scene Selection	Select pre-set settings to match various scene conditions.
Easy Mode	Shoot still images using minimal functions.
Defocus Effect	Set the level of background defocus effect when shooting in Background Defocus mode.
Still Image Size/ Panorama Image Size/Movie Size/ Movie Quality	Select the image size and the quality for still images, panoramic images or movie files.
EV	Adjust the exposure manually.
ISO	Adjust the luminous sensitivity.
White Balance	Adjust color tones of an image.
White Balance Shift	Adjust color tones according to the adjusted value set based on the selected White Balance tone.
Focus	Select the focus method.
Metering Mode	Select the metering mode that sets which part of the subject to measure to determine the exposure.
Burst Shooting Interval	Select the number of images taken per second for Burst shooting.
Bracket Setting	Set the type of the bracket shooting.
Scene Recognition	Set to automatically detect shooting conditions.
Soft Skin Effect	Set the Soft Skin Effect and the effect level.
Smile Shutter	Set to the camera automatically release the shutter when a smile is detected.
Smile Detection Sensitivity	Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection	Select to detect faces and adjust various settings automatically.
Color Mode	Select the vividness of the image, accompanied by effects.
Color Saturation	Adjust the vividness of the image.
Contrast	Adjust the contrast of the image.
Sharpness	Adjust the sharpness of the image.
Anti Blink	Set to automatically shoot two images and select image in which the eyes are not blinking.
Movie SteadyShot	Set the strength of SteadyShot in Movie Mode.
In-Camera Guide	Search the camera's functions according to your needs.

Viewing

Slideshow	Select a method of continuous playback.
3D Viewing	Set to play back images shot in 3D mode on a 3D TV.
Send by TransferJet	Transfer data by closely aligning two products equipped with TransferJet.
View Mode	Select the display format for images.
Display Burst Group	Select to display burst images in groups or display all images during playback.
Retouch	Retouch an image using various effects.
Delete	Delete an image.
Protect	Protect the images.
Print (DPOF)	Add a print order mark to a still image.
Rotate	Rotate a still image to the left or right.
In-Camera Guide	Search the camera’s functions according to your needs.

GB

Setting items

If you press the MENU button while shooting or during playback,

(Settings) is provided as a final selection. You can change the default settings on the (Settings) screen.

Shooting Settings	Movie format/AF Illuminator/Grid Line/Digital Zoom/ Wind Noise Reduc./Red Eye Reduction/Blink Alert/ Write Date/Expanded Focus
Main Settings	Beep/Panel Brightness/Language Setting/Display color/ Demo Mode/Initialize/Function Guide/CTRL FOR HDMI/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/TransferJet/Eye-Fi/Power Save
Memory Card Tool*	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

• If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] can be selected.

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

(Units: Images)

Capacity Size	Internal memory	Memory card
	Approx. 19 MB	2 GB
16M	3	335
VGA	98	9600
16:9(12M)	3	355

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes. The maximum size of an MP4-format movie file is up to approximately 2 GB.

(h (hour), m (minute))

Capacity Size	Internal memory	Memory card
	Approx. 19 MB	2 GB
AVC HD 24M (FX)	—	10m (10m)
AVC HD 9M (HQ)	—	25m (15m)
MP4 12M	—	15m
MP4 3M	—	1h 10m

The number in () is the minimum recordable time.

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

• This manual describes each of the functions of TransferJet compatible/ incompatible devices, 1080 60i-compatible devices and 1080 50i-compatible devices.

To check if your camera supports the TransferJet function, and whether it is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.

TransferJet-compatible device: (TransferJet)

1080 60i-compatible device: 60i

1080 50i-compatible device: 50i

• Do not watch 3D images shot with this camera for extended periods of time on 3D-compatible monitors.
• When you view 3D images shot with this camera on a 3D-compatible monitor, you may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent these symptoms, we recommend that you take regular breaks. However, you need to determine for yourself the length and frequency of breaks you require, as they vary according to the individual. If you experience any type of discomfort, stop viewing the 3D images until you feel better, and consult a physician as necessary. Also refer to the operating instructions supplied with the device or software you have connected or are using with this camera. Note that a child's eyesight is still at the development stage (particularly children below the age of 6). Consult a pediatrician or ophthalmologist before letting your child view 3D images, and make sure he/she observes the above precautions when viewing such images.

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

GB

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place

In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.

Under direct sunlight or near a heater

The camera body may become discolored or deformed, and this may cause a malfunction.

• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
• In sandy or dusty places

Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

Notes on the LCD screen and lens

The LCD screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.

A message will be displayed on the LCD screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

On charging the battery

If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.

This is due to the battery characteristics, and is not a malfunction. Charge the battery again.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

• Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Specifications

Camera

[System]

Image device: 7.77mm (1/2.3 type)

Exmor R CMOS sensor

Total pixel number of camera:

Approx. 16.8 Megapixels

Effective pixel number of camera:

Approx. 16.2 Megapixels

Lens: Sony G 7 × zoom lens

f = 4.28mm - 30.0mm (24 mm -

168~mm (35 mm film equivalent))

F2.4 (W) - F5.9 (T)

While shooting movies (16:9):

26mm - 182mm

While shooting movies (4:3):

32mm - 224mm

SteadyShot: Optical

Exposure control: Automatic exposure,

Manual exposure, Scene Selection (15 modes)

White balance: Automatic, Daylight,

Cloudy, Fluorescent 1/2/3,

Incandescent, Flash, One Push

Signal format:

For 1080 50i: PAL color, CCIR

standards HDTV 1080/50i

specification

For 1080 60i: NTSC color, EIA

standards HDTV 1080/60i

specification

File format:

Still images: JPEG (DCF Ver. 2.0,

Exif Ver. 2.3, MPF Baseline)

compliant, DPOF compatible

3D still images: MPO (MPF

Extended (Disparity Image))

compliant

Movies (AVCHD format):

AVCHD

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch,

equipped with Dolby Digital Stereo

Creator

Manufactured under license from Dolby Laboratories.

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: Internal Memory

(Approx. 19 MB), "Memory Stick

Duo" media, SD cards

Flash: Flash range (ISO sensitivity

(Recommended Exposure Index)

set to Auto):

Approx. 0.35m to 7.1m

(1 feet 1 7/8 inches to 23 feet

3 5/8 inches) (W)/

Approx. 1.0m to 2.9m

(3 feet 3 3/8 inches to 9 feet

6 1/4 inches) (T)

[Input and Output connectors]

Multi connector: Type3b

(AV-out/USB/DC-in):

Video output

Audio output (Stereo)

USB communication

USB communication: Hi-Speed USB

(USB 2.0)

[LCD screen]

LCD panel: 7cm (2.8 type) TFT drive

Total number of dots: 460 800 (960 × 480) dots

[Power, general]

Power: Rechargeable battery pack
NP-BG1, 3.6 V
NP-FG1 (sold separately), 3.6 V
AC Adaptor AC-UB10/UB10B, 5 V

Power consumption (during shooting): 1.1 W

Operating temperature: 0^ to 40^ (32^ to 104^)

Storage temperature: -20^ to +60^ (-4^ to +140^)

Dimensions (CIPA compliant): 95.0mm× 53.5mm× 23.3mm (37/8 inches × 21/8 inches × 15/16 inches) (W/H/D)

Mass (CIPA compliant) (including NPBG1 battery pack, "Memory Stick Duo" media): Approx. 161g 5.7 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC-UB10/UB10B AC Adaptor

Power requirements: AC 100 V to 240V 50Hz / 60Hz 70mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0^ to 40^ (32^ to 104^)

Storage temperature: -20^ to +60^ (-4^ to +140^)

Dimensions: Approx. 50mm× 22mm × 54mm (2 inches × 7 / 8 inches × 21/4 inches) (W/H/D)

Mass:

For the USA and Canada: Approx. 48g (1.7 oz) For countries or regions other than the USA and Canada: Approx. 43g (1.5 oz)

Rechargeable battery pack NP-BG1

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 1.44 A

Capacity:

typical: 3.4 Wh (960 mAh) minimum: 3.3 Wh (910 mAh)

Design and specifications are subject to change without notice.

Trademarks

• The following marks are trademarks of Sony Corporation.

Cybershot, "Cyber-shot,"
"Memory Stick PRO Duo,"
"Memory Stick PRO-HG Duo,"
"Memory Stick Duo"

• Windows is registered trademark of Microsoft Corporation in the United States and/or other countries.
• Macintosh is registered trademark of Apple Inc.
• SDXC logo is a trademark of SD-3C, LLC.
• "..." and "PlayStation" are registered trademarks of Sony Computer Entertainment Inc.
• In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the TM or marks are not used in all cases in this manual.

Works with PlayStation®3

• Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available.)
• The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas where the PlayStation Store is available.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

GB

Français

Aide-memoire

Responsible : Sony Electronics Inc.

Adresse: 16530 Via Esprillo, San Diego, CA 92127 E.-U.

(h (heures), m (minutes))

CapacitéTaille d'image	Mémoire interne	Carte mémoire
	Environ 19 Mo	2 Go
AVC HD 24M (FX)	—	10m(10m)
AVC HD 9M (HQ)	—	25m(15m)
MP4 12M	—	15m
MP4 3M	—	1h 10m

Films (format AVCHD) : AVCHD

Works with PlayStation®3

Cybershot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Works with PlayStation®3

Works with PlayStation®3

Cybershot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Works with PlayStation®3

Cybershot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Works with PlayStation®3

(CIPA: Camera & Imaging Products Association)

DISP (Weergave-installing) is ingesteld op [AAN].

Cybershot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Works with PlayStation®3

Elementary apparatus

Works with PlayStation®3

Works with PlayStation®3

• Az ejfelt a 12:00 AM, a delete a 12:00 PM jerolli.

Lithium-ion alkumulator

Works with PlayStation®3

Shooting Settings	Movie format/AF Illuminator/Grid Line/Digital Zoom/Wind Noise Reduc./Red Eye Reduction/ Blink Alert/Write Date/Expanded Focus
Main Settings	Beep/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/Function Guide/CTRL FOR HDMI/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/TransferJet/Eye-Fi/Power Save
Memory Card Tool*	Format/Create REC.Folder/Change REC Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

• Ak nie je vo fotoaparate vlozena pamatová karta, zobrazi sa (Internal Memory Tool), pricom bude możné zvolit len [Format].

Pocet statickych zaberov a czas zaznamu pre videoozáznamy

Pocet statickych zaberov a maximaly chas nahravania sa mozu litit v zavislosti od podmienok snmania a pamatovej karty.

Staticke zabery

(Jednotky: Zábery)

Works with PlayStation®3

Ziskajte dalsie potesenie z vasej PlayStation 3 po nacitani applicatie pre PlayStation 3 z PlayStation Store (tam, kde je dostupna).
- Aplikácia pre PlayStation 3 vyžadujé učet PlayStation Network a načitania aplikácia. K dispozicii v oblastiach, kde je PlayStation Store dostupné.

-Mjukvara for Cyber-shot
"Bruksanvising for Cyber-shot"

Cybershot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Works with PlayStation®3

Works with PlayStation®3

(CIPA: Camera & Imaging Products Association)

(h (time), m (minutt))

Kapasitet Størrelse	Interninne	Minnekort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10m (10m)
AVC HD 9M (HQ)	—	25m (15m)
MP4 12M	—	15m
MP4 3M	—	1h 10m

Talleti（）angirdenopptakstiden somminsterigjen.

Works with PlayStation®3

• Fa det enda morsommere med din PlayStation 3 ved a lapse ned programmet for PlayStation 3 fra PlayStation Store (der det er tilgengelig.)
• Programmet for PlayStation 3 krever en PlayStation Network-konto og en programnedlasting. Tilgengelig i omrader der PlayStation Store er tilgengelig.

(h (timer), m (minutter))

Kapacitet Størrelse	Intern hukommelse	Hukommelsseskort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10m (10m)
AVC HD 9M (HQ)	—	25m (15m)
MP4 12M	—	15m
MP4 3M	—	1h 10m

Talleti（）erdenmindste optagetid.

Works with PlayStation®3

VAŽNE SIGURNOSNE UPUTE

-SACUVAJTE OVE UPUTE OPASNOST

POZORNO SLIJEDITE OVE UPUTE KAKO BISTESMANJILI OPASNOST OD POZARA ILISTRUJNOG UDARA

Ako se utikač ne moze izravno utaknuti u mrežnu uticnicu, prikljucite ga preko adaptera za utikač Čija konfiguracija odgovara mrežnoj uticnici.

POZOR

Baterijska Jedinica

Works with PlayStation®3

• Dodajte vishe uzitka sa svojim PlayStation 3 preuzimanjem aplkacije za PlayStation 3 s PlayStation Store (gdje je dostupna).
• Aplikacija za PlayStation 3 zahtijeva PlayStation Network račun i preuzimanje aplikacije. Moguce pristupiti u područjima gdje je dostupna PlayStation Store.

Dodatne informacije o ovom
proizvodu i odgovori na
najcešca pitanja mogu se naci na
internetskim stranicama tvrtke
Sony za podršku korisincima
(Sony Customer Support Website).

http://www.sony.net/

Ispisano na 70% ili vishe recikliranom papiru s tintom na bazi biljnoga ulja bez VOC-a (Volatile Organic Compound).

VERTIZARE

Introducerea accumulatorilor

1 Deshideti capacul.
2 Introduci acumulatori.

Works with PlayStation®3

Film yüzim sahnesi	VideoKayı modunu/seçer.
3D yüzim	3D®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. Çeşitli sahne kosullarina uymak®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. Kolay®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,©. Fotografia Boyutu/ Panorama®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,⁄⁄, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayal; Fotografia Boyutu/Film Boyutu/Film Kalitesi	Minimum ilelevle fotograf®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,%, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, bayalı, Fotografia Boyutu/Film Boyutu/Film Kalitesi

(DCF Ver. 2.0, Exif Ver. 2.3,

Works with PlayStation®3

7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan

ELK.SN.TC.LT.STI. (212) 2336778, (1.Levent) AVE ELEKTRONIK (212)

2823469, (Maçaka) MEKEL ELEKTRONIK (212) 2604677, (Fatih) CIHAN ELK.

SAN. TIC. LTD. STI. (212) 5317001, (Bakirköy) VIP VIDEO ELK. TIC. LTD. STI.

(212) 5705868, (Bakirköy) MEST ELK.SAN.TIC.LTD (212) 5438242,

(Besiktas) P.M. ELEKTRONIK LTD.STI. (212) 2275247, (Florya) AVC ELK. LTD.

STI. (212) 5740426/IZMIR BULENT EROL (232) 4221225, (Hatay) ASIL2

ELK.SR.T.LTD. STI. (232) 2288310, (Karshiya) TEKNIK TV.ELK.LTD. STI.

(232) 3696175, (Güzelyali) APEX ELEKTRONIK (232) 2464044/KARS SAHIN

ELEKTRONIK (474) 2238732/KAYSERI CAGDAS ELEKTRONIK (352) 2222627,

KÜRKCÜOGLU (352) 2210634/KOCAELI TEKNIK TV. (262) 3223368/KONYA

DENIZ ELEKTRONIK (332) 3501735, ÖZEL ELEKTRONIK (332) 3514425/

MALATYA GURBUZ ELEKTRONIK (422) 3250460/MARDIN (Nusaybin)

CIFTSUREN ELK. PAZ. LTD. (482) 4153592/MUGLA (Marmaris) MTM

SERVICE (252) 4126217/RIZE METE ELEKTRONIK (464) 2120078/SAKARYA

ISMAIL SENOGLU (264) 2714704/SAMSUN YALIM ELEKTRONIK (362)

2334883/SIIRT ISMET ELEKTRONIK (484) 2245724/SIVAS CAN ELEKTRONIK

(346) 2230015/TRABZON LIDER ELEKTRONIK (462) 3232641/ZONGULDAK

OZDEMIRLER TV. (372) 3167044

TR

ITHALATCI FIRMA

SONY®

SONY EURASIA PAZARLAMA AS.

NPOEIAOONIOIHsH

Tia va anotpεεTE Tov kivduvo npkayiac nλEKtpoanlξiac, mnv ekθεTE Tn oukeun eβpoxn uypaia.

\SHMANTIKE ΣOΔHΓΕΣ ΓΙΑ THN AΣΦΑΛEIA

-ФYΑΕTE AYTEΣ TΙΣ OΔΗΓΙΕΣ KINΔΥΝΟΣ

ΓΙΑ NΑ MEΙΩΣΕTE TON KINΔΥΝΟ

\PYPKAFIAZ 'H HAEKTPONAHHEIAZ,

AKOANOYOHSEIPOSEXTIKA AYTE

TlOdHΓIeΣ

Av to ojma tov buoatos dev taqucie me tvn neextuux ngica, xonouotone 0ooagoyea buoatos zataaanns diataes yia tvn neextuux ngica.

PPO2OXH

Mnatapia

Av nataaia vanootei xaoietaxeioqn, mtooge iva exoayei, va pooxaleoei foia anoia xnauxuaevauata.Abetaetic axolovthetaoqoovlaes

Myn aiooovaguooyei.
Mynoae xunyn petsie me duvaun tn utatogia, myn tn xwnnoe me ophioui, myn tn gise xawu xunyn nynn noe.
MnV nTBoauxovkovete xu unv aphiVte metaalixva vxtkeiEvva va egovta 0e eaoj me ta teguaia tnc uataoiaac.
Myn exoetete nvt mataqiae o vnu h cegouoxaogie avw tov 60C, yia pagadeyuva, exteheevn aueo ana ofo wv tov hauov, n eoa aeuroxivnto otaoeuevo xato tov hiao.
Mny xaite tyn mataqia, oute va tny taret otn owtu.
Mivxonouoitee mataagie c nov exovv xataotqaei n aogovoiocov dawooj loiiov.
Na fogtiEe TnV mataqia moV eva yviofo qoWOTn mtaqov Sony n ma oovexvTou mtoei va fogtiEe TnV mtaqia.
Koatae tvuataogia maqga aTo ta mga naia.

• atŋeɪte tɪv μπaɪαɪə oτεγνɪ.
• Avitataohtote mvo ie iio n avtiotox tuo tv oovotata aoi ty Sony.
  AtooggiyTe tsmuataqiec aeeoo,0wns peeyufoetai otis odnyiE.

I Metaoxnpatiotc evaalaaooevou pEuatoC

Suvdeote to metaoaynmaotn evallaaooovevguatoc otny nio xovtivn piic. Eaav npaoovataei ooiodnntnpoBlaeta xata thxonon tov metaoynmaotn evallaaooevougauatoc, diaoxte aieooc nty npaoxq eivatoc, atooovdevtas to bvoqa ano npiica.

To extouxoxalodio,avapexetai,eivatoxieduoqevo edixia yia xionmuavtn Tnv xaeogoa movo xai dev npéia va xonooiotietai e aallo extouxoxeioaioo.

Tia Touc nEaTeC oTnv Eupwnn

ObovN LCD: 7 cm (Tuov 2,8)

TFT

Cybershot, "Cyber-shot",

"Memory Stick PRO Duo",

"Memory Stick PRO-HG Duo",

"Memory Stick Duo"

To Windows iva eptogixo nua

Xataatetovtn5 Microsoft

Corporation 0tG HvwoEeVg

Works with PlayStation®3

Iva va aioaoubetave taoootego to PlayStation 3 oac, vavte lamysn5 eaooyns yia PlayStation 3o to Play Station Store (ovov diatotietai.)
H eaooyi aPlayStation 3
aataei loayauofoPlayStation
Network xai nI lijns nI5
eaooyi. Ioofoaouo e
Taeoxyes otov diotetra to
PlayStation Store.

Pioo0eTe5nqo0o0ie6
Oxetixa to pQoiov auTo xau
atavtnoeic o ovYves
EoWthoeic mQoogeite va Bgeite
oto dawtdtvaxo toto
VoootqIeNs PELaOtov MaC.

http://www.sony.net/

Ekturnwuevo 70% n nepiaootepo avakukawuvo xapti e xpnoj elambdaiov baiaqevou o pfutika elaia, nou 6ev npieixeIOE (NTnTikc Opyavikc Evwoic)

Eupwnaikn Eyyunon SONY

Ayantnte n

Zaevxagiotovneovayogaoate
avtoTpoioovTNsEY.AIICoupe
va meivete aavovotnuevo atoTn
XonjouTo. Tnuv antihov ngiTwnO
TTOPOIOV OAC Xeuaotei oepig
(ETNOXeu)NATA TNI DiApXeia TNS
eyunong,napaxaleite vao
Euvowovnote Me to xataotna
ayogac nmu eva mocovtov dixtvov
Esvoovodortoeuvveoepicmas (ASN)
TNC Evogwaizns Oixovomuxz Zwyns
(EOZ)NaaAALWxogovov
avafoqvovta o' uvtiv neyvunon i
ota uovodoeovvntuaviv pfUAdia
(IIeioxK Kalvyns TgEynos).
Mtooge va Boette ANTOpoegeus yta
ta meLNtov dixtvov mac ASN, otous
tnefoovkvoivkataloyov,otous
xatahoyovLooovotnv mau na tUs
totoeleides ma. Ta va atofoyvete
aTe peqttn talantogia,oa
ovitotoume va daaboeote npooectra
to eyeioidio xiongs nootov va e0eTe
ee TAEmVtovnoopnveuov oepic mas

H Eyyunon Za

H aqovoa eyyon oxye yia to
yoiov nSory nov ayogaoate,ep
ooov knt tetoio avagegtata
oovvodaiou ovvodaeuv toyiov
oag,vto npovotbeon ot
ayogatne evtncnPiqoxns
Kalvups nEyyonj5.

GR

Me tnv paoovoa, n Sony eyrvata otn to npoiov eviva aalakayevo ao xaote elattoua oxyeioevo me ta vlaia n tvnataoxoevi yua ma neigo do ENOS ETOYsAoTnv npqopovnia ts ayixis ayogac. H agodaa va naoofoegei kai exanlqovniTv npqoovoaeyynon, etaegia Sony, eviva atn nov avapegeota o'avrtiv tvn Eeyunon n oto ovnuovobov antgphivaldo ot th xwogotov etuowotetau n enxueyin Xata tn diaqeaTn Eyyunon. Eav, evtos ngs peoovodoy yuyinong, anoexei beiatawmuatoTo npoiov (xata ntv npqopovnia ts ayogas) loyo axatatalnyov ulawov n ataxueov, n Sony n eva mIoos touv duxrov Egoovodortyev SSeBc ASN Tns Iepoynic Kalwysns Tc Eynonons 0a enzoueaei n 0a avntataotie (vat eruoyn on Syone) xoigic enjuaovon yea eyatxa n ivaalaxzta, to poiov n ta elattoumaia egaotmatao tv, evtoc eiovoyxov, baetow ogov xra ouvwhovnov tov extiethova Taqaxaw. H Sony xaa t aeyn tov dxvov Egoovodotmeev SeBc ASN tpoov ia vxtataotfov Evatoumaia npoiovta n egaotmuata me vnaovlaeweva npoiovta n egaotmuata Ola ta npoiovta xaa eagotmuata nan exov avvtataataei iyovtata idioxtnoia ts Sony.

'Opoi

1. Euaeevds dvauei ts naoovac
   evynong th aaoeyovta moo evn oooanogtei toonoturo
   tuoloyo n anodoein noanog (me tvnvEvdei ng nneqoumnia
   ayogac, tov ouvetlou vnoivotos
   xau nts enwuviaugtou eupogov
   muie t eaaattowatio npoiiov
   evtots ngs neqiodov eryunong. H
   Sony xataeun tou dxtovu
   Egoaodntnuve SGs ASN
   ntoogov daagvihov tn dgov
   enoxeun xata nty neqiodo
   eynuoeov avd evn nooovmoov
   ta nooavaegeva ygaopa n evd
   evnozutovn ao autu n
   neqoovria ayogac, to npoiov n to
   mvtelo tov pooiovoc n n eoovua
   tou emuqovh. H naqovoa yvynon
   dev woyeaov o tuotc ov tvovtlo
   noeuaos aghoos too qiovotvs
   exaalawei diaygacei,
   aagaotei nataotei
   duovavaywoot5.
   2.Γa va aαofoeθei βλaβη έ αωλεια /δωγαφησ ο ααaωονεμα /αοτοωνε μεδα έ εασηματα /αοθηνευός δδομενων, oεβιλετε va ta ααρασεοτη πιν ταραδωσετο παογον αε γιακενικατά την πειρiodo εγγπούŋς.
   3.H eYVnO nE vAaVnte ta EoDaa TouS aivDvoUs afoagosouovoeovta uTe afoogaoTPOIOVTOOACQoC xao ato TSONy h eLoTou dauov ASN.

4.Haogoboa eyyon dev xalutra ta e:

Ieiooovvtnenonxu eiooeuvn avivataotaon eoatavow aotelooa ovooy
-Avaiaoua (ovotataa ieon yta oioia npoibexetataeipoiobn avntataotaon kata n diaozua cwn5 evos npoiovtro osw m enavaoopocmeves mataapie,phioyia extuwoong, yoadic,lambdaes,xalodua xI).
Znua n eAattwamatov 20000000av loywoxno5, 1eiovoyiaic n eioouoov oovbpatov mTIVXavovz anouz n oovz xon.
Znuei aalayes oTo poiov Tov pooxnnaav aio:
KaxiXgion, oVpiEuaaavouévov:
*tov xqiuou nov euie qei
fvuaia, aoothwizn n
euaivaeuaa zna a
aalayc cto npoiov n biaf
oe o0bve vgyo
xovotaiaw
* mavovn n m o hovn m t oynie Sory eatotaoan n 00on tov
*nouvtqonotov
poiovtoocuowvaue Tc
odnye oowntogvvtqonots
Tc Sony
* yxataotaon n xonon tov
T0iOIOvTOe T0TOo m
ouMFOO vE TIG TExVIZc
T0oDaYGaEs Xa Ta
T0oTuA aooalaiac Tov
oxuov OITXgOA otov EeY
yexataaTei ta
xonomotoeita to 0xioiv.

Molvaos aotwoi xion tov qoivotc me loyouo tov dev paoexetau e To qoiov havooeyn eYataotaon tov oayouoz.
TnV xataoan n ta eAattuata tawov ootnauw ov ta oToia xoumaoieta n otua Ovouaovatovat to npov extos aAo aa npovta ts Sonye 1xoxediaueva va xonmuotooovta me to ev loyow npoiov.
XoJOnTov pOoiVToC ME aotnmuata, pOeepaeiaoxo oIaOIOxAa IAAa pOoiVTo Tov OTOOWOTuO, n XaTaOaTmXa To pOITUo dev OvWtowTA anTo T Sony.
Eiuevni eiuqnoeioa iueovn ao atoa tvov deivai mIa nSs Sony n tvdxtvov ASN.
Pvθμioεi n Φoogaooyεxwic tyn oynouveyn yαπtth ovyataeontns Sony,otc oioies ovμεuαμβavovta: avαβδμοη tov πoioyvtospiαaTO Tg ooiayogapeεh ta xaαaxntjouTINAov πeyogaoVOTAtOTo xγεiigidoxnms 0t gtooTouoieoTov πoioyvtoc m oxto va oμmuoofoe iIgocEθvuxεε Toxixε texviixes ooiayogapeεxAoŋoTu aαφalεiaosovuyovuσ xωeysua ts oioies to πoioiv dev exe OxEduaotei xaa katoaeueaetei uxa.
□ A

A tvxmuata, vovayia, yqa, xnuizexaaiLae ovoiez, pnuuigoa, doynoei, vteboiah ngouotnta, axatalnnlo egaoguo, teetaoanvteboloian h eoalaevnofoobodia n taon eodov, aovobolaa, naextooataixec exeeveoic e oueuaaueavovouovt evauovoi, alovv Eooteivovduvmeovxraedopoeov.

5.H naovoa eeyunon kaivtetmo vta uiae meo tov npoiovtoc. 2ev xalvnta to loyouaxo (eite ts) Sony, eite tqiovw vataoxevaotow) ia to oioo aoeexetau npoxeetau va oyooei ma adea xohone ato tov teiao xohontn hwootets dnlooeis eyyuongn i eaaoeic an tvny

Eeapoeic kai npiopiooi

Me eiaeonov oov avapoeovta
awetoo, n Sony deaegexaia
eyinon (qtnn, awotnn, ex tov oouv
n 0oov apogaa thnv ooiota, tvh
entdoom, tn aygiiea, tnayoiotria,
tny xataalnoiota tou npovotc n
tov loayauoxo napageta a
ovodoei to poyov, yia
ovyezepaevo stoc. Eav n oxuvova
vouotheia atayogebe i anowc n
peuaoc n tyanovova eaiqoiqn,
Sony eiaei n neoogicci tnv eyynuon
tnjmovtnyoivntexto nov
entote n oxvovoa vouotheia.
Otoiaohntote eyyunon n oioia dev
eiaeitaan otoe oTOOIOIOVTO
ENTe o IOWbVos) 0a
neogiccta on diaoea uox ts n
paoovac eyyunons.

H movadixv vtoxoeown Tc Sony oovva me nTv npovoa eyyunon eiva n Ewoxev n navataotaon pooivotovuovtovoeivotau oovocuaovthnxes nEyyinong. H Sony dev evvovetua yia otouohnjote aotwaie n Cnmauov oxeyicetua me ta npovta, to oepic, nTv npovoa eyyunon, ouptaeuaaavovewov tow oovovauwxaavawatowewov, tou tumutaoTov xatafaBnne yia nTV ayogaoTov pOoivtos, nTAtoalaas xeodov, eoobnatos, deooyev, atoalvoqn honjontovoiotovpOoivtos ovdebemovov pOoivtov -nc queons, Taegmuittovooe n EaxoAlovthns atoaiacn cniuaa ax av anTn n atoaiea n ciina aphioga oe:

MweweynLeitovogia n mLeitovogia tou pioiovtoc n ovvdedeevovnv oiovotow Loyw Eattawatow n m daithetaoortac xata tny pioiodo vou auto biqoxetau stony n e eilooc tov duivov ASN, nootia poxaloe diaxotni diaeoortac tov pioiovtoc, aowlaeia xovov xonotn n dxaxotn ts egyaoic.
Piaoxivavaxqubov
πλnoqfoovTov CnTiohXav
aio to qoiov n aio
ouvdeevva ooiovta.
Znua aatowlaa loyouawv npoyogauotov h aqaoovevmow eaothveong 6edoeewv n
Moivoeic aio tous n auAe s artie.

Taavotewoovovv yaaatowaees xaa
Cnueis, tov vooovitra o oeodntorte
yevixes cexiaou,
outeuaaubavopoeivns taeaeuas aalov adxoxogaiov, aetonns
oubaons, ntiig h ouwtnoi
eynuonx, xaa atoovlv euvnu
axoa xaa yia thejata yta otoia n
Sony n meoctov duxtvov ASN exei
edotoihe iya nn tvdvatotna
poxoxnntetovovnwo.
TTO metoov n wovovoa vovooia
atayoyoevi neoogieic uve ts
Egaoaeic evvvnnc, n Sony egaei n
peoogieic tvnvvtn mvo ot
muyotn extaon nou ng eriptenei
wovovova voovooia. Ta naqadeyua,
meoqa anatayoyoeuvnTv
eagoeon tv vnoqoioguo znuovn ooeiovotae aoe aeia, oe faqaia
aeiaea, oe exo qnoeos
paoattwa, oe dolao xaa naqooies
paeseic. Zxaia pgiinwn, n
evuvn tng Sory xata tyn taqovoa
eyvnon, dev vteogaive tv tnn tov
xatafianhne yaa tny aoyoga
poiovvtoc, wotdoa av n axovoa
vovooia euritea mvo
Teqioqiuovc evvovv ovnaotegov
baouo, 0a oxovv ou televautiol.
