C4383 - Watch Candino - Free user manual and instructions

Product type	Wristwatch
Brand	Candino
Model	C4383
Movement	Quartz
Display	Analog with hands for hours, minutes, seconds, chronograph counters
Main functions	Hour, minute, second, date, chronograph with simple, addition and split time functions, 60-second counter, 30-minute counter, 1/10-second counter
Settings	Crown with 3 positions (I, II, III)
Power supply	Battery (type SR626SW or equivalent)
Estimated battery life	Approximately 2 to 3 years
Case material	Stainless steel
Glass	Mineral
Strap	Leather or steel (depending on version)
Water resistance	30 meters (3 ATM) - splash resistant
Maintenance	Avoid magnetic fields, strong shocks and chemicals
Cleaning	Soft, dry cloth
Spare parts	Available from the manufacturer or an authorized watchmaker
Repairability	Entrust to a professional watchmaker for any repair or battery replacement
General information	Follow the regulations for the recycling of electrical and electronic equipment

Frequently Asked Questions - C4383 Candino

How do I set the time on my Candino C4383?

Pull the crown out to position III. Turn it to set the hours and minutes. The date adjusts automatically when passing midnight. In position III, the second hand stops (hack function).

How do I set the date?

Pull the crown out to position II. Turn it clockwise to advance the date to the desired day. Avoid setting the date between 8 PM and 4 AM to avoid damaging the mechanism.

How do I use the chronograph in simple mode?

Press pusher A (START/STOP) to start and stop timing. Read the time on the counters (minutes, seconds, 1/10th). Press pusher B to reset the counters to zero.

How do I use the ADD function?

Press A to start, then again to stop. Note the time. Press a third time to restart without resetting, and so on. To reset, press B after a stop.

How do I use the split time (SPLIT) function?

Press A to start. When you want to record an intermediate time, press B: the hands stop to show that time, but the chronograph continues internally. Press B again to resume live display. Press A to stop, then B to reset.

How do I reset the chronograph counters to zero?

Ensure all counters are stopped. If a hand is not exactly at zero, pull the crown to position II or III, then press the dedicated correction pushers (see the manual) to align each counter to its resting position.

What battery does the Candino C4383 use?

The watch uses a button cell battery of type SR626SW (or equivalent). Replacement should be done by a watchmaker to ensure water resistance.

Is the watch water-resistant?

Yes, it withstands a pressure of 3 ATM (30 meters). It is splash-resistant and rain-resistant, but not suitable for swimming or diving.

How do I clean my Candino watch?

Use a soft, dry cloth to wipe the case and strap. Avoid solvents, alcohol, or soapy water. If the strap is leather, avoid any contact with water.

What if my watch runs fast or slow?

This may be due to a magnetic field or a weak battery. Keep the watch away from magnets and have the battery checked by a watchmaker. If the problem persists, a quartz adjustment may be necessary.

USER MANUAL C4383 Candino

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com

CANDINO

SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

-Display 12
- Setting the timers to zero. 13
- Setting the time. 14
-Timing Mode. 15-18
- Correction Mode. 19

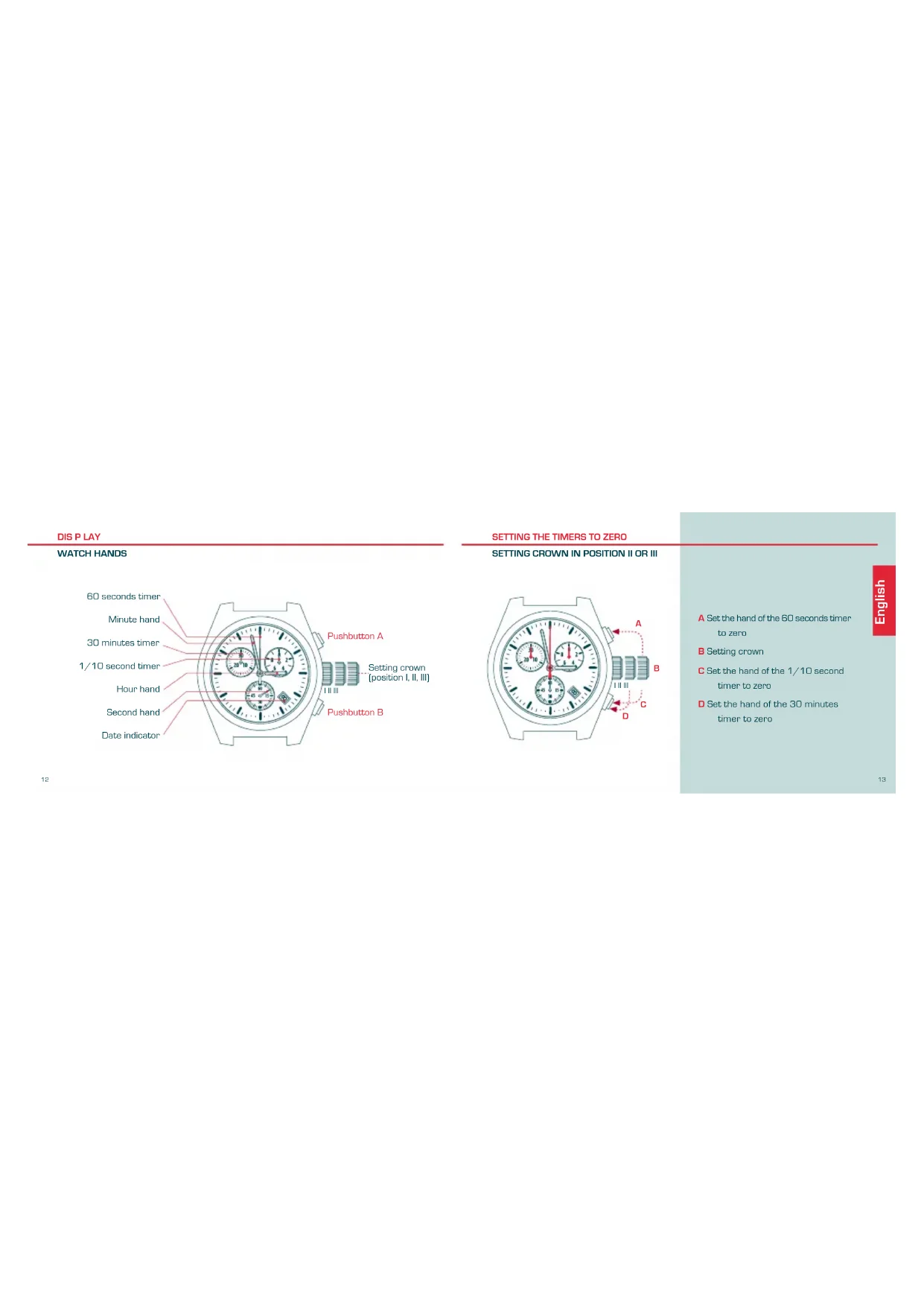

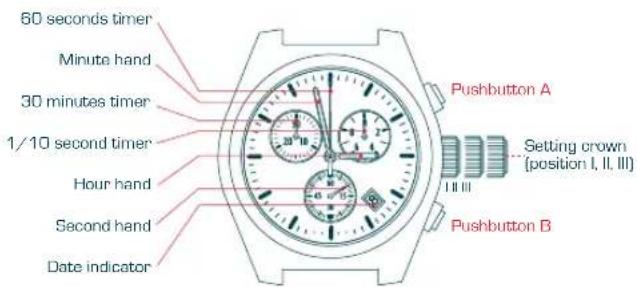

DISPLAY

WATCH HANDS

A Set the hand of the 60 seconds timer to zero.
B Setting crown
C Set the hand of the 1/10 second timer to zero
D Set the hand of the 30 minutes timer to zero

SETTING THE TIME

SETTING CROWN IN POSITION III

Correction of hour and minute hand and date every passing to midnight.

Note

Setting crown in position III: STOP-SECOND

TIMING MODE

SIMPLE TIMING FUNCTION
Setting crown in position I

① START/STOP
Read time: -5 minutes -57 seconds -7/10 sec
3 Reset to zero
1 to 3 order of functions

WARNING

Before starting the time, put back the chronograph hands to their original position If necessary, see paragraph SETTING THE TIMERS TO ZERO.

TIMING MODE

ADD FUNCTION
Setting crown in position I

1E

1 to X order of functions

TIMING MODE

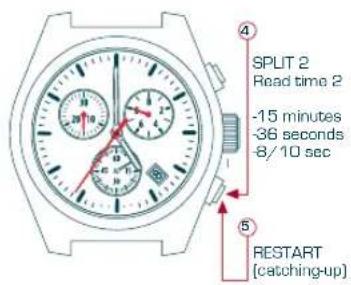

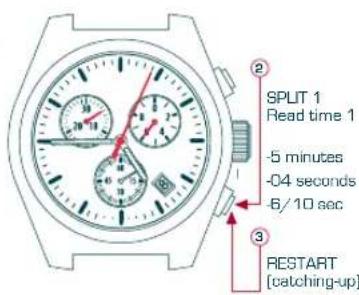

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION
Setting crown in position I

① to ③ order of functions

17

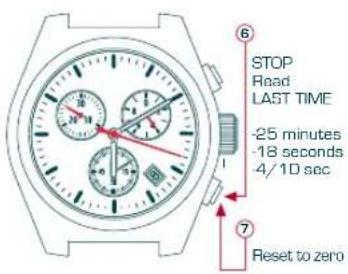

TIMING MODE

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION

4 to 7 order of functions

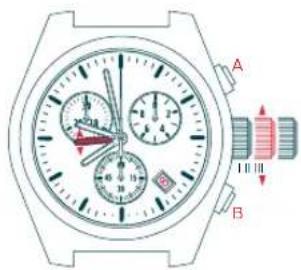

CORRECTION MODE

TIME ZONE CORRECTION CORRECTION OF DATE

Setting crown in position II

Note: Date correction every passing to midnight

MODE D'EMPLOI

Stellkrone in Position III:

SEKUNDEN-STOPP

ZEITMESSAGENS-MODUS

Stellkrone in Position I

1 START/ STOPP

1. Abiesen der Zeit

-5 Minutes

-57 Sekunden

-7/10 Sekunden

3 Nullstellung

FUNCTION ADD
Stellkrone in Position I

36
