Product type	Smart alarm system with SIM and WiFi communication
Brand and model	eTiger S6 SIM WiFi Secual
Power supply	AC power adapter: 110-240 VAC / 50-60 Hz, output 12 VDC / 1 A
Backup battery	Lithium 7.4 V / 600 mAh
Indoor siren	95 dB
WiFi connectivity	2.4 GHz 802.11 b/g/n
GSM frequency	850/900/1800/1900 MHz (2G)
Accessory radio frequency	433 and 868 MHz
Control panel dimensions	188 × 125 × 25 mm
Housing material	ABS plastic
Operating conditions	Temperature: -10 °C to 55 °C; Humidity: 80% non-condensing
Transmission range	80 m in open field
Main functions	Intrusion alarm, WiFi and SMS notifications, alert call, remote control by phone, mobile app
Included accessories	1 motion detector (pet-friendly < 25 kg), 2 door/window opening detectors, 2 remote controls, 2 RFID tags, SIM adapter
Pet compatibility	Motion detector immune up to 25 kg
Maintenance and cleaning	Clean with a dry cloth; avoid moisture and heat sources
Security	Admin code changeable (default 123456); protection against non-professional disassembly
Spare parts and repairability	Compatible eTiger accessories; repair by professional only
General information	Compliant with European directives (2014/53/EU, 2011/65/EU); manufactured in China

Frequently Asked Questions - S6 SIM WiFi Secual eTiger

Do I need to use a SIM card in the control panel?

Using a SIM card is optional but recommended to receive alerts by SMS or phone call. Make sure the SIM card has no PIN and is 2G compatible.

How do I connect the system to my WiFi network?

Put the panel into WiFi connection mode by typing the admin code 123456 + * key. The WiFi LED will blink quickly. Open the eTIGER Home app, select Add device > Smart Alarm, confirm blinking, choose your 2.4 GHz network, then follow the instructions.

What if the WiFi LED does not blink quickly?

Make sure the system is disarmed (blue LED off) and that you entered the admin code followed by the * key. Try the AP connection mode if the EZ mode fails.

How do I install the motion detectors?

Install the detector at about 2.2 meters height, with an optimal detection angle. Avoid areas with metal objects or electrical appliances. It is immune to animals under 25 kg.

What happens when the alarm is triggered?

The indoor siren sounds at 95 dB. You receive a notification on your smartphone via WiFi or 4G. If a SIM card is inserted, you also receive an SMS and a phone call with options (stop siren, disarm, audio listening).

How do I add a new accessory (detector, remote control)?

On the panel, type the admin code followed by the * key to enter pairing mode. Within 15 seconds, trigger the accessory (swipe the RFID tag near the reader, press a button on the remote control). A beep confirms registration.

Can I receive SMS alerts without using the app?

Yes, if a SIM card is inserted. You can interact via SMS (send commands like '13' to change code) and receive calls. See the full manual on etiger.com for detailed commands.

How do I change the admin access code?

Via the app: go to device settings to change the code. Or by SMS: send '13' to the control panel number, follow instructions. The default code is 123456.

What if the motion detector does not trigger?

Check that it is not in sleep mode (if triggered twice in 3 minutes, it sleeps for 3 minutes). Check range (<80 m) and absence of metal obstacles. Replace batteries if necessary.

Does the system work without WiFi?

Yes, it can work with only the SIM card for SMS and call alerts. Advanced features (app, push notifications) require a 2.4 GHz WiFi connection.

USER MANUAL S6 SIM WiFi Secual eTiger

• S6 Control panel x1

• AC Adapter x1

• ES-D2A (Pet-immune motion sensor) x1

• Screws and anchors

• ES-D3D (Door / Window contact) x2

-SIM adaptor

• ES-RC1N (Remote controls) x2

• Documentation

• ES-T1A (RFID badge) x2

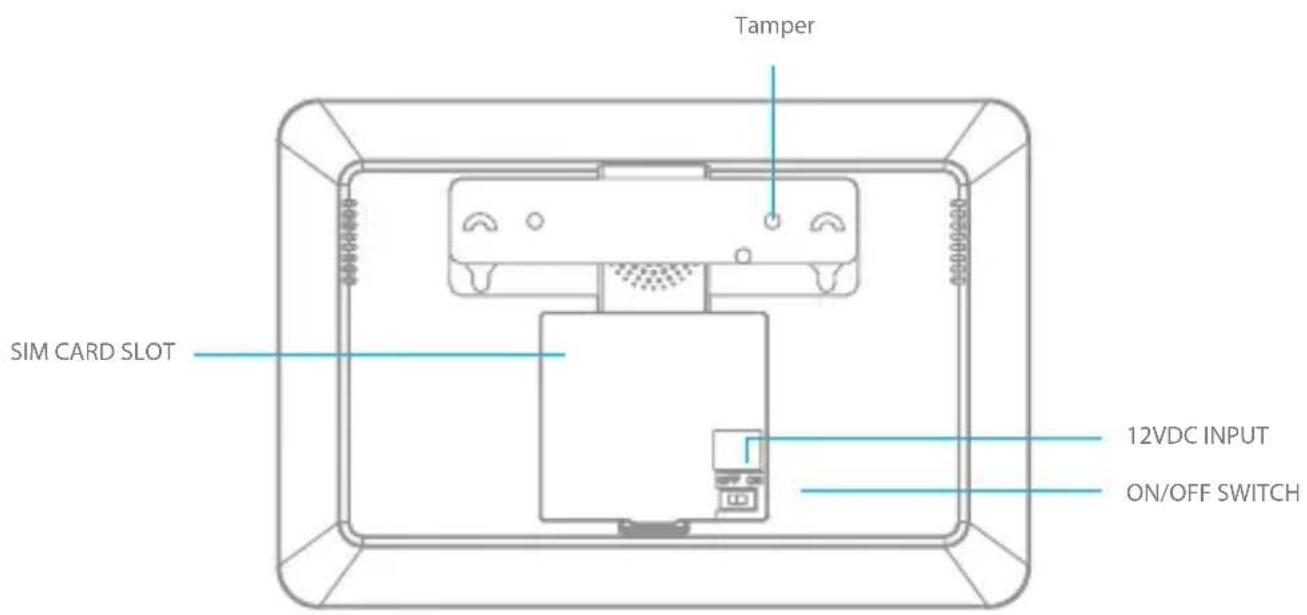

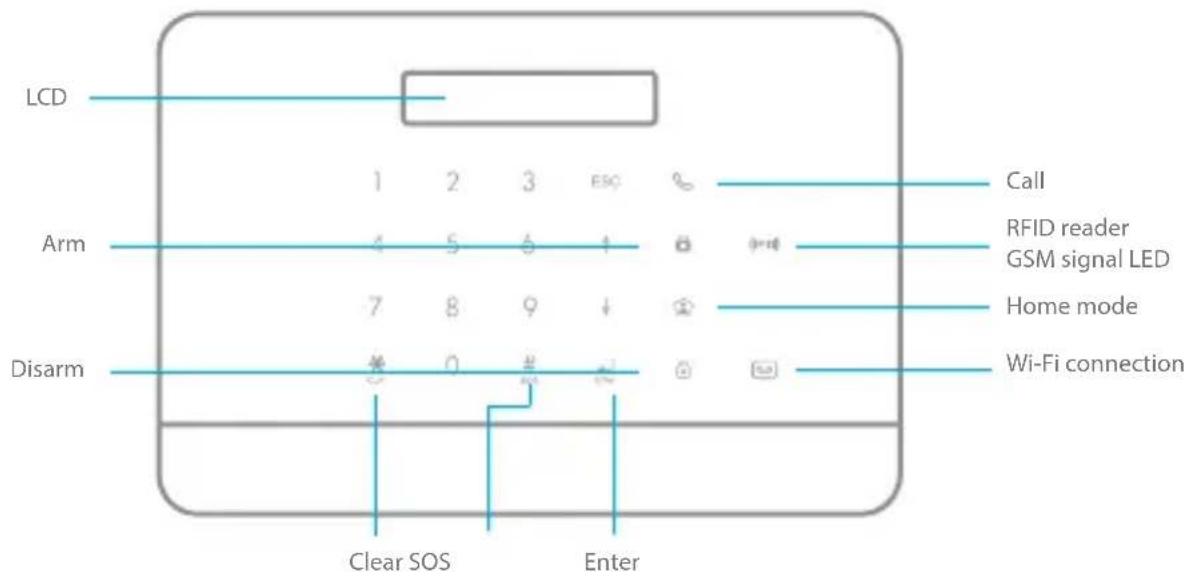

Panel design

Specifications

Product name

S6 SIM Wi-Fi Secual

Backup batteries

Lithium Batteries: 7.4V / 600 mAh

Power Supply

Input: AC 110-240V / 50-60 Hz

Output: DC 12V / 1A

Internal siren

95dB

Wi-Fi

2.4GHz 802.11 b/g/n

Housing material

ABS plastic

GSM- frequency

GSM:850/900/1800/1900MHz

Operating conditions

Temperature: -10^ 55^

Humidity: 80% (non-condensing)

Radio-frequency

433 + 868MHz

Control panel dimensions (L x W x H)

188 × 125 × 25 ~mm

Transmission distance

< 80M in open space

Transmission power

Max. radio transmit power: 10 dBm

antenna gain : 2 dBi

This step only applies

if you are using your system with a SIM card.

1

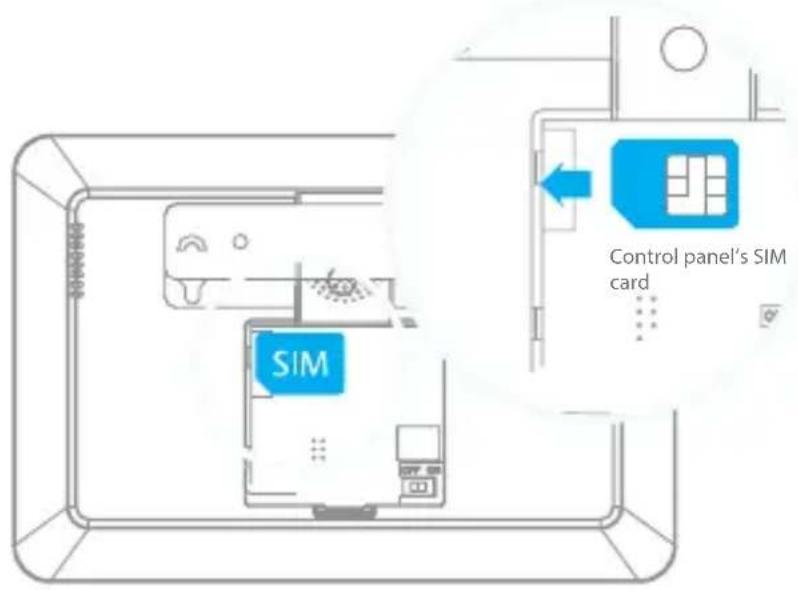

Insert a SIM card in the control panel

You will need a SIM card if you wish to interact with your alarm by SMS and phone calls.

Important ①

• Make sure the SIM card is not protected by a PIN code.
• We advise you to choose a plan with unlimited text and 1 or 2 hours of call. The SIM card must be compatible with a 2G GSM network. Contact your carrier for more information.
• Insert the SIM card before turning on your system.
• For more SMS options download the manual on www.etiger.com

Turn the control panel on

Plug the output connector of the AC adaptor into the adaptor interface in the battery compartment at the back of the control panel. Plug the AC adaptor to an AC socket. Turn the power switch to "ON" and put back the cover of the battery compartment. The control panel is turning on.

Attention!

Make sure you have inserted a SIM card in the control panel before turning it on. If you insert a SIM card after first connection, always make sure to turn the control panel "OFF" before inserting the SIM card.

EN

3

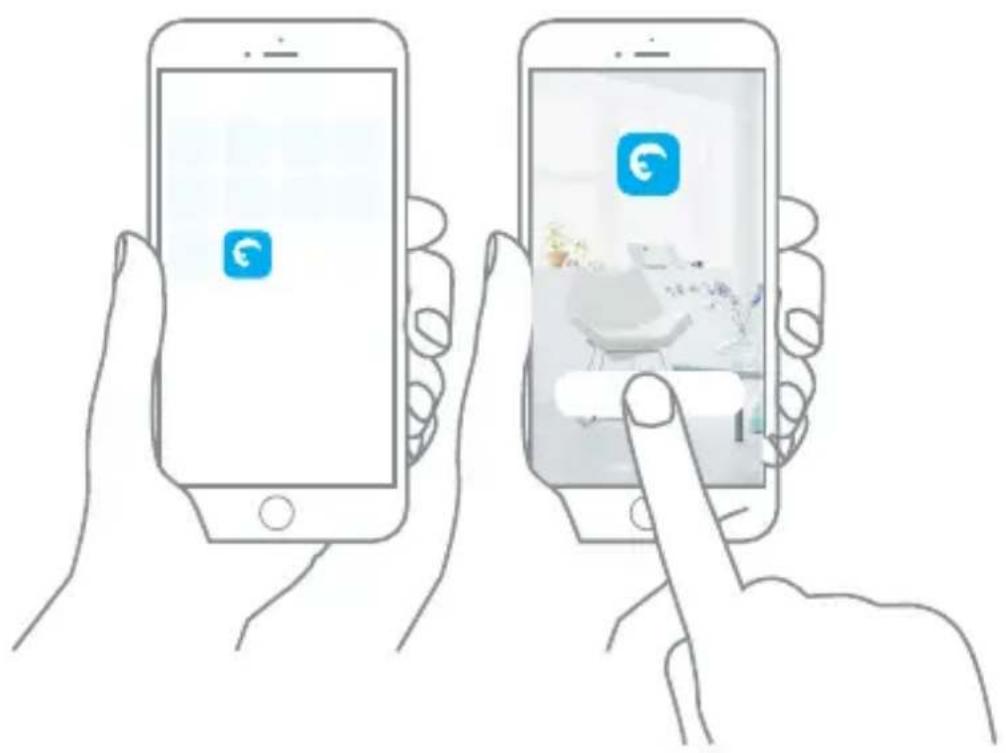

Get your app ready

1. Download the "eTIGER Home" app on your smartphone (on the App Store and Google Play).
2. Open the "eTIGER Home" app on your smartphone.
3. Register by your Mobile number and/or e-mail address.
4. Login and create a location (or home) for your alarm. Make sure you are connected to your home network.

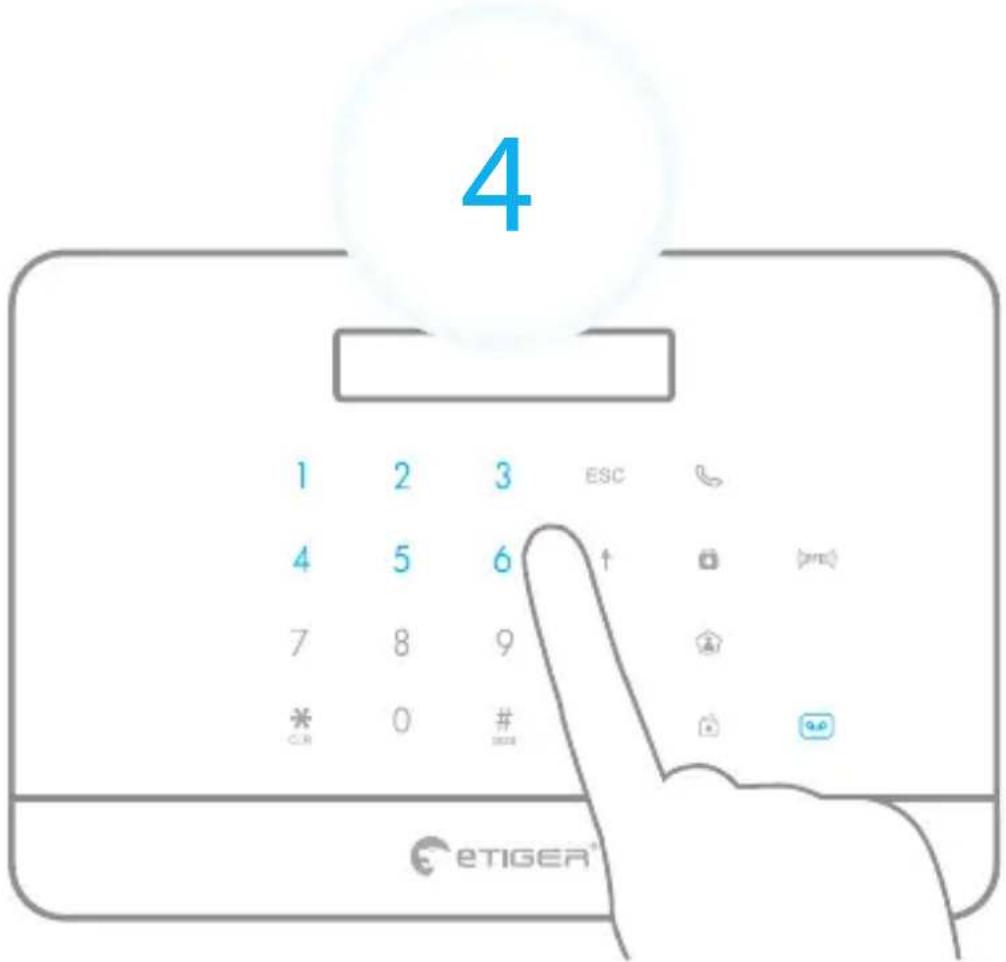

"SIM card only" users

If you are using the this alarm with a SIM card and cannot use the iOS and Android apps, read the full manual to learn more about interaction by SMS and phone call. Full manual is available on etiger.com

Connect the alarm to your app (EZ mode)

Step 1: Enter Wi-Fi Connection Mode on your alarm.

Press the Admin code 123456 +

Attention

Ensure the system is disarmed, the Blue LED is OFF. After entering Wi-Fi connection mode, the Wi-Fi white LED starts to blink fast. now your alarm is ready to connect to your home network.

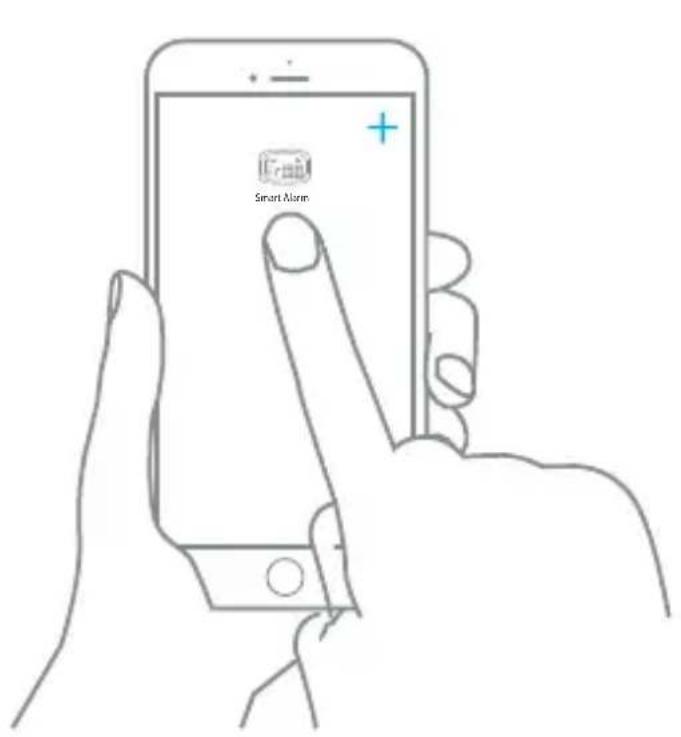

Step 2: In your app, choose the device you will add: choose "Add device" or "+" and "Smart Alarm". The app will ask if the LED is blinking fast. Confirm if this is the case.

Note

Make sure to connect your alarm system to a 2.4 GHz network. eTIGER alarmsystems do not work with 5.0 Ghz network. If experincing any problems, please first contact your network provider.

EN

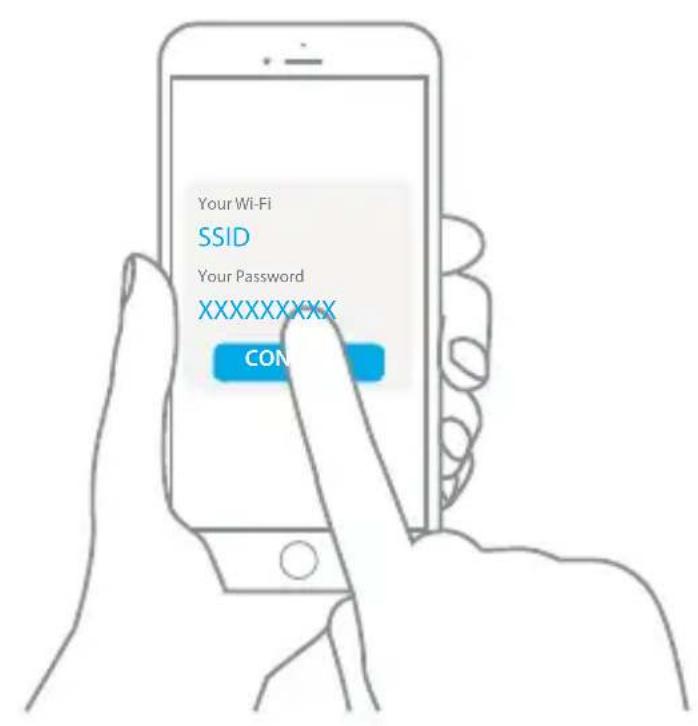

Step 3: Set the Wi-Fi network you will need your alarm to connect with. If your are already connected to your home network the app will automatically use this network.

Enter the Wi-Fi password of the router, confirm, and wait for about 20 seconds to get a response (until the % -circle in the app reached 100% )

Step 4: After connection procedure is complete, you can set the alarm name to complete the connection.

Note

There are two ways to connect the alarm to your app : EZ and AP mode. please use the AP mode when you cannot connect your alarm as described above. A Full manual is available on etiger.com

Your system is ready.

Now what happens if the alarm is triggered?

Notifications over Wi-Fi

• The siren of the control panel rings out.
• You will receive a notification over Wi-Fi or 4G that the alarm has been triggered.

When using a SIM card*

• If there is a SIM card in your control panel, you also receive an SMS notifying you that the alarm has been triggered.
• You receive a phone call. Pick up the call: you hear a voice prompt giving you a list of options (stop the siren, disarm the system, start audio surveillance etc.)

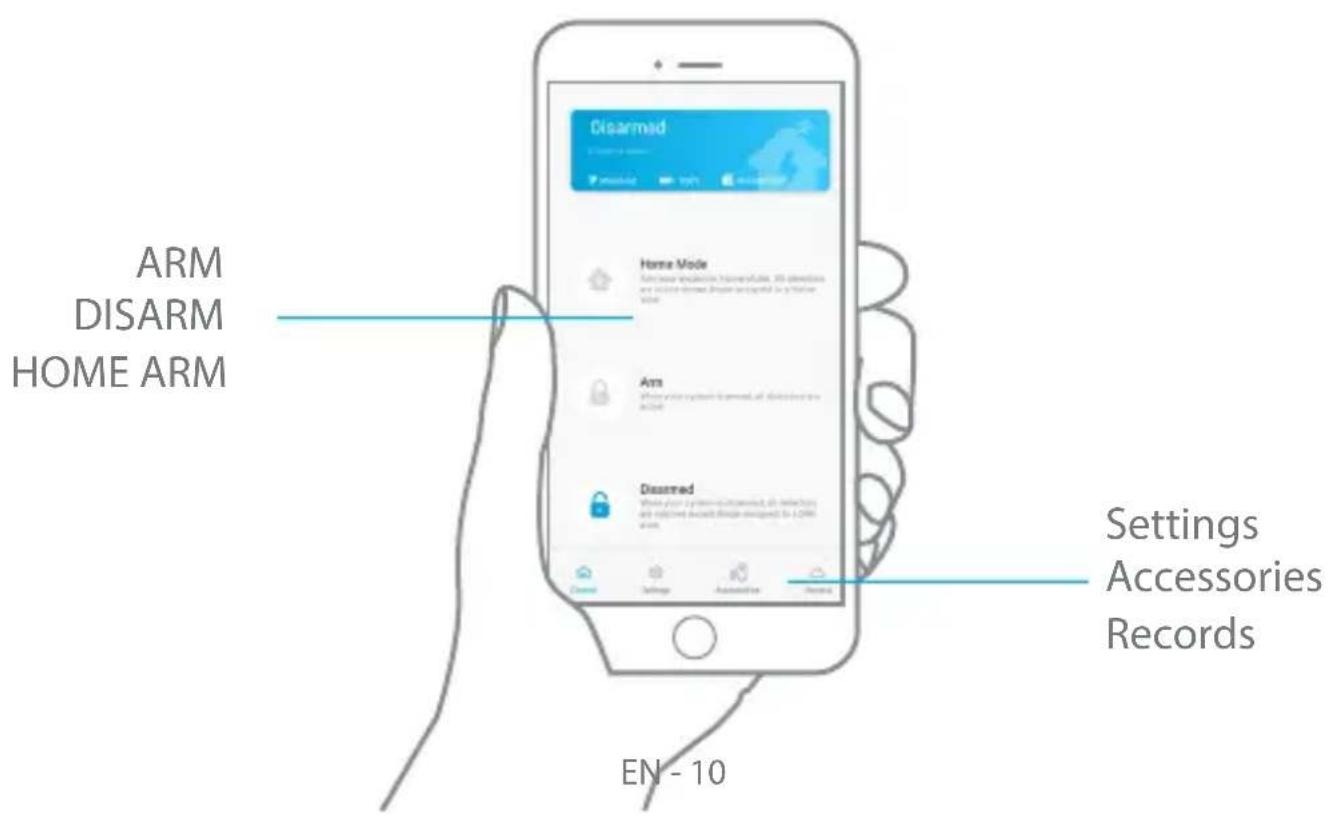

APP interface

Accessories

Motion detector

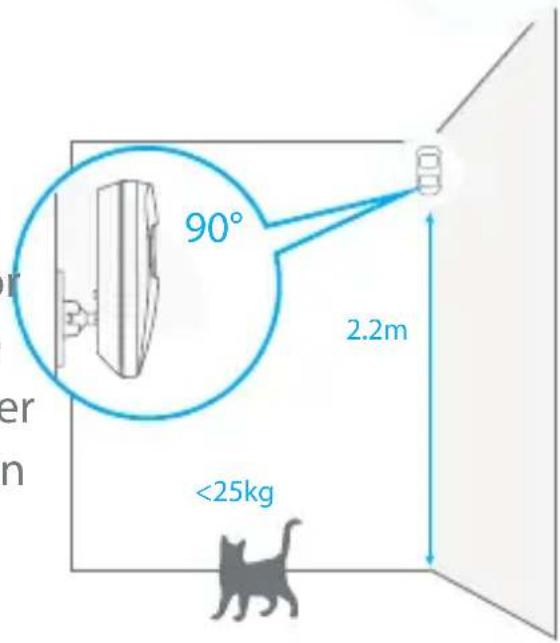

We recommend to mount the detector at a height of 2.2m in a 90^ angle. The detector does not detect animals under 25kg . Avoid mounting the detectors in areas with a large amount of metal or electrical devices.

Understanding the standby mode

If the detector is triggered more than twice within 3 minutes, it switches to standby mode to save power. During standby mode, the detector is inactive. If within the next 3 minutes a new movement is detected, the standby mode is extended by 3 minutes. If no movement is detected within the next 3 minutes, the sensor is activated again.

Door contacts

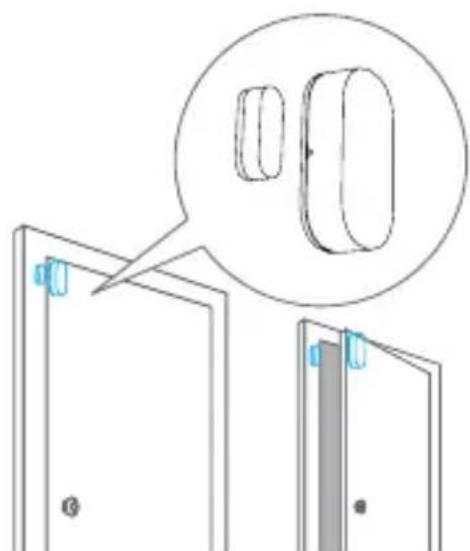

Mount the magnet with double-sided tape on the door and the door frame respectively.

Advanced settings

Advanced setup

For more settings, please refer to the user manual of the control panel, available for download on www.etiger.com

Connect more accessories

On the control panel, type your admin code (default code: 123456*) followed by the key : your control panel is now in Connection mode.

Within the next 15 seconds, trigger the accessory you wish to connect (for a RFID tag, swipe it in front of the RFID reader of the control panel). You hear one beep: the accessory is registered.

A piece of advice

All eTIGER accessories in the box are already preconfigured to your control panel. You do not need to add them again.

Change the access code

Do not forget to change your access code. To change your access code, send "13" by SMS to the control panel or change your code by app in the settings menu of your device.

Full manual

For more settings, please refer to the user manual of the control panel, which can be downloaded at www.etiger.com

Precaution

For a safer use of the product and to optimize the lifespan of the product, we recommend you to follow the precautions below:

• The wireless accessories must be connected to the control panel.
• Low power voltage may affect transmission distance.
• Do not press the SOS key on the remote control if it is unnecessary to avoid disturbing neighborhood.
• Check the system regularly to make sure the system works properly.
• The control panel is neither waterproof nor moisture-proof, install it in a shady, cool and dry place.
• The case of the control panel is made of ABS plastic. Keep away from bright light for a longer lifespan.
• The control panel is not explosion-proof. Keep away from fire and flames.
• Install the control panel away from objects such as heater, air conditioner, microwave oven etc. that generate heat or electromagnetic fields.
• Dispose of the batteries according to local regulations.
• Dismantling of this product must be done by professional personnel only.

Images, illustrations and text are non-contractual. eTIGER and the eTIGER logo are registered trademarks and the property of eTIGER. Copyright © 2019 eTIGER. All rights reserved.

Standards

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

In compliance with European laws. This product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

This product was designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and of the Council on the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS Directive - RoHS) and is deemed to comply with the maximum concentration values set by the European Technical Adaptation Committee (TAC).

Manufactured in China.

Images, illustrations and text are non-contractual. eTIGER and the eTIGER logo are registered trademarks and the property of eTIGER.

Copyright © 2019 eTIGER. All rights reserved.
