USER MANUAL VTN630W THERMADOR

Ventilation Blower Motor VTN630W and VTN1090W

Black-and-white photo of a plated dish featuring cooked fish, lemon slices, and garnishes (no text or symbols visible)

Table of

CONTENTS

Safety 2

Installation ....4

Support, Accessories & Parts......back page

Safety

DEFINITIONS

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

This THERMADOR ^(1) appliance is made by

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

Questions?

1-800-735-4328

www.thermador.com

We look forward to hearing from you!

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

INSTALLER: Save these instructions for the local electrical inspector's use. Please leave these instructions with this unit for the owner. Show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

OWNER: Please retain these instructions for future reference.

Check if this blower is recommended by the manufacturer to be installed with the hood.

WARNING

If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.

WARNING

To avoid electrical shock hazard, before installing, switch power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

CAUTION

FOR GENERAL VENTILATING USE ONLY. DO NOT use to exhaust hazardous or explosive materials and vapors.

WARNING

To reduce the risk of fire or electric shock, do not use this blower with any solid-state speed control device.

WARNING

This appliance must be grounded. Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt as to whether the appliance is properly grounded.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

- USE ONLY METAL DUCTWORK.

- To reduce risk of fire and to properly exhaust air, be sure to duct air outside. DO NOT vent exhaust air in spaces with walls or ceilings or into attics, crawl spaces or garages.

- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

State of California Proposition 65 Warning:

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

DO NOT repair or replace any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to the Installation Manual for guidance. All servicing should be done by a qualified technician.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

WARNING

ELECTRICAL SHOCK HAZARD:

• DO NOT remove connections.
• DO NOT use an extension cord.

Remove all tape and packaging before using the appliance. Destroy or recycle the packaging after unpacking the appliance.

Never allow children to play with packaging material.

Exhaust-air Mode

Exhaust air should not be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air must be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers), care must be taken to ensure that there is an adequate supply of fresh air, which will be needed by the burner for combustion.

Safe operation is possible provided that the under-pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of carbon monoxide poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

NOTE: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as ranges and ovens.

▲ IMPORTANT SAFETY INSTRUCTIONS

• The blower must be attached at least 78^3/4'' (200 cm) from the extractor hood.
• When attaching the outer wall blower, ensure that it is accessible for maintenance and repairs.
• The plug-and-socket connections of the electric cables must be located inside the building, according to local codes.
• DO NOT reduce the 6" (152 mm) diameter of the ducting connected to the extractor hood.

VTN630W and VTN1090W Integral Blower Installation

Suitable for the following hood models:

HPCN36WS, HPCN48WS, PH30HWS, PH36HWS, PH48HWS, PH36GWS, PH42GWS, PH48GWS, PH54GWS, PH60GWS, VCIN36GWS, VCIN42GWS, VCIN48GWS, VCIN54GWS, VCIN60GWS, HPIN42WS, HPIN54WS

Integral Blower models are integrated into the ventilation hood at the time of installation.

Refer to the Installation Manual for important safety instructions. Use gloves when installing blower unit.

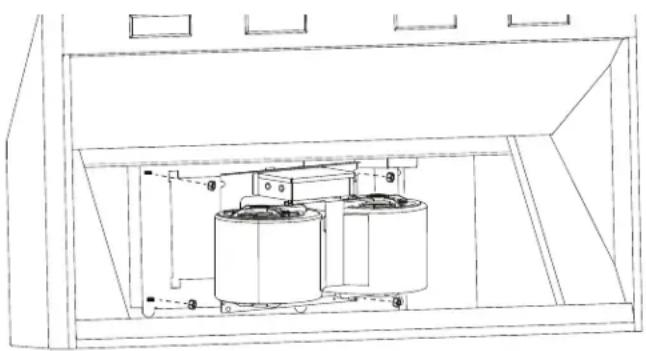

1. The blower is attached to the hood using weld studs provided on the mounting plate. Guide the motor mounting plate over the studs.

Technical line drawing of a mechanical assembly with two cylindrical components inside a housing (no text or symbols)

1. Attach (4) nuts (included with hood) to the weld studs. Tighten nuts to secure the blower to the hood.

2. Connect the blower's plug connector to the connector present inside the hood.

Table des

MATIÈRES

Sécurité 6

Installation 8

6696 Financial Drive, Unit 3

Mississauga, ON L5N 7J6

Des questions?

1-800-735-4328

www.thermador.ca

HPCN36WS, HPCN48WS, PH30HWS, PH36HWS, PH48HWS, PH36GWS, PH42GWS, PH48GWS, PH54GWS, PH60GWS, VCIN36GWS, VCIN42GWS, VCIN48GWS, VCIN54GWS, VCIN60GWS, HPIN42WS, HPIN54WS

Technical line drawing of a mechanical assembly with two cylindrical components and mounting brackets (no text or symbols)

1901 Main Street, Suite 600

Irvine, CA 92614

¿Preguntas?

1-800-735-4328

www.thermador.com

HPCN36WS, HPCN48WS, PH30HWS, PH36HWS, PH48HWS, PH36GWS, PH42GWS, PH48GWS, PH54GWS, PH60GWS, VCIN36GWS, VCIN42GWS, VCIN48GWS, VCIN54GWS, VCIN60GWS, HPIN42WS, HPIN54WS

Technical line drawing of a mechanical assembly with two cylindrical components inside a housing (no text or symbols)

Thank you for being a Thermador customer!

Thermador is dedicated to supporting you and your appliance so you have many years of creative cooking. Please don't hesitate to contact us if you have any questions. We're happy to help you with cleaning and care instructions, cooking tips, accessories, troubleshooting, and more.

USA:

1-800-735-4328

thermador.com/customer-care

Canada:

1-800-735-4328

thermador.ca/support

Accessories and Parts

Filters, Thermador cleaners, teppanyaki pans, griddles, replacement parts, and more can be purchased in our online accessories store.

USA:

store.thermador.com/us

Canada:

Filters, parts and accessories can be purchased through our distributors.

Marcone: 1-800-287-1627

Reliable Parts: 1-800-663-6060
