Product Type	Coffee Maker
Brand	Black & Decker
Model	TCM830
Capacity	10 cups
Carafe Type	Thermal carafe (keeps warm up to 4 hours)
Power Supply	120 V, 60 Hz (polarized plug)
Display	Digital with AM/PM indicator
Programming	Programmable timer with PROG, HOUR, MIN buttons
Pause & Serve Function	Yes (Sneak-A-Cup) - allows serving a cup before brewing ends
Filter Type	#4 cone paper filter
Materials	Plastic, stainless steel thermal carafe
Water Reservoir	Removable, with water level indicators on both sides
Control Panel	On/Off switch, green and red indicator lights
Cleaning & Care	Hand wash or dishwasher safe (basket and lid, top rack only)
Descaling	Recommended every 3 months with white vinegar
Safety	Polarized plug, tamper-resistant screw, no user-serviceable parts
Replacement Parts	Reservoir (TCM830-01), basket (TCM830-02), thermal carafe (TCM830-03), direct brew lid (TCM830-04)
Warranty	1-year limited (USA and Canada)
Country of Origin	People's Republic of China

Frequently Asked Questions - TCM830 BLACK & DECKER

How to set the time on the TCM830 coffee maker?

Plug in the appliance. The display flashes '12:00'. Press the HOUR and MIN buttons to set the time. AM and PM indicators appear on the left side of the screen.

How to program the brew start?

Prepare the coffee maker with coffee and water. Press PROG, set the desired time with HOUR and MIN. Wait until the red indicator turns off, then press ON/OFF twice: the red PROG light turns on and 'AUTO' displays. Brewing will start at the programmed time.

How to use the pause and serve function (Sneak-A-Cup)?

During brewing, remove the carafe. Open the lid by turning until the arrows align. Pour your cup, then close the lid by turning clockwise. Replace the carafe within 30 seconds to avoid overflow.

How to clean the coffee maker?

Unplug and let cool. Remove the basket by pulling the hinge. Wash the basket and carafe lid in the dishwasher (top rack) or by hand with warm soapy water. Wipe exterior with a damp cloth. Never immerse the appliance.

How to descale the coffee maker?

Every 3 months: pour white vinegar up to 4 cups and cold water up to 6 cups into the reservoir. Place a paper filter, start the brew. Stop mid-cycle, let soak for 15 minutes, then finish the cycle. Rinse by brewing clear water.

What type of filter to use?

Use a #4 cone paper filter. Place it in the basket before adding grounds.

Why does coffee overflow from the carafe?

The thermal carafe lid is not properly closed. Make sure it is correctly locked by turning before brewing. Also check that the carafe is properly positioned under the basket.

How to keep coffee warm after brewing?

Use the thermal carafe. Close the lid tightly after each serving by turning until the arrows align. The carafe keeps heat for up to 4 hours off the appliance.

How to remove and clean the water reservoir?

Grip each side of the reservoir and pull it out of the appliance. Open the lid, wash with warm soapy water, rinse and air dry. Replace by pressing firmly.

What to do if the coffee maker does not turn on?

Check that the plug is fully inserted into a working outlet. Ensure the cord is not damaged. If the problem persists, contact customer service at 1-800-231-9786 (USA/Canada). Do not attempt to repair yourself.

USER MANUAL TCM830 BLACK & DECKER

PLEASE READ AND SAVE THIS USE AND CARE BOOK.
POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
VEUILLEZ LIRE ET CONSERVER CE GUIDE D'ENTRETIEN ET D'UTILISATION.

BLACK&DECKER

10-Cup Thermal Coffeemaker CafeteriaTERMICA de 10 tazas

Accessories/Parts (USA/Canada)

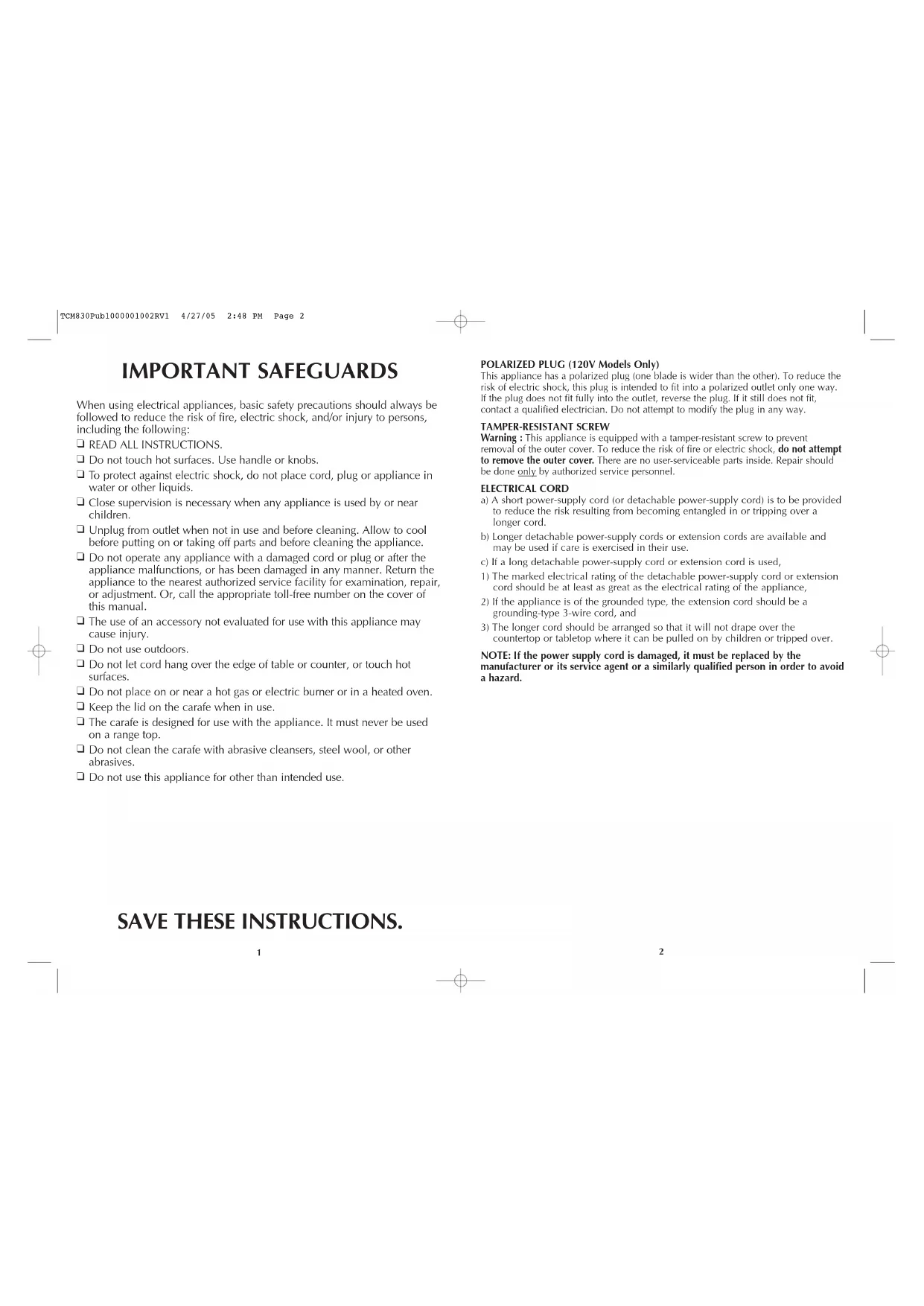

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

READALLINSTRUCTIONS
Do not touch hot surfaces. Use handle or knobs.
To protect against electric shock, do not place cord, plug or appliance in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
The use of an accessory not evaluated for use with this appliance may cause injury.
Do not use outdoors.
Do not let cord hang over the edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner or in a heated oven.
- Keep the lid on the carafe when in use.
The carafe is designed for use with the appliance. It must never be used on a range top.
Do not clean the carafe with abrasive cleansers, steel wool, or other abrasives.
Do not use this appliance for other than intended use.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer delachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

NOTE: If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS.

TCH830Pub1000001002RV1 4/27/05 2:48 PM Page 4

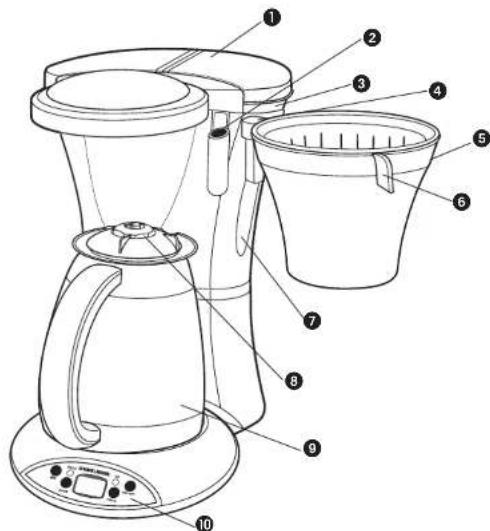

Product may vary slightly from what is illustrated.

1. Water reservoir lid
2. Prove that
3. Brew basket holder
4. Removable water reservoir (Part #TCM830-01)
5. Brew basket pivoting hinge
6. Brew basket (Part #TCM830-02)

7. Handle for opening brew basket

8. Water level indicators (on both sides)

8Carafe lid with brew-thru

(Part #TCM830-04)

+9. Thermal carafe (Part #TCM830-03)
10. Control panel
+ Consumer replaceable

CONTROL PANEL

3

1. Digital display
2. ON indicator light (green)
3. ON/OFF (1/0) button
   4.PROC button
   5.HOUR button
4. MIN button
   7.PROGindicatorlight

How to Use

This product is for household use only.

Important: For warranty verification, do not remove line cord sticker.

GETTING STARTED

1. Remove all packing materials and literature.
2. Hand-wash thermal carafe, carale lid, water reservoir and brew basket in warm sudsy water; rinse thoroughly. Carafe lid and brew basket can also be washed in the dishwater, top rack only.

SETTING THE CLOCK (A)

1. Plug in the coffeemaker. The digital displays show 12:00 blinking.

2. Press the HOUR and MIN buttons until you see the correct AM or PM hour. The AM and PM indicators display on the left side of the digital readout.

3. The clock is set. To change the time, repeat step 2.

RUNNING WITH WATER ONLY

Before first use, cycle the unit once with water to help remove any sed

1. Grasp both sides of water reservoir and lift out (B).
2. Open lid and pour cold water into water reservoir up to the 10-cup level mark on the water window (C). Do not over fill.
3. Replace water reservoir and press down to secure. Close lid.
4. Insert brew basket pivoting hinge into brew basket holder (D).
5. Grasp brew basket by small handle and use it to swing, brew basket closed (E).
6. Follow steps 9-11 in "Brewing a Pot of Coffee" (Do not use coffee grounds or a paper filter.)
7. When cycle is finished, discard water from carafe.

BREWING A POT OF COFFEE

You do not have to set the clock or program the

coffeemaker to brew coffee.
1. Grasp both sides of water reservoir and lift out.
2. Open lid and fill water reservoir with cold water. To avoid overflow, do not fill above the 10-cup level.
3. Replace water reservoir and press down to secure.
4. Grasp brew basket by small handle and swing brew basket to open (F).
5. Insert a No. 4 cone-shaped paper filter into the brews basket.
6. Add ground coffee into filter (we recommend 1 heaping tablespoon for every 2 cups).

4

TCM830Pub1000001002RV1 4/27/05 2:48 PM Page 6

1. Grasp small handle on brew basket and swing brew basket closed until you hear a "click" (G).
2. Close thermal carafe lid by pressing down and turning it until tightly closed (1).

Important: Check that carafe lid is properly in place. Coffee may overflow if lid is not properly in place.

1. Place carafe into caffeemaker (J).

2. Press the ON/OFF (1/0) button once. On indicator light turns green. To preset an automatic brew time, see "Programming the Coffeemaker for Auto-Brew."

Important: Do not open swing brew basket while brewing.

1. When brewing is complete, coffeemaker automatically shuts off and green ON indicator light goes out.
2. To pour coffee, turn the carafe lid until the POUR arrow aligns with the arrow on the carafe warm-spout. Keep lid closed tightly to keep coffee.

Sneak-A-Cup® INTERRUPT FEATURE

You can pour a cup of coffee while coffee is brewing.
1. Remove carafe from coffeemaker.

Important: Toavoid a possible overflow after removing carafe, be sure to place it back under brew basket in 30 seconds or less.
2. Twist carafe lid counterclockwise until pour arrow on lid aligns with arrow on carafe spout (K).

Important: Topprevent the lid from falling off, do not turn the arrow on the lid beyond the arrow on the spout.

1. When finished pouring coffee, twist carafe lid clockwise until it is tight.
2. Place carafe under brew basket. The brewing process continues (L).

USING THERMAL CARAFE

• For best performance, rinse the carafe with warm water before brewing. This brings up the temperature and improves the carafe's thermal properties.
• Coffee is brewed directly into carafe through the closed brew thru lid. Always check that lid is properly in place when brewing. Coffee may overflow if lid is not properly in place. See instructions in "Brewing a Pot of Coffee."
  The carafe keeps coffee hot up to 4 hours so you can leave it away from cofoeemaker for serving. Always check that lid is properly closed in place when not in use, this will ensure that coffee stays hot. See instructions in "Sneak-a-Cup@ Interrupt Coffeemaker Feature."

PROGRAMMING THE COFFEEMAKER FOR AUTO-BREW (M)

1. Press the PROG button once; the PROG light blinks red and BREW appears on the digital display.

2. Immediately, press the HOUR and MIN buttons until you reach desired brew time.

3. Wait a few seconds for the red PROG light to go out then press the ON/OFF button once. The green ON light illuminates.

4. Press the ON/OFF button a second time. The red PROG light illuminates and AUTO appears on the digital display. Your coffeemaker will start brewing when it reaches the preset time.

Important: You can verify the preset time by pressing the PROG button. However, this will cancel the Auto Brew mode. To activate the Auto-Brew function again, repeat steps 3 and 4.

Helpful Tips:

• Y ou can cancel the Auto-Brew function at any time by pressing the ON/OFF button again (the red PROG light goes out).
• If you unplug the unit for a few hours, you will have to program it again for Auto-Brew.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

Caution: Do not overexpose the control panel to water. It is not waterproof. Water may cause permanent damage and make coffeemaker inoperable.

CLEANING

1. Be sure the unit is unplugged and cooled.
2. Grasp small handle on brew basket and swing open.

1. To remove brew basket, pull out pivoting hinge from brew basket holder (N).
2. Discard the paper filter with the grounds.
3. Wash the brew basket and carafe lid in the dishwasher, top-rack only or hand-wash in warm, sudsy water.
4. Wipe the exterior of the thermal carafe and coffeemaker with a soft damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the coffeemaker in water.
5. Insert brew basket into holder and swing closed.
6. To clean the inside of the thermal carafe (P) and the water reservoir, wash in warm sudsy water, rinse well and allow to air dry.

Mineral deposits left by hard water can clog your coffeemaker. Cleaning is recommended every 3 months.

1. Remove water reservoir, open the lid and pour white vinegar into the water reservoir up to the 4-cup level mark on the water window. Add cold water up to the 6-cup line.
2. Using the small handle on the brew basket, swing open.
3. Insert paper filter into brew basket. Swing brew basket closed.
4. Place the carafe with lid secured, all the way into the coffeemaker. Plug in the unit.
5. Press the ON/OFF (1/0) button twice, green brewing "ON" light illuminates.

6. Let half of the vinegar solution brew into the carafe (until the solution level in the water window goes down to "3." Press the ON/OFF 1/0 button again to turn off the coffeemaker and let it soak for at least 15 minutes to soften mineral deposits.

7. Press the ON/OFF (1/0) button twice to turn on the unit again, and brew the remaining vinegar solution into the carafe.

8. When the vinegar solution has finished brewing, discard the paper filter, empty the carafe and rinse with clean water.

9. Refill the water reservoir with cold water, put a paper filter in the brew basket and run another brew cycle to rinse out any vinegar solution remaining.

10. Wash the water reservoir, brew basket, carafe and lid as instructed in "Cleaning."

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product

For how long?

One year after the date of original purchase
What will we do to help you?
- Provide you with a reasonably similar replacement product that is either new or factory refurbished

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from slate to slate or province to province.

;NECESITA AYUDA?

Ay, Appuquindo No. 4867 -

Las Condes

Santiago, Chile

1cl.:562)263-2490

Colombia

COLINAR

San Jose, Costa Rica

Tel.: [phone]-0136

Ecuador

Catalon Corp

Km 2-1/2 Ayenida Juan T.

Marciano Juple Diccioglio

Guayagul, Ecuador

Tel: [phone]-1767

El Salvador

Sedeblack Calle A San Antonio

Ahady Ay. Lihman, edif. Lihman

Local #1

San Salvador, El Salvador

Tcl. [phone]/274-0279

Guatemala

MacPartes, S.A.

Guatemala City, Guatemala

Nicaragua U.S. Electronic

Authorized Service Center

Electrounomesicos, S.A.

Boulevard F Dorado, al lado

Puerto Rico
Buckingham Services

Buckeye Service Company Inc. 100th Ave. Washington,

Buenos Aires,SPB-00920

Tol:7877826135

Tel.: [phone]

Republica Dominicana

Plaza Lama, S.A.

Av, Duarte #94

Santo Domingo, Republica

Dominica

Tel.: [phone]

Trinidad and Tobago

A.S. Bryden & Sons (Trinidai)

Limited

33 Independence Square,

Port of Spain

Trinidad, W.l.

Tel.: [phone]

Venezuela.

The lightning symbol refers to "dangerous voltage"; the exclamation symbol refers to maintenance instructions. See below.
WARNING: To reduce the risk of fire or electric shock, do not remove the cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

Copyright © 2005 Applica Consumer Products, Inc. Pub. No. 1000001002-RV01 Made in People's Republic of China Printed in People's Republic of China

Imported for: Applica de Mexico S, de R.L. de C.V.

Blvd. Manuel Avila Camacho 2900 Int. 902 Los Pirules, Hlalnepantla,

Edo. Mex.

C.P.54040

MEXICO

Tel#ono:551106-1400

Del interior marque sin costo

01(800)714-2499
