Product type	Coffee machine
Brand	Black & Decker
Model	DCM16
Color	Black (as illustrated)
Reservoir capacity	473 ml (16 oz)
Coffee type	Ground coffee
Filter	Permanent filter included
Main functions	Automatic brewing, automatic shut-off, power indicator
Power	120 V, 60 Hz, 10 A
Power cord	Polarized plug, standard length
Materials	Plastic, glass (cup)
Dimensions (approx.)	Height: 30 cm, Width: 20 cm, Depth: 15 cm
Weight (approx.)	1 kg
Maintenance and cleaning	Dishwasher-safe parts (top rack), descaling with white vinegar
Safety features	Automatic shut-off, polarized plug, do not immerse, hot surfaces indicated
Spare parts and repairability	Parts available through Black & Decker service centers
Warranty	2 years against defects in materials and workmanship
Recommended use	Household use only
Country of origin	Made in Canada (as stated)

Frequently Asked Questions - DCM16 BLACK & DECKER

How to use the coffee maker for the first time?

Before first use, wash the permanent filter, filter basket, cup and its lid. Pour a full cup of cold water into the reservoir up to the maximum fill line, without coffee, then run a brewing cycle to rinse the appliance.

How much ground coffee should I use?

For a 473 ml (16 oz) cup, add about 3 tablespoons of ground coffee to the permanent filter. You can adjust to taste.

Does the coffee maker turn off automatically?

Yes, the coffee maker and the power indicator turn off automatically at the end of the brewing cycle. Wait for the coffee to finish dripping before removing the cup.

Can I use the coffee maker to make tea or hot chocolate?

Yes, you can use the coffee maker to heat water only. Make sure the permanent filter and filter basket are clean, then brew the water directly into the cup.

How to clean the coffee maker?

Wash the filter basket, permanent filter, cup and its lid in the dishwasher (top rack) or in warm soapy water. Wipe the exterior with a soft, damp cloth. Never immerse the coffee maker.

How to descale the coffee maker?

Every three months, pour 237 ml (8 oz) of white vinegar into the reservoir and fill with cold water. Run a brewing cycle, then rinse by brewing cold water twice to remove any vinegar residue.

What to do if the coffee maker stops before the brew is complete?

This indicates that descaling is needed. Follow the vinegar cleaning procedure described in the manual.

Can I use a cup other than the one provided?

It is not recommended to use other cups, as the base is designed for the provided cup. Make sure any cup used is compatible and heat-resistant.

Where can I find spare parts or get the coffee maker repaired?

Spare parts and repairs are available through Black & Decker service centers. Check the Yellow Pages or call 1-800-231-9786 (United States) or 1-800-465-6070 (Canada).

What is the warranty on the coffee maker?

Black & Decker warrants this product against any defects in material or workmanship for two years from the date of purchase. The warranty does not cover accidental damage or misuse.

USER MANUAL DCM16 BLACK & DECKER

SAVE THIS USE AND CARE BOOK

Coffeemaker (English, see page 2)

Cafeteria (Espanol, consulte la page 6)

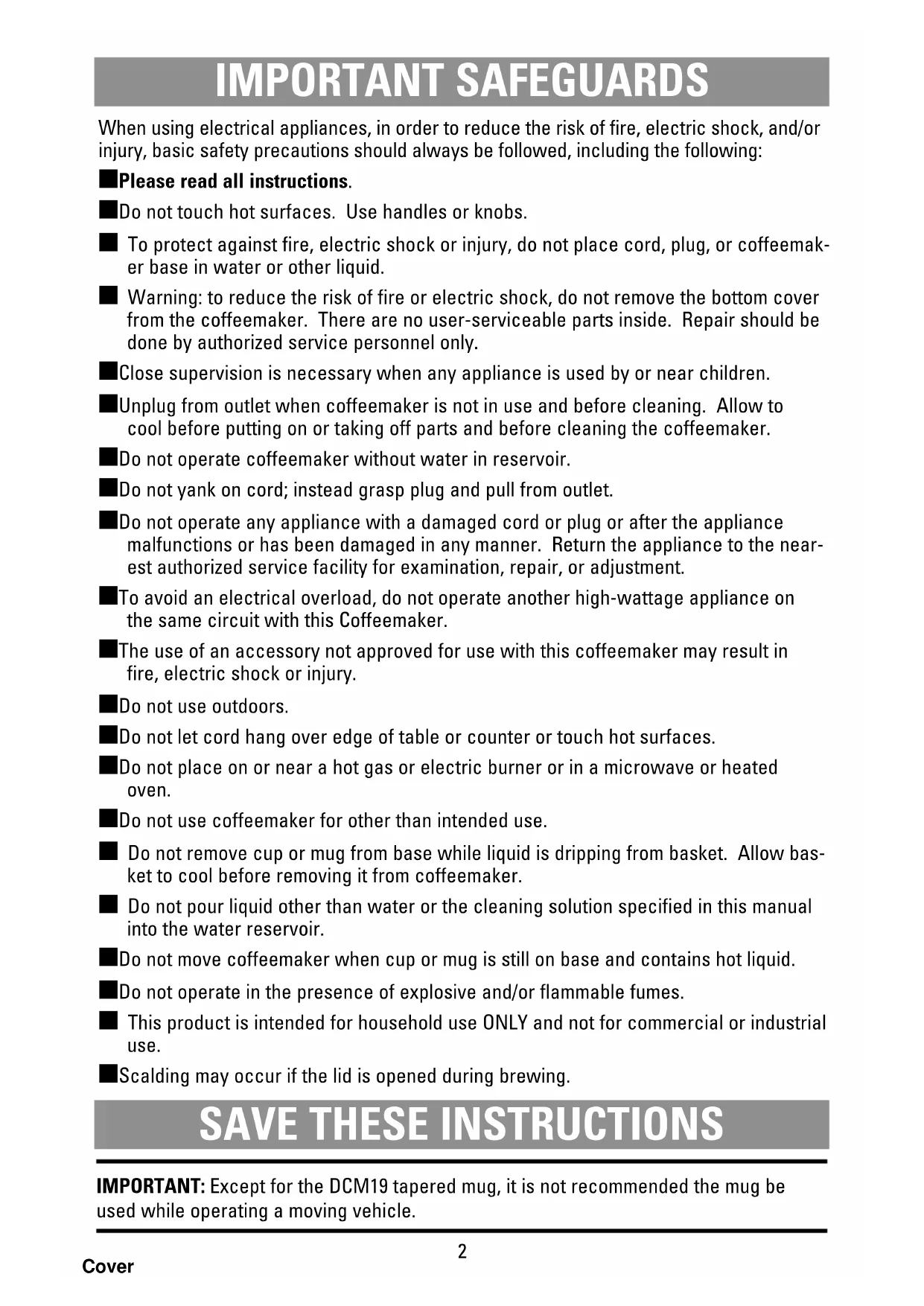

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury, basic safety precautions should always be followed, including the following:

Please read all instructions.
■Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock or injury, do not place cord, plug, or coffeemaker base in water or other liquid.
Warning: to reduce the risk of fire or electric shock, do not remove the bottom cover from the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when coffeemaker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the coffeemaker.
■Do not operate coffeemaker without water in reservoir.
■Do not yank on cord; instead grasp plug and pull from outlet.
■Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
To avoid an electrical overload, do not operate another high-wattage appliance on the same circuit with this Coffeemaker.
The use of an accessory not approved for use with this coffeemaker may result in fire, electric shock or injury.
Do not use outdoors.
■Do not let cord hang over edge of table or counter or touch hot surfaces.
■Do not place on or near a hot gas or electric burner or in a microwave or heated oven.
■Do not use coffeemaker for other than intended use.
- Do not remove cup or mug from base while liquid is dripping from basket. Allow basket to cool before removing it from coffeemaker.
- Do not pour liquid other than water or the cleaning solution specified in this manual into the water reservoir.
■Do not move coffeemaker when cup or mug is still on base and contains hot liquid.
■Do not operate in the presence of explosive and/or flammable fumes.
This product is intended for household use ONLY and not for commercial or industrial use.
■Scalding may occur if the lid is opened during brewing.

SAVE THESE INSTRUCTIONS

IMPORTANT: Except for the DCM19 tapered mug, it is not recommended the mug be used while operating a moving vehicle.

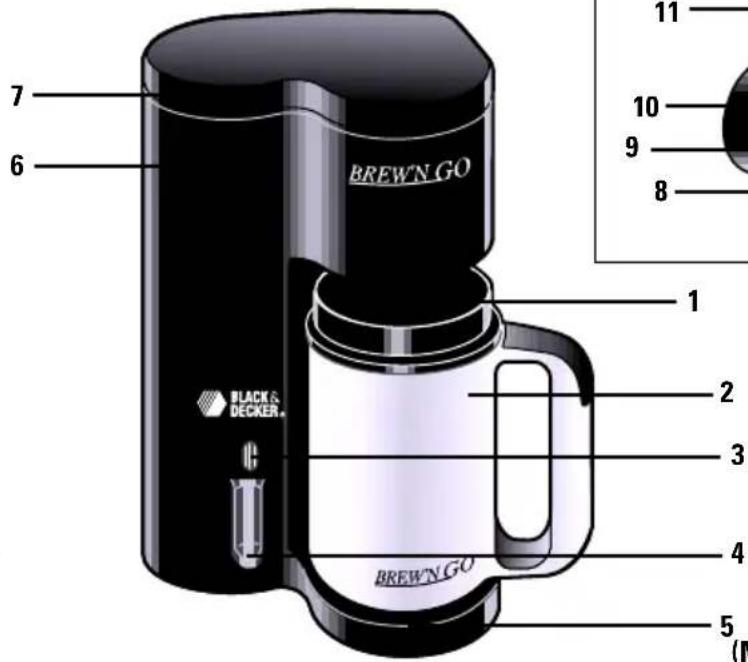

1. Mug Lid
2. Travel Mug
3. On Light
4. Start Lever
5. Mug Rest
6. Water Reservoir
7. Reservoir Cover

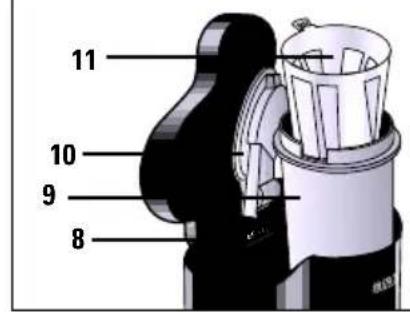

8. Max Fill Line
9. Filter Basket
10. Water Spreader
11. Permanent Filter

(Model DCM16 Shown)

ELECTRICAL CORD

The cord length of these Coffeemakers was selected to reduce safety hazards that may occur with a longer cord. If more cord length is needed, an extension cord may be used. It should be rated not less than 10 amperes, 120 volts, and should have Underwriters Laboratories listing. A properly rated extension cord may be purchased from a Black & Decker Household Appliance Company-Owned or Authorized Service Center. When using a longer cord, be sure that it does not drape over a working area or dangle where it could be pulled on or tripped over.

POLARIZED PLUG

Brew 'N Go™ Coffeemakers have a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse it. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature by modifying the plug in any way.

How To Use

BEFORE FIRST USE

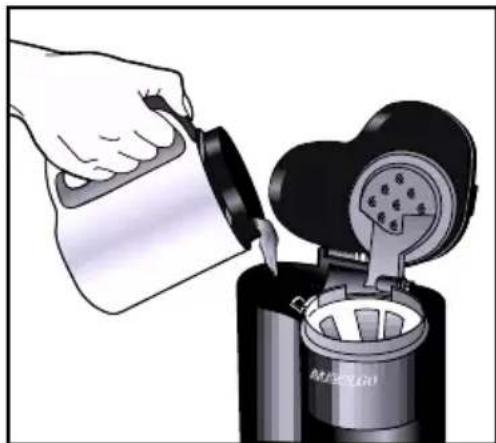

Black models may have a white film. Wipe with a soft cloth to restore the shine. Before first use, wash the Permanent Filter, Filter Basket, Travel Mug and Lid. Pour one full Mug of cold tap water only into the Water Reservoir up to the Max Fill Line (Figure A). Do not put coffee grounds in the Filter. Brew the plain water through.

Figure A

Figure B

BREWING COFFEE

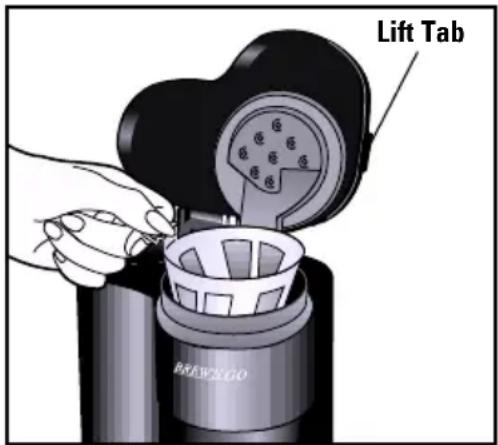

1. Place the Permanent Filter into the Filter Basket. (Figure B) Add approximately 3 tablespoons of coffee grounds for 16 oz. (473 ml) of coffee. NOTE: Model DCM19 makes 15 oz. (444 ml) (Use more or less coffee depending on individual taste.)
2. Pour one full mug of cold tap water into the Water Reservoir.
3. Close the Reservoir Cover. Remove the Lid from the Travel Mug and add sweetener, cream, or milk before brewing. Snap the lid back on the mug. Place the Mug on the Mug Rest directly under the Filter Basket opening.

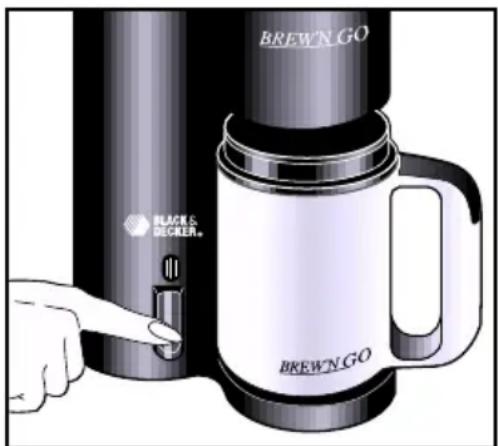

4. Push the Start Lever and the "On" Light will glow. (Figure C) The Coffeemaker and On Light will turn off automatically when the brewing is done. Allow the coffee to finish dripping from the unit before removing your Travel Mug.

Figure C

NOTE: There will be slightly less coffee in your Travel Mug than the amount of water added as the grounds absorb some of the liquid.
5. When you remove the Travel Mug from the Mug Rest, be careful not to tip it over as hot liquid will spill out.

CAUTION: Be careful when opening the Reservoir Cover after brewing as this area is hot and steamy. Use the Lift Tab located on the side of the Coffeemaker Reservoir Cover.

1. You can also brew hot water for beverages such as tea, hot chocolate and soups. Be sure the Filter and Filter Basket have been washed in hot, sudsy water and rinsed well. Replace the Filter and Basket and repeat the brewing process to brew hot water into the Travel Mug.
2. The Travel Mug may also be used for carrying cold beverages.

CLEANING

1. Be sure the Coffeemaker is OFF and has cooled. Clean the Filter Basket, Permanent Filter, Travel Mug and Lid in the Dishwasher—top rack only—or in hot, sudsy water.
2. Wipe the exterior with a soft, damp cloth and dry. Do not use abrasive soaps or scouring pads. Never immerse the Coffeemaker in water or place in a dishwasher.

Figure D

1. Parts washed in a dishwasher may appear to fade. To restore color, polish with a soft, dry cloth.
2. To clean inside the Reservoir Cover, unsnap the Water Spreader and wipe the surfaces with a damp cloth. (Figure D)
3. After cleaning, press the Water Spreader back against the Cover and snap it into place.

CLEANING MINERAL DEPOSITS

1. Clean your Coffeemaker approximately once every 3 months to flush out mineral deposits. If you live in

a hard water area, you may have to clean the Coffeemaker more frequently. It is time to clean the unit if it shuts off before all the water has pumped through the system.

1. During cleaning, more steaming may occur than when brewing coffee. Pour 8 oz. (237 ml) of white vinegar into the Water Reservoir and fill to the Max Fill Line with tap water. Place a 16 oz. (473 ml) (or slightly larger) container on the Mug Rest.
2. Turn the Coffeemaker on and let the cleaning solution brew through. Fill the reservoir with cold water to the Max Fill Line and brew the plain water through to flush out any remaining solution.
3. Let the cleaning solution brew into the container until the Coffeemaker turns off. Repeat the process using a new solution; do not reuse the first solution. Then repeat once more with only cold water to remove any remaining vinegar taste. Wash and dry the Permanent Filter and Filter Basket.

NEED HELP?

Service, if necessary, must be performed by a Black & Decker Household Appliance Company-Owned or Authorized Service Center. The Service Center nearest you can be found on the enclosed insert, in the yellow pages of your phone book under "Appliances - Small - Repairing", or by calling the appropriate "800" number on the cover of this book. If mailing or shipping your Coffeemaker, pack it carefully in any sturdy carton with enough packing material to prevent damage. Include a note describing the problem to our Service Center and be sure to give your return address and phone number. We also suggest that you insure the package for your protection. Consumer-replaceable parts and accessories are available at Black & Decker Household Appliance Company-Owned or Authorized Service Centers.

FULL TWO-YEAR WARRANTY

Black & Decker warrants this product against any defects that are due to faulty material or workmanship for a two-year period after the original date of consumer purchase or receipt as a gift. This warranty does not include damage to the product resulting from accident or misuse.

If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges

prepaid, provided it is delivered prepaid to any Black & Decker Household Appliance Company-Owned or Authorized Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Answers to any questions regarding warranty or service locations may be obtained by calling toll free, in the U.S.: 1-800-231-9786; in Canada: 1-800-465-6070 or by writing to Consumer Assistance and Information:

For the U.S.A.: For Canada:

Black & Decker (U.S.) Inc. Black & Decker

6 Armstrong Road 626 Hanover Pike

Shelton, CT 06484-4797 Hampstead, MD 21074-0618

Listed by Underwriters Laboratories, Inc.

Copyright ©1996 Black & Decker

Pub. No. 168638-15-RV01

Printed in Canada
