USER MANUAL WEP870 SAMSUNG

Charging the headset 6

Wearing the headset 8

Connecting the neckstrap headset 9

Using your headset

Turning the headset on or off 10

Pairing and connecting the headset ....11

Using call functions ......13

Connecting the headset with a music device ....15

Appendix

Frequently asked questions ....17

Warranty and parts replacement 19

Correct disposal of this product 20

Correct disposal of batteries in this product 21

Specifications 22

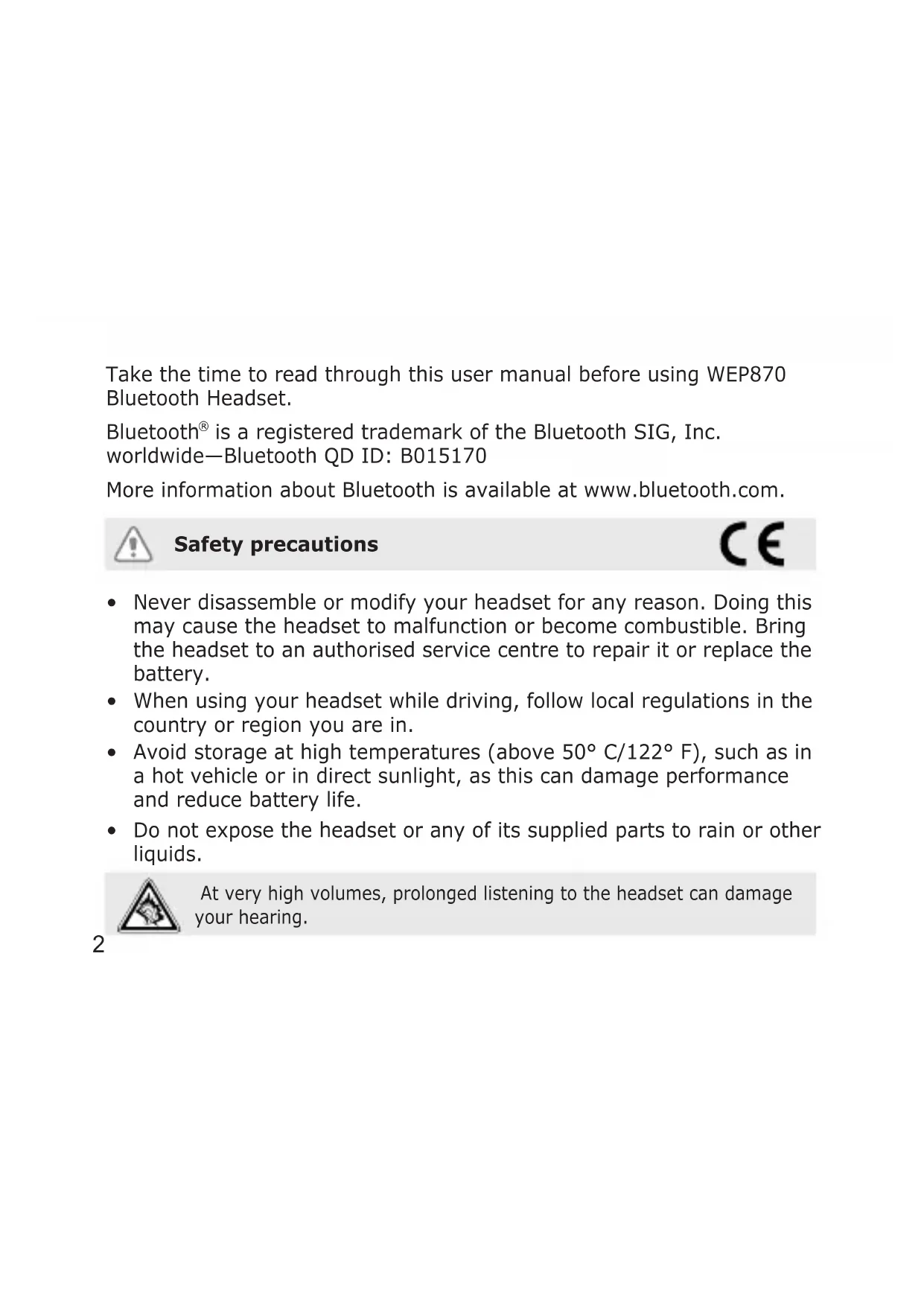

Take the time to read through this user manual before using WEP870 Bluetooth Headset.

Bluetooth ^® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: B015170

More information about Bluetooth is available at www.bluetooth.com.

Safety precautions

• Never disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorised service centre to repair it or replace the battery.
• When using your headset while driving, follow local regulations in the country or region you are in.
• Avoid storage at high temperatures (above 50^ C/ 122^ F), such as in a hot vehicle or in direct sunlight, as this can damage performance and reduce battery life.
• Do not expose the headset or any of its supplied parts to rain or other liquids.

At very high volumes, prolonged listening to the headset can damage your hearing.

Getting started

This section explains the proper use of your Bluetooth headset.

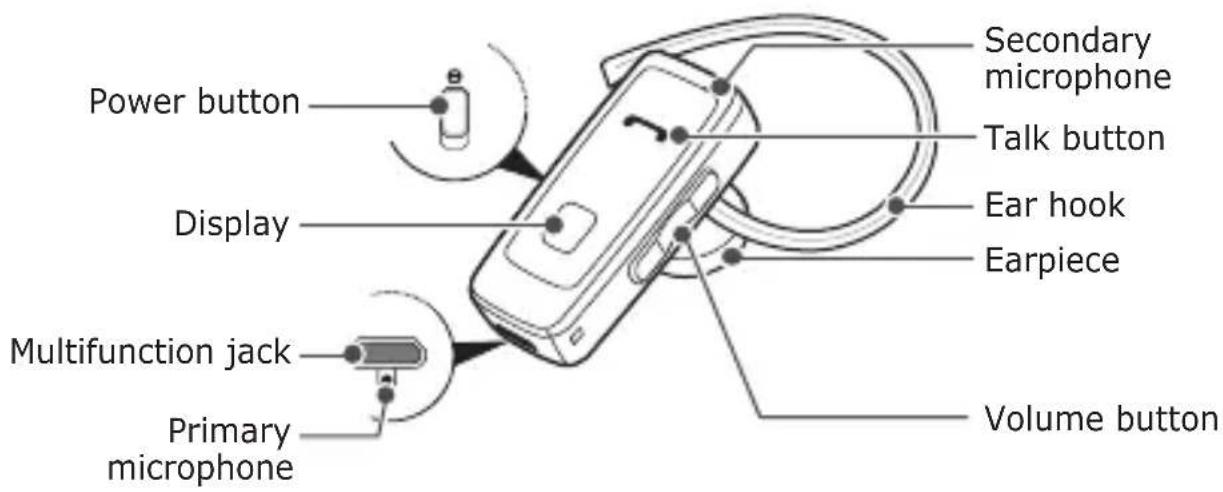

Your headset overview

Power button Display Multifunction jack Primary microphone Secondary microphone Talk button Ear hook Earpiece Volume button

Make sure you have the following items with your headset : Travel adapter, neckstrap headset, and user manual. The items supplied with your headset may vary depending on your region.

Button functions

Button Function
	Power Slide up or down to turn the headset on or off.
	Talk	Press to make or answer a call.Press to end a call.Press and hold to enter Pairing mode.
	Volume	Press to adjust the volume.During a call, press and hold to mute the microphone.

You can hear a beep when the volume level of the headset reaches to the lowest or highest level.

Icons

Icon Description
	Battery power level
	Bluetooth connectionOn: Standby or Active modeBlinking: Pairing with a Bluetooth enabled device
	Call connectionOn: Call in progressBlinking: Making or receiving a call

Charging the headset

This headset has a rechargeable internal battery which is non-removable. Charge the battery completely before using the headset for the first time.

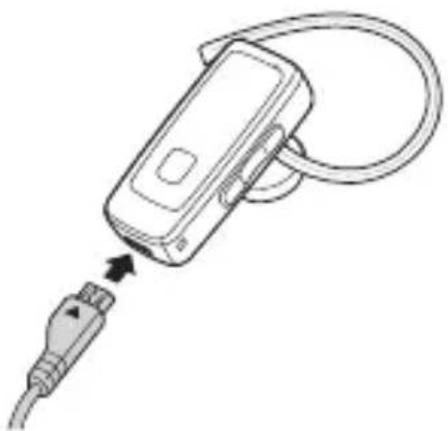

1 Plug the small end of the travel adapter into the multifunction jack.

Line drawing of a handheld device with cable and connector, showing a plug inserted into a socket (no text or symbols)

2 Plug the large end of the travel adapter into a power outlet.

During charging, the Battery icon will be moving.

If charging does not begin, slide the power button up to reset the headset.

3 When the headset is fully charged, the Battery icon is no longer moving. Unplug the travel adapter from the power outlet and the headset.

• Use only a Samsung-approved travel adapter. Unauthorised travel adapters may cause an explosion or damage to the headset.
• The battery will gradually wear out while charging or discharging because it is a consumable part.
• When a call comes in while charging, disconnect your headset from the travel adapter and answer the call.

When the battery power is low

The headset beeps and the Battery icon is empty and blinking. Recharge the battery. If the headsets powers off during a call, the call will automatically transfer to your phone.

Wearing the headset

Place the headset on your ear.

Line drawing of a person's head and shoulders with a hairpin (no text or symbols)

Depending on what ear you are going to wear the headset, simply remove and replace the ear hook.

Simple line drawing of a mechanical device with a curved handle and circular component (no text or symbols)

▲ Left

Simple line drawing of a mechanical clamp or connector with a curved handle and circular end (no text or symbols)

▲ Right

Connecting the neckstrap headset

Use the supplied neckstrap headset to listen to music.

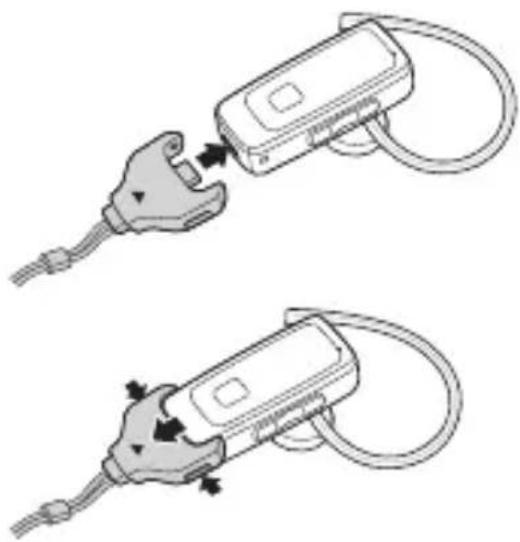

To use the neckstrap headset, plug the connector of the neckstrap headset into the multifunction jack on the headset.

Two technical line drawings of a handheld electronic device with cable and plug, showing internal components and wiring (no text or symbols)

To remove the neckstrap headset, squeeze both sides of the connector and unplug the neckstrap headset from the headset.

• For your safety, make sure the neckstrap headset does not get in the way of your arm or other surrounding objects while you are taking exercise or a walk.
• When you make or answer a call by using the neckstrap headset, place the primary microphone of the headset close to your mouth to speak. In this case, the secondary microphone that reduces background noise will be deactivated.

Using your headset

This section explains how to turn the headset on, pair and connect to the phone, and use various functions.

• Activated functions and features may differ depending on your type of phone.
• Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your headset.

Turning the headset on or off

• To turn the headset on, slide the power button up. The Battery icon appears. Whenever you turn the headset on, it will be reset.
• To turn the headset off, slide the power button down. The Battery icon disappears.

Pairing and connecting the headset

Pairing will create a unique and encrypted wireless link between two Bluetooth-enabled devices, such as a Bluetooth phone and your Bluetooth headset.

To use the headset with other Bluetooth devices, the devices must be paired. When trying to pair the two devices, keep the headset and the phone reasonably close together. After pairing, you can connect the two devices.

Pairing and connecting the headset to a phone

1 Enter Pairing mode.

• With the headset turned on, press and hold the talk button until the Bluetooth icon appears.
• When you turn on the headset for the first time, it automatically enters Pairing mode.

2 Activate the Bluetooth feature on your phone and search for the headset (see your phone's user manual).
3 Select the headset (WEP870) from the list of devices found by your phone.

4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your phone.

Your headset supports the Simple Pairing feature which allows the headset to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.

Disconnecting the headset

To disconnect the headset from your phone,

• Slide the power button down to turn off the headset.
• Use the Bluetooth menu on your phone.

Reconnecting the headset

When the headset is paired with a phone, it will attempt to automatically reconnect each time you turn the power on.

If the headset does not automatically attempt to reconnect,

• Press the talk button.
• Use the Bluetooth menu on your phone.

Using call functions

Making a call

Redialling the last number

Press the talk button to redial the last number.

For some phones, pressing the talk button opens the call log list. Press the talk button again to dial the selected number.

Dialling a number by voice

Press and hold the talk button, and then say a name to dial a number by voice.

Answering a call

When you hear incoming call tones, press the talk button to answer a call.

Ending a call

Press the talk button to end a call.

Rejecting a call

When a call comes in, press and hold the talk button to reject a call.

Using options during a call

You can use the following functions to control your call:

Adjusting the volume

Press the volume button up or down to adjust the volume.

Muting the microphone

Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on.

Transferring a call from the phone to the headset

Press the talk button to transfer a call from the phone to the headset.

Placing a call on hold

Press and hold the talk button to place the current call on hold.

Answering a second call

When you hear call waiting tones, press the talk button to end the first call and answer a second call.

When you hear waiting tones, press and hold the talk button to place the first call on hold and answer a second call.

To switch between the current call and a held call, press and hold the talk button.

Connecting the headset with a music device

You can separately pair and connect your headset with the phone and a Bluetooth device that plays music files.

1 Pair the headset with a phone. See page 11.
2 If successful, press and hold the talk button. The Bluetooth icon starts blinking.
3 Search for, pair, and connect with the music device you want according to the device's user guide.
4 Press the talk button to connect with the paired phone.

5 When the phone and the device are successfully connected with the headset, you can make or answer a call while you are listening to music.

• You can start, pause, and resume playback, and scan backward and forward in a music file only in the connected music device.
• If the headset loses the connection to the paired music device, press and hold the Volume up button to reconnect.

Answering a call while listening to music

When a call comes in while listening to music, your headset will alert you so that you can answer the call.

1 When the headset sounds incoming call tones, press the talk button. The music stops and you are connected with the caller.

2 When you have finished the conversation, press the Talk button to end the call. Your phone automatically resumes playback after the call.

Appendix

Frequently asked questions

Will my headset work with laptops, PCs, and PDAs?	Your headset will work with devices that support your headset's Bluetooth version and profiles. For specifications, see page 22.
Will anything cause interference with my conversation when I am using my headset?	Appliances such as cordless phones and wireless networking equipment may cause interference with your conversation, usually adding a crackling noise. To reduce any interference, keep the headset away from other devices that use or produce radio waves.
Will my headset interfere with my car's electronics, radio, or computer?	Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.
Can other Bluetooth phone users hear my conversation?	When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.
The sound is echoing while talking.	Adjust the speaker volume, or move to another area and try again.
How do I take care of my headset?	Wipe it with a soft dry cloth.
The headset does not fully charge.	The headset and the travel adapter may not have been connected properly.Separate the headset from the travel adapter, reconnect, and charge the headset.

Warranty and parts replacement

Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.(Depending on your country, the length of warranty may vary.)

If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.

• The warranty is limited to the original purchaser.
• A copy of your receipt or other proof of purchase is required for a proper warranty service.
• The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties.
• Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories.
• Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty.

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Specifications

Item Specifications and description
Bluetooth version 2.1+EDR
Support profile Headset Profile, Hands-Free Profile, Advanced Audio Distribution Profile
Operating range Up to 33 feet (10 metres)
Standby time Up to 160 hours*
Talk time Up to 6 hours*
Play time Up to 4 hours*
Charging time Approximately 2 hours*

* Depending on the phone type and usage, the actual time may vary.

SAMSUNG ELECTRONICS

Declaration of Conformity (R&TTE)

we, Samsung Electronics

declare under our sole responsibility that the product

Bluetooth Headset : WEP870

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

SAFETY EN 60950-1:2001+A11:2004

EMC EN 301 489-01 V1.6.1 (09-2005)

EN 301 489-17 V1.2.1 (08-2002)

RADIO EN 300 328 V1.7.1 (10-2006)

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

which will be made available upon request. (Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2009.03.09 Yong-Sang Park / S. Manager

CE

y.5.paz

(place and date of issue) (name and signature of authorised person)

* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
