USER MANUAL WS 1817 ADE

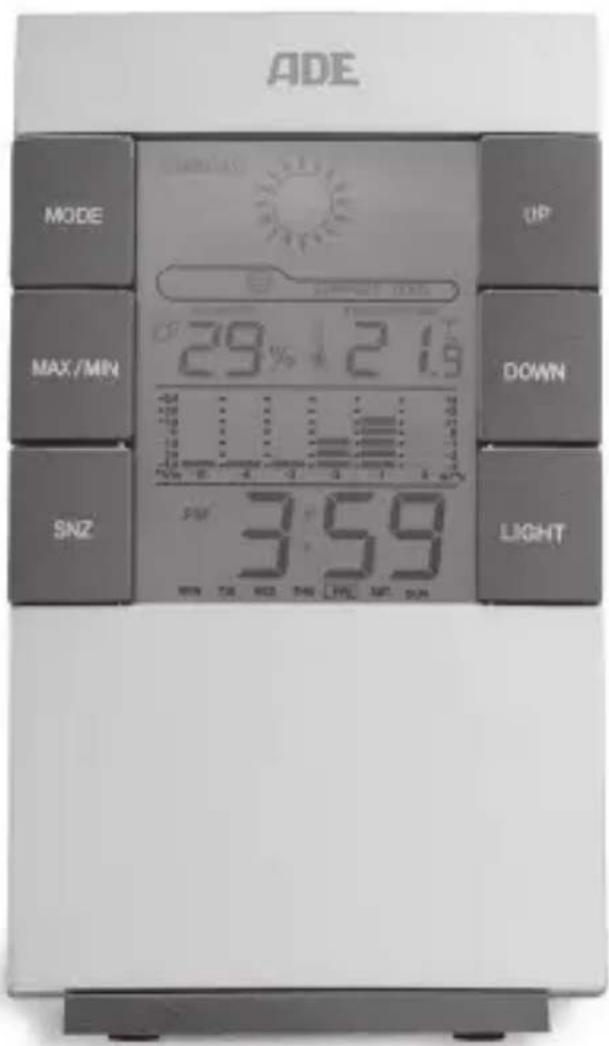

Digitale Wetterstation

Digital weather station | Estación meteorológica digital | Station météo numérique | Stazione meteorologica digitale | Cyfrowa stacja pogodowa

ADE MODE UP MAX/MIN 29% 2.6 DOWN SNZ 3:59 LIGHT

Bedienungsanleitung

WS 1817

Operating instructions | Instrucciones de operación Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Simple icon of a person using a laptop inside a circle (no text or symbols)

Icon of a person using a computer (no text or symbols)

22089 Hamburg, Germany

22089 Hamburg, Germany

C€

Garantie

Symbol of a trash bin with crossed x-marks and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

You have chosen to purchase a high-quality product from the ADE brand, which combines intelligent functions with an exceptional design. With this weather station, you will always have a variety of weather and temperature data available at a glance. The many years of experience of the ADE brand ensure a high technical standard and proven quality.

We wish you much enjoyment and success while monitoring and examining your weather data.

Your ADE Team

Table of Contents

General Information....26

Intended Use....27

Safety 27

Scope of Delivery ....30

Overview ....31

Inserting/changing batteries ....33

Suggestions for location....34

Setting date and time....34

Alarm....35

Weather functions....37

Comfort indicator....39

Other functions....39

Fault/Remedy 41

Technical Data 41

Declaration of Conformity ....42

Warranty 43

Disposal 43

About this manual

Simple icon of a person using a computer (no text or symbols)

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

Intended Use

The weather station displays different weather data and calculates a local weather forecast using such data.

Apart from that, the weather station displays the date and time and is also equipped with an alarm function.

The weather station is unsuited to commercial use in weather forecasting or in taking meteorological measurements.

Safety

This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe

use of the item and understand the dangers that may arise.

- Children must not play with the item.

- Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.

- Batteries, when swallowed, can be life-threatening. The device and batteries should therefore be kept out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for Children

- Keep children away from packaging material. Risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• Risk of explosion if batteries are improperly replaced. Replace the batteries only with those of the same or an equivalent type. Pay attention to the “Technical Data”.
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
• Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with it, rinse the affected areas immediately and thoroughly with clean water and consult a doctor immediately.

BEWARE of material damage

• Do not submerge the item in water or other liquids.
• Protect the item against sharp jolts and vibrations.
• Remove the batteries from the device once they have been used up or if you are not using the device for an extended period. You will thus avoid damage that may result from the leakage of battery acid.
• When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not subject the battery to any extreme conditions, by – for example – storing it on radiators or under direct sunlight. Increased risk of leakage!

- Clean the battery and device contacts, as needed, before inserting the battery.

- Only insert batteries of the same type; do not use different types or used and new batteries with each other.

- Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

- The foot has rubber pads at its bottom. Since surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain constituents that attack and soften the feet of the device. If necessary, place an underlay under the device.

Scope of Delivery

• Digital weather station
• 2 batteries LR03 (AAA) / 1.5 V
• Operating Manual

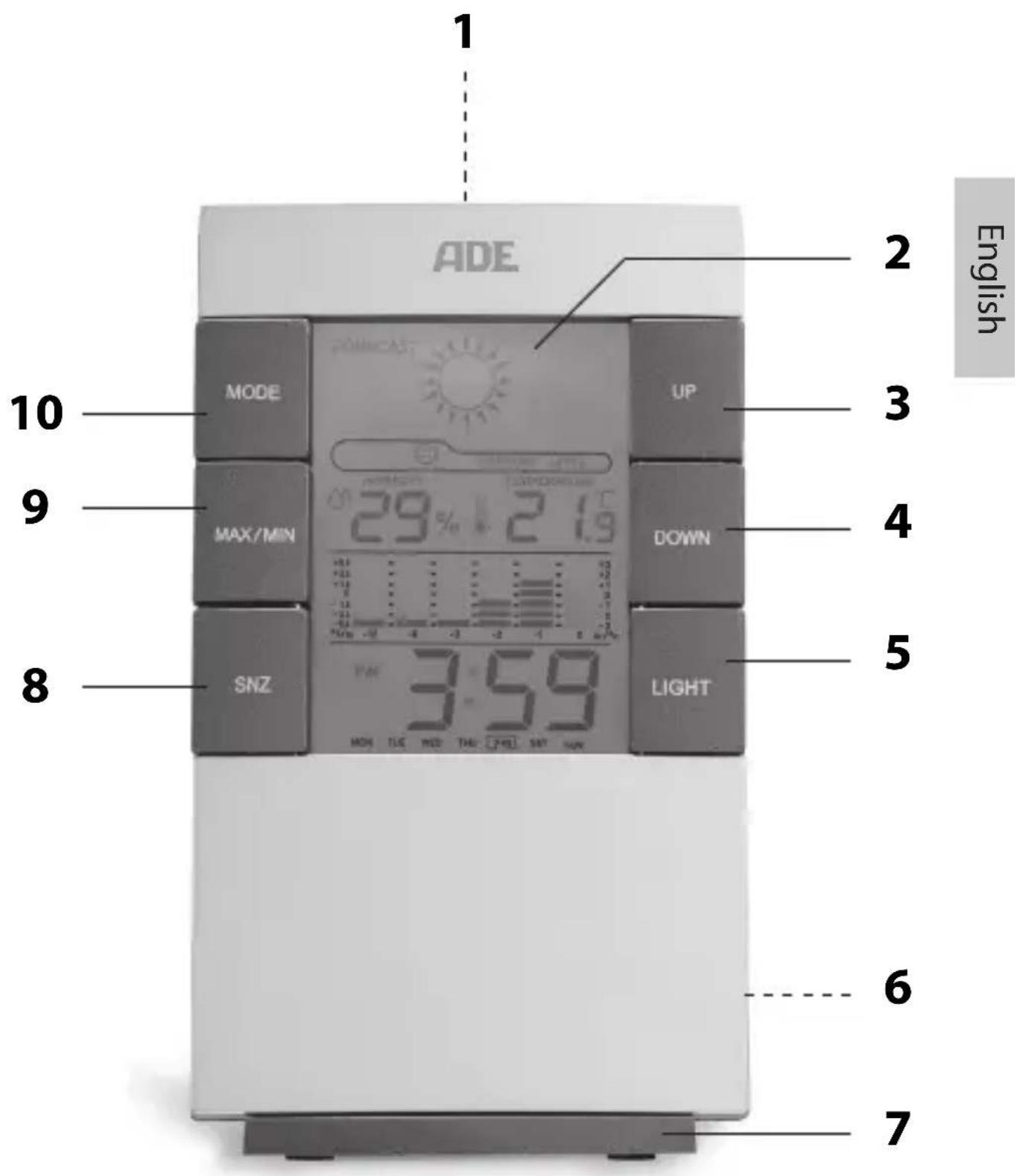

ADE MODE UP MAX/MIN DOWN SNZ 3:59 MON TLE MEO THA [P4] SAT SUN 1 English 2 3 4 5 6 7

1 Hanging loop
2 Display
3 UP button

• Change displayed values (setting mode)
• activates/deactivates alarm function
• Toggle between 12- and 24-hour displays (time format)

4 DOWN button

• Change displayed values (setting mode)
• Change temperature measuring unit

5 LIGHT button

- Illuminating the display

6 Battery compartment
7 Foot (retractable)
8 SNZ button

- Enable repeat alarm

9 MAX/MIN button

- Retrieve saved weather data

10 MODE button

• Call up setting mode
• Display calendar and alarm time

Inserting/changing batteries

For use you require 2 batteries of type LR03 (AAA), 1.5 V (included).

1. Open the battery compartment on the rear side.
2. Insert the batteries as shown on the base of the battery compartment. Pay attention to the correct polarity (+/-).
3. Close the battery compartment again.

Suggestions for changing the battery:

• A change of batteries is necessary when the battery symbol 📁 or nothing at all is shown on the display.
• Only use the type of battery that is specified in the “Technical Data”.
• Always exchange all of the batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see “Disposal”).

As soon as the device is powered, a beep will sound. Shortly thereafter, the display will show the following values:

• Indoor temperature
• Humidity
• Comfort indicator

DANGER of severe injuries

-During wall installation, there must be no electrical cables, gas or water pipes installed in the walls at the mounting site. There is a risk of electric shock when drilling otherwise!

• The device has a fold-out foot and a hanging loop for wall mounting.
• Where possible, select a location in which the device is not exposed to direct sunlight.

Setting date and time

If there is more than approx. 5 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.

1. Press and hold down MODE until the hour digit flashes on the display.
2. Use UP or DOWN to set the current hour.
3. Press MODE.

4. Use UP or DOWN to set the current minute.

5. Press MODE twice.
   "M" and "D" will appear on the display.

6. Press and hold down MODE until the year indicator flashes on the display.
7. Use UP or DOWN to set the current year.
8. Press MODE.
9. Use UP or DOWN to set the current month.
10. Press MODE.
11. Use UP or DOWN to set the current date.
12. Press MODE repeatedly until the display shows the set time.

The procedure has been completed.

Alarm

Setting the alarm time

1. Press and hold down MODE until the hour digit flashes on the display.
2. Press MODE repeatedly until the display shows "0:00" or the last set alarm time and 🔒.
3. Press and hold down MODE until the front digit flashes on the display.
4. Use UP or DOWN to set the desired alarm hour.

5. Press MODE.

6. Use UP or DOWN to set the desired alarm minute.

7. Press MODE repeatedly until the display shows the set time.

The procedure has been completed.

Being awakened

At the set time, you will be woken by an alarm signal, which will become more intense as the waking time increases. In addition, the display backlight will turn on.

Switching the alarm off completely

-Press any button (except SNZ) to stop the alarm. After 24 hours, the alarm will be triggered again.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again.

Repeat alarm (snooze function)

-Press the SNZ button once when the alarm signal sounds.

The alarm signal will be muted and the alarm symbol 🙏 will appear flashing.

After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Switching the alarm function on/off

- Using the UP button, turn the alarm function on and off.

As soon as the alarm symbol 🔒 appears on the display next to the time, the alarm function will be enabled.

Weather functions

Weather forecast

After start-up, the information still can not be used for weather forecasting for approximately 12 hours, since the weather station needs this time to collect and analyse the weather data.

The weather forecast results from the measured indoor temperatures and humidity.

An absolutely reliable weather forecast is not possible on the basis of these data alone.

The weather forecast is presented in the form of four animated indications on the display under "FORECAST":

■ sunny
- light cloud
- cloudy
Rain

Temperature trend

The temperature trend is displayed as a histogram of the last 12 hours.

Saved weather data

Using the MAX/MIN button, you will get the highest and lowest temperature and humidity values for the last 24 hours displayed.

Press 1x: MAX values are displayed

Press 2x: MIN values are displayed

Press 3x: normal display indicator

Comfort indicator

The comfort indicator consists of temperature (T) and humidity (L).

T: pleasant

L: pleasant

T: a little too cool or warm

L: a little too dry or wet

T: too cold or warm

L: considerably too dry or wet

Other functions

Illuminating the display

- Press the SNZ button to turn on the display backlight for approx. 8 seconds.

Display calendar and alarm time

-Press MODE for the following displays:

Once = day and month

Twice = set alarm time

Thrice = time (standard display)

Changing time format

-Press and hold down the UP button for approx. 3 seconds to toggle between 12- and 24-hour displays.

In the 12-hour format, the display shows afternoon hours with "PM".

Changing the unit of measurement

-Press the DOWN button to display the temperature in °Celsius or °Fahrenheit.

Resetting the weather station to default settings

Reset the weather station to its default settings if the display shows unusual and/or obviously incorrect values.

1. Remove the batteries from the battery compartment and wait a moment.
2. Re-insert the batteries. Pay attention to the correct polarity of the batteries (+/-). The plus pole (+) must face upwards.
3. Set the time and date anew.

Fault/Remedy

Fault Possible Cause
Temperature indication appears too high.	· Check whether the device is exposed to direct sunlight.
The indicator is illegible, the function is unclear, or the values are obviously false.	· Remove the batteries for a few moments.

Technical Data

Model: Digital weather station

WS 1817

Batteries:

2x LR03 (AAA)/1.5 V

Measuring range:

• Temperature: 0 °C - 50 °C (32 °F - 122 °F)
• Relative humidity: 20% - 99%

Temperature

1^ C

resolution:

Resolution relative

8%

humidity:

Distributor:

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the digital weather station WS 1817 complies with EU directives 2014/30/EU and 2011/65/EU.

The declaration loses its validity if modifications have been made to the device without our approval.

Hamburg, May 2018

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

C€

Dear Valued Customer,

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer.

Such batteries can thus be disposed of in an environmentally friendly way.
