HCTB1 - Vacuum Cleaner TELEFUNKEN - Free user manual and instructions

Product type	Cordless stick vacuum cleaner rechargeable
Brand	Telefunken
Model	HCTB1
Power supply	220-240 V ~50/60 Hz, rechargeable battery 22.2 V
Power	155 W
Noise level	< 70 dB(A)
Dust container capacity	Approx. 0.5 L (estimated)
Weight	Approx. 2.5 kg (estimated)
Dimensions (L x w x h)	Approx. 25 x 15 x 110 cm (estimated)
Main functions	Dry vacuuming, cordless use, wall mounting
Included accessories	Tube, motorized brush, crevice tool, brush with flexible hose, accessory clip
Filter type	Washable filter (internal)
Collection system	Bagless, removable dust container
Charge indicator	LED with 3 bars
Maintenance and cleaning	Empty the container, wash filters with hot water, clean brush with scissors
Safety	Warning against vacuuming liquids, incandescent objects, use near water
Spare parts and repairability	Parts available via after-sales service or website pieces-detachees.sogedis.fr
General information	Domestic use only, warranty void if used improperly

Frequently Asked Questions - HCTB1 TELEFUNKEN

How to charge the Telefunken HCTB1 vacuum cleaner?

Plug the device into the mains using the provided charger. The LED indicates the charge level: 3 bars means fully charged. A full charge cycle takes about 4 to 5 hours.

What is the battery runtime?

The runtime is about 20 to 30 minutes under normal use, depending on the accessory used and the selected power.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry vacuuming. Never vacuum water or any other liquid, as this may damage the device and cause an electric shock.

How to clean the vacuum filter?

Remove the filter from its housing, wash it with hot water (no detergent), then let it dry completely before putting it back. A dirty filter reduces performance.

What to do if the motorized brush stops spinning?

Check that the brush is not blocked by hair or fibers. Use a pair of scissors to cut the hair wrapped around the roller. You can also open the brush cover for deep cleaning.

How to empty the dust container?

Press the release button of the container, remove it and empty its contents into a trash can. For thorough cleaning, you can rinse the container with cold water and dry it before replacing.

Can the vacuum cleaner be mounted on the wall?

Yes, a wall hook is provided. Fix it to the wall with a screw, then hang the appliance by the notch at the bottom. This allows space-saving storage.

What accessories are included with the HCTB1?

The vacuum cleaner comes with a tube, a motorized brush, a crevice tool (for corners and cracks), a brush with flexible hose, and an accessory clip to store small accessories on the tube.

Why does the vacuum cleaner stop during use?

This may be due to a discharged battery, a clogged filter, or a full container. Recharge the device, clean the filter, or empty the container to resolve the issue.

Can I use accessories from other brands?

It is not recommended to use accessories not provided by Telefunken. This could damage the device and void the warranty.

USER MANUAL HCTB1 TELEFUNKEN

Safety advices and warnings 3

Warning 3
Danger of electrocuon 5.
Conformity 7

Descripon 8

Set-up and Use 9

Before rst use 9
✓ Installaon: how to x to the wall 9
Assembling the appliance with its accessories 10
Using your appliance 12

Cleaning and maintenance 12

Technical informaon 14

Environment and recycling 14

SAFETY ADVICES AND WARNINGS

WARNING!

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.

• THIS APPLIANCE IS INTENDED FOR DOMESTIC HOUSEHOLD USE ONLY AND SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF THERE IS VISIBLE SIGNS OF DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALY IN ANY WAY. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN OR THE NEAREST AUTHORIZED SERVICE CENTER FOR EXAMINATION, REPAIR OR ELECTRICAL OR MECHANICAL ADJUSTMENT.

• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.

• THE APPLIANCE SHALL ONLY BE USED WITH ITS SUPPLIED BATTERY.

• THE APPLIANCE SHALL BE SUPPLIED WITH THE VOLTAGE MARKED ON THE RATING PLATE.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.
• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME. THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
• CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.
• KEEP AWAY THIS APPLIANCE AND ITS ELECTRIC PLUG AWAY FROM CHILDREN UNDER 8 YEARS OLD WHEN IT'S ENERGIZED.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.

• DO NOT USE THE APPLIANCE IF ITS FILTER(S) ARE NOT CORRECTLY IN PLACE.

• DO NOT USE THE APPLIANCE IF ITS ACCESSORIES ARE NOT PROPERLY FITTED.
  DO NOT USE THE APPLIANCE IF THE ACCESSORIES ATTACHED TO IT ARE DEFECTIVE. REPLACE THEM IMMEDIATELY.
  DO NOT USE THE APPLIANCE TO VACUUM UP WATER OR ANY OTHER TYPE OF LIQUID.

• DO NOT USE THE APPLIANCE IF THE ON/ OFF SWITCH DOES NOT WORK.
• USE THE APPLIANCE HANDLE/S, TO CATCH OR MOVE IT.
• DO NOT FORCE THE APPLIANCE'S WORK CAPACITY.
• RESPECT THE MAX LEVEL INDICATION.
• KEEP THE APPLIANCE IN A DRY, DUST-FREE PLACE, OUT OF DIRECT SUNLIGHT.
• MAKE SURE THAT DUST, DIRT OR OTHER FOREIGN OBJECTS DO NOT BLOCK THE FAN GRILL ON THE APPLIANCE.
• DO NOT OPERATE OVER AREAS WHICH CONTAIN METAL OBJECTS SUCH AS NAILS AND/OR SCREWS.
• NEVER VACUUM HOT OR SHARP OBJECTS (CIGARETTE BUTTS, ASH, NAILS, ETC.).

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.

• ENSURE TO CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.

• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• NEVER IMMERSE THIS APPLIANCE IN WATER.
  FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
• NEVER USE APPLIANCE AS AN ADDITIONAL HEATING SOURCE.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE. THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED TECHNICIANS IN ORDER TO AVOID A HAZARD. THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
• THE APPLIANCE IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.

• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.

• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE OR THE APPLIANCE ITSELF.

• CAUTION: MAINTAIN THE APPLIANCE DRY.
• DO NOT USE THE APPLIANCE NEAR BATHTUBS, SHOWERS OR SWIMMING POOLS.
• NEVER USE THE ELECTRIC WIRE TO LIFT UP, CARRY OR UNPLUG THE APPLIANCE.

CONFORMITY

THIS APPLIANCE HAS BEEN PRODUCED, CONTROLLED AND IN COMPLIANCE WITH THE FOLLOWING EUROPEAN DIRECTIVES LVD 2006/95/EC, EMC 2004/108/EC, ERP 1275/2008/EC, EMF 2013/35/EU, REACH 1907/2006/EC, WEEE 2012/19/EC, ROHS 2002/95/EC + 2011/65/EU.

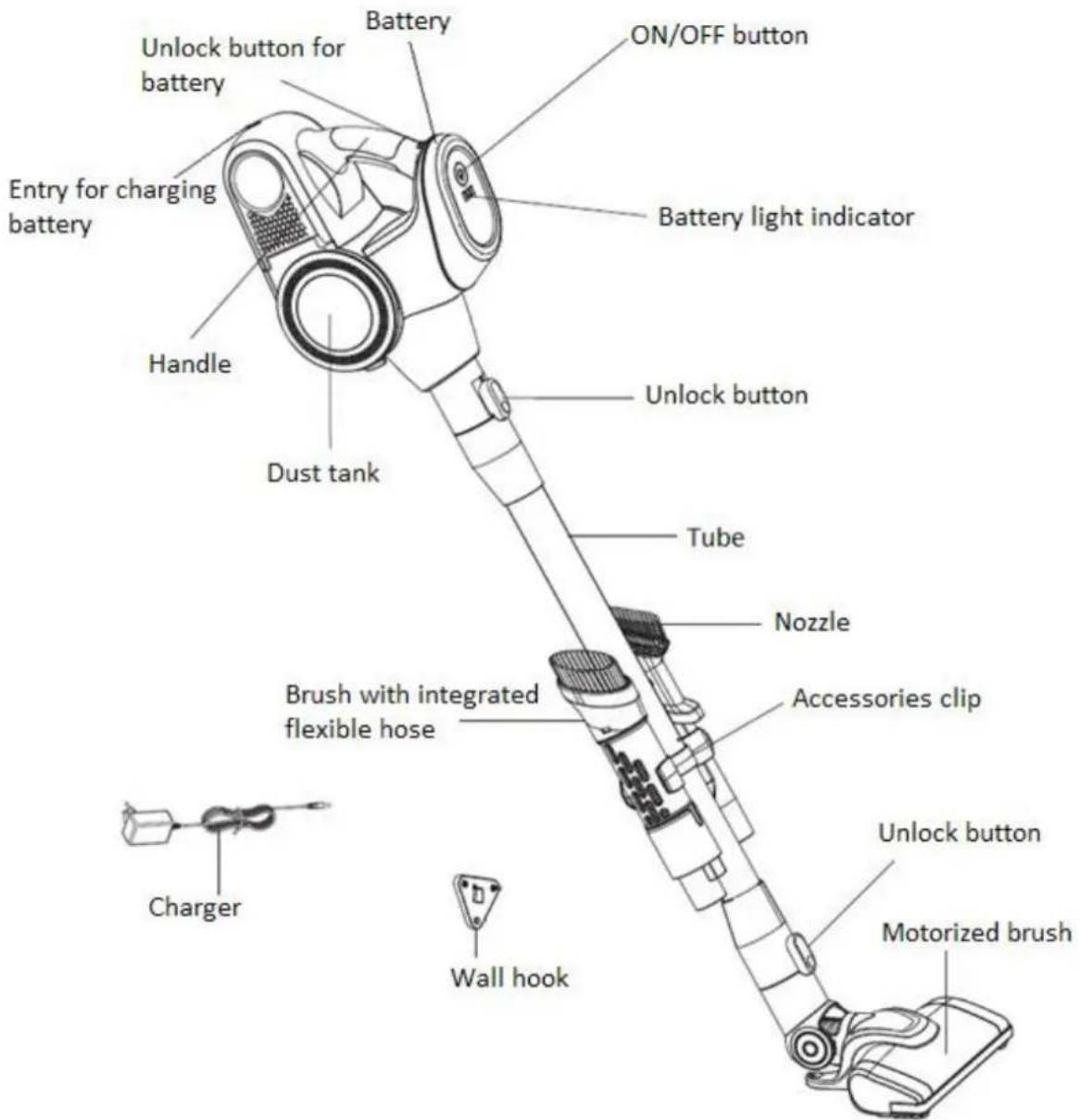

DESCRIPTION

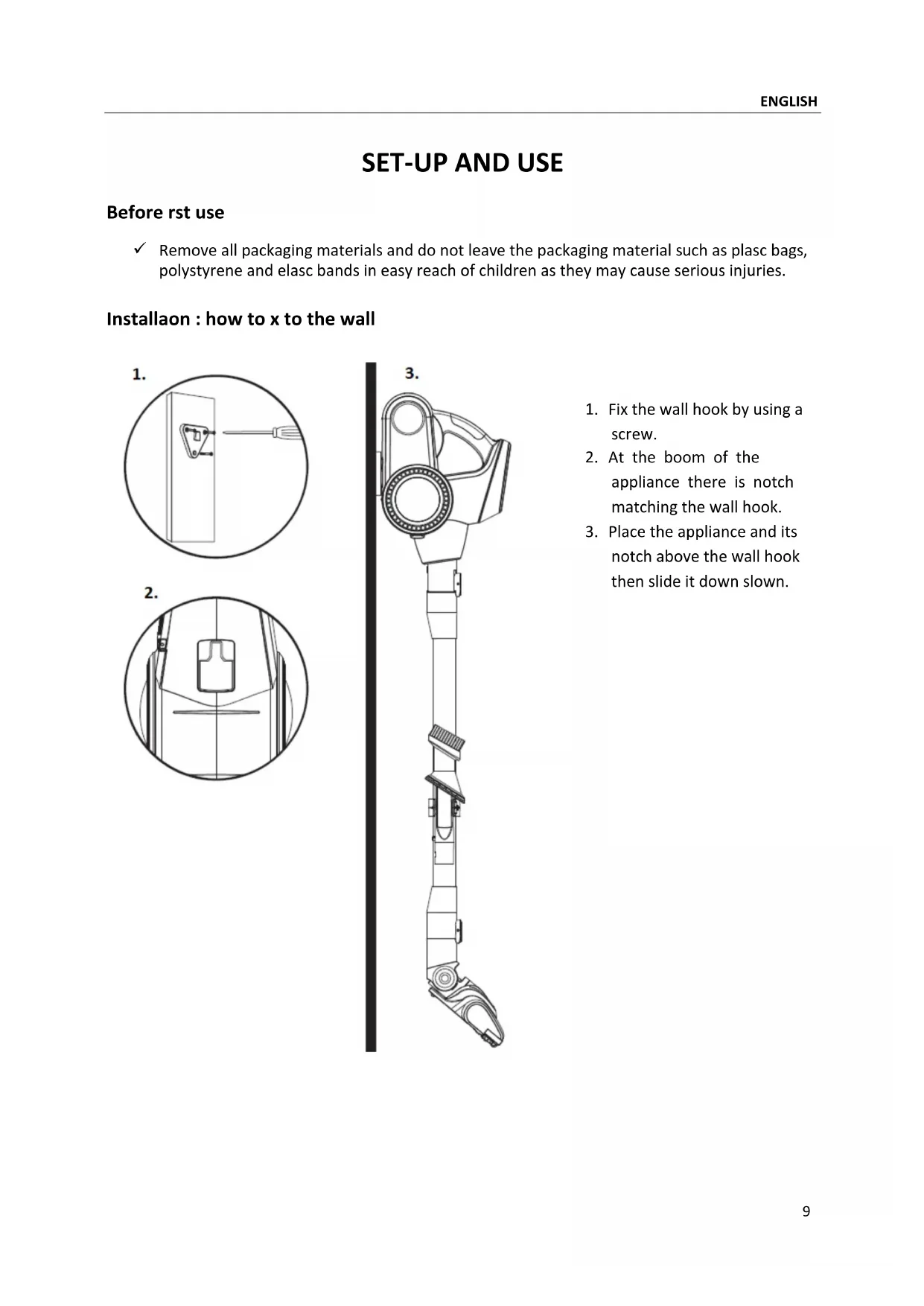

SET-UP AND USE

Before rst use

Remove all packaging materials and do not leave the packaging material such as plasc bags, polystyrene and elast bands in easy reach of children as they may cause serious injuries.

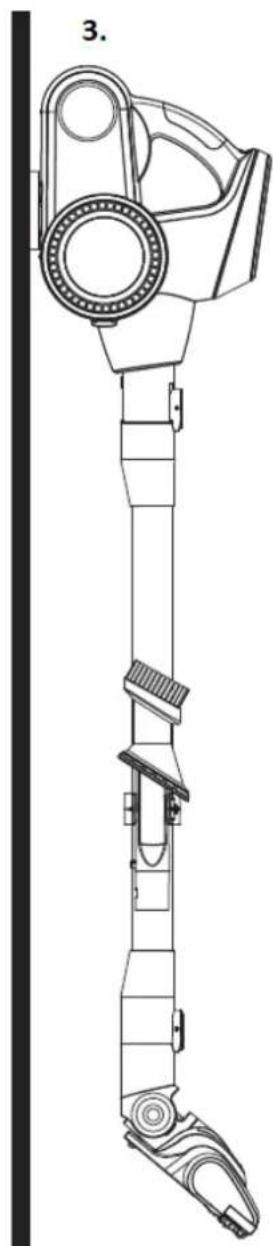

Installaon : how to x to the wall

1. Fix the wall hook by using a screw.

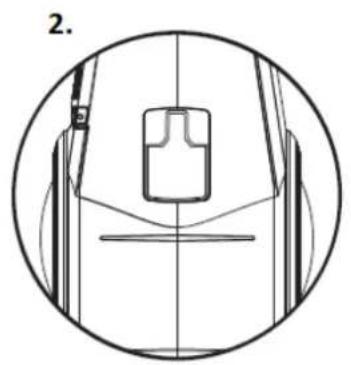

2. At the boom of the appliance there is notch matching the wall hook.
3. Place the appliance and its notch above the wall hook then slide it down slown.

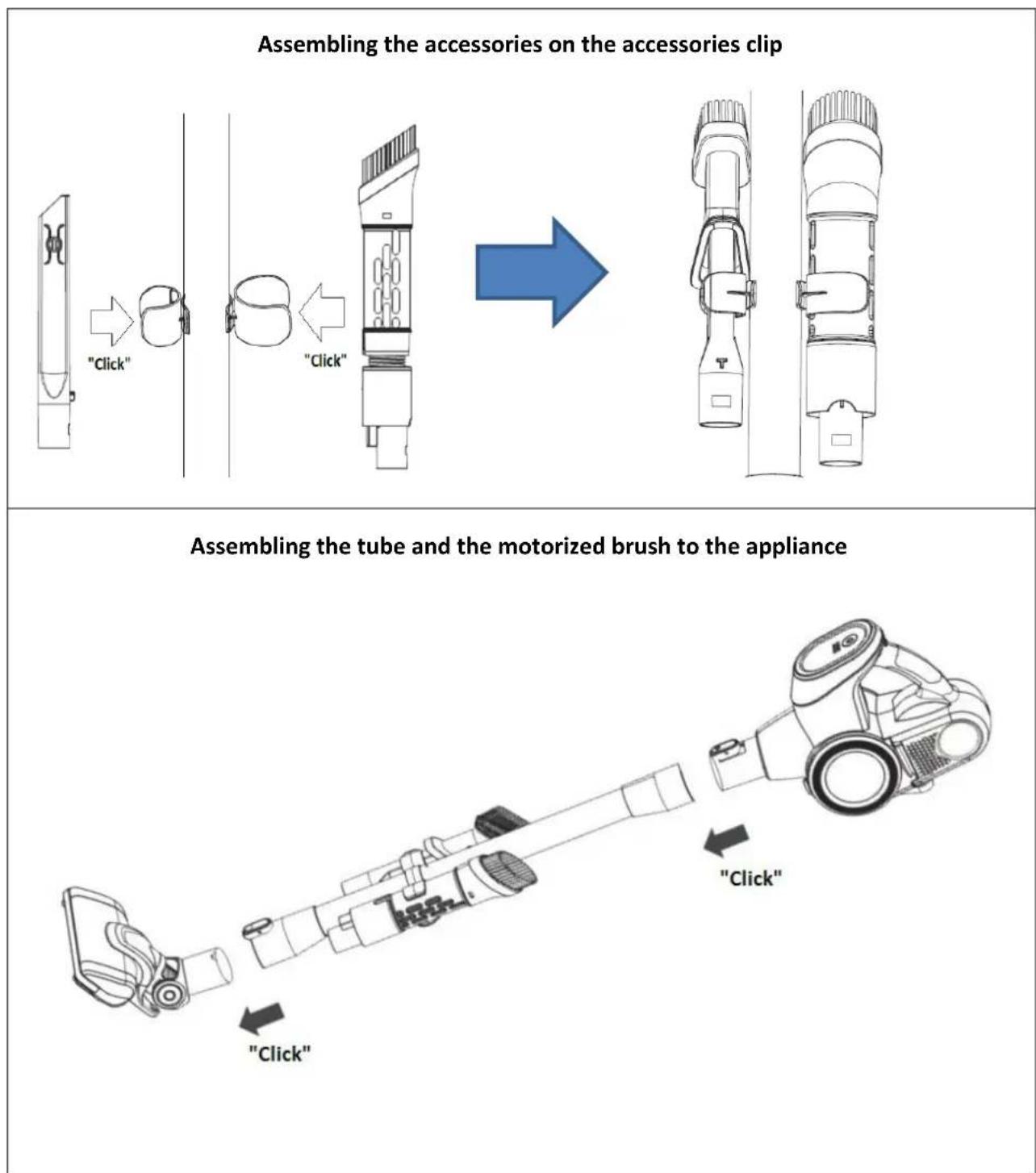

Assembling the appliance with its accessories

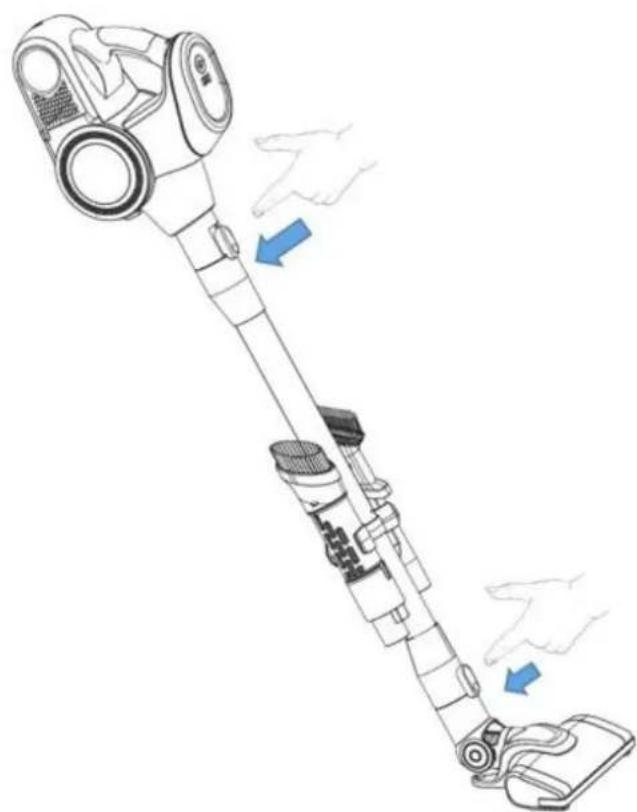

Removing the tube and the motorized brush to the appliance

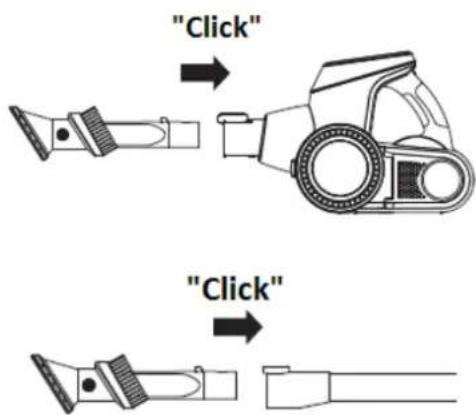

Assembling the nozzle on the appliance

To remove the nozzle on the main body or on the tube, just press the unlock buon.

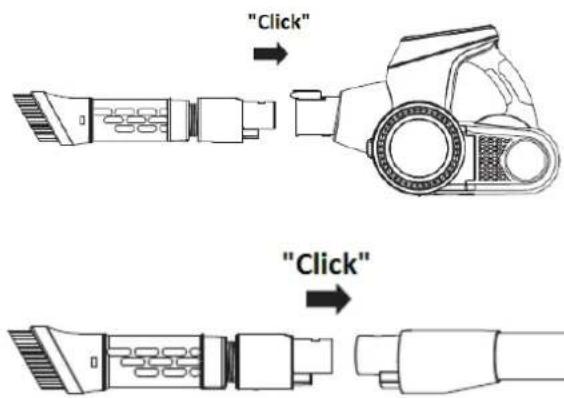

Assembling the brush on the appliance

To remove the brush on the main body or on the tube, just press the unlock buon.

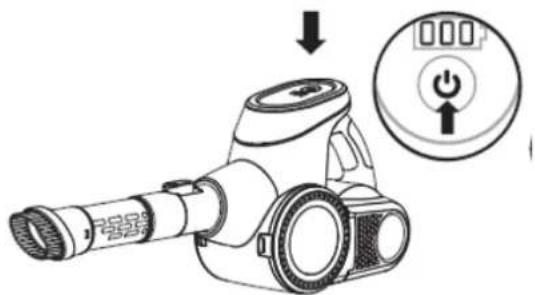

Using your appliance

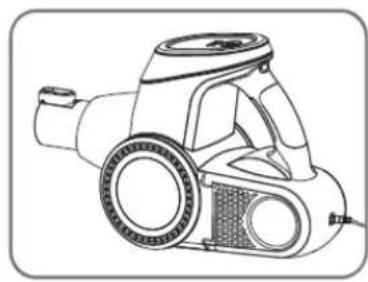

Step 1

Charge your appliance.

Step 2

Your appliance is fully charged when the charging light indicator shows 3 lines.

Step 3

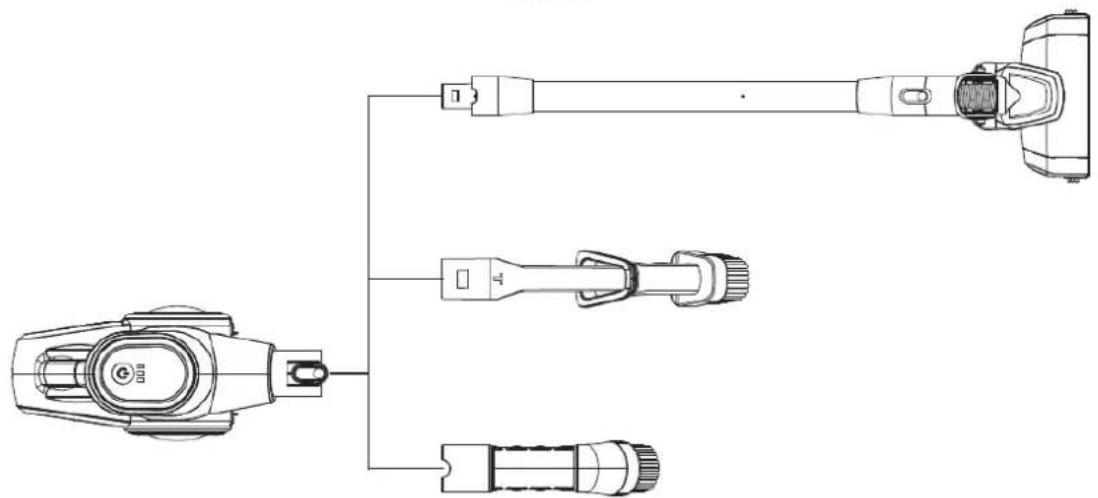

At the end of the charging me, select your preferred accessory to be used for vacuuming.

CLEANING AND MAINTENANCE

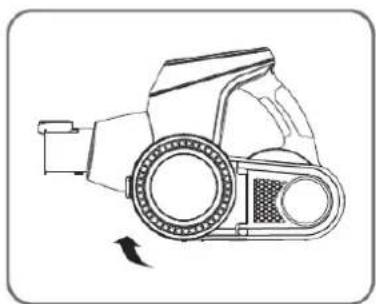

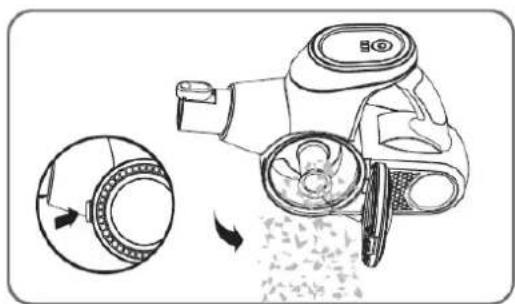

Emptying your dust tank

Cleaning your appliance

Use a clean cloth to clean the outside of your appliance.

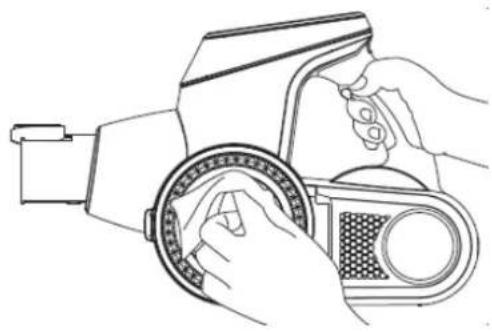

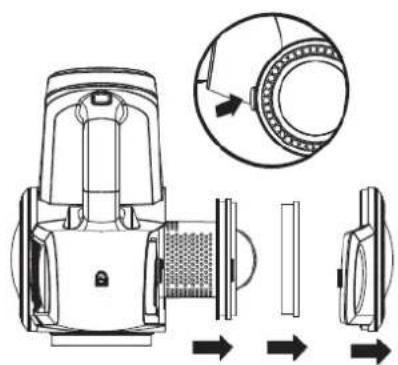

Cleaning the Iters

Aer removing the liters from its locaon, wash them with warm water then let them dry before pung them back.

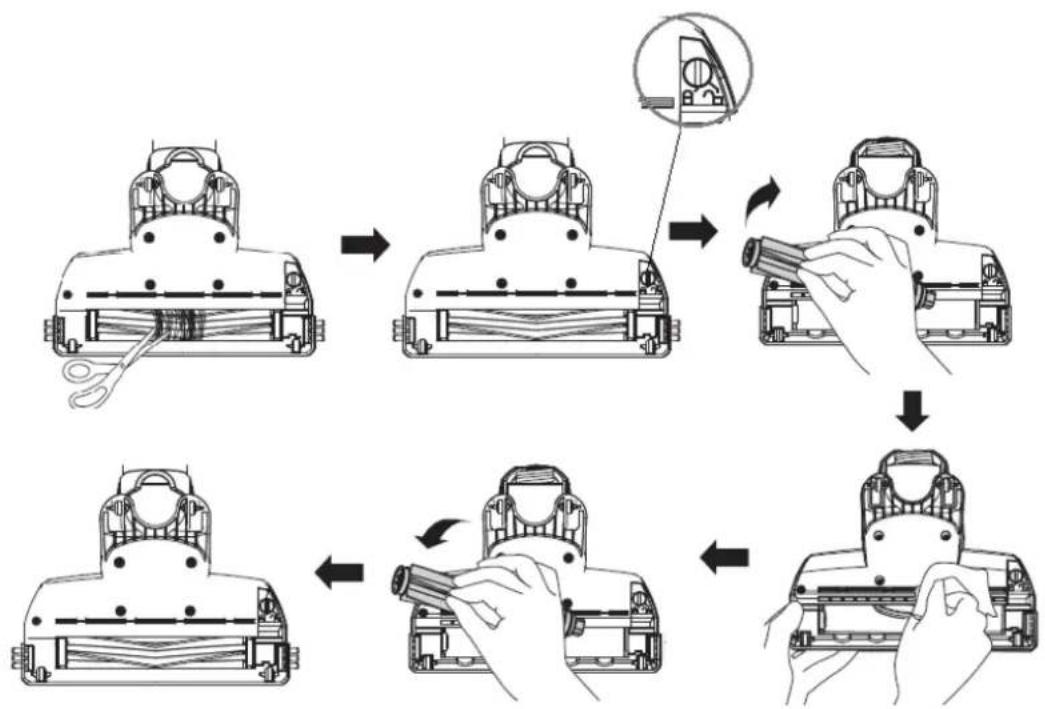

Cleaning the motorized brush

Use a scissor to cut tangled hair inside the cylindric brush.

To clean the cylindric brush and the inside of the motorized brush, use a coin on the unlock buon to open the cover by turning it le.

At the end of the cleaning, replace the cover on its locaon and the unlock buon; then use a coin to LOCK the cover.

TECHNICAL INFORMATION

Model	HCTB1
Rated voltage	220V-240V ~50Hz/60Hz
Rated power input	155W
Sound level	<70dB(A)
Voltage	22.2V

ENVIRONMENT AND RECYCLING

For EU product versions and/or in case that it is requested in your country:

• The materials of which the packaging of this appliance consists are included in a collecon,

classicaon and recycling system. Should you wish to dispose of them, use the appropriate

public recycling bins for each type of material.

The product does not contain concentraons of substances that could be considered harmful to the environment

• The following informaon concerns the energy labeling and the ecological design:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selecve collecon of waste electrical and electronic equipment (WEEE)

This appliance complies with Direcve 2012/19/EC on Low Voltage and Direcve 2004/108/EC on

Electromagnec Compability.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX
