Product Type	In-ear Monitors (earplugs)
Brand	Mackie
Model	MP240
Drivers	Dual hybrid: dynamic (bass) + Knowles® balanced armature (mid/high)
Impedance	16 Ω
Sensitivity	108 dB / mW
Frequency Response	20 Hz - 20 kHz
Max Input Power	10 mW
Cable Length	1.5 m (59.1 in)
Connector	3.5 mm stereo mini-jack (6.35 mm adapter included)
Connection Type	Detachable MMCX (swivel)
Design	Molded ergonomic shell, over-ear fit
Eartips Included	Foam, silicone, double-flange; sizes S, M, L
Included Accessories	Rigid carrying case, 6.35 mm adapter
Weight	0.03 kg (0.07 lb)
Recommended Use	Stage, studio, audiophile
Care and Cleaning	Clean with mild detergent; do not immerse
Safety	Adjust volume gradually; do not use while driving or sleeping
Warranty	Limited warranty (see terms at mackie.com)

Frequently Asked Questions - MP240 MACKIE

How to clean MP240 earphones?

Use a mild detergent solution and a lint-free cloth. Never immerse the earphones in water. Regularly check that the eartips are clean.

What types of eartips are included with the MP240?

Three types: foam, silicone, and double-flange, each in S, M, L sizes. Choose the one that offers the best comfort and good isolation.

How to properly insert MP240 in-ear monitors?

Gently pull the earlobe upward, insert the earphone with a slight twisting motion until it is well seated. Check the L/R markings on the earpiece.

Can I replace the MP240 cable?

Yes, the cable is detachable thanks to the swivel MMCX connector. You can replace it if damaged.

What is the impedance of MP240?

The impedance is 16 Ω, making them compatible with most mobile devices and audio interfaces.

What to do if an eartip gets stuck in the ear?

Consult qualified medical personnel immediately. Do not attempt to remove it yourself with tools.

Are MP240 suitable for stage use?

Yes, they are designed for performers with high sound isolation and clear audio, even in noisy environments.

How to avoid hearing damage with MP240?

Set volume to minimum before connecting, then increase gradually. Adhere to exposure limits (e.g., 90 dB max 8h/day).

What to do in case of static electricity tingling?

Wear clothing made of natural fibers to minimize static electricity. This is a normal and harmless phenomenon.

Where to find warranty and technical support?

Visit www.mackie.com, Support section, or call 1-800-898-3211. Keep your sales receipt.

USER MANUAL MP240 MACKIE

Diagram of a running pedestrian climbing device with two sensors and a circular warning sign (no text or symbols)

MP-120 Single Dynamic Driver Professional In-Ear Monitors

MP-220 Dual Dynamic Driver Professional In-Ear Monitors

MP-240 Dual Hybrid Driver Professional In-Ear Monitors

OWNER'S MANUAL

Symbolic icon of a running person inside a circle, no text or numbers present

www.mackie.com

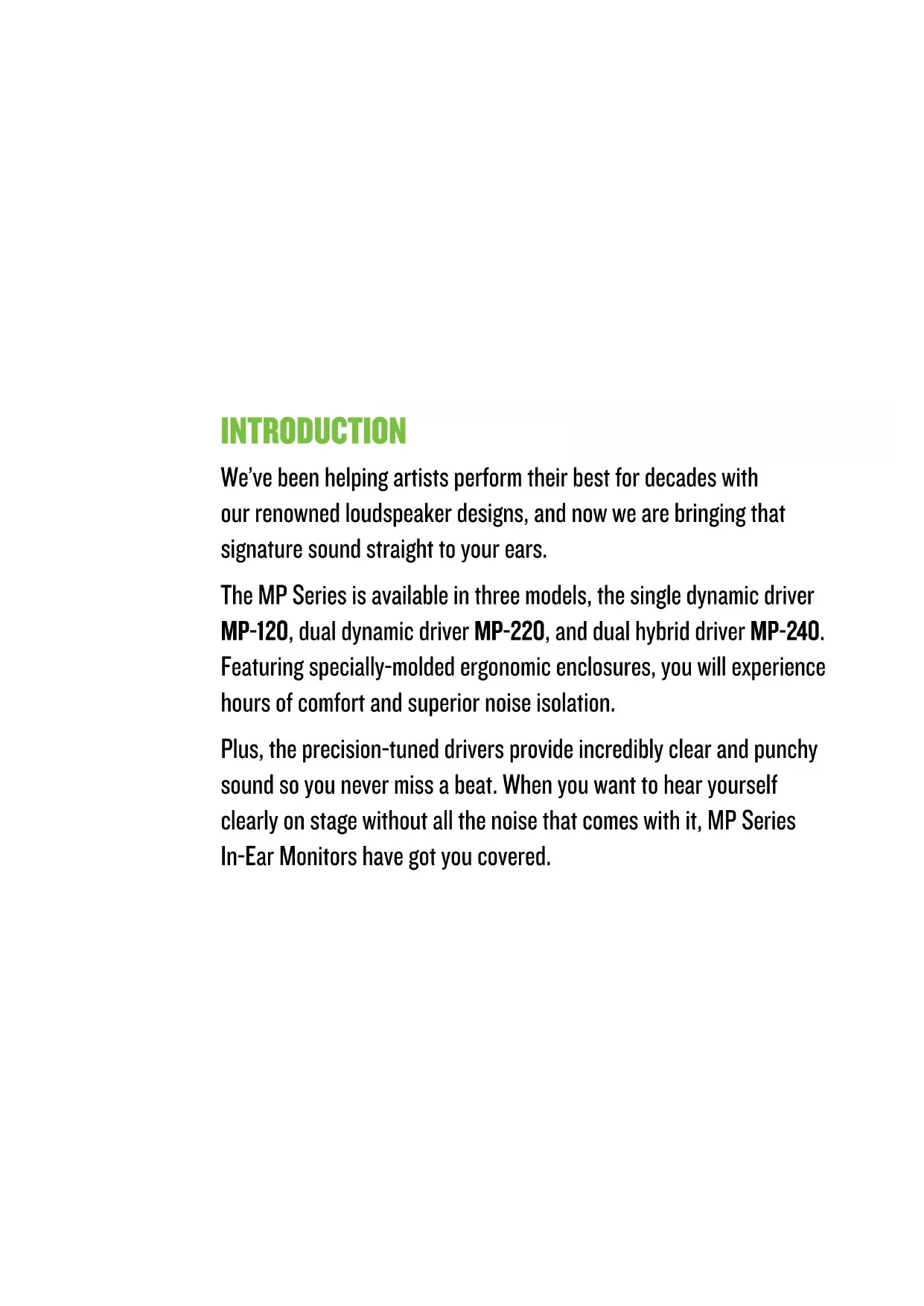

INTRODUCTION

We've been helping artists perform their best for decades with our renowned loudspeaker designs, and now we are bringing that signature sound straight to your ears.

The MP Series is available in three models, the single dynamic driver MP-120, dual dynamic driver MP-220, and dual hybrid driver MP-240. Featuring specially-molded ergonomic enclosures, you will experience hours of comfort and superior noise isolation.

Plus, the precision-tuned drivers provide incredibly clear and punchy sound so you never miss a beat. When you want to hear yourself clearly on stage without all the noise that comes with it, MP Series In-Ear Monitors have got you covered.

MP-120 Features

PROFESSIONAL IN-EAR MONITORS

- Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

PRECISION DYNAMIC DRIVER

- MP-120 in-ear monitors feature a single high-performance dynamic driver for responsive, full-range sound

MADE FOR ARTISTS

- MP-120 in-ear monitors deliver the performance and comfort that artists need to be in tune with the stage

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1/8" to 1/4" adapter

MP-220 Features

PROFESSIONAL IN-EAR MONITORS

- Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

MADE FOR ARTISTS

- MP-220 in-ear monitors deliver the clarity, performance, and comfort that artists need to perform their best

DUAL PRECISION DRIVERS

- With dual precision dynamic drivers, MP-220 in-ear monitors offer powerful bass response and enhanced clarity

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works best for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1/8" to 1/4" adapter

MP-240 Features

PROFESSIONAL IN-EAR MONITORS

- Ergonomically molded low-profile enclosure offers maximum comfort, sound isolation and bass response

MADE FOR ARTISTS

- MP-240 in-ear monitors deliver the incredible high-frequency clarity and dynamic response that artists need to perform their best

HYBRID DUAL DRIVER DESIGN

- Utilizing a dynamic driver for low frequencies and a Knowles® balanced armature driver for mids and highs, MP-240 in-ear monitors deliver high-fidelity, studio quality sound for artists, engineers, and audiophiles alike

HIGH-FIDELITY CABLE

• The shielded, braided cable is designed for extra durability and sonic performance
• Equipped with a detachable MMCX connector that swivels for increased comfort and durability
• The over ear design keeps them securely in your ears and the cables behind your head for uninterrupted performance

PERFECT FIT

• With three different types of ear tips included and in three different sizes, you can choose what works best for your ears to provide maximum comfort and sound isolation
• Ear tip types included are foam, silicone, and double flange in small, medium, and large sizes

INCLUDED ACCESSORIES

• Hard molded case protects your investment when not in use
• 1/8" to 1/4" adapter

IMPORTANT SAFETY INSTRUCTIONS

1. Read, follow, and keep these instructions. Heed all warnings.
2. Do not use in or near dangerous environments. This includes driving, cycling, walking, jogging and other areas where traffic is present and accidents could occur.

3. Keep this product and its accessories out of reach of children. Handling or use by children may pose a risk of death or serious injury. Contains small parts and cords that may pose a risk of choking or strangulation.

4. Set the volume level of the audio device to a minimum, and then, after connecting the earphones, adjust the volume gradually. Sudden exposure to loud noises could cause hearing damage.

5. Install the in-ear monitors firmly. If an ear tip accidentally detaches and is left in your ear, it may cause injury.

6. Failure to use, clean, or maintain ear tips may increase the risk of the ear tips detaching from the nozzle and becoming lodged in your ear.

7. Prior to inserting the in-ear monitors, always recheck the ear tip to make sure it is firmly attached to the nozzle.

8. If an ear tip becomes lodged in your ear, seek skilled medical assistance to remove it. Damage to the ear may be caused by non-professionals attempting to remove the ear tip.
9. Keep in-ear monitors clean. To clean the in-ear monitors, wash outside with a mild detergent solution.

10. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

11. Do not immerse in water, such as while taking a shower, bath, or washing your face. Otherwise, sound deterioration or failures may result.

12. Do not use while sleeping as accidents may result.
13. Use a slow twisting motion to remove the earphones. Never pull on the earphone cord.
14. Stop using the earphones immediately if they are causing great discomfort, irritation, rash, discharge, or any other uncomfortable reaction.

15. If you are currently receiving ear treatment, consult your physician before using this device.

16. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss:

Duration, per day in hours	Sound Level
8 90 dB
6 92 dB
4 95 dB
3 97 dB
2 100 dB
1.5 102 dB
1 105 dB
0.5 110 dB
0.25 or less 115 dB

NOTE ON STATIC ELECTRICITY

Static electricity accumulated in the body may cause mild tingling in your ears. To minimize the effect, wear clothes made from natural materials.

Pure electrical circuit lines without any symbols

Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (2012/19/EU) and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service.

GETTING STARTED

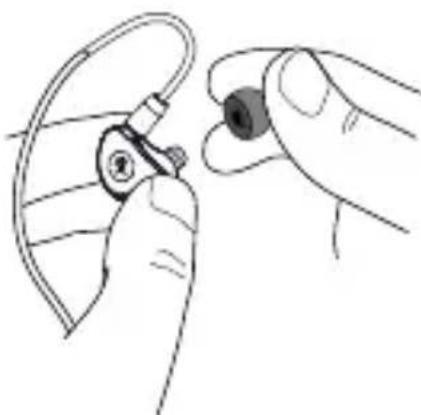

1. Select and attach one ear tip per in-ear monitor. It should easily attach by applying light pressure, but you may find that you have to rotate the ear tip back-and-forth until it's secure.

Illustration of a hand holding an earbell with a small ear component (no text or symbols)

1. Your ears are important to us! Be careful of permanent hearing damage. Lower the volume on your device. Even intermediate levels may be painfully loud. Always turn the volume all the way down before connecting the in-ear monitors or doing anything new that may affect the headphone volume. Then turn it up slowly as you listen carefully.

2. Plug the connector of the in-ear monitors into the device.

3. Carefully insert the in-ear monitors into your ears. The L/R markings are located on the inside of the in-ear monitors where the flexible over-ear piece meets the in-ear monitor.

Line drawing of an ear with a device inserted, showing a magnified inset (no text or symbols)

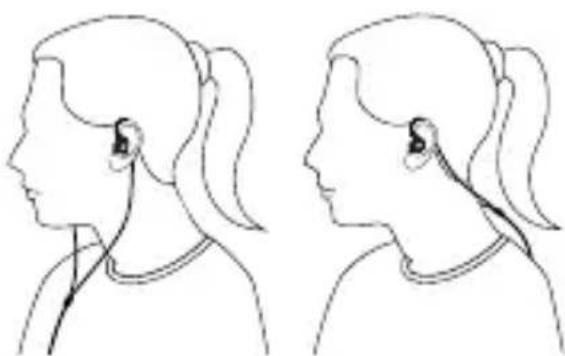

1. The cable may be located on your front or rear side.

Side-by-side line drawings of a human head profile showing ear and ear signals (no text or symbols)

1. Raise the volume on your device up to a comfortably loud listening level and enjoy!

Technical Specifications	MP-120 MP-220 MP-240
Bandwidth	20 kHz
Sensitivity	/mW 104 dB / mW 108 dB / mW
Maximum Input Power	0 mW 10 mW
Impedance	32 Ω	8 Ω	16 Ω
Drive Type	c Dual Dynamic Dual Hybrid
Input Type	3" • 1/4" Stereo
Output Type	Ear Monitors
Cable Length	59.1 in • 1500 mm
Weight	0.07 lb • 0.03 kg
	All specifications subject to change

Need help with the In-Ear Monitors?

• Visit www.mackie.com and click Support to find: FAQs, manuals, and addendums.
• Telephone [phone] to speak with one of our splendid technical support chaps (Monday through Friday, normal business hours, Pacific Time).

LIMITED WARRANTY Please keep your sales receipt in a safe place.

This Limited Product Warranty (“Product Warranty”) is provided by LOUD Audio, LLC. (“LOUD”) and is applicable to products purchased in the United States or Canada through a LOUD-authorized reseller or dealer. The Product Warranty will not extend to anyone other than the original purchaser of the product (hereinafter, “Customer,” “you” or “your”).

For products purchased outside the U.S. or Canada, please visit www.mackie.com to find contact information for your local distributor, and information on any warranty coverage provided by the distributor in your local market. LOUD warrants to Customer that the product will be free from defects in materials and workmanship under normal use during the Warranty Period. If the product fails to conform to the warranty then LOUD or its authorized service representative will at its option, either repair or replace any such nonconforming product, provided that Customer gives notice of the noncompliance within the Warranty Period to the Company at: www.mackie.com or by calling LOUD technical support at 1.800.898.3211 (toll-free in the U.S. and Canada) during normal business hours Pacific Time, excluding weekends or LOUD holidays. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.

For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com.

The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Product Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.

INTRODUCCIÓN

Pure electrical circuit lines without any symbols

Illustration of a hand holding an earbell with a small ear device inserted (no text or symbols visible)

Line drawing of an ear with a device and magnified inset showing internal components (no text or symbols)

Side-by-side line drawings of a person's head and neck in profile view, showing ear signals (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a hand holding an earbell with a small ear component inserted (no text or symbols)

Line drawing of an ear with a device inserted, showing a magnified inset of the ear structure (no text or symbols)

Side-by-side line drawings of a person's head in profile, showing ear and ear signals (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a hand holding an earbell with a small ear component (no text or symbols)

Line drawing of an ear with a device inserted, showing a magnified inset of the ear structure (no text or symbols)

Side-by-side line drawings of a human head profile showing ear and neck segments (no text or symbols)

BESCHRÄNKTE GARANTIE

Symbolic icon of a running person inside a circle, no text or numbers present

www.mackie.com

Symbolic icon of a running person inside a circle (no text or numbers)

16220 Wood-Red Road NE • Woodinville, WA 98072 • USA

Phone: [phone] • Toll-free: 800.898.3211

Fax: [phone] • www.mackie.com

Part No. 2049160 Rev. C 01/18 ©2018 LOUD Audio, LLC. All Rights Reserved.
