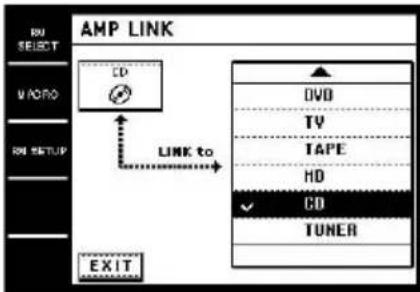

Switching the function on the amplifier/ receiver automatically (AMP LINK) 28

Changing the name of the remote (component) 28

Adjusting the commander's operating environment 29

Additional Information

Safety regulations 31

Precautions 33

Troubleshooting 34

Specifications 35

Maker compatibility list 36

Features

The RM-TP1 Interactive Remote Commander provides centralized control of all your AV components from a single remote commander and saves you the trouble of operating different AV components with different remote control devices. Its main features are as follows:

Centralized control of Sony AV components with this one remote commander

This Commander is preset to operate Sony brand components, so you can use it right out of the box as a control center for your Sony AV components. This Commander also incorporates a variety of operations especially for Sony amplifiers/receivers (page 18).

2 way remote operations

This Commander is of a 2 way remote system. You can operate Sony 2 way components (with Control A1/A1 II control system) with this Commander (page 19).

Preset remote control signals for non-Sony components

This Commander also contains preset for most other major component manufacturers. You can remote control your components by registering them (page 10).

Macro Play Function for one-touch operation of several commands

You can program the Commander to execute a series of operations (up to 24 steps) from a single key (page 22). You can program up to 16 Macro Plays.

Learning Function for programming additional remote control signals

This Commander has a Learning Function, to learn the signals from other remotes and operate non-preset components or functions (page 25). The Learning Function can be used with preset operation keys and USER RESERVE KEYS.

Easy-to-operate touch sensitive LCD and the jog dial

This Commander has a touch sensitive LCD that displays operation keys according to the selected component. You can operate components by touching the displayed keys or turning the jog dial. The display backlight allows operation even in the dark.

Name Editing Function for remote (component) names and MACRO names

You can edit the remotes (components) names and the Macro Play names (pages 23 and 28). This function is useful for distinguishing each component or Macro Play.

Frequently used amplifier/receiver and TV control buttons are on the front panel

The frequently used amplifier/receiver and TV control buttons are located on the front panel, so that you can easily operate the amplifier/receiver and TV while operating other AV components.

This chapter describes how to prepare the remote commander for operation. Be sure to read this section before operating.

Compatible components and functions

This unit is a remote control system that utilizes infrared rays to control amplifiers/ receivers and AV components.

Compatible Components

This unit can be used to operate Sony AV components as well as AV components made by other manufacturers. Setup is necessary in order to operate components made by other manufacturers (page 10).

Note

Depending on the component, control may not be possible using this unit.

Functions

This commander operates under the 1 way and the 2 way remote system. As a 2 way remote commander, you can operate the Sony components compatible with the 2 way remote system. Under the 2 way remote system, not only does it transmit infrared rays for operation of the amplifier/receiver, it also receives infrared rays emitted by the amplifier/receiver to display characters and other information from components connected to the amplifier/ receiver with a CONTROL A1/A1 II cord. This commander can also exchange data directly with 2 way CD players (page 19).

In addition, this commander is equipped with 2 remote code transmitter/receiver sections in order to provide a greater operating range.

Preparing the commander

Charging the battery

Before you use the commander, charge the battery. The exclusive rechargeable battery is built-in.

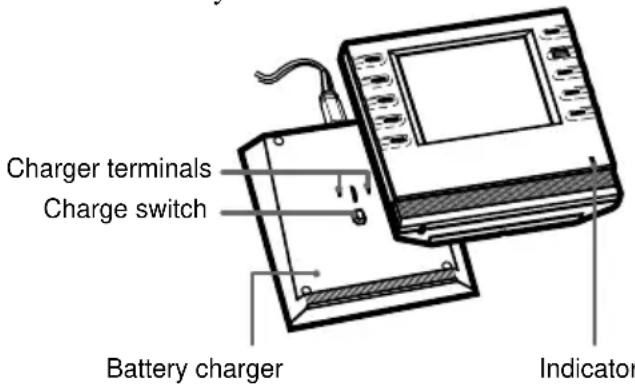

1 Connect the AC adapter to the battery charger.
2 Place the commander on the battery charger.

The indicator lights in red while charging. Charging is finished when the lights turns to green. It takes about 6 hours to fully charge the battery.

Notes

• The contrast and the touch panel is adjusted correctly when shipped. If the LCD shifts from the normal operating position, or the LCD is too bright or dark to see, use RM SETUP screen to adjust them (page 29).
• The LCD turns on when touched. The LCD also turns on when the BACK LIGHT button is pressed.
• I/SYSTEM STANDBY, MASTER VOL +/-, MUTING, SLEEP, TV INPUT, TV CH +/-, and TV VOL +/- buttons can be used even when the LCD is not lit.
• Pressing the BACK LIGHT button turns the backlight on or off. Holding it down for about 2 seconds turns the LCD off.
• If the commander is not used for 60 seconds, the LCD turns off automatically (Auto Off function). The Auto Off function can be changed between 10 and 90 seconds under "Setting the LCD turn off time" in the RM SETUP screen (page 30).

Preparing the commander (continued)

When to recharge the battery

When the battery become weak, appears. Recharge the battery.

Tip

Under normal conditions, the battery should last approximately 5 days per charge*. However, depending on how the commander is used and the initial voltage of the battery, the actual period of use per charge may be shorter or longer than that mentioned above.

• This value is based on 60 key operations a day with the backlight on. If the backlight is turned off, the battery should last much longer. In order to extend the life of the battery, it is recommended to keep the backlight off when operating the commander in a well lit area.

Caution

If appears, recharge the battery as soon as possible. If you leave the commander uncharged for more than 2 months, the adjusted settings may be cleared.

Notes

• When appears, the backlight turns off automatically.
• If the operation period after recharging becomes extremely short, the battery should be replaced. On replacing the battery, please consult your nearest Sony dealer.

RECYCLING NICKEL METAL HYDRIDE BATTERIES

(For customers in the United States and Canada)

Nickel Metal Hydride batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Nickel Metal Hydride batteries.

Using the touch pen

The commander's panel is touch sensitive and can be operated simply by touching it.

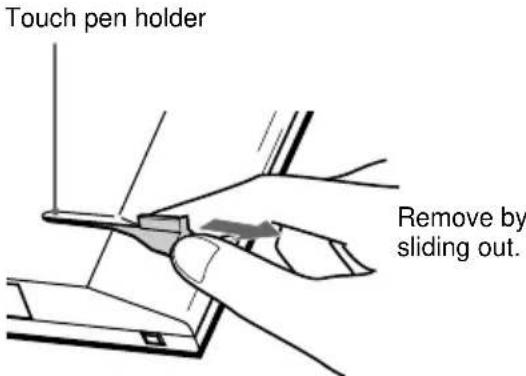

Remove the touch pen.

When returning the touch pen, always slide it in tip first.

Caution

Use only the touch pen provided with this unit or the soft tip of your finger to operate the touch panel. Using a commercially available writing utensil may damage the panel and make correct operation impossible. If the tip of the touch pen is damaged, or the touch pen is lost, please consult your nearest Sony dealer.

Screen hierarchy

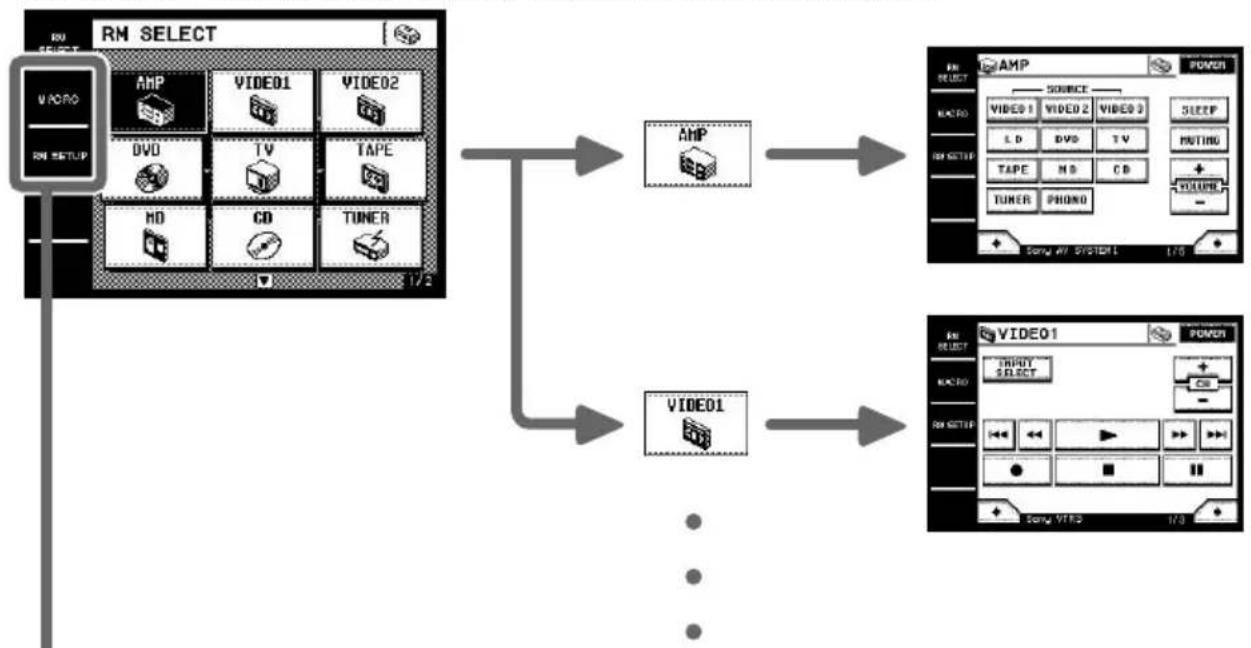

The following diagram shows the basic composition of this unit's screen hierarchy.

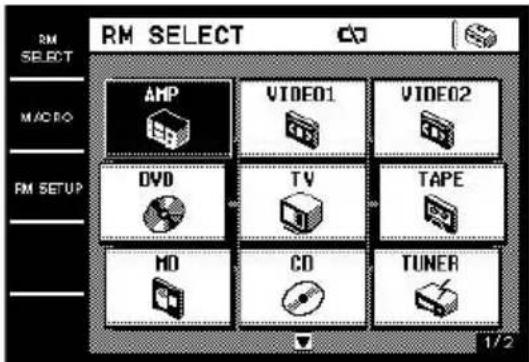

RM SELECT screen

Appears when RM SELECT is touched.

When you select the remote (component), the component operation screen appears.

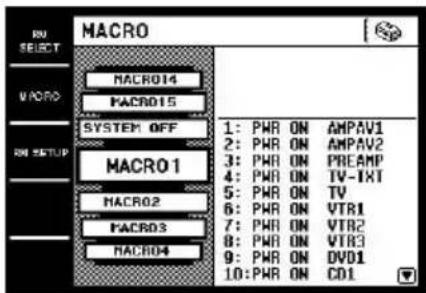

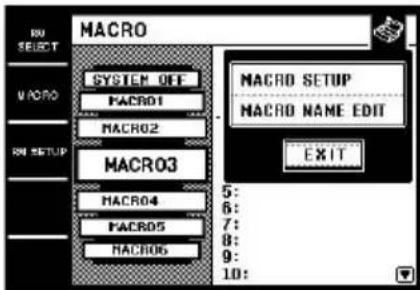

MACRO screen

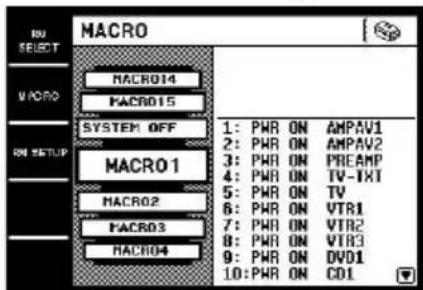

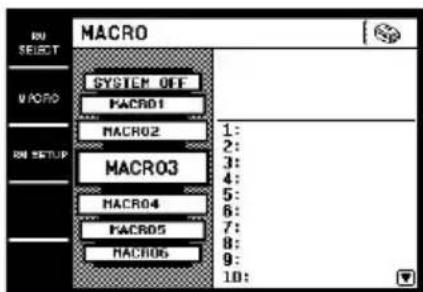

Appears when MACRO is touched. This screen is for performing several commands in sequence automatically (page 22).

RM SETUP screen

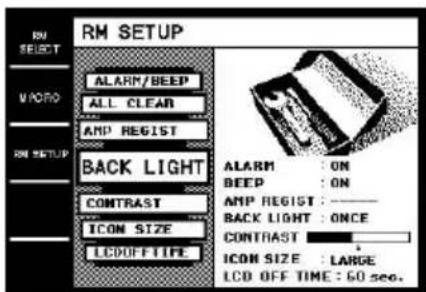

Appears when RM SETUP is touched. This screen is for setting up the operation environment (page 29).

Location of Parts and Controls

This chapter provides information on the location of buttons and how to use them to perform basic operations.

However, some functions explained in this section may not operate depending on the component you are controlling.

Front panel

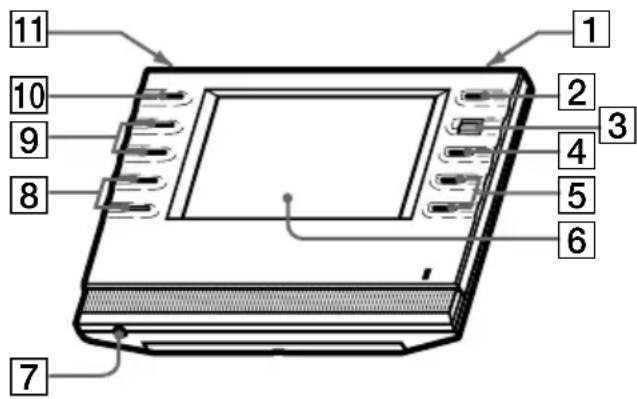

1 BACK LIGHT button

Press to turn the backlight on or off. Hold down for about 2 seconds to turn the LCD off. When the LCD is off, press to turn on the LCD and backlight.

• To prolong use of the battery, the LCD automatically turns off if there is no command entered in the touch panel for 60 seconds.
• To view the LCD display without turning on the backlight, touch the touch panel when both the backlight and LCD are off.

2I/O/SYSTEMSTANDBYbutton\*

Normally used to turn the amplifier/receiver on or off.

When pressed more than 2 seconds, it turns off all Sony components (SYSTEM STANDBY) by executing the Macro Play function SYSTEM OFF program (page 22).

3Jog dial

Rotate to scroll through items in a list (etc.). Push to select the highlighted item.

4 MUTING button*

Use to mute the sound of the amplifier/ receiver.

5MASTER VOL + / - buttons\*

Use to adjust the volume of the amplifier/ receiver.

6Touch panel

Touch to operate. The commander turns on automatically.

7Stereo mini jack

Use to upgrade the firmware in the future.

8TV VOL + / - buttons\*

Use to adjust the volume of the TV.

9TV CH + / - buttons\*

Use to select the channel of the TV.

10TV INPUT button*

Use to select the input of the TV.

11SLEEP button*

Use to operate the amplifier/receiver's sleep timer function. The sleep timer settings appear in the amplifier/receiver's display, not the commander's LCD.

• The commander emits the remote code for operating the AMP (amplifier/receiver) or TV that is registered to this commander using the IR SETUP function (page 10).

If you register two or more AMPs or TVs, the commander emits the remote code for the component (icon) that appears first (on the left top side) in the RM SELECT screen.

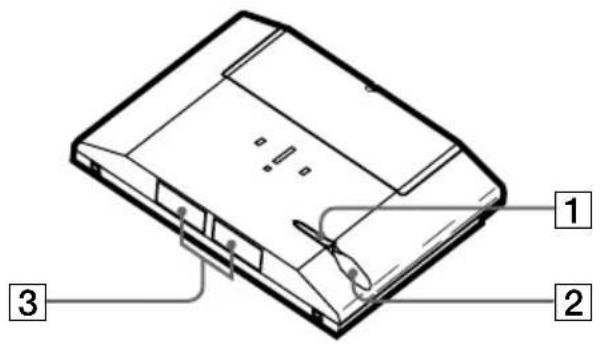

Rear panel

1 Touch pen
2 Touch pen holder

Keep the touch pen here when not in use.

3Transmitter/receiver section Remote code receiver section

Transmits and receives infrared signals to and from the component.

When using the Learning function, this section receives the remote codes from other remote controls.

Basic Operations

Registering the components

The following procedure lets you set up the commander to operate the components.

RM SELECT screen setup (HOOK UP)

You can set the RM SELECT screen not to display the remotes (components) you do not use.

1 Touch RM SELECT.

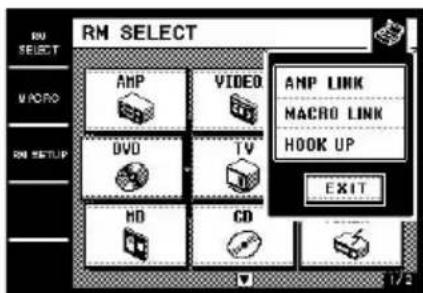

2 Touch

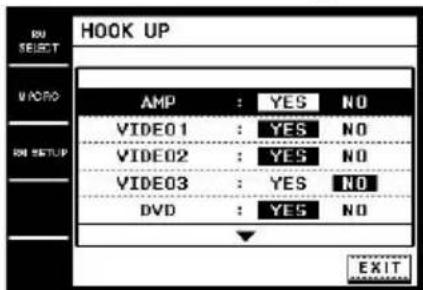

3 Touch HOOK UP in the pull-down menu.

The HOOK UP screen appears.

4 Select the component not to be displayed and touch NO.

To display other items, use the jog dial, or touch or to scroll through the list.

To display the components in the RM SELECT screen

Touch YES instead of NO in step 4.

Tip

Components that have been registered (see below) are set to "YES" automatically.

Registering the components (IR SETUP)

1 Touch RM SELECT.

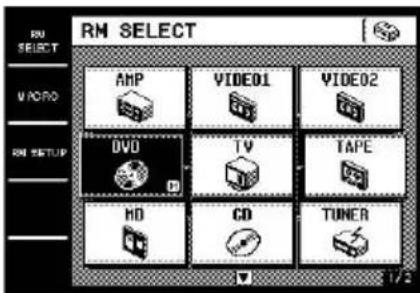

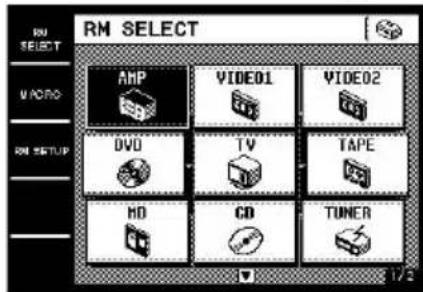

The RM SELECT screen appears.

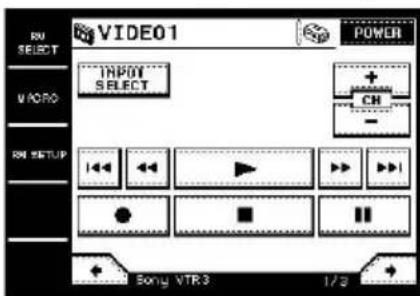

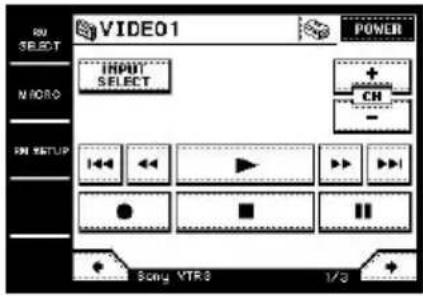

2 Touch the remote (component) you want to register ("VIDEO1" for example).

Or, turn the jog dial to select the remote (component), then press the jog dial to enter the selection. The screen for operating the component appears.

To display other items, use the jog dial, or touch or to scroll through the list.

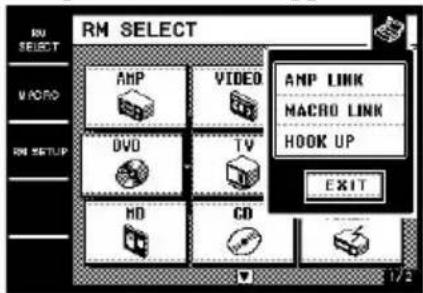

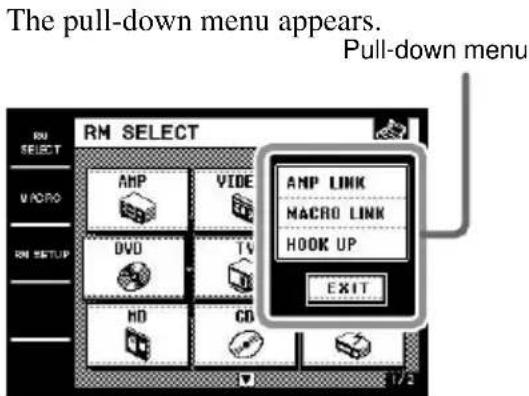

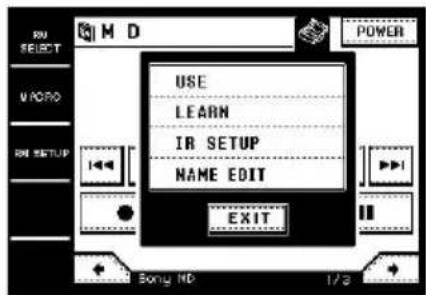

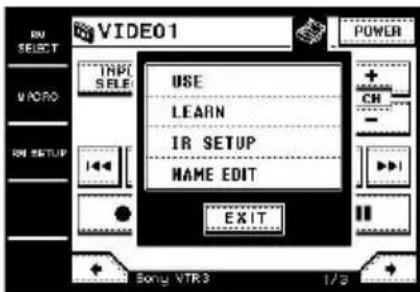

3 Touch The pull-down menu appears.

4 Touch IR SETUP in the pull-down menu.

The IR SETUP: CATEGORY screen appears.

5 Select the component category ("VCR" for example).

To display other items, use the jog dial, or touch or to scroll through the list. The IR SETUP: MAKER CODE screen appears.

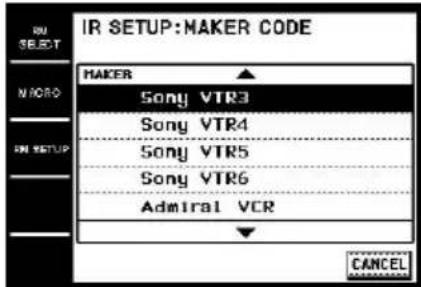

6 Select the maker and the command mode for the component ("Sony VTR1" for example).

See "Maker compatibility list" on page 36. The component selected in steps 5 and 6 will be registered at the remote (component) selected in step 2, and the screen for the selected category appears. The IR setting is displayed at the bottom of the screen. A long beep sound is emitted to indicate that registration was successful. Operation is now possible from the RM SELECT screen.

To stop registration at any time

Touch EXIT or CANCEL during any step.

Notes

• Depending on the maker, certain remote codes may not exist and cannot be operated with the keys (icons) on the screen. These keys are dimmed.
• When registering components made by certain manufacturers, some commands may not function even though they are displayed.
• Depending on the model or the model year, you cannot operate the component even it is listed in the "Maker compatibility list". In this case, you can use the Learning function to program the commands of the remote supplied with the component (page 25).

Operating the components

Selecting the remote (component)

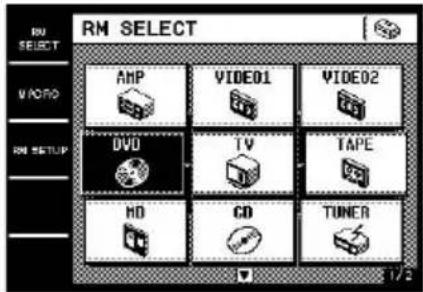

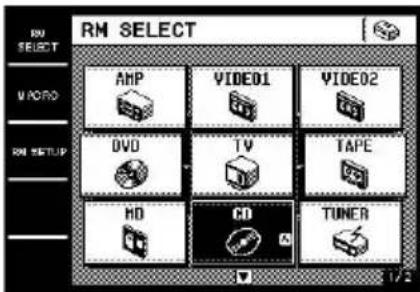

To operate the registered components, first display the RM SELECT screen, then select the remote (component) you want to operate (CD, MD, etc.).

1 Touch RM SELECT.

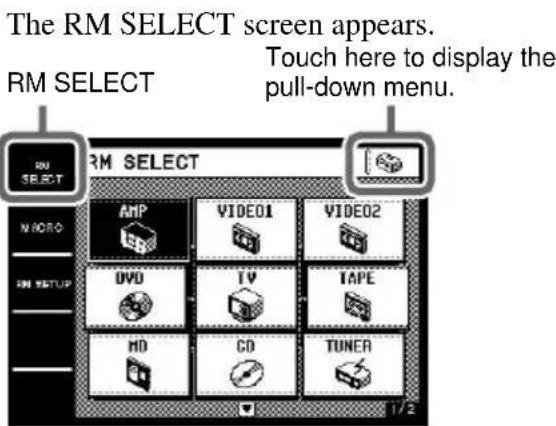

The RM SELECT screen appears.

2 Touch the remote (component) you want to operate.

Or, turn the jog dial to select the remote (component), then press the jog dial to enter the selection. The screen for operating the component appears. Touch or to display other screens. See the tables on pages 12-17 for information on the displayed keys.

To display other items, use the jog dial, or touch or to scroll through the list.

Tips

• You can change the name of remotes (components) (page 28).
• On the last screen for each remote (component), there are 8 keys specially for use with the Learning function (USER RESERVE KEYS). You can use these keys for programming additional remote codes (page 27).

continued

Operating the components (continued)

Operation examples

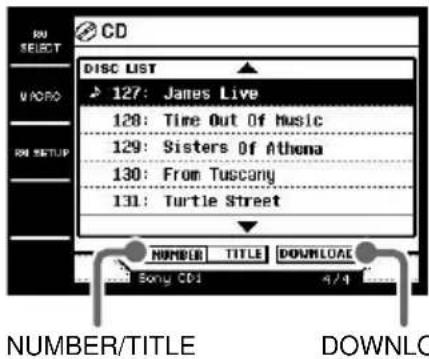

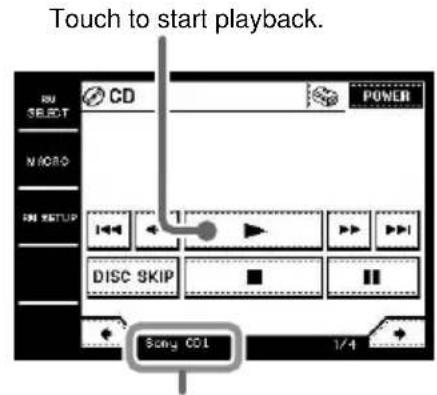

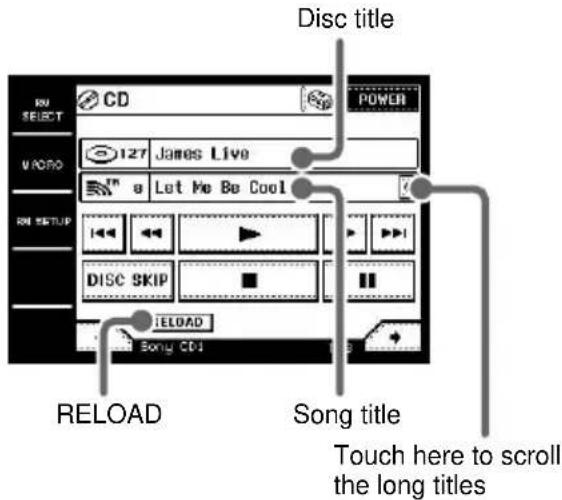

Operating a CD player

Selected maker and category (page 10)

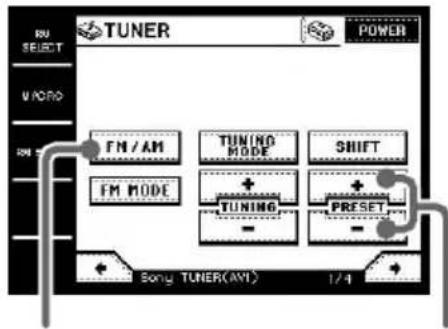

Operating a tuner

Touch to select the FM or AM band.
Touch to scan the radio stations.

Tables of preset functions

Notes

Depending on the registered component, certain keys (icons) may not function. These keys are dimmed.
These tables explain the major functions of the keys. Depending on the registered component, the keys may operate differently.

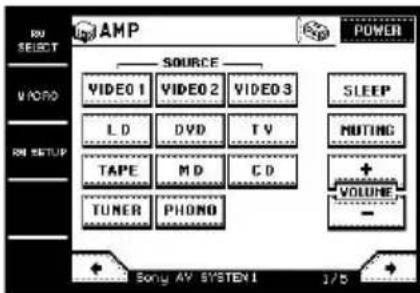

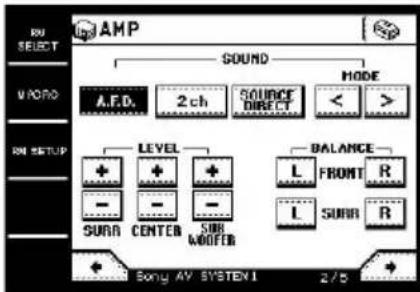

AMP

Key Function

POWER1) To turn the power on/off.

VIDEO 1 To select the input source:VIDEO 1

VIDEO 2 To select the input source:VIDEO 2

VIDEO 3 To select the input source:VIDEO 3

LD To select the input source: LD

DVD To select the input source: DVD

TV To select the input source: TV

TAPE To select the input source: TAPE

MD To select the input source: MD

CD To select the input source: CD

TUNER To select the input source: TUNER

PHONO To select the input source: PHONO

SLEEP2) To activate the sleep timer.

MUTING1) To mute the volume on the amplifier/ receiver. Press again to cancel the muting function.

VOLUME To raise or lower the volume. + / - 1

A.F.D.21 Auto Format Decoding.

2ch^2) To turn off the sound field or select 2CH mode.

SOURCE To select the analog audio source. DIRECT2)

MODE < / > ^2) To select a sound field.

LEVEL To adjust the level of the surround SURR + / - ^2) speakers.

LEVEL To adjust the level of the center
CENTER speaker.
+/-2)

LEVEL SUB To adjust the level of the sub woofer.
WOOFER
+/-2)

BALANCE To adjust the balance between front left FRONT and right speakers. L / R^2)

BALANCE To adjust the balance between surround SURR L/R2 left and right speakers.

Key Function
EQ2)	To turn the equalizer on/off.
TEST TONE2)	To output the test tone.
ON To activate the on-screen display.SCREEN2)
▲/▼/<▶2)	To select a menu item.
MENU2)	To select the menu.
ENTER2)	To enter the selection.
DISPLAY2)	To select the displayed information.
DIMMER2)	To adjust the brightness of the display.
INPUT </>2)	To select the audio input.
AUDIO To assign the audio input for eachSPLIT2)	function.
INPUT To select the input mode for yourMODE2)	digital components.

1) You can use the buttons on the front panel.
2) Sony amplifier/receiver only. For details, see page 18.

VIDEO

Key Function

POWER To turn the power on/off.

INPUT To change the input mode of the VCR. SELECT

CH + / - To select a channel.

To proceed to the previous location.

To rewind.

To play.

To fast-forward.

To proceed to the next location.

To record.

To stop.

To pause.

DISPLAY To select information displayed on the TV screen.

ANT To switch the antenna output. TV/VTR

SP/LP To select the playback speed.

1-9, 0 To select the channel. Pressing 0 sele

-/- Press before selecting channel 11 or higher. (After pressing -/--, use the numeric buttons to select the channel, then press ENTER.) Or, press to select channel 11 directly.

ENTER To enter the selection. Or, press to select channel 12 directly.

Key Function

MENU To call the MENU display.

+/↓/←/→To move the cursor.

EXECUTE To enter selections in the MENU display.

DVD

Key Function

POWER To turn the power on/off.

AUDIO To change the sound.

ANGLE To switch angle.

SUB TITLE To switch the subtitle.

SHUFFLE To select Shuffle Play.

PROGRAM To select Program Play.

REPEAT To select Repeat Play.

DISC SKIP To select next/previous disc. + / -

To proceed to the previous location or song.

To rewind.

To play.

To fast-forward.

To proceed to the next location or song.

To stop.

To pause.

DISPLAY To select information displayed on the TV screen.

TOP MENU To call up the MENU display.

1-9, 0 Number buttons: To set items selected from the screen.

CLEAR To clear the selected characters from the screen.

SEARCH To change the search mode.

RETURN To return to the last previous screen.

MENU To display the DVD menu.

/ / / To move the cursor.

ENTER To enter a setting or to set items selected from the screen.

continued

Operating the components (continued)

TV

Key Function

POWER To turn the power on/off.

MUTING To mute the volume on the TV. Press again to cancel muting function.

INPUT3) To change the input mode of the TV.

DISPLAY To select information displayed on the TV screen.

JUMP To toggle between the previous and current channels.

1-9, 0 To select the channel.

Pressing 0 selects channel 10.

-/- Press before selecting channel 11 or higher. (After pressing -/--, use the numeric buttons to select the channel, then press ENTER.)

ENTER To enter the selection.

Or, press to select channel 12 directly.

CH+/-3)

To select a channel.

VOLUME To raise or lower the volume. + / - 3)

P in P To activate the picture-in picture function.4)

POSITION To change the position of the small picture.4)

SWAP To swap the small and large pictures. 4)

WIDE To select the wide-picture mode. 5)

SUB CH + / - To select preset channels for the small picture.4)

3 You can use the buttons on the front panel.
4) Only with Sony TVs with the picture-in-picture function.
5) Only with Sony TVs that supports the wide-picture mode.

TAPE

Key Function

SIDE A/B To select the tape deck: Deck A or B (dual cassette deck only).
To proceed to the previous song.
To rewind.
To reverse.
To play.
To fast-forward.
To proceed to the next song.
To record.
To stop.
To pause.

MD

Key Function

POWER To turn the power on/off.

To select the previous track.

To rewind.

To play.

To fast-forward.

To select the next track.

To pause for recording.

To stop.

To pause.

CONTINUE To select Continuous Play.

SHUFFLE To select Shuffle Play.

PROGRAM To select Program Play.

REPEAT To select Repeat Play.

1-9, 0 To select the track number (0 selects track 10).

10 To select numbers 10 and above.

DISPLAY To change the information on the display.

MENU/NO To select editing operation or cancel editing.

YES To perform editing operation.

CD

Key Function

POWER To turn the power on/off.

To select the previous track.

To rewind.

To play.

To fast-forward.

To select the next track.

DISC SKIP To select a disc.

To stop.

To pause.

CONTINUE To select continuous play mode.

SHUFFLE To play in random order.

PROGRAM To use for program play.

REPEAT To select repeat play mode.

1-9, 0 To select the track number (0 selects track 10).

10 To select numbers 10 and above.

ENTER To enter the setting.

DISC To select the disc.

TRACK To select the track.

TUNER

Key Function

POWER To turn the power on/off.

FM/AM To select the FM or AM band.

FM MODE To select stereo or monaural reception of FM stations.

TUNING To select the tuning mode. MODE

SHIFT To shift bands or preset select.

TUNING + / - To scan the radio stations.

PRESET + / - To scan the preset radio stations.

DIRECT Enters Direct Tuning mode.

1-9, 0 Number buttons.

MEMORY To store the preset stations.

CABLE

Key Function

POWER To turn the power on/off.

1-9, 0, To change the channel. For example, to ENTER change to channel 5, press 0 and 5 (or, press 5 and ENTER).

JUMP To toggle between the previous and current channels.

CH + / - To select a channel.

SATELLITE

Key Function

POWER To turn the power on/off.

1-9, 0 To select the channel.

Pressing 0 selects channel 10.

-/- Press before selecting channel 11 or higher. (After pressing -/--, use the numeric buttons to select the channel, then press ENTER.)

Or, press to select channel 11 directly.

ENTER To enter the selection.

Or, press to select channel 12 directly.

JUMP To toggle between the previous and current channels.

FAVORITE To display the Favorite Station Guides.

CATEGORY To display the Guide Category list.

GUIDE To display the SAT guide.

INDEX To bring up the Station Index

MENU To call up the MENU display.

EXIT To exit the mode.

TV/SAT To switch the output of the SAT receiver to the TV (When you connect a TV cable or antenna to the amplifier/ receiver, the output switches between a TV and SAT program).

DISPLAY To select information displayed on the TV screen.

/ / / To move the cursor.

• To enter the setting.

CH/PAGE + / - To select the channel or the menu page.

Operating the components (continued)

PROJECTOR

Key Function

POWER ON To turn the power on.

POWER To turn the power off. OFF

INPUT To switch to the input from SELECTVIDEOjacks.
VIDEO

INPUT To switch to the input from VIDEO IN SELECT or SVIDEO IN jacks. SELECT

INPUT To switch to the input from INPUT A SELECT or INPUT B jacks. A/B

/ / / To move the cursor.

ENTER To enter the setting.

MENUTo callup the MENU display.

MEMORY To store the adjusted data in memory.

ZOOM + / - To adjust the zoom of the picture.

SHIFT + / - To adjust the lens shift of the picture.

FOCUS + / - To adjust the focus of the picture.

BRIGHT + / - To adjust the brightness.

CONTRAST To adjust the contrast. + / -

LD

Key Function

POWER To turn the power on/off.

SIDE A/B To select disc side A or B.

To proceed to the previous location or song.

To rewind.

To play.

To fast-forward.

To proceed to the next location or song.

To stop.

To pause.

DISPLAY To select information displayed on the TV screen.

PROGRAM To program the tracks.

REPEAT To repeat current track or programmed tracks.

1-9,0 To select the track number (0 selects track 10).

+10 To select numbers 10 and above.

SEARCH To change the search mode.

FRAME/ To change the frame or time TIME information.

VIDEO CD

Key Function

POWER To turn the power on/off.

INDEX To return to the previous menu.

PREVIOUS

INDEX To go to the next menu.

NEXT

To proceed to the previous location or song.

To rewind.

To play.

To fast-forward.

To proceed to the next location or song.

To stop.

To pause.

1-9, 0 To select the track number (0 selects track 10).

10 To select numbers 10 and above.

RETURN To return to the last previous screen.

TIME To change the time information.

SELECT To select the menu.

DAT

Key Function

POWER To turn the power on/off.

To select the previous track.

To rewind.

To play.

To fast-forward.

ITo select the next track.

To record.

To stop.

To pause.

REPEAT To select Repeat Play.

1-9, 0 To select the track number (0 selects track 10).

ENTER To enter the setting.

CLEAR To clear the setting.

Operations for Sony Amplifiers/Receivers

When using Sony amplifiers/receivers, you can operate various functions. Before operating, register the Sony amplifier/receiver (page 10).

When selecting Sony amplifier/receiver from the IR SETUP: MAKER CODE list, be sure to select the appropriate command mode.

About the command mode (IR type)

If the amplifier/receiver's command mode (IR type) and the commander's command mode (IR type) do not match, you cannot use the commander to operate the amplifier/receiver.

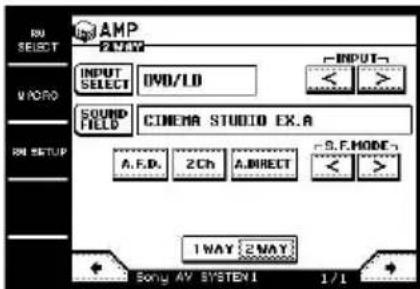

Tip

To use the multi room function of the amplifier/ receiver, select SONY MULTI ROOM1 (or 2) from the IR SETUP: MAKER CODE list.

Operating the amplifier/ receiver

1 Touch RM SELECT.

The RM SELECT screen appears.

2 Touch AMP.

The screen for operating the amplifier/ receiver appears.

3 Touch or to select the screen.

For details on each screen, see below.

Notes

• Depending on the amplifier/receiver, some commands may not function.

• For details about the operations, refer to the operating instructions supplied with the amplifier/ receiver.

Screen 1/5

This screen is mainly for switching the input and adjusting the volume.

Screen 2/5

This screen is mainly for enjoying surround sound, adjusting the level and balance.

Screen 3/5

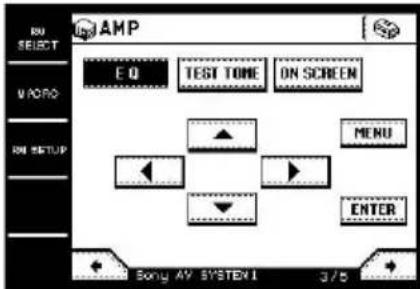

This screen is mainly for adjusting the equalizer and outputting the test tone. You can also adjust various settings using the MENU key, cursor keys, and ENTER key. When the amplifier/receiver has ON SCREEN function, it is recommended to adjust the settings using the TV screen.

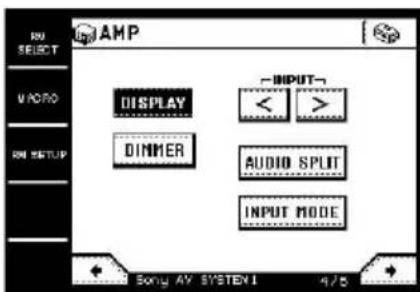

Screen 4/5

This screen is mainly for setting the display on the amplifier/receiver and selecting the audio input.

2 Way Remote Operations

Understanding the 2 way remote system

This commander operates under a 2 way remote system. With the 2 way remote system, the component responds to signals sent from the commander by sending additional signals (information about the status of the component, text data, etc.) back to the commander. Thus, operations are performed as a result of communication between the commander and the component.

When using a home entertainment system comprised of several components compatible with the 2 way remote system, please restrict 2 way remote system operation to a single component. Generally, the 2 way remote system is turned off on all components except for the amplifier/receiver.

If you would like to turn off the amplifier/ receiver's 2 way remote system, refer to "Setting up the 2 way remote" in the operating instructions supplied with the amplifier/ receiver.

Operation example

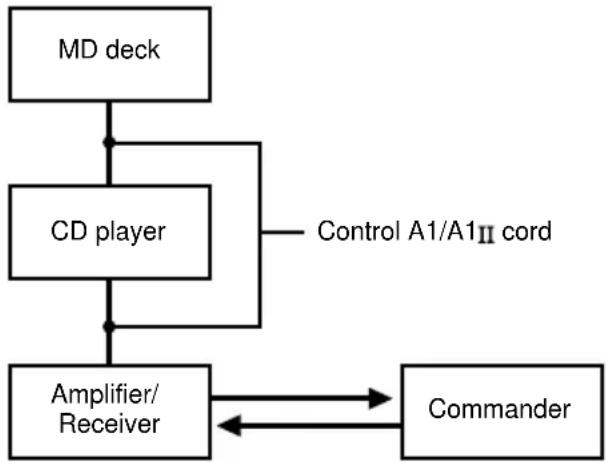

When a 2 way component is connected to the amplifier/receiver with a Control A1/A1I cord

When operating the 2 way CD changer directly

Notes for the 2 way remote operation

• To ensure good communication conditions, carry out the 2 way remote operation from directly in front of, and close to the component.

• Do not move the component during the 2 way remote operation.
• The commander receives and displays data transmitted from the component. Communication errors may occur if the commander's transmitter/ receiver section is not directed properly toward the component's IR receptor. Be sure to point the commander's transmitter/receiver section towards the component's IR receptor.

Operating the amplifier/ receiver

You can operate a Sony 2 way amplifier/ receiver. You can also download the names of components (functions). Before operating, register the Sony amplifier/receiver using the IR SETUP function (page 10).

When performing the following procedure, be sure to turn on the amplifier/receiver and point the commander towards the IR receptor on the amplifier/receiver.

To register a 2 way amplifier/ receiver

Use the RM SETUP screen.

Note

You cannot register the amplifier/receiver if it is not set to use the 2 way remote system. Refer to "Setting up the 2 way remote" in the operating instructions supplied with the amplifier/receiver.

1 Touch RM SETUP.

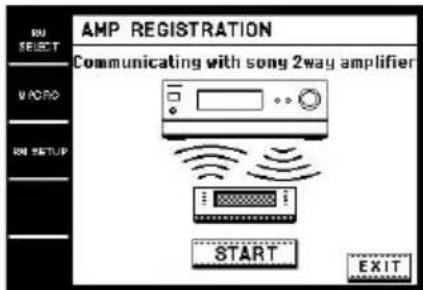

2 Touch AMP REGIST.

3 Touch START.

The communication starts and the amplifier/ receiver is registered to the commander. The registered amplifier/receiver name appears in the screen. The amplifier/receiver name also appears in the RM SETUP screen as the current setting.

Note

If the amplifier/receiver name appears as "model others", the amplifier/receiver is not registered correctly. In this case, some 2 way operations may not be possible.

To operate the amplifier/ receiver

1 Select the Sony amplifier/receiver in the RM SELECT screen.

"I WAY 2WAY" appears.

Tip

When you can select several Sony amplifiers/ receivers in the RM SELECT screen, touch the AMP icon that appears first.

2 Touch 2WAY.

The screen for the 2 way operation appears and you can operate the amplifier/receiver registered in the RM SETUP screen.

To download the names of components (functions), touch INPUT SELECT, then touch INPUT NAME DOWNLOAD.

To download the names of sound fields, touch SOUND FIELD, then touch S.F. NAME DOWNLOAD.

Notes

• 2 way operations may not be possible immediately after turning on the amplifier/receiver.
• You cannot use the jog dial when using the 2WAY screen.
• You cannot use the Learning function for the keys in the 2WAY screen.

Operating the tuner

You can operate the built-in tuner of 2 way receiver. You can also download the station names registered on the receiver. Before operating, register Sony tuner using the IR SETUP function (page 10).

1 Select the tuner in the RM SELECT screen.

The communication starts.

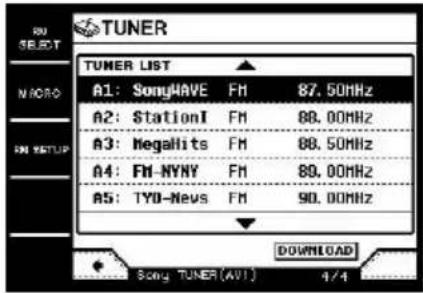

2 To download the station names, touch to select the following screen (screen 4/4), then touch DOWNLOAD.

The commander starts to download the data.

Operating the CD player or MD deck

You can download the information (disc titles, etc.) from Sony 2 way CD player* or MD deck. Before operating, register Sony CD player or MD deck using the IR SETUP function (page 10).

• Compatible with Sony CD changers (5/50/200/300/400 CD).

Select the CD player or MD deck in the RM SELECT screen.

The communication starts, and the information such as disc titles and song names are displayed.

Tip

When the song number or song title is not displayed correctly, touch RELOAD.

To download the data from CD changer

You can download the data from CD changer.

1 Select CD player in the RM SELECT screen.

2 Touch to select the following screen (screen 4/4), then touch DOWNLOAD. The commander starts to download the data.

DOWNLOAD

Tip

You can change the order of the disc list. Touch NUMBER to sort by the disc number, or touch TITLE to sort by the disc names.

Advanced Operations

Performing several commands in sequence automatically (Macro Play)

The Macro Play function lets you link several IR codes in sequential order as a single command. The commander provides 16 macro lists. You can specify up to 24 IR codes for each macro list.

Tips

• MACRO 1 has been factory set to turn on Sony AV components.
• SYSTEM OFF has been factory set to turn off all Sony AV components. The same program is also executed when the I/O/SYSTEM STANDBY button on the front panel is pressed more than 2 seconds.

Setting the sequence of IR codes

1 Touch MACRO.

The MACRO screen appears.

2 Turn the jog dial so that the Macro Play number you want to program ("MACRO3" for example) comes to the middle box.

3

Touch

The pull-down menu appears.

4

Touch MACRO SETUP in the pull-down menu.

The macro step number (BOX) list appears.

5

Touch the macro step number for the command you want to register ("1" for example).

The CATEGORY list appears.

6

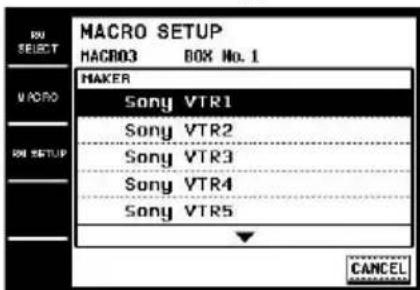

Select the category ("VCR" for example).

The MAKER list appears.

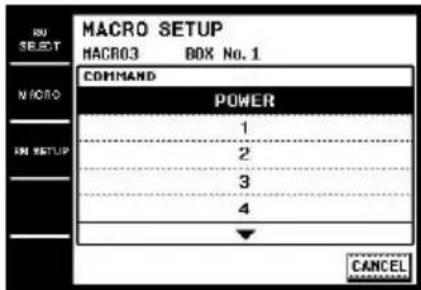

7 Select the maker ("Sony VTR1" for example).

The COMMAND list appears.

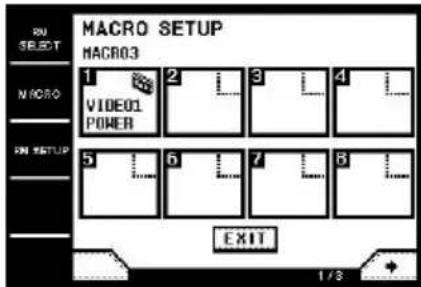

8 Select the command ("POWER" for example).

The items selected in steps 6 to 8 are registered in the box selected in step 5. The macro step number (BOX) list reappears. You can program up to 24 steps.

To operate Sony components

When selecting the category in step 6, you can select the operation such as turning on/off Sony components or switching the input of Sony TVs.

To delay the output of an IR code

Select "WAIT TIME" from the CATEGORY list. The wait time list ("1sec" to "60sec" (1 to 60 seconds)) appears. Select the time you want to wait.

To use learned codes under the Macro Play function

Select "RESERVE KEYS" from the CATEGORY list. Then, select the button for the learned IR code.

To cancel programming

Touch EXIT or CANCEL during any step.

To clear the programmed IR code

Select the macro step number (BOX) you want to clear the IR code, then select "MACRO CLEAR" from the CATEGORY list.

To change the name of the Macro Play

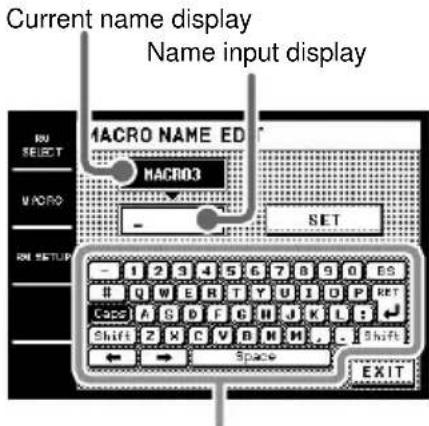

In step 4, touch MACRO NAME EDIT. Touch the name input buttons to enter the name (up to 10 characters), then touch SET. Touch EXIT to return to the MACRO screen.

Name input buttons

To start Macro Play

1 Touch MACRO.

The MACRO screen appears.

2 Turn the jog dial to select the Macro Play, then press the jog dial to enter the selection.

To cancel the Macro Play during operation, press the jog dial again.

Note

If the Macro Play function does not work properly, try setting a "WAIT TIME" between each command.

continued

Performing several commands in sequence automatically (Macro Play) (continued)

To start Macro Play automatically (MACRO LINK)

You can link the remote (component) to operate the Macro Play automatically when the remote (component) is selected.

The following procedure uses an example to execute MACRO4 when "DVD" is selected in the RM SELECT screen.

AUTO POWER function

When Sony components are registered and the remote (component) is selected, this function enables you to turn on the component automatically. Besides, when Sony video components (VCR, DVD, etc.) are registered and the remote (component) is selected, this function enables you to turn on both TV and the component, and switch the input of the TV automatically.

1 Touch RM SELECT.

The RM SELECT screen appears.

2 Turn the jog dial to select the remote (component) you want to link to the Macro Play ("DVD" for example).

When you touch the remote (component), touch to display the RM SELECT screen.

3 Touch The pull-down menu appears.

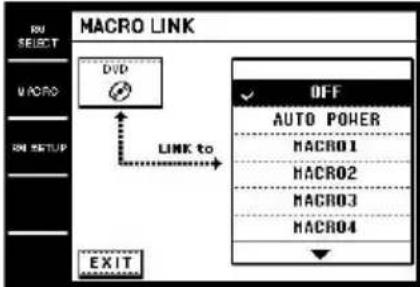

4 Touch MACRO LINK in the pull-down menu.

The MACRO LINK screen appears.

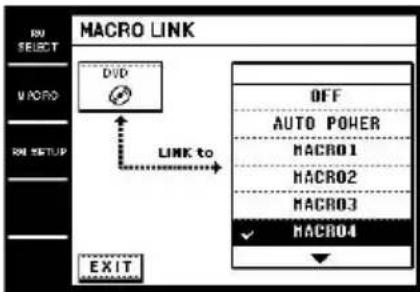

5 Select the Macro Play ("MACRO4" for example) you want to link to the remote (component).

A check () appears in front of the selected Macro Play.

6 Touch EXIT.

The RM SELECT screen reappears. M appears in the box of the remote (component) selected in step 2.

Using the Auto Power function

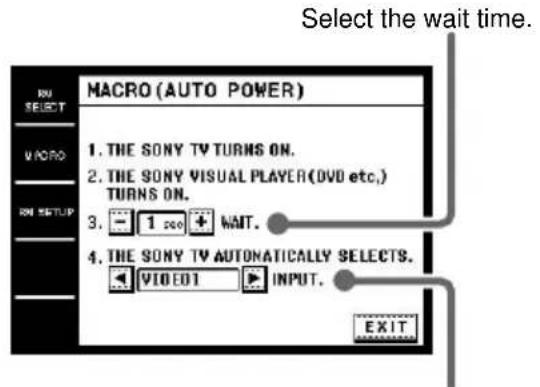

In step 5, link the remote (component) to "AUTO POWER". For the video components, the following display appears. Select the wait time and the input of the TV.

Select the input of the TV.

Notes

• The TV input may not switch automatically on all Sony TVs. This is because some TVs cannot receive remote control codes immediately after being turned on. In this case, set the wait time.
• When you select "TV" as the video input, the TV input does not switch.

To cancel MACRO LINK

Select "OFF" in the MACRO LINK screen.

Learning the commands of other remote commanders

Setting remote control codes that are not stored in the commander

When a remote control code is not one of the presets stored in the commander, it is possible for the commander to learn the code using the Learning function.

Learning Function can be used for each preset operation keys and USER RESERVE KEYS.

To program an IR code to the preset operation keys

1 Touch RM SELECT.

The RM SELECT screen appears.

2 Touch the remote (component) ("MD" for example).

Or, turn the jog dial to select the remote (component), then press the jog dial to enter the selection. The screen for operating the component appears.

3 Touch

The pull-down menu appears.

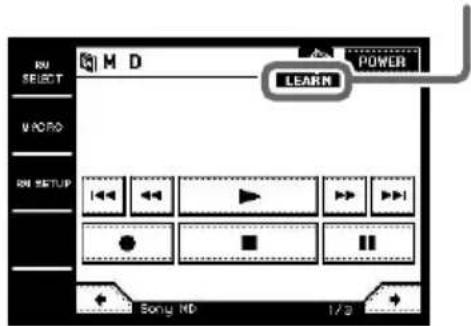

4 Touch LEARN in the pull-down menu.

The commander enters the learning mode.

"LEARN" appears.

Learning the commands of other remote commanders (continued)

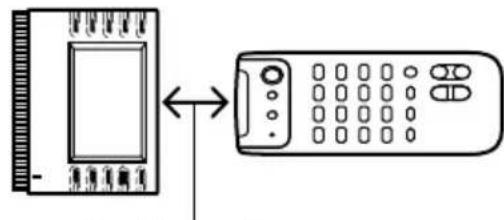

5 Point the remote code receiver section of this commander toward the receiver/ transmitter on the remote control to be learned.

About 5cm - 15cm

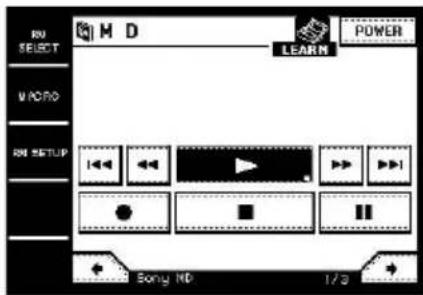

6 Touch the key on this commander you want to use the Learning function ("▶" for example).

A mark () blinks in the bottom right corner of the key. Perform step 7 within 30 seconds after the mark starts blinking.

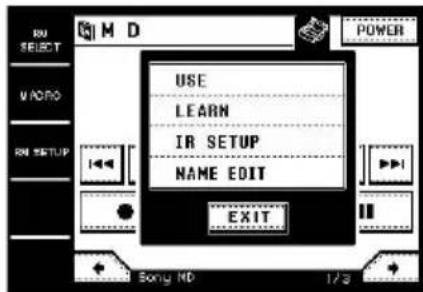

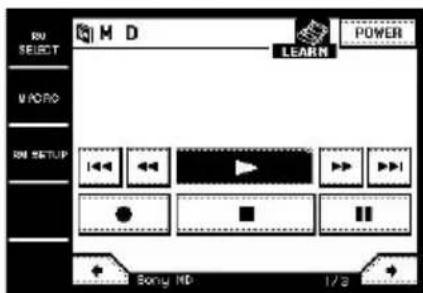

7 Press the appropriate button on the remote control to send the remote control code.

Press the button more than 1 second. When this commander receives the remote control code and the learning is successful, the mark () in the bottom right corner stops blinking, and another mark (■) appears in the upper right corner of the key.

8

Touch

9 Touch USE in the pull-down menu.

The commander returns to the operation mode.

To use the Learning function for the buttons on the front panel

Use the Learning function for the same named keys in the operation screen for AMP or TV.

Example: When you use the Learning function for the MUTING key in the operation screen for AMP, the MUTING button on the front panel is also registered with the same code.

To clear the learned code

Perform steps 1 to 4 above, and touch the key you want to clear the learned code. The following display appears. Touch CLEAR to clear the learned code.

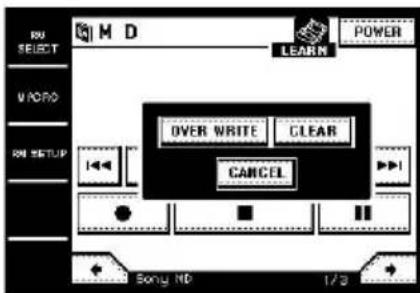

To overwrite the learned code

Perform steps 1 to 5 above, and touch the key you want to overwrite the learned code. The same display as "To clear the learned code" appears. Touch OVER WRITE. A mark (□) blinks in the bottom right corner of the key. Then follow steps 7 to 9.

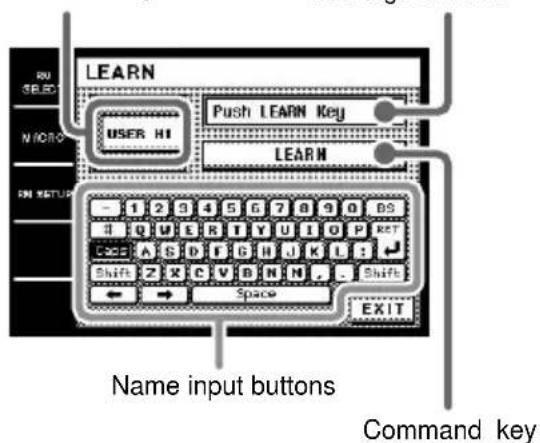

To program the IR code to the USER RESERVE KEYS

1 Perform steps 1 to 5 of "To program an IR code to the preset operation keys", then in step 6, select one of the USER RESERVE KEYS you want to program the IR code.

The LEARN screen appears.

Selected key Message window

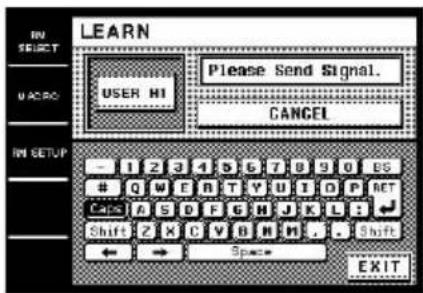

2 Touch LEARN.

"Please Send Signal." appears. Perform step 3 within 30 seconds after the mark starts blinking.

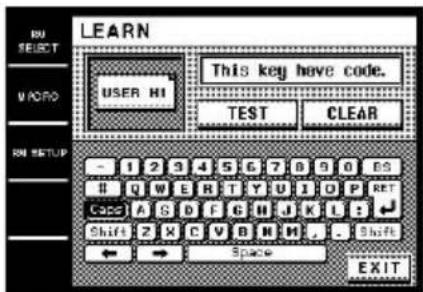

3 Press the appropriate button on the remote control to send the remote control code.

Press the button more than 1 second. When this commander receives the remote control code and the learning is successful, "This key have code." appears, and a mark (■) appears in the upper right corner of the key.

4 Touch EXIT.

5 Touch

6 Touch USE in the pull-down menu.

The commander returns to the operation mode.

To cancel learning

Touch CANCEL in step 2.

To clear the learned code

After step 3, touch CLEAR. "Clear?" appears. Then, touch "YES". The learned code is cleared.

Tip

• You can test the USER RESERVE KEYS. Touch "TEST" after "This key have code." appears in step 3. The learned code is sent from the commander, and if correct, the corresponding operation is performed.
• You can make a name of up to 14 characters for the USER RESERVE KEYS. Touch the name input buttons as displayed to enter the name.
  To ensure the proper learning, we recommend using new batteries in the remote to be learned.

Notes

• Normally, each remote (component) has 8 USER RESERVE KEYS. However, depending on the signals of the codes being learned, it may not be possible for the commander to store codes for all USER RESERVE KEYS.
• Some remote control codes cannot be learned.

Using a command that has been learned

Select the key which has learned the command.

Switching the function on the amplifier/receiver automatically (AMP LINK)

You can set the commander to switch the function on the amplifier/receiver to the component selected in the RM SELECT screen automatically.

The following procedure uses an example to switch the function on the amplifier/receiver to CD when "CD" is selected in the RM SELECT screen.

1 Touch RM SELECT.

The RM SELECT screen appears.

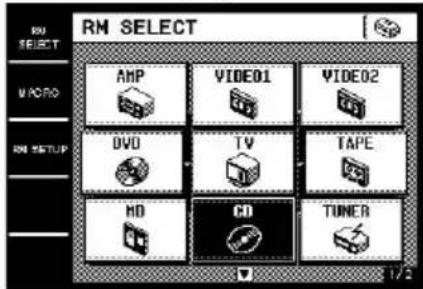

2 Turn the jog dial to select the remote (component) you want to use with the AMP LINK function ("CD" for example).

When you touch the remote (component), touch to display the RM SELECT screen.

3 Touch

The pull-down menu appears.

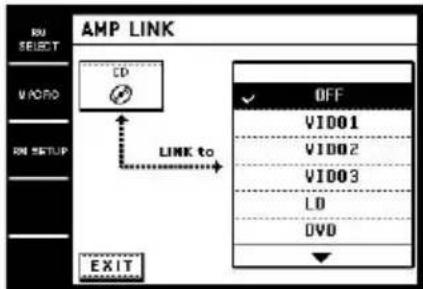

4 Touch AMP LINK in the pull-down menu.

The AMP LINK screen appears.

5 Select the function you want to switch the function to ("CD" for example).

A check () appears in front of the selected function.

6 Touch EXIT.

The RM SELECT screen reappears.

A appears in the box of the remote (component) selected in step 2.

To cancel AMP LINK

Select "OFF" in the AMP LINK screen.

Changing the name of the remote (component)

You can change the name of the remote (component) that appears in the RM SELECT screen (up to 10 characters).

1 Touch RM SELECT.

The RM SELECT screen appears.

2 Touch the remote (component) you want to change the name ("VIDEO1" for example).

Or, turn the jog dial to select the remote (component), then press the jog dial to enter the selection. The screen for operating the component appears.

3 Touch The pull down menu appears.

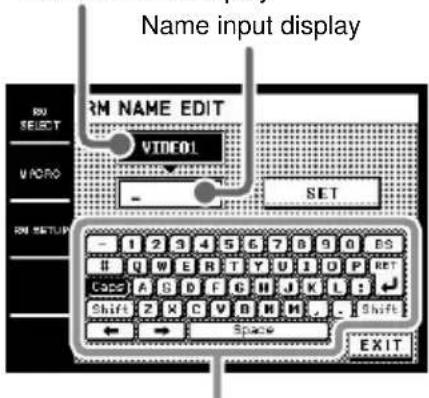

4 Touch NAME EDIT in the pull-down menu.

The RM NAME EDIT screen appears.

Current name display

Name input buttons

5 Enter the name you want.
6 Touch SET.

The new name is set in the commander.

7 Touch EXIT.

Adjusting the commander's operating environment

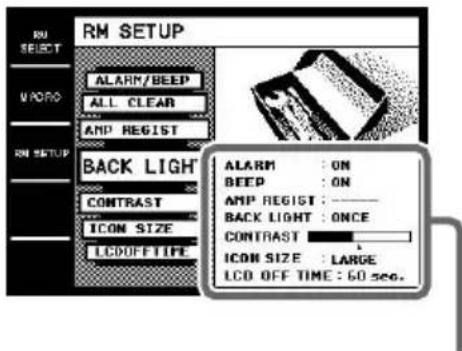

The RM SETUP screen allow you to adjust various settings and customize the commander's operating environment.

1 Touch RM SETUP.

The RM SETUP screen appears.

Current setting

2 Touch the menu you want to adjust. See below for details about each menu.
3 Touch EXIT to return to the RM SETUP screen.

Adjusting the contrast of the display (CONTRAST)

You can adjust the contrast of the display. Touch ^+ or - to adjust the contrast.

Tips

• Depending on the brightness of the room and the angle at which the commander is viewed, the LCD may be difficult to see. When this occurs, changing the angle of the commander or adjusting the contrast of the LCD may make the LCD easier to see. When fingerprints (etc.) get on the LCD, wipe the LCD with a soft, dry cloth. It is recommended to use the touch pen supplied with the commander.
• The contrast lightens a little when the temperature lowers, and darkens a little when the temperature rises.

continued

Adjusting the commander's operating environment (continued)

■Selecting the icon size (ICON SIZE)

You can select the icon size of the RM SELECT screen. Touch SMALL to use small icons (12 icons are displayed at a time) or touch LARGE to use large icons (9 icons are displayed at a time).

Setting the LCD turn off time (LCDOFFTIME)

The turn off time can be set between 10 and 90 seconds in 1 second intervals. Touch + or - to adjust the turn off time.

Tip

The turn off time is factory set to 60 seconds. To preserve battery life, set to a shorter time.

Adjusting the position of the touch panel (TOUCH PANEL)

Adjust the position of the LCD when it shifts from the normal operating position.

Touch the center of each of the 4 dots.

"Adjusted" appears in a short while and long beep is emitted.

Setting the warning alarm and the operating beep sound (ALARM/BEEP)

You can set the warning alarm and the operating beep sound on or off. Touch ON to output the sound. Touch OFF to turn off the sound.

■Returning settings to their factory preset settings (ALL CLEAR)

Touch YES to erase all memorized settings and return them to their factory presets. A long beep is emitted and all settings return to the factory settings.

Please note that once erased, settings cannot be returned.

■Registering the 2 way amplifier/receiver (AMP REGIST)*

When using Sony 2 way amplifier/receiver, touch START to download the amplifier/ receiver information. For details, see page 20.

Setting the backlight (BACK LIGHT)

You can choose to turn the backlight on manually or to have the commander remember your previous setting.

Set to ONCE (factory setting) if you prefer to turn the backlight on manually as needed. Set to KEEP if you want the commander to remember the previous backlight setting. For example, if the backlight was on the last time the LCD was on, the backlight will automatically come on again the next time the LCD comes on. Likewise, if the backlight was off, it will stay off the next time too.

• When carrying out this operation, make sure that the amplifier/receiver's power is on, and be sure to point the commander's transmitter/receiver section toward the display on the amplifier/receiver. Also, operate the commander at a distance of about 1-2 meters from the amplifier/receiver.

Safety regulations

On safety of the main unit (For the customers in Europe)

• Do not use an AC adapter other than that provided with the unit. Otherwise, a fire or electric shock may result.
• Do not use the unit for an extended period of time. Extended use of the unit may cause aches and pains in your arms and wrists. Whenever you feel an ache in a part of your body during the use of the unit, immediately stop using it and take a rest. Should the aches and pains persist after the rest, please consult your doctor.
• Do not install the unit where it will be exposed to oil soot, steam, moisture and excessive dust. Installing the unit in such a place as described above may result in a malfunction. Also note that using the unit in an environment other than the operating environment specified in the operating instructions may lead to malfunction.
• Do not allow water or a foreign object to enter the inside of the unit. Penetration of water or a foreign object may lead to malfunction.
• Do not attempt to disassemble the unit. The unit contains high-voltage parts inside. Careless opening of the case or front cover or modification of the unit may lead to malfunction. Refer internal check and servicing to your nearest Sony dealer.
• Do not touch the AC adapter with a wet hand. If you plug or unplug the AC adapter with a wet hand, electric shock may result.
• Do not wrap the AC adapter cord around the AC adapter body. Otherwise, wire disconnection or malfunction may result.
• Do not cover the main unit and/or AC adapter with a cloth or cushion. Otherwise, heat buildup may cause deformation of the case or a fire hazard.

• Install the unit on a stable surface. Do not install the unit on an unstable bench or tilted surface. Also do not install it sideways or upside down. Otherwise, the unit may fall or topple down, causing human injuries.

• Do not place a heavy object on the unit. Otherwise, damage to the unit or an injury to a person may result.

• Unplug the AC adapter before maintenance. Otherwise, malfunction may result.
• Unplug the AC adapter when the unit is not to be used for an extended period. When you will not use the unit for an extended period, unplug the AC adapter from the power outlet for safety.
• Do not install or store the unit in a place exposed to direct sunlight or near a heater. Otherwise, the internal heat build-up may cause malfunction.
• Do not apply shock or impact to the LCD. The screen (display panel) is made of glass. It may crack and cause injuries if it is twisted or dropped, if you rest your elbow on it or a heavy object is placed on it.
• Be careful not to touch or hit the LCD with a hard object. Otherwise, the LCD may break, causing malfunction or human injury.
• Do not apply a strong shock or impact to the main unit. Otherwise, malfunction may result.
• When thunder begins, do not touch the AC adapter. Otherwise, there is a risk of electric shock.
• Do not place the AC adapter near water. Water on the inside or the outside of the adapter, or use in a bathroom may result in fire or electric shock hazard.

continued

Safety regulations (continued)

On the safety of rechargeable battery

• Do not remove the battery cover. Removing the screws will expose dangerous high-voltage parts inside the battery. Refer servicing to your nearest Sony dealer.
• Use only the supplied battery charger to recharge the battery. If it is recharged with a different charger or under different conditions, the following may result; recharging at an excessive current level, fluid leaks, heat generation, cracking, or fire ignition of the battery.
• Do not throw the unit in fire or heat it. Otherwise, fluid leaks, cracking, or fire ignition of the battery may occur due to melting of the insulating materials of the inner cells, damage to the safety valves and mechanisms, or ignition of the produced hydrogen.
• If recharging does not complete in the specified time, stop recharging the battery. If recharging is continued in such a case, excessive recharging may cause fluid leak or heat generation from the battery.
• Do not use the unit which is discolored, deformed or otherwise altered. Otherwise, heat generation, cracking, or fire ignition of the battery may result.

• The rechargeable battery contains alkaline fluid inside, and contact of the battery fluid with human skin or clothes may damage the skin. Should an accidental contact occur, immediately wash the skin or clothes with clean water including tap water. Also, penetration of the battery fluid may cause loss of eyesight. Should this happen, immediately rise the eye with clean water such as tap water and consult your doctor.

• Do not immerse the unit in either fresh or sea water or moisten it with water. This may cause heat generation from the battery as well as corrosion of the battery terminals.

• The ambient temperatures during the battery recharging should be as specified below. If recharging is performed outside the specified temperature range, fluid leak or heat generation from the battery may occur as well as drop in the performance and service life of the battery. Recharging: 5^ to 35^
• Do not use or leave the unit under direct strong sunlight, in a closed automobile under the sun or near a heater. Otherwise, fluid leak or heat generation from the battery may occur as well as drop in the performance and service life of the battery.
• If you notice the unit generating very high heat or some other abnormality during the first use of the unit after purchase, do not use it but bring or forward it to your dealer.
• When the unit is used for the first time after purchase or when it has not been used for a long period, the battery may not be charged fully. Recharge the battery in such cases.
• When the unit has not been used for an extended period, the battery may become unable to be recharged fully or at all. To prevent such a trouble, it is recommended to recharge it every other month even during the period in which it is not used.

On the safety of AC adapter and battery charger

• To prevent electric shock, fire or malfunction, do not attempt to open or modify the units.
• To prevent electric shock, smoke generation or fire hazard, do not use a damaged AC adapter cord.
• Do not moisten the AC adapter and battery charger. If a liquid such as water or a pet's urine enters the unit, heat generation, electric shock or malfunction may result. Take care in the place and method of their handling.
• Should a liquid such as water penetrate the battery charger, immediately unplug its AC plug from the power outlet.
• To prevent electric shock, do not touch the AC adapter, battery charger, AC adapter cord or AC plug with wet hands.
• Do not short-circuit the charger terminals while the battery charger is plugged to a power outlet. Also do not touch the charger terminals with your hand or finger. Otherwise, a fire, malfunction or electric shock may result.
• Never use the AC adapter or battery charger under high humidity, for example in a bathroom. Otherwise, electric shock may result.
• Remove dust from the AC plug, for it may cause a fire hazard.
• To prevent an electric shock or fire hazard, do not place a heavy object on the AC adapter.
• When unplugging the AC plug from the power outlet, be sure to grasp the AC adapter body, not the cord. If the cord is pulled, it may be damaged, causing an electric shock or fire hazard.
• Do not place the AC adapter and battery charger on an unstable surface during recharging. Also do not cover or wrap them with a cloth or cushion. Otherwise, heat buildup may cause a fire hazard.
• Replace the AC adaptor with one of the same type if replacement is necessary. Please ask the nearby Sony dealer of a model name.

Precautions

On power sources

(For customers in Europe)

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the commander itself has been turned off.

On the touch pen

Use only the touch pen provided with this unit or the soft tip of your finger to operate the touch panel. Using a commercially available writing utensil may damage the panel and make correct operation impossible. If the tip of the touch pen is damaged, or the touch pen is lost, please consult your nearest Sony dealer.

On battery life per charge

When the backlight is not necessary, do not press BACK LIGHT to turn on the LCD. Touch the touch panel to turn on just the LCD. The life of the battery charge will be prolonged. The life of the battery charge may be shortened depending on the conditions in which the commander is used.

On cleaning

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use solvent such as thinner, benzine, or alcohol as these will damage the surface of the commander.

On nameplate

(For customers in Europe)

The nameplate is located on the bottom exterior.

If you have any question or problem concerning your commander, please consult your nearest Sony dealer.

Troubleshooting

If you experience any of the following difficulties while using the commander, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

Operation can not be done with the commander.

• When using the commander as a 2-way remote, check that the amplifier/receiver and components are connected correctly (page 19).
• The commander and component are too far apart.
• Make sure that there are no objects between the commander and component.
• Make sure that the component's power is turned on.
• The commander's transmitter/receiver section is not pointed at the component.
• The commander's battery is exhausted. Recharge the battery (page 5).
• There is an inverter system fluorescent light near the commander or component. Please place away from the fluorescent light.
• Make sure you have selected the correct remote (component) on the commander.
• When you operate a non-Sony component, the remote (component) may not function properly depending on the maker and model of the component.

When using the Sony amplifier/receiver, the amplifier/receiver's functions and modes do not correlate with the displays on the commander.

• The information of the amplifier/receiver is not downloaded. Download the information (page 20).

The LCD does not appear.

• The LCD is not turned on. Touch the touch panel.
• Contrast is too light or too dark. Adjust the contrast (page 29).

The LCD shifts from the normal operating position.

• Adjusting the position of the touch panel (page 30).

When a component is connected to the amplifier/receiver with Control A1/A1 II cord, Auto Function does not work properly.

• Download the amplifier/receiver data (page 20).

Commands of components made by manufacturers other than Sony do not function.

• When registering components made by certain manufacturers, some commands may not function. These keys are dimmed.

When using 2-way Sony amplifier/receiver, the commander and the amplifier/receiver cannot communicate.

• If the amplifier/receiver's command mode (IR type) and the commander's command mode (IR type) do not match, transmission is not possible between the commander and the amplifier/ receiver.

appears in the screen.

• 2 way communication error occurred.
• When using the commander as a 2-way remote, check that the amplifier/receiver and components are connected correctly (page 19).
• The commander and component are too far apart.
• Make sure that there are no objects between the commander and component.
• Make sure that the component's power is turned on.
• The commander's transmitter/receiver section is not pointed at the component.
• The commander's battery is exhausted. Recharge the battery (page 5).
• There is an inverter system fluorescent light near the commander or component. Please place away from the fluorescent light.
• Make sure you have selected the correct remote (component) on the commander.

appears in the screen.

• The battery is running out. Recharge the battery.

Specifications

Operating system Liquid crystal touch panel

Liquid crystal size 3.8 inches (256 x 200 dots)

Liquid crystal type Reflection system (Monochrome type)

Touch panel Resistant membrane system Analog type

Power requirements Rechargeable (Ni-MH) battery

Maximum external dimensions

(width·height·depth,includingprojecting parts and controls) 166· 25· 126mm

Mass 392g (Main unit only including the rechargeable battery)

Supplied accessories Battery charger (1) AC adapter (1)

Design and specifications are subject to change without notice.

Maker compatibility list

AMP

SONY-AV1

SONY-AV2

SONY-AV3

SONY AMP

SONY PRE AMP

SONY AV MASTER

SONY MULTI ROOM1

SONY MULTI ROOM2

DENON

JVC

Kenwood

Onkyo

Pioneer

Technics

YAMAHA

VIDEO

SONY

Admiral

Aiwa

Akai

Alba

Audio Dynamic

Bell&Howell

Blaupunkt

Brocsonic

Bush

Canon

CGM

Citizen

Clatronic

Craig

Curtis Mathis

Dacwoo

DBX

Dimensia

Emerson

Fisher

Funai

GE

GoldStar

Goodmans

Grundig

Hitachi

Instant Replay

Itt/Nokia

JC Penny

JVC

Kendo

Kenwood

Loewe

Luxor

LXI

Magnavox

Marantz

Marta

Matsui

Memorex

Minolta

Mitsubishi

Multitech

NEC

Nokia

Nokia Oceanic

Nordmende

Okano

Olympic

Orion

Panasonic

Pentax

Philco

Philips

Phonola

Pioneer

Quasar

RCA/PROSCAN

Realistic

SABA

Samsung

Sunsui

Sanyo

Schneider

Scott

SEG

Seleco

Sharp

Siemens

Signature 2000

Sylvania

Symphonic

Tandberg

Tashiro

Tatung

Teac

Technics

Telefunken

Thorn

Toshiba

Universum

Wards

W. Whouse

YAMAHA

Zenith

DVD

SONY

DENON

JVC

Panasonic

Pioneer

RCA

Samsung

Toshiba

YAMAHA

TV

SONY

Admiral

Aiwa

Akai

Alba

AOC

Bell&Howell

Bstar

Blaupunkt

Bulesky

Brandt

Brocsonic

Brush

Clatronic

Craig

Croslex

Curtis Mathis

Daewoo

Daytron

Dual

Emerson

Ferguson

First line

Fisher

Fraba

Funai

GE

GoldStar

Goodmans

Grundig

Hitachi

ICE

Irradio

Itt/Nokia

JC Penny

JVC

Kendo

KTV

Loewe

LXI

Magnavox

Mark

Maker compatibility list (continued)

Matsui

Medion

Mitsubishi

Mivar

NEC

Nokia

Nokia Ocean

Nordmende

Okano

Onwa

Panasonic

Philco

Phonola

Pioneer

Portland

Quasar

Redio

Rediola

Redio Shack

RCA/PROSCAN

SABA

Samsung

Sanyo

Schneider

Scott

Sharp

Siemens

Signature

Sylvania

Symphonic

Tatung

Telefunken

Thomson

Thoron

Toshiba

Universum

Videch

Wards

Watson

W.W.House

YAMAHA

Zenith

TAPE

SONY

DENON

Fisher

JVC

Kenwood

Nakamichi

Onkyo

Panasonic

Philips

Pioneer

Teac

Technics

YAMAHA

MD

SONY

Denon

JVC

Kenwood

Pioneer

Sharp

YAMAHA

CD

SONY

DENON

Fisher

JVC

Kenwood

Magnavox

Onkyo

Panasonic

Philips

Pioneer

RCA

Sanyo

Sharp

Teac

Technics

YAMAHA

TUNER

SONY

Admiral

Aiwa

DENON

Fisher

Harman

Jensen

Kenwood

Magnavox

Marantz

Nakamichi

Onkyo

Panasonic

Philips

Pioneer

RCA

Sansui

Sharp

Teac

Technics

YAMAHA

CABLE

Hamlin/Regal

Jerrold/G.I.

Oak

Panasonic

Pioneer

Scientific

Tocom

Zenith

SATELLITE

SONY-DSS

SONY-BS DIGITAL

SONY-CS DIGITAL

Blaupunkt

Goldstar

Grunding

HNS/HUGHES

It/Tokia

NEC

Philips

RCA

Samsung

Siemens

PROJECTER

SONY

LD

SONY

DENON

Kenwood

Magnavox

Panasonic

Philips

Pioneer

YAMAHA

VIDEO CD

SONY

DAT

SONY

AVERTISSEMENT

Commanded amplificateurs/amplistuners Sony

Pour commander le tuner

La communication commence.

Alimentation Pile rechargeable (Ni-MH)

Dimensions externes maximales
