Product type	Baby bed (co-sleeper cradle, standalone bed, playpen)
Brand	BabyGO
Model	Side Crib
Safety standard	EN 1130-1:1996
Main material	Steel frame, breathable mesh fabric
Dimensions (approx.)	90 cm x 50 cm (bed), adjustable height
Maximum user weight (bed mode)	9 kg
Maximum user weight (playpen mode)	15 kg (approx. 3 years)
Adjustable heights	6 positions for the base
Inclination	Possible (max difference of 2 notches between feet)
Main functions	Standalone bed, co-sleeper (attachment to parental bed), playpen
Wheels	Yes, at the front for easy moving
Anti-slip feet	Yes, rubber pads
Attachment to parental bed	Adjustable straps provided, max gap 2 cm
Mattress	High-elasticity foam, air permeable
Cleaning	Sponge with warm water and mild detergent, dry gently
Maintenance	Do not use abrasives, ammonia, bleach or alcohol
Folding	Easily foldable for storage
Included accessories	Hex key, screws, fixation straps, safety metal ring
Spare parts	Only use parts approved by the manufacturer
Repairability	Damaged parts must be replaced with original parts

Frequently Asked Questions - Side Crib BabyGO

What are the dimensions of the BabyGO Side Crib?

The exact dimensions are not specified in the manual, but a standard co-sleeper bed measures approximately 90 cm long and 50 cm wide. The height is adjustable to 6 positions to fit different parental beds.

What is the maximum weight supported by the baby bed?

In standalone bed or co-sleeper mode, the maximum weight is 9 kg. In playpen mode (with the base lowered), it is suitable for children under 15 kg (approximately up to 3 years).

How to install the Side Crib in co-sleeper mode?

Remove the side tube by unlocking the plastic joints, then lower the side panel. Place the bed against the parental bed, adjust the height so that the mattresses are aligned (the parental mattress should be at or above the open side). Fasten the provided straps to the bed's feet and around the parental bed frame, tightening so that the gap does not exceed 2 cm.

Is the baby bed inclinable?

Yes, the bed can be tilted by adjusting the feet to different heights, with a maximum difference of 2 positions between the two feet. Always place the child's head on the higher side to avoid regurgitation.

How to clean the BabyGO Side Crib?

Clean plastic and metal parts with a sponge dampened with warm water and a little mild detergent. Dry gently before storing. Do not use abrasive products, ammonia, bleach or alcohol. Do not wring the fabric and do not iron it.

Can I use the Side Crib as a playpen?

Yes, in playpen mode: lower the base to the floor using the zippers located under the mattress. Make sure the frame is in the highest position. Playpen mode is suitable for children up to 15 kg.

What accessories are included?

The manual mentions: a mattress, support bars, a side frame support, a pair of fixation straps, a hex key, screws, and a safety metal ring to lock the zipper heads.

Is the bed compliant with safety standards?

Yes, the BabyGO Side Crib complies with European standard EN 1130-1:1996. It has multiple locking mechanisms and precautions against risks of suffocation, strangulation and falls.

Are the wheels lockable?

The manual does not specify a brake on the wheels. However, anti-slip pads under the feet prevent the bed from moving. It is recommended to always extend the feet fully when in use.

How to know when to stop using the baby bed?

In bed and co-sleeper modes, the product should no longer be used when the child is able to sit up alone, kneel or stand. Also respect the maximum weight of 9 kg (15 kg in playpen mode).

USER MANUAL Side Crib BabyGO

Thank you for purchasing the Side Crib.

Please read and follow all instructions before using the Side Crib.

WARNING!

Read the Instruction carefully before use and keep them for future reference.

INSTRUCTIONS FOR BED SIDE Crib

IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE This product complies with EN 1130-1:1996.

• With convenient device to fix the crib next to the parents' bed and get close to parents.

• Easy for parents to feed or take care of their baby and can be used as an independent crib.

• One side with breathable mesh fabric help air circulation.

• Height adjustable in 6 position that can match to different height of the bed.

• Wheels included for easy move and special feet with antiskid also apply to bed with drawer.

• Reclinable to prevent baby vomiting milk.

• With steel frame, easily folded and fabric easily detached for cleaning.

• With high elastic sponge mattress, well air permeability, more suitable for newborn babies.

WARNINGs (For Playpen Mode):

• WARNING-Attend the child at any time.
• WARNING-Never hang anything up on the playpen.
• WARNING-Do not use the playpen without the base.
• WARNING- Do not place the playpen close to an open fire or other heat source.
• WARNING- Suit for child under 15 KGS in weight or approximately 3 years old.
• WARNING- Ensure that the playpen is fully erected and all the locking mechanisms engaged before placing your child in this playpen.
• WARNING- Do not use the playpen if any part is broken, torn or missing and use only spare parts approved by the manufacturer. Do not use the accessories which are not approved by the manufacturer.
• WARNING-Never leave anything in the playpen which could provide a foothold or create a danger of suffocation or strangulation.
• WARNING- The base should always be used in the highest position.
• WARNING- Ensure all assembly fittings should always be tightened properly.

WARNINGs: (For Stand Alone Crib & Co-Sleeping Mode)

1. BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.
2. The product is ready for use only when all locking mechanisms are engaged. Check carefully that these are engaged before use.
3. All opening, adjusting, anchoring and positioning operations of the product must be carried out exclusively by an adult.
4. The young children should not be allowed to play unsupervised in the vicinity of a crib.
5. The crib should be locked in the fixed position when a child is unsupervised in it.
6. Do not use the product if any part is broken, torn or missing.
7. When a child is able to sit, kneel or to pull itself up, the crib (stand alon crib, co-sleeping mode) shall not be used anymore for this child.
8. The thickness of the mattress must be such that the vertical height (upper surface of the mattress until the upper edge of the product's sides) is at least 200mm . Do not use more than one mattress in the crib.
9. The product must always be placed on a horizontal surface. Never leave the product on an inclined surface with the child inside of it.
10. Be aware of the risk of fire and other sources of strong heat, such as electric bar fires, gas fires, etc. In the near vicinity of the crib.
11. Keep the fastening belts away from the reach of children.
12. Do not leave any object inside the product that could reduce its depth.
13. Do not position the crib near walls and obstacles to prevent trapping hazards.
14. Do not leave small objects inside the product to prevent chocking hazards.
15. Do not adjust or move the product with the child inside.
16. Do not use the product with more than one child at a time.
17. The product must be kept away from electric cables and cords. Do not place the product near windows where cords, curtains or similar objects could pose chocking or strangling hazards for the child.
18. All assembly fittings should always be tightened properly and taken cared that no screws are loose, because a child could be trapped by parts of the body or clothing (e.g. strings, necklaces, ribbons for babies dummies, etc), which would pose a risk of strangulation.
19. This product is intended for one child weighing up to a maximum of 9kg.
20. Not to use the body of the crib without its frame.

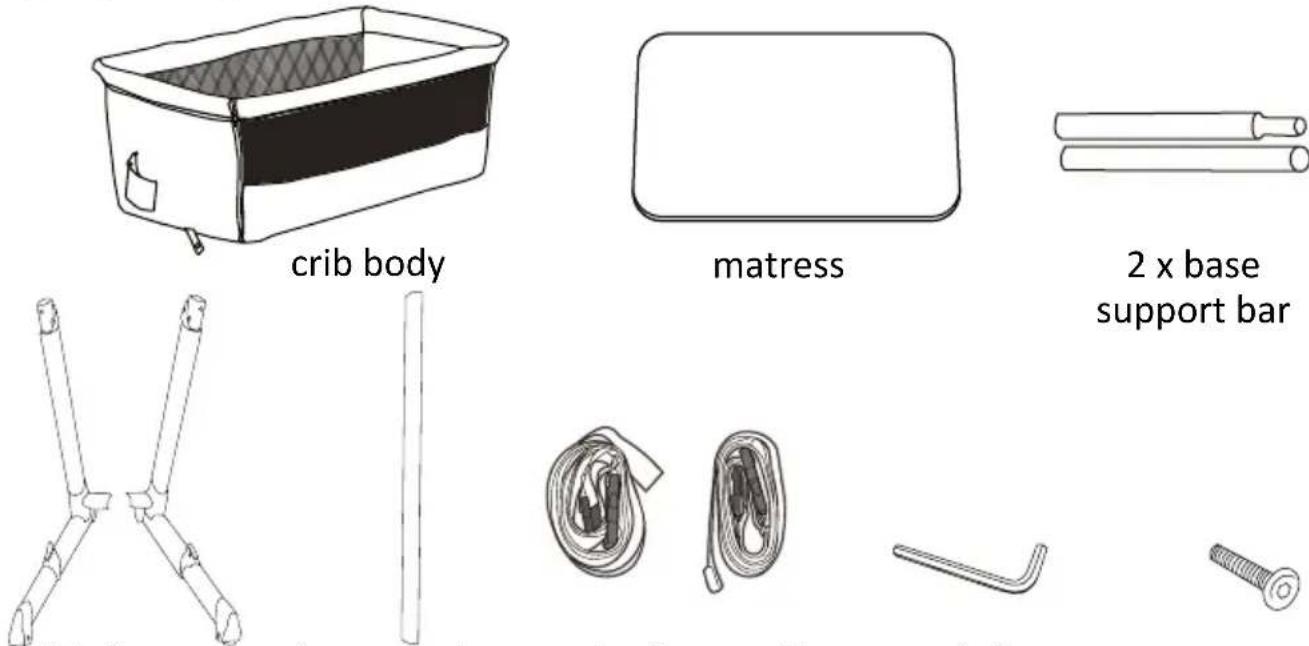

Components

side frame stand support bar a pair of strap allen wrench 4x screw

Instruction for Assembly

1. Insert support bar "C" to left side frame stand "A"(fig 1) and secure with 2 screws (fig 2).

Use the allen wrench to tighten screws in clockwise direction (fig 3). Repeat the same for the right side frame stand "B"(fig 4).

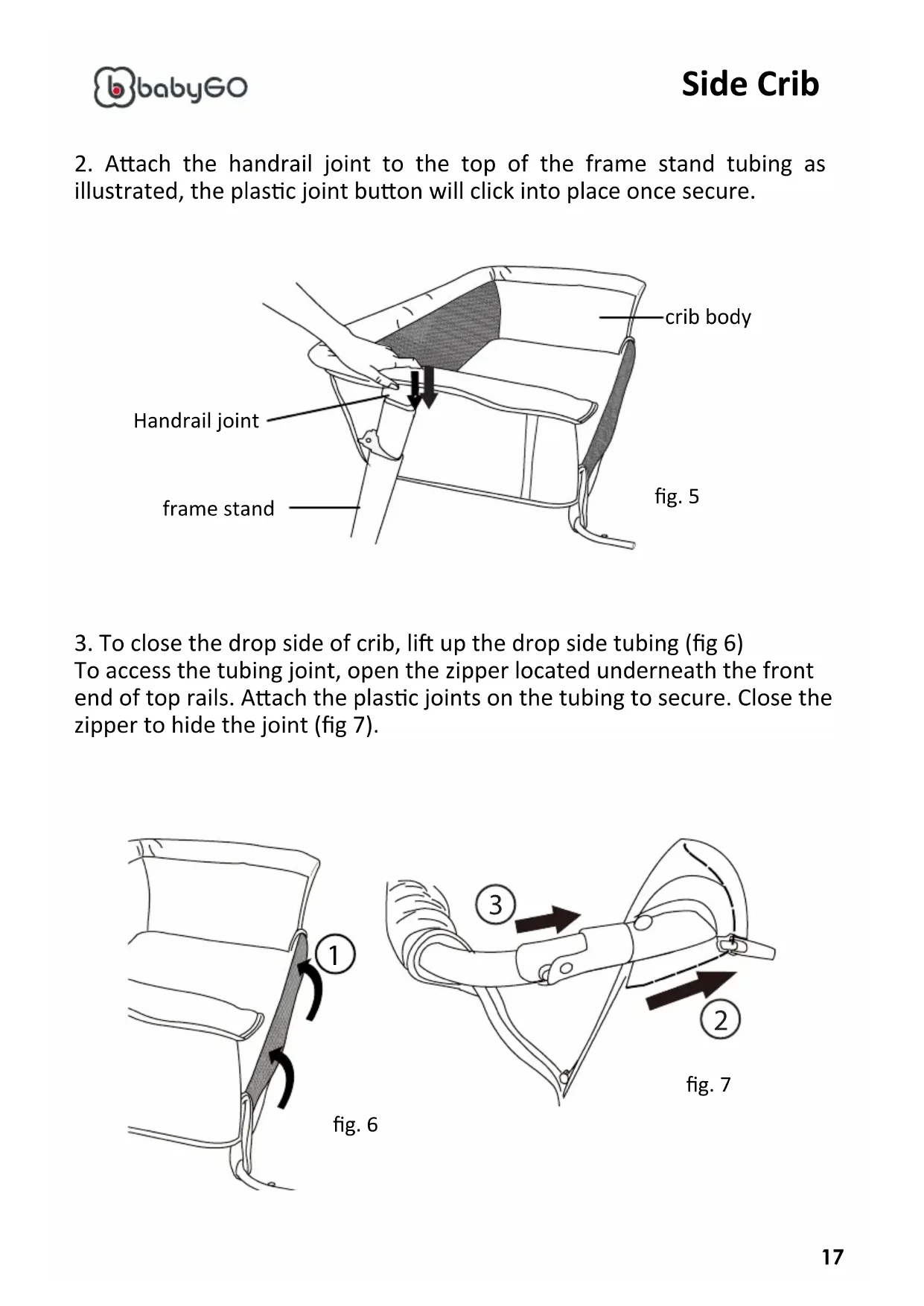

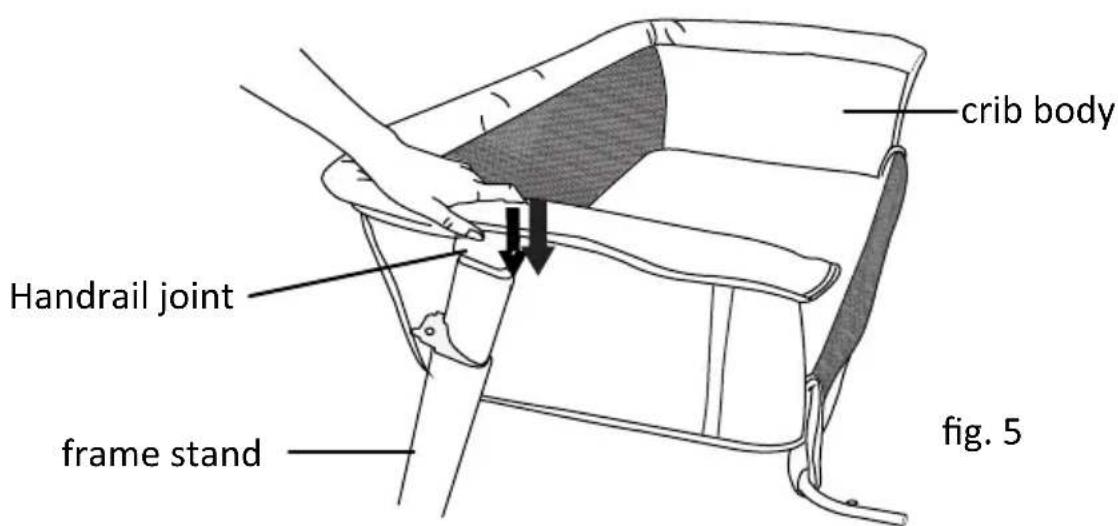

1. Attach the handrail joint to the top of the frame stand tubing as illustrated, the plastic joint button will click into place once secure.

1. To close the drop side of crib, lift up the drop side tubing (fig 6)
   To access the tubing joint, open the zipper located underneath the front end of top rails. Attach the plastic joints on the tubing to secure. Close the zipper to hide the joint (fig 7).

1. Fasten the side of the crib with the mesh window using the side zips and close them completely (fig 8). Your crib is now ready to be used as a stand alone crib.

WARNING! ENTRAPMENT HAZARD AND FALL HAZARD-Always use the metal ring to lock the zipper heads together, in case the child unzip the crib.

Instruction for Wheels, Leg & Height adjustment

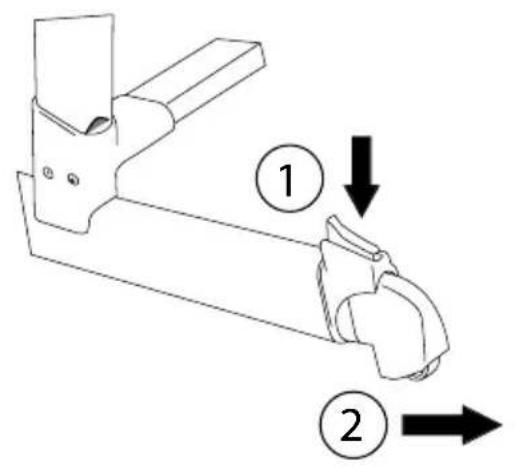

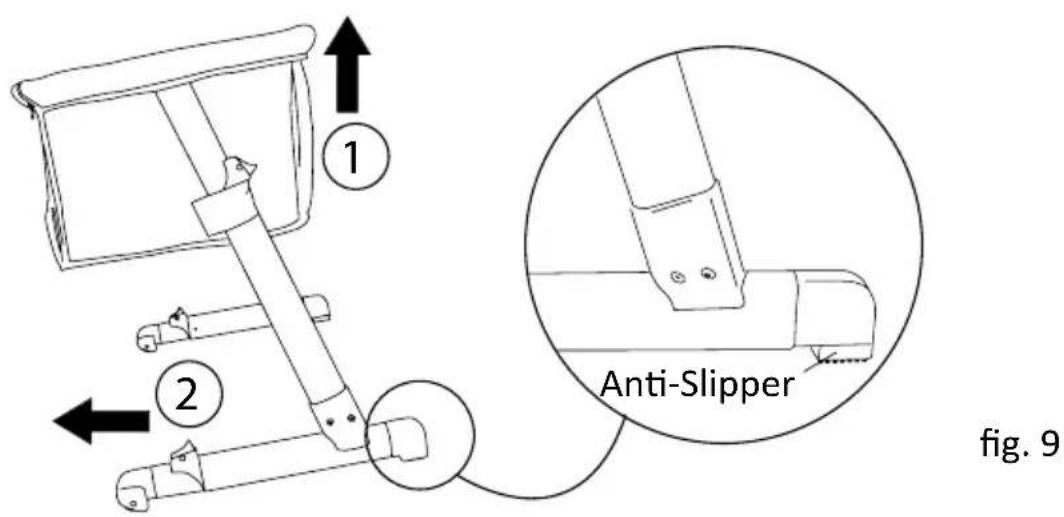

1. There are wheels located on the front of the frame legs for easy moving. To access wheels, hold the crib rear long handrail and lift up. Simultaneously push the crib forward or backwards (fig 9).

There is an anti-slipper at the bottom of leg to stop the crib moving.

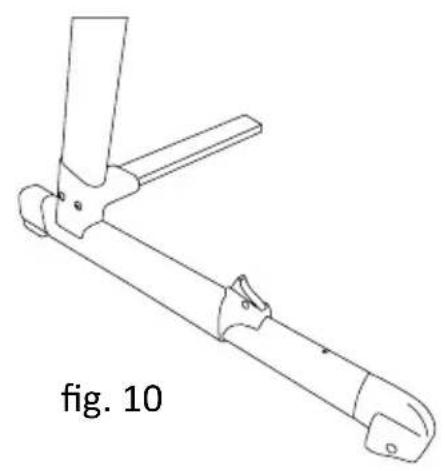

1. The leg at the base of the crib can be adjusted. Press button down as illustrated and pull leg out to adjust the length

WARNING! Always pull out legs to full extension when in use.

1. The crib can be adjusted to 5 different height positions. In order to adjust the height, press the adjustment lever down and adjust the crib to the desired position (fig 11). Repeat this operation on the opposite side. The base of the crib can be inclined slightly by adjusting the two legs to different heights (fig 12).

WARNING! The crib can be inclined with a maximum variance of 2 positions between one leg and the other (e.g. the right leg in position 1 and the left leg in position 3).

WARNING! The head of the child should always be positioned on the highest side.

fig. 11

Instruction for fixing to parents' bed

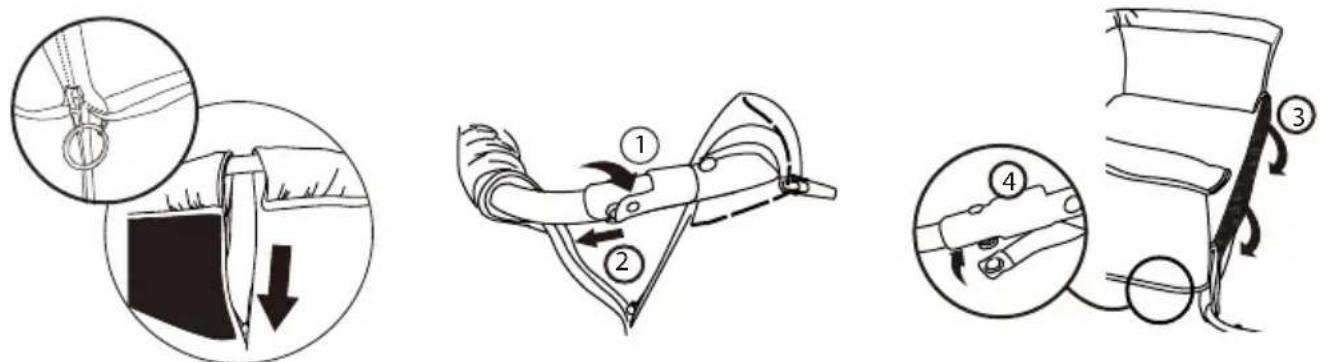

1. Unlock the one of two zipper heads from the metal ring. Open the side of the crib with the mesh window using the side zippers.

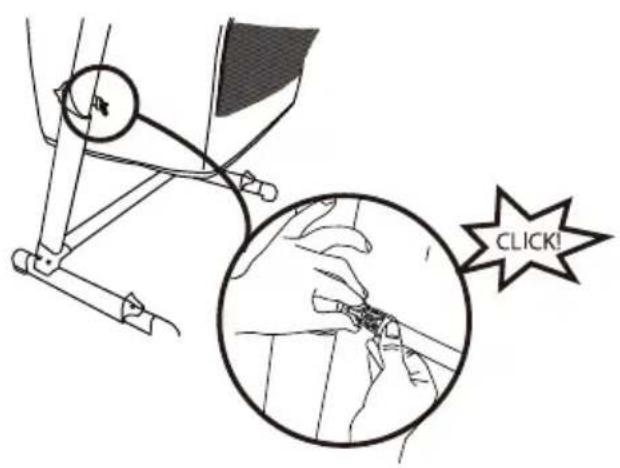

Then open the zipper located at the front end of top rail. Open them completely. Release the plastic joints from the tubing (fig 14) and partially remove the tubes. Once this operation has been performed on both sides, lower the crib side panel and fit it to the base of the crib main body using snap button (fig 15).

WARNING! Use the crib with the tube lowered in co-sleeping mode only.

fig. 13 fig. 14 fig. 15

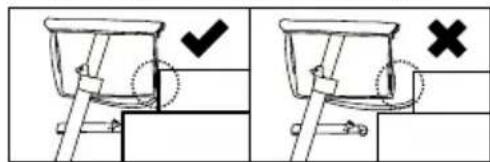

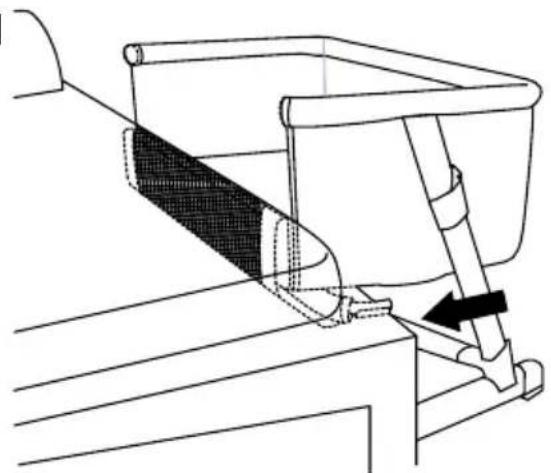

1. Move the crib close to the parents bed and check the height of the crib compared with the mattress of the bed (fig 16).

WARNING! The mattress of parent's bed shall be aligned to or over the height of the drop side in the lowest position.

WARNING! In co-sleeping mode the 2 legs of the crib should always be adjusted to the same height.

fig. 16

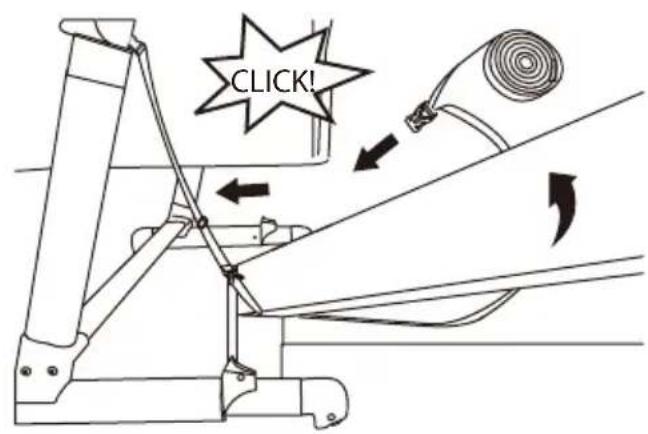

1. Use the pair of straps provided to fix the crib to the parents bed. Fix the buckles to the inner side of the both frame stands (fig 17), Next, fix the straps around the structure / slats of the parent's bed, from the bottom towards the top and fasten the buckles below the crib to finish (fig 18).

fig. 17 fig. 18

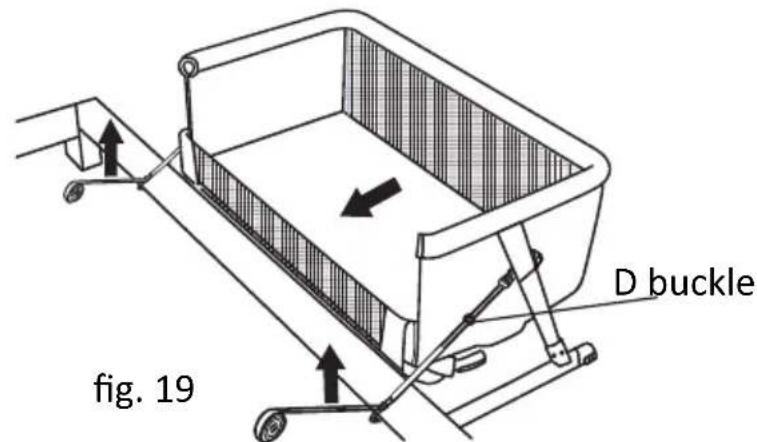

1. To secure the crib to the parents' bed, adjust the "D" buckle to tighten and pull the straps once again to make sure the crib is properly and firmly secured to the parents' bed(fig 19).

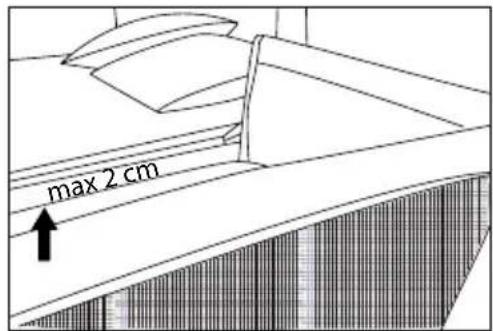

WARNING! The maximum distance between the crib and the parent's bed should be 2cm .

WARNING! During use, ensure that the adult bed sheet, blankets etc. do not enter and cover the interior of the crib.

Care Instructions

Plastic and metal parts may be sponged lightly using warm water and a mild detergent. Dry thoroughly before storing.

Never clean any part of the product with abrasive, ammonia based, bleach based or spirit type cleaners.

Do not twist; do not spin-dry; do not iron.
WARNING!

During the removal and / or application of the mattress cover, handle the fabric carefully in order to avoid accidental damage or tears.

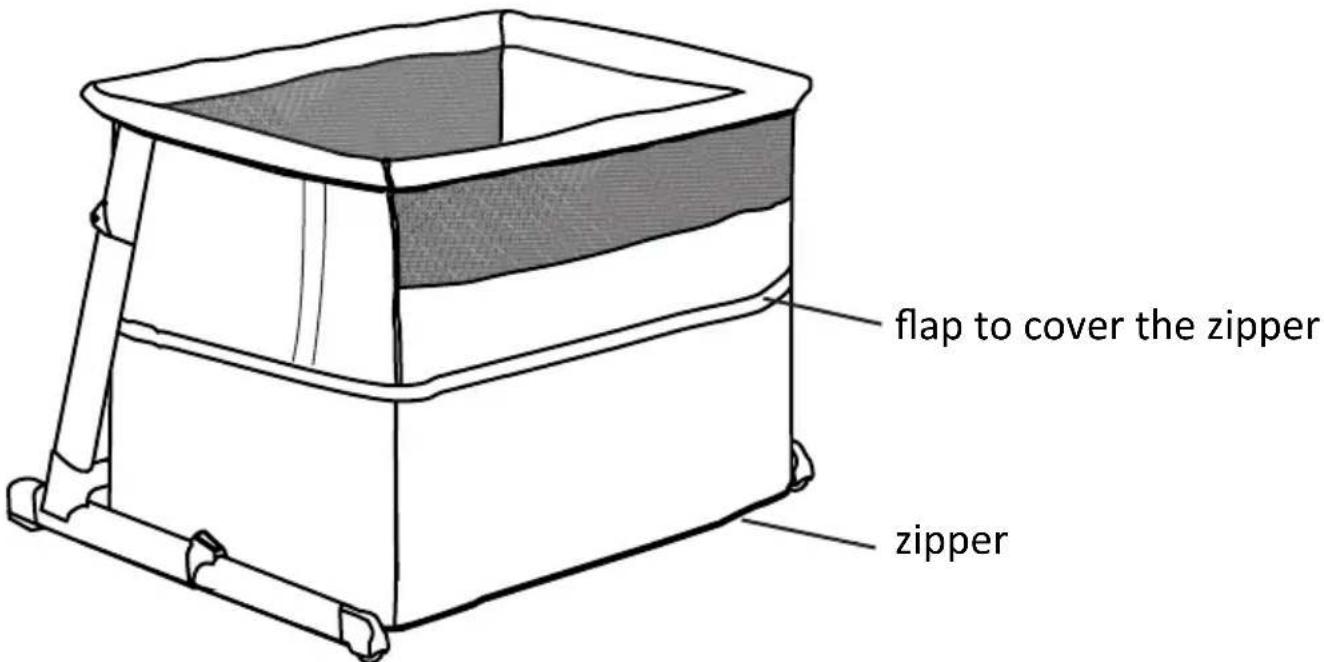

Playpen Mode

WARNING!

In playing mode the frame should always be used in highest position.
