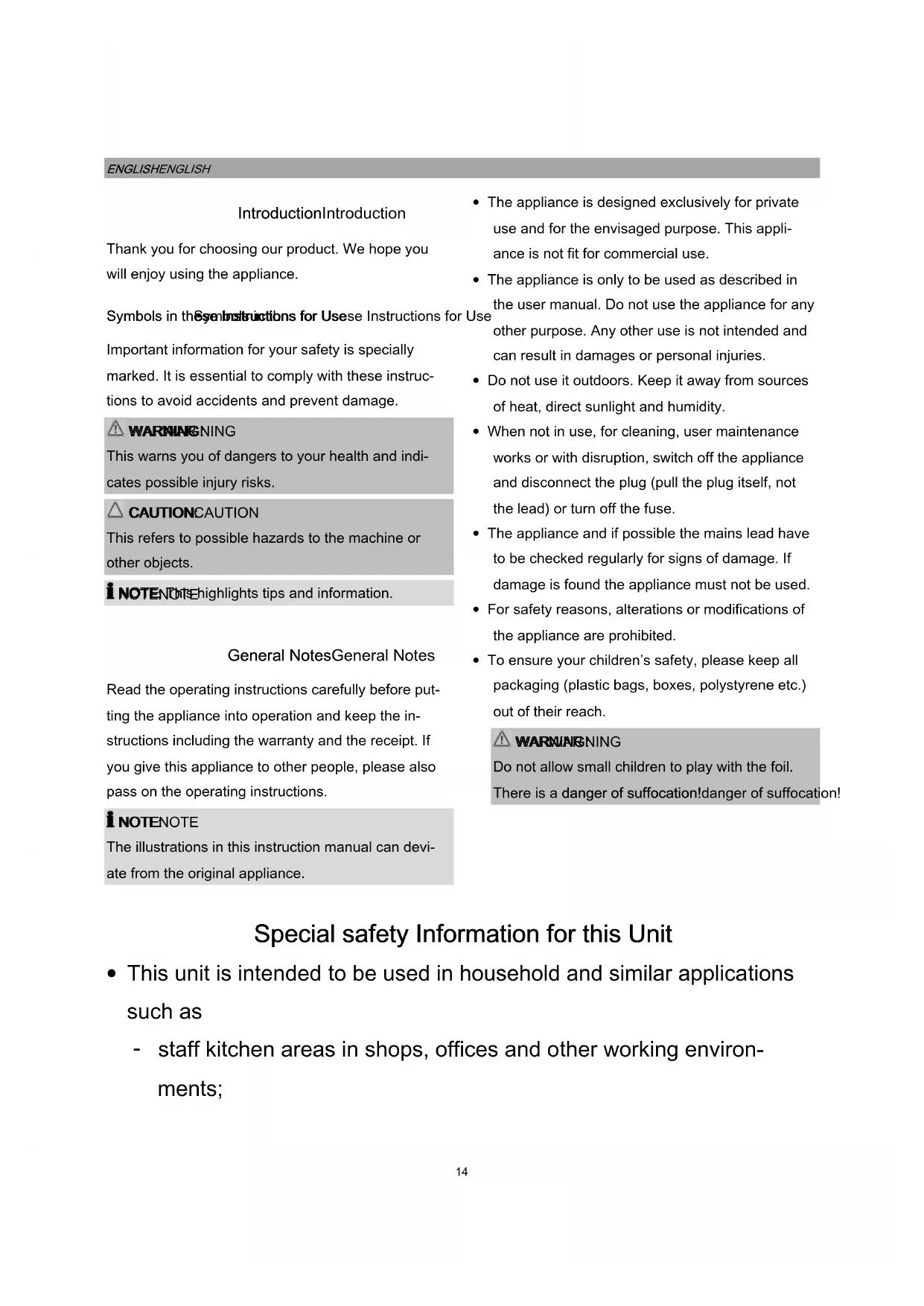

Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in th Symbols in thSymbols in th Symbols in the

Important information for your safety is specially marked. It is essential to comply with these instruc- tions to avoid accidents and prevent damage.

This warns you of dangers to your health and indi- cates possible injury risks.

This refers to possible hazards to the machine or other objects.

Read the operating instructions carefully before put- ting the appliance into operation and keep the in- structions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

The illustrations in this instruction manual can devi- ate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appli- ance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.

• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• For safety reasons, alterations or modifications of the appliance are prohibited.

• To ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil. There is a danger of suffocation! danger of suffocation!danger of suffocation! danger of suffocation!

Special safety Information for this Unit Special safety Information for this UnitSpecial safety Information for this Unit Special safety Information for this Unit

• This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environ- ments;15

- farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the de- frosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).

• Do not damage the refrigerant circuit.

• Do not operate any electrical devices inside the appliance.

• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

• This appliance can be used by children children children children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the use of theuse of the use of the appliance applianceappliance appliance in a safe way and under- stand the hazards involved.

• Children ChildrenChildren Children shall not play with the appliance.

• Cleaning and user maintenance user maintenanceuser maintenance user maintenance shall not be made by children childrenchildren children unless they are older 8 years and supervised.

• NOTE: NOTE:NOTE: NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.16

• Do not locate multiple portable socket-outlets or portable power sup- plies at the rear of the appliance.

• Do not try to repair the appliance on your own. Always contact an au- thorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

• Use the provided collection points of electrical equipment for the dis- posal of the appliance. Coolant CoolantCoolant Coolant

WARNING: Risk of fire / flammable

WARNING: Risk of fire / flammable WARNING: Risk of fire / flammable

WARNING: Risk of fire / flammable

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged: If the coolant circuit is damaged:If the coolant circuit is damaged: If the coolant circuit is damaged:

• disconnect the plug,

• thoroughly air the room in which the appliance is installed and

• contact an authorized technician. Unpacking the Appliance Unpacking the ApplianceUnpacking the Appliance Unpacking the Appliance

• Remove the appliance from its packaging.

• Remove all packaging material, such as foils, filler and cardboard packaging.

• To prevent hazards, check the appliance for any transport damage.

• In case of damage, do not put the appliance into operation. Contact your distributor.

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”. Appliance Equipment Appliance EquipmentAppliance Equipment Appliance Equipment

Removeable grid shelf

Grid shelf, ice-cube tray, water drip tray Installation InstallationInstallation Installation

Condition ConditionCondition Conditions for the installation location s for the installation locations for the installation location s for the installation location

• Good ventilation is required around the appliance to dissipate the heat properly and to guarantee ef-17

ficient cooling operation at low power consump- tion. Enough clearance is necessary. - Gap to the back and to the side walls each ap- prox. 5 cm; - Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient tempera- ture suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the appliance.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation: Avoid the installation:Avoid the installation: Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources; - at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be suscepti- ble to corrosion under such circumstances; - near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages). - Do not expose the appliance any weather. Electrical connection Electrical connectionElectrical connection Electrical connection

• The installation to the mains supply must conform to the local standards and regulations.

• Improper connection may cause to an electric electric electric electric shock shockshock shock!

• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be en- sured to disconnect the appliance from the power supply in case of emergency.

In case of disconnection or power failure: - Wait for approx. 5 minutes before restarting. - Check the operation settings.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifica- tions are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.

• If the plug after installation is not accessible, a corresponding disconnect device must be availa- ble to meet the relevant safety regulations. Reverse the Reverse the Reverse the Reverse the door o door odoor o door opening peningpening pening

If required, the door opening can be moved from the right (supplied condition) to the left side.

When replacing the door stop, the appliance must be disconnected from the power supply first.

• Ask another person to assist.

You possibly need: screw wrench, Phillips screw- driver as well as a thin-blade screwdriver.

• Remove the blind cap (1) and the hinge cover (2).

• Dismount the upper door hinge (4) by loosening the screws (3). Open the appliance door a little and lift it out of the lower door hinge.

• Displace the blind plug (9) of the appliance door accordingly. Place the appliance door safely aside.

• Tilt the appliance slightly backwards and block it in this position. Unscrew the feet (7+8).18

• Dismount the lower door hinge (5) by loosening the screws (6).

• Displace and attach the door hinge (5) at the op- posite appliance side. Turn in the feet (7+8) ac- cordingly.

• Replace the appliance upright. Put the appliance door on the hinge pin and fix it in its intended po- sition.

• Displace and attach the upper door hinge (4) at the opposite appliance side.

• Insert in the blind cap (1) at the opposite hole and put on the hinge cover (2) again, which you have removed at the beginning.

• Check if the door is aligned vertically and horizon- tally optimally so that the smooth opening and closing of the door is guaranteed. Startup / Operation Startup / OperationStartup / Operation Startup / Operation

Prior to first use Prior to first usePrior to first use Prior to first use

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunc- tion of the cooling system and causes an appliance breakdown. Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter “Cleaning and Maintenance”. Starting the appliance Starting the applianceStarting the appliance Starting the appliance

• Connect the appliance to the power supply.

• Operate the temperature control. See also the following section "Settings".

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, start- ing from this setting; the appliance will turn on auto- matically. The power levels [1–7] regulate the different values of the internal temperature. Setting 0 Setting 0Setting 0 Setting 0 Setting 1 Setting 1Setting 1 Setting 1 Setting 7 Setting 7Setting 7 Setting 7

Off state Lowest setting (warmest inside temperature) Highest setting (coldest inside temperature) Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance. During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. After- wards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier. Storing food Storing foodStoring food Storing food

NOTE: NOTE:NOTE: NOTE: Recommendation! Recommendation!Recommendation! Recommendation! To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION: CAUTION:CAUTION: CAUTION:

Always pay attention to the storage instructions on the sales packaging. Always store food covered or packed to prevent dry- ing-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil

• Plastic bowl with lid

• Special plastic covers with elastic strip

To avoid contamination of food, respect the following To avoid contamination of food, respect the following To avoid contamination of food, respect the following To avoid contamination of food, respect the following instructions: instructions:instructions: instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see “Cleaning and Maintenance”).

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• If the appliance is out of use for long period, fol- low the instructions under "Switching off". Recommendations RecommendationsRecommendations Recommendations

• Place bottles in the door storage rack.

• With air circulation different climate zones arises. - The coldest zone is located at the rear and the lower fridge part. Recommended for the stor- age of foods such as fish, sausages and meat. - The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

• Let warm food cool down first. Ice compartment Ice compartmentIce compartment Ice compartment

The ice compartment allows you to store already frozen food at a temperature up to -4°C temporarily. In addition, observe the recommended storage times on the sales packaging. However, it is especially intended for the preparation and storage of ice cu- bes.

Operating noise Operating noiseOperating noise Operating noise

Type of sound Type of soundType of sound Type of sound Cause CauseCause Cause

Mumbling Compressor during its operation Liquid sounds Circulation of the refrigerant Click sounds The temperature control turns the compressor on or off Disturbing noises Vibration of the shelves or cooling coils Switching SwitchingSwitching Switching off offoff off

To switch off the appliance t To switch off the appliance tTo switch off the appliance t To switch off the appliance tur urur urn the temperature n the temperature n the temperature n the temperature co coco con- n-n-

trol trol trol trol to to to to the off state. the off state.the off state. the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.

• Disconnect the appliance from the power supply.

• Defrost (model dependent) and clean the device thoroughly (see ”Cleaning and Maintenance”).

• Leave open the appliance door to avoid formation of mold and unpleased odor. Tips for Energy saving Tips for Energy savingTips for Energy saving Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn’t in use.

• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more fre- quently and longer.

• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.

• Adjust the temperature not colder than necessary.

• Allow warm food to cool before placing it in the appliance.

• Open the unit door only as necessary.

• Defrost the unit regularly (model dependent).

• The seal of the appliance door must be complete- ly intact, so that the door closes properly.20

Cleaning CleaningCleaning Cleaning and Maintenance and Maintenanceand Maintenance and Maintenance

• Always disconnect the appliance from the power supply before cleaning and user maintenance.

• Do not use steam cleaners for cleaning the appli- ance; moisture could enter electrical components. Risk of electric shock! Risk of electric shock!Risk of electric shock! Risk of electric shock! Hot steam could damage the plastic parts.

• The unit must be dry before restarting operation.

CAUTION: CAUTION:CAUTION: CAUTION:

• Do not use a wire brush or other sharp, abrasive items.

• Do not use any acidic or abrasive detergents.

• Do not damage the refrigerant circuit. Cleaning the appliance including interior Cleaning the appliance including interiorCleaning the appliance including interior Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.

• Remove for that the appliance content and stor- age at a cool location.

• After everything was thoroughly dried, you can restart the operation.

CAUTION: CAUTION:CAUTION: CAUTION:

Never use metal objects (e.g. knifes) to remove ice from the evaporator. Otherwise it can be damaged. A defect evaporator can cause serious damage. To achieve better cooling and to save energy, defrost the appliance regularly as follows:

• To start the defrosting process, turn the tempera- ture control to the off state and disconnect the appliance from the power supply.

• Remove the food items and keep covered at a cool location.

• When the ice has melted, wipe the condensate away and dry the appliance interior.

• Then you may restart the appliance by connecting the plug and turning the temperature control.

Before you contact an authorized specialist Before you contact an authorized specialistBefore you contact an authorized specialist Before you contact an authorized specialist

Unit is not working properly or at all - Check the power supply. - Check the temperature setting. - Check the ambient temperature. - Check the appliance content. - Unblock the ventilation openings, install the appliance freely. Stored food is too warm - Check the temperature setting. - Open the door only as necessary. - Check the location. Loud noise during oper- ation - Check the appliance position. - See the section “Operating noise”. Water on the appliance bottom Check the temperature setting. Water on the outer surface On days of high humidity, condensation might occur on the outer appliance sur- face. No malfunction!

NOTE: NOTE:NOTE: NOTE: If a problem persists after following the steps above, contact your trader or an authorized technician. Technical Data Technical DataTechnical Data Technical Data

Appliance size: ……..….……….…51.0 x 43.9 x 47.0 cm Net weight: …………………………..……approx. 14.0 kg The right to make technical and design modifications during continuous product development remains reserved.21

Meaning of the “Dustbin” Symbol Meaning of the “Dustbin” SymbolMeaning of the “Dustbin” Symbol Meaning of the “Dustbin” Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment. Information concerning where these can be disposed of can be obtained from your local authority.

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.22

Product data sheet for household refriger Product data sheet for household refrigerProduct data sheet for household refriger Product data sheet for household refrigera

ators/freezers a tors/freezers ators/freezers a tors/freezers according to regulation (EU) No. 1060/2010 ccording to regulation (EU) No. 1060/2010ccording to regulation (EU) No. 1060/2010 ccording to regulation (EU) No. 1060/2010

Energy Efficiency class

A++ Annual Energy consumption

Net capacity cooling total l

- thereof cold storage compartment

- thereof wine storage compartment

- thereof cellar compartment

- thereof storage compartment for fresh-food l

Net capacity freezing total l

Design temperature of other compartments °C

Coldest storage temperature of wine storage compartment °C

Freezing capacity kg/24h

Wine storage appliance

1) 1Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigera- tor-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Re- frigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances

2) A+++ (highest efficiency) to G (lowest efficiency)

3) Annual energy consumption „XYZ” kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C *** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C *(***) = food freezer compartment in which the temperature is not warmer than -18°C and a min. freezing capacity in 24 h

5) Climate class SN: ambient temperature of +10°C up to +32°C

Climate class N: ambient temperature of +16°C up to +32°C Climate class ST: ambient temperature of +16°C up to +38°C Climate class T: ambient temperature of +16°C up to +43°C This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic com- patibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.23
