USER MANUAL F6721 FESTINA

Pila aplicable SR927W

Using the chronograph "CHR" 56

Using the Timer TMR> 60

Using the Zone Setting 63

When these problems occur... 66

All-reset operation 67

Specifications 68

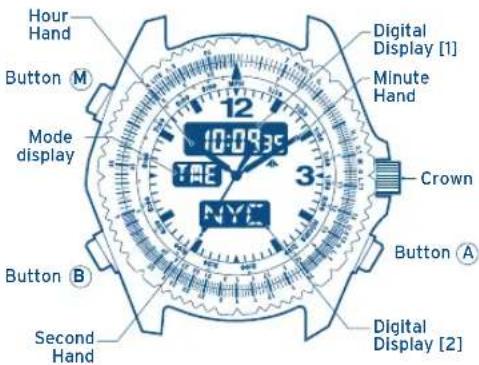

NAME OF PARTS

IFMCR60

IFMC60

FEATURES

This watch allows you to display the time in 30 cities and UTC (universal time coordinated) time worldwide by a simple button operation. The watch is also equipped with an internal EL (electroluminescence) lamp function that allows you to read the display even in the dark.

EL ILLUMINATION FUNCTION

What Is EL? Electroluminescence is a physical phenomenon whereby electrical voltage is directly converted into light in a thin film solid. This watch tilzes an EL panel for the illumination function.

How to Light the Illumination? The EL illumination comes on in the following situations.

1. When the button is pressed during the normal mode, mode, or mode displays.
2. During split time display or stop in the mode.

SETTING DE ANALOG TIME

In the case of watches where the crown is a screw type, perform the operation after loosening the screw. Make sure to tighten the screw firmly when the operation has been completed.

1. when the second hand comes to the O-second position, pull the crown out to the time adjustment position.

2. Turn the crown to align with the correct time.

3. Return the crown to its normal position.

The analog time and digital time can be adjusted separately, so you can use this watch as a dual time watch.

IFMC60

HANDING OF DIGITAL DISPLAY SECTION

A- SWITCHING MODES (Functions)

In addition to the time mode, this watch has six other modes (functions): calendar, Alarm 1, Alarm 2, Chronograph, Timer, and Zone Setting. Each press of the button switches the mode in the following sequence.

• If the watch is left in the Alarm 1, Alarm 2, or Zone Setting mode for approximately 2 minutes, it automatically returns to the time mode .

IFMCR60

B- DISPLAYING THE TIME AND CALENDAR OF CITIES WORLDWIDE

1. Press the button to select the mode or mode.

IFMCR60

1. Each time the button is pressed, a city's name and its time (calendar) are displayed sequentially.

Cities can be displayed in the order No. 2-3...31-1-2 (e.g., LON-PAR

...BUE-UTC-LON),as shown in the table,or in the opposite order,i.e.,

No.2-131...3-2(e.g.,LON-UTC-BUE...PAR-LON).

To switch to the opposite display sequence, press the A button and the B

button simultaneously.

IFMCR60

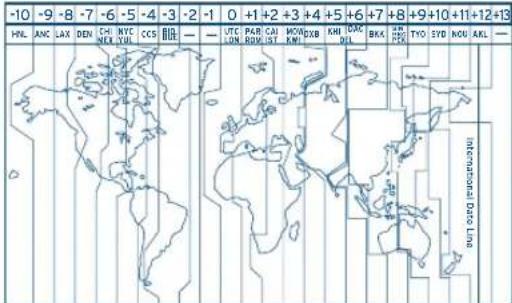

The Time Difference Between the Cities and UTC Time

NO.	Indicator	City	Time difference	Summer time
1	UTC	Universal time coordinated	+0
2	LON	London 0	+	○
3	PAR	Paris +1		○
4	ROM	Rome +1		○
5	CAI	Cairo	+2	○
6	IST	Istanbul	+2	○
7	MOV	Moscow	+3	○
8	KWI	Kuwait	+3	X
9	DXB	Dubai	+4	X
10	KHI	Karachi	+5	X
11	DEL	New Delhi	+5,5	X
12	DAC	Dacca	+6	X
13	BKK	Bangkok	+7	X
14	SIN	Singapore	+8	X
15	HKG	Hong Kong	+8	X

NO.	Indication	City	Time difference	Summe Time
16	PEK	Beijing +8 X
17	TYO	Tokyo	+9	X
18	SYD	Sydney	+10	○
19	NOU	Noumea	+11	X
20	AKI	Auckland	+12	○
21	HNL	Honolulu	-10	X
22	ANC	Anchorage	-9	○
23	LAX	Los Angeles	-8	○
24	DEN	Denver	-7	○
25	CHI	Chicago	-6	○
26	MEX	Mexico City	-6	X
27	NYC	New York	-5	○
28	YUL	Montreal	-5	○
29	CCS	Caracas	-4	X
30	RIO	Rio de Janeiro	-3	○
31	BUE	Buenos Aires	-3	X

IFMCR60

As of 1997.

* Cities (regions) with summertime are indicated by the O symbol, and cities (regions) with no summertime system are indicated by the X symbol. * Please note that at time differences and summertime for cities are subject to a

IFMCR60

C-SETTING DE DIGITAL TIME

When the time is set for one of the 30 cities and UTC (Universal time coordinated) time, the time is automatically set for the cities.

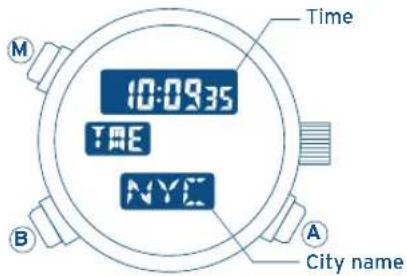

[Normal Time Display]

What Is summertime? Summertime or "daylight saving time: DST" has been inaugurated in many countries in order to efficiently utilize daylight by advancing the clock a certain amount of time, in relational to the normal time, during the summer. (This watch advances the time by 1 hour).

IFMCR60

1. Press the M button to select the mode.
2. Press the B button to display the city whose time you want to adjust.
3. Press and hold the B button for 2 seconds or more. "S.T. (summertime abbreviation.)" and "ON" or "OF" flashes.

Press the A button to select summertime (ON) or (OF) for the city.

1. Each time the B button is pressed, the flashing figures change in this sequence [Summertime ' Seconds ' Minutes'
   Hour ' 12 hours/24 hours] sequence. Make the figures that you want to adjust, flash.
2. Press the A button to adjust. (The flashing figures can be adjusted.)
3. Press the M button to return to the normal time display.

IFMCR60

• When running in the 12-hour system, pay attention to the morning (A) and afternoon (P) indicators.
• The set mode (flashing display) will automatically revert to thenormal display if left for two minutes with no input.
• Summertime can be set for any city. The Summertime setting is interlocked with all modes so that the AL1 , AL2 and SET modes of a city for which Summertime is selected, will also indicate the time according to the Summertime.

IFMC60

D- USING THE CALENDAR

Adjusting the calendar for one of the 30 cities and UTC time will automatically adjust the calendar for the remaining cities.

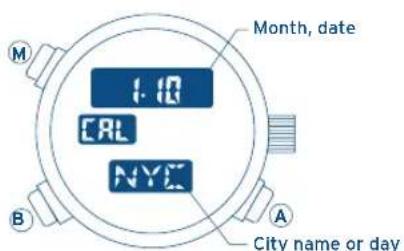

[Normal Calendar Display]

IFMCR60

[Adjusting the calendar]

1. Press the M button to move to the mode.
2. Press the B button to display the city whose calendar you want to adjust.
3. Press and hold the B button for 2 seconds or more, the "month" starts flashing. Press the A button to adjust the "month". (The flashing figures can be adjusted.)
4. Each time the (B) button is pressed, the flashing figures change in this sequence [Month 'Day' Year] sequence.

Make the item that you want to adjust, flash.

1. Press the A button covers adjust. (If the button is kept pressed, the setting changes quickly.)
2. Press the M button to return to the normal calendar display.

The calendar covers the years 1995 thru 2099.
The automatic calendar eliminates any need to adjust the watch at the end of the month or for leap years.
The day is automatically adjusted when the month, date and year are adjusted.

IFMCR60

The calendar adjustment mode (flashing display) will automatically return to the normal display if left for about two minutes with no input.
If a nonexistent date (e.g., February 30) is set, the date will automatically reset to the first of the next month once display returns to normal.

[Changing the Display]

Press the A button for more than 2 seconds to switch between city display and day display.

E- USING THE ALARM

IFMCR60

Setting and operation of the Alarm 1 and Alarm 2 are the same, only the sound of the alarm is different.

Once you turn the alarm on, it will sound for 20 seconds at the same time each day.

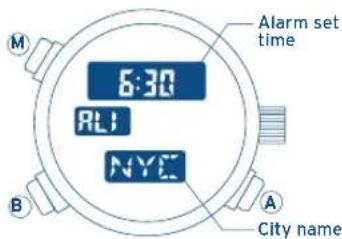

[Normal alarm display]

IFMCR60

[Setting the Alarm]

1. Press the M button to select the or mode.
2. Press the button to display the time of the city for which you want to set the alarm.
3. Press and hold the B button for 2 seconds or more, the "hour" display will start flashing. The flashing item can be adjusted. Press the A button to adjust the "hour". (If the A button is kept pressed, the setting changes quickly.)
4. Press the B button while the "hour" is flashing to make the "minute" display flash instead. Press the A button to adjust.
5. Press the M button to return to the normal alarm display.

IFMC60

While in the alarm mode you can sound the alarm continuously for as long as you keep the A button pressed.
- When you are using the 12-hour system, the alarm time will also run according to the 12-hour system. Watch the AM/PM indicator to confirm that you have made the setting you want.
The alarm mode will automatically return to the normal display if left for about two minutes with no input.

IFMC60

[Switching the Alarm Function On and Off]

[ON][OFF]

Press the A button while in the alarm mode to switch the alarm between on and off.

[How to Stop the Alarm Sound]

Press any button to stop the alarm while sounding.

IFMCR60

USING THE CHRONOGRAPH

This chronograph measures times of up to 23 hours 59 minutes 59 seconds and 99/100 seconds in units of 1/100 second. On reaching 24 hours of elapsed time, it resets to zero (0:00'00") and stops. It can also measure split times (intermediate elapsed times).

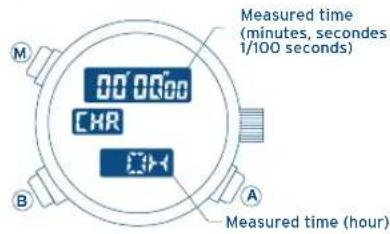

[Chronograph reset display]

IFMCR60

* About the confirmation sound A confirmation sound will be heard when the chronograph is started, stopped, and at the time of split and reset operations.

[Accumulative Time Measurement]

1. Each time the button is pressed, the chronograph is switched between start and stop.
2. Press the B button to reset while the chronograph is stopped.

IFMCR60

[Split Time Measurement]

1. Each time the A button is pressed, the chronograph is switched between start and stop.
2. Press the B button while the chronograph is measuring to display the split time for about ten seconds. (The "SPL" indicator will flash while the split time is displayed.) Each time the B button is pressed, the newest split time is displayed.
3. Press the button to reset while the chronograph is stopped.

*1: After 10 seconds, automatically returns to the measuring display.

IFMCR60

[Switching the Mode During Chronograph Measuring]

Even if the M button is pressed and the mode is switched while the chronograph is measuring, the measurement will continue.

When you return to the mode, the measured time is again displayed.

What is split time: Intermediate elapsed times from the start.

USING THE TIMER

IFMCR60

You can set the timer for a number of whole minutes up to 99 in one minute increments. At "time up" (when the set time has elapsed), the time-up alarm sounds for five seconds and the watch returns to the timer set time.

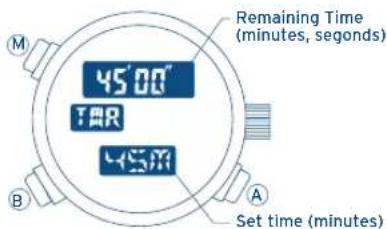

[Timer set display]

IFMCR60

[How to Set the Timer]

1. Press the M button to move to the mode.
2. Each time you press the B button, the set time will increase by one minute. (If the B button is kept pressed, the setting changes quickly.)

[How to Use the Timer]

1. Each time the A button is pressed, the timer is switched between start and stop.
2. Press the button to reverts to set time while the timer is stopped.

+1: Timer restart function.

IFMCR60

If you press the button while the timer is running, the time is reset to the set time and the timer is automatically restarted. (Timer restart function)

• About the confirmation sound
  While in the timer mode, a confirmation sound will be heard when the timer is started, stopped, and restart operations.

[Switching the Mode During Timer Running]

Even if the button is pressed and the mode is changed while the timer is running, the timer countdown will continue. When you return to the mode, the countdown time is again displayed.

IFMC60

USING THE ZONE SETTING

In the zone setting mode, you can select the cities that you want to display from among the 30 cities and UTC time that this watch is capable of displaying, and you can set Summertime for each of these cities. This allows you to easily recall and display only the cities that have been set (to ON) in any mode.

[Normal zone setting display]

IFMC60

[How to Zone Setting]

1. Press the button to move to the mode.
2. Press the B button to recall the city that you want to set.
3. When the B button is pressed for more than 2 seconds, the "ON" or "OFF" and the "city name" will flash. Press the A button to select whether the city should be displayed (ON) or not (OFF).
4. When the button is pressed while the "city name" and "ON", or "OFF", are flashing, the "S.T. (Summertime symbol)" and "ON", or "OFF", will start flashing. Press the button to select whether Summertime should be set (ON) or canceled (OFF).
5. To set other cities, press the button again to move to the adjustment mode for the next city. Follow the same procedure in sequence to set each of the desired cities.

IFMC60

1. When all the desired cities have been set, press the M button again to return to the normal zone setting display.
2. The zone setting adjustment mode (flashing display) will automatically return to the normal display if left for more than two minutes with no input.

IFMC60

[The Watch Shows Abnormal Display]

When the battery life is close to expiring, the display or functions may become abnormal. When these problems occur, replace the battery as soon as possible.

In rare cases, a strong impact, etc. may cause the display or functions to become abnormal (no display, alarm sounds incessantly, etc.) In this case, perform the all-reset operation by referring to "ALL-RESET OPERATION".

[Following Battery Replacement]

After the battery has been replaced, perform the all-reset operation by referring to "ALL-RESET OPERATION".

IFMC60

ALL-RESET OPERATIONWHEN THESE PROBLEMS OCCUR...

1. Pull the crown out.
2. Press the three buttons A, B, and M simultaneously. (While pressed, there will be no display.)
3. Release the buttons. (All the display segments will appear.)
4. Push the crown in. (At this point, a monitor sound is heard.) This completes the all-reset operation.

This completes the all-reset operation. Set each mode correctly before using the watch.

SPECIFICATIONS

IFMCR60

Type Combination (Analog + Digital) quartz watch

Accuracy Whithin 20 sec/month (At a normal temperature of

5°C/41°F - 35°C/95°F

Operating temperature

range 0^ / 32^· 55^ / 131^

Function Time Hours, minutes, seconds, City, name,

Summertime switch function

Calendar Month, date, day, city name

Alarma1/Alarma2

Chronograph 24-Hour measurement

(1/100 seconds unit),

Split time measurement

Timer 99 minutes system

(1 minute unit)

Zone setting

IFMCR60

Additional function EL lamp function

Applicable battery SR927W

Battery life Approx. 2 years. (conditions: 40-second alarm sound/day,

5-second timer time-up sound/day, 3-second

EL lamp function/day)

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle

watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
