Product type	Built-in ceramic hob
Brand	Thomson
Model	THV6400
Total power	6400 W

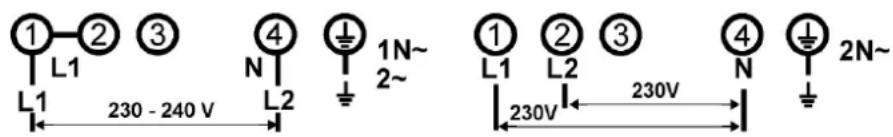

Power supply	230 V ~ 50 Hz (single-phase) or 400 V ~ 2P+N (two-phase)
Number of cooking zones	4
Control type	Touch controls
Dual concentric zone	Yes, front left zone Ø 220 / 145 mm
Zone diameters	Front left: 220 / 145 mm; Rear left: 155 mm; Rear right: 190 mm; Front right: 155 mm
Power per zone	Front left: 2200 / 1000 W; Rear left: 1200 W; Rear right: 1800 W; Front right: 1200 W
Automatic cooking function	Yes, on all zones
Control panel lock	Yes
Residual heat indicator	Yes, symbol H
Automatic safety shut-off	Yes
Energy consumption (EC hob)	177.5 Wh/kg
Appliance dimensions (W x D)	Approximately 580 x 520 mm (standard estimate)

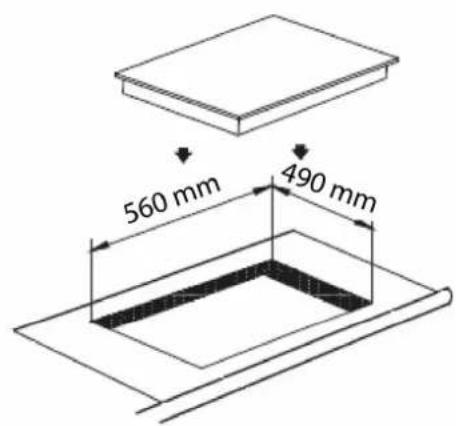

Cut-out dimensions (W x D)	Approximately 560 x 490 mm (standard estimate)
Net weight	Approximately 8 kg (estimate)
Protection class	Y
Maintenance	Clean with water and dish soap, avoid abrasives
Safety	Cut power if glass is cracked; do not use above a dishwasher

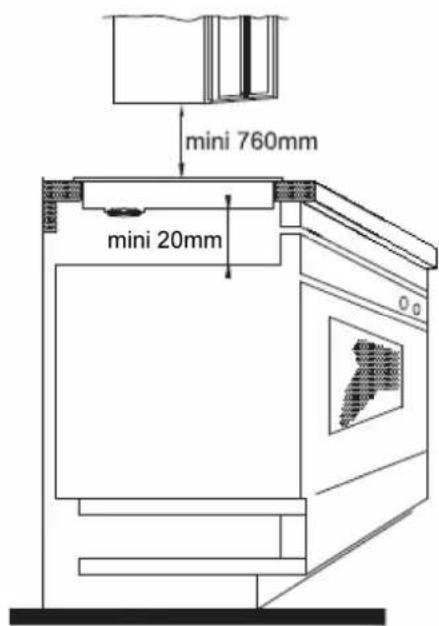

Installation	By a qualified technician, respect safety distances
After-sales service	Contact Darty (France) or Vanden Borre (Belgium)

Frequently Asked Questions - THV6400 THOMSON

How to turn on the THV6400 hob?

Press the on/off key [①] to turn on the hob. The display shows [0]. To turn off, press [①] again.

What does the [H] symbol on the display mean?

[H] indicates residual heat: the cooking zone is still hot. Do not touch it or place heat-sensitive objects on it while the symbol is lit.

How to use the dual concentric zone?

Select the front left zone, then press the dedicated key to activate or deactivate the dual zone. The power ranges from [0] to [9].

How to lock the control panel?

Turn on the hob, then simultaneously press the [-] and [+] keys of the front left zone. Then immediately press [+] to confirm. The display shows [L]. To unlock, repeat the operation within 5 seconds of powering on.

What to do if the [E] symbol appears?

The [E] symbol indicates an electronic fault. Disconnect the appliance and contact after-sales service. Do not attempt to repair it yourself.

Why does the automatic cooking not start?

Check that the zone is not still hot (symbol [H]), that the cooking level is not already at 9, and that you are using the [+] key to activate the automatic function. If the problem persists, consult the manual.

How to clean the ceramic hob?

Turn off and let the appliance cool down. Clean with a damp cloth and mild dish soap, or a special ceramic hob cleaner. Never use abrasives, metal scouring pads, or steam cleaners.

What to do if a cooking zone does not turn on?

Check that the hob is properly powered (fuse, connection), that the lock is not activated (symbol [L]), and that the touch keys are clean and dry. If the problem persists, contact after-sales service.

What types of pans to use?

Use pans with flat bottoms, preferably stainless steel or enamelled cast iron. Avoid abrasive bottoms (raw cast iron) and synthetic or aluminium materials that could melt.

How to install the hob correctly?

Installation must be performed by a qualified electrician. Respect the cut-out dimensions (approx. 560x490 mm), the sealing gasket, and safety distances (50 mm from wall, at least 760 mm under a hood). Ensure adequate ventilation.

USER MANUAL THV6400 THOMSON

Chere cliente, cher client,

Hotline Darty France

Darty Holdings SAS ©

14 route d'Aulnay, 93140 Bondy, France

07/05/2018

Thank you for having chosen our ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for future reference.

SUMMARY

SAFETY 18

PRECAUTIONS BEFORE USING 18
USING THE APPLIANCE 18
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 19
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 20
OTHER PROTECTIONS 20

DESCRIPTION OF THE APPLIANCE 21

TECHNICAL DATA 21
CONTROL PANEL 21

USE 22

SENSITIVE TOUCHES 22
DISPLAY 22
RESIDUAL HEAT INDICATION 22

STARTING UP THE APPLIANCE 22

BEFORE USING YOUR NEW HOB 22
STARTING-UP 22
EXTENSION ZONE 23
AUTOMATIC COOKING 23
CONTROL PANEL LOCKING 23

COOKING ADVICES 24

EXAMPLES OF POWER SETTING: 24

MAINTENANCE AND CLEANING 24

WHAT TO DO IN CASE OF A PROBLEM 25

ENVIRONMENT PROTECTION 25

INSTALLATION INSTRUCTIONS 26

ELECTRICAL CONNECTION 28

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.
• CAUTION : The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots.) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• WARNING : Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical data

Type	THV6400
Total power	6400 W
Energy consumption for the hob EChob*	177.5 Wh/kg
Front left heating zone	Ø 220 / 145 mm
Nominal power	2200 / 1000 W
Standardised cookware category*	C
Energy consumption ECcw*	171.1 Wh/kg
Rear left heating zone	Ø 155 mm
Nominal power	1200 W
Standardised cookware category*	A
Energy consumption ECcw*	173.8 Wh/kg
Rear right heating zone	Ø 190 mm
Nominal power	1800 W
Standardised cookware category*	B
Energy consumption ECcw*	191.3 Wh/kg
Front right heating zone	Ø 155 mm
Nominal power	1200 W
Standardised cookware category*	A
Energy consumption ECcw*	173.8 Wh/kg

• calculated according to the method of measuring performance (EN 60350-2).

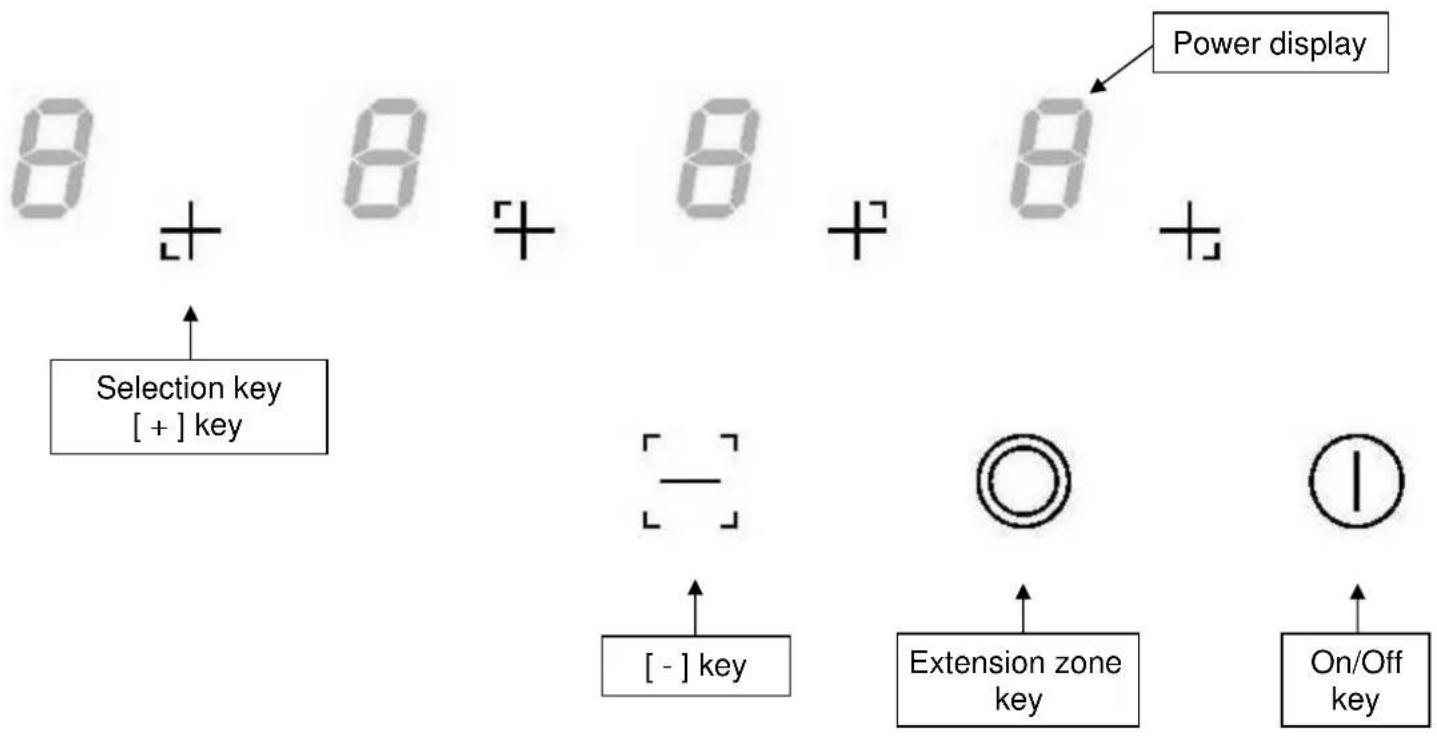

Control panel

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

Touch only one key on the same time.

Display

Display Designation Function

0 Zero The heating zone is activated

1...9 Power level Selection of the cooking level

A Heat accelerator Automatic cooking

E Error message Electronic failure

H Residual heat The heating zone is hot

L Locking The control panel is locked

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display. The symbol [H] disappears when the heating zone may be touched safely. When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Starting-up

• Start-up/ switch off the hob

Action	Control panel	Display
To start	press key [①]
To stop	press key [①]
· Start-up/ switch off a heating zone
Action	Control panel	Display
Increase power	press key [+]	[1] to [9]
Decrease power	press key [-]	[9] to [1]
Stop	press simultaneous [+] and [-]	[0] or [H]
or press key [-]	[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Extension zone

- Switch off/on the extension zone

Action

Control panel

Display

select zone

Press key [+ ]

[0]

Increase po

Press key [+ ]

[0]to[9]

Switch off

Touch key [ ]

Extension zone

Switch on

Touch key [ ]

Extension zone

light is off

light is on

Automatic cooking

All the cooking zones are equipped with an automatic "go and stop" cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.

- Start-up :

Action

Control panel

Display

Zone selection

press key [+ ] from the zone [0]

Full power setting

repress key [+] [1] to [9]

Automatic cooking

repress key [ + ]

Power level selection

press key [-]

[9] wents to [8][7]

(for example 7

[7] is blinking with [A]

[9] is blinking with [A]

- Switching off the automatic cooking :

Action

Control panel

Display

Zone selection

press key [ + ] from the zone

[7] is blinking with [A]

(for example 7

Power level selection

press key [-] or [+]

Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ ① ]).

- Locking

Action

Control panel

Display

Start

Press key [ ①]

Hob locking

Press simultaneously [ - ]

and [+] at left

Press key [+ ]

[L] on 4 displays

[0] or [H] on 4 displays

No modification

- Unlocking

Action

Control panel

Display

Start

Press key [①]

In the 5 seconds after start:

Unlocking the hob

Press simultaneously [ - ]

and [ + ] at left

Press key [-]

No light on the displays

[L] on 4 displays

[0] or [H] on 4 displays

Examples of power setting:

(The values below are indicative)

1 to 2	Melting, Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering, Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam Vegetables, fish, meat
4 to 5	Water Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking, Simmering Meat, liver, eggs, sausages,
7 to 8	Cooking Potatoes, fritters, waffles
9	Frying, roasting, Boiling water Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-driven or pressure appliance.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn't start-up:

• The hob is badly connected to the electrical system.
• The protection fuse has blown.
• The locking function is activated
• The sensitive keys are covered by grease or water.
• An object is covering the control panel.

The symbol [E] displays :

• Call the After-sales Service.

One or all cooking zones cut-off:

• The safety system has engaged
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
• The pan is empty and has overheated.

The automatic cooking system « go and stop » doesn't start-up:

• The cooking zone is still hot [H]
• The highest power level is set [9]
• The cooking level was engaged with [-]

The symbol [ L ] displays :

Refer to the chapter control panel locking page.

The control panel displays [Er03] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [ER21]:

• The hob is overheated, let it cool and then turnit on again.

The control panel displays [U400], [Er25] or [U4]:

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.

• The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

• Don't dispose of your appliance with general household waste

• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

Advice for the installer

IMPORTANT

The installation and the maintenance come under the exclusive responsibility of specialists. The installer is held to respect the legislation and the safety standards enforce in his home country. Failure to respect these conditions results in loss of warranty.

Installation

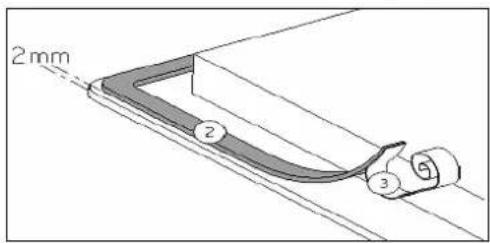

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. Its installation has to be done carefully, in conformity with the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

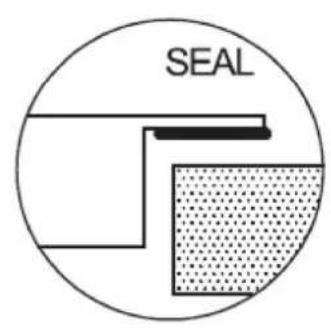

Built-in:

• Refer to the diagram below for cut out sizes from work plan. Ensure that there is a distance of 50mm minimum between the hob and the wall or sides. The work plan must have a minimum thickness of 30mm and must be heat resistant.

• The hobs are classified as "Y" class for heat protection. Ideally during the built-in step, the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or appliance must stand higher than the hob.

• The piece of furniture or the support in which the hob has to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .

• The mural rods of edge must be heat-resisting.
• Do not install the hob to the top of a non ventilated oven or a dishwasher.
• If a drawer is below the hob, to guarantee a good air circulation and good cooling system of the appliance, maintain a gap of 20mm minimum between the bottom of the drawer and the inferior part of the hob.

• WARNING: The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• The connection cord should be subjected, after built-in step, to no mechanical constraint, such for example of the fact of the drawer. Materials which are often used to make worktops can expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.

• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance has only to be connected to a network 230V 50 / 60Hz

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

calculated with the simultaneous factor following the standard EN 60 335-2-6

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz 1	Phase + N 3 x	2.5 mm²	H 05 VV - F H 05 RR - F	25 A *
400V~ 50/60Hz 2	Phases + N	4 x 1.5 mm²	H 05 VV - F H 05 RR - F	16 A *

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V 1P + N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminate "earth", the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphas 400V\~2P+N

Attach the earth to the terminate "earth", the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS ©

14 route d'Aulnay, 93140 Bondy, France

07/05/2018

THOMSON is a trademark of Technicolor or its Affiliates used under license by DARTY

Beste klant!

BESCHRIJVING VAN HET APPARAAT 34

[9] knippert met [A]

[9] terug maar [8][7]

tot [7] met [A] knippert

[7] knippert met [A]

[0]

Darty Holdings SAS ©
