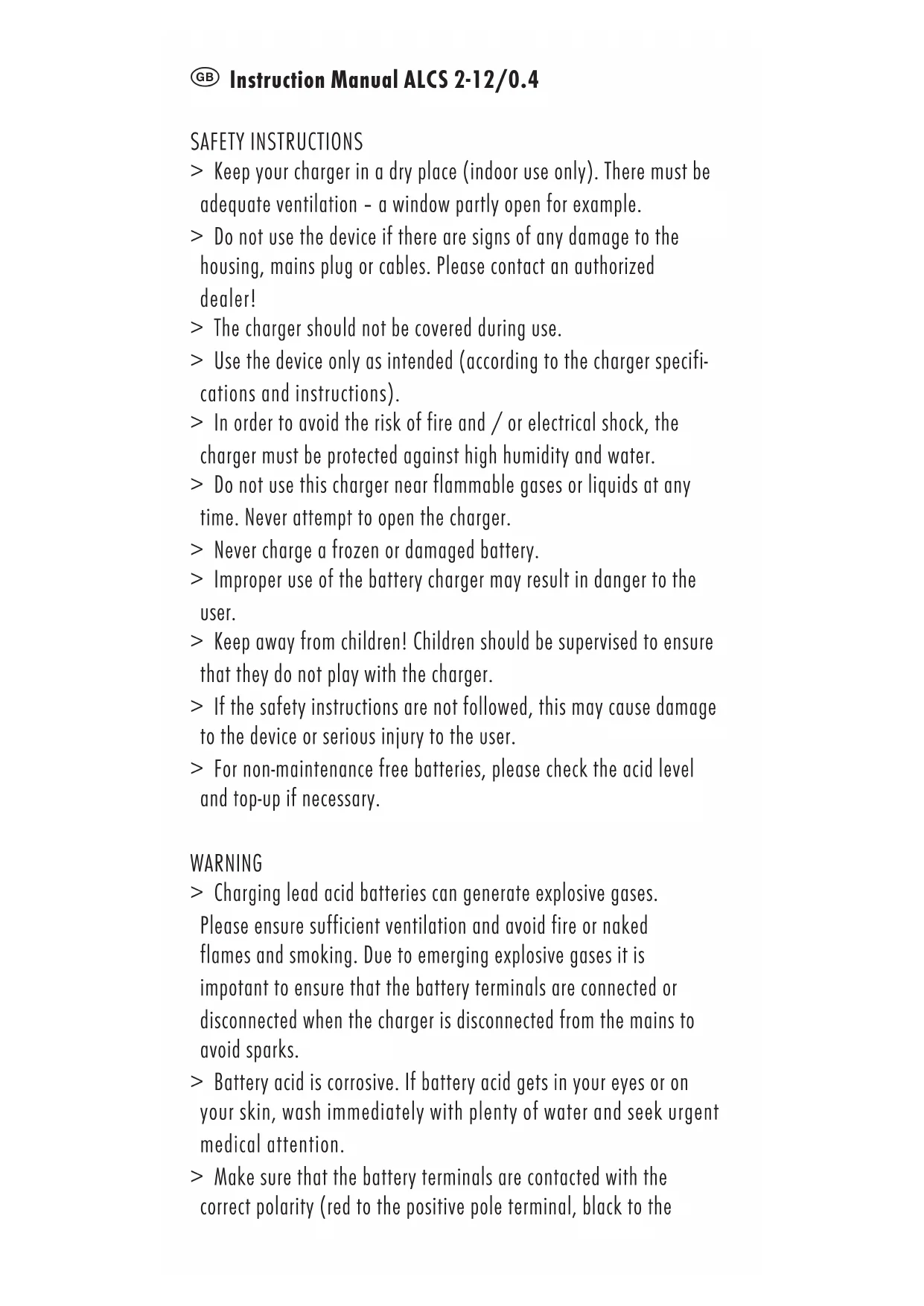

USER MANUAL ALCS 2 ANSMANN
ALCS 2-12/0.4 D E F H I P S
Europe (2-pole) UKALCS 2-12/0.4[ KLICK
1. Adjust secondary voltage
Adjust the right voltage on the charger with the provided adjusting tool.
2. Connect charger to the battery with the correct polarity
First connect the charger to the battery to be charged. Connect the red pole terminal to the positive pole (+) of the battery, then the black pole terminal to the negative (-) pole of the battery. Make sure that the battery terminals are connected correctly. If the bat- tery is installed in the vehicle and the battery terminals are not accessible, please consult the vehicle manual for advice. If the clamps are accidently attached to the poles the wrong way around, the “FAULT” LED lights red. Reconnect the terminals with the correct polarity immediately.
3. Connect the device to the mains supply
Insert the mains plug of the charger into the socket and switch on. The „POWER“ LED will lights green.
4. Battery is chargedAfter connecting the mains cord and the battery terminal the “POW-
ER” LED and the “CHARGE” LED will lights green.
5. Battery fully charged
Once the battery is fully charged the “CHARGE” LED goes out and the “FULL” LED will lights green. Unplug the mains cord and afterwards remove the battery terminals of the battery, first the black terminal (-) and then the red (+) terminal.
Alternatively, the battery can be left connected for an extended peri- od (e.g. for the winter). The charger detects any loss of capacity and recharges automatically. SPECIFICATIONS Input Voltage 100-240V AC / 50Hz – 60Hz Protection class II Protection IP20 Charge voltage 2V: 2,3V / 6V: 6,9V / 12V: 13,8V Charging current 400mA Battery capacity 1,2Ah – 40Ah DISCLAIMERS The information in this manual may be amended without notice. ANSMANN assumes no liability for any direct, indirect, incidental or consequential damages or any other damages caused by improper handling or disregard of the information contained in this manual. WARRANTY INFORMATION ANSMANN offers a 3 year warranty on this device. No guarantee will be given on damage to the charger due to non-compliance with these instructions. Information subject to change without prior notice. ANSMANN assumes no liability for printing errors. 08/2013 Návod k použití ALCS 2-12/0.4
